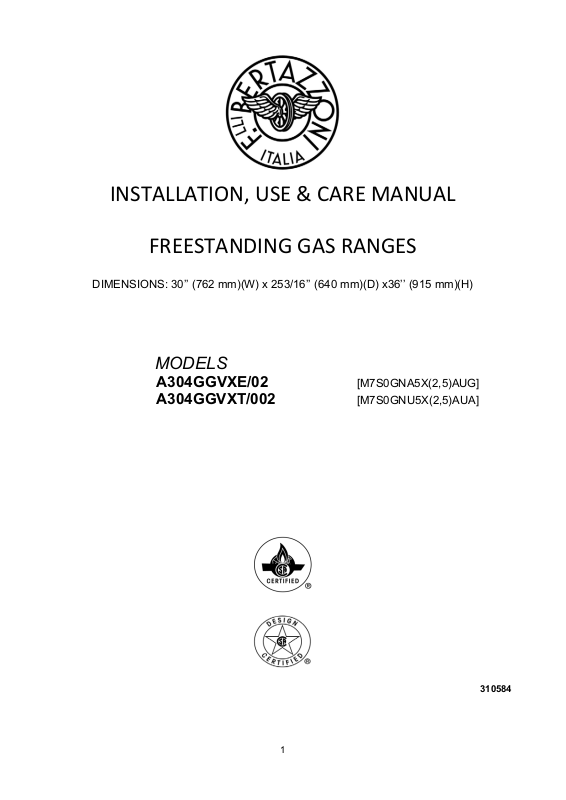

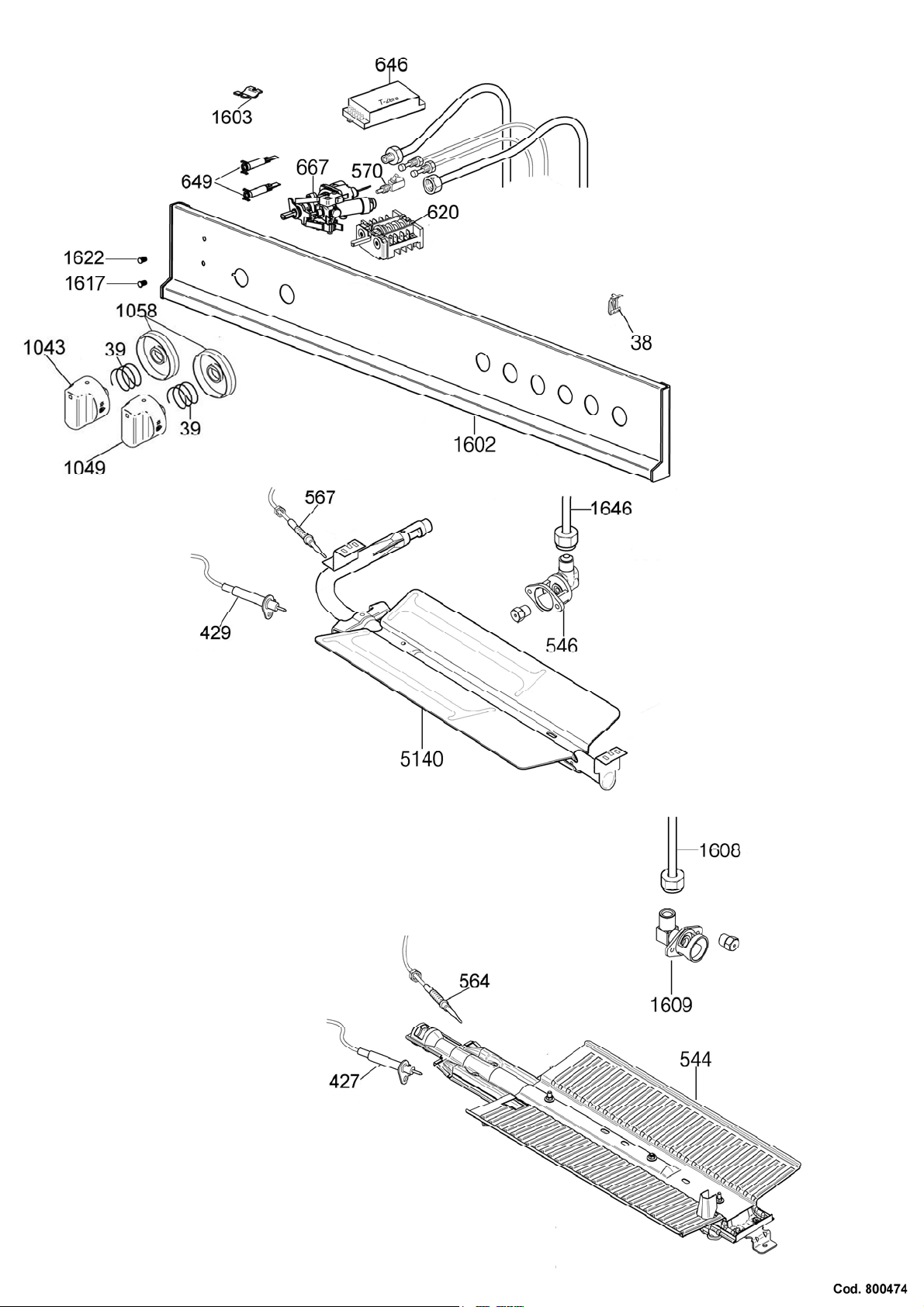

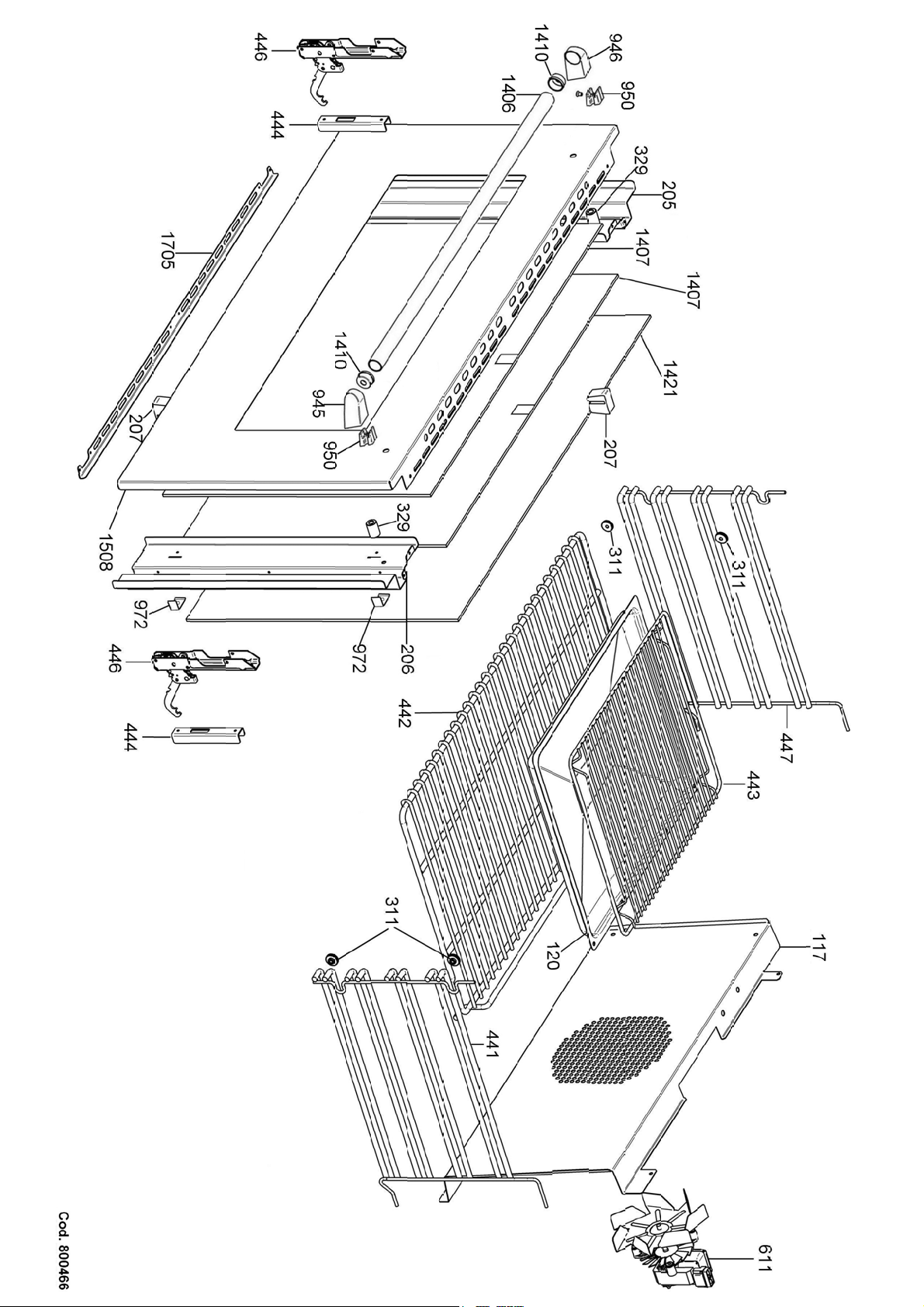

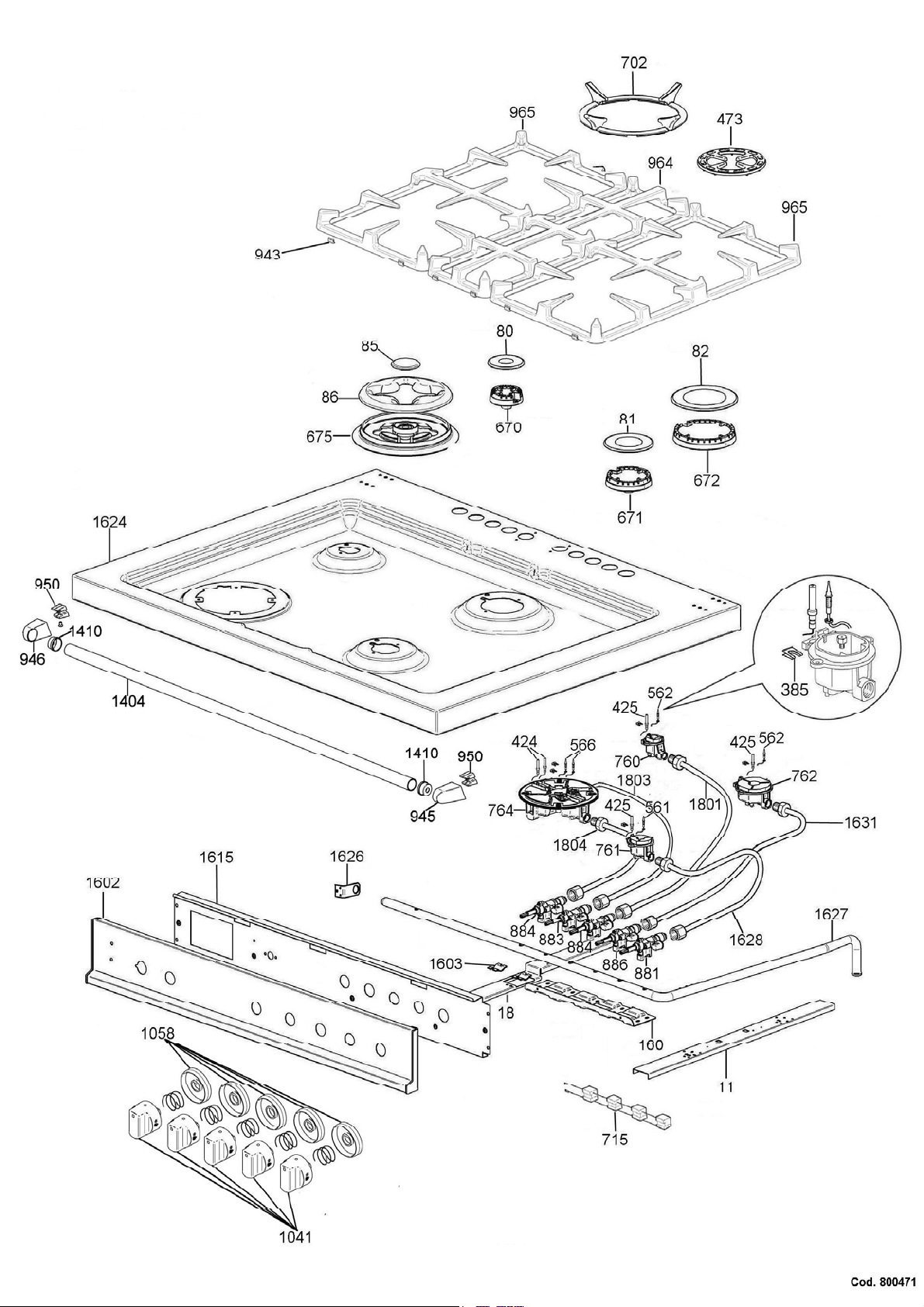

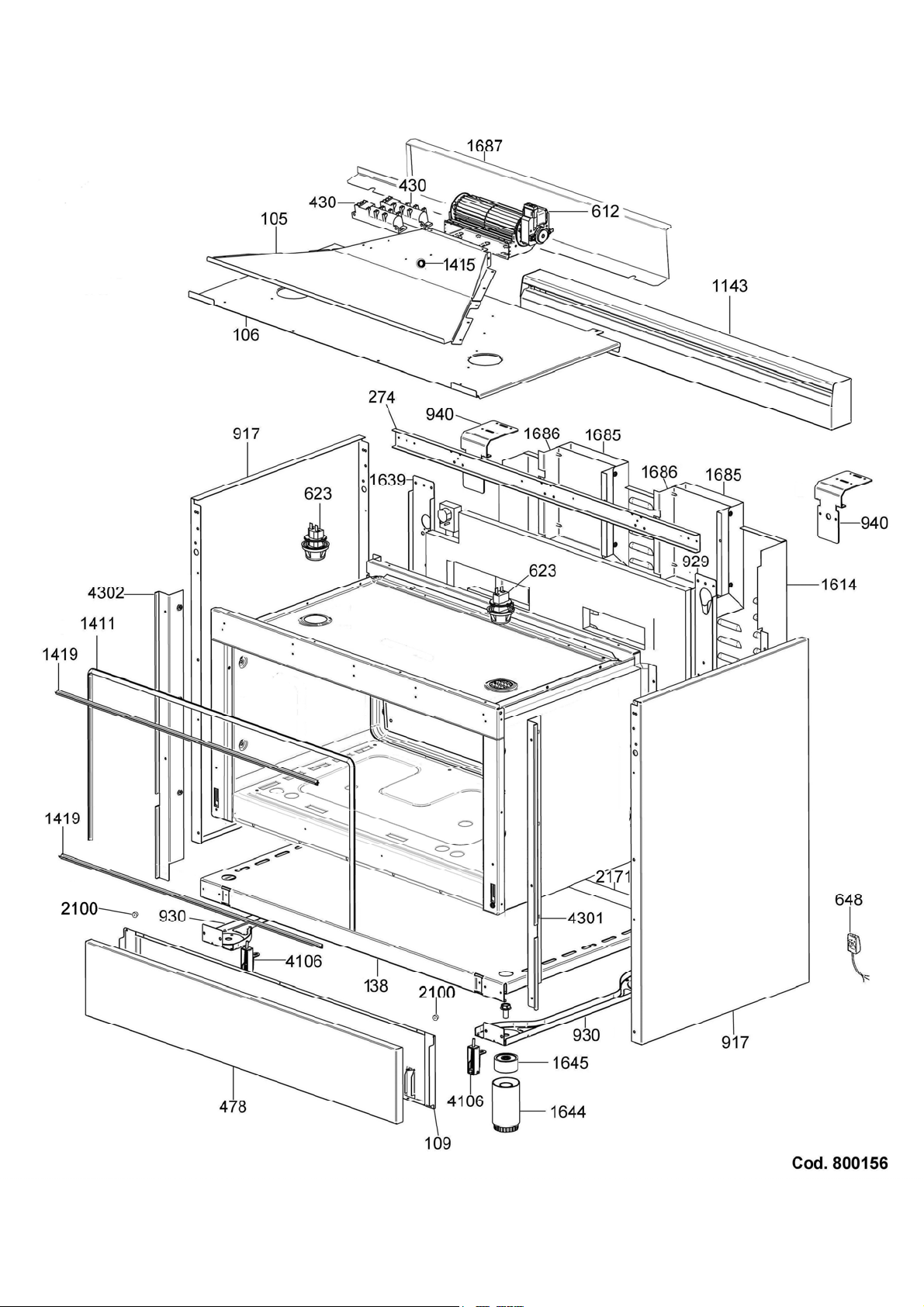

Bertazzoni A304GGVXE-02, A304GGVXT-002 User Manual

INSTALLATION, USE & CARE MANUAL

FREESTANDING GAS RANGES

DIMENSIONS: 30’’ (762 mm)(W) x 253/16’’ (640 mm)(D) x36’’ (915 mm)(H)

MODELS

A304GGVXT/002 [M7S0GNU5X(2,5)AUA]

A304GGVXE/02 [M7S0GNA5X(2,5)AUG]

1

310584

From the desk of the President

Dear new owner of a Bertazzoni product,

I want to thank you for choosing one of our
beautiful PRO ranges. We know that you have many
brands and products to choose from and we are
thrilled that you have decided to take onw of your

BERTAZZONI SpA

Via Palazzina 8

42016 Guastalla RE

ITALY

WWW.BERTAZZONI‐ITALIA.COM

products into your home.

We take as much pride in making our ranges as we
hope you will in owning them. My family started
manufacturing cooking appliances in 1882. Each of
our products is a blend of Italian design finess and
superior appliance technology. While we can not
replace your unique talent at cooking delicious
recipes for yourself, your family and your friends,
we try our best to make cooking easier, more
effective and more fun.

Our appliances are designed according to the
strictest safety and performance standard for the
European and the North American market. We
follow the most advanced manufacturing
philosophy. Each appliance leaves the factory after
thorough quality inspection and testing. Our
distributors and our service partners are ready to
answer any questions you may have regarding how
to install, use and care for your Bertazzoni product.

This manual will help you learn to use the product
in the safest and most effective manner and care
for it so that it may give you the highest satisfaction
for years to come.

The manual also includes directions for the
professional installer that will install the product in
your home. We recommend using factory‐trained
professionals for the delicate task of installing and
testing appliances in your home. Please call
Customer Service at (800) if you need help locating
a factory‐trained professional installer in your area.

Please keep this manual for future use.

Grazie!

2

TABLE OF CONTENTS

WARRANTY AND SERVICE........................................................................................................................................ 4

IMPORTANT SAFETY INFORMATION ........................................................................................................................ 5

PRODUCT SPECIFICATIONS.......................................................................................................................................6

INSTALLATION

BEFORE INSTALLATION ............................................................................................................................................ 7

INSTALLING THE LEGS.............................................................................................................................................. 8

INSTALLING THE WORKTOP FRONTGUARD (OPTIONAL) ...........................................................................................8

INSTALLING THE BACKGUARD................................................................................................................................ 10

INSTALLING THE ANTI‐TIP STABILLTY DEVICE.......................................................................................................... 11

INSTALLATION REQUIREMENTS .............................................................................................................................11

INSTALLATION ADJACENT TO KITCHEN CABINETS................................................................................................... 12

EXHAUST HOOD INSTALLATION ............................................................................................................................. 12

ELECTRICAL CONNECTION...................................................................................................................................... 13

WIRING DIAGRAM ....................................................................................................................................................... 13

GAS CONNECTION ................................................................................................................................................. 14

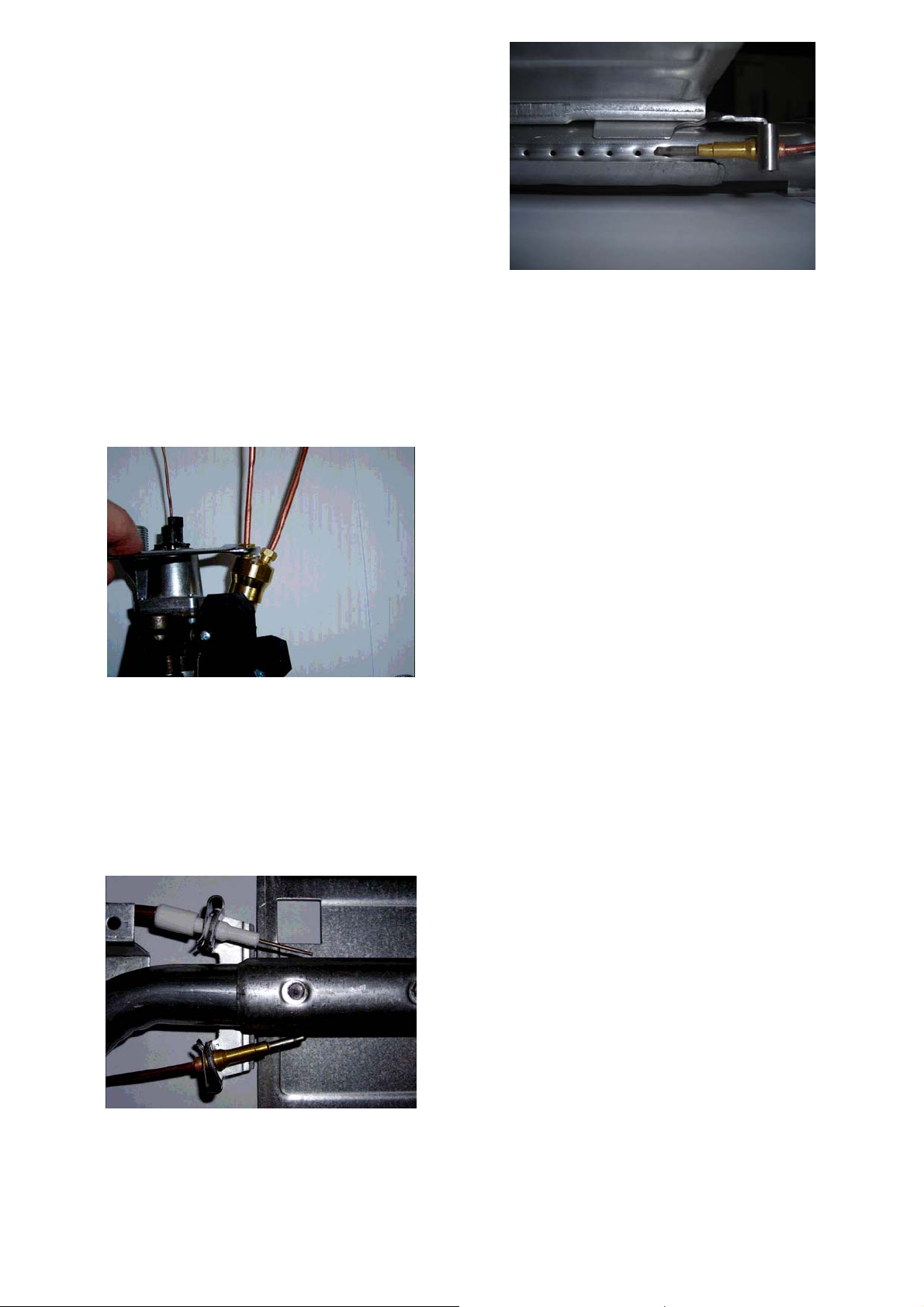

GAS CONVERSION ................................................................................................................................................. 16

STEP 1: PRESSURE REGULATOR ................................................................................................................................... 16

STEP 2: SURFACE BURNERS..........................................................................................................................................17

STEP 3: MAIN OVEN BURNER....................................................................................................................................... 17

STEP 4: BROILER BURNER ............................................................................................................................................ 18

STEP 5: VISUAL CHECKS................................................................................................................................................ 19

STEP 6: MINIMUM FLAME ADJUSTMENT ....................................................................................................................20

INSTALLATION CHECKLLST .....................................................................................................................................22

FINAL PREPARATION ............................................................................................................................................. 22

USER MANUAL

ROOM VENTILATION ............................................................................................................................................. 23

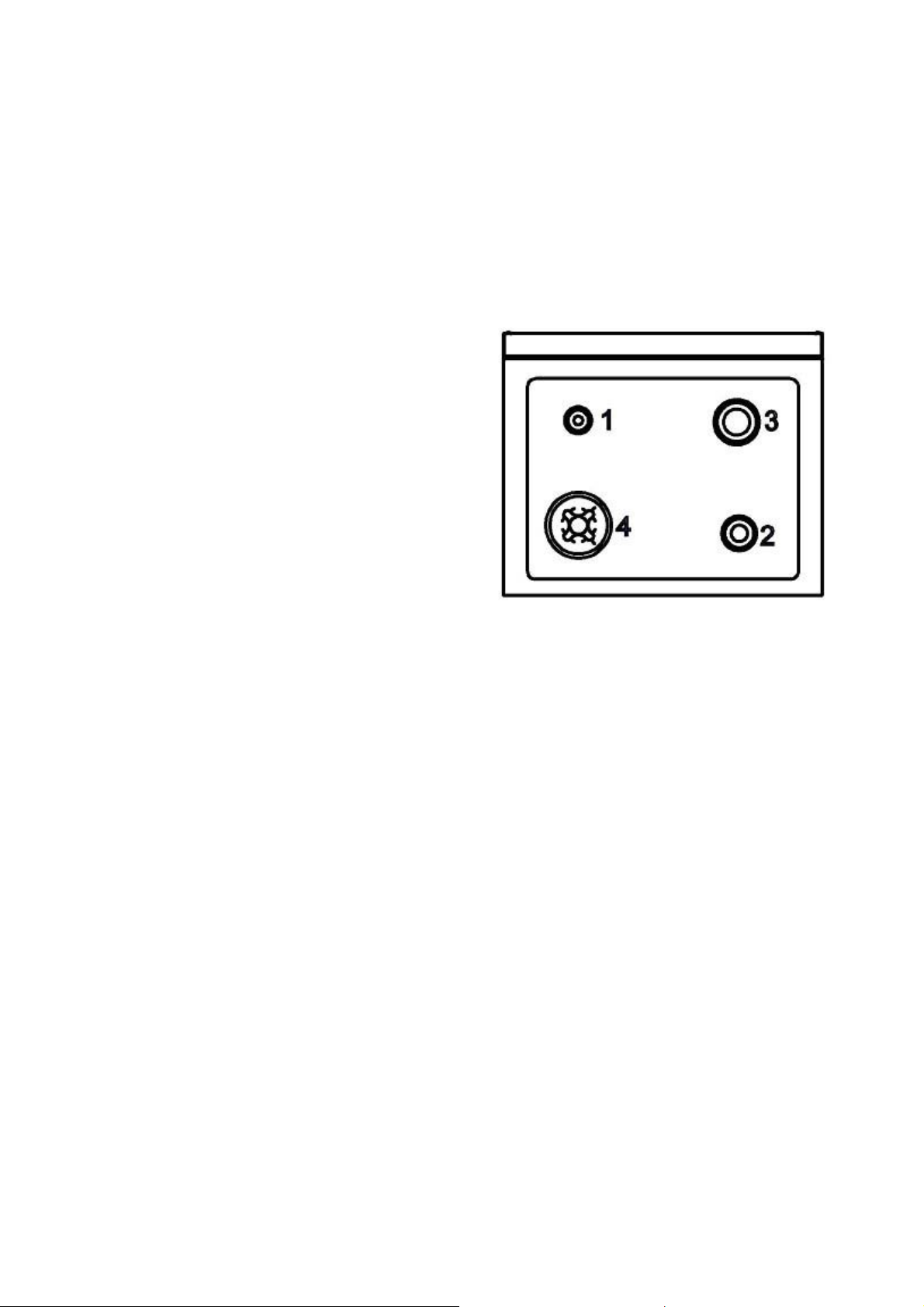

SURFACE BURNER LAYOUT ....................................................................................................................................23

SURFACE COOKING................................................................................................................................................ 24

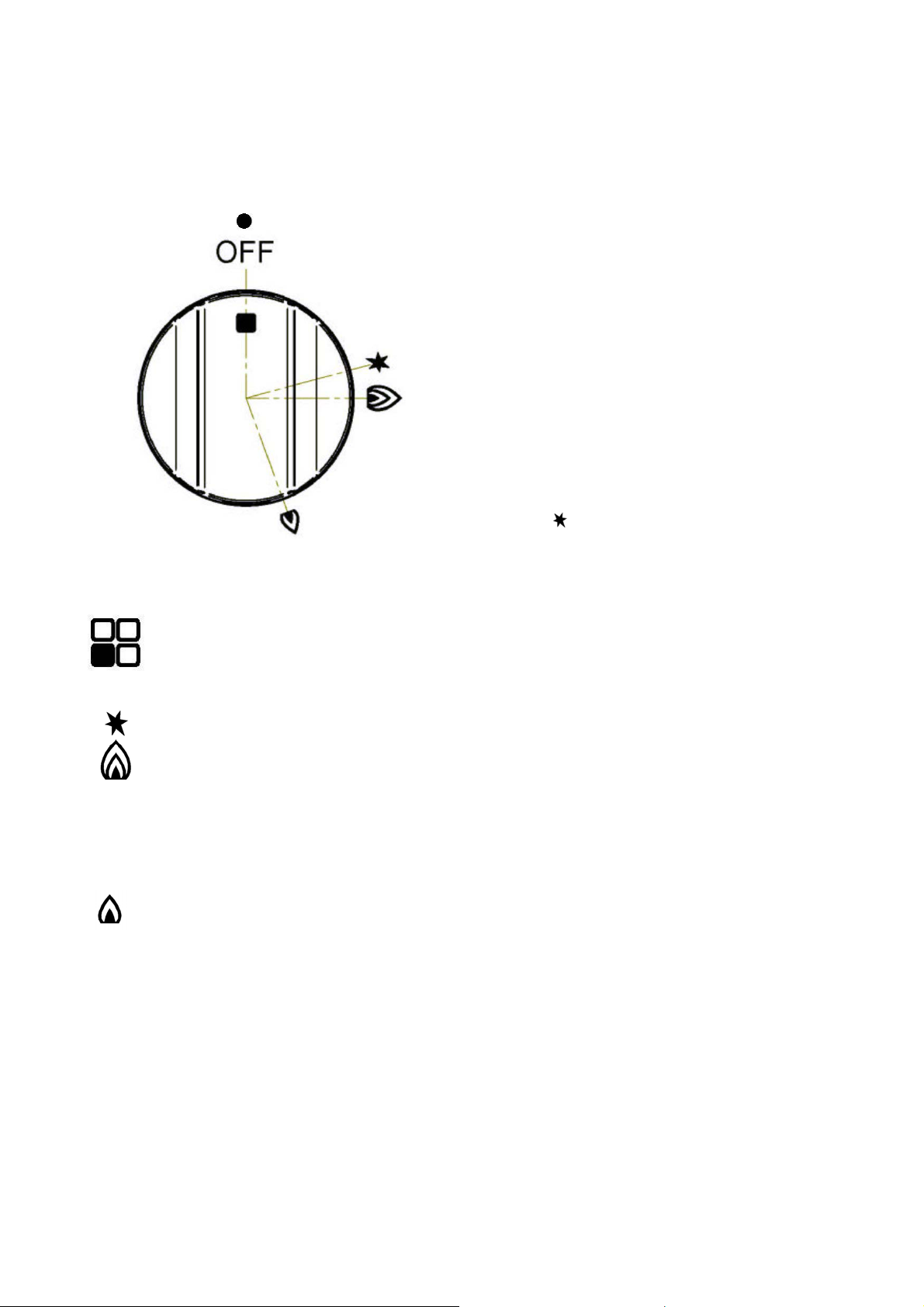

CONTROL PANEL SYMBOLS.......................................................................................................................................... 24

SURFACE BURNER OPERATION....................................................................................................................................24

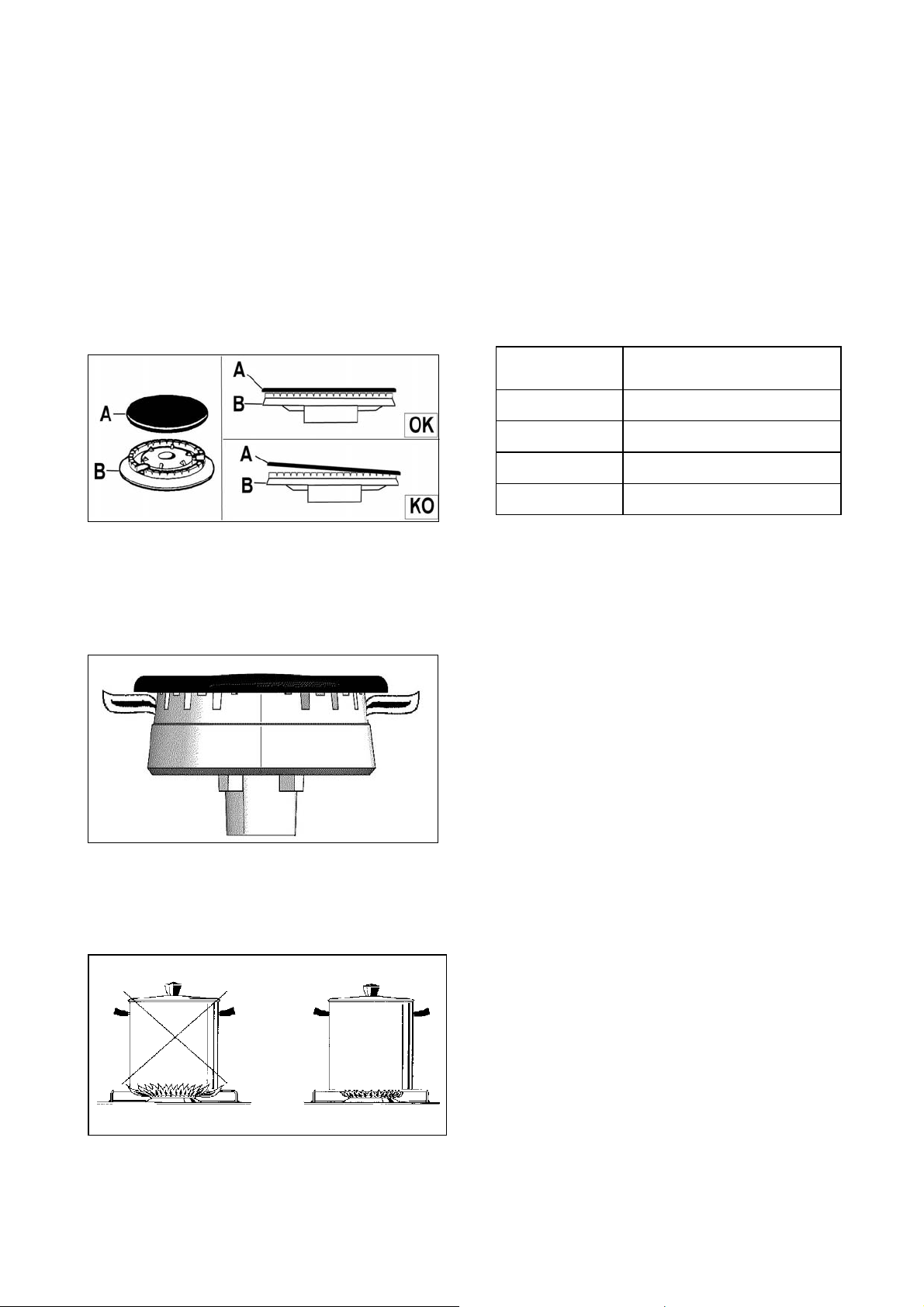

TIPS FOR USING BURNERS CORRECTLY........................................................................................................................25

TIPS FOR USING PANS CORRECTLY .............................................................................................................................. 25

OVEN COOKING..................................................................................................................................................... 26

CONTROL PANEL SYMBOLS.......................................................................................................................................... 26

OVEN SHELVES............................................................................................................................................................. 27

GAS OVEN OPERATION ................................................................................................................................................27

CONVECTION COOKING ............................................................................................................................................... 28

COOKING WITH THE GAS BROILER.............................................................................................................................. 29

MAINTAINING YOUR RANGE.................................................................................................................................. 30

CLEANING YOUR RANGE........................................................................................................................................ 30

IMPORTANT APPLIANCE INFORMATION ................................................................................................................31

3

WARRANTY AND SERVICE

All Bertazzoni products carry a 2 year parts and labor warranty.

Service on all Bertazzoni products shall be carried out by factory‐trained professionals only.

For warranty service please contact Customer Service at the numbers indicated below.

CUSTOMER SERVICE

English/spanish hotline (866) 905‐0010
French (800) 561‐7625

Fax (714) 428‐0040

Email

[e-mail]

Mailing address

SERVICEPOWER

1503 South Coast drive

Suite 320

Costa Mesa CA 92626

REPLACEMENT PARTS

Only Bertazzoni replacement parts may be used in performing service on the appliance.

Replacement parts are available from factory authorized parts distributors.

AP Wagner PHONE

Reliable Parts PHONE [phone] FAX [phone]

Coast PHONE [phone] FAX [phone]

716 961 7131 FAX [phone]

4

IMPORTANT SAFETY INFORMATION

PLEASE READ AND FOLLOW THESE IMPORTANT

INSTRUCTIONS FOR THE SAFETY OF YOUR HOME

AND OF THE PEOPLE LIVING IN IT.

Save this Manual for local electrical inspector’s
use.

Read and save these instructions for future
reference.

Observe all governing codes, ordinances and
regulations.

WARNING!

Read this instruction booklet before installing
and using the appliance.

The manufacturer will not be responsible for
any damage to property or to persons caused by
incorrect installation or improper use of the
appliance.

The manufacturer reserves the right to make
changes to its products when considered
necessary and useful, without affecting the
essential safety and operating characteristics.

WARNING!

If the information in this manual is not followed

exactly, a fire or explosion may result causing

property damage, personal injury or death.

Do not store or use gasoline or other flammable
substances in the vicinity of this or any other
appliance.

Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.

In Massachusetts: All gas products must be
installed by a "Massachusetts" licensed plumber
or gasfitter. A "T" handle type manual gas valve
must be installed in the gas line connected to this
appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s
instructions.

• If you cannot reach your gas suppliers, call the
fire department.

This appliance has been designed for non‐
professional, domestic use only.

Do not use this appliance to heat a room.

Do not place any pot or pan on the open oven
door. The door is made of glass and it can break
if loaded with a weight.

Before beginning installation, please read these
instructions completely and carefully.

Do not remove permanently affixed labels,
warnings, or plates from the product. This may
void the warranty. ‐Please observe all local and
national codes and ordinances.

Please ensure the range is properly grounded.

The installer should leave these instructions with
the consumer who should retain for local
inspector's use and for future reference.

The plug should always be accessible.

Installation must conform with local codes or in
the absence of codes, the National Fuel Gas Code
NSIZ223.1‐latest edition. Electrical installation
must be in accordance with the National
Electrical Code, ANIS/NFPA70 ‐ latest edition
and/or local codes. IN CANADA: Installation must
be in accordance with the current CAN/CGA‐
B149.1 National Gas Installation Code or
CAN/CGA‐B 149.2, Propane Installation Code
and/or local codes. Electrical installation must be
in accordance with the current CSA C22.1
Canadian Electrical Codes Part 1 and/or local
codes.

Warning!

This range can tip. Injury to persons could result.
Install anti-tip device shipped with range. See
Installation Instructions.

Installation of any gas‐fired equipment should be
made by a licensed plumber. A manual gas shut‐
off valve must be installed in the gas supply line
ahead of the oven in the gas flow for safety and
ease of service.

5

PRODUCT SPECIFICATIONS

Dimensions (insert drawings front, side and back

Weight

Burner power

Auxiliary 3400 BTU/h

Semi‐rapid 6100 BTU/h

Rapid 10400 BTU/h

Dual burner (inner) 2800 BTU/h

Dual burner ( outer) 12000 BTU/h

Oven 14500 BTU/h

broiler 12000 BTU/h

6

BEFORE INSTALLATION

This appliance shall only be installed by an
authorized professional.

This appliance shall be installed in accordance
with the manufacturer’s installation instructions.

This appliance must be installed in accordance
with the norms & standards of the country where
it will be installed. The installation of this
appliance must conform to local codes and
ordinances. In the absence of local codes,
Installations must conforms to American National
Standards, National Fuel Gas Code ANSI Z223.1 –
latest edition** or B149.1.

The appliance, when installed, must be
electrically grounded in accordance with local
codes or, in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70.

If local codes permit, a flexible metal appliance
connection with the new AGA or CGA certified
design, max. 5 feet (1,5 m) long, ½” I.D. is
recommended for connecting this appliance to
the gas supply line. Do not bend or damage the
flexible connector when moving the appliance.

This appliance must be used with the pressure
regulator provided. The regulator shall be
properly installed in order to be accessible when
the appliance is installed in its final location. The
pressure regulator must be set for the type of gas
to be used. The pressure regulator has ½” female
pipe thread. The appropriate fitting must be
determined based on the size of your gas supply
line, the flexible metal connector and the shutoff
valve.

WARNING!

Do not use aerosol sprays in the vicinity of this

appliance while it is in operation

ROOM VENTILATION: An exhaust fan may be
used with the appliance; in each case it shall be
installed in conformity with the appropriate
national and local standards. Exhaust hood
operation may affect other vented appliances; in
each case it shall be installed in conformity with
the appropriate national and local standards.

TYPE OF GAS

This appliance is shipped from the factory for use
with LP gas. For use with Natural gas please
follow the conversion procedure described on pg.

17. A step by step conversion procedure is also
included with each set of Natural gas nozzles.

GAS PRESSURE

The maximum inlet gas supply pressure incoming
to the gas appliance pressure regulator is 20’’
water column (5 kPa) .

The minimum gas supply pressure for checking
the regulator setting shall be at least 1“ w.c. (249
Pa) above the inlet specified manifold pressure to
the appliance (this operating pressure is 11” w.c.
(2.75 kPa) for LP Gas and 4” w.c. (1.00 kPa) for
Natural Gas.

The appliance must be isolated from the gas
supply piping system by closing its individual
manual shutoff valve during any pressure testing
of the gas supply piping system at test pressures
equal to or less than ½ psi (3.5 kPa).

All opening and holes in the wall and floor, back
and under the appliance shall be sealed before
installation of the appliance.

A manual valve shall be installed in an accessible
location in the gas line external to the appliance
for the purpose of turning on or shutting off gas
to the appliance

7

INSTALLING THE LEGS

INSTALLING THE HOB RAIL AND OVEN

Bertazzoni ranges must be used only with the
legs properly installed.

Four height‐adjustable legs are shipped with the
range in the polysterene container situated over
the appliance.

Before installing the legs, position the appliance
near its final location as the legs are not suitable
for moving the appliance over long distances.

After unpacking the range, raise it enough to
insert the legs in the appropriate receptacles
situated on the lower part of the appliance.
Lower the range gently to keep any undue strain
from legs and mounting hardware. If possible use
a pallet or lift jack instead of tilting the unit.

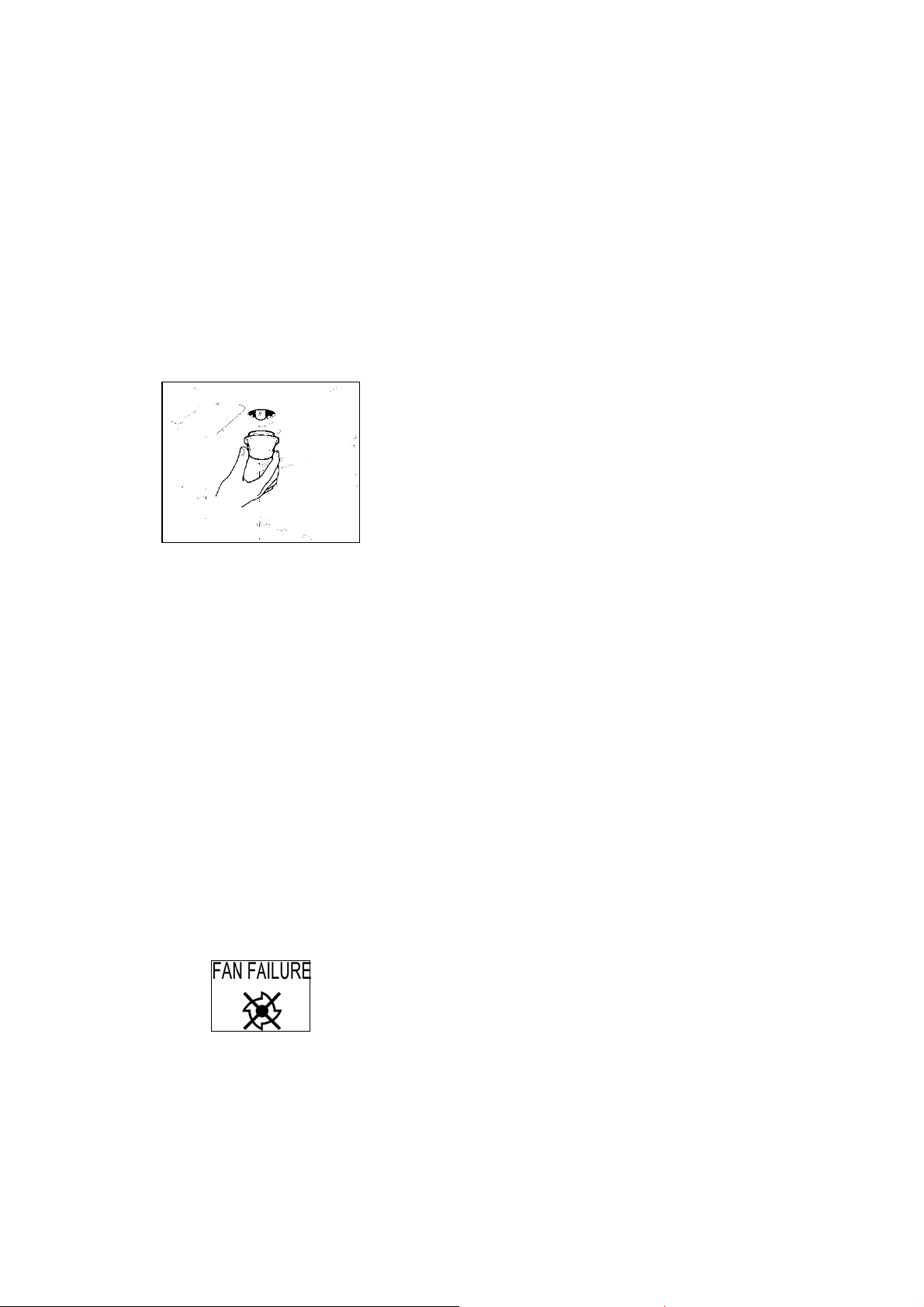

Adjust leg height to the desired level by twisting
the inside portion of the leg assembly until the
proper height is reached. Check with a level that
the cooktop is perfectly level.

HANDLE

Only model A304GGVXT

The rail and handle are packed with the upstand.

The rail is only available on some models.

Assemble the hob rail and oven handle as shown
in the pictures

8

INSTALLING THE WORKTOP

FRONTGUARD

Only model A304GGVXE

To increase the clearance between the front edge
of the worktop and the burners it is possible to
install the worktop frontguard shipped with the
appliance.

To install the front guard, hold it with the pointed
edges looking up. Align the edges of the
frontguard with the appropriate receptacles in
the bottom of the worktop and press firmly until
the frontguard is securely attached to the
worktop.

ATTENTION: once installed the frontguard may
only be removed by disassembling the worktop.
Attempting to remove the frontguard without
disassembling the worktop will result in
permanent damage to the worktop.

9

INSTALLING THE BACKGUARD

The backguard must be installed prior to
operation of the appliance for appropriate
ventilation of the oven compartment.

The supplied backguard is a 2‐part assembly. The
box also contains a set of metal screws for
securing the backguard to the worktop.

2 lateral screws from the bottom.

Position the back part of the backguard and
secure it to the worktop tightening 4 screws from
the bottom.

Disassemble the backguard and position the front
part on the worktop. Align the screw holes with
the corresponding holes at the back of the
worktop.

If the holes are not aligned, partially loosen the
brackets att the back of the worktop as shown
below.

Connect the back and front part of the upstand.
Check for tight assembly.

Install the front part of the backguard by
tightening the 2 central screws from the top and

10

INSTALLING THE ANTI‐TIP STABILlTY

INSTALLATION REQUIREMENTS

DEVICE

The anti‐tip bracket shipped with the range must
be properly secured to the rear wall as shown in
the pircture below.

The height of the bracket from the floor must be
determined after the range legs have been
adjusted to the desired height and after the
range has been leveled.

Measure the distance from the floor to the
bottom of the anti‐tip bracket receptacle on the
back of the appliance.

Position the two anti‐tip brackets on the wall at
the desired height plus 1/8" (0.32 cm). The
brackets must be placed at 2”5/16 (6,0 cm) from
the side of the range. The distance between the
two bracket is 25”1/4 (64,1 cm).

Secure the brackets to the wall with appropriate
hardware.

Slide the range against the wall until the brackets
are fully inserted into their receptacles on the
back of the range.

ELECTRICAL

A properly‐grounded horizontally‐ mounted
electrical receptacle should be installed no higher
than 3" (7.6 cm) above the floor, no less than 2”
(5 cm) and no more than 8” (20,3 cm) from the
right side (facing product).

Check all local code requirements.

GAS

An agency‐approved, properly‐sized manual shut‐
off valve should be installed no higher than 3"
(7.6 cm) above the floor and no less than 2” (5
cm) and no more than 8” (20.3 cm) from the left
side (facing product).

To connect gas between shut‐off valve and
regulator, use agency‐approved, properly sized
flexible or rigid pipe. Check all local code
requirements.

11

INSTALLATION ADJACENT TO KITCHEN

CABINETS

This range may be installed directly adjacent to
existing countertop high cabinets (36" or 91.5 cm
from the floor).

For the best look, the worktop should be level
with the cabinet countertop. This can be
accomplished by raising the unit using the
adjustment spindles on the legs.

ATTENTION: the range CANNOT be installed
directly adjacent to kitchen walls, tall cabinets,
tall appliances, or other vertical surfaces above
36" (91.4 cm) high. The minimum side clearance
in such cases is 6" (15.2 cm).

Wall cabinets with minimum side clearance must
be installed 18" (45.7 cm) above the countertop
with countertop height between 35 ½” (90.2 cm)
and 37 ¼” (94.6 cm). The maximum depth of wall
cabinets above the range shall be 13" (33.0 cm)

A 30” (76,2 cm)
B 36” (91,5 cm)
C 13” (33,0 cm)
D 18” (45,7 cm)
E 35”1/2(90,2 cm) / 37” ¼ (94,6 cm)
F 6” (15,2 cm)
G 6” (15,2 cm)

EXHAUST HOOD INSTALLATION

This range will best perform when used with PRO
line Bertazzoni exhaust hoods. These hoods have
been designed to work in conjunction with the
Bertazzoni range and have the same finish for a
perfect look.

For maximum performance, the height of the
bottom of the hood from the worktop should be
between 25 1/2" (65 cm) and 31 1/2" (80 cm).
This would typically result in the bottom of the
hood being 61 1/2" (156.2 cm) to 67 1/2" (171.5
cm) above the floor. These measurements
provide for safe and efficient operation of the
hood.

Before installation of the exhaust hood, consult
local or regional building and installation codes
for additional specific clearance requirements.

Refer to the range hood installation instructions
provided by the manufacturer for additional
information.

12

ELECTRICAL CONNECTION

This unit is manufactured for a polarized,
grounded 120 volt/60 Hz, 15 amp system.

Electric power consumption is about 300 W.

The minimum of 102 VAC is required for proper
operation of gas ignition systems.

The circuit must be grounded and properly
polarized.

The unit is equipped witth a SJT power cord. In
case of replacement, the power cord shall be
replaced with one of the same type, size and
length.

ELECTRICAL GROUNDING

This appliance is equipped with a three‐prong
plug for your protection against shock hazard and
should be plugged directly into a properly
grounded socket. Do not cut or remove the
grounding prong from this plug.

WARNING!

ELECTRICAL SHOCK HAZARD

Disconnect electrical power at the circuit

breaker box or fuse box before installing the

appliance.

Provide appropriate ground for the appliance.

Use copper conductors only.

Failure to follow these instructions could result

in serious injury or death

CAUTION

Label all wires prior to disconnecting when

servicing controls. Wiring errors can cause

improper and dangerous operation.

Verify proper operation after servicing.

WIRING DIAGRAM

13

GAS CONNECTION

All gas connections must comply with national
and local codes. The gas supply line (service)
must be the same size or greater than the inlet
line of the appliance. This range uses a 1/2" NPT
inlet (see drawing below for details of gas
connection). On all pipe joints use appropriate
sealant resistant to gas.

This range can be used with Natural or
LP/Propane gas. The range is shipped from the
factory for use with LP/Propane gas.

For Natural household installation, the appliance
must be converted by the dealer, by a factory‐
trained professional or by a qualified licensed
plumber or gas service company.

Gas conversion is important for safe and effective
use of the appliance. It is the responsibility of the
dealer and the owner of the range to perform the
appropriate gas conversion following the
directions of the manufacturer.

MANUAL SHUT‐OFF VALVE

THIS VALVE IS NOT SHIPPED WITH THE APPLIANC
AND MUST BE SUPPLIED BY THE INSTALLER.

The manual shut‐off valve must be installed in
the gas service line between the gas hook‐up on
the wall and the appliance inlet, in a position
where it can be reached quickly in the event of an
emergency.

In Massachusetts: A 'T' handle type manual gas
valve must be installed in the gas supply line to
this appliance.

FLEXIBLE CONNECTIONS

In case of installation with flexible couplings
and/or quick‐disconnect fittings, the installer
must use a heavy‐duty, AGA design‐certified
commercial flexible connector of at least 1/2"
(1.3 cm) ID NPT (with suitable strain reliefs) in
compliance with ANSI Z21.41 and Z21.69
standards.

THE GAS CONVERSION PROCEDURE IS DESCRIBED

IN THIS MANUAL AND IN THE PACKAGE

CONTAINING THE CONVERSION NOZZLES

SHIPPED WITH EVERY RANGE.

Please provide the service person with this
manual before work is started on the range.

WARNING!

DO NOT USE AN OPEN FLAME WHEN CHECKING

FOR LEAKS!

Leak testing of the appliance shall be conducted
according to the manufacturer's instructions.
Before placing the oven into operation, always
check for leaks with soapy water solution or
other acceptable method.

In Massachusetts: The unit must be installed
with a 36" (3‐foot) long flexible gas connector.

In Canada: use CAN 1‐6.10‐88 metal connectors
for gas appliances and CAN 1‐6.9 M79 quick
disconnect device for use with gas fuel.

PRESSURE TEST‐POINT STOPPER VALVE

To avoid gas leaks, the pressure test‐point
stopper valve and gasket supplied with the range
must be installed on the gas fitting at the back of
the range according to the diagram below.

14
