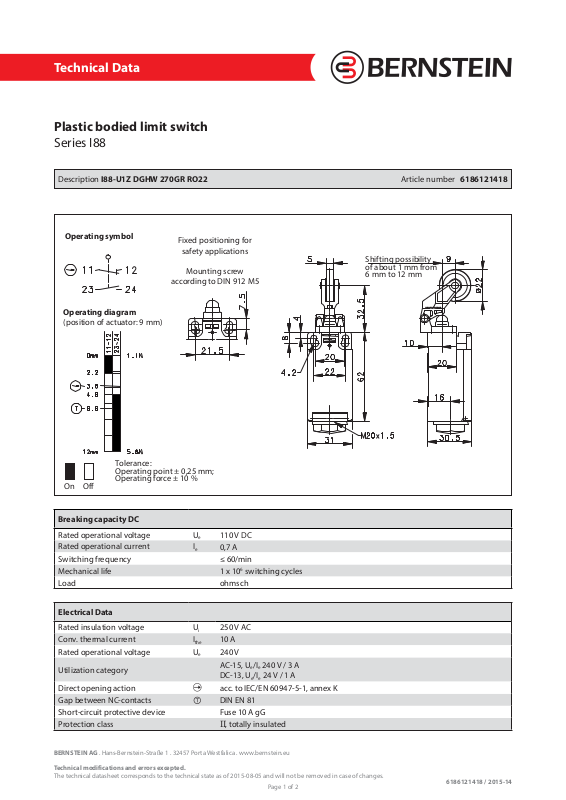

Bernstein 618.6121.418 Technical Data

Technical Data

Plastic bodied limit switch

S

eries I88

Description I88-U1Z DGHW 270GR RO22 Article number 6186121418

Operating symbol

Operating diagram

(position of actuator: 9 mm)

Tolerance:
Operating point ± 0,25 mm;

On Off

Operating force ± 10 %

Fixed positioning for

safety applications

Mounting screw

according to DIN 912 M5

Shifting possibility
of about 1 mm from
6 mm to 12 mm

Breaking capacity DC

Rated operational voltage U
Rated operational current I

110 V DC

e

0,7 A

e

Switching frequency ≤ 60/min
Mechanical life 1 x 10

6

switching cycles

Load ohmsch

Electrical Data

Rated insulation voltage U
Conv. thermal current I
Rated operational voltage U

Utilization category

Direct opening action
Gap between NC-contacts

250 V AC

i

10 A

the

240 V

e

AC-15, U
DC-13, U

p

acc. to IEC/EN 60947-5-1, annex K

Ⓣ

DIN EN 81

240 V / 3 A

e/Ie

24 V / 1 A

e/Ie

Short-circuit protective device Fuse 10 A gG
Protection class II, totally insulated
