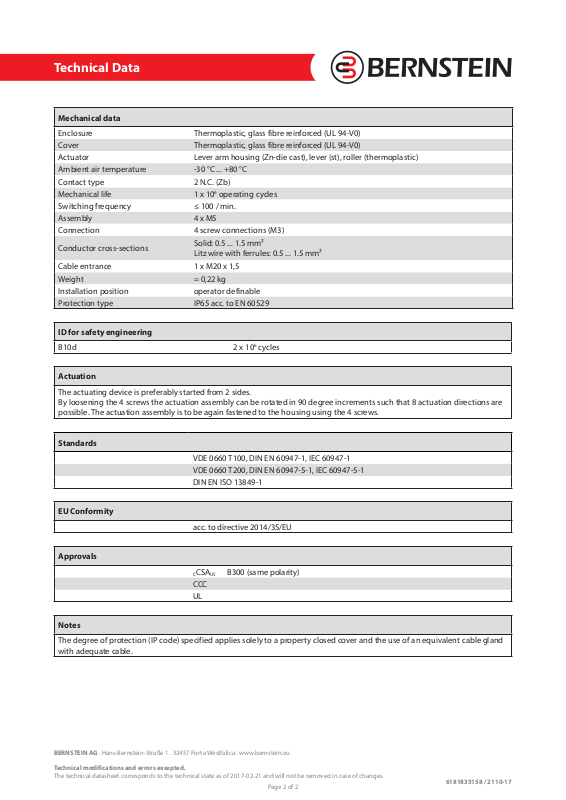

Bernstein 618.1835.158 Technical Data

Technical Data

Mechanical data

Enclosure Thermoplastic, glass fibre reinforced (UL 94-V0)
Cover Thermoplastic, glass fibre reinforced (UL 94-V0)
Actuator Lever arm housing (Zn-die cast), lever (st), roller (thermoplastic)
Ambient air temperature -30 °C ... +80 °C
Contact type 2 N.C. (Zb)
Mechanical life 1 x 10
Switching frequency ≤ 100 / min.
Assembly 4 x M5
Connection 4 screw connections (M3)

Conductor cross-sections

Cable entrance 1 x M20 x 1,5
Weight ≈ 0,22 kg
Installation position operator definable
Protection type IP65 acc. to EN 60529

ID for safety engineering

B10d 2 x 10

6

operating cycles

Solid: 0.5 ... 1.5 mm²
Litz wire with ferrules: 0.5 ... 1.5 mm²

6

cycles

Actuation

The actuating device is preferably started from 2 sides.
By loosening the 4 screws the actuation assembly can be rotated in 90 degree increments such that 8 actuation directions are
possible. The actuation assembly is to be again fastened to the housing using the 4 screws.

Standards

VDE 0660 T100, DIN EN 60947-1, IEC 60947-1
VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
DIN EN ISO 13849-1

EU Conformity

acc. to directive 2014/35/EU

Approvals

CSAUS B300 (same polarity)

C

CCC
UL

Notes

The degree of protection (IP code) specified applies solely to a property closed cover and the use of an equivalent cable gland
with adequate cable.
