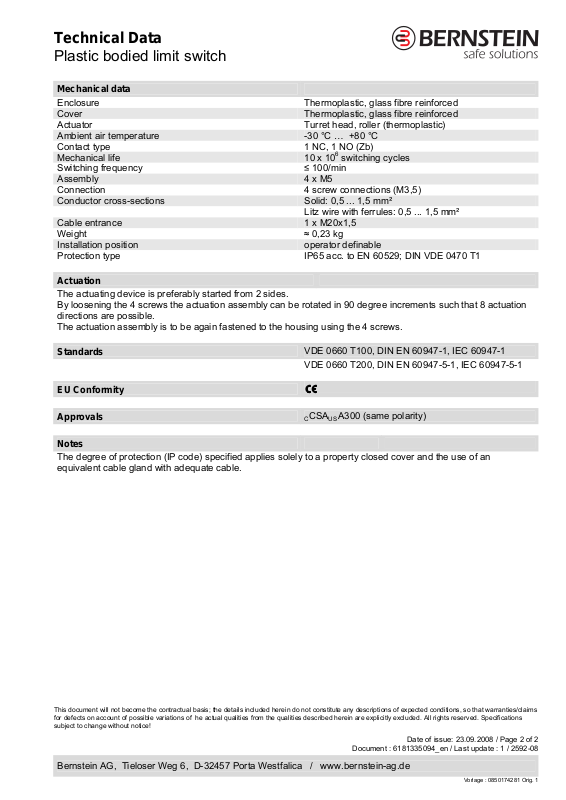

Bernstein 618.1335.094 Technical Data

Technical Data

Plastic bodied limit switch

Mechanical data

Enclosure Thermoplastic, glass fibre reinforced
Cover Thermoplastic, glass fibre reinforced
Actuator Turret head, roller (thermoplastic)
Ambient air temperature -30 °C … +80 °C
Contact type 1 NC, 1 NO (Zb)
Mechanical life 10 x 106 switching cycles
Switching frequency ≤ 100/min
Assembly 4 x M5
Connection 4 screw connections (M3,5)
Conductor cross-sections Solid: 0,5 ... 1,5 mm²
Litz wire with ferrules: 0,5 ... 1,5 mm²
Cable entrance 1 x M20x1,5
Weight ≈ 0,23 kg
Installation position operator definable
Protection type IP65 acc. to EN 60529; DIN VDE 0470 T1

Actuation

The actuating device is preferably started from 2 sides.
By loosening the 4 screws the actuation assembly can be rotated in 90 degree increments such that 8 actuation
directions are possible.
The actuation assembly is to be again fastened to the housing using the 4 screws.

Standards

VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1

EU Conformity

Approvals

Notes

The degree of protection (IP code) specified applies solely to a property closed cover and the use of an
equivalent cable gland with adequate cable.

VDE 0660 T100, DIN EN 60947-1, IEC 60947-1

CSA

C

A300 (same polarity)

US
