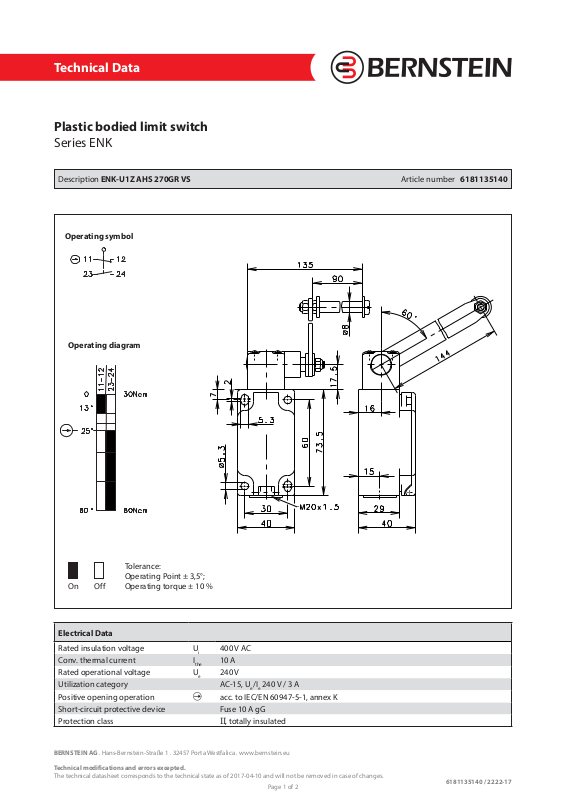

Bernstein 618.1135.140 Technical Data

Technical Data

Plastic bodied limit switch

Series ENK

Description ENK-U1Z AHS 270GR VS Article number 6181135140

Operating symbol

Operating diagram

Tolerance:
Operating Point ± 3,5°;

On Off

Operating torque ± 10 %

Electrical Data

Rated insulation voltage U
Conv. thermal current I
Rated operational voltage U
Utilization category AC-15, U
Positive opening operation

400 V AC

i

10 A

the

240 V

e

p

acc. to IEC/EN 60947-5-1, annex K

240 V / 3 A

e/Ie

Short-circuit protective device Fuse 10 A gG
Protection class II, totally insulated

BERNSTEIN AG . Hans-Bernstein-Straße 1 . 32457 Porta Westfalica . www.bernstein.eu

Technical modifications and errors excepted.

The technical datasheet corresponds to the technical state as of 2017-04-10 and will not be removed in case of changes.

Page 1 of 2

6181135140 / 2222-17
