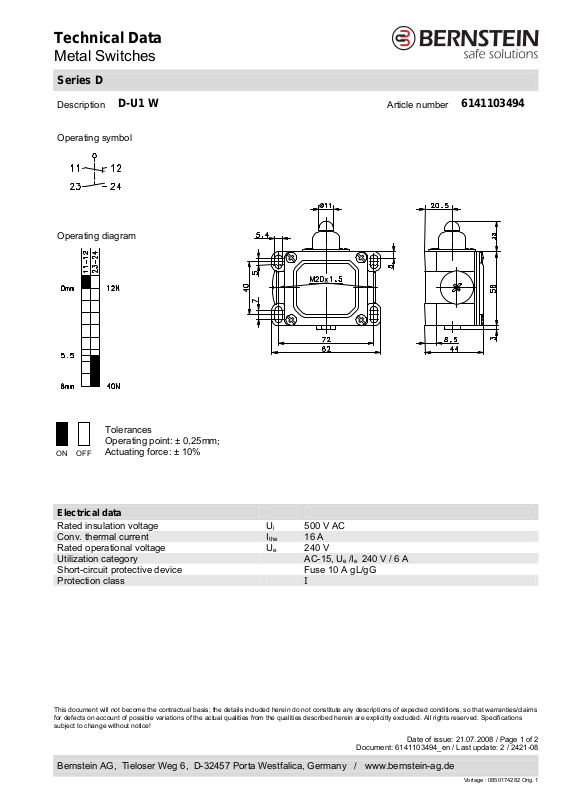

Bernstein 614.1103.494 Technical Data
Technical Data
Metal Switches
Series D
Description
D-U1 W
Article number
Operating symbol
Operating diagram
ON OFF
Tolerances
Operating point: ± 0,25mm;
Actuating force: ± 10%
Electrical data
Rated insulation voltage U
Conv. thermal current I
Rated operational voltage U
500 V AC
i
16 A
the
240 V
e
Utilization category AC-15, Ue /Ie 240 V / 6 A
Short-circuit protective device Fuse 10 A gL/gG
Protection class
I
6141103494
This document will not become the contractual basis; the details included herein do not constitute any descriptions of expected conditions, so that warranties/claims
for defects on account of possible variations of the actual qualities from the qualities described herein are explicitly excluded. All rights reserved. Specifications
subject to change without notice!
Document: 6141103494_en / Last update: 2 / 2421-08
Date of issue: 21.07.2008 / Page 1 of 2
Bernstein AG, Tieloser Weg 6, D-32457 Porta Westfalica, Germany / www.bernstein-ag.de
Vorlage : 0850174282 Orig. 1
Technical Data
Metal Switches
Mechanical data
Enclosure Die-cast aluminium
Cover Sheet aluminium
Actuator Push bolt (st)
Ambient air temperature -30 °C ... +80 °C
Contact type 1 N.C. 1 N.O.
Mechanical life 10 x 106 operating cycles
Switching frequency
Assembly 4 x M5
Connection 4 screw terminals (M4)
Conductor cross-sections Solid: 0,5 ... 1,5 mm²
Litz wire with ferrules: 0,5 ... 1,5 mm²
Cable entrance 2 x M20x1,5
Weight ≈ 0,28 kg
Installation position operator definable
Protection type IP65 acc. to IEC/EN 60529
Actuation
The push bolt actuator is mainly intended to be actuated along its axis.
Side actuation will considerably reduce switch life.
Standards
VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
EU Conformity
Approvals
Notes
The degree of protection specified (IP code) applies only to a properly closed cover and the use of an equivalent
cable gland with adequate cable.
≤ 100 / min.
VDE 0660 T100, DIN EN 60947-1, IEC 60947-1
CCSAUS A300 (same polarity)
