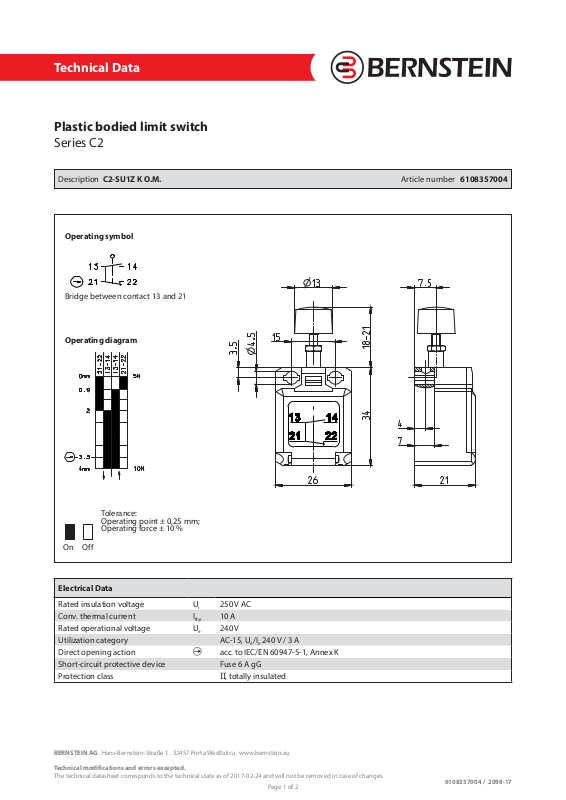

Bernstein 610.8357.004 Technical Data

Technical Data

Plastic bodied limit switch

Series C2

Description C2-SU1Z K O.M. Article number 6108357004

Operating symbol

Bridge between contact 13 and 21

Operating diagram

Tolerance:
Operating point ± 0,25 mm;
Operating force ± 10 %

On Off

Electrical Data

Rated insulation voltage U
Conv. thermal current I
Rated operational voltage U
Utilization category AC-15, U
Direct opening action

250 V AC

i

10 A

the

240 V

e

240 V / 3 A

p

acc. to IEC/EN 60947-5-1, Annex K

e/Ie

Short-circuit protective device Fuse 6 A gG
Protection class II, totally insulated

BERNSTEIN AG . Hans-Bernstein-Straße 1 . 32457 Porta Westfalica . www.bernstein.eu

Technical modifications and errors excepted.

The technical datasheet corresponds to the technical state as of 2017-02-24 and will not be removed in case of changes.

Page 1 of 2

6108357004 / 2098-17

Technical Data

Mechanical data

Enclosure Thermoplastic, glass fibre reinforced (UL 94-V0)
Cover Thermoplastic
Actuator Button (Thermoplast)
Ambient air temperature -30 °C ... +80 °C
Contact type 1 NC, 1 NO (Zb)
Mechanical life 3 x 10
Switching frequency ≤ 100 / min.
Assembly 2 x M4
Connection 4 screw connections (M3,5)

Conductor cross-sections

Cable entrance Rectangle 8,5 x 3,5 mm
Weight ≈ 0,02 kg
Installation position operator definable

Protection type

6

operating cycles

Solid: 0,5 ... 1,5 mm² or
Litz wire with ferrules: 0,5 ... 1,5 mm²

IP20 nach EN 60529; DIN VDE 0470 T1
IP30 bei voller Kontaktbelegung, mit Litzen deren
Außendurchmesser ≥ 2,2 beträgt.

Actuation

The push bolt actuator is mainly intended to be actuated along its axis.
Side actuation will considerably reduce switch life.
The switch may not be used as a mechanical stop.

ID for safety engineering

B10d 6 x 106 cycles

Standards

VDE 0660 T100, DIN EN 60947-1, IEC 60947-1
VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
DIN EN ISO 13849-1

EU Conformity

acc. to directive 2014/35/EU

Approvals

CSAUS, UL

C

CCC

Notes

The specified protection classification (IP code) applies only when the cover is closed.
