Bernstein 610.6201.155 Technical Data

Technical Data

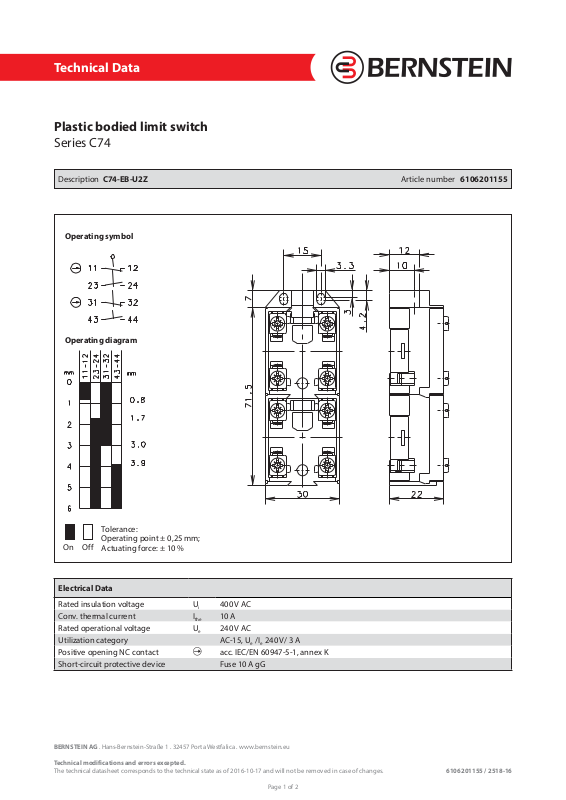

Plastic bodied limit switch

Series C74

Description C74-EB-U2Z Article number 6106201155

Operating symbol

Operating diagram

Tolerance:
Operating point ± 0,25 mm;

On Off

Actuating force: ± 10 %

Electrical Data

Rated insulation voltage U
Conv. thermal current I
Rated operational voltage U
Utilization category AC-15, U
Positive opening NC contact

400 V AC

i

10 A

the

240 V AC

e

/Ie 240 V/ 3 A

p

acc. IEC/EN 60947-5-1, annex K

e

Short-circuit protective device Fuse 10 A gG

BERNSTEIN AG . Hans-Bernstein-Straße 1 . 32457 Porta Westfalica . www.bernstein.eu

Technical modifications and errors excepted.

The technical datasheet corresponds to the technical state as of 2016-10-17 and will not be removed in case of changes.

Page 1 of 2

6106201155 / 2518-16

Technical Data

Mechanical data

Enclosure Thermoplastic, glass fibre reinforced
Actuator Plunger inside located, Ø 8
Ambient air temperature –30 °C … +80 °C
Contact type 2 NC, 2 NO (Zb)
Mechanical life 10 x 10
Switching frequency ≤ 100/min
Assembly 2 x M3
Connection 8 screw connections (M3,5)

Conductor cross-sections

Weight ≈ 0,06 kg
Installation position Operator definable
Protection type IP00 acc. to EN 60529; DIN VDE 0470 T1

Actuation

Actuating the device is possible only in direction of the plunger.

6

switching cycles

Solid: 0.5 ... 1.5 mm²
Litz wire with ferrules: 0.5 ... 1.5 mm²

ID for safety engineering

B10d 20 x 106 cycles

Standards

VDE 0660 T100, DIN EN 60947-1, IEC 60947-1
VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
DIN EN ISO 13849-1

EU Conformity

acc. to directive 2014/35/EU

Approvals

CCC

Notes

Because of the open construction of the device there is no special protection against ingessing of water and
touching parts under voltage.
