Instruction Manual

Koi Fish Decor Top Installation

To install the Koi Fish Finial you will need to use the
clear extension tube included with your Bernini™
Fountain.

Before installing the extension tube, pull the two

ends of the extension tube apart to about 9 inch­es (22.8cm).

Step 1: Remove the silicone
cap from the top of the
extension tube.

Step 4: The Koi Fish Finial locks

into place using a key system in
the middle of the fountain tier.
(See illustration to the right) Align

the bottom of the nial to the

top of the fountain tier and twist
the Koi Fish Finial a quarter turn
clockwise to lock it into place.

1

Step 2: Attach the extension
tube to the water outlet in
the middle of the fountain
tier. NOTE: Extension must
be included.

Step 3: Put the Koi Fish
Finial over the top of the
extension tube. Be careful
to keep the tube centered in
the hole at the top of the Koi
Fish Finial.

Bottom of Koi

Fish Finial

Note: You will notice that there are two dierent sized tabs on

the bottom of the Koi Fish Finial and there are two corresponding

grooves in the top of the Fountain Tier. These tabs t together and

lock when turned clockwise.

Top of Fountain Tier

Koi Fish Decor Top Installation (continued)

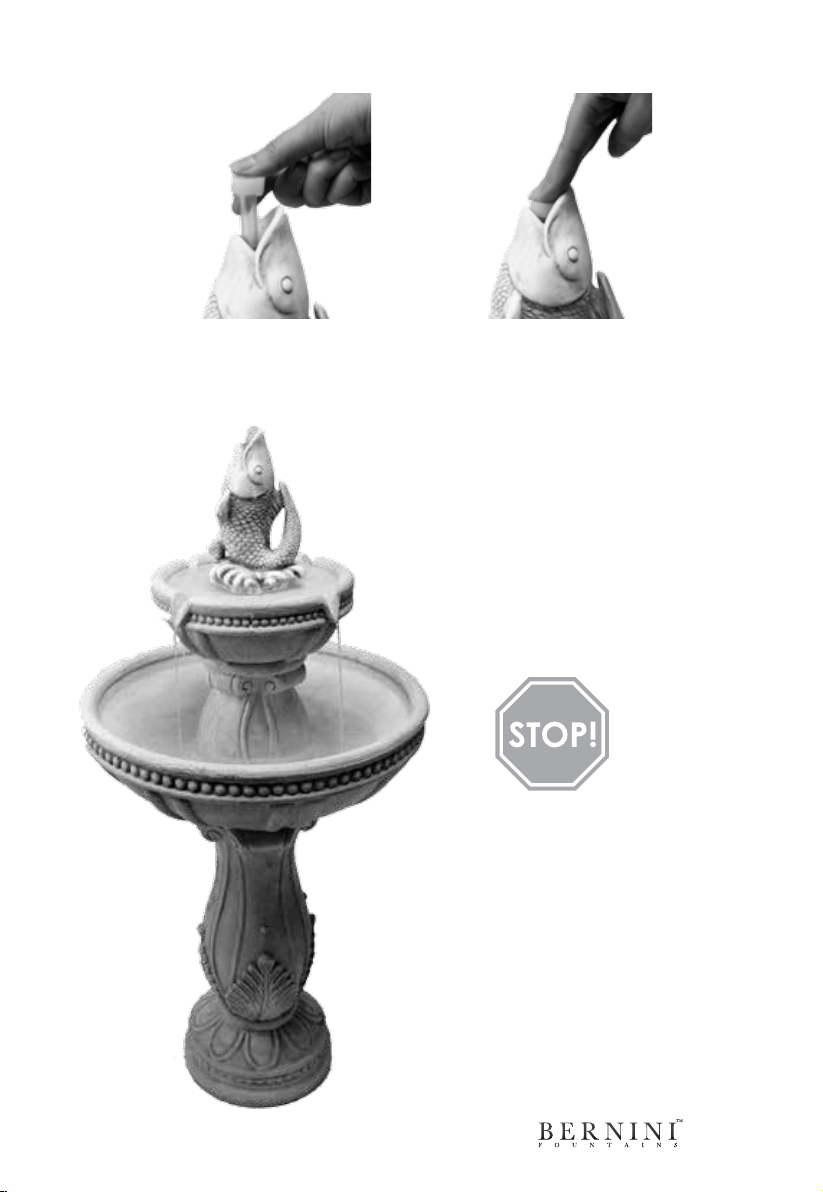

Step 5: Replace the silicone
cap on to the extension tube.

At this point, your fountain should look like

the image on the left. You are now nished

installing the Koi Fish Finial. Turn on your
fountain and enjoy!

Step 6: Press the extension
tube down until it is level with
the Koi Fish Finial.

Remember!

If you ever need help, you can

contact our customer care at:

[phone]

2
