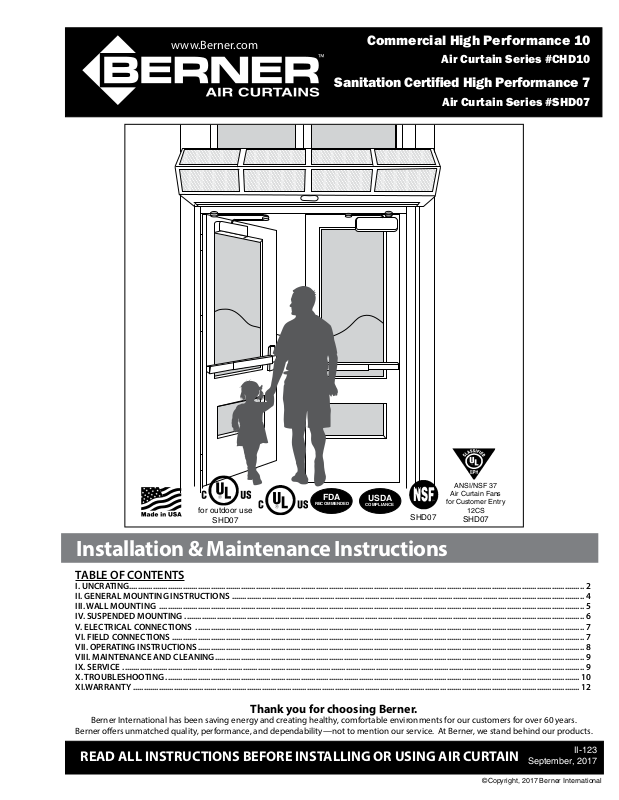

Berner CHD10-1036, CHD10-1042, CHD10-1048, CHD10-1060, CHD10-2060 Manual

www.Berner.com

Commercial High Performance 10

Air Curtain Series #CHD10

Sanitation Certied High Performance 7

Air Curtain Series #SHD07

ANSI/NSF 37

Air Curtain Fans

for Customer Entry

12CS

SHD07

for outdoor use

SHD07

FDA

RECOMMENDED

USDA

COMPLIANCE

SHD07

Installation & Maintenance Instructions

TABLE OF CONTENTS

I. UNCRATING............................................................................................................................................................ ........................................................ 2

II. GENERAL MOUNTING INSTRUCTIONS ................................................................................................................................. ................................... 4

III. WALL MOUNTING ...................................................................................................................................................................................................... 5

IV. SUSPENDED MOUNTING ....................................................................................................................................... ................................................... 6

V. ELECTRICAL CONNECTIONS ..................................................................................................................................................................................... 7

VI. FIELD CONNECTIONS ................................................................................................................................................................................................ 7

VII. OPERATING INSTRUCTIONS .................................................................................................................................................................................... 8

VIII. MAINTENANCE AND CLEANING ............................................................................................................................................................................ 9

IX. SERVICE ............................................................................................................................................................... ........................................................ 9

X. TROUBLESHOOTING ................................................................................................................................................................................................. 10

XI.WARRANTY ................................................................................................................................................ ................................................................ 12

Thank you for choosing Berner.

Berner International has been saving energy and creating healthy, comfortable environments for our customers for over 60 years.

Berner oers unmatched quality, performance, and dependability—not to mention our service. At Berner, we stand behind our products.

READ ALL INSTRUCTIONS BEFORE INSTALLING OR USING AIR CURTAIN

1

©Copyright, 2017 Berner International

September, 2017

II-123

Commercial High

Sanitation Certied

Performance 10

Air Curtain

(Air Door)

High Performance 7

Air Curtain

(Air Door)

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Read all instructions before installing or using this air curtain.
B. Use this unit only in the manner intended by the manufacturer and described in this manual. Any other use not recommended by the
manufacturer may cause re, electric shock, or injury to persons. If you have any questions, contact the manufacturer.
C. Before servicing or cleaning unit, switch power o at service panel and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
D. Installation work and electrical wiring must be done by qualied person(s) in accordance with all applicable national and local codes
having jurisdiction, including re-rated construction. See page 7, ELECTRICAL CONNECTIONS (NEC Code ANSI/NFPA No. 70).
E. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
F. To reduce the risk of re, do not store or use gasoline or other ammable vapors and liquids in the vicinity of the air curtain.
G. This air curtain is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, etc. and curtains at least 1 inch from the top, back, front, sides and at least 6 feet from the discharge
of the air curtain.
H. Extreme caution is necessary when any air curtain is used by or near children or invalids, and whenever the heater is left operating
unattended.
I. Do not operate any air curtain after it malfunctions. Disconnect power at the service panel and have the air curtain inspected by a
reputable electrician before reusing.
J. To disconnect the air curtain, turn controls to "o", and turn o power to the air curtain circuit at main disconnect panel.
K. Do not insert or allow foreign objects to enter any ventilation or discharge opening as this may cause an electric shock or re, or
damage the air curtain.
L. To prevent a possible re, do not block the air intake or discharge of the air curtain in any manner.
M. The air curtain has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or ammable vapors or liquids
are used or stored.
N. This heater may include an audible or visual alarm to warn that parts of the heater are getting excessively hot. If the alarm sounds
(or illuminates), immediately turn the heater o and inspect for any objects on or adjacent to the heater that may have blocked the airow
or otherwise caused high temperatures to have occurred. DO NOT OPERATE THE HEATER WITH THE ALARM SOUNDING (OR ILLUMINATING).

I. UNCRATING

Carefully examine the carton(s) for damage. If the carton is
damaged, immediately notify the shipping company. Do not
delay in ling claim. If the air curtain(s) were shipped on
wooden skids, remove protective wood and banding straps
securing the carton(s) to the skid. Open the carton(s) and
remove all protective packaging.

Immediately verify that the electrical rating nameplate located
on the cover matches electrical power supply available. Retain
the shipping carton(s) until the air curtain(s) are installed and
properly operating.

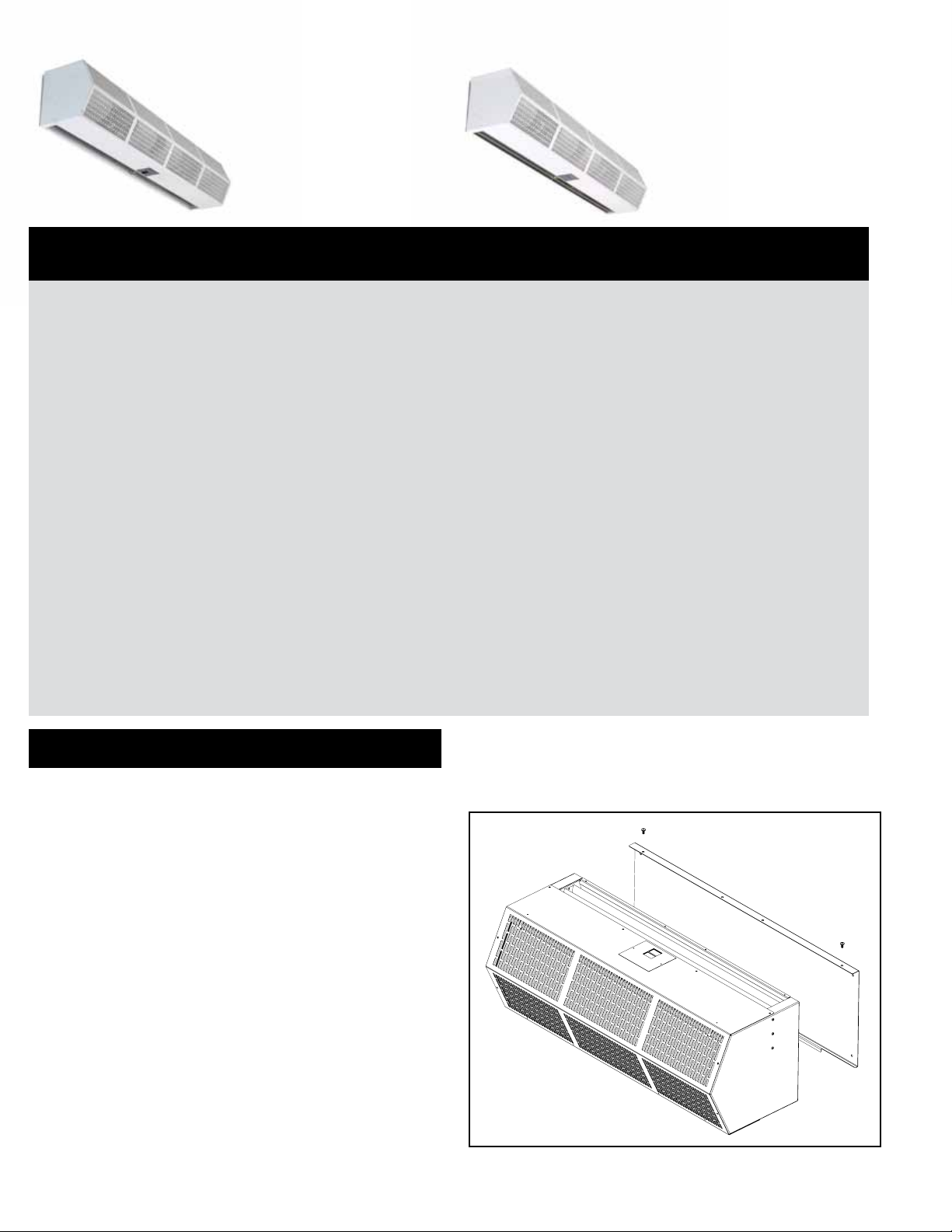

ACCESSORIES:
If the air curtain was ordered with a wall mounting plate,
remove and save the two (2) locking screws from the back
corners and detach the wall mounting plate. See Figure 1.

If the air curtain(s) were ordered with optional electrical acces­sories, the accessories will be found in the carton containing
the air curtain or in a separate carton(s) accompanying the air
curtain(s). Check all of the cartons/skids for accessories before
discarding.

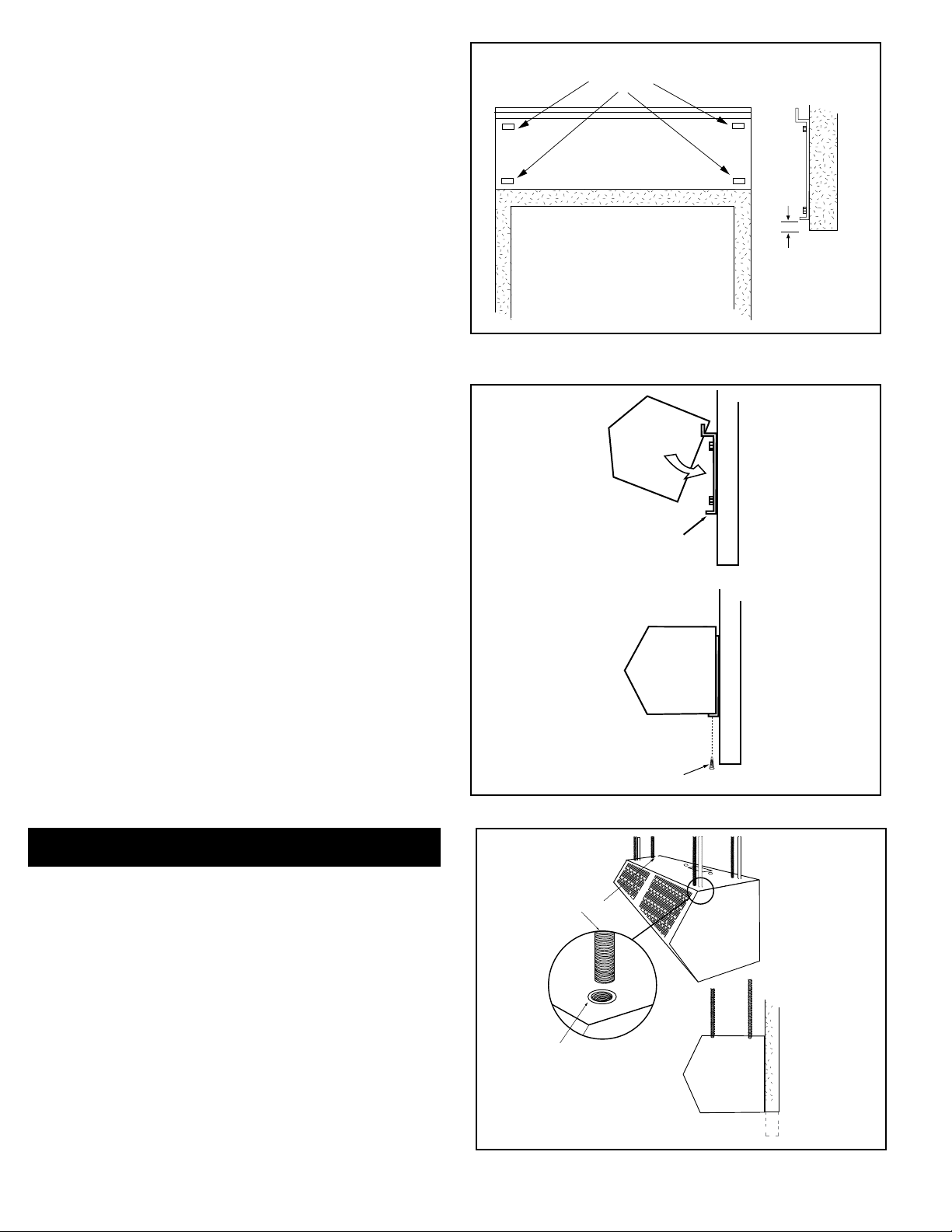

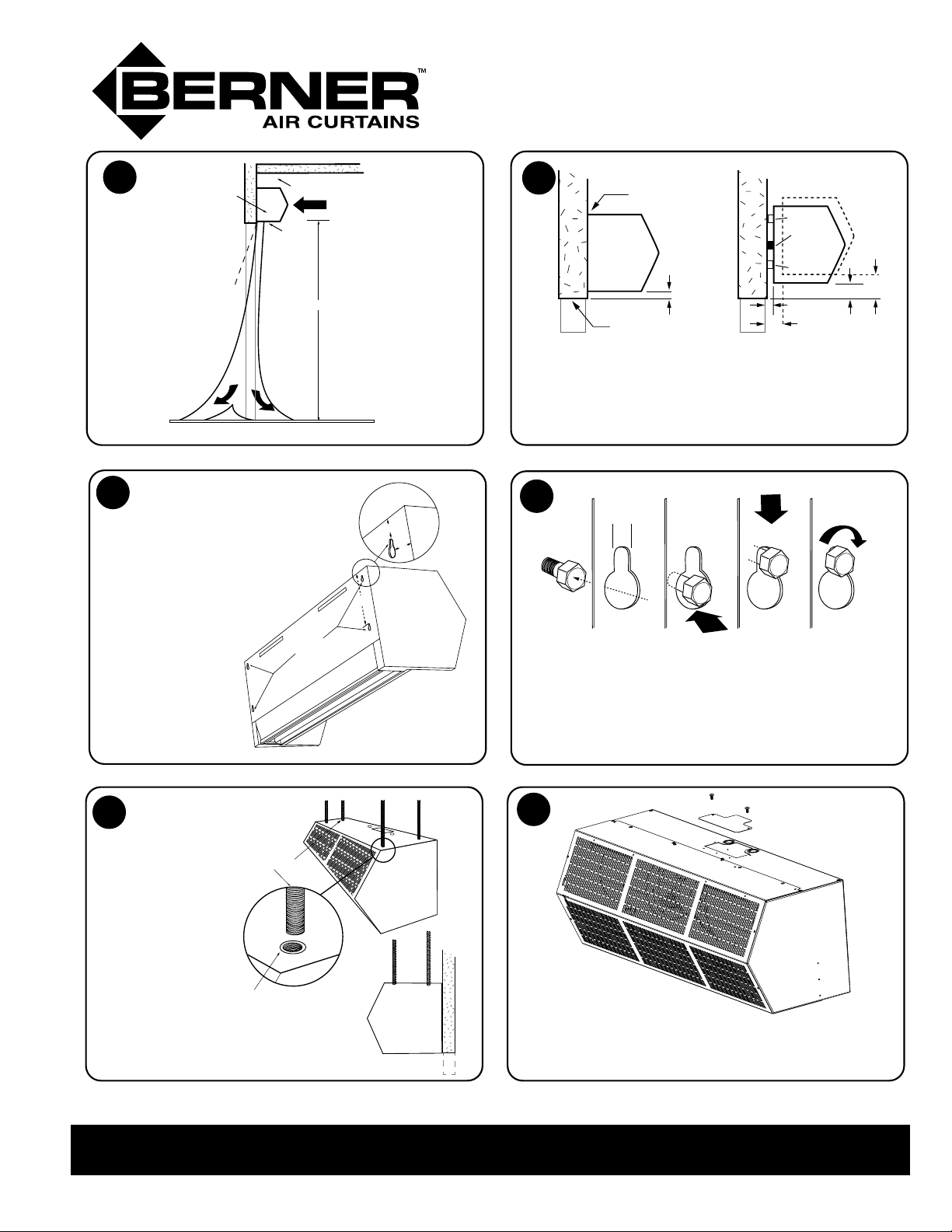

Figure 1

2

Simple to Install

Easy to operate & maintain

1

3

4" minimum

side clearance

from

combustible

material*

20˚

EXTERIOR

R

I

A

*Electrically Heated Units Only

For more information see page 4

The keyhole slots are spaced 1” from
the ends, and 3/4” and 7” from the top.

Discharge
Nozzle

A

I

R

4" minimum*

6' minimum*

Mark the wall according to
the length of the air curtain.
If the keyhole slots are not
located where suitable
support is available,
drill new holes in

Keyhole

Mounting

Slots

the back plate
where space
is available.

For more information see page 5 For more information see page 5

AIR

Before hanging,
check to see what
the clearance is
above the door.

INTERIOR

3/4"

1"

7"

2

Flush Mounting

AIR
CURTAIN

Top of Doorway

Spacer

Seal

AIR
CURTAIN

1"

Spacer

3/8"

3/4"

3"

2"

Rule of thumb – If the unit must be mounted
higher than 1” above the opening, it must be
spaced out from the wall 3/8” for every inch the
unit is above the door opening.

For more information see page 4

4

1/4"

Line-up

Keyholes on

All Screws

Push
Backplate
Toward Wall

Slide

Backplate

Down

Tighten All
Screws

After installing the mounting hardware, lift and
slip the air curtain over the mounting hardware by
grasping the inlet rings. Tighten the mounting
hardware.

5

To use threaded
rod to hang from
the ceiling
instead of
the wall - use
the factory
installed
threaded inserts.

For more information see page 6 For more information see page 7

6

Suspension Rods

1/4” Threaded Insert

To wire – follow the wiring diagram (found inside
wiring compartment).

Side View

www.berner.com Berner International 800.245.4455

111 Progress Ave. / New Castle / PA / 16101 / USA

The controls ship in the same box as the air curtain.

3

II. MOUNTING INSTRUCTIONS (General)

INDOOR MOUNTING - Environmental/ Insect/ Dust Control

OUTDOOR MOUNTING (Unheated Only) - Insect/Dust Control

4" minimum

side clearance

from combustible

material*

4" minimum*

AIR

The Commercial High Performance 10 & the Sanitation

Certied High Performance 7 Air Curtains are designed to be

an eective barrier against cold drafts in the winter and hot air
in the summer, ying insects and airborne contaminants.

To achieve optimum protection, the air curtain should be

mounted on the inside of the building, ush to the wall and
as close to the top of the door opening as possible. To ensure
peak performance, keep the air stream free of obstructions.

The air curtain will not perform properly if negative air

pressure exists in the building. Under these conditions,
a means for makeup air to the building must be provided
so that the air pressure on both sides of the opening is in
balance.

Before mounting the air curtain, check the supporting structure

to verify that it has sucient load-carrying capacity to support
the weight of the air curtain(s). The mounting hardware
(supplied by others) should be capable of supporting a
minimum of three (3) times the weight of the air curtain.

See Table 1 or Table 2.

IMPORTANT: A minimum of 4” is required above the top of the

air curtain for the installation and removal of the inlet
screen and access to electrical compartment.

A. When determining the mounting location for the air

curtain(s), make sure that nothing interferes with the
curtain of air developed when the discharge vanes are
directed from 0° to 20° toward the door opening. If the
air stream strikes any obstruction (the top edge of the
doorway, a door opening device, etc.), the eectiveness
of the air curtain will be greatly reduced. See Figure 2.

B. For optimum performance, the bottom of the air curtain

(discharge nozzle) should be no more than 1” above the
top of the door opening with the air curtain(s) mounted
ush to the wall. If the air curtain must be mounted
higher, it must be spaced out from the wall 3/8” for
every inch the air curtain is above the door opening. See
Figure 3. For optimum protection, any void between the
air curtain and the wall should be sealed along the full
length of the air curtain.

C. Do not block (obstruct) the air intake grill. Insucient

airow can cause the unit to overheat.

D. Electric heated air curtain(s) shall:

1. Have a minimum clearance of at least 4” between

the sides and top of the air curtain and any
combustible material.

2. Have a minimum clearance of at least 6’ between

the bottom of the air curtain and the oor.

3. Be installed Indoors Only.

E. Proceed to either Section III - Wall Mounting or Section

IV - Suspended Mounting

Discharge
Nozzle

20˚

6' minimum*

EXTERIOR

A

R

I

I

A

R

*Electrically Heated Units Only

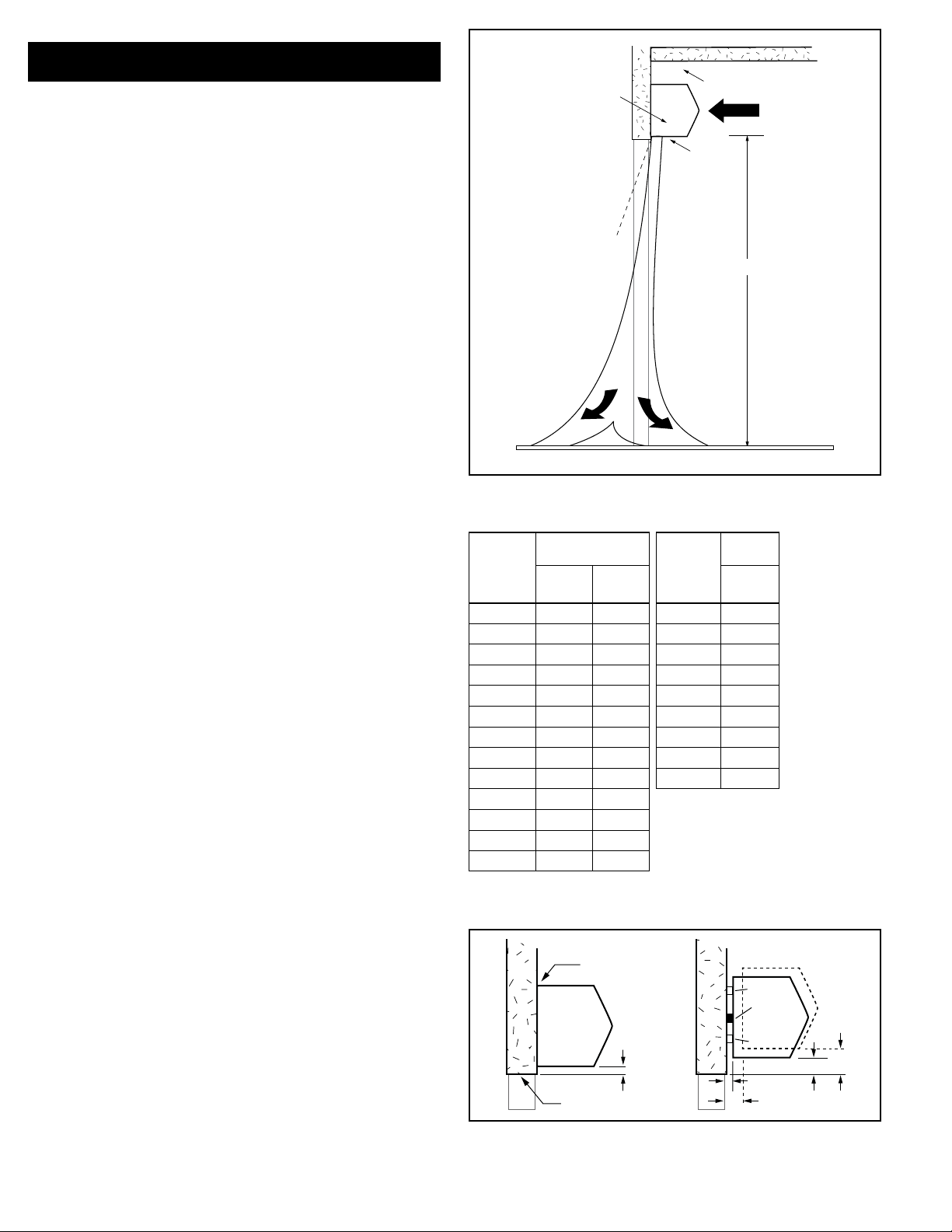

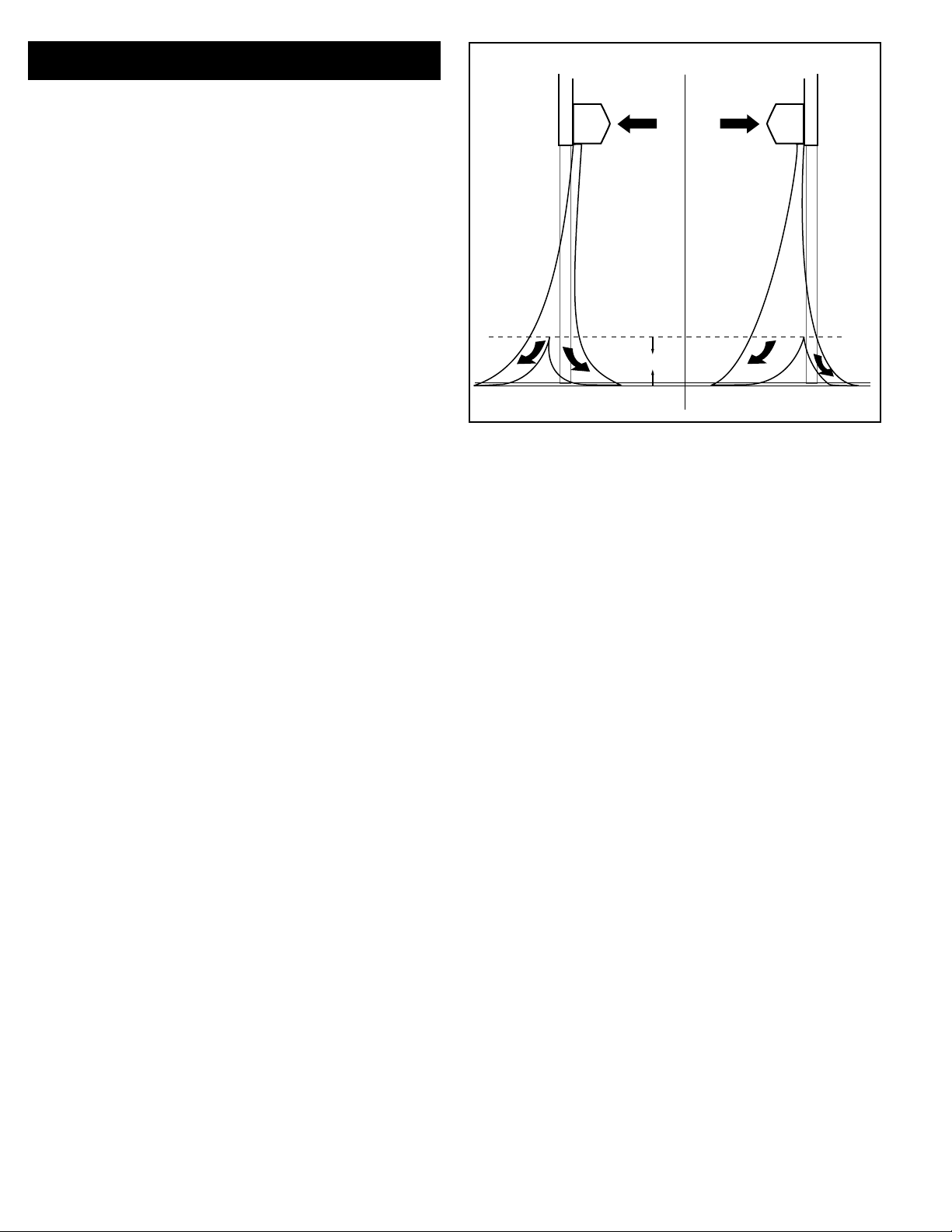

Figure 2

Net Weight

MODEL

CHD10-1036 50 52 SHD07-1036 50

CHD10-1042 52 55 SHD07-1042 52

CHD10-1048 53 56 SHD07-1048 53

CHD10-1060 54 63 SHD07-2060 70

CHD10-2060 70 96 SHD07-2072 84

CHD10-2072 84 104 SHD07-2084 104

CHD10-2084

CHD10-2096

CHD10-3096

CHD10-2108

CHD10-3108

CHD10-2120

CHD10-3120

CHD08

Ambient

CHD08

Electric

104 110 SHD07-2096 106

106 112 SHD07-3108 150

120 148 SHD07-3120 152

107 119

150 156

108 126

152

159

MODEL

TABLE 2 ­SHD07 Unit Weight

Weight

SHD07

Ambient

TABLE 1 - CHD10 Unit Weight

Flush Mounting

AIR
CURTAIN

1"

Top of Doorway

Figure 3

Net

Spacer

Seal

AIR
CURTAIN

Spacer

3/8"

3/4"

INTERIOR

3"

2"

4

III. WALL MOUNTING

If a wall mounting plate was ordered with the air curtain,
proceed to B. Wall Mounting – using the wall mounting plate

(sold separately), otherwise proceed:

A. WALL MOUNTING - without wall mounting plate

1. Making sure that the air curtain is centered over the
opening, determine the exact mounting location of
the air curtain.

3/4"

1"

7"

NOTE: A minimum of 4” is recommended above the air
curtain to provide clearance for installation and removal of
the cover housing.

2. Remove the screen by removing screws from the
top, bottom and front of the air curtain, and slide the
screen away from the blower assembly.

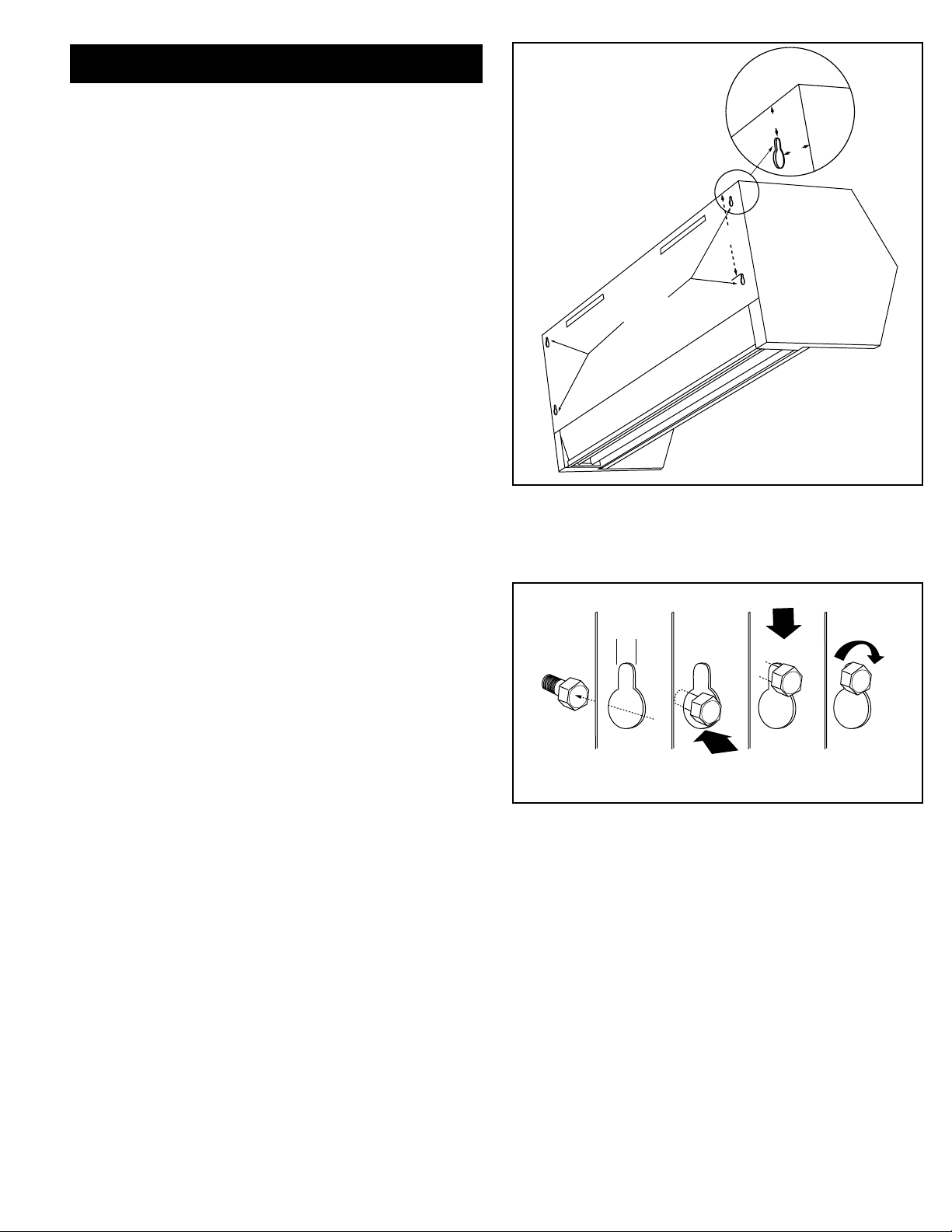

3. The air curtain is equipped with four 1⁄4” keyhole
mounting slots on the back of each unit for wall
mounting. The slots are spaced 1” from the ends, and
3/4” and 7” from the top. See Figure 4.

4. Mark the wall according to the length of the air
curtain. The wall must provide sucient support for
the air curtain. If the keyhole slots are not located
where suitable support is available, drill new holes in
the unit back plate where space is available.

5. The mounting hardware (supplied by others) must be
capable of supporting a minimum of three times the
net weight of the air curtain. See Weight Chart, Table

1 or Table 2.

6. Keyhole Mounting: Install the mounting hardware
(supplied by others), allowing for space to hang the
air curtain by not fully tightening. Without touching
the blower wheels, lift and slip the air curtain over the
mounting hardware by grasping the inlet rings of the
blower housing. Tighten the mounting hardware. See

Figure 5.

Keyhole

Mounting

Slots

1/4"

Line-up

Keyholes on

All Screws

Figure 4

Push
Backplate
Toward Wall

Figure 5

Tighten All
Screws

Slide

Backplate

Down

7. Drilled Mounting Holes: Lift the air curtain by
grasping the inlet rings on the blower housing,
without touching the blower wheels, and install the
mounting hardware (supplied by others) through the
drilled holes.

8. Reinstall the screen using hardware removed in Step 2.

9. Proceed to Section V - Electrical Connections.

5

B. WALL MOUNTING – using the wall mounting plate
(sold separately)

1. PREPARATION
a. Position and center the mounting plate over

the door opening. The mounting plate must
be positioned with the “Z” lip on top. Drill
mounting holes on the mounting plate. See

Figure 6.

b. Mark the wall in the center of each mounting

plate hole. The wall must provide sucient
support for the air curtain. The mounting
hardware (supplied by others) must be
capable of supporting a minimum of three
times the net weight of the air curtain. See
Weight Chart, Table 1 or Table 2. If the
location of the marks on the wall do not
provide suitable support, mark and drill
additional holes.

c. Drill the four holes as marked on the wall and

attach the mounting plate with anchors (if
used) and the four mounting screws (provided
by others).

2. ATTACHING THE AIR CURTAIN

TO THE MOUNTING PLATE

a. Raise the air curtain over the door (air

discharge nozzle facing down) and on to the
mounting plate. First, tilt the unit upward
matching the rectangular openings to the “Z”
lip on the mounting plate. See Figure 7.

b. Lower the air curtain into place, allowing it to

rest on the lower lip of the mounting plate.

c. After the air curtain is securely attached to the

mounting plate, re-install the two (2) locking
screws at the bottom corners. See Figure 7.

Recommended Mounting

Plate Holes

Doorway Opening

1" max.

Doorway

Opening

FIGURE 6 - Positioning of Mounting Plate

Mounting Plate

Lower Lip

IV. SUSPENDED MOUNTING

A. For top mounting using suspension rods, four (4) factory

installed 1/4” threaded inserts are located in the top of the
air curtain. See Figure 8.

B. Install 1/4” threaded rods, or other suitable hardware at

a location with sucient support for the air curtain. The
mounting hardware (supplied by others) must be capable
of supporting a minimum of three times the net weight of
the air curtain. See Weight Chart, Table 1 or Table 2.

C. Attach threaded rods, or other suitable hardware to the top

mounted threaded inserts.

D. Proceed to Section V – Electrical Connections

Locking Screws

FIGURE 7

Suspension Rods

1/4” Threaded Insert

Side View

FIGURE 8 - Suspended Mounting

6

V. ELECTRICAL CONNECTIONS

All electrical wiring and connections MUST be performed by
qualied personnel in accordance with the latest edition of the
National Electrical Code ANSI/NFPA No. 70 or, in Canada, the
Canadian Electrical Code, Part 1-C.S.A. Standard C22.1 and local
codes and regulations.

MAKE SURE THE CORRECT
VOLTAGE AS MARKED ON THE UNIT IS USED.

A. A separate line voltage supply with a suitable branch

circuit protection device should be run directly from the
main electrical panel to the unit. A disconnect switch for
each branch circuit is a required part of this installation.
See the voltage label on the unit for circuiting and total
electrical load. The wiring diagram is located in the
wiring compartment.

B. All eld wiring must be copper with a minimum

insulation of 60°C within approved conduit. If any of the
wire supplied with the unit must be replaced, it must be
replaced with copper wiring with a minimum insulation
of 90°C.

C. Remove the wiring compartment cover on top of the air

curtain. See Figure 9.

D. The top of the air curtain has knockouts on each side of

the wiring compartment. Remove the required knockout
and connect the power supply to the air curtain. Connect
all supply and control circuit wires according to the
wiring diagram provided.

NOTE: For Electrically heated air curtains provided with

the optional remote thermostat, mount and wire the
thermostat according to thermostat instructions and
wiring diagram.

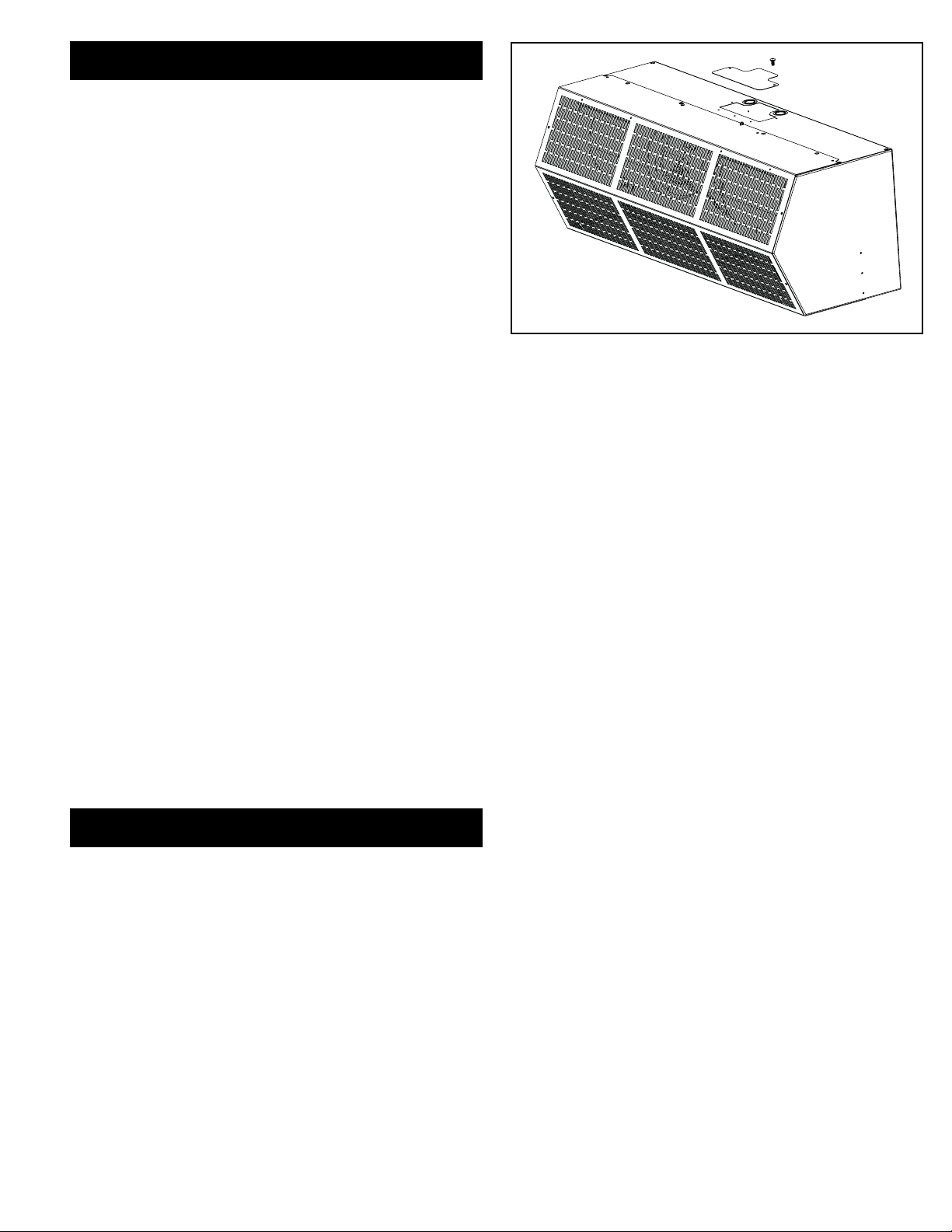

FIGURE 9

For Electrically heated air curtains proceed to Section

V - Field Connections, otherwise proceed to Section VI ­Airow Adjustments

VI. FIELD CONNECTIONS

A. ELECTRICALLY HEATED MODELS

The heater circuit may be controlled by a remote thermostat,

manually through a unit mounted or remote mounted three
position - fan only/o/fan with heat switch. Overheating
protection is provided by auto reset thermal cutouts built
into the blower assembly (see wiring diagram). Proceed to

Section VII - Operating Instructions.

7

VII. OPERATING INSTRUCTIONS

A. GENERAL OPERATION

Air curtain operation may be divided into four areas: control

package, fan activation, fan speed selection, and heat
activation. Depending on the type of controls ordered one
or more of the following may be applicable. The air curtain
must be properly installed before it is used.

1. Control packages control the air curtain’s sequence of
operation. Unit modes/control packages are built into
the unit and may not be changed in the eld.
Refer to your wiring diagram for specics about activation
connections and sequence of operation.

a. Basic Control Package – The unit is activated by
a door or selector switch. Either switch may be line

voltage or low voltage (24V).

b. Deluxe Control Package – The unit is activated

by a door or selector switch, but has a factory installed
time delay allowing the unit to keep running for a
period of time after the door closes.

c. Comfort Plus Control Package – Available only on

heated units, the unit is activated by a door or
selector switch AND a thermostat to provide
supplemental heating. NOTE: Not available with 575V
motors.

2. Unheated air curtains will have the fans activated by a
door or selector switch or sensor. The unit may be single
speed and require no fan speed selector (On/O), or may
have three fan speeds which require either a unit or
remote mounted switch (O, High, Med, Low).

AIR

INTERIOREXTERIOR

A

R

I

I

A

R

12"

AIR

INTERIOREXTERIOR

R

I

A

A

I

R

FIGURE 10

3. Heated air curtains will have fans activated by a door or
selector switch or sensor, but may also be activated by
the thermostat in Comfort Plus Mode. The unit has
three fan speeds which can be set by either a unit or
remote mounted switch (Low, Med, High, O, Low heat,
Med Heat, High Heat).

4. Heat activation is controlled by either a unit or remote
mounted thermostat, and a unit or remote mounted
switch.

B. AIR STREAM ADJUSTMENT

1. With the air curtain operating and the door in its full open
position, check to see that nothing is obstructing the
airow at the discharge nozzle vanes.

2. Find the air stream split location. Hold a handkerchief
by its corners, approximately 12” above the oor. Gently
move the handkerchief back and forth in the doorway.
Make sure the air is being directed to both the inside
and the outside. See Figure 10. The split location is
indicated where the handkerchief is vertical with minimal
or no uttering.

3. The split location should be approximately 3” outside the

doorway. If necessary adjust the discharge nozzle vanes
by de-energizing the unit, loosening the nozzle vane
locking screws and adjusting vanes.

8

VIII. MAINTENANCE & CLEANING

CAUTION: ELECTRIC SHOCK HAZARD Disconnect power
whenever servicing unit. More than one disconnect may be
required to de-energize unit.

Keep your air curtain operating at peak eciency by cleaning
the blower wheels, motor(s) and intake grill. Buildup of dust on
the blower wheels can cause vibration, noise and excessive wear
on the motor bearings. The frequency of cleaning will depend
on the environment where the unit is operating.

Dirty, dusty or greasy environments could require a cleaning
schedule of once every two months. If the environment is not
that dirty, the unit(s) should be scheduled for cleaning a mini­mum of once every (6) months.

A. PERFORMING PREVENTIVE MAINTENANCE

1. Disconnect and lockout power to the unit.

2. Remove the intake screen by removing the machine
screws located around the bottom, front and top of the
screen See Figure 11.

3. Vacuum and scrape (if necessary) to
remove the build-up of dirt and debris. The motor(s)
are permanently lubricated and require no additional
lubrication. Re-install the cover and intake grill.

4. Switch the power on af ter cleaning.

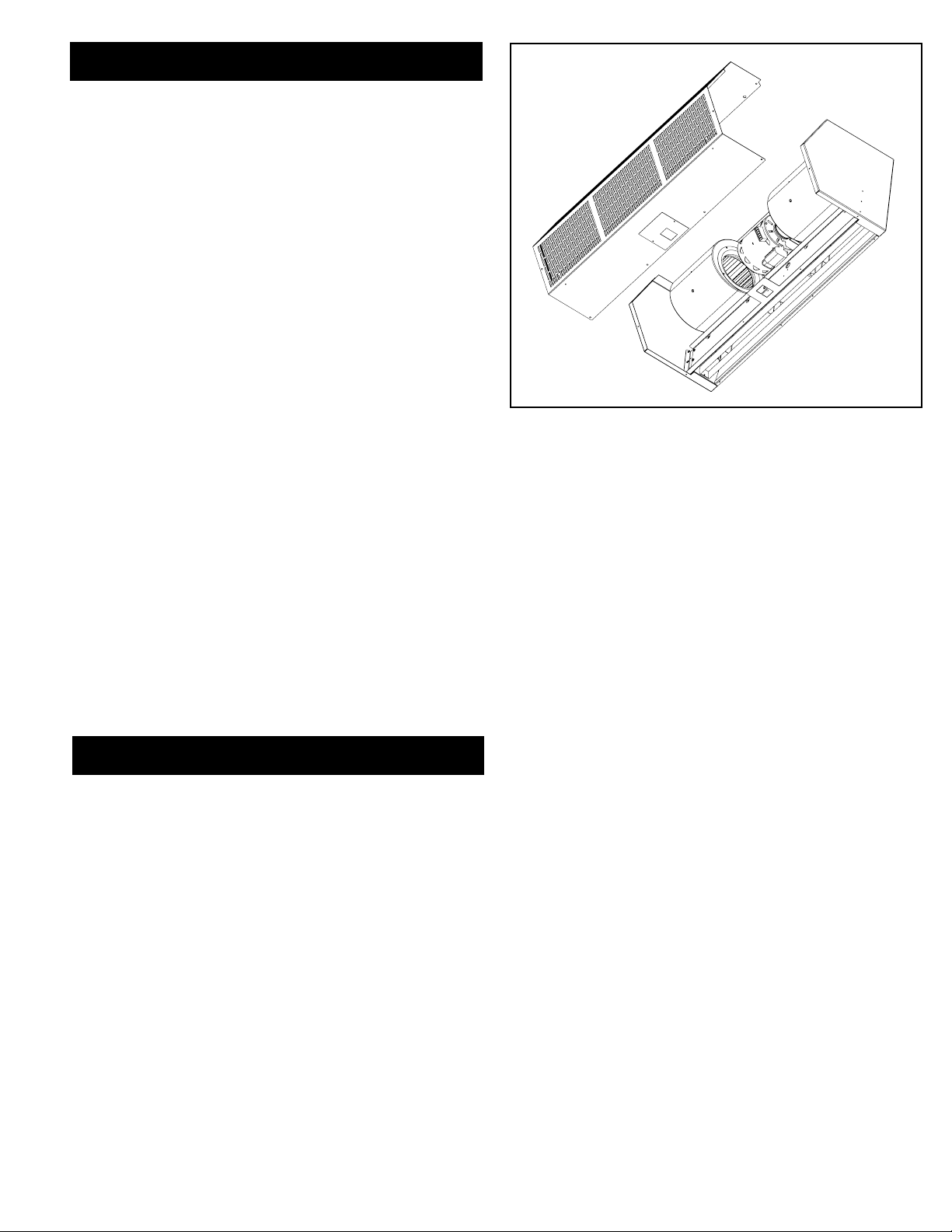

FIGURE 11

CAUTION: STAND CLEAR OF THE UNIT OR WEAR
SAFETY GOGGLES AS LOOSE DEBRIS MAY BE
PRESENT AND MAY EXIT THE NOZZLE.

IX. SERVICE

Any service performed on the air curtain MUST be done by

qualied personnel.

Berner air curtains require very little servicing. All parts are

easily accessible for periodic inspection and maintenance.
Units should be cleaned at least twice a year. Your particular
application (the amount of dirt and dust in the air) and
location of the unit(s) will determine how often your
unit(s) will need to be cleaned and serviced. All motors have
permanently lubricated, sealed, sleeve bearings and require no
maintenance.

9

X. TROUBLESHOOTING

SYMPTOMS CAUSE REMEDY

NO AIR • Electrical Power supply line open (no power) • Check power source, check method of control in

ON position

• Fuse blown/circuit breaker tripped • Replace fuse(s)/reset breaker

• Motor overload tripped • Internally protected motor - should reset

• Failed switch • Replace switch

MOTOR RUNNING/FANS ARE NOT ROTATING

• Broken or fan hub • Replace fan

• Shaft rotating inside fan • Tighten set screws/tighten fan on shaft

• Broken/Loose coupling • Replace/Tighten coupling

ELECTRICAL CONTROLS NOT FUNCTIONING WHEN DOOR IS OPEN

• Selector switch is in o position • Turn switch to “ON” position

• Door limit switch not operating • Repair or replace limit switch

MINIMUM • Air directional discharge vanes misadjusted • Adjust vanes to proper position, see instructions

• Inadequate intake clearance • Move air curtain or remove obstruction
Provide adequate space for air curtain

• Blower motor operates below speed • Improve voltage

• Fan rubbing against housing • Free fan from housing

• Fan wheels clogged with dirt • Clean and vacuum fan wheels

• Air stream too weak •

AIR IS NOT
HITTING

see installation instructions

FLOOR

• Air stream hits obstruction • Remove obstruction or reposition air curtain
(move out

• Negative pressure • Relieve negative pressure by providing make-up air

• Shaft rotating inside fan • Tighten set screws/Replace fan

UNEVEN AIR

• One motor not operating • Repair or replace motor/Check electrical connections

• Nozzle not angled out far enough • Adjust nozzle angle to outside

EXCESSIVE AIR

• Air movement too cold • Add auxiliary heat to overcome wind chill

MOVEMENT AT

• Pushing air outside building • Adjust discharge angle back into building

DOORWAY

SEE AIR IS NOT HITTING FLOOR SYMPTOMS

automatically after cool-down, if not replace motor.

Adjust nozzle to proper position, adjust motor speed;

3

/8” for every 1” up from the door)

ELECTRICALLY HEATED MODELS

NO HEAT • Switch turned to “OFF” position • Turn switch on

• Thermostat not set properly • Change thermostat setting

• Coils burned out due to lack of air • Correct airow problem; replace coils

• Automatic reset thermal cutout failed in open position • Replace automatic thermal cutout

• Manual reset thermal cutout tripped • Reset manual thermal cutout

• Defective switch • Replace switch

NOT ENOUGH • Thermostat in wrong location - thermostat too • Move thermostat away from air stream
HEAT close to discharge

• Improper voltage • Supply proper voltage

• Thermostat not set properly • Change temperature setting

TOO MUCH • Thermostat in wrong location • Move thermostat closer to air stream
HEAT • Thermostat not set properly • Change temperature setting

• Insucient air over coil • Remove restriction on intake

• Improper voltage • Supply proper voltage

10

11

XI. WARRANTY

Berner International (“The Company”) warrants all new equipment to be free of defects in workmanship and material for a period
of ve years (5 years) on unheated models and two years (2 years) on heated models from the original date of shipment, provided
the equipment has been properly cared for, installed and operated in accordance with the limits specied on the nameplate and The
Company’s instructions.

The Company will correct by repair or replacement, at its option and expense, any proven defects in said apparatus, subject to the above
conditions, provided that immediate written notice of such defects is given to The Company. The warranty does not include any labor
incurred for the removal or installation of defective part(s). The Company reserves the right to inspect, or have inspected by a qualied
representative, any apparatus at the place of installation before authorizing repair or replacement. Repair or replacement will be made
F.O.B. factory with any applicable transportation charges to be borne by the customer. Merchandise not of The Company’s manufacture
supplied in piece, or in component assemblies, is not covered by the above warranty, but The Company will give the customer the benet
of any adjustment as made with the Manufacturer.

This warranty is void if the apparatus has been tampered with in any way or shows evidence of misuse.

The Company will not assume any expense or liability for repairs made outside its factory without proper written consent from its service
manager, nor for any transportation charges on apparatus returned to the factory without written authorization by The Company.

Nothing in the above warranty provisions, however, shall impose any liability or obligation of any type, nature or description upon Berner
International if Berner has not received payment in full for the apparatus in question.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HERE OF INCLUDING

THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

LIMITATION OF DAMAGES
Notwithstanding anything to the contrary above, customer’s exclusive remedy for any and all losses or damages resulting
from the sale of The Company’s equipment under this agreement, including but not limited to, any allegations of breach of
warranty, breach of contract, negligence or strict liability, shall be limited, at The Company’s option, to either the return of
the purchase price or the replacement of the particular equipment for which a claim is made and proved. In no event shall The
Company be liable for any special, consequential, incidental or indirect losses or damages from the sale of The Company’s
equipment under this agreement.

SERIAL NUMBER MODEL NUMBER DATE PURCHASED

Saving energy and creating healthy, comfortable environments

BERNER INTERNATIONAL

New Castle, Pennsylvania

724-658-3551 • 1-800-245-4455 • www.Berner.com

Berner reserves the right to alter specifications without prior notice.

© Copyright 2017 Berner International MADE IN U.S.A.

12
