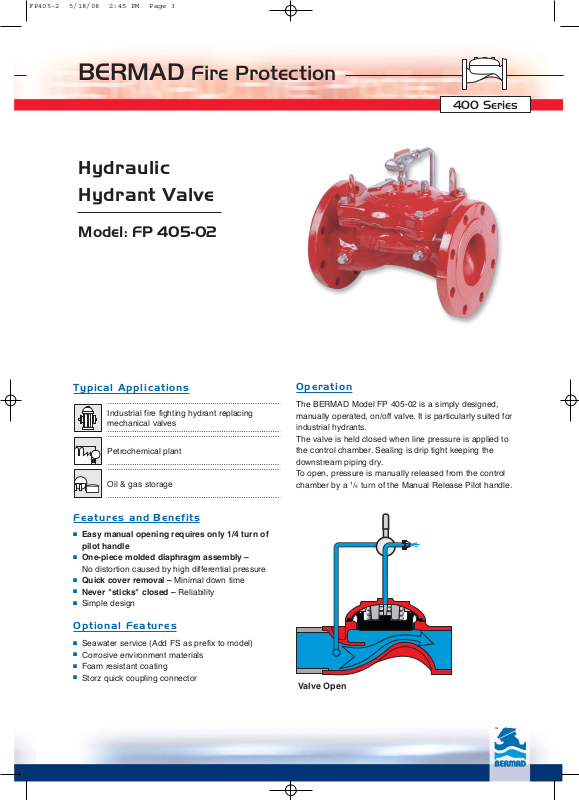

BERMAD Fire Protection
Hydraulic
Hydrant Valve
Model: FP 405-02
400 Series
Typical Applications
Industrial fire fighting hydrant replacing
mechanical valves
Petrochemical plant
Oil & gas storage
Features and Benefits
■
Easy manual opening requires only 1/4 turn of
pilot handle
■
One-piece molded diaphragm assembly –
No distortion caused by high differential pressure
■
Quick cover removal – Minimal down time
■
Never "sticks" closed – Reliability
■
Simple design
Optional Features
■
Seawater service (Add FS as prefix to model)
■
Corrosive environment materials
■
Foam resistant coating
■
Storz quick coupling connector
Operation
The BERMAD Model FP 405-02 is a simply designed,
manually operated, on/off valve. It is particularly suited for
industrial hydrants.
The valve is held closed when line pressure is applied to
the control chamber. Sealing is drip tight keeping the
downstream piping dry.
To open, pressure is manually released from the control
chamber by a
Valve Open
1
/4 turn of the Manual Release Pilot handle.
BERMAD Fire Protection
Model: FP 405-02
400 Series
Engineer Specifications
■
The valve shall be a line pressure driven, elastomeric type globe valve with a rolling-diaphragm.
■
Valve actuation shall be accomplished by a fully peripherally supported, one-piece balanced rolling-diaphragm,
vulcanized with a rugged radial seal disk. The diaphragm assembly shall be the only moving part.
■
The valve shall have an unobstructed flow path, with no stem guide or supporting ribs.
■
The valve cover shall be removable for in-line service, enabling all necessary inspection and servicing.
■
The manual release pilot valve shall be supplied as an assembly with the main valve. It shall require only 1/4 turn for
full opening or closing. It shall be equipped with a device to regulate the opening speed.
■
The valve trim shall be supplied as an assembly, pre-assembled and hydraulically tested at an ISO 9000 & 9001
certified factory.
Technical Data
Th
Th
R
Tw
L1, L2,
Valve Size 2” 21/2”3”4”6”
mm inch mm inch mm inch mm inch mm inch
(1)L1 205 81/2 205 81/2 250 913/16 320 129/16 415 165/16
(2)L2 180 71/16 210 81/4 255 101/16 N/A N/A N/A N/A
(1)La1 121 33/4 N/A N/A 153 6 160 65/16 N/A N/A
(2)La2 284 113/16 N/A N/A 300 113/16 313 125/16 341 137/16
Tw 284 113/16 284 113/16 300 113/16 313 125/16 341 137/16
Th 210 81/4 210 81/4 215 87/16 243 99/16 315 123/8
Dimensions
h 83 31/4 N/A N/A 101 4 112 47/16 N/A N/A
Connection Standard
• Flanged: ANSI B16.42 (Ductile Iron),
B16.5 (Steel & Stainless Steel ),
B16.24 (Bronze), B16.1 (Cast Iron), ISO PN16
• Threaded: NPT or BSP for 2 & 3"
Water Temperature
• 0.5 – 50°C (33 – 122°F)
Manufacturers Standard Materials
Main valve body and cover
• Cast Iron ASTM A126 class B
Valve wetted parts
• Stainless Steel and Natural Rubber
Control System
• Brass with Copper tubing
Elastomers
• Nylon fabric reinforced polyisoprene
Coating
• Electrostatic Powder Coating Polyester,
Red (RAL 3002)
(1)
L1
Available Sizes
• Globe: 11/2, 2, 21/2, 3, 4, 6, 8, 10 & 12"
• Angle: 2, 3 & 4"
Pressure Rating
• Max. working pressure: 235 psi (16 bar)
Optional Materials
Main valve body and accessories
• Carbon Steel ASTM A216-WCB
• Stainless Steel 316
• Ni-Al-Bronze ASTM B-148
Control System
• Stainless Steel 316
Elastomers
• NBR
• EPDM
Coating
• High Built Epoxy Fusion-Bonded
with UV Protection, Anti-Corrosion
La1, La2
(1)
Tw
Notes:
1. L1 & La1 are for flanged ANSI
#125 / #150 and ISO PN16.
2. L2 & La2 are for threaded female,
NPT or BSP.
3. Data is for maximum envelope
dimensions, component
positioning may vary.
4. Provide adequate space around
valve for maintenance.
bermadfire@bermad.com • www.bermad.com
The information herein is subject to change without notice. BERMAD shall not be held liable for
any errors. All rights reserved. © Copyright by BERMAD. PE4PE-502 04
