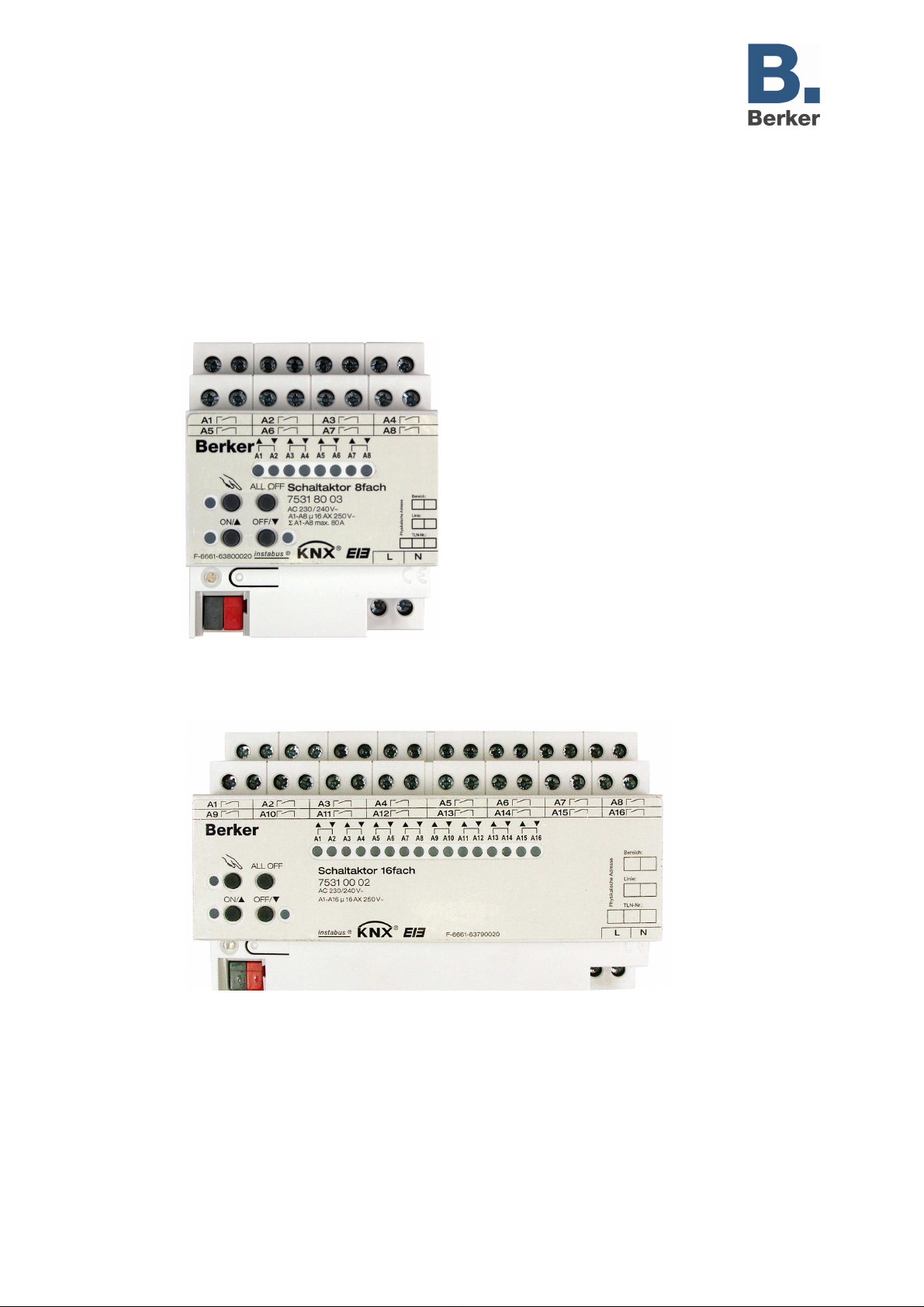

Page 1

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003 Switch/shutter actuator 16/8gang 16A RMD 75310002

Technical

Documentation

Seite: 1 / 174

Page 2

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003 Switch/shutter actuator 16/8gang 16A RMD 75310002

Table of Contents

Product definition

.................................................................................................................3

Technical

Documentation

1.1 Product catalogue

1.2 Function

Fitting, electrical connection and operation

2.1 Safety instructions

2.2 Device components

2.3 Fitting and electrical connection

2.4 Commissioning

2.5 Operation

Technical data

Software information

4.1 Software specifications

4.2 Software "Switching, shutter 2078x1 / 2080x1"

4.2.1 Scope of functions

4.2.2 Software information

4.2.3 Object table

4.2.4 Functional description

4.2.4.1 Description of channel-independent functions

4.2.4.2 Channel-oriented functional description

4.2.4.3 Delivery state

4.2.5 Parameters

...........................................................................................................................3

........................................................................................................................14

..............................................................................................................3

..............................................................................................................4

............................................................................................................5

...........................................................................................6

................................................................................................................11

....................................................................................................................19

..........................................................................................................22

.....................................................................................................22

....................................................................................................24

.................................................................................................25

.............................................................................................................26

................................................................................................32

..................................................................................................117

............................................................................................................118

...........................................................................4

....................................................................24

.......................................................32

................................................................45

Seite: 2 / 174

Page 3

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

1 Product definition

1.1 Product catalogue

Product name: Switch / shutter actuator 16/8gang 16A RMD Switch / shutter actuator 8/4gang 16A RMD Use: actuator Design: REG (rail-mounted device) Order no.: 4/8gang: 7531 80 03 / 8/16gang: 7531 00 02

1.2 Function

The switching/shutter actuator receives telegrams from sensors or other controls via the KNX/EIB and switches electrical consumers. The outputs of the actuator can be configured in the ETS either for the shutter mode or alternatively for the switching mode, with mixed operation of the modes mentioned on the device itself remaining possible. In shutter mode the switching/shutter actuator uses its relay contacts for switching electrically operated blinds, shutters, awnings, venting louvers or similar devices for 230 V AC mains voltage (4 channels) or extra-low voltage 12...48 V DC (2 channels). In the switching mode the actuator switches electrical consumers such as lighting fixtures or also extra low voltages. Each relay output is equipped with mains-operated monostable switching relays so that the preferred contact positions are maintained also during bus voltage failure.

The controls (4 pushbuttons) on the front panel of the device permit switching the relays on and off by hand in parallel with the KNX/EIB even without bus voltage or in a non-programmed state. This feature permits fast checking of connected motors for proper functioning.

The functionalities that can be preset with the ETS independently for each output channel include in shutter mode, for instance, separately parameterizable moving times, enlarged feedback functions, assignment to up to five different safety functions, a sun protection function adapted to a great variety of requirements and the incorporation into scenes or forced-position applications. Centralized control of all outputs is also available. The functionalities in switching mode include among other things extensive timing functions, logic operations, scenes, disabling or forced control functions and an enlarged range of response telegrams. Centralized switching of all outputs is also available. Moreover, the preferred states of the relays in case of bus voltage failure or bus / mains voltage return and after ETS programming can be preset separately.

For project design and commissioning of this device it is recommended to use the ETS3.0d. The advantages with regard to downloading (shorter loading times) and parameter programming are available only if this new ETS patch version or later versions are used. For the ETS2 and older versions of the ETS3 a separate product database is available.

The switching/shutter actuator has its own mains supply independent of the connected drives or loads. For actuation of the outputs, the mains supply must always be on. The device electronics are supplied from the bus voltage or from the mains voltage. The device is designed for being mounted on DIN rails in closed compact boxes or in power distributions in fixed installations in dry rooms.

Seite: 3 / 174

Page 4

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

2 Fitting, electrical connection and operation

2.1 Safety instructions

Electrical equipment must be installed and fitted only by qualified electricians. Observe the current accident prevention regulations.

Failure to observe any of the installation instructions may cause damage to the device and result in fire and other hazards.

Before working on the device or before replacing any connected loads, disconnect the supply voltage (by cutting out the circuit breaker) to avoid the risk of an electric shock.

The switching/shutter actuator is not suited for safe disconnection of the mains. For parallel connection of several drives to an output it is indispensable to observe the

corresponding instructions of the manufacturers. There is otherwise risk of irreparable damage to the drives.

Use only blinds/shutters with mechanical or electronic limit switches. Check the limit switches for correct adjustment.

Do not connect mains voltage and sELV/PELV circuits to the same switching/shutter actuator. Do not connect three-phase AC motors to the actuator. Make sure during the installation that there is always sufficient insulation between the mains

voltage and the bus. A minimum spacing of 4 mm must be ensured between bus wires and mains conductors.

Do not open the device and do not operate it outside the scope of the technical specifications.

Seite: 4 / 174

Page 5

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003 Switch/shutter actuator 16/8gang 16A RMD 75310002

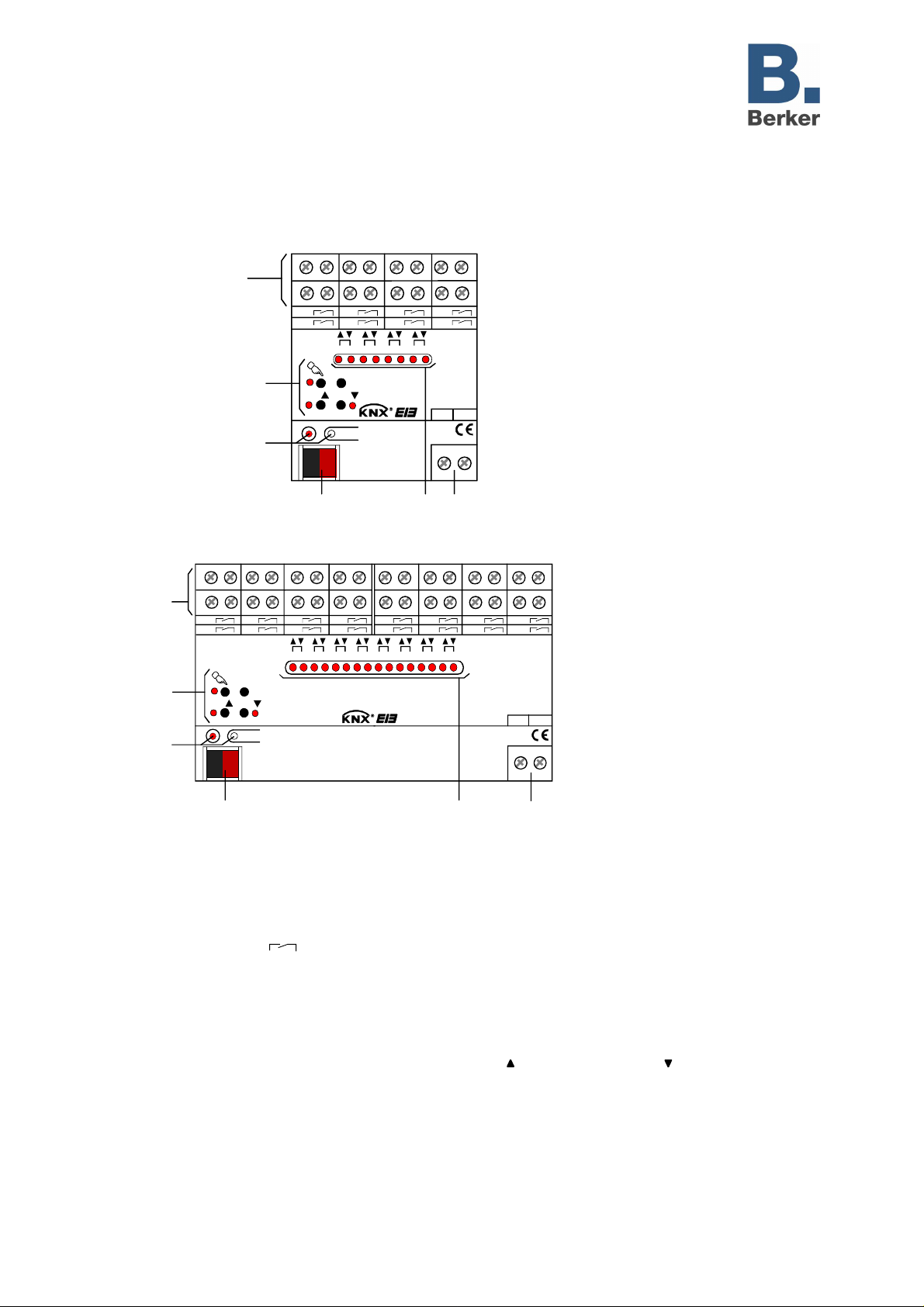

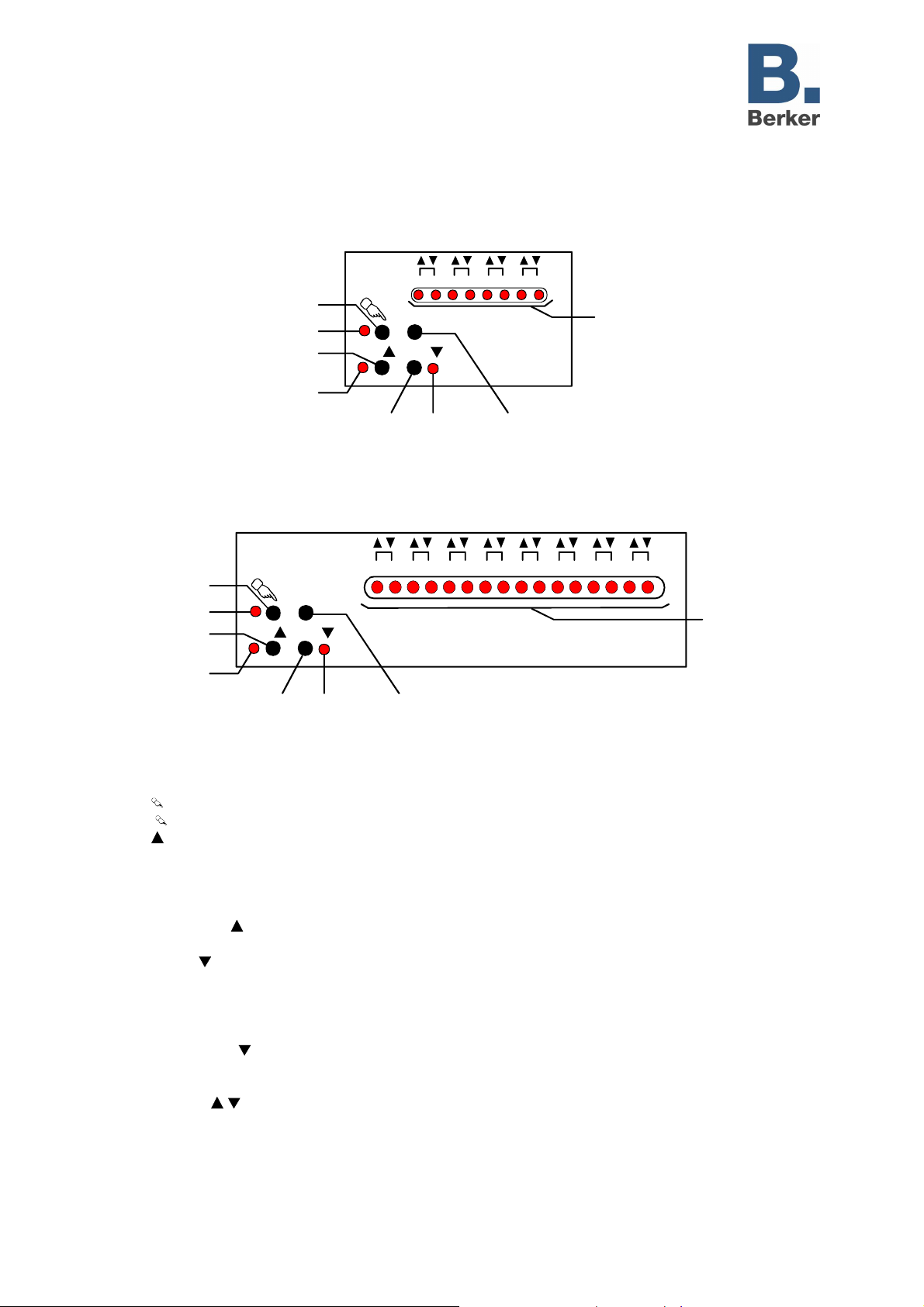

2.2

Device components

(3)

(4)

(2)

A1 A2

ALL OFF

ON/

OFF/

A3 A4

A5 A6

A7 A8

A4 A8

L N

Technical

Documentation

Abmessungen:

Dimensions:

Breite (B):

width (W):

72 mm (4 TE)

72 mm (4 TE) height (H):

Höhe (H):

90 mm

depth (D):

Tiefe (T):

70 mm

(1)

(5)

(6)

Dimensions:

(3)

width (W): 144 mm (8 TE)

height (H): 90 mm

depth (D): 70 mm

(4)

A1 A9A2A10A3A11

ALL OFF

ON/

OFF/

A12

A13

A1 A2 A3 A4 A5 A6 A7 A8 A9 A10A11A12 A13A14A15A16

A14

A15

A16

L N

(2)

(1)

(5)

(6)

(1): KNX/EIB bus connection (2): Programming button and programming LED (red). The programming LED flashes slowly when the

safe-state mode is active. (3): screw terminals (Ax, ) for connection of the different loads. (4): Keypad for manual control with status LED. (5): Output state LEDs with travel direction indicator or for indication of the switching states

(1 LED per output):

LED off: contact open,

LED on: contact closed (in shutter mode: upward travel " " or downward travel " "),

LED flashing slowly: output controlled manually,

LED flashing fast: output disabled by manual control. (6): Mains voltage terminal for power supply to the device electronics.

Seite: 5 / 174

Page 6

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

2.3 Fitting and electrical connection

DANGER!

Electric shock in case of accidental contact with live parts. Electric shocks can be fatal.

Before working on the device, cut out the mains supply and cover up live parts in the

surroundings.

DANGER!

Elektric shock in all sELV/PELV circuits, if mains voltage consumers are connected together with sELV/PELV consumers to the same actuator. Electric shocks can be fatal. Risk of irreparable damage to all devices connected to sELV/PELV sources.

Do not connect sELV/PELV/FELV consumers to the actuator!

CAUTION!

Inadmissible temperature rise in the event of device overload. The device itself and the connected wires may be damaged at the terminals.

The maximum load current rating per device must not be exceeded (cf. Technical Data).

Neighbouring outputs must not be loaded with more than 20 A max.

CAUTION

Risk of irreparable damage if several drives are connected in parallel to one output. Limit switch contacts can weld together and drives, blinds/shutters and the shutter actuator can be irreparably damaged.

Observe the manufacturer's instructions and use isolating relays, if necessary.

Fitting



Fit the device by snapping it onto a mounting rail in acc. with DIN EN 60715. The screw terminals for the

outputs should be at the top. A KNX/EIB data rail is not required. Observe the temperature range (-5 °C ...+45 °C) and ensure suffic ient cooling, if necessary.

75310002.doc

Seite: 6 / 174

Page 7

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

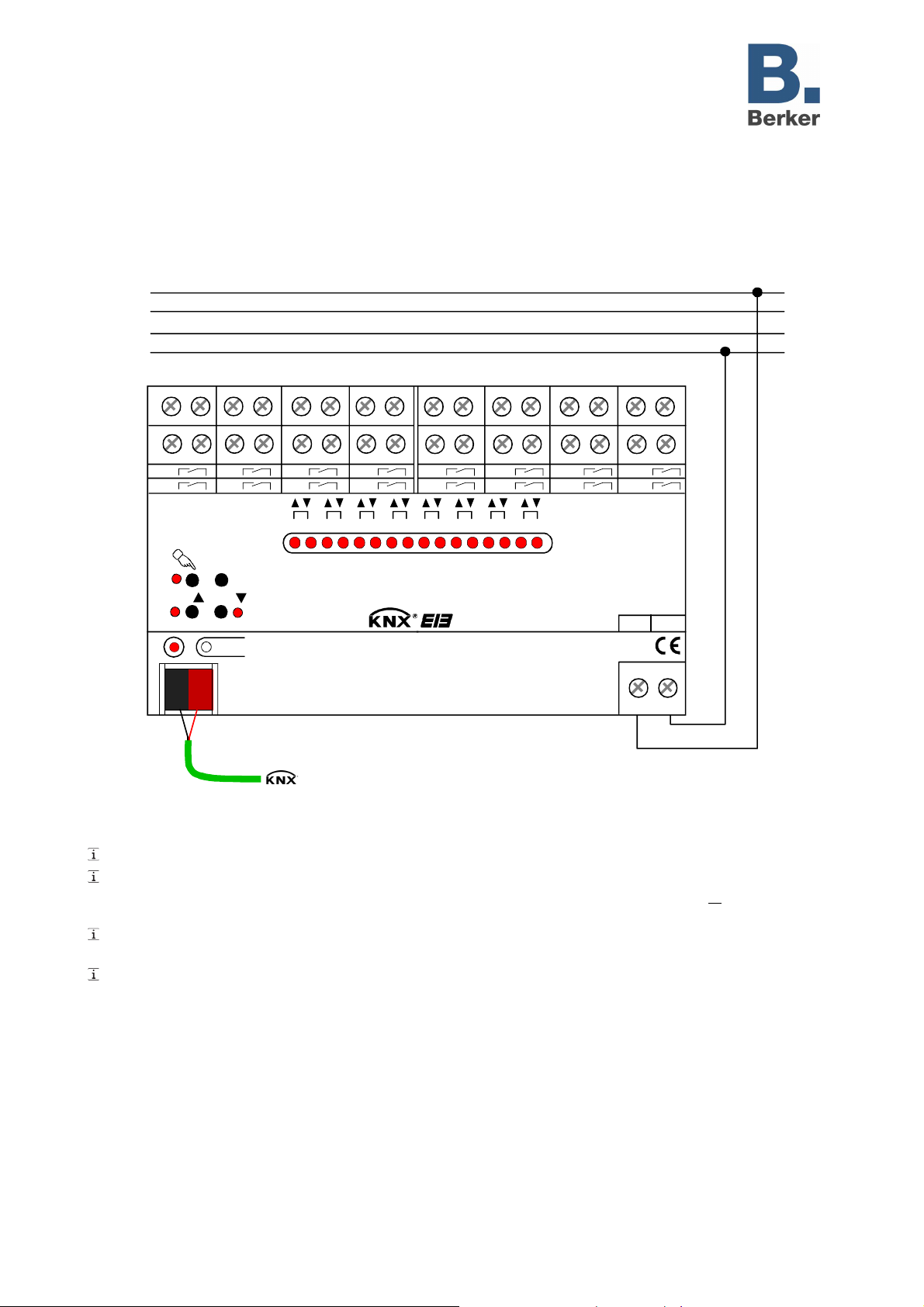

Connecting the power supply for the device electronics



Connect the bus (standard bus terminal) and the mains voltage as shown in Fig. 1 (wiring example).

L1 L2 L3

A1 A9

ON/ OFF/

black

A10

ALL OFF

red

A11

A1 A2 A3 A4A5 A6 A7 A8 A9 A10A11A12 A13A14A15A16

EIB

A12

A13

A14

A15

A16

L N

Fig. 1: Electrical connection of mains voltage

The device can be connected to any of the phase conductors (L1, L2, L3). For actuation of the outputs – even in the manual control mode – the mains supply must be on. The

device electronics (BCU with application program) are supplied with power from the bus or from the

mains. The connection of the drives depends on the type of supply (230 V or 12 – 48 V DC) and on the

automatic end position detection and is described on the following pages. The connection of drives in the shutter mode or of loads in the switching mode is described on the

following pages.

75310002.doc

Seite: 7 / 174

Page 8

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Connecting the device for 230 V drives in the shutter mode

In the shutter mode, two neighbouring relay outputs constitute a blind/shutter output, with the left relay outputs (A1, A3, ...) controlling the UP direction ( ) and the right ones (A2, A4, ...) the DOWN direction ( ).

For this purpose, the shutter actuator must have been programmed in the ETS for blind/shutter operation of the corresponding output channel (1 x blind/shutter output) (this is also the setting in the as-supplied state of the actuator).



Connect the drives as shown in Fig. 2 (wiring example).

L1 L2 L3

A1 A2 A3 A4

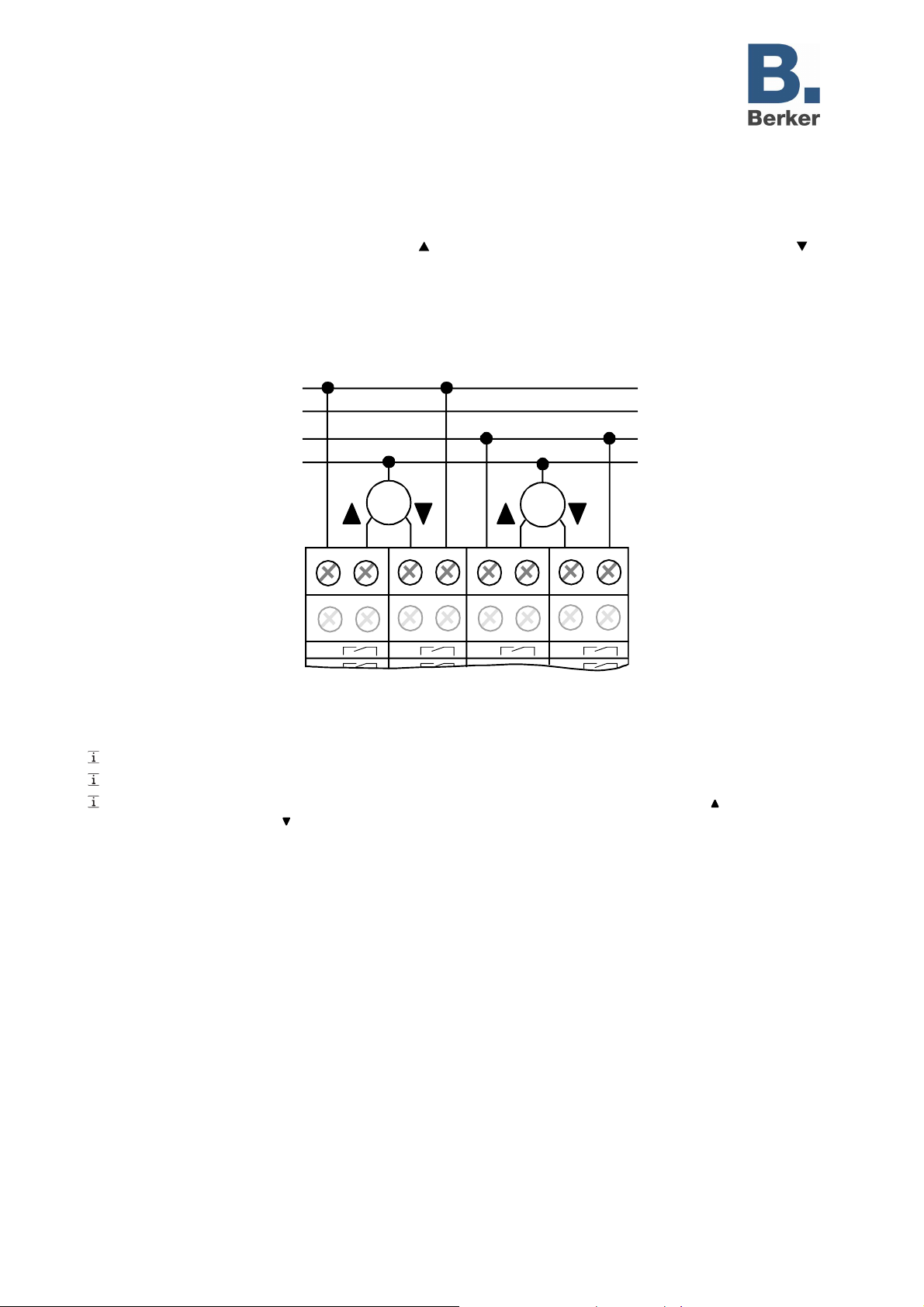

Fig. 2: Electrical connection for 230 V drives in shutter mode

Observe the admissible load ratings (cf. 'Technical data'). The device can be used with different phase conductors (L1, L2, L3). Venting louvers must be connected in such a way that they open in travel direction "UP - " and close in

travel direction "DOWN – ".

75310002.doc

Seite: 8 / 174

Page 9

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Connecting the device for electrical loads in the switching mode

In the switching mode, the outputs can be controlled independently of one another. The switching/shutter actuator must have been programmed in ETS for switching operation of the

corresponding output channel (2 x switching output).



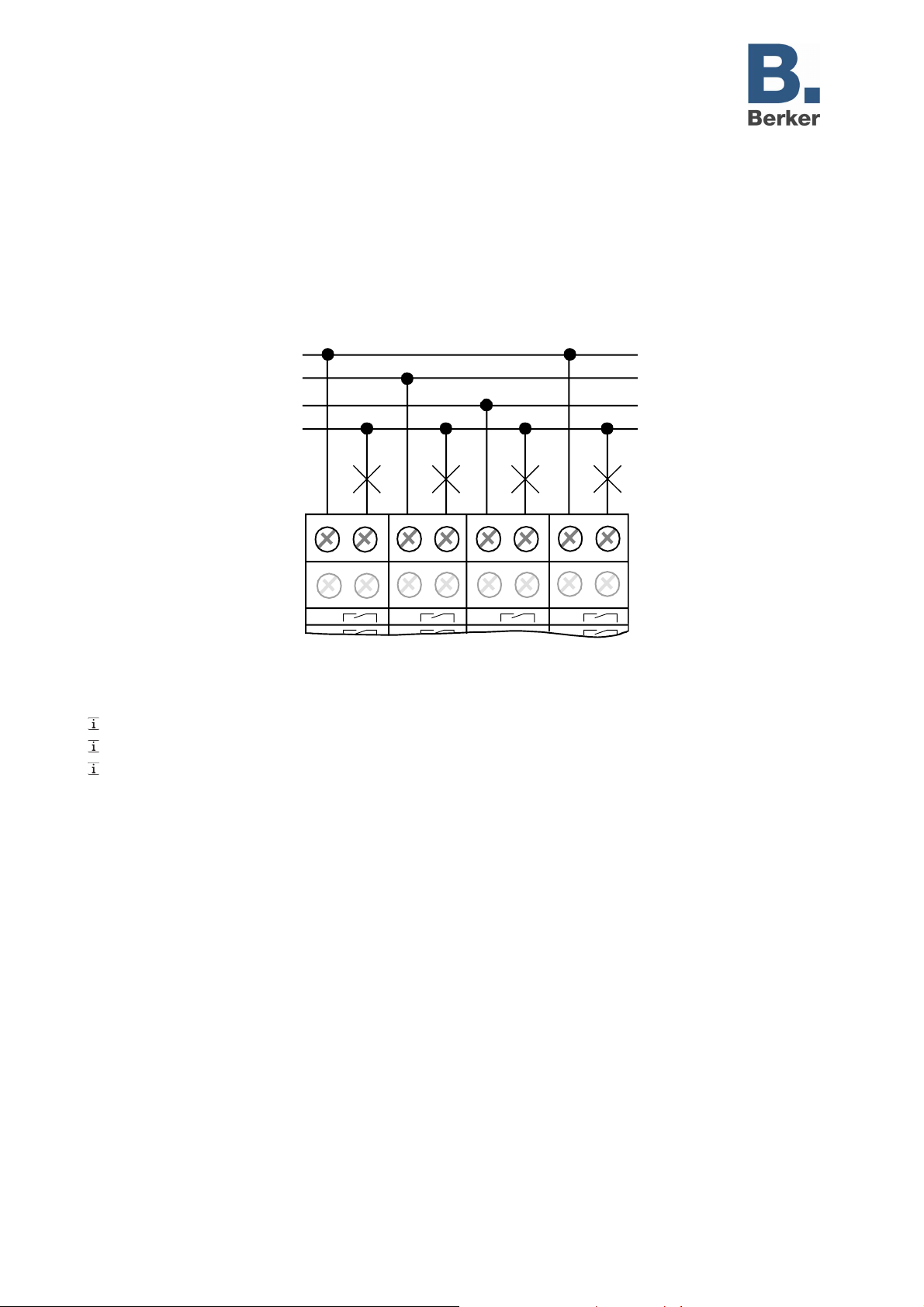

Connect the loads and the bus line as shown in fig. 3 (connection example).

L1 L2 L3

A1 A2 A3 A4

Fig. 3: Electrical connection for loads in switching mode

Observe the admissible load ratings (cf. 'Technical data'). The device can be used with different phase conductors (L1, L2, L3). Do not connect three-phase AC motors to the actuator.

75310002.doc

Seite: 9 / 174

Page 10

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

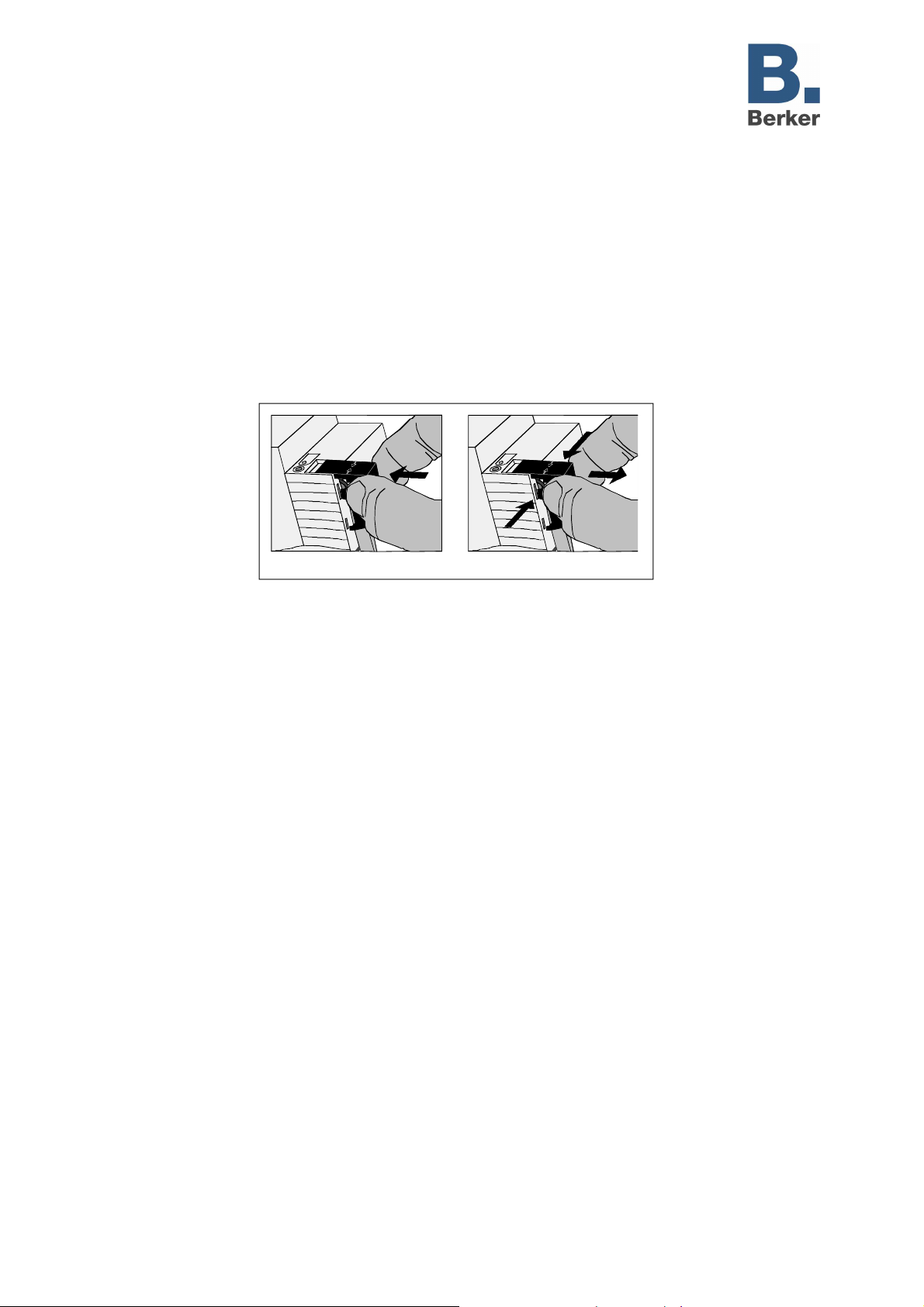

Installing / removing the protective cap

To protect the bus lines against hazardous voltages, especially in the area of the connecting terminals, a protective cap can be installed.

The cap is installed with the bus terminal in place and the connected bus line led out at the rear.



To install the cap: slide the cap over the bus connecting terminal until it is heard to engage

(cf. Fig. 4.A).



To remove the cap: Remove the cap by pressing the sides slightly and by pulling it out to the front

(cf. Fig. 4.B).

A B

Fig. 4: Installing / removing the protective cap

75310002.doc

Seite: 10 / 174

Page 11

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

2.4 Commissioning

After installation of the actuator and connection of the bus line, the mains supply and of all electrical loads, the device can be put into operation. Only the shutter mode requires some special commissioning measures before the device can programmed with the ETS. The following procedure is generally recommended...

DANGER!

Electric shock in case of accidental contact with live parts. Electric shocks can be fatal.

Before working on the device, cut out the mains supply and cover up live parts in the

surroundings.

Measuring the travelling times (only in shutter mode)

For the purpose of positioning blinds, shutters and awnings or for adjusting the opening angle of venting louvers, the actuator needs accurate information about the maximum travelling time.

Switch on the mains supply.



If not yet done, move the blind/shutter into the upper end position (open venting louver completely)

The upper limit-stop position is reached (venting louver opened).



Start the measuring time and move the blind/shutter by manual control into the lower end position (close

the venting louver completely).



Stop the time measurement when the lower limit (when the completely closed) position is reached.



Enter the measured value in the ETS (cf. software description).

It is recommended to perform several time measurements and to take the average of these values. The travelling time can also be determined after commissioning with the ETS (bus operation).

75310002.doc

Seite: 11 / 174

Page 12

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Measuring the travelling time extension (only in shutter mode)

When travelling upwards, blinds or shutters have a tendency of moving more slowly due to their own weight or to external physical influences (e.g. temperature, wind, etc.). The same applies to venting louvers where opening may take longer than closing.

For this reason, the switching/shutter actuator takes the parameterized travelling time extension into account when moving upwards or when opening the louvers (long-time operation / positioning). The extension is computed as a percentage of the travelling times in both directions.

The blind/shutter (venting louver) must be in the lower end position (venting louver closed). switch on the mains supply.



If not yet done, move the blind/shutter into the lower end position (close venting louver completely)

Lower end position reached (venting louver closed).



Start the measuring time and move the blind/shutter by manual control into the upper end position (open

the venting louver completely).



Stop the time measurement when the upper limit (the completely open) position is reached.



Express the measured value as a percentage of the determined blind/shutter travelling time and enter the

value in the ETS (cf. software description).

It is recommended to perform several time measurements and to take the average of these values. The travelling time extension can also be determined after commissioning with the ETS (bus operation).

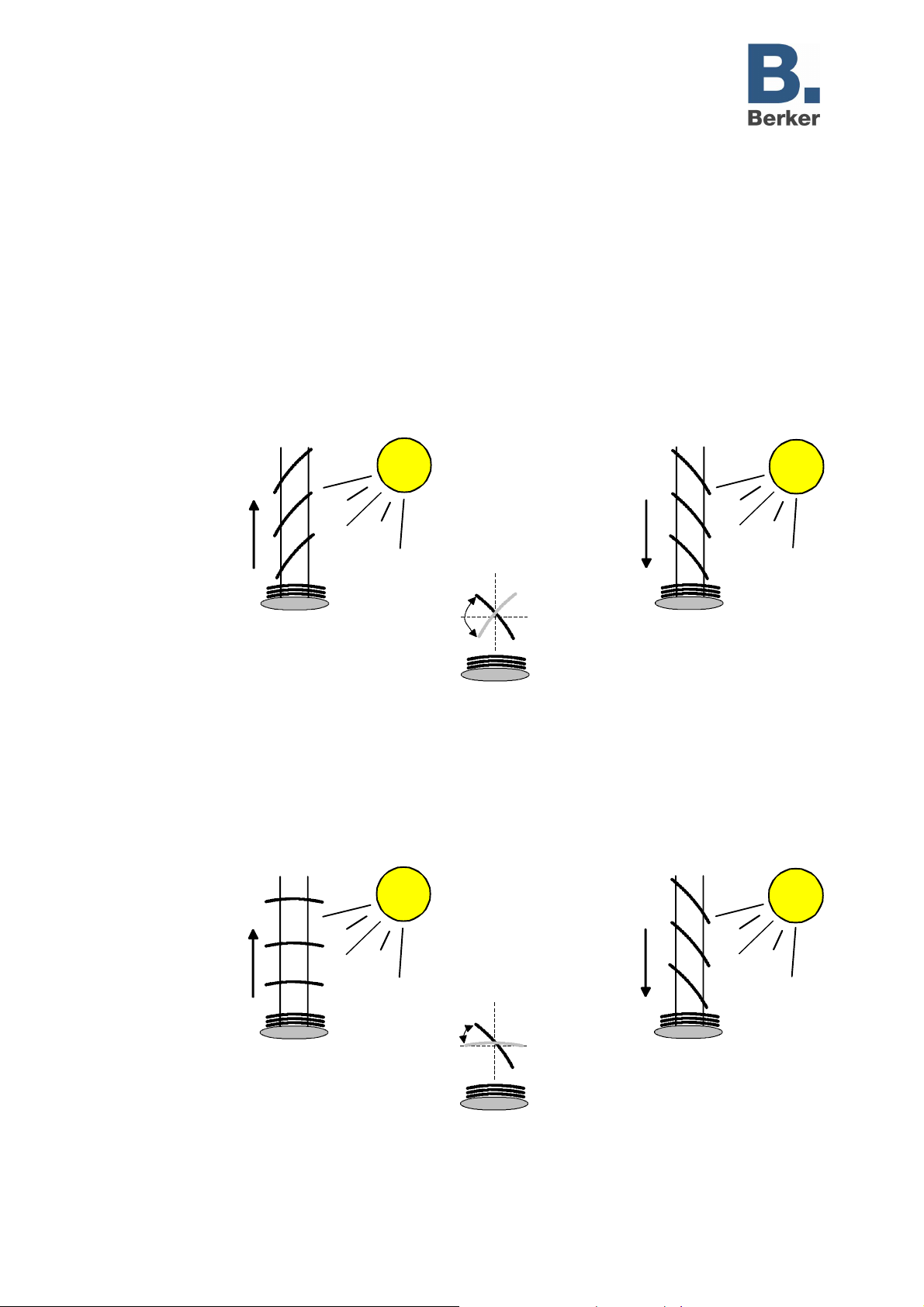

Measuring the slat moving time (only in shutter mode)

In the case of blinds with slats, the slat moving time is for technical reasons part of the overall travelling time of the blinds/shutters. The slat moving time is the time required for a movement between the slat positions "closed – 100 %" and "open – 0 %". In order to compute the opening angle of the slats, the actuator needs an information about the slat moving time.

In case of blinds with slats, the travelling time of the slats cannot be determined by automatic end position detection. For this reason, the slat moving time must always be measured 'manually'.

The slats must be completely closed (as in case of downward travel of the blind). Switch on the mains supply.



Start the measuring time and open the slats completely by manual control (as in case of upward travel of

the blind).



Take the measuring time when the completely open position is reached.



Enter the measured value in the ETS (cf. software description).

It is recommended to perform several time measurements and to take the average of these values. The slat-moving time can also be determined after commissioning with the ETS (bus operation).

75310002.doc

Seite: 12 / 174

Page 13

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Commissioning with the ETS



Switch on the bus voltage

Check: the red programming LED must light up when the programming button is being depressed.



Download the physical address and the application data with the ETS.

When the mains supply is on, the outputs of the actuator can be switched manually even if there is no

bus voltage or if the actuator is not yet programmed. Due to this feature, the drives connected to the

individual outputs can be checked for proper functioning already during site operation.

Performing a reference travel (optional only in shutter mode)

The switching/shutter actuator can approach predefined blind/shutter or louver positions only if the current positions are known. For this purpose, each output must be given the opportunity to synchronize itself whenever the supply voltage is switched on or after every ETS programming run (physical address, application program). The synchronization is performed by means of the reference travel.

Switch on the mains supply.



If not yet done, move the blinds/shutters to the upper end position (open venting louver completely).



Wait until the output relay has switched off (not only the limit switch of the drive).

The reference travel is terminated.

The switching/shutter actuator stores the blind/shutter, slat or louver positions temporarily. After each

supply voltage failure (failure of the bus voltage and of the mains voltage) or after programming with the

ETS, the actuator therefore automatically performs a reference travel for each output before a new

position can be approached. After bus voltage return, the switching/shutter actuator generates an "invalid position" message for each

output which can also be transmitted to the bus, if so parameterized. The message is cancelled (inverted

message value) as soon as a reference travel can be performed. In case of automatic end position

detection, a travelling time must have been learnt beforehand.

75310002.doc

Seite: 13 / 174

Page 14

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

2.5 Operation

All outputs of the switching/shutter actuator can also be operated manually. The keypad with 4 function keys and 3 status LEDs on the front panel of the device can be used for setting the following modes of operation...

–

Bus control mode: operation from touch sensors or other bus devices

–

Temporary manual control mode: local manual control with keypad, automatic return to bus operation,

–

Permanent manual control mode: local manual control with keypad

The operating modes can be enabled or disabled by parameter settings in the ETS. When manual control is active, the outputs cannot be controlled via the bus. Manual control is possible only while the actuator is supplied with power from the mains. The manual

control mode ends in case of bus voltage return or mains voltage failure. Manual control in the bus mode can be disabled by a telegram. The manual mode is terminated on

activation of the disabling function. Further details concerning the manual mode, especially with respect to the possible parameter settings

and the interaction with other functions of the switching/shutter actuator can be found in chapter 4.

"Software description" of the present documentation.

75310002.doc

Seite: 14 / 174

Page 15

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003 Switch/shutter actuator 16/8gang 16A RMD 75310002

Controls and indicators for manual control

A1 A2 A3 A4 A5 A6 A7 A8

(1)

ALL OFF

(2)

ON/

(3)

OFF/

(4)

Technical

Documentation

(8)

(5)

Fig. 5: Controls and indicators for manual control for switching/shutter actuator 4/8gang

A1 A2

(6) (7)

A3 A4

A5 A6

A7 A8

A9 A10

A11A12

A13A14

A15A16

(1)

ALL OFF

(2) (3)

ON/

OFF/

(8)

(4)

(5)

Fig. 6: Controls and indicators for manual control for switching/shutter actuator 8/16gang

(1) Key Activation / deactivation of manual control (2) LED : indicates permanent manual control. (3) Key : In shutter mode: Sustained press: upward travel output (long-time operation) / brief press: output stop. In switching mode: Press: output ON. (4) Status LED ON/ : indicates an active travel movement in the manual mode (up / open) or a closed

relay contact.

(5) Taste OFF/ :

In shutter mode: Sustained press: downward travel output (long-time operation)/ brief press: output stop. In switching mode: Press: output OFF.

(6) Status LED OFF/ : indicates an active travel movement in the manual mode (down / close) or an

opened relay contact. (7) (7) Key ALL OFF: stop all drives / all outputs OFF (only in permanent manual control). (8) Status LEDs / : when ON, the LEDs indicate active travel movements in the shutter mode or closed

relay contacts in the switching mode when controlled via the bus or manually.

(6) (7)

75310002.doc

Seite: 15 / 174

Page 16

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Priorities

The switching/shutter actuator distinguishes between different functions that can be active at an output. In order to prevent conflicting output states, each available function has a certain priority. The function with the higher priority overrides the function with the lower priority.

In the shutter mode, the following priorities apply…

–

1st priority: manual control (highest priority),

–

2nd priority: forced position,

–

3rd priority: safety function(s),

Priority levels 4 and 5 can be parameterized in the ETS. The options are then…

–

4th priority: sun protection function

–

5th priority: direct operation via the bus (short-time/long-time operation, positioning, scenes, central

function),

–

4th priority: direct operation via the bus (short-time/long-time operation, positioning, scenes, central

function),

–

5th priority: sun protection function

–

4th priority: sun protection function and ddirect operation via the bus (short-time/long-time operation,

positioning, scenes, central function).

In the switching mode, the following priorities apply…

–

1st priority: manual control (highest priority),

–

2nd priority: forced control or disabling function,

–

3rd priority: logic function

–

4th priority: direct operation via the bus (Object "Switching", "Scene", "Central function")

Activating the temporary manual control

Manual control is enabled in the ETS.



Press the key briefly (< 1 s). In shutter mode: The two status LEDs of A1 are flashing (LED remains off). In switching mode: The status LED of A1 is flashing (LED remains off).

With outputs parameterized for shutter operation in the ETS, the 2 status LEDs of an output combination

are always flashing. With outputs parameterized for switching operation, only the status LED of the selected output is flashing. Mixed operation ios possible.

After 5 s without a key-press, the actuator returns automatically to bus operation.

75310002.doc

Seite: 16 / 174

Page 17

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Deactivating temporary manual control

Temporary manual control is active.



No key-press for 5 s

- or -



select all outputs one after another by a brief press of the key. Thereafter, press the key once again.

- or -



switch off the power supply or bus reset (bus voltage return). Temporary manual control is terminated. The status LEDs A1...A8 / A16 indicate the status for bus

operation, when the mains voltage is on.

During a deactivation of the temporary manual control mode, the state selected by manual control does

not change. If, however, a function with a priority higher than that of the direct operation (e.g. forced position, disabling function or safety function) has been activated via the bus before or during manual control, the actuator executes the function with the higher priority for the outputs concerned.

Activating permanent manual control

Manual control is enabled in the ETS. Bus operation or temporary manual control is active.



Press the key for at least 5 s. The status LED is illuminated. In shutter mode: The two state indicator LEDs of A1 are flashing. In switching mode: The state indicator LED of A1 is flashing. Permanent manual control is now activated:

Deactivating permanent manual control

Permanent manual control active:



Press the key for at least 5 s.

- or -



Shut off the power supply or make a bus reset (bus voltage return). The status LED goes out. The state indicator LEDs A1...A6 / A16 show the status for bus operation,

when the mains voltage is on.

Depending on the parameterization of the actuator in the ETS, the outputs will be set to the state last

adjusted in the manual mode or to the state internally tracked (direct operation, forced position / disabling function, safety or sun protection position) when the permanent manual mode is shut off.

75310002.doc

Seite: 17 / 174

Page 18

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Controlling an output manually

Manual control (permanent or temporary) is active.



Select the desired output: Press the key briefly (if necessary, repeatedly). The state indicator LED of the selected output A1...A8 / A16 is flashing. In the shutter mode, the LEDs of

an output combination are flashing. In addition, the switching state or a travel movement of the selected output is signalled by the status LED "ON/ " or "OFF/ " on the keypad.



Control the output by pressing the ON/ or the OFF/ key. In shutter mode: Brief press (< 1 s) on the ON/ or OFF/ key: stopping. Long press (> 1 s) on the ON/ key: upward movement or stopping. Long press (> 1 s) on the OFF/ key: downward movement or closing. In switching mode: Pressing the ON/ key: switching on (closing the relay contact). Pressing the OFF/ key: switching off (opening the relay contact).

The selected drive motor executes the corresponding commands immediately.

Shutting off all outputs (in shutter mode: stopping all drives)

Permanent manual control is active:



Press the ALL OFF key. All outputs are shut off immediately (stop). The outputs are not locked. Individual activation is again

possible after shutoff.

The "ALL-OFF" function is not available in temporary manual control.

Disabling bus control of individual outputs manually

Permanent manual control is active: Disabling of the bus control mode must have been enabled in the ETS.



Select the output: Press the key briefly (if necessary, repeatedly). The state indicator LEDs of the selected output A1...A8 / A16 are flashing. In the blind/shutter mode, the

LEDs of the output combination are flashing. In addition, the switching state or a travel movement of the selected output is signalled by the status LED "ON/ " or "OFF/ " on the keypad.



Press the and the key simultaneously for at least 5 s. The concerned output A1...A8 / A16 is locked (control via the bus not possible).

The state indicator LEDs of the selected output A1...A8 / A16 are flashing fast. To unlock, proceed in the same way. An output that has been disabled manually can thereafter only be operated in the permanent manual

mode.

75310002.doc

Seite: 18 / 174

Page 19

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

3 Technical data

Type of protection IP 20 Safety class: III Mark of approval: KNX/EIB / VDE Ambient temperature: -5 °C … +45 °C Storage / transport temperature: -25 °C … +70 °C (Storage above + 4 5 °C reduces the lifetime) Mounting position: any position (preferred: output terminals at the top) Minimum distances: none Type of fastening: Snap-fastening on DIN rail in closed cabinets (e.g. small

distributions, etc.) / KNX/EIB data rail not required.

KNX/EIB supply

Voltage: 21 … 32 V DC sELV Power consumption: typ. 150 mW Connection: standard KNX/EIB bus connection terminal

External supply

Voltage: Connection:

Total power loss: switching/shutter actuator 4/8gang: max. 3 W

Response to bus voltage failure: depending on parameterization (cf. "Parameter description") Response to mains voltage failure: outputs are shut off (stop) Response to bus / mains voltage return:

230 ... 240 V AC ±10%, 50/60 Hz with screw terminals:

0.5…4 mm² solid and stranded wire without ferrule 0,5…2,5 mm² stranded wire with ferrule Max. tightening torque: 0.8 Nm

switching/shutter actuator 8/16gang: max. 4,5 W

depending on parameterization (cf. "Parameter description")

75310002.doc

Seite: 19 / 174

Page 20

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Technical data (continued) Output:

Number: switching/shutter actuator 4/8gang:

max. 8 switching outputs / max. 4 shutter outputs switching/shutter actuator 8/16gang: max. 16 switching outputs / max. 8 shutter outputs Depending on parameterized mode of operation. Mixed operation is possible.

Connection:

Type of contact: potential-free µ-contact, monostable

Switching voltage: Switching capacity 230 V AC 16 A / AC 1

Max. inrush current: 800 A, 200 µs

Min. switching current: 100 mA Overall load current rating of the actuator:

Overall load current rating of neighbouring outputs:

with screw terminals:

0.5…4 mm² solid and stranded wire without ferrule

0.5…2.5 mm² stranded wire with ferrule Max. tightening torque: 0.8 Nm

(In the shutter mode, the travel directions of an output are interlocked by the software of the actuator.)

230 ... 240 V AC ±10%, 50/60 Hz

10 A / AC 3 16 AX

165 A, 20 ms

switching/shutter actuator 4/8gang: max. 80 A switching/shutter actuator 8/16gang: max. 160 A

max. 20 A

max.

20 A

max.

20 A

A1 A2 A3 ... An ...

max.

20 A

75310002.doc

Seite: 20 / 174

Page 21

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Technical data (continued) Output:

Switching capacity:

Resistive load 3000 W Capacitive load: 16 A, max. 140 µF Motor load (blind / shutter or fan motors): Lamp loads:

Incandescent lamps: 3000 W HV halogen: 2500 W LV halogen:

conventional transformers: 1200 VA Tronic transformers: 1500 W

Fluorescent lamps T5 / T8

non-compensated 1000 W parallel compensated: 1160 W, 140 µF Lead-lag circuit: 2300 W, 140 µF

Compact fluoresecent lamps:

non-compensated: 1000 W parallel compensated: 1160 W, 140 µF

Mercury vapour lamps:

non-compensated: 1000 W parallel compensated: 1160 W, 140 µF

ELECTRONIC BALLASTS: The number of electronic ballasts that can be connected to the

T8 lamps:

QTP 2 x 58 W

T5 lamps:

QT-FH 4 x 14 W QT-FQ 2 x 54 W

1380 VA

device depends on type and make of the ballast and additionally also on the condition of the low-voltage mains supply network. For this reason, different electronic ballasts are listed below as an example (manufacturer: Osram). Max. number per output (25.000 switching cycles):

10 11

75310002.doc

Seite: 21 / 174

Page 22

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

4 Software information

4.1 Software specifications

ETS search paths: - Output / Binary output mix / switch / shutter actuator 16/8gang 16A RMD

- Output / Binary output mix / switch / shutter actuator 8/4gang 16A RMD BAU used: TPUART + µC

KNX/EIB type class: 3b - device with cert. PhL + stack Configuration: S-mode standard PEI type: "00" PEI connector: no connector

Applications for switching/shutter actuator 4/8gang:

No. Summarized description: Name Version: Executable from

Hex

/ "0"

Dez

mask version:

1 Multi-function switching/shutter application.

Features for each output in the shutter mode: separately parameterizable travelling times, enlarged feedback functions, assignments to up to 5 different safety functions and a sun protection function adapted to the highest requirements. Integration into scenes or forced positions also available (only for ETS3.0d and onwards). Centralized control of all outputs is also possible. Features for each output in the switching mode: timing functions, logic operations, scenes (only for ETS3.0d and onwards), disabling functions, operating hours counter, current measurement, cyclical monitoring and an enlarged set of response telegrams. Centralized switching of all outputs is also available. Moreover, the preferred states of the relays in case of bus voltage failure or bus / mains voltage return and after ETS programming can be preset separately.

Switching, shutter 208001

Switching, shutter 208011

0.1 for ETS 2 and ETS 3a…c

1.1 for ETS3 from version d onwards

705

75310002.doc

Seite: 22 / 174

Page 23

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Applications for switching/shutter actuator 8/16gang:

No. Summarized description: Name Version: Executable from

mask version:

1 Multi-function switching/shutter application.

Switching, shutter 207801

Switching, shutter 207811

0.1 for ETS 2 and ETS 3a…c

1.1 for ETS3 from version d onwards

705

75310002.doc

Seite: 23 / 174

Page 24

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

4.2 Software "Switching, shutter 2078x1 / 2080x1"

4.2.1 Scope of functions

General:

•

Outputs can be parameterized for shutter or switching operation. In the blind/shutter mode, two

neighbouring outputs are combined into a shutter output. Mixed operation in an actuator is possible.

•

Behaviour in case of bus voltage failure and bus voltage return as well as after ETS programming

presettable for each output.

•

Active feedback telegrams can be globally delayed after bus voltage return.

•

Manual control of outputs independent of the bus (for instance, site operation) with LED state indicators.

•

Each output offers the full scope of functions without any restrictions. All channel-oriented functions can

be parameterized separately for each output. This feature permits independent and multi-functional control of the switching or shutter outputs.

Shutter mode:

•

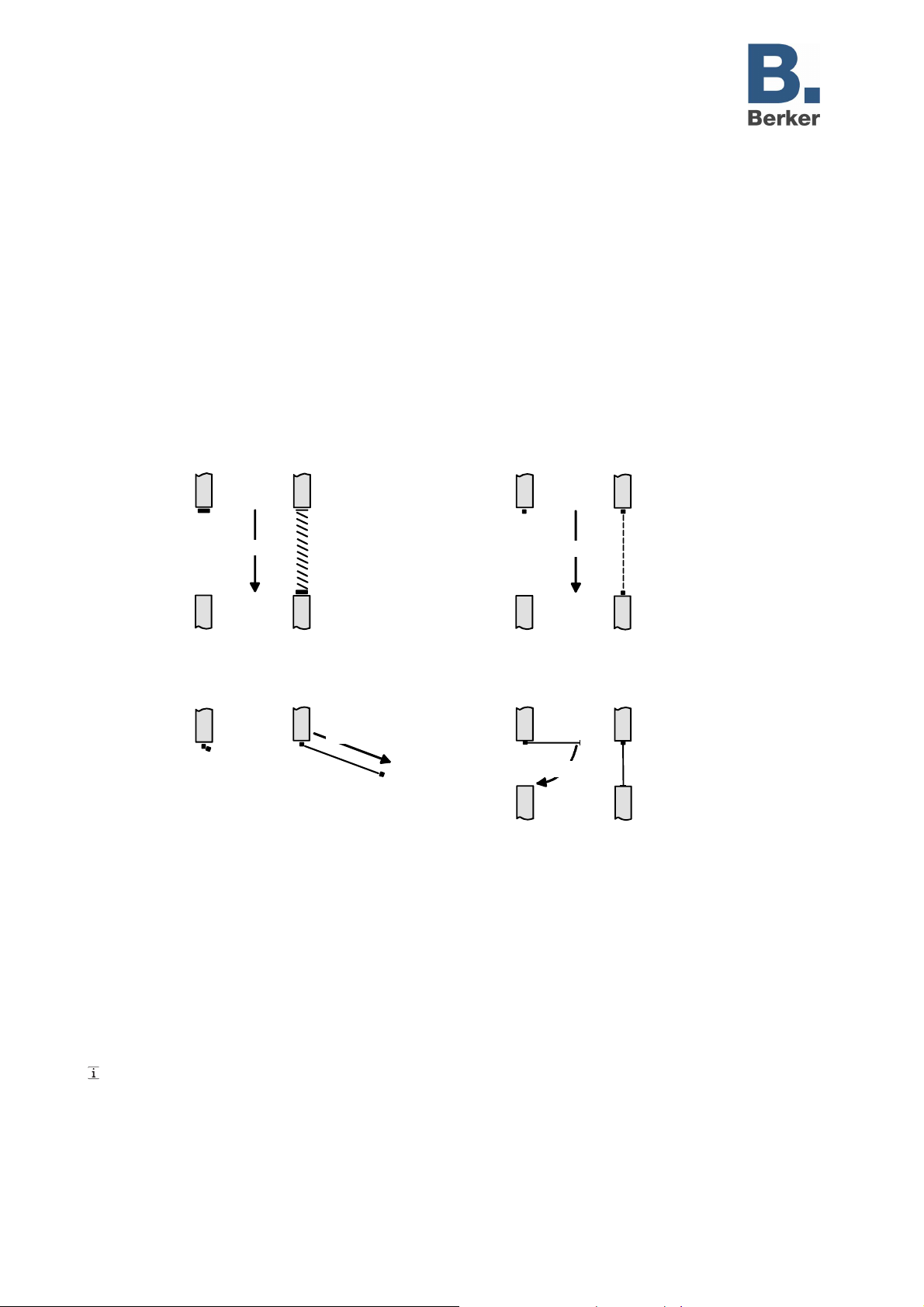

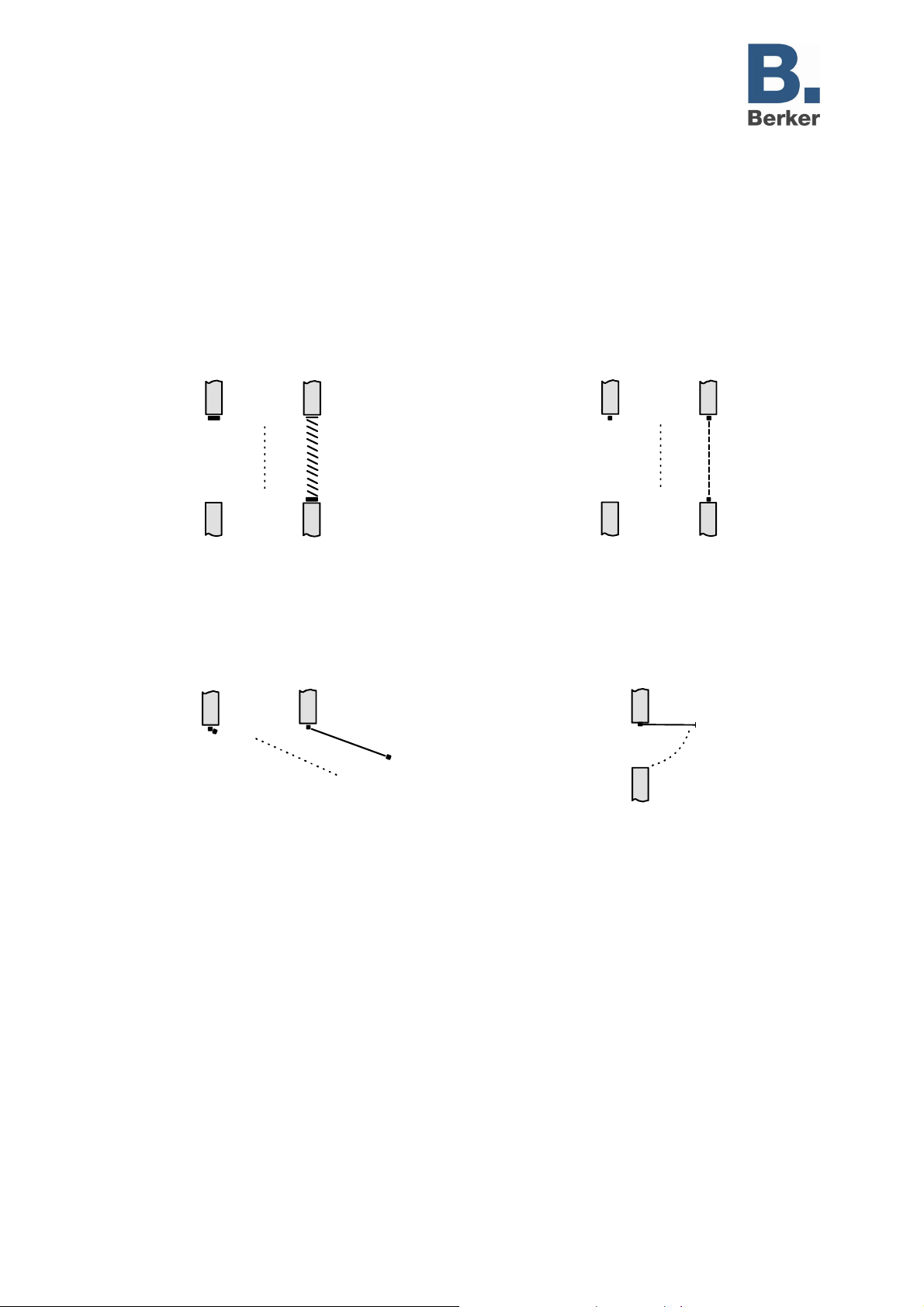

Mode of operation parameterizable: control of blinds with slats, shutters or venting louvers.

•

Separately parameterizable blind/shutter travelling times with travelling time extension for moves into the

upper end position.

•

For blinds with slats, a slat-moving time can be independently parameterized.

•

Travel direction change-over time and the times for short-time and long-time operation presettable.

•

Central control of all shutter outputs via 1-bit long-time operation telegram possible.

•

Blind/shutter or slat position feedback telegram (only with bus control). In addition, an invalid

blind/shutter position or an invalid travel movement can be reported back. Active (transmitting after changes) or passive (object readout) feedback functions.

•

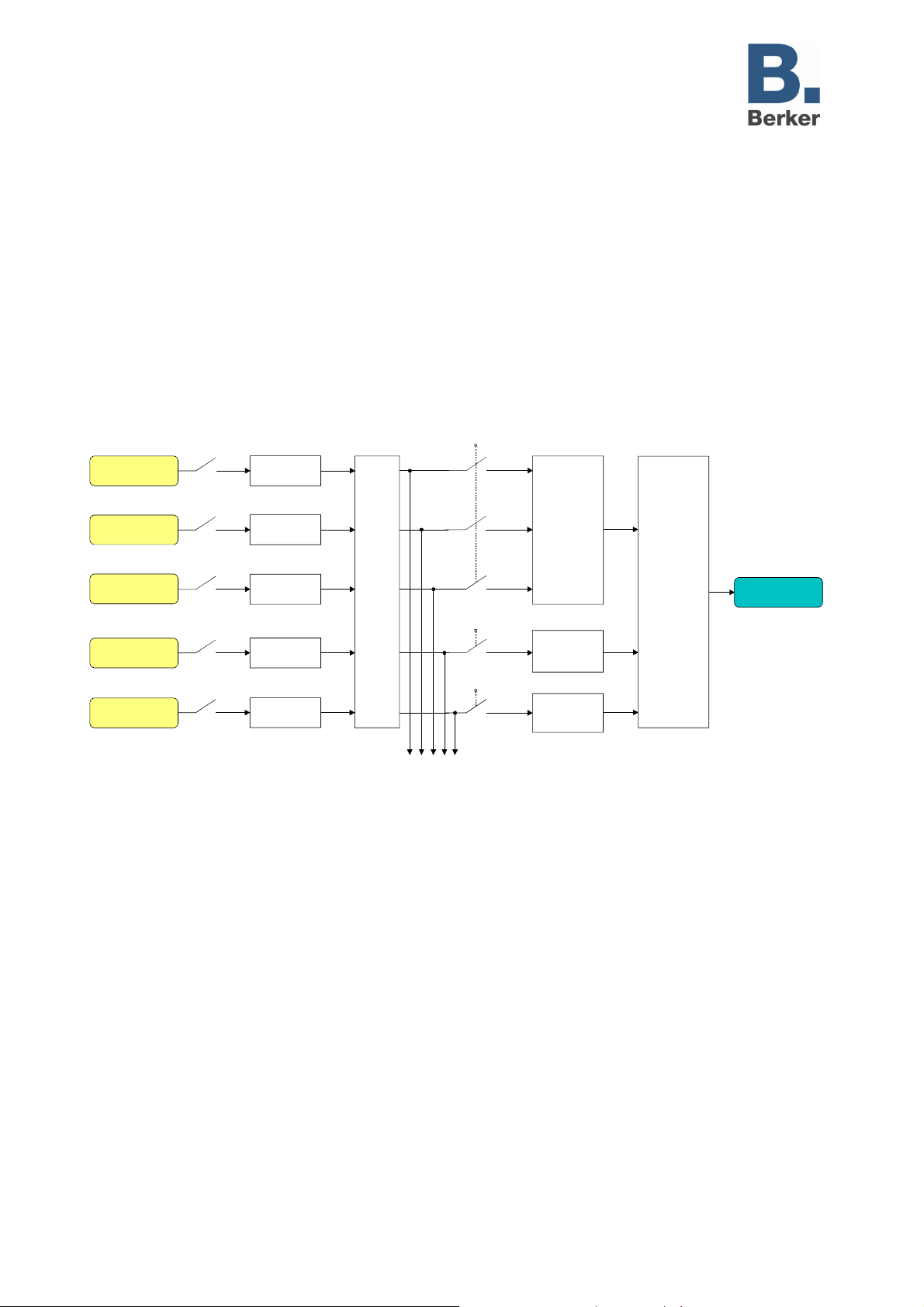

Assigning of outputs to up to 5 different safety functions (3 wind alarms, 1 rain alarm, 1 frost alarm)

optionally with cyclical monitoring. The safety functions (objects, cycle times, priority) are programmed device-oriented and in common for all outputs. The assignment of individual outputs to the safety functions and the safety measures can be parameterized for each channel.

•

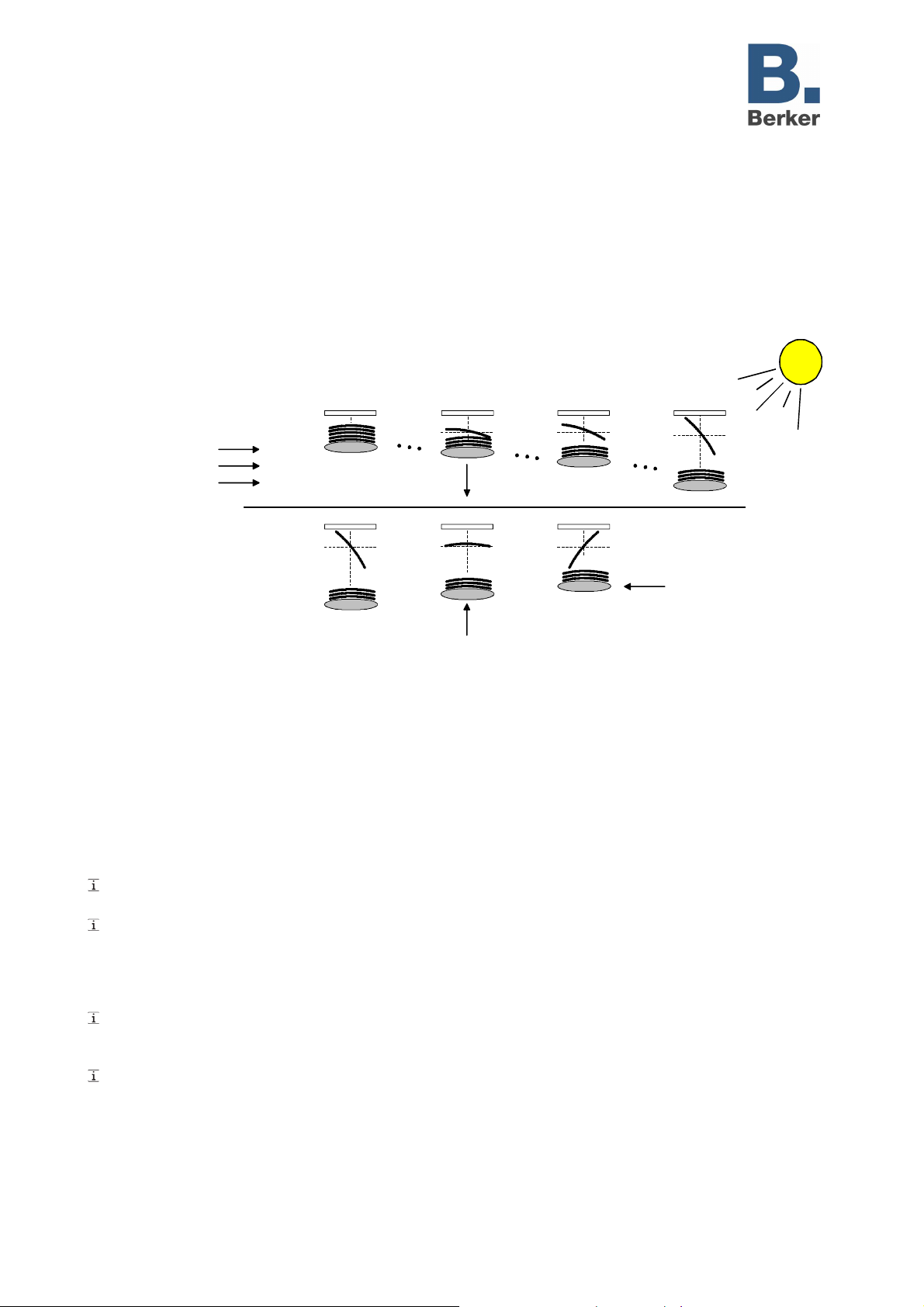

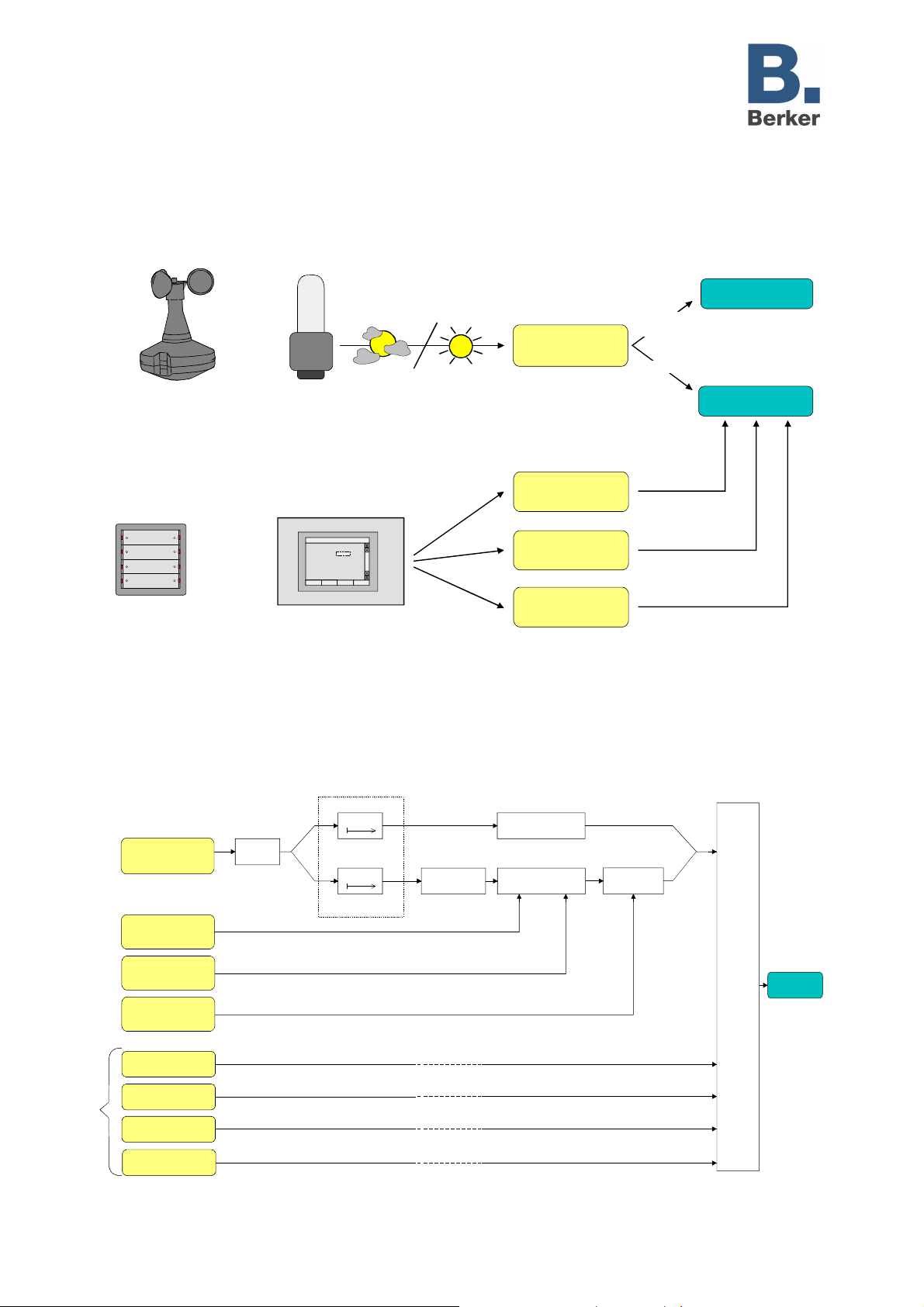

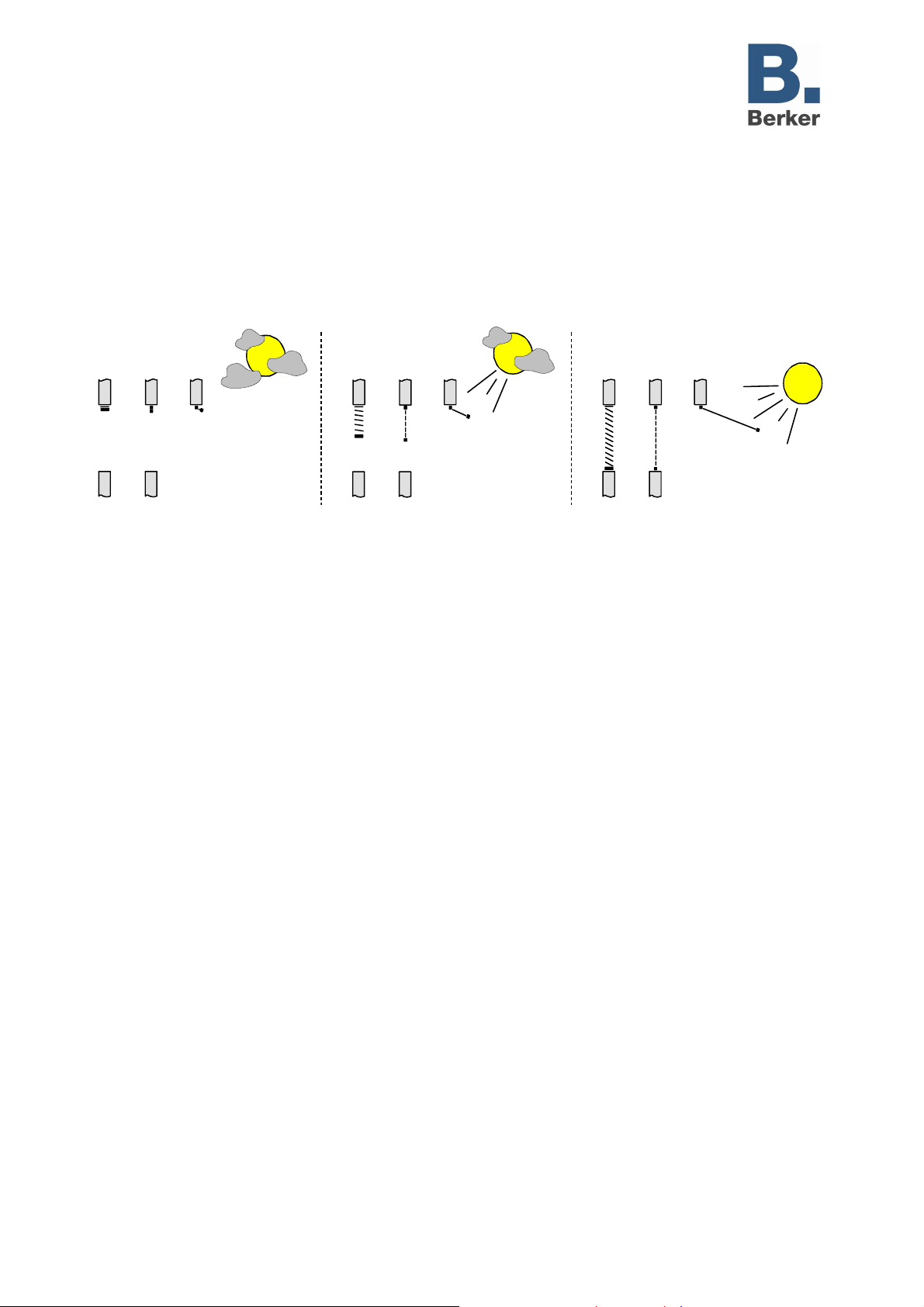

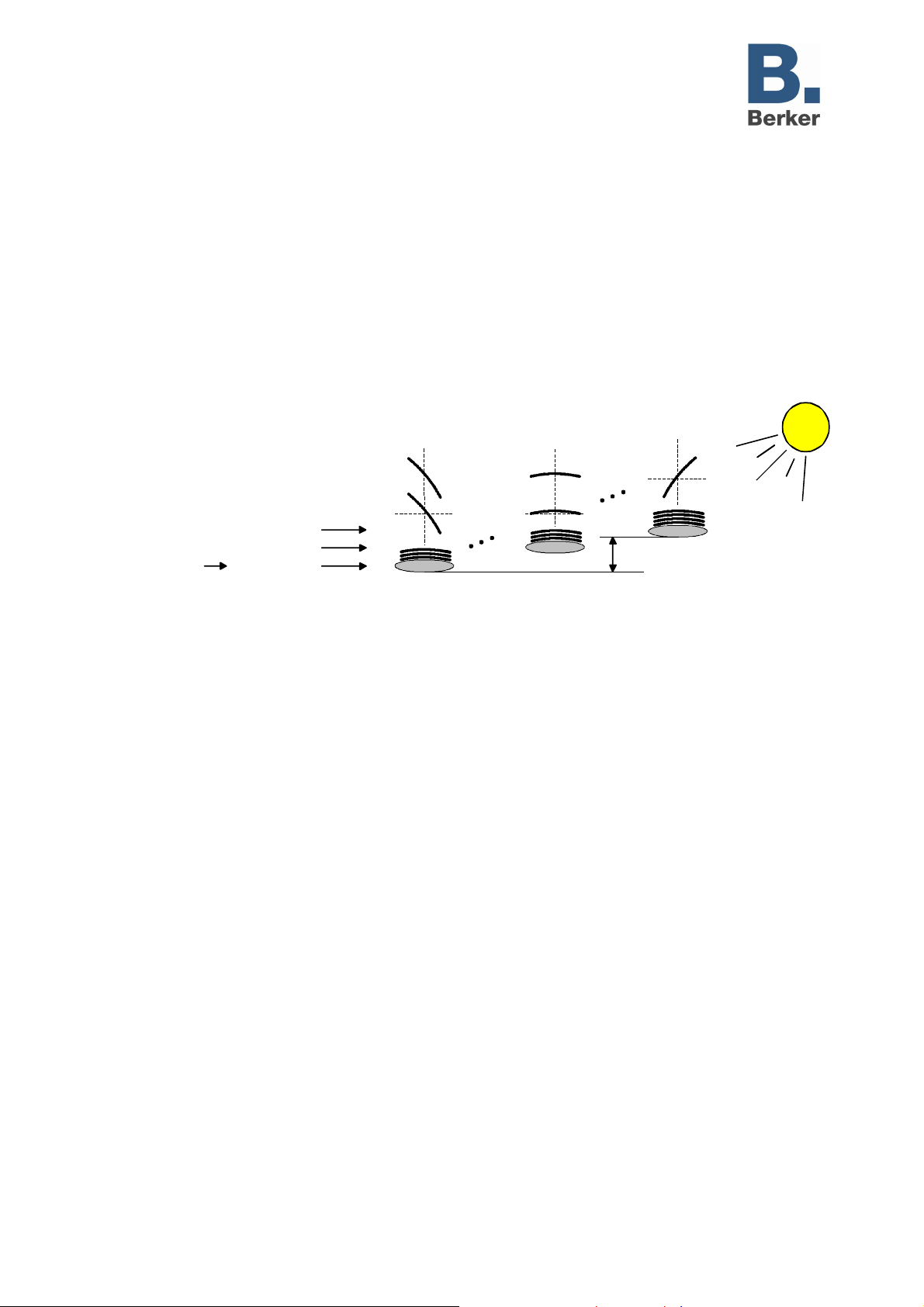

An extensive sun protection function with fixed and variable blind/shutter or slat positions at the

beginning and at the end of the function can be activated separately for each output. Dynamic slat offset for slatted blinds included.

•

Forced-position function can be implemented for each shutter output (only for ETS3.0d).

•

Integration into light-scenes possible: up to 8 internal scenes parameterizable per output (only for

ETS3.0d).

Switching mode:

•

Bus-independent manual switching of relays / switching position indication.

•

Operation as break or make contacts.

•

Central switching function with centralized feedback.

•

Switching feedback mode (only with bus operation): active (after changes or cyclical transmission to the

bus) or passive (object readout function) feedback function.

•

Logische Verknüpfungsfunktion für jeden Ausgang.

•

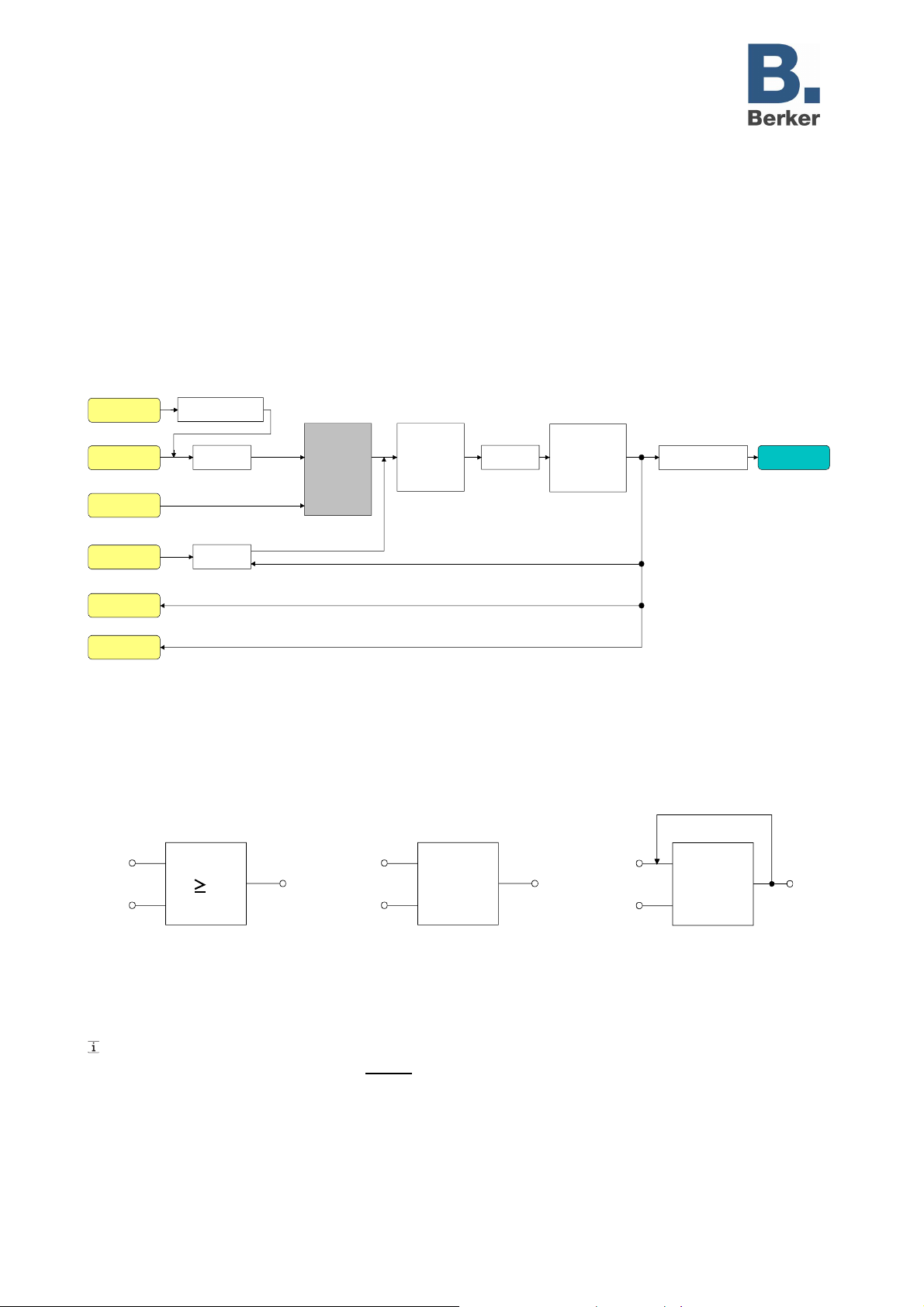

Logic function individual for each output.

•

Disabling function parameterizable for each channel. Forced-control position (only for ETS3.0d) function

separately for each output as an alternative.

•

Timer functions (on-delay, off-delay, staircase lighting timer – optional with pre-warn function).

•

Integration into light-scenes possible: up to 8 internal scenes parameterizable per output (only for

ETS3.0d).

75310002.doc

Seite: 24 / 174

Page 25

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

4.2.2 Software information

ETS project design and commissioning

For project design and commissioning of this device it is recommended to use the ETS3.0d. Advantages with regard to downloading (significantly shorter loading times) and parameter programming can be expected only if this ETS patch version or later versions are used. The advantages consist in the use of the new mask version 7.5 and the parameter presentation of the ETS3.

The product database required for the ETS3.0d is offered in the *.VD4 format. The corresponding application program has version number "1.1". For the ETS2 and older versions of the ETS3 a separate product database in the *.VD2 format is available. The application program for these ETS versions is version number "0.1".

With regard to the scope of functions described in the present documentation the two application programs are different! In the application program with version number "0.1", the scene function or the forced-control positions are not available.

When older ETS versions are updated to the level of version ETS3.0d or to that of later versions, an additional tool in the form of an ETS add-in is available. This tool is capable of converting older product databases of application version "0.1", for instance from existing ETS2 projects, into the new application format (version "1.1"). This feature permits making use of the advantages of the ETS3.0d application in an easy way and without any changes. The ETS3 add-in can be obtained separately from the manufacturer and is free of charge.

Safe-state mode

If the device - for instance as a result of errors in the project design or during commissioning - does not work properly, the execution of the loaded application program can be halted by activating the safe-state mode. The safe-state mode does not permit controlling the outputs via the bus and by hand. The actuator remains passive since the application program is not being executed (state-of-execution: terminated). Only the system software is still functional so that the ETS diagnosis functions and also programming of the device continue to be possible.

Activating the safe-state mode



Shut off the bus and the mains voltage supply.



Press the programming button and keep it pressed.



Switch on the bus or mains voltage. Release the programming button only after the programming LED

starts blinking slowly.

The safe-state mode is activated. With a new brief press on the programming button, the programming

mode can be switched on and off as usual also in the safe-state mode. The programming LED will

nevertheless continue to blink independently of the programming mode as long as the safe-state mode is

active.

The safe-state mode can be terminated by switching off the supply voltage (bus or mains) or by

programming with the ETS.

Unloading the application program

The application program can be unloaded with the ETS. In this case, manual control as part of the application program is not available either.

75310002.doc

Seite: 25 / 174

Page 26

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

4.2.3 Object table

Number of communication objects: 4/8gang: 74 (max. object number 109 – gaps in between) 8/16gang: 138 (max. object number 213 – gaps in between)

Number of addresses (max): 254 Number of assignments (max): 255 Dynamic table management: no Maximum table length: 255

Channel-independent objects:

Function: Manual control Object Function Name Type DP type Flag

0 Disabling Manual control 1 bit 1.003 C, W, -, (R)

Description: 1-bit object for disabling the keys for manual control on the device. The polarity can be

parameterized.

Function: Manual control Object Function Name Type DP type Flag

1 Status Manual control 1 bit 1.002 C, -, T, (R) 1

Description: 1-bit object for manual control status transmission The object is "0", when manual control

is deactivated (bus control). The object is "1", when manual control is being activated. The user can parameterize whether the temporary or the permanent manual control will be indicated as status information or not.

Function: Shutter central function (in shutter mode) Object Function Name Type DP type Flag

2 Central travel control All shutter outputs 1 bit 1.008 C, W, – (R)

Description: 1-bit object for central actuation (long-time travel) of assigned shutter outputs. The

polarity can be parameterized.

Each communication object can be read out. For reading, the R-flag must be set.

75310002.doc

Seite: 26 / 174

Page 27

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Channel-independent objects (continued):

Function: Safety function (in shutter mode) Object Function Name Type DP type Flag

3 Wind alarm 1 Safety 1 bit 1.005 C, W, -, (R)

Description: 1-bit object for central activation or deactivation of the first wind alarm

("0" = wind alarm deactivated / "1" = wind alarm activated).

Function: Safety function (in shutter mode) Object Function Name Type DP type Flag

4 Wind alarm 2 Safety 1 bit 1.005 C, W, -, (R)

Description: 1-bit object for central activation or deactivation of the second wind alarm

("0" = wind alarm deactivated / "1" = wind alarm activated).

Function: Safety function (in shutter mode)

Object Function Name Type DP type Flag

5 Wind alarm 3 Safety 1 bit 1.005 C, W, -, (R)

Description: 1-bit object for central activation or deactivation of the third wind alarm

("0" = wind alarm deactivated / "1" = wind alarm activated).

Function: Safety function (in shutter mode) Object Function Name Type DP type Flag

6 Rain alarm Blind safety 1 bit 1.005 C, W, -, (R)

Description: 1-bit object for central activation or deactivation of the rain alarm

("0" = rain alarm deactivated / "1" = rain alarm activated).

Function: Safety function (in shutter mode) Object Function Name Type DP type Flag

7 Frost alarm Safety 1 bit 1.005 C, W, -, (R)

Description: 1-bit object for central activation or deactivation of the rain alarm

("0" = rain alarm deactivated / "1" = rain alarm activated).

Function: Central function (in switching mode) Object Function Name Type DP type Flag

Central switching function All sw. outputs 1 bit 1.001 C, W, -, (R)

Description: 1-bit object for central switching of sw. outputs assigned. The polarity can be param.

Function: Centralized feedback (in switching mode)

Object Function Name Type DP type Flag

Centralized feedback All sw. outputs 4 bytes 27.001 C, -, T, R

Description: 4-byte object for centralized feedback of all of the actuators switching states.

Every communication object can be read out. For readout, the R-flag must be set.

Depending on parameterization, feedback objects are either actively transmitting (T-flag set) or passively readable (R-flag set).

75310002.doc

Seite: 27 / 174

Page 28

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Channel-oriented objects for switching mode:

Function: Output switching (in switching mode) Object Function Name Type DP type Flag

10, 23, … ,

Switching

Output 1 – 16 3 1 bit 1.001 C, W, -, (R)

205 3

Description: 1-bit object for controlling one output

("1" = on / "0" = off; observe the parameterized operating mode!).

Function: Forced-control position (in switching mode - only for ETS3.0d and onwards) Object Function Name Type DP type Flag

11, 24, … ,

206 3

Forced-control position

Output 1 – 16 3 2 bit 2.001 C, W, -, (R)

Description: 2-bit object for forced control of an output. The object state after bus voltage return can

be predefined by parameters.

Function: Disabling function (in switching mode)

Object Function Name Type DP type Flag

12, 25, … ,

Disabling Output 1 – 16 3 1 bit 1.003 C,W, -, (R)

207 3

Description: 1-bit object for disabling of an output (polarity parameterizable).

Function: Logic operation (in switching mode) Object Function Name Type DP type Flag

13, 26, … ,

Logic operation Output 1 – 16 3 1 bit 1.002 C, W, -, (R)

208 3

Description: 1-bit object for the input of the logic operation of an output. The object value after bus

voltage return or after programming with the ETS can be predefined with parameters.

Function: Staircase function Object Function Name Type DP type Flag

14, 27, … ,

209 3

Staircase function start/stop

Output 1 – 16 3 1 Bit 1.010 C,W, -, (R)

Description: 1-bit object for activation or deactivation of the time delay of the staircase function of an

output ("1" = on / "0" = off).

Function: Scene function (in switching mode - only for ETS3.0d and onwards) Object Function Name Type DP type Flag

16, 29, … ,

Scene extension Output 1 – 16 3 1 byte 18.001 C,W, -, (R)

211 3

Description: 1-byte object for recalling scenes or for storing new scene values.

The number of outputs of the communication objects depends on the programmed device.

Every communication object can be read out. For readout, the R-flag must be set.

75310002.doc

Seite: 28 / 174

Page 29

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Channel-oriented objects for switching mode (continued):

Function: Switching status feedback (in switching mode) Object Function Name Type DP type Flag

18, 31, … ,

213 3

Description: 1-bit object for feedback signalling of the switching state of an output

Channel-oriented objects for shutter mode:

Function: Long-time operation (in shutter mode) Object Function Name Type DP type Flag

10, 36, … ,

192 4

Description: 1-bit object for activation of the long-time operation

Function: Short-time operation (in shutter mode)

Switching feedback Output 1 – 16 3 1 bit 1.001 C, -, T, R

("1" = on / "0" = off; observe the parameterized mode of operation!)

Long-time operation

Output 1/2 –

1 bit 1.008 C, W, -, (R)

15/16 4

Object Function Name Type DP type Flag

11, 37, … ,

193 4

Short-time operation

Output 1/2 – 15/16 4

1 bit 1.007 C, W, –, (R)

Description: 1-bit object for activation of the short-time operation or for stopping of a travel movement.

Function: Forced position (in shutter mode - only for ETS3.0d and onwards) Object Function Name Type DP type Flag

12, 38, … ,

194 4

Forced position

Output 1/2 – 15/16 4

2 bit 2.008 C, W, –, (R)

Description: 2-bit object for forced control of an output. The object state after bus voltage return can

be predefined by means of a parameter.

Function: Scene function (in shutter mode - only for ETS3.0d and onwards) Object Function Name Type DP type Flag

13, 39, … ,

195 4

Scene extension

Output 1/2 – 15/16 4

1 byte 18.001 C, W, –, (R)

Description: 1-byte object for recalling scenes or for storing new scene values.

The number of outputs of the communication objects depends on the programmed device.

Depending on parameterization, feedback objects are either actively transmitting (T-flag set) or passively readable (R-flag set).

The object designations are independent of the selected channel definition.

Every communication object can be read out. For readout, the R-flag must be set.

75310002.doc

Seite: 29 / 174

Page 30

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Channel-oriented objects for shutter mode (continued):

Function: Sun protection function (in shutter mode) Object Function Name Type DP type Flag

18, 44, … ,

200 4

Description: 1-bit object for activation or deactivation of sun shading in the simple or enlarged sun

Function: Sun protection function (in shutter mode) Object Function Name Type DP type Flag

19, 45, … ,

201 4

Description: 1-byte object for presetting a variable position value (0…255) for the height of the

Function: Sun protection function (in shutter mode)

Sunshine / shading

Output ½ – 15/16 4 1 bit 1.002 C, W, -, (R)

facade

protection mode (sun / no sun). The polarity can be parameterized.

Sunsh./shading

Output ½ – 15/16 4 1 byte 5.001 C, W, –, (R)

position 5

blind/shutter curtain or the venting louver position when the sun protection is active.

Object Function Name Type DP type Flag

20, 46, … ,

202 4

Sunsh./shading slat position

Output ½ – 15/16 4 1 byte 5.001 C, W, –, (R)

Description: 1-byte object for presetting a variable slat position value (0…255) when the sun

protection is active.

Function: Sun protection function (in shutter mode) Object Function Name Type DP type Flag

21, 47, … ,

203 4

Sunshine slat position offset

Output ½ – 15/16 4 1 byte 6.001 C, W, –, (R)

Description: 1-byte object for presetting a slat position angle (- 100 % … +100 % / smaller or larger

position angles are treated as + or – 100 %) for 'manual' readjustment of the slat position during active sun protection.

Function: Position feedback (in shutter mode) Object Function Name Type DP type Flag

23, 49, … ,

205 4

Position feedback

Output 1/2 – 15/16

1 byte 5.001 C, -, T, R

Description: 1-byte object for position feedback of the blind/shutter curtain height or louver position

(0…255)

The object designation varies with the type of curtain (blind, shutter / awning, venting louver).

The object designations are independent of the selected channel definition.

Depending on parameterization, feedback objects are either actively transmitting (T-flag set) or passively readable (R-flag set).

Each communication object can be read out. For reading, the R-flag must be set.

75310002.doc

Seite: 30 / 174

Page 31

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Channel-oriented objects for shutter mode (continued):

Function: Position feedback (in shutter mode) Object Function Name Type DP type Flag

24, 50, … ,

206 4

Description: 1-byte object for position feedback of the slat position (0…255).

Function: Position feedback (in shutter mode) Object Function Name Type DP type Flag

26, 52, … ,

208 4

Description: 1-bit object for reporting back an invalid position of the blind/shutter curtain height or

Function: Travel movement feedback (in shutter mode)

Slat position feedback

Invalid position feedback

Output 1/2 – 15/16

louver position ("0" = position valid / "1" = position invalid).

1 byte 5.001 C, –, T, R

1 bit 1.002 C, -, T, R 2

Object Function Name Type DP type Flag

27, 53, … ,

209 4

Travel movement feedback

Output 1/2 – 15/16

1 bit 1.002 C, -, T, R 2

Description: 1-bit object for active travel movement feedback (output active - up or down). ("0" = no

travel movement / "1" = travel movement)

Function: Position preset Object Function Name Type DP type Flag

28, 54, … ,

210 4

Position 5

Output 1/2 – 15/16

1 byte 5.001 C, W, – (R)

Description: 1-byte object for presetting a position value (0…255) for the height of the blind/shutter

curtain or the venting louver position in direct operation.

Function: Position preset Object Function Name Type DP type Flag

29, 55, … ,

211 4

Slat position

Output 1/2 – 15/16

1 byte 5.001 C, W, – (R)

Description: 1-byte object for presetting a slat position value (0…255) in direct operation.

The object designation varies with the type of curtain (blind, shutter / awning, venting louver).

The object designations are independent of the selected channel definition.

Each communication object can be read out. For reading, the R-flag must be set.

75310002.doc

Seite: 31 / 174

Page 32

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

4.2.4 Functional description

4.2.4.1 Description of channel-independent functions

Delay after bus voltage return

To reduce telegram traffic on the bus line after bus voltage activation (bus reset), after connection of the device to the bus line or after programming with the ETS, it is possible to delay all actively transmitted feedback telegrams of the actuator. For this purpose, a channel-independent delay can be specified (parameter "Delay after bus voltage return" on parameter page "General"). Feedback telegrams for bus initialization will therefore be transmitted to the bus only after the parametrized time has elapsed.

Which of the feedback telegrams is actually delayed and which is not can be specified for each output channel and for each feedback function separately.

The delay has no effect on the behaviour of the outputs. Only the feedback telegrams are delayed. The

outputs can also be activated during the delay after bus voltage return. A setting of "0" for the delay after bus voltage return deactivates the delaying function altogether. In this

case, all feedback telegrams, if actively transmitted, will be transmitted to the bus without any delay. After switching on of the mains voltage (bus voltage being on at this time), feedback telegrams are

always transmitted without delay.

75310002.doc

Seite: 32 / 174

Page 33

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Central function for outputs in switching mode

The actuator offers the possibility of linking selected individual or all output channels in switching mode with a 1-bit central communication object. The behaviour in case of activating an output via the central function is comparable to a central group address linked with all "Switching" objects.

The behaviour of the channels is identical with 'normal' activation via the "Switching" objects (same priority – last switching command is executed – cf. Fig. 7). In this way, all 'secondary' functions such as timing or supplementary functions or logic operations are included as well. The parameterized relay operation is also evaluated for each output separately.

Object "Centralized switching"

Object "Switching"

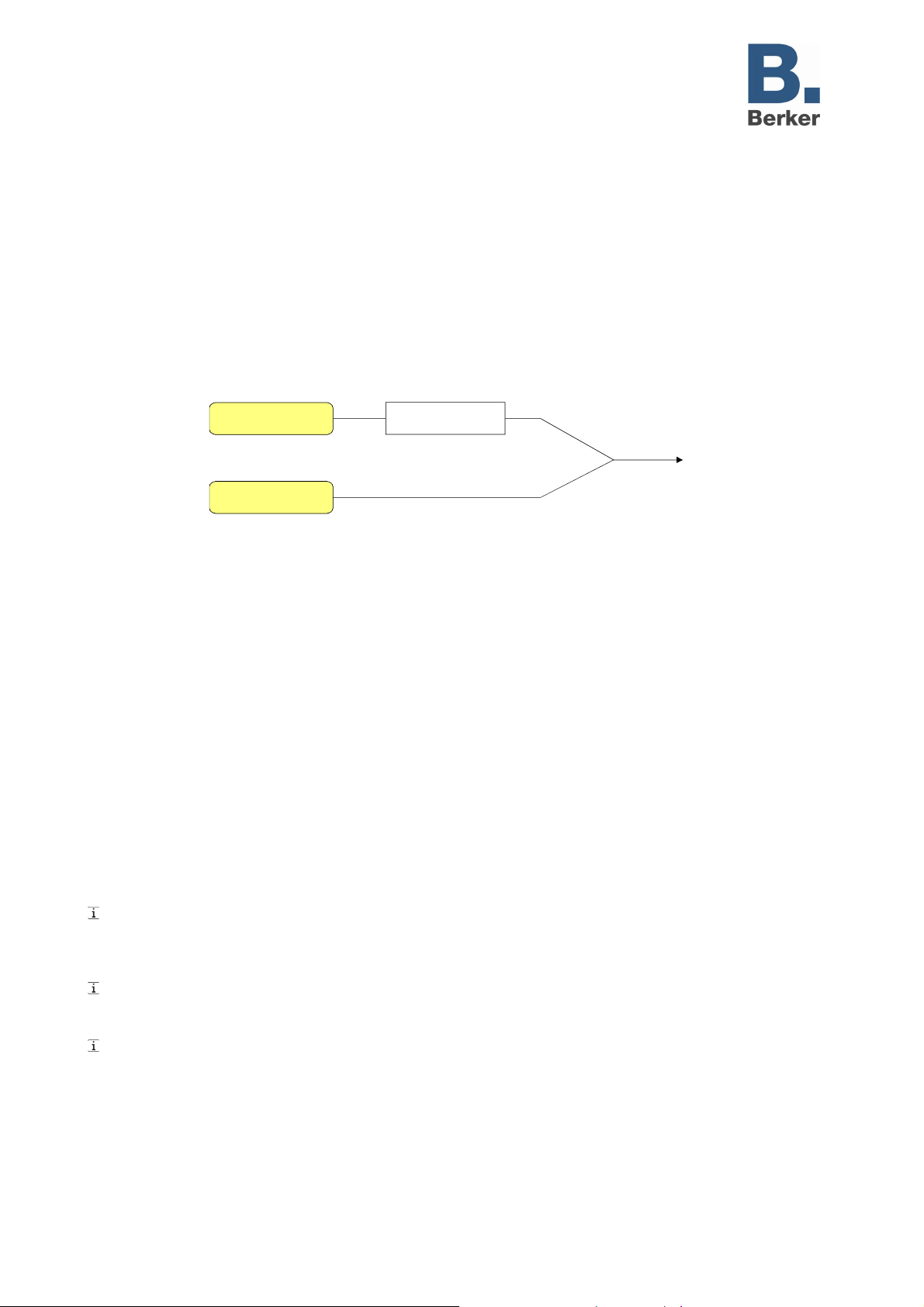

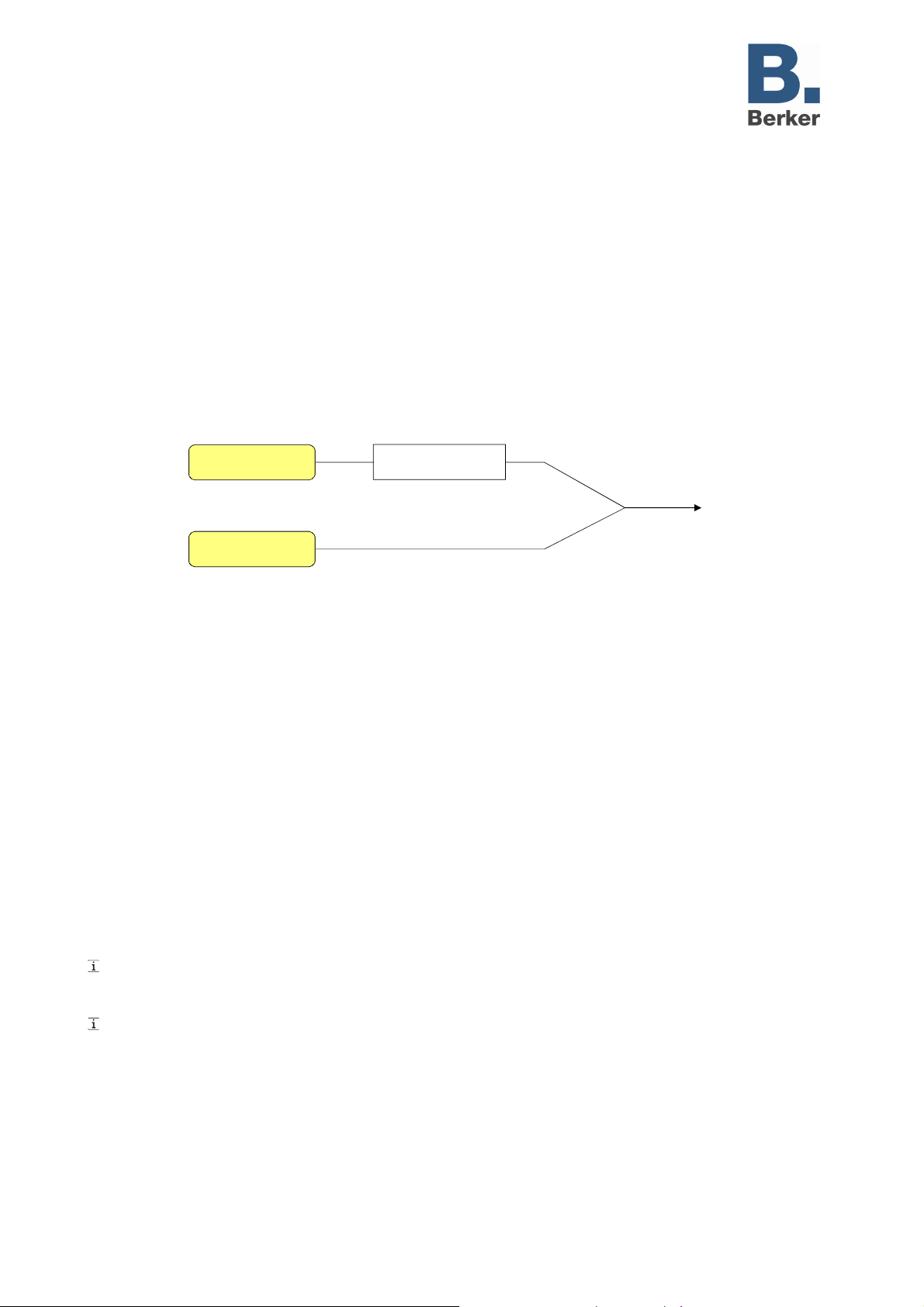

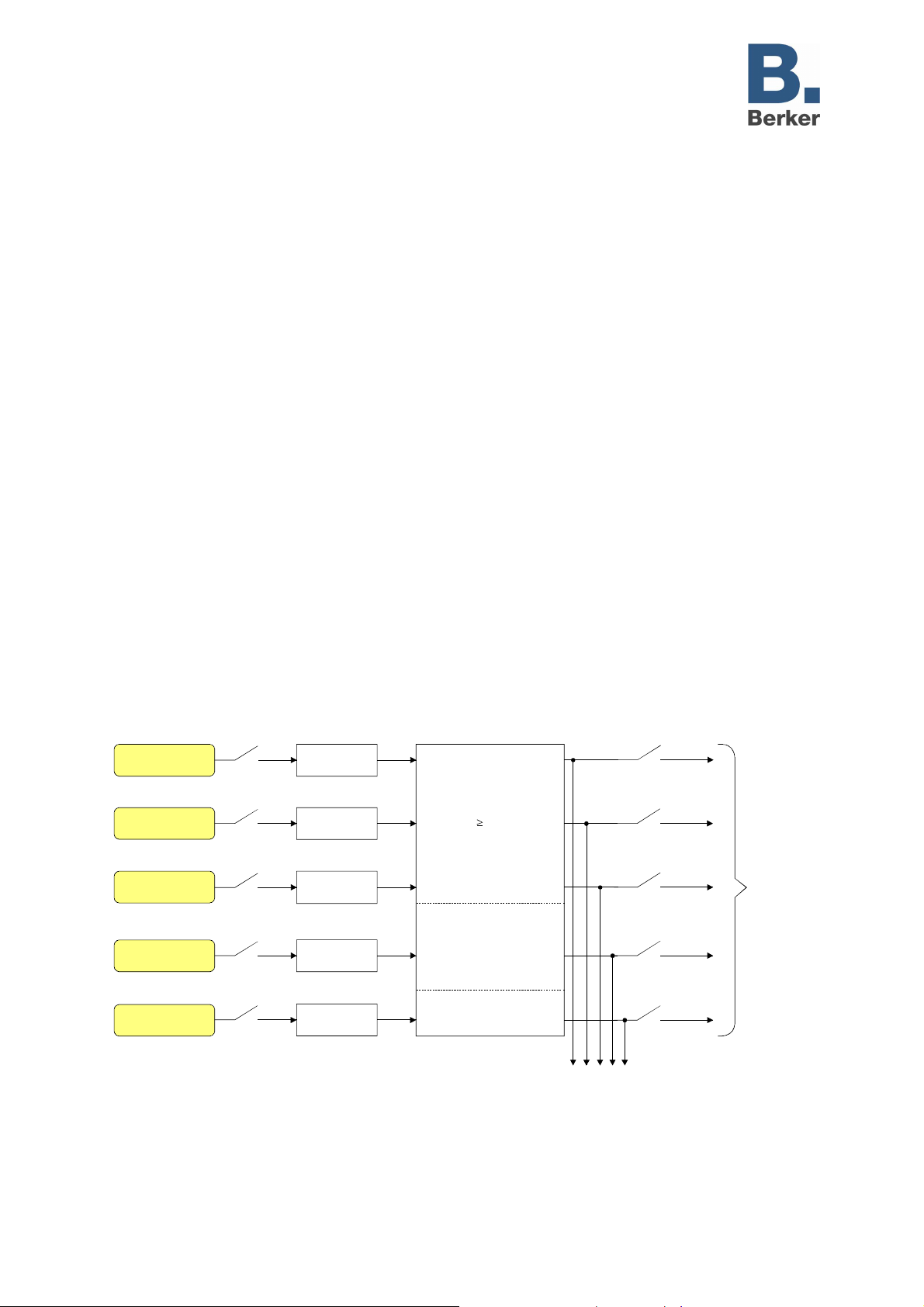

Fig.7: Functional diagram "Centralized switching"

central object polarity

. . .

Enabling the central function



Enable the central function on parameter page "General" by setting the "Central function for outputs in

switching mode ?" parameter to "Yes".

When the function is activated, the "Centralized switching" communication object is visible.

Assigning outputs to the central function

Each switching output can be assigned independently to the central function. The central function must have been enabled on parameter page "General". The assignment has otherwise

no effect on the switching output.



Set the "Assignment to central function" parameter on the "Ax–General" page (x = number of output) to

"Yes".

The corresponding output is now assigned to the central function. It can be switched on or off from a

central control station.

The switching state set by the central function is tracked in the feedback objects and also transmitted to

the bus, if they are actively transmitting. The switching state set by a central function is not tracked in the

"Switching" objects. After a bus voltage return or after programming with the ETS, the central function is always inactive

(object value "0").

75310002.doc

Seite: 33 / 174

Page 34

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Central function for outputs in shutter mode

The actuator offers the possibility of linking selected individual or all output channels with a 1-bit central communication object. The behaviour in case of activating an output via the central function is comparable to a central group address linked with all "Long-time operation" objects.

The outputs assigned to the central function are activated in accordance with the central object value received. The polarity of the central telegram can, if necessary, be inverted by means of a parameter. The behaviour of the channels is identical with the 'normal' activation via the "Long-time operation" objects (same priority – last command is executed – cf. Fig. 8).

Object "Central travel control"

Object "Long-time operation"

central object polarity

. . .

Fig. 8: Function diagram "Central travel control"

Enabling the central function



Enable the central function on parameter page "General" by setting the "Central function for outputs in

shutter mode ?" parameter to "Yes".

When the function is activated, the "Central travel control" communication object is visible.

Assigning outputs to the central function

Each shutter output can be assigned independently to the central function. The central function must have been enabled on parameter page "General" The assignment has otherwise

no effect on the shutter output.



Set the "Assignment to central function" parameter on parameter page "Ax–Enabled functions" (x =

number of output) to "Yes".

The corresponding output is now assigned to the central function and can be controlled centrally.

The blind/shutter, louver or slat position newly set by the central function is tracked at the end of a travel

movement in the feedback objects and also transmitted to the bus, if these are actively transmitting. It

should be noted that the shutter actuator can compute positions after application of the supply voltage

only if a reference movement into the upper limit positions has been performed beforehand. The central function belongs to the set of 'direct operations' of an output. For this reason, the central

function has the same priority as an operation via short-time or long-time objects, as the control via the

positioning objects or as a scene recall. After a bus voltage return or after programming with the ETS, the central function is always inactive

(object value "0").

75310002.doc

Seite: 34 / 174

Page 35

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Centralized feedback for outputs in switching mode

After central commands or after bus voltage return, a bus line is generally heavily loaded by data traffic as many bus devices are transmitting the state of their communication objects by means of feedback telegrams. This effect is particularly remarkable when visualizations are used. To keep the telegram load low during a 'bus initialization', the centralized feedback function of the actuator can be employed.

The centralized feedback function groups the switching states of all outputs in switching mode together in only one telegram. The 32-bit wide communication object "Centralized feedback" contains the feedback information of the individual outputs in a bit-oriented format and is organized as shown Fig. 9.

Byte 2Byte 3Byte 4

Mask output 15

Mask output 16

Mask output 13

Mask output 14

Mask output 10

Mask output 11

Mask output 12

Mask output 7

Mask output 6

Mask output 8

Mask output 9

Mask output 5

Mask output 3

Mask output 4

Mask output 1

Mask output 2

16171819202122232425262728293031

Output 15

Output 16

Output 13

Output 14

Output 10

Output 11

Output 12

Output 9

Output 8

Byte 1

Output 7

Output 6

Output 3

Output 4

Output 5

Output 1

Output 2

0123456789101112131415

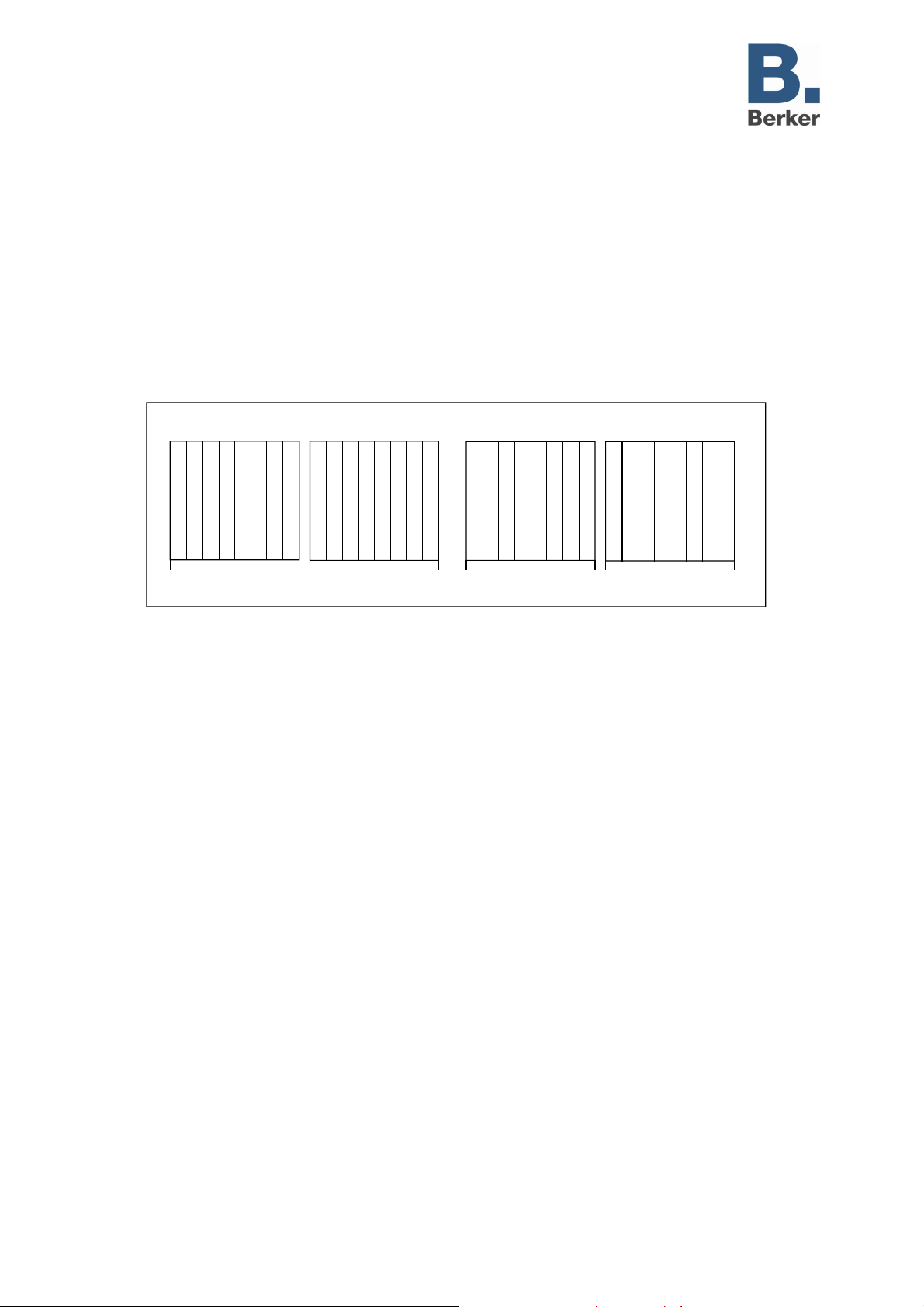

Fig. 9: structure of the centralized feedback object

The object permits representing up to 16 outputs and thus up to 16 different switching states in a logical format, with each output having one bit representing the switching state ("S" bit) and another one defining the masking ("M" bit). The "S" bits correspond to the logical non-inverted switching states of the outputs and are either "1" (on) or "0" (off). The "M" bits are "1", if there is such an output on the actuator. Likewise, the "M" bits are "0", if there is no corresponding output on the actuator. In the latter case, the pertaining "S" bits are permanently "0" because there is no switching state.

This results in the following object value formats if, for instance, all outputs are set to switching operation … Object value format for switching/shutter actuator 4/8gang: "00 FF 00 xx", xx = switching states,

Object value format for switching/shutter actuator 8/16gang: "FF FF xx xx", xx xx = switching states.

The datapoint type of the centralized feedback is KNX-standardized (DPT 27.001). It could be used in suitable visualization applications, for instance in public buildings like schools or hospitals, where the switching states of all actuators are displayed centrally and not separately at the local control units. In such applications, the centralized feedback can replace the 1-bit single feedback and thus reduce the bus load significantly.

75310002.doc

Seite: 35 / 174

Page 36

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Activating the centralized feedback function

The centralized feedback can be used as an active message object or as a passive status object. As an active message object, the centralized feedback information is transmitted to the bus whenever a switching state changes. On the other hand, no telegram will be transmitted when it is used as a passive status object. In this case, the object value must be read out. The ETS automatically sets the object communication flags required for proper functioning.



The parameter "Make use of centralized feedback ?" of the required function must be set to "Yes, active

message object" or "Yes, passive status object".

The 4-byte communication object "Centralized feedback" is enabled. The object can be used when it has

been linked with a group address.

Activating centralized feedback on bus voltage return or after ETS programming

The centralized feedback state is transmitted to the bus after bus voltage return or ETS programming if used as active message object. In this case, the feedback can be delayed with the delay being set globally for all outputs together (cf. "Delay after bus voltage return").



Set the parameter "Time delay for feedback telegram after bus voltage return" of the centralized

feedback to "Yes".

The centralized feedback is transmitted with a delay after bus voltage return or ETS programming. - No

feedback telegram is transmitted during a running delay, even if a switching state changes during this

delay.



Set the parameter "Time delay for feedback telegram after bus voltage return" of the centralized

feedback to "No".

The feedback telegram is transmitted immediately after bus voltage return or ETS programming.

Activating cyclical transmission for centralized feedback telegrams

By means of the actively transmitting signalling object, the centralized feedback telegram can – besides being sent in case of state changes – also be transmitted cyclically.



Set the parameter "Cyclical transmission of centralized feedback telegram ?" on parameter page

"General" to "Yes".

Cyclical transmission is now activated.



Set the parameter "Cyclical transmission of centralized feedback telegram ?" on parameter page

"General" to "No".

Cyclical transmission is deactivated so that the centralized feedback is transmitted to the bus only when

one of the switching states changes.

The cycle time is defined centrally for all cyclical feedback telegrams on the parameter page "Switching

outputs time settings". No centralized feedback telegram is transmitted during an active delay after bus voltage return, even if a

switching state changes during the delay. A blinking' output' (cf. "disabling function") will always be reported back as "switched on".

75310002.doc

Seite: 36 / 174

Page 37

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Manual control

–

Bus control: operation from touch sensors or other bus devices

–

Temporary manual control: manual control locally with keypad, automatic return to bus control,

–

Permanent manual control: local manual control with keypad

The operation of the function keys, the control of the outputs and the status indication are described in detail in chapter "2.5. Manual control". The following paragraphs are to give a more detailed description of the parameterization, status feedback, disabling via bus control and the interactions with other functions of the shutter actuator when the manual control mode is activated and deactivated.

Manual control is possible only while the actuator is supplied with power from the mains. The actuator is delivered with the manual control mode fully enabled. In this unprogrammed state, the individual outputs can be switched on and off also without bus voltage so that fast function checking of the connected drives (e.g. on the construction site) is possible.

After the first commissioning of the actuator with the ETS, the manual control mode can be separately enabled or disabled for different states of operation. Manual control can, for instance, be disabled during bus operation (bus voltage applied). Another option consists in the complete disabling of the manual control only in case of bus voltage failure. Manual control can therefore be completely disabled during bus operation, but also in case of bus failures only.

Enabling the manual control mode

Manual control for the different states of operation is enabled or disabled by means of the parameters "Manual control in case of bus voltage failure" and "Manual control during bus operation".



Set the parameter "Manual control in case of bus voltage failure" to "enabled".

Manual control is then basically enabled when the bus voltage is off. This setting corresponds to the

setting of the actuator as delivered.



Set the parameter "Manual control in case of bus voltage failure" to "disabled".

Manual control is completely disabled when the bus voltage is off. In this case, bus operation is not

possible either so that the outputs of the actuator can no longer be actuated.



Set the parameter "Manual control during bus operation" to "enabled".

Manual control is then basically enabled when the bus voltage is on. The outputs of the actuator can be

operated via the bus or manually. This setting corresponds to the setting of the actuator as delivered.



Set the parameter "Manual control during bus operation" to "disabled".

Manual control is completely disabled when the bus voltage is on. In this configuration, the actuator

outputs can only be operated via the bus.

Further parameters and communication objects of the manual control are visible only in the configuration

"Manual control during bus operation = enabled". For this reason, the disabling function, the status

message and bus control disabling can only be configured in the above parameter setting.

75310002.doc

Seite: 37 / 174

Page 38

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the behaviour at the beginning and at the end of manual control.

Manual control is divided into temporary and permanent manual control. Depending on these modes, the actuator behaves differently, especially at the end of the control mode. It should be noted that the operation via the bus, i.e. control of the outputs by direct operation (switching / move / step / position / scene / central) or by the sun protection and safety-, disabling- or forced control-functions is always disabled when the manual control is active. This means that the manual control mode has the highest priority.

Behaviour at the beginning of manual control: There is no difference between temporary or permanent manual control as far as the behaviour at the

beginning of manual control is concerned. When manual control is activated, all travel movements that were started beforehand by bus control will still be completed unless the travel movement in question is stopped by hand.

An active forced-position, disabling, safety and sun protection function can be overridden by manual control. These functions are reactivated after deactivation of the manual mode unless they have been cancelled in the meantime.

Behaviour at the end of the manual control: The behaviour at the end of manual control differentiates between temporary and permanent manual

control. The temporary manual mode is shut off automatically when the last output has been addressed and when the select key is pressed once more. During a shutoff of the temporary manual control mode, the actuator goes back to 'normal' bus operation and does not change the state selected by manual control. If, however, a forced position, a disabling function, safety or sun protection function (independent of priority) has been activated via the bus before or during manual control, the actuator executes these functions of a higher priority again for the outputs concerned.

The permanent manual control mode is shut off, when the select key is pressed for more than 5 s. Depending on the parameterization of the actuator in the ETS, the outputs will be set to the state last adjusted in the manual mode or to the state internally tracked (direct operation, forced position, disabling function, safety or sun protection position) when the permanent manual mode is shut off. The parameter "Behaviour at the end of permanent manual control during bus operation" defines the corresponding reaction.



Set the parameter "Behaviour at the end of permanent manual control during bus operation" to "no

change".

All telegrams received during an active permanent manual control mode for direct operation (switching,

long-time/short-time, positioning, central, scenes) will be rejected. After the end of the permanent manual

control mode, the current state of all outputs remains unchanged. If, however, a forced position, a

disabling function, safety or sun protection function (independent of priority) has been activated via the

bus before or during manual control, the actuator re-executes these functions of a higher priority for the

outputs concerned.

75310002.doc

Seite: 38 / 174

Page 39

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002



Set the parameter "Behaviour at the end of permanent manual control during bus operation" to "track

outputs".

During an active permanent manual control all incoming telegrams (short-time telegrams – step/stop

excepted) are internally tracked. At the end of the manual control mode, the outputs will be set to the

tracked states or to the absolute positions last set before the permanent manual control mode. A long-

time operation is not tracked, if the output is already in the corresponding end position.

The behaviour at the end of the permanent manual control when the bus voltage is off (only manual

control) is permanently set to "no change". The control operations triggered in the manual control mode will be transmitted via feedback objects to

the bus, if enabled and actively transmitting. On return of bus voltage or after programming with the ETS an activated manual control mode will always

be terminated. In this case, the parameterized or predefined behaviour at the end of manual control will

not be executed. The actuator executes the parameterized behaviour on bus voltage return or after ETS

programming instead.

Presetting a manual control disable

The manual control mode can be separately disabled via the bus, even if it is already active. As soon as a disabling telegram is received via the disabling object in case the disabling function is enabled, the actuator ends an activated manual control mode immediately and interlocks the function keys on the device panel. The telegram polarity of the disabling object is parameterizable.

The manual control mode during bus operation must be enabled.



Set the parameter "Disabling function ?" on parameter page "Manual control" to "yes".

The disabling function of the manual control mode is enabled and the disabling object is visible.



Select the desired telegram polarity in the "Disabling object polarity" parameter.

If the polarity is "0 = disabled; 1 = enabled", the disabling function is immediately active on return of bus

voltage or after an ETS programming operation (object value "0"). To activate the manual control in this

case, an enable telegram "1" must first be sent to the disabling object. In case of bus voltage failure, disabling via the disabling object is always inactive (depending on

parameterization, the manual control is then either enabled or completely disabled). After return of bus

voltage a disabled state that was active before will be reactivated. The disabled state will be deactivated

only after an enabling telegram has been received.

In case of supply voltage failure (bus and mains voltage failure), a disable via the disabling object will be

deactivated. An interruption of the mains supply alone has no effect on the disabled state of the manual

control. When an active manual control is terminated by a disable, the actuator will also transmit a "Manual

control inactive" status telegram to the bus, if the status messaging function is enabled.

75310002.doc

Seite: 39 / 174

Page 40

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the status message function for the manual control mode

The actuator can transmit a status message to the bus via a separate object, when the manual control mode is activated or deactivated. The status telegram can only be transmitted when the bus voltage is present. The polarity of the status telegram can be parameterized.

The manual control mode during bus operation must have been enabled.



Set the parameter "Transmit status ?" on the "Manual control" parameter page to "yes".

The status messaging function of the manual mode is enabled and the status object is visible.



Specify in the parameter "Status object function and polarity" whether the status telegram is generally a

"1" telegram whenever the manual control mode is activated or only in those cases where the permanent

manual mode is activated.

The status object is always "0", when the manual control mode is deactivated. The status will be actively transmitted to the bus ("0") only if a manual control that was activated during

bus voltage failure is terminated by the return of the bus voltage. The status telegram is in this case

transmitted without delay.

After bus voltage return or after programming with the ETS, the value of the status object is "0" and can

also be read out. When an active manual control is terminated by a disable, the actuator will also transmit a "Manual

control inactive" status telegram to the bus.

Presetting a bus control disable

Individual switching or shutter outputs can be disabled locally and can then no longer be controlled via the bus. A bus control disable is effected by local operation in the permanent manual mode and indicated by the rapidly flashing status LED of the output concerned. The disabled outputs can then only be actuated in the permanent manual control mode.

The manual control mode during bus operation must have been enabled.



Set the parameter "Disable bus control of individual outputs during bus operation" on the "Manual control"

parameter page to "yes".

The bus control disabling function is enabled and can be activated locally. If "no" is selected for this

parameter, the activation of bus control disable in the permanent manual mode is not possible.

A locally activated disable has the highest priority. Other functions of the actuator that can be activated

via the bus (such as forced position or disabling or safety function) are then overridden. Depending on

the parameterization of the actuator in the ETS, the outputs will be set to the state last adjusted in the

manual mode or to the state internally tracked (direct operation, forced position, disabling function, safety

or sun protection position) when the disabling function is terminated and the permanent manual mode

shut off thereafter. A locally activated bus control disable will not be reset in case of bus voltage failure or bus voltage return.

Nor will the disable be reset by a mains voltage failure alone. A supply voltage failure (bus and mains

voltage failure) will, however, deactivate the bus control disable.

75310002.doc

Seite: 40 / 174

Page 41

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Safety functions for outputs in shutter mode

The switching/shutter actuator can handle up to five different safety functions for the outputs in shutter mode. Each safety function has a communication object of its own so that the functions can be activated or deactivated independently of one another. Three different wind alarms are available. These alarms can be used, for instance, to protect shutters or awnings on several building facades from wind and gusts. In addition or as an alternative, a rain alarm, for instance, as a protection for awnings, and a frost alarm as a protection against mechanical damage to lowered shutters in low temperatures can be activated and used. The telegram polarity of the safety objects is fixed: "0" = no alarm / "1" = alarm. As a rule, the communication objects of the safety functions are controlled by weather stations which monitor the temperature, the wind speed and the rainfall by means of sensors.

The safety functions are programmed and configured for all shutter outputs together. The different outputs of the actuator can be separately assigned to all or to individual safety functions. Only assigned outputs react to a change of state of the safety objects. The reactions at the beginning ("1" telegram) or at the end ("0" telegram) of an alarm message can be parameterized for specific channels.

As the outputs can also be assigned to several safety alarms, the priority of incoming alarm messages can be preset for several channels. Thus, the three wind alarms have the same priority with respect to one another (logic OR). The order of priority of the wind alarms with respect to the frost alarm or to the rain alarm can be parameterized

The communication objects for the safety alarms can be monitored for the arrival of cyclical telegrams. If no telegrams are received within a presettable time, the actuator activates the safety travel movement for the outputs assigned. The safety function is terminated when a new "0" telegram is received. For the wind alarms , the rain alarm and the frost alarm, different monitoring times between '1 minute' and '23 hours 59 minutes' can be separately selected in the ETS. A common time is configured for the wind alarms. Each wind alarm has its own timer so that the wind objects are separately checked for telegram updates.

Object "Wind alarm 1"

Object "Wind alarm 2"

Object "Wind alarm 3"

Object "Rain alarm"

Object "Frost alarm"

Priority evaluation

high --> medium --> low

cyclical monitoring

1): Common monitoring time, different timers.

1) 1

Fig. 10: Function diagram of the safety function

Outputs 3...4

Wind 1

Wind 2

Wind 3

Rain

Frost

Output 1

75310002.doc

Seite: 41 / 174

Page 42

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Enabling the safety functions

The safety functions must first be globally enabled before they can be parameterized and used. After global enabling, the individual safety alarms can be enabled or disabled independently of one another.



Set the parameter "Safety functions" on the "Shutter outputs safety" parameter page to "enabled". The safety functions are globally enabled and the other parameters and the parameter page "Safety

times" become visible.



Set the parameters "Wind alarm 1", "Wind alarm 2", "Wind alarm 3", "Rain alarm" and "Frost alarm" depending on functional requirements to "enabled". The "disabled" option deactivates the corresponding alarm.

The necessary safety alarms are now enabled. The safety objects are visible and can be linked with group addresses.

It should be noted that the channel-oriented assignment of shutter outputs to the safety alarms (on

parameter pages "Ax – safety"; x = number of output) is operational only after the corresponding alarm

has been enabled. Otherwise, an assignment is without function. An update of the safety objects ("ON" to "ON" or "OFF" to "OFF") shows no reaction. After failure of the supply voltage (bus and mains voltage failure) or after programming with the ETS, the

safety functions are always deactivated. If only the mains voltage or only the bus voltage fails, the object

states of the safety functions are not lost and the functions remain activated, if they were activated

before. In this case it should be noted, however, that the device executes the parameterized action

(parameter "Behaviour after bus or mains voltage return") when the bus or the mains voltage is restored.

After such action, the outputs are, however, safety-locked and cannot be operated via the bus anymore

unless the safety functions assigned are terminated.

Presetting the safety priorities

If several safety alarms are assigned to an output, it is important to preset the priority of the incoming safety telegrams. An alarm with a higher priority overrides the alarms with the lower priorities. When a safety alarm with the higher priority has ended, the safety alarm with the lower priority is executed on condition that it is active.

The safety functions must have been globally enabled.



Arrange the "Priority of safety alarms" parameters on the "Sutter outputs safety" parameter page in the

required order of priority.

The three wind alarms have the same priority with respect to one another (logic OR). The last telegram

update to the wind alarm objects decides which of the wind alarms will be executed. The wind alarm is

completely deactivated for an assigned output only after all three objects are inactive ("0").

75310002.doc

Seite: 42 / 174

Page 43

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting cyclical monitoring

If cyclical telegram monitoring of the safety objects is necessary, the individual monitoring functions must be activated separately. The monitoring functions must be enabled and the monitoring times preset on the "Shutter outputs safety times" parameter page.

The safety functions must have been globally enabled.



If monitoring of the wind alarms is to be activated, the parameter "Use wind alarm monitoring function ?"

must be set to "yes"

The monitoring function for the wind alarm objects is now activated. As soon as the monitoring function is

activated, telegrams must be transmitted cyclically to all enabled wind alarm objects. If only one of the

wind alarm telegrams is missing within the monitoring period, the wind alarm reaction will be executed for

the output concerned.



Specify the required monitoring time for the wind alarm objects in the "Wind alarm monitoring times"

parameters.



If the monitoring function is to be activated for a rain alarm, the parameter "Use rain alarm monitoring

function ?" must be set to "yes".

The monitoring function for the rain alarm object is now activated. As soon as the monitoring function is

activated, telegrams must be transmitted cyclically to the rain alarm object.



Specify the required monitoring time for the rain alarm object in the "Rain alarm monitoring times"

parameters.



If the monitoring function is to be activated for a frost alarm, the parameter "Use frost alarm monitoring

function ?" must be set to "yes".

The monitoring function for the frost alarm object is now activated. As soon as the monitoring function is

activated, telegrams must be transmitted cyclically to the frost alarm object.



Specify the required monitoring time for the frost alarm object in the "Frost alarm monitoring times"

parameters.

The monitoring function for the wind alarms may only be activated, if at least one wind alarm has been

activated on the "Shutter outputs safety" page. The cycle time of the transmitters should be shorter than the monitoring time parameterized in the

switching/shutter actuator in order to ensure that at least one telegram can be received during the

monitoring time.

75310002.doc

Seite: 43 / 174

Page 44

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Selecting the channel definition

The relay outputs of the switching/shutter actuator can be configured in the ETS either for shutter operation or alternatively for switching operation, with a mixed operation of these two channel modes being possible for the different outputs of the device.

In the shutter mode, the switching/shutter actuator can switch electrically operated blinds, shutters, awnings, venting louvers or similar curtains for 230 V AC. In the switching mode, the actuator alternatively switches electrical consumers such as lighting systems or also extra-low voltages.

The channel definition can be selected separately for each output combination on the parameter page "Selection switching / shutter". Depending on this setting, all channel-dependent parameters and objects are created and displayed.

Depending on the channel definition selected, the outputs can either be programmed as separate outputs (switching operation e.g. A1, A2, A3, A4, …) or as combined outputs (shutter operation e.g. A1/2, A3/4, …) with the names of the output objects and the parameter page designations changing accordingly. In the manual control mode, the outputs are also combined as described above.

In the shutter mode, one output of the combination controls one of the travel directions (e.g A1 – up / A2 – down). The travel directions are interlocked by the actuator application software so that a simultaneous activation of both directions in faultless operation of the switching/shutter actuator is always excluded.

CAUTION!

Risk of relay contact fusion if the actuator is operated outside the scope of its technical specifications (cf. Technical Data). Risk of irreparable damage to connected drive motors, if relay contacts fuse together and if both travel directions are then actuated at the same time.

The actuator must always and exclusively be operated within the limits of the respective

technical specifications!

Mechanical interlocking of the travel directions is not provided for since separate control of the outputs in the switching mode must always remain possible.



Set the parameter "Function of output x and of output y" (x = 1, 3, 5, … / y = 2, 4, 6,…) to "1 x shutter

output".

The corresponding output combination is configured for shutter operation. Both outputs are combined

into a shutter channel.



Set the parameter "Function of output x and of output y" (x = 1, 3, 5, … / y = 2, 4, 6,…) to "2 x switching

output".

The corresponding output combination is configured for switching operation. Both outputs are configured

as two switching channels separated from one another.

The parameter and object configurations of the individual outputs depend on the parameters of the

"Selection switching / shutter" page and are set with the ETS when the channel definition is changed. In

this case, parameter settings or assignments of group adresses to objects can get lost. The channel

definition should therefore be selected before paramerization of the actuator begins.

75310002.doc

Seite: 44 / 174

Page 45

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

4.2.4.2 Channel-oriented functional description

4.2.4.2.1 Functional description for outputs in switching mode

Mode of operation

The relays of a switching output can be parameterized as make or break contacts. This feature offers the possibility of inversion the switching states. The preset mode of operation has consequences for the switching state feedback function.

Setting the mode of operation

The parameter "Mode of operation" exists separately for each output channel on the parameter page "Ax General" (x = number of output).



Program the relay contact as "make contact".

Switching state = off ("0")  relay contact open,

Switching state = on ("1")  relay contact closed.



Program the relay contact as "break contact".

Switching state = off ("0")  relay contact closed,

Switching state = on ("1")  relay contact open.

Object "scene extension"

Object "staircase function"

Object "switching"

Object "logic operation"

Object "

switching feedback

Object

"centralized feedb."

time delays

scene function

staircase function

delay after bus voltage return

* **

logic operation

* *

cyclical transmission

* *

cyclical transmission

disabling or forced-control position function

mode of operation

responde to

- bus voltage failure

- bus voltage return

- ETS programming

blinking (disabling function only)

* = parameterizable as an option

relay

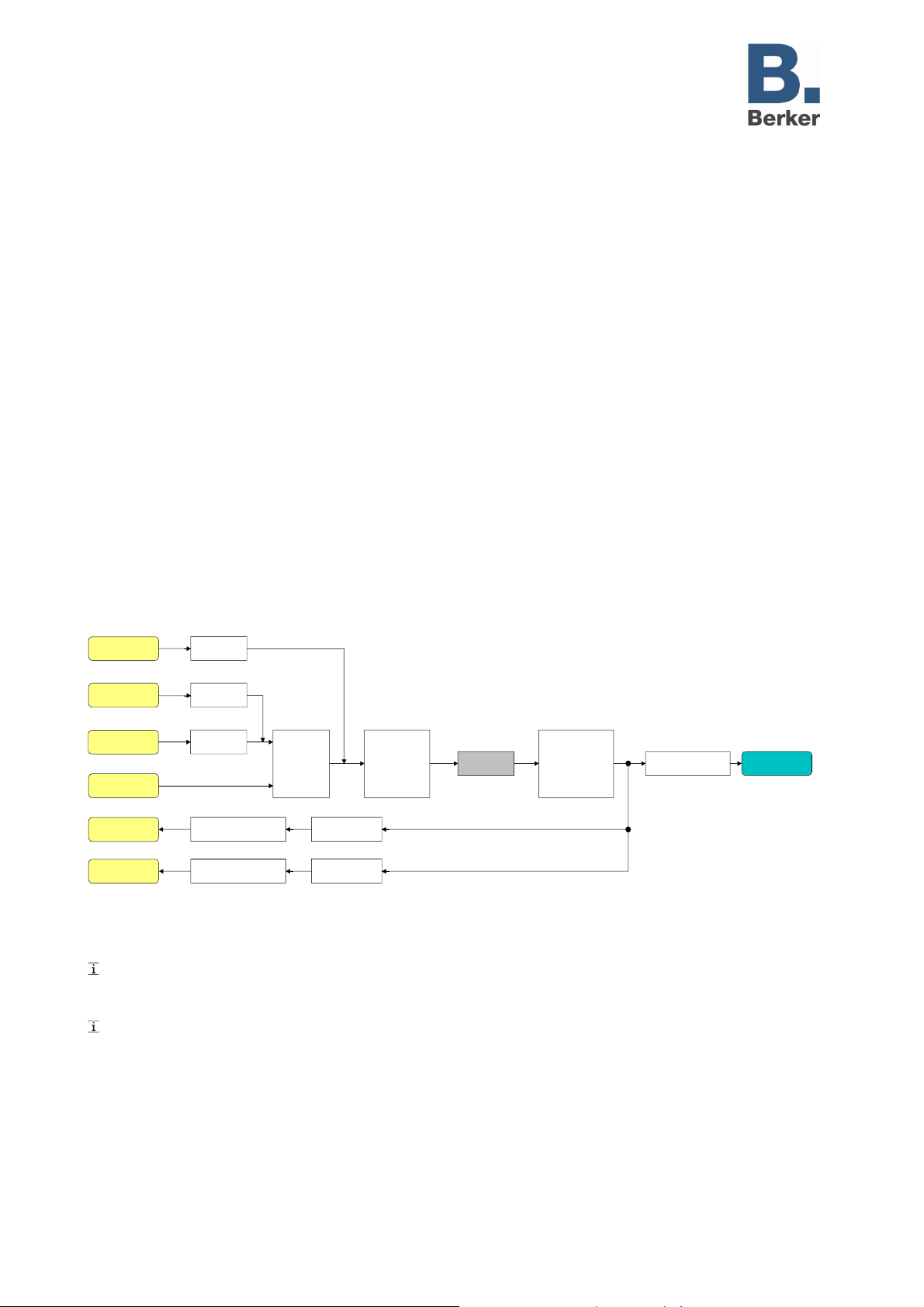

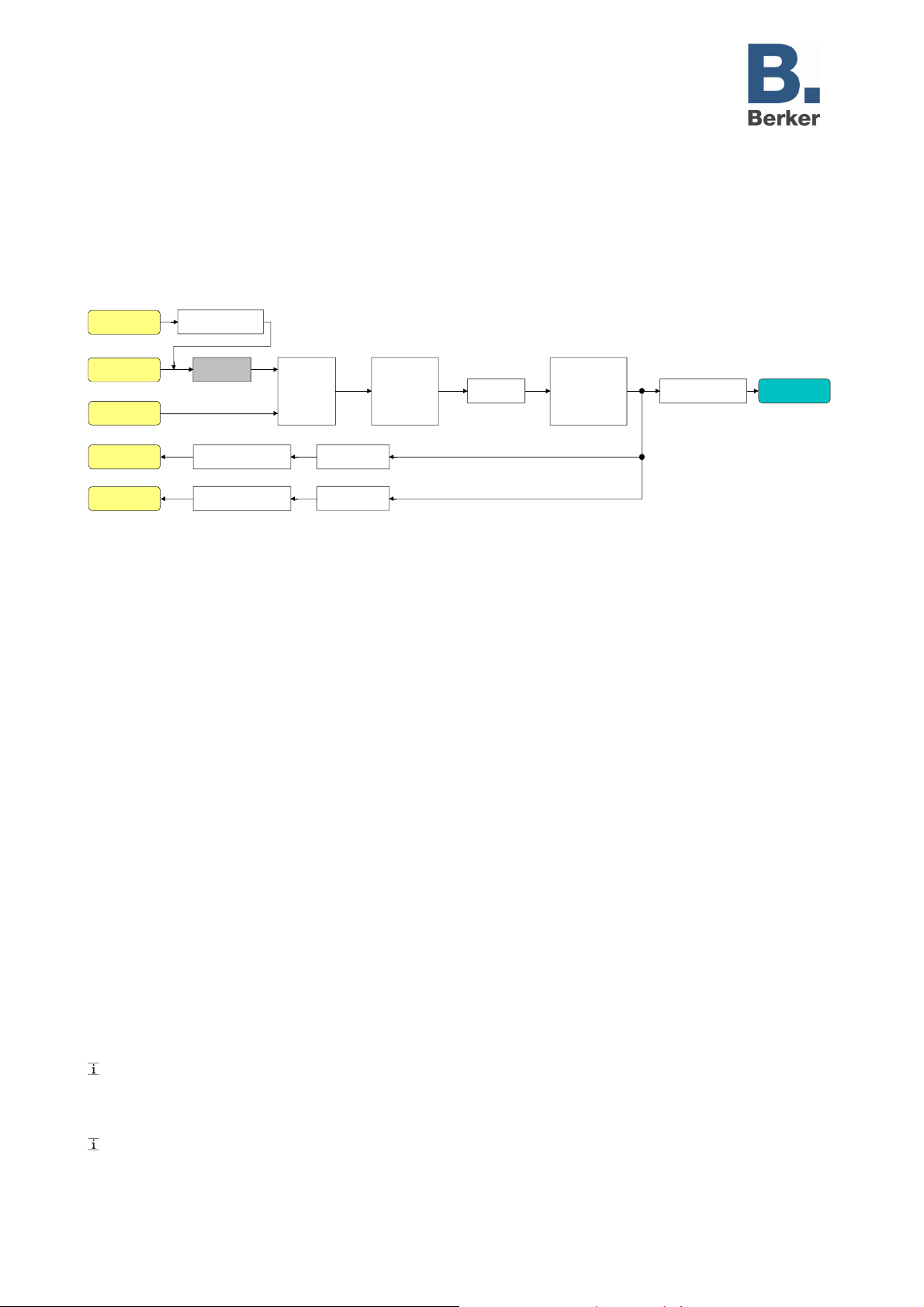

Fig. 6: Functional diagram "Mode of operation"

The logic switching state ("on - 1" or "off – 0") is set by the communication object "Switching" and

influenced by the functions that can be optionally activated (e.g. timing/staircase functions, logic

operations, disabling/forced-control position functions, scenes – cf. Fig. 11). A switching state set after bus/mains voltage return or after an ETS programming operation is tracked in

the feedback object. In the event of a mains voltage failure, the actuator transmits switching status

feedback telegrams to the bus, if the bus voltage is still on. For this case it should be noted that –

independently of the set mode of operation (make or break contact) – all outputs are initialized with the

switching state "off - 0" and that the feedback telegram is thus also adapted to this state.

75310002.doc

Seite: 45 / 174

Page 46

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Reaction after bus voltage failure, bus or mains voltage return or after ETS programming

The preferred relay contact positions in case of bus voltage failure, bus or mains voltage return or after ETS programming can be preset separately for each output. since the actuator is equipped with mainsdependent monostable relays, the relay switching state at bus voltage failure can be defined as well.

Presetting the behaviour after ETS programming



Set the parameter to "no reaction".

After ETS programming, the relay of the output shows no response and remains in the switching state

last selected. The internal logic switching state is not lost either by an ETS programming cycle.



Set the parameter to "close contact".

The relay contact is closed after an ETS programming cycle.



Set the parameter to "open contact".

The relay contact is opened after an ETS programming cycle.

The parameterized behaviour will be executed after every application or parameter download by the ETS.

Downloading only the physical address or programming the group addresses only partially has the effect

that this parameter will be disregarded and the parameterized "Behaviour after bus voltage return be

adopted. A programming operation with the ETS can be performed when the bus voltage is connected to the

switching/shutter actuator and activated. The mains supply is not needed for an ETS download. During every ETS programming operation, the switching/shuter actuator always opens the relay contacts

for all outputs. For this reason, a closed relay contact may open briefly even if the output is set to "no

reaction". A switching state set after an ETS programming cycle will be tracked in the feedback object depending

on the "Mode of operation" parameter. An active manual mode will be terminated by an ETS programming operation. After an ETS programming operation, the disabling functions and the forced-control positions are always

deactivated.

75310002.doc

Seite: 46 / 174

Page 47

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the behaviour in case of bus voltage failure

The parameter "Behaviour in case of bus voltage failure" can be preset separately for each output channel under "Ax - General" (X = number of output).



Set the parameter to "no reaction".

In case of bus voltage failure, the relay of the output shows no reaction and remains in the switching

state last selected.



Set the parameter to "close contact".

The relay contact is closed on bus voltage failure.



Set the parameter to "open contact".

The relay contact is opened on bus voltage failure.

In the event of bus voltage failure with the settings "close contact" and "open conctact", previously

activated time delays or previously recalled delayed scenes have no effect on the output concerned .

This means that a telegram update received immediately before bus voltage failure is lost, if the

corresponding delay time has not yet elapsed.

With the setting "no reaction", delay times (time delay, delayed scene recall) started before bus voltage

failure will be evaluated even after bus voltage failure if the mains voltage is still on. The state of an

output can therefore still change even after a bus failure. In the event of a mains voltage failure all relays of the actuator will generally drop out (contact open)

independently of bus voltage conditions. In this state, the outputs are no longer accessible. Time

functions (scene delays, time delays) are not interrupted if only the mains voltage fails.

In the event of a mains voltage failure, switching status feedback telegrams are transmitted to the bus, if

the bus voltage is still on. For this case it should be noted that – independently of the set mode of

operation (make or break contact) – all outputs are initialized with the switching state "off" and that the

feedback telegram is thus also adapted to this state. In case of bus or mains voltage failure, also the current states of the forced-control positions are stored

so that they can, if necessary, be restored when the bus voltage returns (depending on the

parameterization of the forced-control position functions). Active disabling or forced-control position functions are always deleted by a bus voltage failure and are

inactive thereafter.

75310002.doc

Seite: 47 / 174

Page 48

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the behaviour after bus or mains voltage return

The parameter "Behaviour after bus or mains voltage return" exists separately for each output on parameter page "Ax - General" (x = number of output).



Set the parameter to "close contact".

The relay contact closes on return of bus or mains voltage.



Set the parameter to "open contact".

The relay contact opens on return of bus or mains voltage.



Set the parameter to "state as before bus/mains voltage failure".

After bus or mains voltage return, the switching state last set and internally stored before bus/mains

voltage failure will be restored.



Set the parameter to "activate staircase function (if parameterized)".

The staircase lighting timer function is activated independently of the "Switching" object after bus or

mains voltage return. For this setting, it is important that the staircase lighting timer function is enabled

and programmed. If the staircase lighting timer function is not enabled, there is no reaction after

bus/mains voltage return.

When the setting "state as before bus/mains voltage failure" is selected, an application or parameter

download with the ETS resets the internally stored switching state to "off – 0". The parameterized "Behaviour after bus or mains voltage return" will only be executed on return of the

bus voltage, if the last ETS application or parameter download ended more than ca. 20 s ago. Otherwise

< 20 s), the "Behaviour after an ETS programing operation" will be executed even after return of

ETS

bus voltage.

If only the mains voltage fails after an ETS download and is then switched on again, the actuator

executes the "Behaviour after bus or mains voltage return".

A mains voltage return does not affect communication objects which receive states via the bus (e.g.

logig operation inputs). The objects remain in the state last set, if the bus voltage was on without

interruption. In case of forced-control as supplementary function: The forced-control communication object can be

initialized separately after bus voltage return. An activation of the forced-control function therefore has an

influence on the response of the output to bus voltage return. The parameterized "Behaviour after bus or

mains voltage return" will only be executed, if no forced-control position is active after bus voltage return!

A failure of the mains voltage supply of the actuator always deactivates a forced-control position. With disabling function as supplementary function: active disabling functions are always inactive after bus

or mains voltage return. A switching state existing after bus or mains voltage return will be retained in the feedback object

depending on the "Mode of operation" parameter. On return of bus voltage an active manual control will be terminated. Manual control is not possible in

case of mains failures.

75310002.doc

Seite: 48 / 174

Page 49

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Switching status feedback

The actuator can return the switching status set at its output ("on" or "off") to the bus (cf. Fig. 12). The returned feedback value can optionally be inverted.

logic operation

recall

store

cyclical transmission

disabling or forced-control position function

Note: logic operation function only as an alternative to staircase lighting timer function

mode of operation

responde to

- bus voltage failure

- bus voltage return

- ETS programming

blinking (disabling function only)

* = parameterizable as an option

relay

Object "staircase function start/stop"

Object

"Centralized switch."

Objekt "switching"

Object "logic operation"

Object "scene extension"

Object "

switching feedback

central object polarity

staircase function (time-controlled)

time delays

scene function

delay after bus voltage return

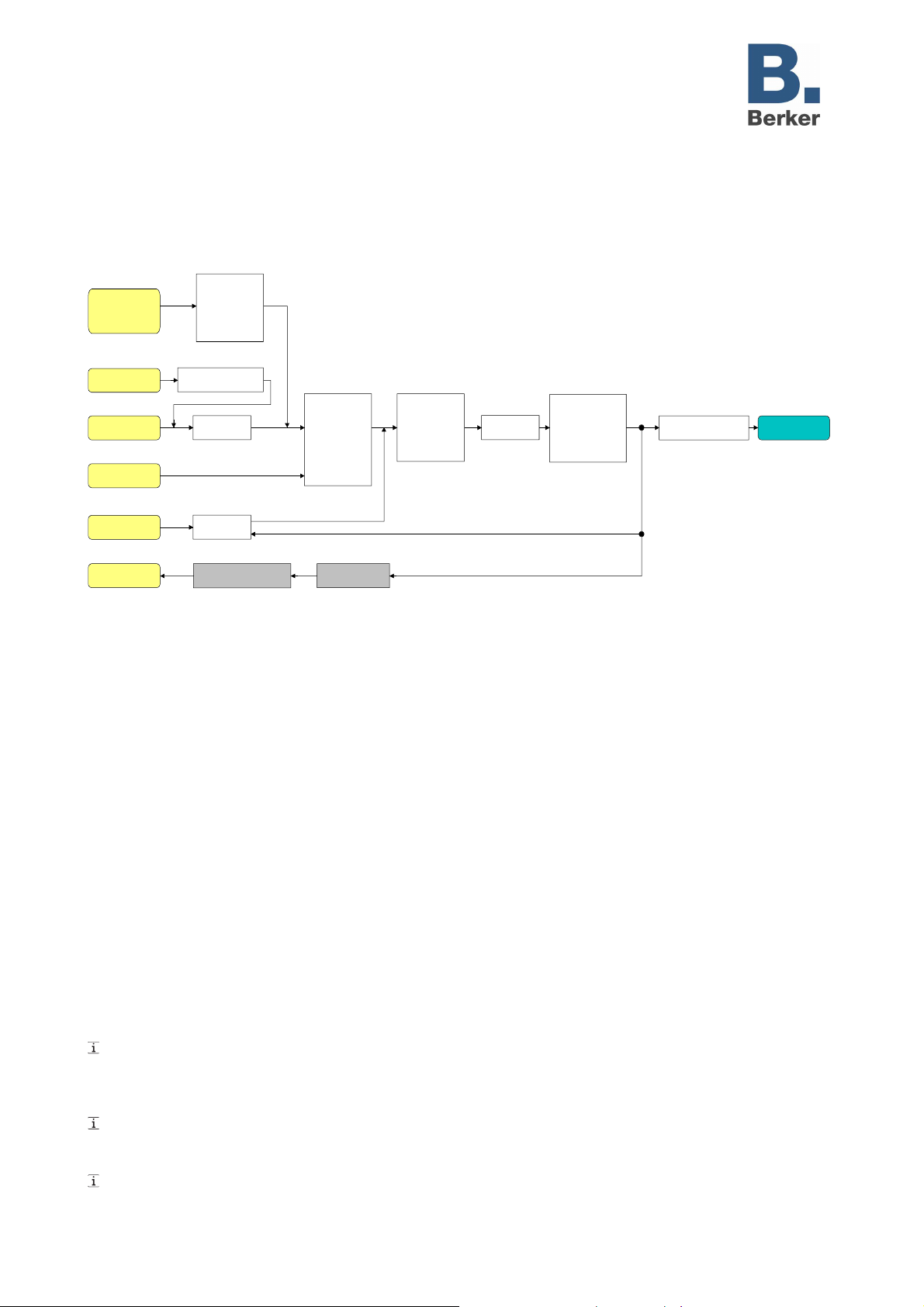

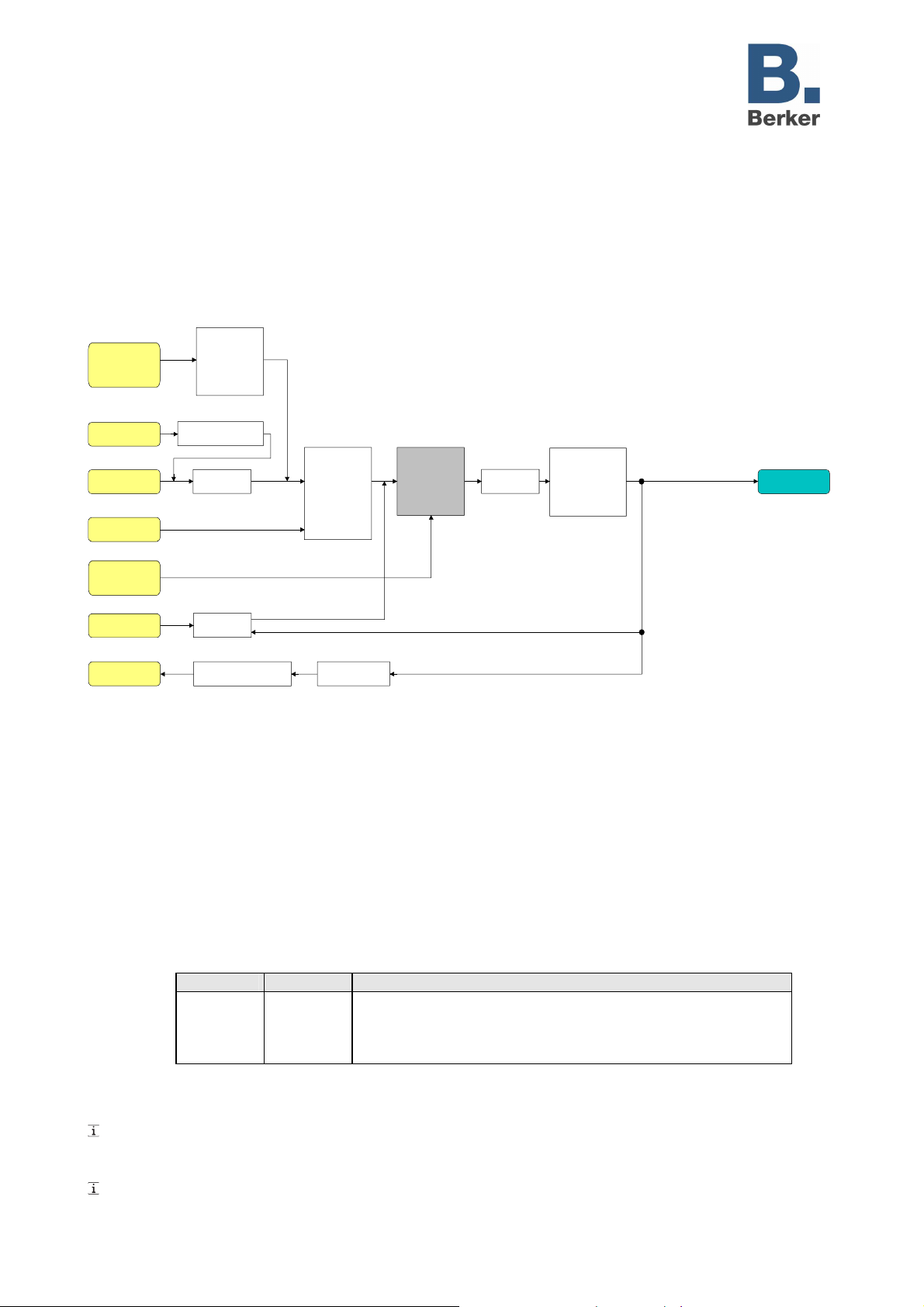

Fig. 12: Functional feedback diagram

Activating the switching status feedback function

The switching status feedback can be used as an active message object or as a passive status object. - As an active message object, the switching status feedback information is transmitted to the bus whenever a switching state changes. As a passive status object, there is no telegram transmission after a change. In this case, the object value must be read out. The ETS automatically sets the object communication flags required for proper functioning. The parameter "Feedback telegram?" can be preset separately for each output channel on the parameter page "Ax - General" (x = number of output).



Set the parameter to "no inversion, active message object" or to "inversion, active message object".

The feedback object is enabled. Depending on the setting, the switching status is transmitted in non-

inverted or in inverted form as soon as a change of state occurs or after the device has been

programmed with the ETS. The transmission of telegrams takes place even after return of the bus or

mains voltage.



Set the parameter to "no inversion, passive status object" or to "inversion, passive status object".

The feedback object is enabled. Depending on the setting, the switching status will be transmitted back in

inverted or non-inverted form only if the feedback object is read by the bus. No automatic telegram

transmission takes place after bus or mains voltage return or after programming with the ETS.

In case of actively transmitting objects, all status updates from "ON" to "ON" or from "OFF to "OFF" via

the object "Switching" or the object "Central switching" always cause a feedback telegram to be

transmitted. If a delay is preset and if the switching state is changed via the object "Switching", the delay

period must have elapsed before the feedback will be updated. With disabling function as supplementary function: A 'blinking' output is always reported back as

"switched on". switching status feedback telegrams are also transmitted for disabled outputs, for

instance, if the outputs are re-adjusted by a manual operation. Switching state changes as a result of manual operation are also reported back to the bus.

75310002.doc

Seite: 49 / 174

Page 50

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Activating switching status feedback on return of bus voltage or after programming with the ETS

If used as active message object, the switching status feedback information is transmitted to the bus after bus voltage return or after programming with the ETS. In these cases, the feedback telegram can be timedelayed with the delay being preset globally for all outputs together (cf. "Delay after bus voltage return").



Set the parameter "Time delay for feedback telegram delay after bus voltage return" on parameter page

"Ax - General" (x = number of output) to "Yes".

The switching status telegram will be transmitted with a delay after bus voltage return or after

programming with the ETS. No feedback telegram is transmitted during a running delay, even if a

switching state changes during this delay.



Set the parameter "Time delay for feedback telegram delay after bus voltage return" on parameter page

"Ax - General" (x = number of output) to "No".

The switching status telegram will be transmitted immediately after bus voltage return or after

programming with the ETS.

In case of a feedback telegram after bus voltage return or after programming with the ETS, the

parameterized mode of operation will be evaluated. Examples for a non-inverted switching status

feedback telegram:

Mode of operation make contact: contact closed = feedback "on",

Mode of operation make contact: contact opened = feedback "off",

Mode of operation break contact: contact closed = feedback "off",

Mode of operation break contact: contact opened = feedback "on". On activation of the mains voltage (bus voltage already on at this instant) feedback telegrams are always

transmitted without delay.

Presetting the cyclical transmission function for the switching status feedback telegram

In addition to being transmitted in case of a state change, the switching status feedback telegram can also be transmitted cyclically via the active message object.



Set the parameter "Cyclical transmission of feedback telegram?" on parameter page "Ax - General" (x =

number of output) to "Yes".

Cyclical transmission is now activated.



Set the parameter "Cyclical transmission of feedback telegram?" on parameter page "Ax - General" (x =

number of output) to "No".

Cyclical transmission is deactivated which means that a feedback telegram is transmitted to the bus only

if one of the switching states changes.

The cycle time is defined centrally for all cyclical feedback telegrams on the parameter page "Switching

outputs time settings" During an active delay after bus voltage return no feedback telegram will be transmitted even if a

switching state changes.

75310002.doc

Seite: 50 / 174

Page 51

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Time delays

Up to two time functions can be preset independently for each output. The time functions act only on the communication objects "Switching" or "Central switching" (if a central has been activated for the output in question) and delay the received object value as a function of telegram polarity (cf. Fig. 13).

Object

"Centralized switch."

Objekt

"switching"

Object "logic operation"

Object "

switching feedback

Object

"centralized feedb."

central object polarity

time delays

delay after bus voltage return

logic operation

* *

cyclical transmission

* *

cyclical transmission

* **

disabling or forced-control position function

mode of operation

responde to

- bus voltage failure

- bus voltage return

- ETS programming

blinking (disabling function only)

* = parameterizable as an option

Fig.13: Functional diagram of the time delays

Activating an ON-delay

The time delays must have been enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Selection of time delay" on parameter page "Ax – Time delays" to "ON-delay" or to

"ON-delay and OFF delay".

The ON-delay is now enabled and the desired ON-delay time can be preset. After reception of an ON

telegram, a parameterized time is started. A subsequent ON-telegram retriggers the time only if the

parameter "ON-delay retriggerable ?" has been set to "Yes". The logical switching state will then be

transferred to the following functions (e.g. logical operation, disabling / forced-control position function)

and the output switched on, only after the ON-delay has elapsed. An OFF-telegram received during the

ON-delay will end the delay. The logical switching state corresponds in this case to "switched off".

Activating an OFF-delay

The time delays must have been enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Selection of time delay" on parameter page "Ax – Time delays" to "OFF-delay" or to

"ON-delay and OFF delay".

The OFF-delay is now enabled and the desired OFF-delay time can be preset. After reception of an OFF-

telegram, a parameterized time is started. A subsequent OFF-telegram retriggers the time only if the

parameter "OFF-delay retriggerable ?" has been set to "Yes". The logical switching state will then be

transferred to the following functions (e.g. logical operation, disabling / forced-control position function)

and the output switched off, only after the OFF-delay has elapsed. An ON-telegram received during the

OFF-delay will end the delay. The logical switching state corresponds in this case to "switched on".

Feedback: If a time delay has been preset and if the switching state is changed via the "Switching"

object, the time delay must have elapsed before feedback telegrams will be transmitted. Updates of the

object from "ON" to "ON" or from "OFF" to "OFF" by retriggering during a running time delay has no

influence on the switching status feedback. At the end of a disabling or forced-control position function, the state received during or set before the

function can be tracked. Residual times of time functions are tracked, if they have not completely elapsed

at the time the disabling or forced-control position functions are disabled. In case of a logical operation

function, a switching state newly received via the "Switching" object will be executed with a time delay as

well.

75310002.doc

Seite: 51 / 174

relay

Page 52

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

The time delays have no influence on the staircase functions, if these are enabled. A time delay in progress will be completely terminated by a reset of the actuator (bus voltage failure or

ETS programming)

Staircase function

The staircase function can be parameterized for each output separately and used for realizing timecontrolled staircase lighting or functionally similar applications. The staircase function must have been enabled on parameter page "Ax – Enabled functions" separately for each output before the required communication objects and parameters (on parameter page "Ax – staircase function") are visible.

The staircase function is controlled by means of the "Staircase function start / stop" communication object and is independent of the "Switching" object of the output (cf. Fig. 14). This feature permits 'parallel operation' of time and normal control, with always the last command being executed. A telegram to the "Switching" object or a scene recall during an active staircase function ends the staircase time prematurely and sets the output to the switching state corresponding to the object value (time delays taken into account) or the scene value received. similarly, the switching state of the "Switching" object or a scene recall can be overridden by a staircase timer function.

In combination with a disabling function a time-independent permanent lighting function can also be realized (cf. "Disabling function"). As can be seen from the functional diagram, the staircase function can also be combined with other output functions. The combination with the logic function is, however, not available.

Object "staircase function start/stop"

Object

"Centralized switch."

Objekt "switching"

Object "scene extension"

Object "

switching feedback

Object

"centralized feedb."

central object polarity

ON-delay

time delays

scene function

delay after bus voltage return

* *

cyclical transmission

staircase function (time-controlled)

disabling or forced-control position function

pre-warning function

mode of operation

responde to

- bus voltage failure

- bus voltage return

- ETS programming

blinking (disabling function only)

* = parameterizable as an option

relay

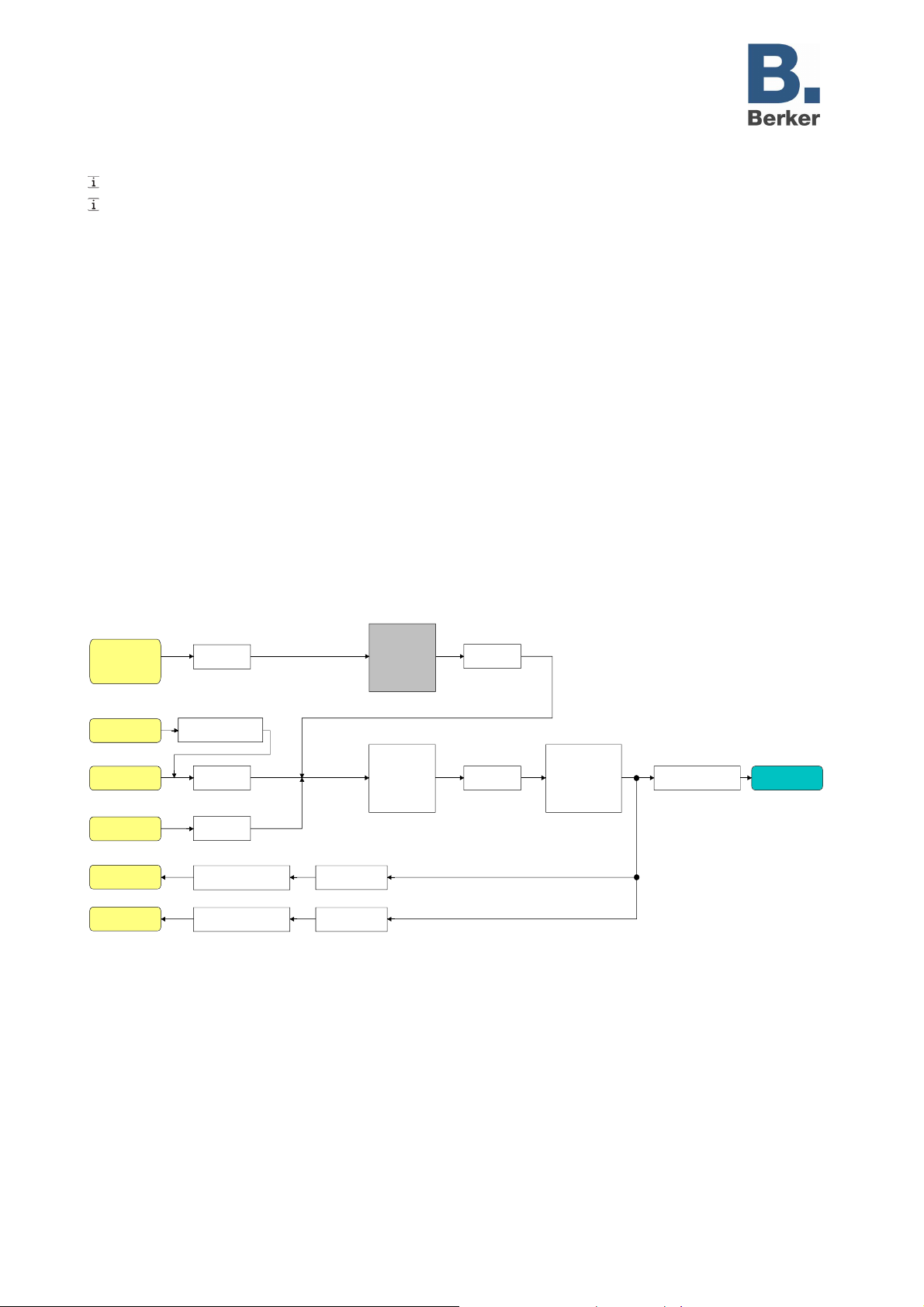

Fig. 14: Functional diagram of the staircase function

The staircase function can moreover by enlarged by a separate ON-delay and by a pre-warning function. In acc. with DIN 18015-2, the pre-warning function is designed to warn a person in the staircase that the lights will go out shortly.

75310002.doc

Seite: 52 / 174

Page 53

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Defining the switch-on behaviour of the staircase function

An ON-telegram to the "Staircase function start / stop" activates the staircase lighting time (TON) the duration of which is defined by the parameter "Staircase time". In addition, an ON-delay (T activated (cf. "Presetting the ON-delay for the staircase function"). At the end of the staircase lighting time, the output switches off or optionally activates the pre-warning time (T

) of the pre-warning function (cf.

pre-warn

Presetting the pre-warning function of the staircase function"). With a possible ON-delay and a pre-warning function, the staircase function has the switch-on behaviour as shown in Fig. 15.

) can be

delay

staircase time retriggerable ? = Yes

del

ONON

time

pre-warn

time

"staircase time start/stop

output

feedback (non inverted)

OFF

staircase time retriggerable ? = No

del

pre-warn

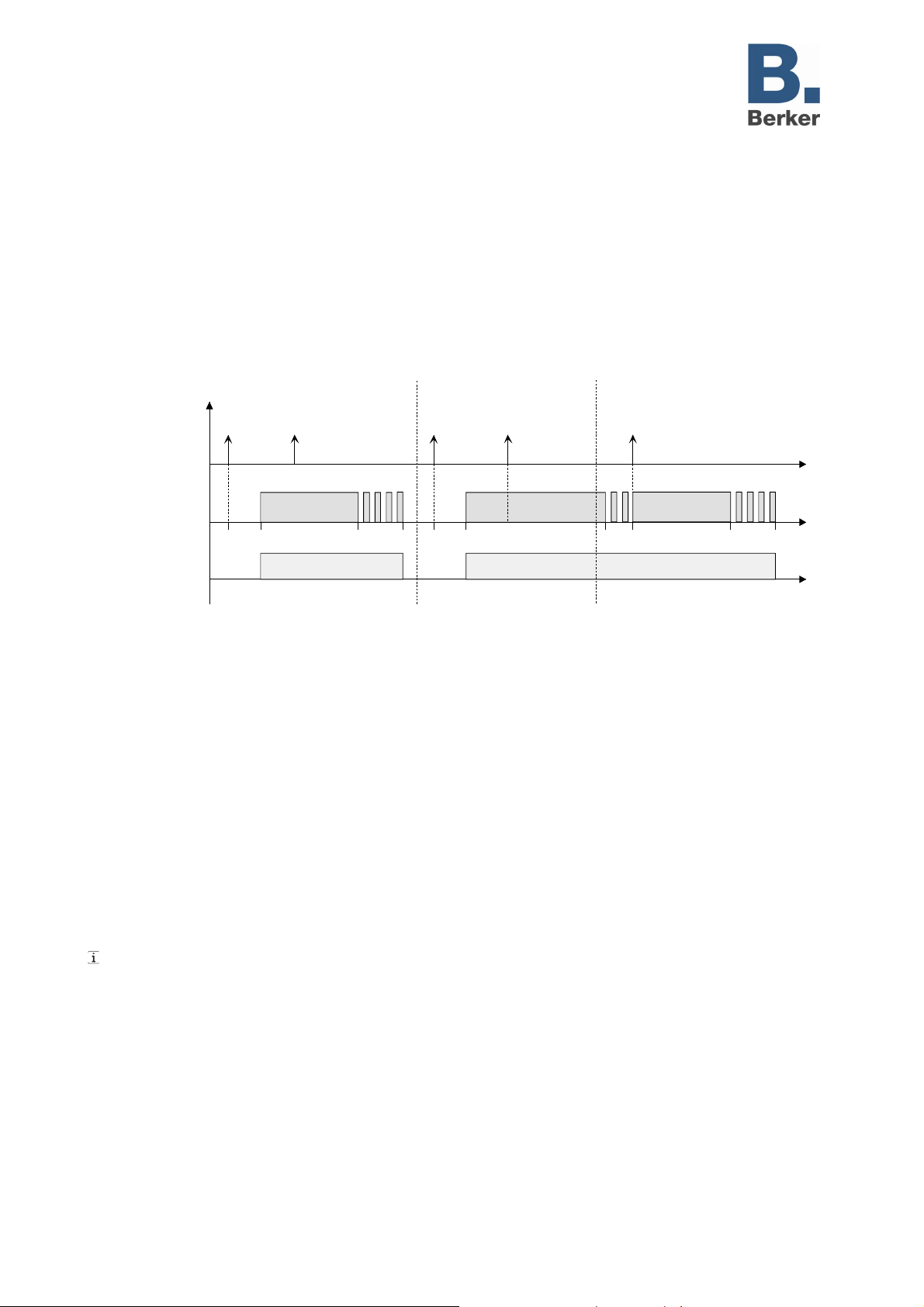

Fig. 15: switch-on behaviour of the staircase function

The parameter "Staircase time retriggerable ?" defines whether the staircase lighting time can be retriggered or not.

The staircase function must have been enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Staircase time retriggerable ?" to "Yes".

Every ON-telegram received during the ON-phase of the staircase lighting time retriggers the staircase

time completely.



Set the parameter "Staircase time retriggerable ?" to "No".

ON-telegrams received during the ON-phase of the staircase time will be rejected. The staircase lighting

time will not be retriggered.

An ON-telegram received during the pre-warning time always retriggers the staircase lighting time

independent of the "Staircase time retriggerable ?" parameter.

75310002.doc

Seite: 53 / 174

Page 54

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Defining the switch-off behaviour of the staircase function

In a staircase function, the reaction to an OFF-telegram to the "Staircase function start / stop" object can also be parameterized. Without reception of an OFF-telegram, the output switches off after the pre-warning time has elapsed. With a possible ON-delay and a pre-warning function, the staircase function has a switchoff behaviour as shown in Fig. 16.

Reaction to OFF-telegram = ignore

del

OFF

pre-warn

time

"staircase time start/stop

output

feedback (non inverted)

OFF

Reaction to OFF-telegram = switching off

OFF

del

pre-warn

del

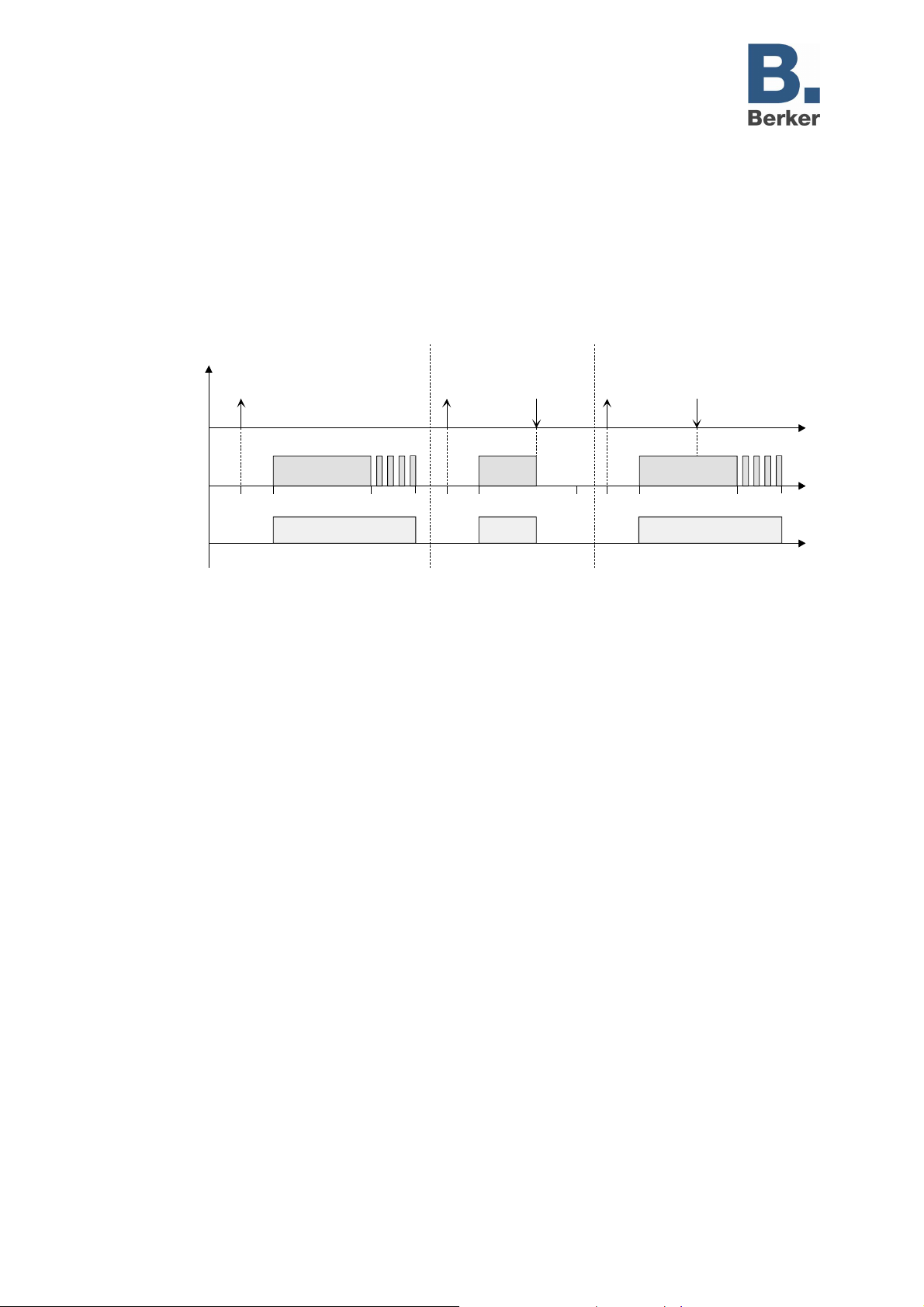

Fig. 16: switch-off behaviour of the staircase function

The parameter "Reaction to OFF-telegram" defines whether the staircase time (TON) of the staircase function can be stopped prematurely.

The staircase function must have been enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Reaction to OFF-telegram" to "Switching off"

The output shuts off immediately when an OFF-telegram is received via the object "Staircase function

start / stop" during the ON-phase of the staircase time. If the staircase time is stopped prematurely by

such a telegram, there is no pre-warning, i.e. the pre-warning time is not started.



Set the parameter "Reaction to OFF-telegram" to "Ignore".

OFF-telegrams received during the ON-phase of the staircase time will be rejected. The staircase time

will be executed completely, if applicable with a pre-warning.

75310002.doc

Seite: 54 / 174

Page 55

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the ON-delay for the staircase function

An ON-telegram to activate the staircase function can also be evaluated with a time delay. This ON-delay can be activated separately for the staircase function and has no influence on the parameterizable time delays for the "Switching" object.

The staircase function must have been enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Activate ON-delay for staircase function ?" on parameter page "Ax – staircase

function" to "Yes".

The ON-delay for the staircase function is now enabled and the desired ON-delay time can be preset.

The ON-delay is started after reception of an ON-telegram to the "Staircase function start / stop" object.

A subsequent ON-telegram retriggers the time only if the parameter "ON-delay retriggerable?" has been

set to "Yes". The staircase time is activated and the output switched on only after the time delay has

elapsed.

An OFF telegram via the "Staircase function start / stop" object during the ON-delay ends the delay only if

the parameter "Reaction to OFF telegram" is set to "switching off". Otherwise the OFF telegram will be

ignored.

Presetting the pre-warning function of the staircase function

The pre-warning function complies with DIN 18015-2 and is designed to warn a person in the staircase that the lights will go out shortly. As a pre-warning, the lamps connected to the output are switched off several times for a short instant before the output is shut off definitely. The pre-warning time (T of the interruptions during the pre-warning (T parameterized (cf. Fig. 17 - example). The pre-warning time is added to the staircase lighting time (T The pre-warning time has an influence on the value of the feedback object so that the value "0" (noninverted transmission) is tracked in the feedback object only after the pre-warning time has elapsed.

) and the number of pre-warning interruptions can be

interrupt

), the duration

pre-warn

ON.

output

feedback (non inverted)

Interrupt

OFF

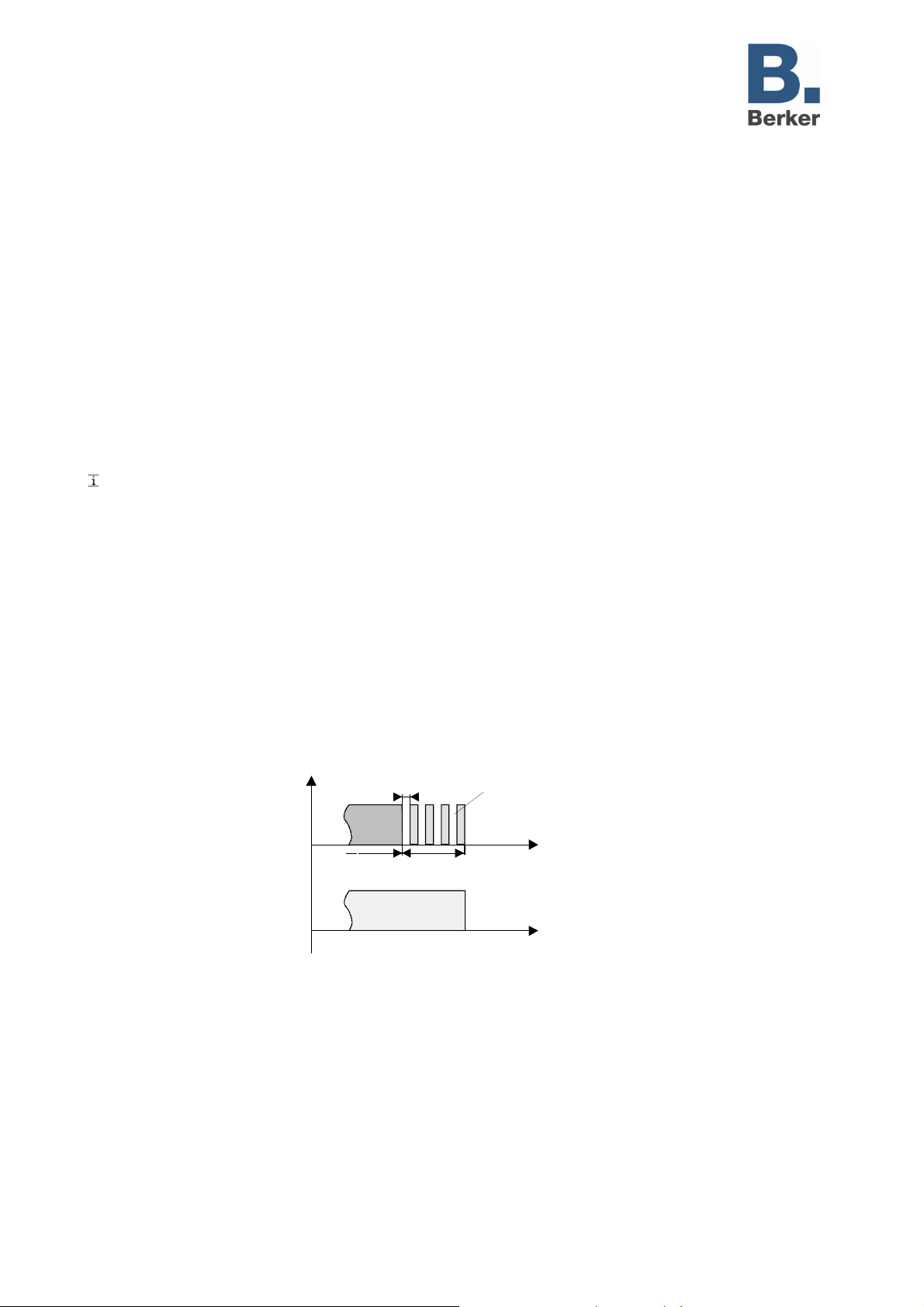

Fig.17: The pre-warning function of the staircase function

1. 2. 3. 4.

pre-warn

number of interruptions = 4 (example)

time

75310002.doc

Seite: 55 / 174

Page 56

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

The staircase function must have been enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Activate pre-warning time ?" on parameter page "Ax – staircase function" to "Yes".

The pre-warning function is now enabled and the desired pre-warning time (T



Set the parameter "Number of pre-warnings" on parameter page "Ax – staircase function" to the desired

value (1...10).

The lamps connected to the output will then be switched off exactly as many times as programmed in this

parameter. The 1st pre-warning is always executed at the beginning of the total pre-warning time.



Set the parameter "Time for pre-warning interruptions" on parameter page "Ax – staircase function" to

the desired value.

An interruption (T

) during the pre-warning time is as long as programmed in this parameter. - A

Interrupt

presettable interruption time permits adapting the shut-off phase of the lighting individually to the lamp

type used.

It must be ensured that the "Number of pre-warnings" and the "Time for pre-warning interruptions" are

coordinated with the length of the total "pre-warning time". Thus, the total shut-off phase during a pre-

warning ("Number of pre-warnings" + "Time for pre-warning interruptions") must not be chosen longer

than the pre-warning time itself. Otherwise risk of malfunctions. With an ON-telegram to the "Staircase function start / stop" object during an active pre-warning function,

the pre-warning time is stopped and the staircase time always restarted (independent of the "Staircase

time retriggerable ?" parameter). The parameter "Reaction to OFF-telegram" is also evaluated during the

pre-warning time so that an active pre-warning can be terminated prematurely by switching off.

) can be preset.

pre-warn

75310002.doc

Seite: 56 / 174

Page 57

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the behaviour of the staircase function after bus voltage return

The staircase function can optionally be started automatically after bus voltage return. The staircase function must have been enabled on parameter page "Ax – Enabled functions (x = number of

output).



Set the parameter "Behaviour after bus or mains voltage return" on parameter page "Ax – General" to

"Activate staircase function".

The staircase lighting time of the staircase function is started immediately after bus voltage return.

For this setting it is indispensable that the staircase function has been programmed and enabled

beforehand. When the staircase function has not been enabled, this setting will produce no reaction after

return of the bus or mains voltage. During an automatic start of the staircase function after return of the bus or mains voltage, an ON-delay –

even if parameterized in the staircase function – will not be started. The device adopts the parameterized behaviour only if the last ETS programming of the application or of

the parameters occurred at least ca. 20 s ago. Otherwise (T

programming" will be adopted even after a return of bus voltage.

If only the mains voltage fails after an ETS download and is then switched on again, the actuator

executes the "Behaviour after bus or mains voltage return". The parameterized behaviour will only be adopted, if no forced control is activated after a bus voltage

return. A switching state set after bus or mains voltage return will be tracked in the feedback object as provided

for in the "Mode of operation" parameter.

< 20 s), the "Behaviour after ETS

ETS

75310002.doc

Seite: 57 / 174

Page 58

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Scene function (only in ETS 3.0d and onwards)

Up to 8 scenes can be generated and the corresponding scene values stored in the actuator separately for each output in switching mode (only in ETS 3.0d and onwards). The scene values are recalled or stored via a separate scene extension object by means of extension telegrams. The datapoint type of the extension object permits addressing of up to 64 scenes max. For this reason, the scene number (1...64) with which the internal scene (1...8) is addressed can be determined in the parameterization of a scene.

The scene function must have been enabled on parameter page "Ax – Enabled functions" separately for each output before the required communication objects and parameters (on parameter page "Ax – scenes") are visible.

The scene function can be combined with other functions of the output (cf. Fig. 18) with the command last received or selected always being executed: A telegram to the "Switching" object or a scene recall or a scene storage telegram during an active staircase function ends the staircase lighting time prematurely and sets the output to the switching state corresponding to the object value (time delays taken into account) or the scene value received. similarly, the output switching state set by the "Switching" object or a scene recall can be overridden by a staircase function or by the result of a logic function. A combination of the function with cyclical monitoring is not possible.

Object "staircase function start/stop"

Object

"Centralized switch."

Objekt "switching"

Object "logic operation"

Object "scene extension"

Object

switching feedback

Object

"centralized feedb."

central object polarity

ON-delay

time delays

scene function

delay after bus voltage return

recall

store

* *

logic operation

cyclical transmission

staircase function (time-controlled)

disabling or forced-control position function

Note: logic operation function only as an alternative to staircase lighting timer function

pre-warning function

mode of operation

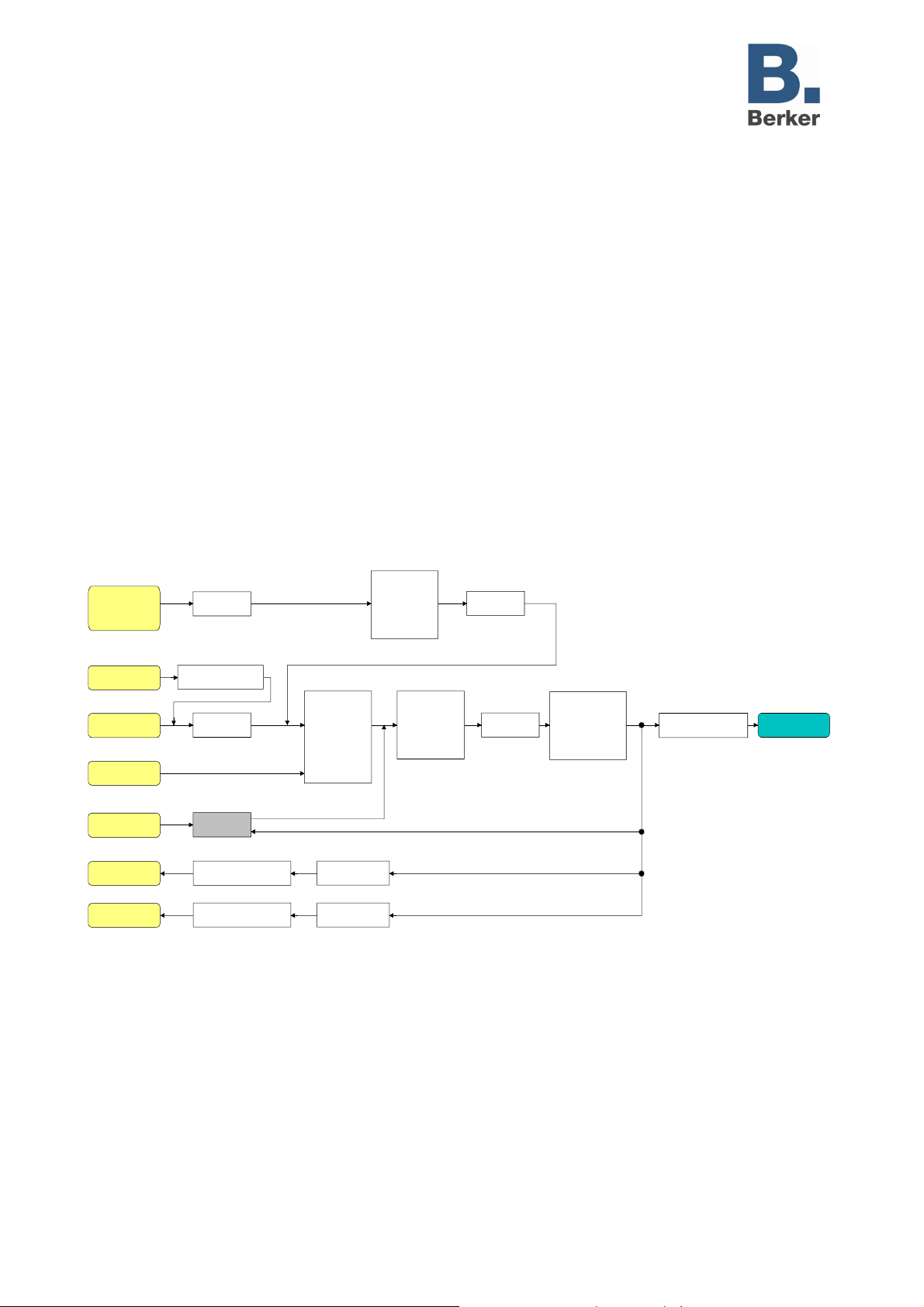

Fig. 18: Functional diagram of the scene function

responde to

- bus voltage failure

- bus voltage return

- ETS programming

blinking (disabling function only)

* = parameterizable as an option

relay

75310002.doc

Seite: 58 / 174

Page 59

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting a scene recall delay for the scene function

Each scene recall of an output can optionally also be delayed. With this feature, dynamical scene sequences can be configured if several outputs are combined with cyclical scene telegrams.

The scene function must have been enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Delay scene recall?" on parameter page "Ax – scenes" to "Yes"

The delay time is now activated and can be parameterized separately. The delay only influences the

scene recall of the output. The delay time is started on arrival of a recall telegram. The corresponding

scene will be recalled and the output set to the respective switching state only after this time has elapsed.

Each scene recall telegram restarts the delay time and retriggers it. If a new scene recall telegram is

received while a delay is active (scene recall not yet executed), the old (and not yet recalled scene) will

be rejected and only the scene last received executed. The scene recall delay has no influence on the storage of scene values. A scene storage telegram within

a scene recall delay terminates the delay and thus the scene recall.

Presetting the ETS download behaviour for the scene function

During storage of a scene, the scene values are stored permanently in the device (cf. "Presetting the storage behaviour for the scene function"). To prevent the stored values from being replaced during ETS programming of the application or of the parameters by the originally programmed scene switching states, the actuator can inhibit overwriting of the scene values. As an alternative, the original values can be reloaded into the device during each programming run of the ETS.

The scene function must have been enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Overwrite values stored in the device during download ?" on parameter page "Ax –

scenes" to "Yes".

During each ETS programming of the application or of the parameters, the scene values parameterized

in the ETS for the output concerned will be programmed into the actuator. scene values stored in the

device by means of a storage function will be overwritten, if any.



Set the parameter "Overwrite values stored in the device during download ?" on parameter page "Ax –

scenes" to "Yes".

Scene values stored in the device with a storage function will be maintained. If no scene values have

been stored, the switching commands last programmed in the ETS remain valid.

When the actuator is put into operation for the first time, this parameter should be set to "Yes" so that the

output is initialized with valid scene values. Otherwise, the values in the actuator are "0" (off) for all

scenes.

75310002.doc

Seite: 59 / 174

Page 60

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting scene numbers and scene switching state for the scene function

The datapoint type of the scene extension object permits addressing of up to 64 scenes max. For this reason, the scene number (1...64) with which the scene is addressed, i.e. recalled or stored, must be determined for each internal scene (1...8) of the output. Moreover, the switching state to be set for the output in case of a scene recall must be specified as well.

The scene function must have been enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Scene x activatable by scene number" (x = number of the scene (1…8)) for each

scene on parameter page "Ax – scenes" to the numbers with which the scenes are to be addressed.

A scene can be addressed with the parameterized scene number. A setting of "0" deactivates the

corresponding scene so that neither recalling nor storage is possible. If the same scene number is parameterized for several scenes, only the scene with the lowest internal

scene number (1...8) will be addressed. The other internal scenes will be ignored in this case.



Set the parameter "Switching state for scene x" (x = number of the scene (1…8)) on parameter page "Ax

– scenes" for each scene to the desired switching command ("on" or "off").

In case of a scene recall, the parameterized switching command is recalled and the output is set

correspondingly. The output is set to the switching command in a scene recall only if no forced-position or disabling

function is active. The parameterized switching command is adopted in the actuator during programming with the ETS only

if the parameter "Overwrite values stored in the device during an ETS download ?" is set to "Yes".

Presetting the storage behaviour for the scene function

The logical state established at the output in accordance with the functional diagram ("on" or "off") can be stored internally via the extension object during reception of a scene storage telegram. In this case, the switching state can be influenced before the storage by all functions of the output provided the individual functions have been enabled (e.g. also the disabling function, forced-control position function, manual control). Rule of thumb: The logical state stored is the one that is reported to the bus by the non-inverted feedback telegram or the one that would have been reported back to the bus had the feedback function not been disabled.

The scene function must have been enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Storage function for scene x" (x = number of the scene (1…8)) on parameter page

"Ax – scenes" for each scene to "Yes".

The storage function is activated for the scene in question. On reception of a storage telegram via the

"Scene extension" object, the current logical state will be internally stored.



Set the parameter "Storage function for scene x" (x = number of the scene (1…8)) on parameter page

"Ax – scenes" for each scene to "No".

The storage function is deactivated for the scene in question. A storage telegram received via the "scene

extension" object will be rejected.

75310002.doc

Seite: 60 / 174

Page 61

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Supplementary functions

For each output in switching mode, supplementary functions can be enabled. As supplementary function, a disabling function or alternatively a forced-control position function (only in ETS 3.0d and onwards) can be configured. Only one of these functions can be enabled for an output. Additionally, a logical operation function can be parameterized. These additional functions are enabled on parameter page "Ax – supplementary functions " (x = number of output).

Presetting the disabling function as supplementary function

As can be seen from the functional diagram (cf. Fig. 19), the disabling function can also be combined with other output functions. In case of an active disable, the upstream functions are overridden so that the output concerned will be locked in the disabled state. The override feature can also be used to implement a permanent lighting function.

recall

store

* *

Note: logic operation function only as an alternative to staircase lighting timer function

disabling

logic operation

cyclical transmission

function

mode of operation

responde to

- bus voltage failure

- bus voltage return

- ETS programming

blinking

* = parameterizable as an option

Object "staircase function start/stop"

Object

"Centralized switch."

Object

"switching"

Object "logic operation"

Object "Disabling"

Object "scene extension"

Object

"centralized feedb."

central object polarity

staircase function (time-controlled)

time delays

scene function

delay after bus voltage return

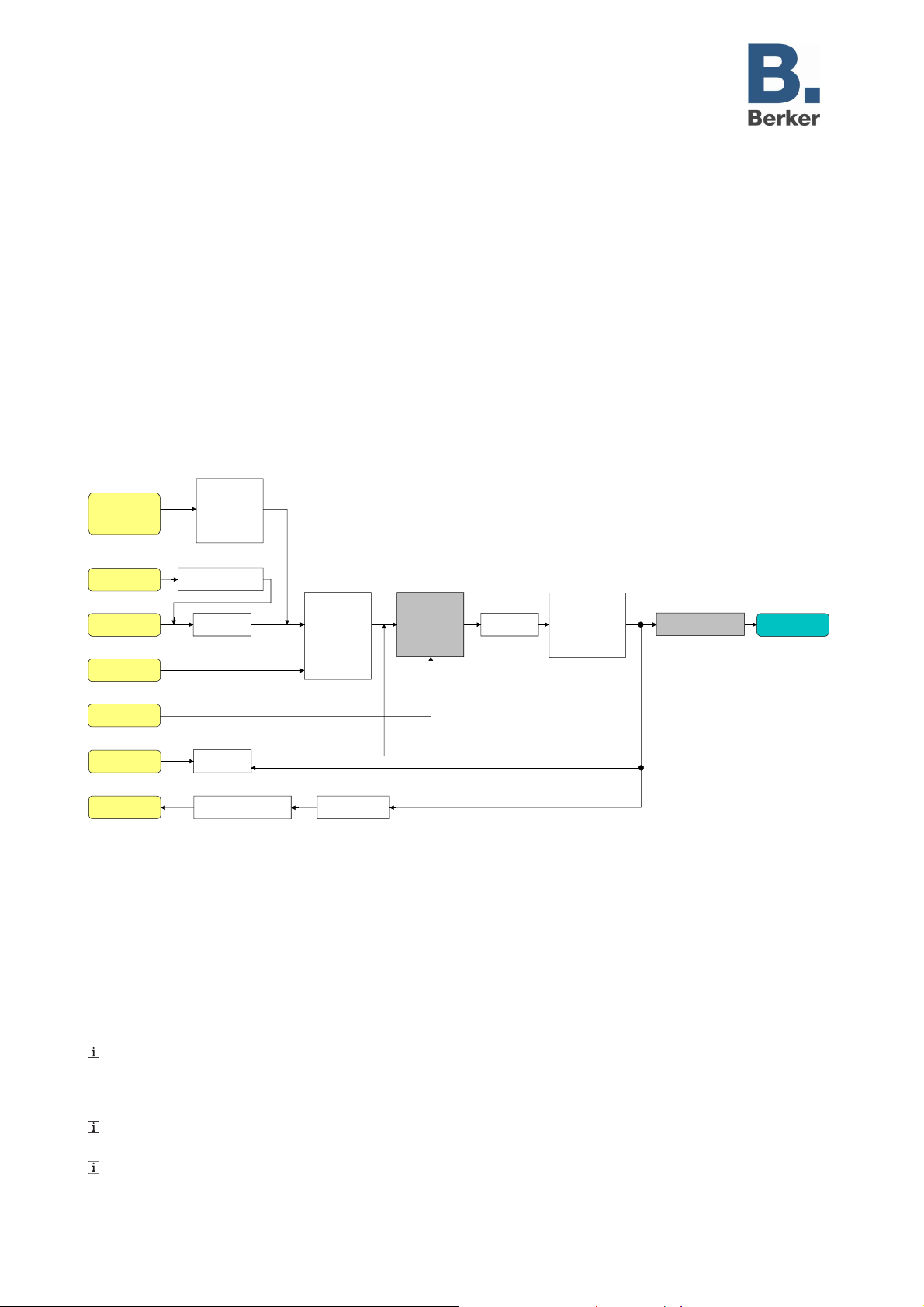

Fig. 19: Functional diagram of the disabling function



Set the parameter "Selection of supplementary function" on parameter page "Ax – supplementary

functions" to "Disabling function".

The disabling function is enabled. The "Disabling" communication object and the parameters of the

disabling function are visible.



Set the parameter "Polarity of disable object" on parameter page "Ax – supplementary functions" to the

desired polarity. After bus or mains voltage return or programming of the application or of the parameters with the ETS,

the disabling function is always deactivated (object value "0"). In the inverted setting ("1 = enabled; 0 =

disabled"), a "0" telegram update must first be sent after the initialization before the disabled state is

activated. Updates of the disabling object from "ON" to "ON" or from "OFF" to "OFF" show no reaction. The relay

remains in the position last set, if applicable also set manually. An output disabled via the bus can still be operated by hand!

relay

75310002.doc

Seite: 61 / 174

Page 62

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002



Set the parameter "Behaviour at the beginning of the disabling function" on parameter page "Ax –

supplementary functions" to the desired behaviour.

At the beginning of disabling, the parameterized behaviour will be executed and the output locked. -

When the setting "No change of switching state" is selected, the relay of the output shows no reaction

and remains in the switching state last set (switching state in acc. with last non-inverted feedback

telegram). When the setting "Blinking" is selected, the output is switched on and off cyclically during

disabling. The blinking time is generally parameterized for all outputs on the "General" parameter page.

During blinking, the logic switching state is "ON - 1".



Set the parameter "Behaviour at the end of the disabling function" on parameter page "Ax –

supplementary functions" to the desired behaviour.

At the end of disabling, the parameterized behaviour will be executed and the output re-enabled. - When

the setting "No change of switching state" is selected, the relay of the output shows no reaction and

remains in the state last set by the disabling function.

When the setting "Setting tracked state" is selected, the last switching state existing before the disabling

function or the switching state internally tracked during the disabling function will be set. In this case,

residual times of time functions or of the staircase functions will be tracked as well, if they have not

completely elapsed at the time of re-enabling the disabling function. In the settings "No change of

switching state", "Switching on", "Switching off" or "Blinking", the states set at the end of the disabling

function have no influence on time or staircase functions

When the setting "Blinking" is selected, the output is switched on and off cyclically after disabling.

Blinking persists until a new switching state is set. The blinking time is generally parameterized for all

outputs on the "General" parameter page. During blinking, the logic switching state is "ON - 1".

The states defined for the end of the disabling function override a logic function if parameterized. The

parameterized logic operation will be executed and the result forced on the output only if at least one

input state of the logic operation changes or is updated after the disabling state has been suspended.

75310002.doc

Seite: 62 / 174

Page 63

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the forced-control position function as supplementary function (only in ETS 3.0d and onwards)

As can be seen from the functional diagram (cf. Fig. 20), the forced-control position function can also be combined with other output functions. In case of an active forced-control position function, the upstream functions are overridden so that the output concerned will be locked in the forced position.

recall

store

* *

Note: logic operation function only as an alternative to staircase lighting timer function

forced-control

logic operation

cyclical transmission

position function

mode of operation

responde to

- bus voltage failure

- bus voltage return

- ETS programming

relay

* = parameterizable as an option

Object "staircase function start/stop"

Object

"Centralized switch."

Object

"switching"

Object "logic operation"

Object "Forced-control position"

Object "scene extension"

Object

"centralized feedb."

central object polarity

staircase function (time-controlled)

time delays

scene function

delay after bus voltage return

Fig. 20: Functional diagram of the forced-control position function



Set the parameter "Selection of supplementary function" on parameter page "Ax – supplementary

functions" to "Forced-control position".

The forced-control position function is enabled. The "Forced-control position" communication object and

the parameters of the forced-control position function are visible.

In case of the 2-bit forced-control position, the switching state of the output is directly determined by the forced-control position telegram. The first bit (bit 0) of the "Forced-control position" object specifies the switching state to be forced on the output. The second bit (bit 1) activates or deactivates the forced control (cf. table 1).

Bit 1 Bit 0 Function 0 x forced-control position not active  normal control 0 x forced-control position not active  normal control 1 0 forced-control position active: switching off 1 1 forced-control position active: switching on

Table 1: Bit coding of forced-control position

Updates of the forced-control position object from "Forced-control position ON" to "Forced-control

position ON" will cause the relay every time to switch the contact into the forced-control position. Updates

from "Forced-control position OFF" to "Forced-control position OFF" remain without effect. An output under forced control from the bus can still be operated by hand!

75310002.doc

Seite: 63 / 174

Page 64

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002



Set the parameter "Behaviour at the end of the forced-control position function" on parameter page "Ax –

supplementary functions" to the desired behaviour.

At the end of the forced-control position function, the parameterized behaviour will be executed and the

output re-enabled for normal control. When the setting "No change of switching state" is selected, the

relay of the output shows no reaction and remains in the state last set by the forced-control position

function.

When the setting "Tracking the switching state" is selected, the switching state last existing before forced

control or the one tracked internally while the forced-control position function was active will be set at the

end of the forced-control position function. In this case, residual times of time functions or of the staircase

functions will be tracked as well, if they have not completely elapsed at the time of re-enabling the

disabling function. In the settings "No change of switching state", "Switching on" or "Switching off", the

states set at the end of the forced-control position function have no influence on time or staircase

functions.

The states defined for the end of the forced-control position function override a logic function if so

parameterized. The parameterized logic operation will be executed and the result forced on the output

only if at least one input state of the logic operation changes or is updated after the forced-control state

has been suspended.

The communication object of the forced-control position function can be initialized after bus voltage return. In this way, the switching state of the output can be influenced when the forced-control position function is activated.



Set the parameter "Behaviour after bus voltage return" on parameter page "Ax – supplementary

functions" to the desired behaviour.

After bus voltage return, the parameterized state is adopted in the "Forced-control position"

communication object. In case of an active forced position, the output will be switched immediately after

bus voltage return to the corresponding state and locked by forced control until the forced-position

condition is cancelled via the bus. The parameter "Behaviour after bus voltage return" will in this case not

be evaluated for the output concerned.

If "State of forced-control as before bus voltage failure" is selected, the forced-control is set to the state

which was stored in a non-volatile memory at the time of bus voltage failure. After programming of the

application or of the parameters with the ETS, the value is in this case always internally set to "Not

active".

In case of actuator mains supply failure, the forced-control position is always deactivated. The forced-

control position is not re-activated even if the mains voltage is absent when the bus voltage returns. In

this case, the parameter "Behaviour after bus or mains voltage return" on parameter page "Ax – General"

will be executed. After bus voltage return or programming of the application or of the parameters with the ETS, the forced-

control position function is always deactivated (object value "0"). The parameterized "Behaviour after bus voltage return" of the forced-control position will only be

executed on return of the bus voltage, if the last ETS application or parameter download ended more

than ca. 20 s ago. Otherwise (T

bus voltage and the "Behaviour after an ETS programing operation" executed.

< 20 s), the forced-control position will not be activated on return of

ETS

75310002.doc

Seite: 64 / 174

Page 65

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the logic function as supplementary function

A logic function can be parameterized separately and independently for each output. This function permits linking the state of the "Switching" object with an additional logic operation object. The state of the communication object for "Switching" can also be evaluated with a delay when an ON-delay or an OFFdelay are defined. As can be seen from the functional diagram (cf. Fig. 21), the logic function can also be combined with other output functions. A combination with the staircase or the cyclical monitoring function is, however, not possible.

Object

"Centralized switch."

Object "switching"

Objekt "Verknüpfung"

Object "scene extension"

Object

"centralized feedb."

Object

"centralized feedb."

central object polarity

time delays

scene function

recall

store

logic operation

disabling or forced-control position function

Note: logic operation function only as an alternative to staircase lighting timer function

mode of operation

Fig. 21: Functional diagram of the logic function

The following gating operations can be parameterized (cf. Fig. 22)

responde to

- bus voltage failure

- bus voltage return

- ETS programming

blinking (disabling function only)

* = parameterizable as an option

feedback

relay

switching

operation

output

switching

operation

output

switching

operation

OR AND AND with feedback

Fig. 22: Gating operations of the logic function

"AND with feedback:"

With a logic object = "0", the output is always "0" (logic AND). In this case, the feedback signal from the

output to the "switching" input will directly reset this input when it is being set. Only if the logic operation

object = "1", can the output adopt the logic state "1" after a new "1" has been received on the "Switching"

input.

75310002.doc

Seite: 65 / 174

output

Page 66

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

The "Logic operation" object can be initialized after bus voltage return or programming with the ETS with a previously parameterized value so that in case of a telegram update to the "Switching" object a correct operation result is determined immediately and the output set correspondingly.



Set the parameter "Logic operation function ?" on parameter page "Ax – supplementary functions" to

"Yes".

The logic function is enabled. The "Logic operation" communication object and the parameters of the

logic function are visible.



Set the parameter "Type of logic operation" on parameter page "Ax – supplementary functions" to the

desired type of logic operation.



Set the parameter "Value of logic operation object after bus voltage return" and "Value of logic operation

object after ETS download" on parameter page "Ax – supplementary functions" to the desired initial

conditions.

After bus voltage return or after ETS programming of the application software or of the parameters, the

"Logic operation" object is initialized with the preset switching states".

After an actuator reset (bus voltage return or ETS programming), the logic function will be executed only

if at least one input object of the logic operation is updated by means of a telegram from the bus. The states preset for the end of a disabling or forced-control position function or the switching states that

are set after ETS programming, bus voltage failure or after bus or mains voltage return will override the

logic function. The parameterized logic operation will be executed and the result forced on the output only

if at least one input state of the logic operation changes or is updated. A mains voltage return does not affect the logic operation communication objects. The objects remain in

the state last set, if the bus voltage was on without interruption.

75310002.doc

Seite: 66 / 174

Page 67

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

4.2.4.2.2 Functional description for outputs in shutter mode

Mode of operation

Each output of the switching/shutter actuator can be independently configured for the drive type connected by defining the mode of operation. The actuator permits controlling slatted blinds, shutters, awnings and also venting louvers. Depending on the preset mode of operation, the ETS adapts the parameters and communication objects for all functions of an output. This means, for instance, that the "blind" mode has also parameters and objects for the slat control. In the "shutter / awning" mode there is no slat control, but a fabric-stretching function parameter instead when awnings are used. In the "venting louver" mode, a distinction is made between "closing" and "opening" movements instead of upward or downward travels as in case of blinds or shutters. In this documentation, blinds, shutters or awnings are also designated with the term "curtain", if the text does not explicitly refer to a particular function (e.g. slat control). In all modes it is possible to specify positions.

Presetting the mode of operation

The parameter "Mode of operation" exists separately for each shutter output on the parameter page "Ax General" (x = number of output).



Select the required mode of operation in the "Mode of operation" parameter.

The "Mode of operation" parameter has an influence on many channel-oriented parameters and

communication objects. When the mode of operation is changed in the ETS, the parameters are adapted

dynamically so that settings already made or links between group addresses can be reset. For this

reason, the required mode of operation should be parameterized at the beginning of the channel-oriented

device configuration. Venting louvers must be connected to the outputs in such a way that they are opened in travel direction

"up - " and closed in travel direction "down - ". An awning travels upwards when it is rolled up.

75310002.doc

Seite: 67 / 174

Page 68

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Behaviour in case of bus voltage failure, after bus or mains voltage return or after programming with the ETS

Presetting the behaviour after ETS programming

The parameter "Behaviour after ETS programming" can be preset separately for each output channel on the parameter page "Ax - General" (x = number of output). This parameter can be used to define the output relay behaviour independent of the behaviour after bus or mains voltage return. Depending on the selected mode of operation, the ETS adapts the designations of the parameter settings ("raising" ↔ "opening the louver" / "lowering" ↔ "closing the louver")



Set the parameter to "stop".

After programming with the ETS, the actuator switches the relays of the output to the "stop" position and a travel movement in progress is stopped.



Set the parameter to "raising" or "opening the louver".

After programming with the ETS, the actuator raises the curtain or opens the venting louver.



Set the parameter to "lowering" or "closing the louver".

After programming with the ETS, the actuator lowers the curtain or closes the venting louver.

At the beginning of each ETS programming cycle, the switching/shutter actuator always executes a "stop"

command for all outputs. The manual mode, if active, will be terminated. The "Behaviour after ETS programming" as parameterized will be executed after every ETS application

or parameter download. A simple download of the physical address alone or partial programming of only

the group addresses has the effect that this parameter is disregarded and that the parameterized

"Behaviour after bus or mains voltage return" will be executed instead. For outputs with end position

detection also the travelling times learnt will be retained in this case. Programming with the ETS is possible when the bus voltage line is connected to the switching/shutter

actuator and the bus voltage supply is on. An ETS download does not require the mains voltage supply to

be on. If programming with the ETS was performed with bus voltage only, the parameterized "Behaviour

after ETS programming" will only be executed when also the mains voltage supply of the actuator has

been switched on. The "Behaviour after bus or mains voltage return" will not be activated in this case !

This reaction must be taken into account especially with actuators that are installed in pre-programmed

condition into an existing electrical installation. After programming with the ETS, the safety functions, the forced positions and the sun protection

function are always deactivated.

75310002.doc

Seite: 68 / 174

Page 69

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the behaviour in case of bus voltage failure

The parameter "Behaviour in case of bus voltage failure" can be preset separately for each output channel under "Ax - General" (x = number of output). The parameter defines the behaviour of a shutter output if only the bus voltage fails. The parameterized behaviour will not be adopted, if a manual control mode is active at the time of bus failure (state LEDs blinking in case of temporary or permanent manual control). Depending on the selected mode of operation, the ETS adapts the designations of the parameter settings ("raising" ↔ "opening the louver" / "lowering" ↔ "closing the louver").



Set the parameter to "stop".

In case of bus voltage failure, the actuator switches the relays of the output to the "stop" position. A

downward travel movement, if any, will be interrupted.



Set the parameter to "raising" or "opening the louver".

After bus voltage failure, the actuator raises the curtain or opens the venting louver.



Set the parameter to "lowering" or "closing the louver".

After bus voltage failure, the actuator lowers the curtain or closes the venting louver.



Set the parameter to "position approach".

In case of bus voltage failure, the connected drive can approach a position specified by further

parameters (0…100 %). If blinds are controlled with the device, the slats can be positioned

independently. The shutter actuator performs a reference travel before the position approach, if the

current position at the time of bus failure is unknown (e.g. due to power supply failure or to previous ETS

programming).



Set the parameter to "no reaction".

In the event of bus voltage failure, the relay of the output shows no reaction. Motions still in progress at

the time of failure will still be completed as long as the mains voltage supply is still on.

Safety, forced position or sun protection functions (independent of the selected priority) remain active

even after a bus voltage failure as long as the mains voltage supply is still on. These functions will

therefore be executed again at the end of a temporary or permanent manual control (if enabled in case of

bus failure) even if there is no bus voltage. When the still ongoing motion or the motion parameterized in case of bus voltage failure has come to an

end, the outputs can no longer be activated except by manual control (if the mains voltage is on and if

manual control is enabled) or by bus/mains voltage return. A bus voltage failure will in any case result in a stop of all time functions. Thus, all scene recalls in the

delay phase will be aborted and all delay times for sun protection and presence will be ended by ignoring

the object value last received and still in the delay phase. A telegram update received shortly before bus

voltage failure is then lost, if the corresponding delay has not yet elapsed. In the event of a mains voltage failure, all relays of the actuator will always drop out ("stop) independent

of the bus voltage condition. In this state, the outputs are no longer selectable. Time functions (scene,

sun protection and presence delays) are not interrupted, if only the mains voltage fails.

75310002.doc

Seite: 69 / 174

Page 70

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

In case of bus or mains voltage failure, the current position data of the outputs are permanently stored in

the device so that the corresponding positions can be precisely tracked after bus or mains voltage return,

if so parameterized. The data are stored before the reaction parameterized for the case of bus voltage

failure takes place and only if one part of the supply (mains or bus) is still present, or if the supply fails

completely after the mains voltage has been available before without interruption for at least 20 seconds

after the last reset (storage capacitors sufficiently charged for storage purposes). The data will not be

stored, if the position data are unknown. storage takes place only once after part of the supply voltage

has failed...

Example 1:

Bus voltage failure  storage  thereafter mains voltage failure  no further storage,

Example 2:

Mains voltage failure  storage  thereafter bus voltage failure  no further storage.

The following rules apply for the position data to be stored:

The current curtain, slat and louver positions are stored. With blinds, the height to be stored is always

referred to a slat position of 100 % (cf. "Calculating the slat position").

Positions temporarily approached will be stored also for those outputs that are involved in a travel

movement at the time of data storage.

On account of the fact that position data are stored as integer percentage values (0...100), a minor

deviation from the positions reported back later during bus or mains voltage return (number range 0..255)

cannot be avoided.

As the position values are stored only once during bus voltage failure, such positions as are varied by

manual control after bus voltage failure cannot be tracked. similarly, forced position telegrams received

via the bus after a mains voltage failure or slat offset positions for the sun protection function cannot be

stored and tracked either.

Stored position data are not lost during programming with the ETS. In case of bus or mains voltage failure, the current states of the forced position control (only in ETS 3.0d

and onwards) or – if parameterized – also the slat offsets of the sun protection positions are stored as

well.

75310002.doc

Seite: 70 / 174

Page 71

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the behaviour after bus or mains voltage return

The parameter "Behaviour after bus or mains voltage return" can be preset separately for each output channel under "Ax - General" (x = number of output). Depending on the selected mode of operation, the ETS adapts the designations of the parameter settings ("raising" ↔ "opening the louver" / "lowering" ↔ "closing the louver").



Set the parameter to "stop".

In case of bus or mains voltage return, the actuator switches the relays of the output to the "stop"

position. A travel movement, if any, will be interrupted.



Set the parameter to "raising" or "opening the louver".

After bus or mains voltage return, the actuator raises the curtain or opens the venting louver.



Set the parameter to "lowering" or "closing the louver".

After bus or mains voltage return, the actuator lowers the curtain or closes the venting louver.



Set the parameter to "position during bus / mains failure"

After bus or mains voltage return, the position value (including the slat position in the case of blinds) last

selected and stored internally before bus or mains voltage failure will be tracked. The shutter actuator

performs a reference travel before the position approach, if the current position at the time of bus or

mains voltage return is unknown (e.g. due to complete power supply failure or to previous ETS

programming).



Set the parameter to "position approach".

In case of bus or mains voltage return, the connected drive can approach a position specified by further

parameters (0…100 %). If blinds are controlled with the device, the slats can be positioned

independently. The shutter actuator performs a reference travel before the position approach, if the

current position at the time of bus or mains voltage return is unknown (e.g. due to complete power supply

failure or to previous ETS programming).



Set the parameter to "no reaction".

In the event of bus or mains voltage return, the relay of the output shows no reaction. Ongoing travel

movements at the time of voltage return are completed.

"Position during bus / mains failure" setting: If no position values could be stored in case of bus or mains

voltage failure because the position data were unknown (no reference travel executed), the actuator

shows no reaction with this parameterization either. "No reaction" setting: The commands received via the bus during a mains voltage failure (bus voltage

present) are tracked when the mains voltage returns. Interrupted short- or long-time travel movements –

if not completed – are restarted at full length and position approaches are continued from the break point. All time functions (scene, sun and presence delay) are only stopped in case of bus voltage failure so that

a mains voltage failure does not result in a loss of states or time functions as long as the bus voltage is

present. The parameterized behaviour is always executed independent of the current states of the safety or sun

protection function. safety and sun protection function can nonetheless be active even after bus or mains

voltage return, if these functions have been activated before a bus voltage failure or before or during a

mains voltage failure. Any direct operation can thus be overridden.

Only in case of a complete supply failure (bus voltage and mains voltage) are the sun protection or the

safety functions deactivated. The communication object of the forced position function (only in ETS 3.0d and onwards) can be

initialized separately after bus voltage return. This has an effect on the reaction of the output when the

forced position is activated. A mains failure alone has no effect on the forced position. In case of a return

of only the mains voltage, a previously activated forced position remains active.

The parameterized "Behaviour after bus or mains voltage return" will only be executed, if no forced

position function is activated after bus voltage return.

75310002.doc

Seite: 71 / 174

Page 72

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

An active manual control is terminated on return of bus voltage. In case of mains failure, no manual

control is possible. The device executes the parameterized "Behaviour after bus or mains voltage return" only if more than

ca. 20 s have elapsed between the last ETS download of the application or of the parameters and the

time when bus and mains voltage are restored. Otherwise (T

programming" will be executed also in case of a bus/mains voltage return.

If only the bus or the mains fails after an ETS download and is then restored, the actuator executes the

"Behaviour after bus or mains voltage return".

< 20 s), the "Behaviour after ETS

ETS

75310002.doc

Seite: 72 / 174

Page 73

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Determining and configuring short-time and long-time operation

The short-time operation (Step) permits adjusting the slat tilting angle of a blind or the 'slit opening width' of a shutter. In most cases, short-time operation is activated by pressing a blind/shutter pushbutton sensor permitting manual intervention in the blind/shutter control cycle. When the actuator receives a short-time command while the blind, shutter, awning or louver is in motion, the travel movement is stopped immediately by the switching/shutter actuator.

The long-time operation (Move) is determined by the travelling time of the connected blind, shutter, awning or louver and must therefore not be preset separately. The travelling time must be measured 'manually' and the parameters entered in the ETS. The control of an output by means of a long-time or a short-time telegram is also designated as 'direct operation'.

To ensure that the curtain or the louver has definitely reached its end position at the end of long-time operation, the switching/shutter actuator always prolongs the long-time travel movement by 20% of the parameterized or learnt travelling time.

The parameterized travelling time extension will moreover be taken into account by the actuator for all upward travels or all travel movements into the open position as the drive motors are then generally no so fast due to the weight of the curtains or to external physical influences (e.g. temperature, wind, etc.). Thus, it is ensured that the upper end position is always reached even in case of uninterrupted long-time travel movements.

A long-time or a short-time operation can be retriggered by a new incoming long-time or short-time

telegram. A travel movement activated in the manual control mode or by a safety function is always a long-time

operation. The "raising" or "lowering" commands parameterized in the ETS will equally activate the long-

time operation.

Presetting the short-time operation

The short-time operation is parameterized separately for each output and independent of the travelling time of the curtain or of the louver. The project designer can specify in the ETS whether the output executes only a "stop" for a travel movement on reception of a short-time telegram or whether the output is activated for a specific duration.



Set the parameter "Short-time operation" on parameter page "Ax - Time settings" (x = number of output)

to "yes".

The switching/shutter actuator activates the output concerned for the time specified under "Duration of

short-time operation" when a short-time telegram is received and when the output is not in the process of

executing a travel movement. If the output is executing a travel movement at the time of telegram

reception, the output will only just stop.



Set the parameter "Short-time operation" on parameter page "Ax - Time settings" (x = number of output)

to "no (only stop".

The switching/shutter actuator will only stop the output on reception of a short-time telegram, if the output

is in the process of executing a travel movement. There will be no reaction, if the output is not executing

a travel movement at the time of telegram reception.

The parameterized "Duration of short-time operation" should correspond for a blind to ca. ¼ of the

complete slat moving time and for a shutter to the full time needed for opening the shutter segments. The short-time operation is always executed without travelling time extension.

75310002.doc

Seite: 73 / 174

Page 74

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Determining and configuring travelling times

For computing positions and also for executing long-time operation, the switching/shutter actuator needs the exact travelling time of the connected blind, shutter, awning or louver. The travelling time for a shutter output must be measured 'manually' and entered as a parameter into the ETS. It is important to determine the travelling time accurately to permit positions to be approached with good precision. Therefore, it is recommended to make several time measurements and to take the average of these values before entering them into the corresponding parameter.

The travelling time corresponds to the duration of a travel movement from the completely open position (upper end position / awning rolled up) to the completely closed position (lower end position / awning completely unrolled) and not vice versa! Fig. 23 is a schematic showing the determination of the travelling time as a function of the different types of movements.

upper end position

Blind

travelling time [s]

Awning

upper end position

lower end position

louver

travelling time [s]

lower end position awning completely open

completely open

Shutter

travelling time [s]

lower end position shutter comletely closed

Venting louver

travelling time [s]

louver completely closed

Fig. 23: Travelling time as a function of the type of movement

Presetting the travelling time of blinds, shutters, awnings and louvers without automatic end position detection

The measurement of the travelling time is described in detail in chapter "2.4 Commissioning". The automatic end detection position must be deactivated.



Enter the exact travelling times determined in the course of the commissioning procedure into the

parameters "Blind travelling time" or "Shutter/awning travelling time" or "Venting louver travelling time" on

parameter page "A1 – Time settings" (x = number of output). The maximum travelling time is '59 minutes

59 seconds. The working principle does not allow longer travelling times. The parameterized travelling time extension will moreover be taken into account by the actuator for all

upward travels or all travel movements into the open position as the drive motors are then generally no

so fast due to the weight of the curtains or to external physical influences (e.g. temperature, wind, etc.).

75310002.doc

Seite: 74 / 174

Page 75

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Determining and configuring the slat moving time (only with slatted blinds)

If blinds are used, the slats can be positioned independently. To enable the switching/shutter actuator to compute slat positions and to report them back to the bus, it is necessary that the actuator gets precise information about the time required for a slat rotation. The slat moving time must in each case be determined 'manually' and entered into the parameters.

The switching/shutter actuator is designed for controlling single-motor shutter drives without working position. In this drive mode, the slats are directly adjusted by way of mechanical linkage when the height of the blind is changed. The actuator assumes that the slats are completely closed when the blind moves downwards. The actuator assumes that the slats are completely closed when the blind moves downwards (cf. Fig. 24). These blinds are the most common type on the market.

moving direction of blind: UP

slats completey open (0%) direct insolation

insolation

Sun

100%

50%

moving direction of blind: DOWN

insolation

slats completely closed (100%) max. shading

Sun

Fig. 24: type 1 - slatted blinds with oblique slat position in both travel directions

There are also single-motor blind systems without working position the slats of which are horizontal during an upward travel and oblique during a downward travel. such blind types can also be connected to the actuator in which case a completely open slat position corresponds to the slats in horizontal position (cf. Fig.

25).

Sun

moving direction of blind: UP

slats completey open (0%) direct insolation

insolation

100%

50%

moving direction of blind: DOWN

Fig. 25: Type 2 - slatted blinds with oblique and horizontal slat position

75310002.doc

insolation

slats completely closed (100%) max. shading

Seite: 75 / 174

Page 76

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the slat moving time

The measurement of the slat moving time is described in detail in chapter "2.4 Commissioning".



Set the parameter "Slat moving time" on parameter page "Ax – Times" (x = number of output) exactly to

the value determined in the course of the commissioning procedure. The slat moving time must be shorter than the preset or learnt curtain travelling time. The parameterized or measured travelling time extension will also be taken into account when slats are

moved into the completely open position (upward travel).

Determining and configuring the travelling time extension and the change-over time

When travelling upwards, blinds, shutters or awnings have a tendency of moving more slowly due to their own weight or to external physical influences (e.g. temperature, wind, etc.). The same applies to venting louvers where opening may take longer than closing.

For this reason, the switching/shutter actuator takes the parameterized travelling time extension into account when moving upwards or when opening louvers. The time extension is computed as a percentage of the difference of the travelling times in both directions.

The travelling time extension must be determined during commissioning separately for each output and entered into the ETS parameters. The measurement of the travelling time extension is described in detail in chapter "2.4 Commissioning".

Example showing the calculation of the travelling time extension:

–

"Travelling time" previously determined and parameterized: TOU = 20 seconds,

–

Time determined for travel from lower to upper end position: TUO = 22 seconds,

–

Calculated supplementary travelling time: TUO - TOU = 2 seconds  2 seconds out of 20 seconds are 10

–

Travelling time extension to be parameterized: 10 %

To protect the drive from irreparable damage, a fixed pause during travel direction change-over can be parameterized for each output. During the pause, no travel direction is active ("stop"). The necessary parameter value can normally be found in the technical documents of the drive motor used. The changeover time is accounted for in every state of operation of the actuator.

Presetting the travelling time extension



Enter the determined travelling time extension (by rounding up the determined extension value) into the

parameter "Travelling time extension for upward travel" on parameter page "Ax – General" (x = number

of output).

Presetting the change-over time for travel direction changes



Set the parameter "Change-over time for travel direction changes" on parameter page "Ax - Time

settings" (x = number of output) to the required change-over interval. When the actuator is delivered ex factory, the change-over time is generally preset to 1 s.

75310002.doc

Seite: 76 / 174

Page 77

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Computing the curtain height or the louver position

The switching/shutter actuator has a comfortable and accurate positioning function. The actuator calculates the current position of the connected blind, shutter, awning or louver whenever these elements are adjusted either by manual or bus control. The calculated position value is a measure of the height of the curtain or of the opening width of the venting louver (cf. Fig. 26).

upper end position

lower end position

upper end position

Blind

0 %

100 %

Awning

0 %

lower end position awning completely open

100 %

upper end position

lower end position

louver completely open

Shutter

0 %

100 %

Venting louver

0 %

100 %

louver completely closed

shutter comletely closed

Fig. 26: Positions defined as a function of the type of movement

The switching/shutter actuator derives the positions from the parameterized travelling time since conventional drives do not provide feedback about their positions. Thus, the travelling time separately parameterized for each shutter output is the reference for all position approaches and of basic importance for the accuracy of the position calculations. For this reason, the travelling times should be determined with great accuracy in order to achieve the best possible positioning results.

For positioning purposes, the shutter actuator calculates the travelling time required as a function of the current position. Example 1… The shutter connected to a certain output has an overall travelling time of 20 s. The shutter is in its upper end position (0 %). It is to be positioned at 25 %. The actuator calculates the travelling time required for approaching the desired position: 20 s ⋅ 0.25

= 5 s. The output will then lower the shutter for 5 s and

(25 %)

thus position the curtain at height of 25 %.

75310002.doc

Seite: 77 / 174

Page 78

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Example 2… The shutter connected to a certain output has an overall travelling time of 20 s. The shutter is in the 25 %

position. It is to be positioned at 75 %. The difference between the positions is 50 %. The actuator calculates the travelling time required for bridging the difference between the positions: 20 s ⋅ 0.5 s. The output will then lower the shutter for 10 s and thus position the shutter curtain at height of 75 %.

For all upward travels, the travelling time extension parameterized or determined by end position detection will automatically be added to the travelling time calculated.

Example 3… The shutter connected to a certain output has an overall travelling time of 20 s. The shutter is in the 75 % position. It is to be positioned at 25 %. The difference between the positions is 50 %. The actuator calculates the travelling time without extension required for bridging the difference between the positions: 20 s ⋅ 0.5 10 s ⋅ ((100 % + 10 %

= 10 s. Taking the travelling time extension into account (e.g. 10 %), the actual raising time is:

(50 %)

(extension)

) : 100 %) = 10 s ⋅ 1,1 = 11 s. The output will then raise the shutter for 11 s and thus position the shutter curtain at a height of 25 %. When the lower or upper end positions (0 % or 100 %) are approached, the travelling time is always 20 % longer than the overall travelling time.

Example 4… The shutter connected to a certain output has an overall travelling time of 20 s. The shutter is in the 50 % position. It is to be positioned at 100 %. The difference between the positions is 50 %. The actuator calculates the travelling time required for bridging the difference between the positions: 20 s ⋅ 0.5 s. As the travel is a travel into an end position, the actuator adds a fixed percentage corresponding to 20 % of the overall travelling time. 10 s + (20 % : 100 %) ⋅ 20 s = 14 s. The output will then lower the shutter for 14 s and thus position the shutter curtain safely at height of 100 %.

Example 5… The shutter connected to a certain output has an overall travelling time of 20 s. The shutter is in the 50 % position. It is to be positioned at 0 %. The difference between the positions is 50 %. The actuator calculates the travelling time without extension required for bridging the difference between the positions: 20 s ⋅ 0.5

= 10 s. As the travel is a travel into an end position, the actuator adds a fixed percentage

(50 %)

corresponding to 20 % of the overall travelling time. 10 s + (20 % : 100 %) ⋅ 20 s = 14 s. Taking the travelling time extension into account (e.g. 10 %), the actual raising time is: 14 s ⋅ ((100 % + 10 %

(extension)

) : 100 %) = 14 s ⋅ 1.1 = 15.4 s. The output will then raise the shutter for 15.4 s and thus position

the shutter curtain safely at a height of 0 %.

The switching/shutter actuator executes position approaches only if a new position deviating from the

current position is preset.

The switching/shutter actuator stores the blind/shutter/awning or louver positions temporarily. The shutter

actuator can approach newly preset blind/shutter/awning or louver positions only if the current positions are known. For this purpose, each output must be given the opportunity to synchronize itself whenever the supply voltage is switched on or after every ETS programming (physical address, application program, partial download). The synchronization is performed with the help of a reference travel (cf. "Reference travel").

Position approaches in progress will be aborted in case of bus or mains voltage failure. In case of bus

voltage failure, the parameterized behaviour will be executed. In case of mains failure, the drives will be stopped. Position approaches are also interrupted when the manual control mode is activated.

(50 %)

= 10

75310002.doc

Seite: 78 / 174

Page 79

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Calculating the slat position (only with blinds)

In the "blinds" mode of operation, the switching/shutter actuator always calculates the slat position so that the opening angle and thus the amount of light admitted into the room by the blind can be adjusted. A new position approach by a blind will always be followed by a positioning movement of the slats. Thus, the slat positions last selected will be tracked or readjusted to a new value if a position change has taken place.

In case of single-motor blind drive systems with working position, the slats will be readjusted directly by a change of the blind curtain height. For this reason, an adjustment of the slat position will always have an influence on the position of the blind itself (cf. Fig. 27).

Sun

100%

50%

blind = 40 % blind = 45 %

desired blind position

Since a preset slat position is to remain constant until the next change, the actuator will not change the height of the blind, if the calculated travelling time required for a change of position lies within the parameterized slat moving time. Similarly, the actuator accounts for the ratio of the moving times of slat and blind and – in case of slat position changes – always recalculates the resulting blind position. If the position feedback objects are used (cf. "Position feedback"), the actuator transmits the blind positions changed by the adaptation also to the bus.

Example (cf. Fig. 27)… The blind position is preset to 50 %. A change of the slat angle (100 %...0 %) initiates the calculation of a new blind position which is also tracked in the position feedback objects. If the actuator is to approach a new blind position of, let's say 47 % in this case, the actuator will not perform a travel movement as the calculated travelling time lies within the parameterized slat moving time and therefore coincides with the slat movement. A change of the blind position to 55 % in this case triggers a blind movement as the change does not lie within the slat movement (0 to 100 %).

For each positioning movement, the desired blind position is referred to a slat position of 100 %. In the event of a slat re-positioning movement (0 to 100 %), the actuator will therefore report a blind position below the desired position.

blind = 50 %

Fig. 27: Example of slat positioning affecting the position of the blind

(typical of slat type 1; analogous reaction for type 2)

parameterized slat moving time

insolation

75310002.doc

Seite: 79 / 174

Page 80

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Exception: The desired blind position of 0 % (upper end position) is assigned to the slat position of 0 %. The re-adjustment of the slat position will result also in this case in a change of the blind height (brief downward travel). Only in this case will the actuator report back a blind position above the desired blind position (cf. Fig. 28). With slat type 1, the slats are generally horizontal when the blind is in its upper end position. For this reason, the calculated slat position with a slat of type 1 corresponds to the actual opening angle only after the first slat is completely extended (100%).

Sun

blind (desired pos.) = 0 %

blind = 5 % blind = 10 %

upper end position

100%

travel movement

50%

travel movement

blind (desired pos.) = 0 %

insolation

100%

Fig. 28: Example of slat positioning with the blind in upper end position

(typical of slat type 1)

Example (cf. Fig. 28)… The blind position is preset to 0 %. After an extended travel movement, the blind is safely in the upper end position. A change of the slat angle (0 %...100 %) initiates the calculation of a new blind position which is also tracked in the position feedback objects. If the actuator is to approach a new blind position of, let's say 5 % in this case, the actuator will not perform a travel movement as the calculated travelling time lies within the parameterized slat moving time and therefore coincides with the slat movement. A change of the blind position to 15 % in this case triggers a blind movement as the change does not lie within the slat movement (0 to 100 %).

The switching/shutter actuator executes slat position adjustments only if a new position deviating from

the current slat position is preset.

The switching/shutter actuator stores the slat positions temporarily. The actuator can approach newly

preset slat positions only if the current position is known. For this purpose, each output must be given the opportunity to synchronize itself whenever the supply voltage is switched on or after every ETS programming (physical address, application program, partial download). The synchronization is performed with the help of a reference travel for the slat or the blind (cf. "Reference travel").

A change of the blind height will always result in a change of the slat position. After reactivation of the

supply voltage of after ETS programming, the actuator will in this case generally move the slats into the 100 % position, if no position has been preset for the slats.

The smaller the ratio between slat moving time and blind travelling time, the more precise the position

approaches and the less marked the influence of the slat angle adjustment on the height of the blind.

75310002.doc

Seite: 80 / 174

Page 81

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Reference travel

After ETS programming (physical address, application program, partial download) or after actuator supply voltage failure (bus and mains voltage) all current position data are unknown. Before the actuator can approach new positions after bus and mains voltage return or after programming, the positioning system must at first be calibrated. The positioning system can be calibrated by carrying out a reference travel.

A reference travel is the time required for a travel movement into the upper end position increased by 20 % and additionally by the parameterized travelling time extension (cf. Fig. 29). A reference travel is not retriggerable.

Reference travels can be executed by the following commands...

–

an uninterrupted long-time travel (including also a terminated safety travel) into the upper end position

activated via the corresponding communication object,

–

an approach of the 0 % position,

–

a manually controlled movement into the upper end position.

Shutter

0 %

100 %

Awning

0 %

reference travel

100 %

Slats

100%

Typ 1

100%

Typ 2

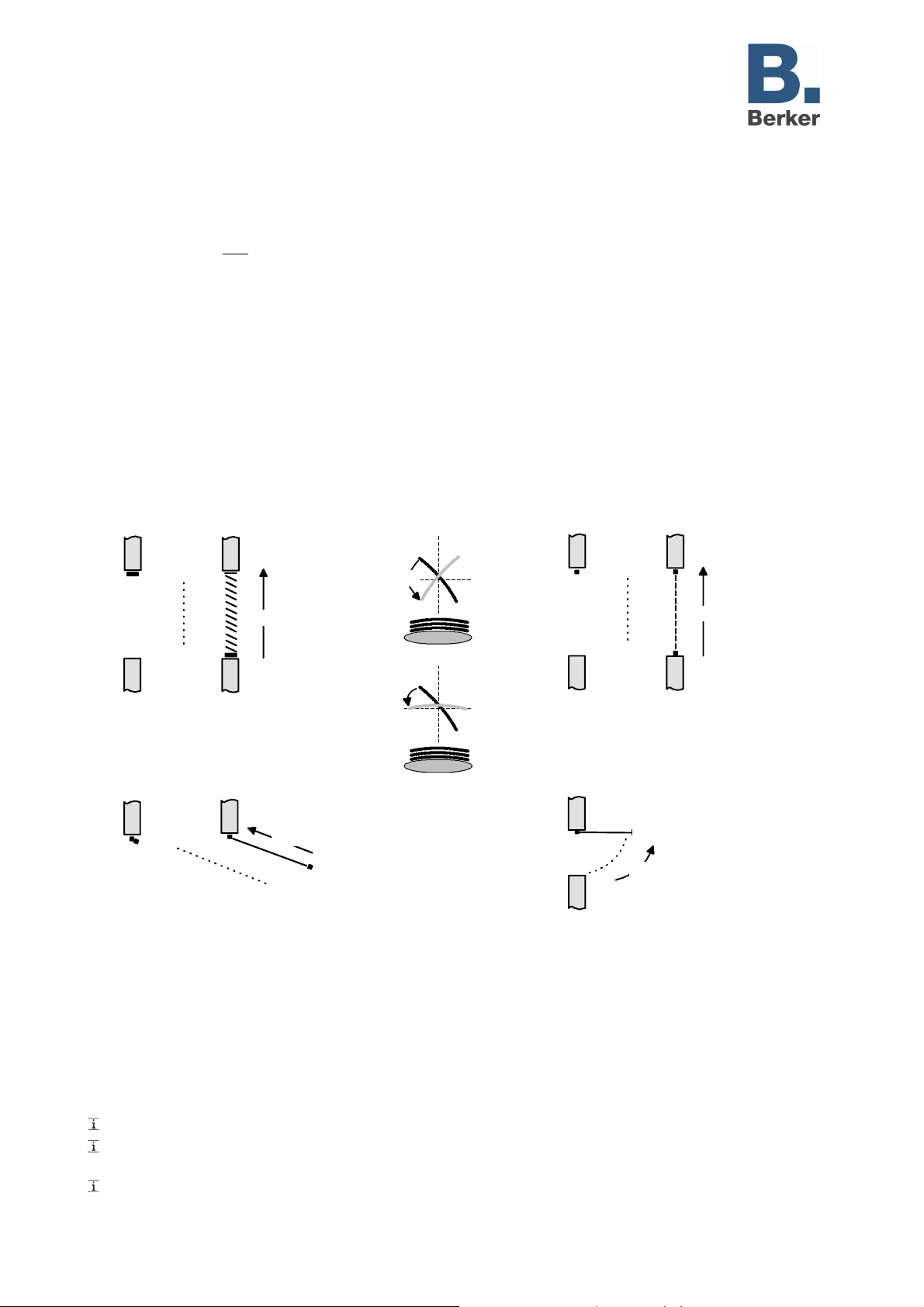

Fig. 29: Reference travel

Shutter

0 %

reference travel

100 %

Venting louver

0 %

reference travel

100 %

In the event of slat positioning via the corresponding communication objects after bus and mains voltage return or after programming, a slat reference movement becomes necessary if the blind has not been moved beforehand in the up or down directions for at least the parameterized slat moving time. During a slat reference movement, the actuator always moves the slats for the parameterized slat moving time into the completely open position (0 %) and then to the desired position. The slat position is also considered as calibrated when the blind has been moved by a long-time command in the up or down direction during at least the parameterized slat moving time.

A terminated reference travel of the blind will also calibrate the slat position. If the reference travel is interrupted for instance by a short-time operation, the position is still unknown as

before.

A long-time travel into the lower end position activated via the corresponding communication object also

calibrates the reference position.

75310002.doc

Seite: 81 / 174

Page 82

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

When the automatic end position detection is used, the reference position is automatically calibrated in

the course of the initial commissioning procedure (teaching of travelling times).

With the sun protection function it is moreover possible to force the actuator to perform a reference travel

before each sun protection travel even if the positions are known. Thus, it is ensured that in case of sun protection the parameterized sun protection position is always precisely approached even after repeated position approaches.

Using the connected drives frequently for position approaches (for instance several times a day) can

result after some time in positioning inaccuracies. These deviations from the nominal position are mostly due to external physical influences. To achieve accurate positioning in operation it is recommended to perform the reference travel at least once every day. This can be achieved for instance by a central raising command transmitted to the long-time object.

Presetting the position

The following ways of presetting positions can be distinguished…

–

direct positioning via the positioning objects (direct operation)

–

positioning by activating the sun protection function,

–

positioning by the behaviour after bus voltage failure or bus or mains voltage return,

–

positioning by a scene recall.

Positioning via the positioning objects: Every blind, shutter, awning or louver can be positioned directly via the "Position..." object separate for each

output. An independent positioning object exist equally for the slats. The position approached is always the position last received. The actuator shows no reaction, when the preset position value or the position to be approached is received several times in succession.

Like the operation via short-time, long-time or central objects, this form of control is also designated as 'direct operation'. Positioning via the objects therefore has the same priority. A position approach effected by the communication objects can be interrupted at any time by a short-time, long-time or central command or by a scene recall. The direct operation can be overridden by a function with a higher priority, e.g. manual control, forced position, safety or also sun protection (parameterizable).

The position telegrams must conform to the 1-byte data format as per KNX datapoint type 5.001 (scaling). The shutter actuator converts the value received (0...255) linearly into a position (0...100 %) (cf. table 2).

value received (0...255)

0 0 % upper end position / slat or louver opened)

position derived from value (0…100 %)

255 100 % lower end position / slat or louver closed)

Table 2: data format of positioning objects with conversion into percentage position values

It is possible that new positioning telegrams are being received while a position approach is in progress. In this case, the actuator immediately reverses the direction of travel, if the new position to be approached lies in the opposite direction.

If a slat positioning command is received during a running blind position approach, the actuator finishes first the blind position approach before positioning the slat. If a blind positioning command is received during a slat positioning movement, the actuator interrupts the slat positioning movement and approaches the new blind position. The slat positioning command last received will only be executed after the blind position is reached.

(all intermediate values rounded off to 1 % increments)

75310002.doc

Seite: 82 / 174

Page 83

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

In case of blind position approaches, slat positioning will always be executed later. After switching on the power supply of the actuator or after programming with the ETS, it may be the case that the slat position is unknown, if no long-time command for the upward or downward travel with a duration of at least the parameterized slat moving time has been received or no slat positioning has taken place (no slat reference movement). In this case, the slat is moved during a blind position approach into the completely closed position (100 %). The slat position is then considered as calibrated.

Optionally, the sun protection function offers the possibility of receiving the instruction of the curtain

height, venting louver or slat position to be adopted during sunshine via separate communication objects and to preset these values variably. This form of variable position preset in the sun protection function is identical to presetting the positions via communication objects in the direct operation mode. The priority of the incoming telegrams in direct operation with the sun protection activated can be additionally parameterized.

Positioning by the sun protection function, the behaviour after bus voltage failure or bus or mains voltage return or by a scene recall

In case of the shutter actuator functions mentioned, the positions to be approached are parameterized directly in the ETS depending on the mode of operation. The position values can be specified between 0 % and 100 % in 1 % steps.

With blinds, the height of the blind is positioned first in these cases. The parameterized slat position is adjusted only thereafter.

Important notes for all positioning movements: Using the connected drives frequently for position

approaches (for instance several times a day) can result after some time in positioning inaccuracies. These deviations from the nominal position are mostly due to external physical influences. To achieve accurate positioning in operation it is recommended to perform the reference travel at least once every day. This can be achieved for instance by a central raising command transmitted to the long-time object.

75310002.doc

Seite: 83 / 174

Page 84

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Position feedback messages

In addition to presetting positions via positioning objects, the switching/shutter actuator can track the current positions values via separate feedback objects and also transmit them to the bus, if the bus voltage is on. Thus, the preset nominal position can be distinguished from the true actual position of the drives activated. The following feedback telegrams can be preset for each output depending on the parameterized mode of operation.

–

Feedback (1 byte) of the blind, shutter, awning or venting louver position,

–

Feedback (1 byte) of the slat position (only with blinds).

The individual position feedback messages can be enabled in the ETS independent of one another and have communication objects of their own.

For each travel movement the actuator calculates the current position and tracks it in the position feedback objects. The positions are tracked and the feedback objects updated even when an output has been activated via short-time or long-time telegrams or by manual control on condition that the bus voltage is on.

The feedback objects are updated after the following events...

–

at the end of a travel movement – including a slat positioning movement in a blind – when the drive stops

and when the new position is reached,

–

in case of a travel movement into an end position already at the time the end position is reached

theoretically, i.e. before the 20 % extension and the travel time extension have elapsed.

The feedback objects are not updated, if the position last reported back has not changed after a movement (for instance, when the blind is repositioned, the unchanged slat position will not be reported back a second time).

The shutter actuator cannot calculate a feedback position, if the current position data after switch-on of the supply (bus voltage and mains voltage) or after ETS programming are still unknown. In these cases, the actuator must first perform a reference travel (cf. "Reference travel") so that the position can be calibrated. In case of unknown positions, the actuator automatically performs reference travels, if new positions are preset and if these positions are to be approached. As long as a position is unknown, the value of the feedback objects is "0".

75310002.doc

Seite: 84 / 174

Page 85

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting position feedback for blind, shutter, awning or venting louver positions

The feedback functions can be enabled and programmed independently for each output. When feedback is enabled, the ETS adapts the parameter texts depending on the preset operating mode ("Blind position feedback", "Shutter/awning position feedback" or "Venting louver position feedback"). The status feedback can be used as an active signalling object or as a passive status object. As an active signalling object, the position feedback information is transmitted to the bus whenever a position value changes. As a passive status object, there is no telegram transmission after a change. In this case, the object value must be read out. The ETS automatically sets the object communication flags required for proper functioning.

In case of an actively transmitting signalling object, the current position can be transmitted to the bus after bus voltage return, if the position value differs from the one last transmitted. When the position data are known, the feedback telegram can in this case be transmitted with a time delay to reduce the bus load, with the delay being preset globally for all outputs in common (cf. "Delay after bus voltage return").

The feedback functions of an output must be enabled on parameter page "Ax – Enabled functions" (x = number of output). Only then are the parameters for the feedback functions visible.



Set the parameter "Blind position feedback", "Shutter/awning position feedback" or "Venting louver position feedback" on parameter page "Ax – Feedbacks" to "feedback object is active signalling object"

The feedback object is enabled. The position value is transmitted as soon as it changes. No value will be actively transmitted, if the position is unknown.



The feedback object is enabled. The position value will be transmitted in response only if the feedback object is read out from by the bus. If the position is unknown, a value of "0" will be reported back after readout.

The feedback function must be preset as actively transmitting function.



If a time delay after bus voltage return should be necessary, the parameter "Time delay for feedback after bus voltage return" on parameter page "Ax – Feedbacks" must be set to "yes"

The position is then reported back with a time delay after bus voltage return. After the end of the time delay, the position last adjusted statically will be transmitted to the bus. No feedback telegram will be transmitted during a running delay, even if a position value changes during this delay.

75310002.doc

Seite: 85 / 174

Page 86

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the position feedback for slat positions (only with blinds)

The feedback functions for the slat positions can be enabled and programmed independently for each output. The slat position feedback can be used like the position feedback for the height of the blind as an active signalling object or as a passive status object. In case of an actively transmitting signalling object, the current slat position can be transmitted to the bus after bus voltage return, if the position value differs from the one last transmitted. When the position data are known, the feedback telegram can in this case be transmitted with a time delay to reduce the bus load, with the delay being preset globally for all outputs in common (cf. "Delay after bus voltage return").

The feedback functions of an output must be enabled on parameter page "Ax – Enabled functions" (x = number of output). Only then are the parameters for the slat position feedback functions visible.



Set the parameter "Slat position feedback" on parameter page "Ax – Feedbacks" to "feedback object is active signalling object".

The feedback object is enabled. The position value is transmitted as soon as it changes. No value will be actively transmitted, if the position is unknown.



Set the parameter "Slat position feedback" on parameter page "Ax – Feedbacks" to "feedback object is passive status object".

The feedback function must be preset as actively transmitting function.



If a time delay after bus voltage return should be necessary, the parameter "Time delay for feedback after bus voltage return" on parameter page "Ax – Feedbacks" must be set to "yes".

The position is then reported back with a time delay after bus voltage return. After the end of the time delay, the position last adjusted statically will be transmitted to the bus. Although the feedback object concerned is updated during a running delay, no feedback telegram will, however, be actively transmitted during such delay, even if a position value changes during the delay.

Behaviour of position feedback in case of voltage failure and voltage return:

When the bus voltage returns, with the mains voltage supply to the actuator being on, the current position data are always written into the feedback objects. The positions are transmitted to the bus also in those cases where the feedback objects are actively transmitting objects and where the position data differ from the data last reported back, for instance, as a result of manual control. If the position data are unknown, the feedback objects are initialized with "0" and are not transmitted to the bus. Without mains voltage supply, the connected drives are not activated so that there is always no position feedback, even after return of the bus voltage. In case of mains voltage return, the parameterized behaviour will be executed. The feedback objects are then updated provided the bus voltage is on.

In case of blinds operation, any position change of the blind within the limits of the slat adjustment (0 to

100 %) does not launch a travel movement and therefore no change of the feedback position data either.

75310002.doc

Seite: 86 / 174

Page 87

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

'Unknown position' feedback and travel movement

In addition to position data feedback, the switching/shutter actuator can also report back enlarged 1-bit status information messages and transmit them actively to the bus, if the bus voltage is on. The following status feedback messages can be separately preset for each output…

–

invalid position feedback message,

–

drive movement feedback message.

Invalid position feedback message: After switch-on of the supply voltage (bus and mains voltage failure) or after programming with the ETS, all

position data of an output are unknown. In this case – when the bus voltage is on – the switching/shutter actuator can update the feedback object "Invalid position" (object value "1") which will then signal that the object values of the 1-byte position feedback objects are invalid.

An invalid position feedback will be only be reversed (object value "0") after the position data for the blind, shutter, awning or venting louver have been calibrated by means of a reference travel. The calibration of the slat position in a blind alone will not result in the reversal of an 'invalid position' status message.

As an option, the object value of the status feedback message can be actively transmitted to the bus in case of a value change.

Travel movement feedback message: The switching/shutter actuator can report back via a separate 1-bit communication object per output

whether the connected drive is moving, i.e. whether the output is supplying current for any of the travel directions. The feedback object has a value of "1" when current is flowing from the output to the drive. Likewise, a "0" is written into the object if the output concerned remains in a stop position. In this case, the operation by which the output was activated (short-time or long-time operation, positioning, manual control, etc.) is of no importance.

As an option, the object value of the status feedback message can be actively transmitted to the bus in case of a value change.

A mains voltage failure in the shutter actuator always results in a "0" being written into the "Travel movement" feedback object. Moreover, the feedback status is derived exclusively from the relay state of the actuator. This means that if a drive is blocked or already in its end position, the value reported back does not correspond to the actual state of the travel movement.

75310002.doc

Seite: 87 / 174

Page 88

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting an 'invalid position' feedback

The feedback for an invalid position can be enabled and programmed independently for each output. When feedback is enabled, the ETS adapts the parameter texts depending on the preset operating mode ("Invalid blind position feedback", "Invalid shutter/awning position feedback" or "Invalid venting louver position feedback"). The status feedback can be used as an active signalling object or as a passive status object. As an active signalling object, the status feedback information is transmitted to the bus whenever a position value changes. As a passive status object, there is no telegram transmission after a change. In this case, the object value must be read out. The ETS automatically sets the object communication flags required for proper functioning.

If the object is an actively transmitting signalling object, the feedback telegram can be transmitted after bus voltage return with a time delay to reduce the bus load, with the delay being preset globally for all outputs in common (cf. "Delay after bus voltage return").

The feedback functions of an output must be enabled on parameter page "Ax – Enabled functions" (x = number of output). Only then are the parameters for the feedback functions visible.



Set the parameter "Invalid blind position feedback", "Invalid shutter/awning position feedback" or "invalid venting louver position feedback" on parameter page "Ax – Feedbacks" to "feedback object is active signalling object"

The feedback object is enabled. A telegram is transmitted as soon as there is a change (e.g. after ETS programming, after switch-on of the supply voltage or after a reference travel).



The feedback object is enabled. A telegram will be transmitted in response only if the feedback object is read out by the bus.

The feedback function must be preset as actively transmitting function.



If a time delay after bus voltage return should be necessary, the parameter "Time delay for feedback after bus voltage return" on parameter page "Ax – Feedbacks" must be set to "yes".

An invalid position reported back with a time delay after bus voltage return. After the end of the time delay, the object value state last adjusted will be transmitted to the bus. No feedback telegram will be transmitted during a running delay. This is also the case if a position value becomes known, for instance, after a reference travel.

Automatic transmission after bus voltage return will take place only if an internal change of the object

state has occurred (caused, for instance, by a reference travel during manual control).

75310002.doc

Seite: 88 / 174

Page 89

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the travel movement feedback

The feedback messages can be enabled and programmed separately for each output. The status feedback can be used as an active signalling object or as a passive status object. As an active signalling object, the status feedback information is transmitted to the bus whenever the object value changes. As a passive status object, there is no telegram transmission after a change. In this case, the object value must be read out. The ETS automatically sets the object communication flags required for proper functioning.

With an active signalling object, the feedback telegram can be transmitted after bus voltage return with a time delay to reduce the bus load, with the delay being preset globally for all outputs in common (cf. "Delay after bus voltage return").

The feedback functions of an output must be enabled on parameter page "Ax – Enabled functions" (x = number of output). Only then are the parameters for the feedback functions visible.



Set the parameter "Travel movement feedback" on parameter page "Ax – Feedbacks" to "feedback object is active signalling object".

The feedback object is enabled. A telegram is transmitted when the connected drive starts moving or stops.



Set the parameter "Travel movement feedback" on parameter page "Ax – Feedbacks" to "feedback object is passive status object".

The feedback object is enabled. A telegram representing the current travel movement will be transmitted in response only if the feedback object is read out by the bus.

The feedback function must be preset as actively transmitting function.



If a time delay after bus voltage return should be necessary, the parameter "Time delay for feedback after bus voltage return" on parameter page "Ax – Feedbacks" must be set to "yes"

A travel movement feedback telegram is transmitted with a time delay after bus voltage return, for instance, when the drive is set in motion as a result of the preset behaviour after bus voltage return. After the end of the time delay, the object value state last adjusted will be transmitted to the bus. No feedback telegram is transmitted during a running delay. This is also the case if the drive stops or starts moving during this delay.

Automatic transmission after bus voltage return will take place only if the drive starts moving on return of

bus voltage or if there has been a change of the travel movement caused by the bus failure.

75310002.doc

Seite: 89 / 174

Page 90

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Safety function

The switching/shutter actuator can handle up to five different safety functions: 3 x wind alarm, 1 x rain alarm, 1 x frost alarm. Each safety function has a communication object of its own so that the functions can be activated or deactivated independently of one another. The safety functions are programmed and configured for all outputs in shutter mode together (cf. chapter "4.2.4.1 Description of channel-independent functions – safety functions").

The different outputs in shutter mode of the actuator can be separately assigned to all or to individual safety functions. Only assigned outputs react to a change of state of the safety objects. The reactions at the beginning of an alarm ("1" telegram) can be parameterized for each alarm separately whereas the reaction at the end of an alarm ("0" telegram) can be parameterized for all alarms in common (cf. Fig. 30).

assignment to wind alarms

Object "Wind alarm 1"

caclical monitoring

Object "Wind alarm 2"

Object "Wind alarm 3"

Object "Wind alarm"

caclical monitoring

high --> medium --> low

priority evaluation

assignment to rain alarm

assigment to frost alarm

outputs 3...4

behaviour in case of wind alarm

behaviour at the end of saftey

behaviour in case of rain alarm

behaviour in case of frost alarm

* = optional parameterizable

1): common monitoring time, different timers

Output

Fig. 30: Function diagram of channel-oriented safety functions

An output can be assigned independently to the wind alarms, the rain alarm and the frost alarm. If an output is associated with several alarms, the preset priority decides which of the alarms will prevail and be executed. An alarm with a higher priority overrides the alarms with the lower priorities. When safety alarm with the higher priority has ended, the safety alarm with the lower priority is executed on condition that it is active. The order of priority of the wind alarms with respect to the frost alarm or to the rain alarm can be parameterized independent of the channel on the "Safety" parameter page. The three wind alarms have the same priority with respect to one another (logic OR). The last telegram update to the wind alarm objects decides which of the wind alarms will be executed. The wind alarm is completely deactivated only after all three objects are inactive ("0").

An output in the active safety alarm state is locked, i.e. the control of the output concerned via the bus by direct operation (short-time, long-time telegram, scenes, positioning, central) or by a sun protection function is prevented. Only a forced position and a manual control locally on the device itself have a higher priority so that these functions may override a safety interlock. At the end of a forced position or of a manual control, the safety reaction is re-executed if an assigned safety alarm is still active.

75310002.doc

Seite: 90 / 174

Page 91

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Assigning safety alarms

The individual safety alarms can be assigned separately to each output. The channels are assigned on parameter page "Ax – safety" (x = number of output).

The safety functions must be globally enabled on the "Shutter outputs safety" parameter page before the output assignments are configured.

The safety function for an output must be enabled on parameter page "Ax – Enabled functions (x = number of output). Only then are the channel-related parameters for the safety function visible.



If an assignment to the wind alarms is necessary, set the parameter "Assignment to wind alarms" to the wind alarm or the wind alarms required.

The output is assigned to the specified wind alarms.



If an assignment to the rain alarm is necessary, set the parameter "Assignment to rain alarm" to "yes". The output is assigned to the rain alarm.



If an assignment to the frost alarm is necessary, set the parameter "Assignment to frost alarm" to "yes". The output is assigned to the frost alarm.

If an output is assigned to an alarm which is not globally enabled, the assignment is without effect. Important information about the activation or deactivation of a safety alarm, about the presetting of the

priority and about cyclical monitoring can be found in chapter "4.2.4.1 Channel-independent functional description – safety functions".

Presetting the behaviour at the beginning of a safety alarm

The behaviour of an output at the beginning of a safety alarm can be parameterized separately for each alarm (wind alarms in common, rain and frost alarms separately). The alarm behaviour is preset on parameter page "Ax – safety" (x = number of output). At the beginning of a safety alarm, the actuator locks the outputs concerned so that controlling via the bus by direct operation or by a sun protection function is prevented. Depending on the selected mode of operation, the ETS adapts the designations of the parameter settings ("raising" ↔ "opening the louver" / "lowering" ↔ "closing the louver").

The safety functions must be globally enabled on the "Shutter outputs safety" parameter page. The safety function for an output must be enabled on parameter page "Ax – Enabled functions (x = number

of output). Only then are the channel-related parameters for the safety function visible. The behaviour in case of a safety alarm can only be adjusted, if the output concerned has been assigned to

the corresponding alarm. since there is no difference between the alarm-dependent parameterizations, the selection of the parameters is described below only once.



Set the parameter "Behaviour in case of ..." to "no reaction" At the beginning of the alarm, the output is locked and the relay of the output shows no reaction. Any

travel movements still in progress at this instant will still be completely finished.



Set the parameter "Behaviour in case of ..." to "raising" or "opening the louver". The actuator raises the curtain or opens the venting louver at the beginning of the alarm and locks the

output thereafter.



Set the parameter "Behaviour in case of ..." to "lowering" or "closing the louver". The actuator lowers the curtain or closes the venting louver at the beginning of the alarm and locks the

output thereafter.



Set the parameter "Behaviour in case of ..." to "stop" At the beginning of the alarm, the actuator switches the relays of the output to "stop" and locks the

output. A travel movement, if any, will be interrupted.

75310002.doc

Seite: 91 / 174

Page 92

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

The safety travel time required by an output to move the drive into the end positions is determined by the

"Travel time" parameter on parameter page "Ax - Time settings". Like the long-time operation, a safety travel is derived from the travel time. Downward travel: travel time + 20 %; Upward travel: travel time + 20 % + parameterized or taught-in travel time extension. safety travels are not retriggerable.

Slats of blinds are not repositioned at the end of safety travels into end positions.

Presetting the behaviour at the end of all safety alarms

The switching/shutter actuator ends the safety interlock of an output only after all safety alarms assigned to the output have become inactive. Thereafter, the output concerned shows the parameterized "Behaviour at the end of safety". This behaviour is parameterized in common for all alarms on parameter page "Ax – safety" (x = number of output). Depending on the selected mode of operation, the ETS adapts the designations of the parameter settings ("raising" ↔ "opening the louver" / "lowering" ↔ "closing the louver").

The safety functions must be globally enabled on the "Shutter outputs safety" parameter page. The safety function for an output must be enabled on parameter page "Ax – Enabled functions (x = number

of output). Only then are the channel-related parameters for the safety function visible.



Set the parameter "Behaviour at the end of safety" to "no reaction" At the end of all safety alarms, the output is released and the relay of the output shows no reaction. Any

travel movements still in progress at this instant will still be finished.



Set the parameter "Behaviour at the end of safety" to "raising" or "opening the louver". The actuator releases the output at the end of all safety alarms and raises the curtain or opens the

venting louver.



Set the parameter "Behaviour at the end of safety" to "lowering" or "closing the louver". The actuator releases the output at the end of all safety alarms and lowers or closes the venting louver.



Set the parameter "Behaviour at the end of safety" to "stop" At the end of all safety alarms, the output is released and the actuator switches the relays of the output to

"stop". A travel movement in progress, if any, will be interrupted.



Set the parameter "Behaviour at the end of safety" to "tracking the position". At the end of all safety alarms, the output will be set to the state last adjusted statically before the safety

function or to the state tracked and internally stored during the safety function. The position objects, the long-time object and the scene function are tracked.

Parameter setting "Position tracking": The switching/shutter actuator can track absolute positions after

safety release (position telegram, scene value) only if the position data are known and if the positions have been predefined. In all other cases, no reaction takes place on release of safety. Position data can be tracked, if the output was in a defined position before the safety function or if a new position telegram was received via the position objects during the safety interlock. In the latter case, a reference travel will be executed when the safety function is enabled, if the position before or during the safety interlock was unknown. Known slat positions will also be tracked as described. This is also the case, when the height of the blind is unknown. Long-time travel movements (travels without position preset) will, however, always be tracked.

The preset "Behaviour at the end of safety" will only be executed, if the output passes over to direct

operation at the end of all safety alarms. If a sun protection function is activated (independent of the preset priority with respect to direct operation), it will be also executed.

75310002.doc

Seite: 92 / 174

Page 93

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Sun protection function

Each output in shutter mode of the switching/shutter actuator can be separately configured for the execution of a sun protection function. sun protection is generally realized with blinds, shutters or awnings and offers an intelligent method of shading rooms, terraces or balconies during sunshine depending on the altitude of the sun in the sky and on the intensity of the sunlight (cf. Fig. 31).

Blind

no shading

Shutter

Awning

Sun

Blind

light shading

AwningShutter

Sun

Blind

full shading

AwningShutter

Sun

Fig. 31: sun protection principles (example)

The sun protection functions of the switching/shutter actuator can be adapted many different applications. In simple applications as, for instance, in case of direction-dependent measurement of the sun's intensity by means of a brightness sensor, the curtains controlled can be closed partly or completely to prevent being disturbed by direct sunlight. In these applications, the sun protection function merely evaluates the 1-bit sun signal from the brightness or a similar sensor (e.g. weather station with limit value monitoring) and makes a drive open or close the controlled curtains by moving them into fixed parameterized positions or into variable positions preset via the bus.

In extended applications – for instance where the degree of shading is controlled by weather stations evaluating additionally the sun angle as a function of astro coordinates and presetting the blind and also the slat positions dynamically – the sun protection function can be supplemented by an automatic control system.

Already simple sun protection applications are sufficient to permit a fixed or variable re-adjustment of the positions of blind slats for adapting the curtain to individual shading requirements. For such purpose, it is possible to preset a statical slat offset in the ETS parameters, for instance, for adapting the reflection of sunlight depending on the building situation, or additionally, a dynamical slat offset via a bus communication object, for instance, for manual re-adjustment of the slat opening by persons in the room or otherwise by a central building services control system.

In all cases, the priority between an incoming sunshine or automatic telegram and the direct operation of an output (short-time, long-time telegram, scenes, positioning, central) is also presettable in the ETS. This way, a sun protection position can, for instance, be influenced by a 'manual' operation of a touch sensor in the room and the sun protection function be interrupted. Alternatively, the protection function cannot be interrupted by a direct operation. i.e. the output is interlocked.

A sun protection function can be overridden by a safety function, a forced position (only in ETS3.0d and onwards) or also by a manual control locally on the device itself as these functions of the actuator invariably have a higher priority. At the end of one of the mentioned functions with a higher priority, the same reaction as the one at the beginning of sun protection will be re-executed, if the sun protection function is still active at this time.

Shading against sunlight is activated and deactivated via the 1-bit communication object "Sunshine / shading facade ". The polarity of this object can be selected in the ETS. The sun protection is activated as soon as "sunshine" is signalled to the object depending on the preset polarity. After ETS programming or after switch-on of the supply voltage, the object must at first have data written into it by the bus also in case of inverted polarity before the sun protection can be activated.

75310002.doc

Seite: 93 / 174

Page 94

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

A newly received object value (sun / beginning of shading or sun / end of shading ) can optionally be evaluated with a time delay. This feature permits suppressing brief increases of brightness caused, for instance, by light clouds or by a thunderstorm. An update (from activated to activated) of the "Sunshine / shading facade" object causes the sun protection to be reactivated, if it had been influenced and possibly been re-enabled beforehand by a direct operation in acc. with the preset priority.

The reaction of a specific output at the beginning of shading can be preset in the ETS. This setting permits approaching fixed parameterized positions or positions preset via the bus and thus variable. Variable positions for sun protection purposes can be preset, for instance, by means of touch sensors or visualizations. In addition, it is possible in case of a defined sun protection positioning movement to have a reference travel executed by forced control. This ensures that identical curtain positions are approached synchronously by different outputs in case of a sun protection positioning movement. The reaction at the end of a shading task can be preset as well. In this situation, the curtain can pass into an end position, be stopped or shown no special reaction. Tracking of positions is possible as well.

By means of a priority setting in the ETS parameters it can be specified whether the sun protection function can be influenced by operation or whether the corresponding output is locked by a telegram "Sunshine / shading facade " in the sun protection position. Basically, the "Manual control", "Forced position" and "Safety" functions have a higher priority so that these functions can override, but not terminate a sun protection. Thus, the sun protection function is re-executed at the end of a function with a higher priority, if the object "Sunshine / shading facade" continues to signal the presence of sunshine.

After an ETS programming operation, the sun protection function is always deactivated. An activated sun

protection (independent of the selected priority with respect to direct operation) remains active even after a bus voltage failure as long as the mains voltage supply is still on. The sun protection reaction last executed will therefore be executed again at the end of a temporary or permanent manual control (if enabled in case of bus failure), even if there is no bus voltage.

75310002.doc

Seite: 94 / 174

Page 95

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Fig. 32 is a schematic diagram showing the principle of the simple sun protection and an example of how sensor components can be integrated into a sun protection configuration.

direct operation

e.g. limit value monitoring of a weather station

e.g. brightness sensor

e.g. "0"

Sun

e.g. "1"

Sun

* = optional functions

** = optional only with "blind" mode of operation

1 bit Object "Shunshine / shading facade"

no sunshine

sunshine

sun protection active

e.g. KNX / EIB push button sensor

e.g. visualization / display panel

1 byte Object "Blind position.

sunshine/shading"

1 byte Object "Slat position sunshine/shading"

1 byte Object "Sunshine slat position offset"

Text 1

Fig. 32: schematic diagram illustrating the sun protection configuration

Fig. 33 shows all possible functions of the sun protection in a function diagram. For reasons of clarity, the functions with a higher priority (manual control, forced position, safety function) are not shown in the diagram.

time delays

reaction at the end of sunshine/shading

reaction at the beg. of sunshine/shading

* = optional functions

** = optional only with "blind" mode of operation

slat offset

OutputPriority

Object "Sunshine / shading facade"

Object "Blind position sunshine/shading"

Object "Slat position sunshine/shading"

Object "Sunshine slat position offset"

Object "Long-time" / "Central"*

Object "Short-time"

Object "Scene"

direct operation

Object "Position"

polarity

end of sunshine/shading

t reference travel

beginning of shunshine/shading

Fig. 33: Function diagram illustrating the sun protection

75310002.doc

Seite: 95 / 174

Page 96

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the priority of sun protection

The priority of the sun protection function can be set separately for each output. In the simple sun protection, the priority relations between the "Sunshine / shading facade" object and the objects of direct operation (short-time, long-time, central or position telegram, scene recall) must be configured.

For the sun protection parameters to be visible, the sun protection function must be enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Priority of sun protection with respect to direct operation" on parameter page "Ax sun protection" to "same priority".

The sun protection mode can be overridden at any time by direct operation. In the same way, the sun protection overrides the direct operation, when a new "sunshine" telegram is received via the "Sunshine / shading facade" object and when a parameterized time delay, if any, has elapsed. If the sun protection function is overridden by a direct operation, the preset behaviour "Reaction at the end of sunshine / shading" will not be executed.



Set the parameter "Priority of sun protection with respect to direct operation" on parameter page "Ax sun protection" to "higher priority".

An active sun protection will override a direct operation. The sun protection mode can therefore not be interrupted by a direct operation. Direct operation will be possible again only after the sun protection function is terminated.



Set the parameter "Priority of sun protection with respect to direct operation" on parameter page "Ax sun protection" to "lower priority".

A direct operation can at any time override the sun protection mode. If the sun protection function is overridden by a direct operation, the preset behaviour "Reaction at the end of sunshine / shading" will not be executed. The sun protection function can only be reactivated after an enabling movement controlled by a direct operation has been effected and after a new "sunshine" telegram has been received via the "Sunshine / shading facade" object. If the enabling movement has not yet occurred, any attempt to activate the sun protection will be disregarded. Enabling movement: An enabling movement is an accomplished long-time travel movement into the upper end position which has been initiated by the objects "Long-time operation" or "Central travel control" A manual control, an upward travel movement after bus voltage failure or bus voltage return, a position approach to "0 %" or an upward travel movement after releasing enabling of forced-position or safety functions have no enabling effect. The sun protection is not enabled if the enabling movement has been interrupted. The sun protection function will be also be interlocked, if the output has been re-adjusted again by a direct operation after an accomplished enabling movement. After an ETS programming operation or after switch-on of the supply voltage (bus and mains voltage) the sun protection function is generally enabled.

Manual local operation on the device itself, the forced position function and the safety functions have a

fixed priority higher than that of the sun protection. The sun protection is overridden – but not terminated – by a function with a higher priority. After the end of the function with the higher priority the reaction at the beginning of sun protection will therefore be executed again, if the sun protection is still active at this time.

With the settings "same priority" or "lower priority", the sun protection can be overridden by a direct

operation only if the direct control action can be executed at once. A direct operation will therefore not be able to override the sun protection during a manual control locally on the device, an active forced position function or an active safety function.

Parameter setting "same priority" or "lower priority": A variable preset of curtain and slat positions or of a

slat offset via the bus at the beginning of sunshine / shading shows no reaction at the output, if the sun protection was overridden by direct operation. However, the position data or offsets received are stored internally so that the new positions will be approached on reactivation of the sun protection.

75310002.doc

Seite: 96 / 174

Page 97

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the polarity of the "Sunshine / shading facade" object

The telegram polarity of the "Sunshine / shading facade" object can be preset separately for each output. This means that an adaptation to the signals from existing sensors or weather stations is possible in the simple and also in the enlarged sun protection mode.

For the sun protection parameters to be visible, the sun protection function must be enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Polarity of 'Sunshine / shading facade' object" on parameter page "Ax - sun protection" to the required telegram polarity.

The sunshine signal is evaluated in accordance with the preset priority.

An update (from activated to activated) of the "Sunshine / shading facade" object causes the sun

protection to be reactivated, if it had been influenced and possibly been re-enabled beforehand by a direct operation in acc. with the preset priority.

Presetting a time delay for beginning and end of sunshine / shading

The telegram received via the object "Sunshine / shading facade" for activation or deactivation of shading (depending on polarity) can be evaluated with a time delay separately for each output. The preset delay times are always evaluated in the simple as well as in the enlarged sun protection mode.

For the sun protection parameters to be visible, the sun protection function must be enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Time delay at the beginning of sunshine / shading" on parameter page "Ax – Beginning of sun protection" to the required delay time.

The telegram for activation of the sun protection will be evaluated with a delay corresponding to the setting.



Set the parameter "Time delay at the end of sunshine / shading" to the required delay time. The telegram for deactivation of the sun protection will be evaluated with a delay corresponding to the

setting.

A setting of "0" in the parameters deactivates the respective delay time. In this case, the state of the

sunshine signal is evaluated immediately.

An update (from activated to activated) of the "Sunshine / shading facade" object causes the sun

protection to be reactivated in consideration of the delay time, if the sun protection had been influenced or aborted beforehand by a direct operation because of the same or a lower priority.

75310002.doc

Seite: 97 / 174

Page 98

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting the reaction at the beginning of sunshine / shading

The behaviour of the output at the beginning of sunshine / shading – if applicable, after the end of the delay time – can be configured in the ETS separately for each output. In the sun protection mode, the behaviour will be executed, when the sun protection function is activated after receiving a new sunshine signal. The reaction will not be executed if a function with a higher priority is active at the time the new sunshine signal is received. The reaction at the beginning of sunshine / shading is preset on parameter page "Ax – Beginning of sun protection" (x = number of output). Depending on the selected mode of operation, the ETS adapts the designations of the parameter settings ("raising" ↔ "opening the louver" / "lowering" ↔ "closing the louver"). The ETS equally adapts the parameter selection depending on the preset mode of operation.

For the sun protection parameters to be visible, the sun protection function must be enabled on parameter page "Ax – Enabled functions (x = number of output).



Set the parameter "Reaction at the beginning of sunshine / shading" to "no reaction". At the beginning of shading, the output switches over to sun protection while the relays of the output

show no reaction. Any travel movements still in progress at this instant will still be finished.



Set the parameter "Reaction at the beginning of sunshine / shading" to "raising" or "opening the louver". At the beginning of shading, the actuator raises the curtain or opens the venting louver.



Set the parameter "Reaction at the beginning of sunshine / shading" to "lowering" or "closing the louver". At the beginning of shading, the actuator lowers the curtain or closes the venting louver.



Set the parameter "Reaction at the beginning of sunshine / shading" to "stop". At the beginning of shading, the actuator switches the relays of the output to the "stop" position. A travel

movement in progress, if any, will be interrupted.



Set the parameter "Reaction at the beginning of sunshine / shading" to "internal scene recall". The number of the scene to be recalled must be specified in the parameter "Scene number (1…8)".

At the beginning of shading, the shutter actuator recalls the position value preset in the scene configuration for the output concerned. This is not a scene recall as in direct operation, but only an approach to the corresponding scene position value.



Set the parameter "Reaction at the beginning of sunshine / shading" to "fixed position". At the beginning of shading, the shutter actuator recalls a fixed position value for the output concerned.

In the "Blinds" mode of operation, the setting "fixed position" can be selected separately for the height of

the blind and for the slat position. For this reason, the ETS adapts the parameter selection and enlarges the setting options in this mode of operation.

75310002.doc

Seite: 98 / 174

Page 99

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002



"Fixed position" only: set the parameter "Fixed position of blind", "Fixed position of shutter/awning" or "Fixed position of venting louver" to "as specified by parameter". Thereafter, set the parameter "Position of blind (0…100%)", "Position of shutter/awning (0…100%)" or "Position of venting louver (0…100%)" to the desired position.

At the beginning of shading, the output invariably approaches the parameterized position value.



"Fixed position" only: set the parameter "Fixed position of blind", "Fixed position of shutter/awning" or "Fixed position of venting louver" to "no change of current position".

At the beginning of shading, the last adjusted height of the blind, of the shutter, of the awning or of the venting louver will be maintained.



"Fixed position" and mode of operation = "blind" only. set the parameter "Fixed slat position (0…100%)" to the desired position value.

At the beginning of shading, the output invariably moves the slats to the parameterized position after the height of the blind has been adjusted.



Set the parameter "Reaction at the beginning of sunshine / shading" to "variable position". At the beginning of shading, the shutter actuator recalls the variable position value for the output

concerned. The variable position of the height of the blind, of the shutter, awning or venting louver position is preset via the separate communication object "Sunsh./shading ... position" (in the mode "Blind" for the slats also via the separate object "Sunsh./shading slat position").

In the "Blind" mode of operation, the "variable position" setting can be selected separately for the height

of the blind and for the slat position. For this reason, the ETS adapts the parameter selection and enlarges the setting options in this mode of operation.

The behaviour preset in this parameter will only be executed, if no function with a higher priority (e.g.

safety) is activated at the time of shading.

"Internal scene recall" setting: For this setting, the scene function of the output must be enabled in the

ETS. Otherwise, the positions approached at the beginning of sunshine/shading are undefined positions. The scene position values stored in the actuator by a scene storage function will be approached as well. A delay configured for scene recalls has no influence on the recall of the scene value by the sun protection function.

"Variable position" setting: After an ETS programming operation or after switch-on of the supply voltage,

the objects "Sunsh./shading ... position" and "Sunsh./shading slat position" must receive position values from the bus. Otherwise, the actuator makes no positioning attempts at the beginning of sunshine/shading as it has no valid position data. When the actuator is in operation, the position data can be updated at any time via the bus even if the sun protection is active (e.g. by a weather station for the purpose of sun position tracking). The shutter actuator will then immediately approach the newly received positions if the sun protection is active. If a function with a higher priority is active, the actuator stores the newly received position values and approaches them during a later shading operation. The position data last received are not lost in a bus voltage failure (mains voltage on).

75310002.doc

Seite: 99 / 174

Page 100

Switch/shutter actuator 8/4gang 16A RMD

Part 5

75318003

Technical

Documentation

Switch/shutter actuator 16/8gang 16A RMD 75310002

Presetting a forced reference travel in the sun protection mode

If needed, a reference travel can be executed by forced-control in the sun protection mode at the beginning of a shading cycle, if fixed or variable position values or scene positions are to be approached. The execution of a reference travel by forced control at the beginning of shading can be used in a sun protection positioning operation to ensure that the curtains or slats are moved synchronously by different outputs to identical positions (e.g. in a long row of windows). Without the execution of reference travel by forced control, there might otherwise be positioning inaccuracies with a negative effect on the overall appearance of a building facade with the blinds let down.

A reference travel by forced control will always be executed in the sun protection mode, when the beginning of shading is signalled for the first time via the "Sunshine/shading facade" object. Updates of the object from 'sun is shining' to 'sun is shining' do not initiate a reference travel, if the output is still in the sun protection position at this time.

A reference travel by forced control will always be executed for synchronization purposes as described and also in such cases where the position data of the curtain or the slats are known. No reference travel by forced control will be executed at the end of shading.

For the sun protection parameters to be visible, the sun protection function must be enabled on parameter page "Ax – Enabled functions (x = number of output).

The reaction at the beginning of sunshine/shading must be configured for fixed or variable position preset or for recalling an internal scene.



Set the parameter "Reference travel before every sun protection positioning operation ?" on parameter page "Ax - Beginning of sun protection" (x = number of output) to "yes".

At the beginning of shading there is always a reference travel by forced control as described. The preset position will be approached after the end of the reference travel.



Set the parameter "Reference travel before every sun protection positioning operation ?" on parameter page "Ax - Beginning of sun protection" (x = number of output) to "no".

A reference travel at the beginning of sun protection will only be executed, if the position data are unknown, for instance, after an ETS programming operation or after switch-on of the power supply. In all other cases, the preset shading position will be approached immediately.

A reference travel is the time required for a travel movement into the upper end position increased by 20

% and additionally by the parameterized travel time extension. A reference travel is not retriggerable.

Variable position preset: No reference travel will be executed, if new position values are preset via the

bus while the sun protection is active.

"Blind" mode of operation: A terminated reference travel of for the height of the blind synchronizes at the

same time also the slat position.

75310002.doc

Seite: 100 / 174

Berker 75318003, 75310002 Technical Documentation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
