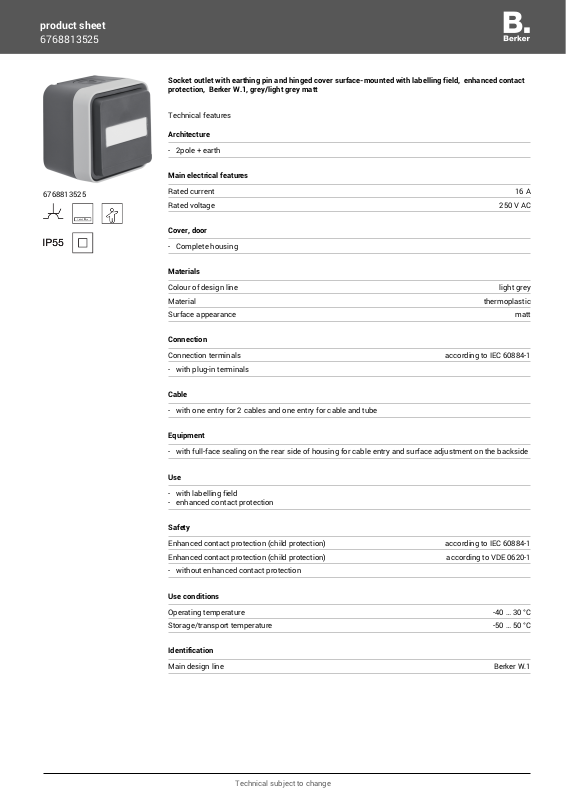

product sheet
6768813525
Socket outlet with earthing pin and hinged cover surface-mounted with labelling field, enhanced contact
protection, Berker W.1, grey/light grey matt
Technical features
Architecture
- 2pole + earth
Main electrical features
6768813525
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- Complete housing
Materials
Colour of design line light grey
Material thermoplastic
Surface appearance matt
Connection
Connection terminals according to IEC 60884-1
- with plug-in terminals
Cable
- with one entry for 2 cables and one entry for cable and tube
Equipment
- with full-face sealing on the rear side of housing for cable entry and surface adjustment on the backside
Use
- with labelling field
- enhanced contact protection
Safety
Enhanced contact protection (child protection) according to IEC 60884-1
Enhanced contact protection (child protection) according to VDE 0620-1
- without enhanced contact protection
Use conditions
Operating temperature -40 … 30 °C
Storage/transport temperature -50 … 50 °C
Identification
Main design line Berker W.1
Powered by TCPDF (www.tcpdf.org)
Technical subject to change
