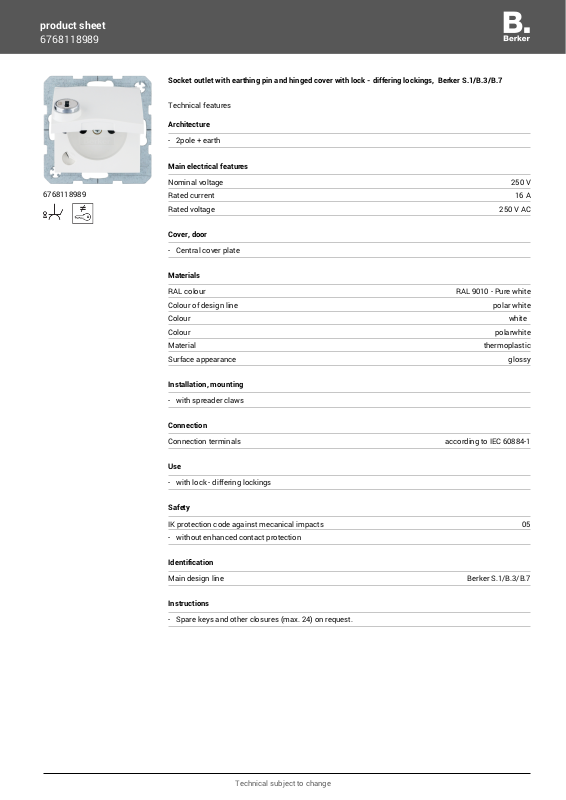

product sheet
6768118989
6768118989
Socket outlet with earthing pin and hinged cover with lock - differing lockings, Berker S.1/B.3/B.7
Technical features
Architecture
- 2pole + earth
Main electrical features
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- Central cover plate
Materials
RAL colour RAL 9010 - Pure white
Colour of design line polar white
Colour white
Colour polarwhite
Material thermoplastic
Surface appearance glossy
Installation, mounting
- with spreader claws
Connection
Connection terminals according to IEC 60884-1
Use
- with lock - differing lockings
Safety
IK protection code against mecanical impacts 05
- without enhanced contact protection
Identification
Main design line Berker S.1/B.3/B.7
Instructions
- Spare keys and other closures (max. 24) on request.
Powered by TCPDF (www.tcpdf.org)
Technical subject to change
