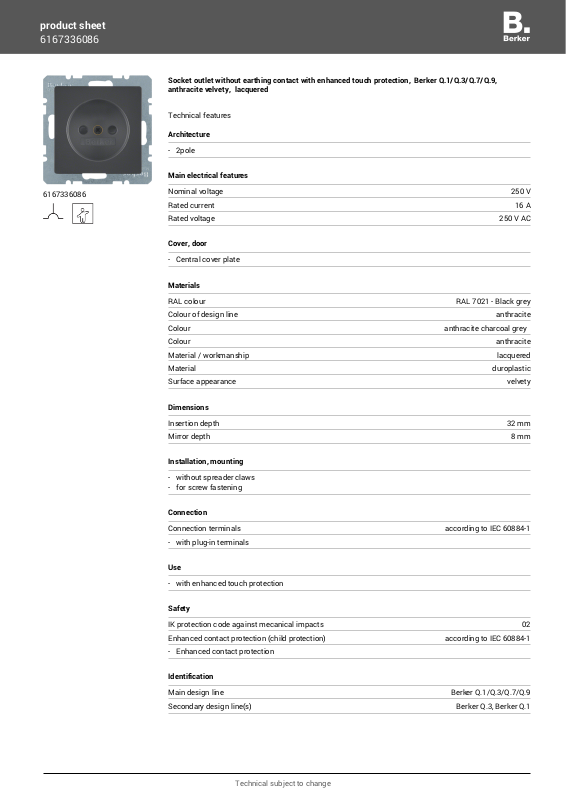

product sheet
6167336086
Socket outlet without earthing contact with enhanced touch protection, Berker Q.1/Q.3/Q.7/Q.9,
anthracite velvety, lacquered
Technical features
Architecture
- 2pole
Main electrical features
6167336086
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- Central cover plate
Materials
RAL colour RAL 7021 - Black grey
Colour of design line anthracite
Colour anthracite charcoal grey
Colour anthracite
Material / workmanship lacquered
Material duroplastic
Surface appearance velvety
Dimensions
Insertion depth 32 mm
Mirror depth 8 mm
Installation, mounting
- without spreader claws
- for screw fastening
Connection
Connection terminals according to IEC 60884-1
- with plug-in terminals
Use
- with enhanced touch protection
Safety
IK protection code against mecanical impacts 02
Enhanced contact protection (child protection) according to IEC 60884-1
- Enhanced contact protection
Identification
Main design line Berker Q.1/Q.3/Q.7/Q.9
Secondary design line(s) Berker Q.3, Berker Q.1
Powered by TCPDF (www.tcpdf.org)
Technical subject to change
