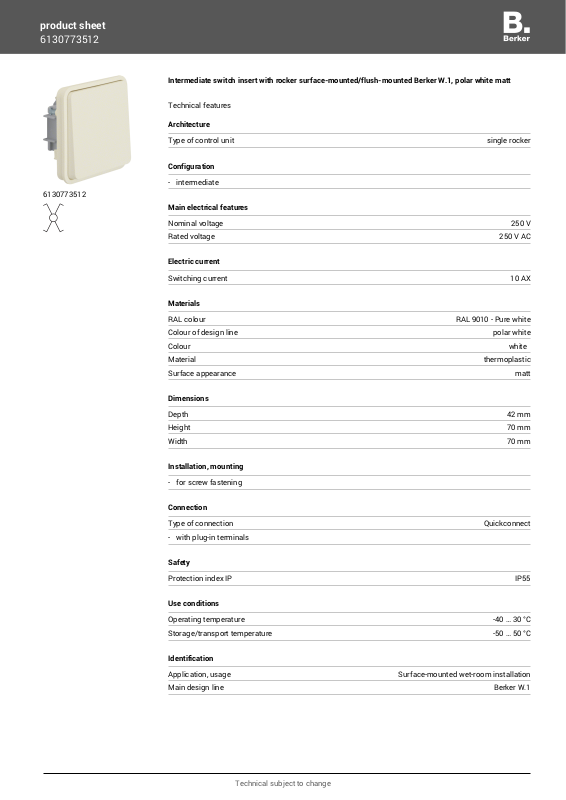

Page 1
product sheet
6130773512
6130773512
Intermediate switch insert with rocker surface-mounted/flush-mounted Berker W.1, polar white matt
Technical features
Architecture
Type of control unit single rocker
Configuration
- intermediate
Main electrical features
Nominal voltage 250 V
Rated voltage 250 V AC
Electric current
Switching current 10 AX
Materials
RAL colour RAL 9010 - Pure white
Colour of design line polar white
Colour white
Material thermoplastic
Surface appearance matt
Dimensions
Depth 42 mm
Height 70 mm
Width 70 mm
Installation, mounting
- for screw fastening
Connection
Type of connection Quickconnect
- with plug-in terminals
Safety
Protection index IP IP55
Use conditions
Operating temperature -40 … 30 °C
Storage/transport temperature -50 … 50 °C
Identification
Application, usage Surface-mounted wet-room installation
Main design line Berker W.1
Technical subject to change
Page 2
product sheet
6130773512
Instructions
- Pins of quick-release lock made of ZAMAK
- Inserts will only reach the degree of protection IP55 if mounted with a housing surface mounted or
frame for flush-mounted installation.
