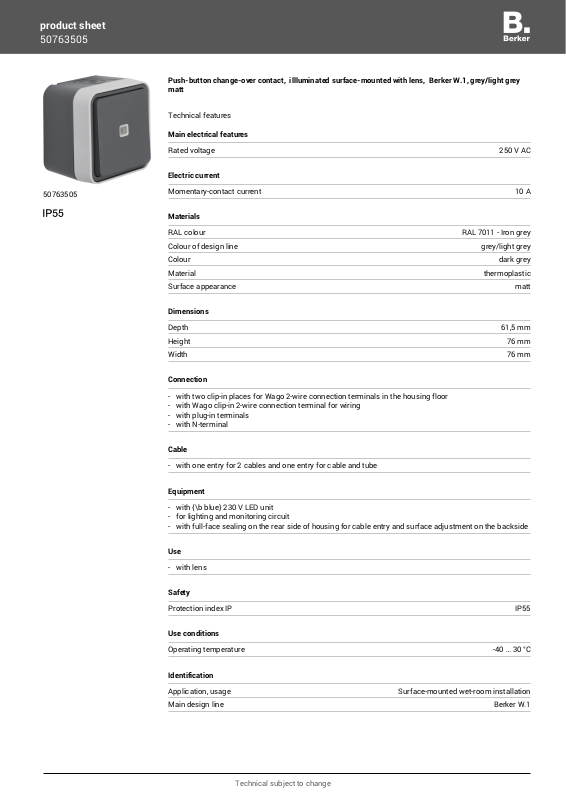

product sheet
50763505
Push-button change-over contact, illluminated surface-mounted with lens, Berker W.1, grey/light grey
matt
Technical features
Main electrical features
Rated voltage 250 V AC
Electric current
50763505
Momentary-contact current 10 A
Materials
RAL colour RAL 7011 - Iron grey
Colour of design line grey/light grey
Colour dark grey
Material thermoplastic
Surface appearance matt
Dimensions
Depth 61,5 mm
Height 76 mm
Width 76 mm
Connection
- with two clip-in places for Wago 2-wire connection terminals in the housing floor
- with Wago clip-in 2-wire connection terminal for wiring
- with plug-in terminals
- with N-terminal
Cable
- with one entry for 2 cables and one entry for cable and tube
Equipment
- with {\b blue} 230 V LED unit
- for lighting and monitoring circuit
- with full-face sealing on the rear side of housing for cable entry and surface adjustment on the backside
Use
- with lens
Safety
Protection index IP IP55
Use conditions
Operating temperature -40 … 30 °C
Identification
Application, usage Surface-mounted wet-room installation
Main design line Berker W.1
Technical subject to change
Page 2
product sheet
50763505
Instructions
- Pins of quick-release lock made of ZAMAK
