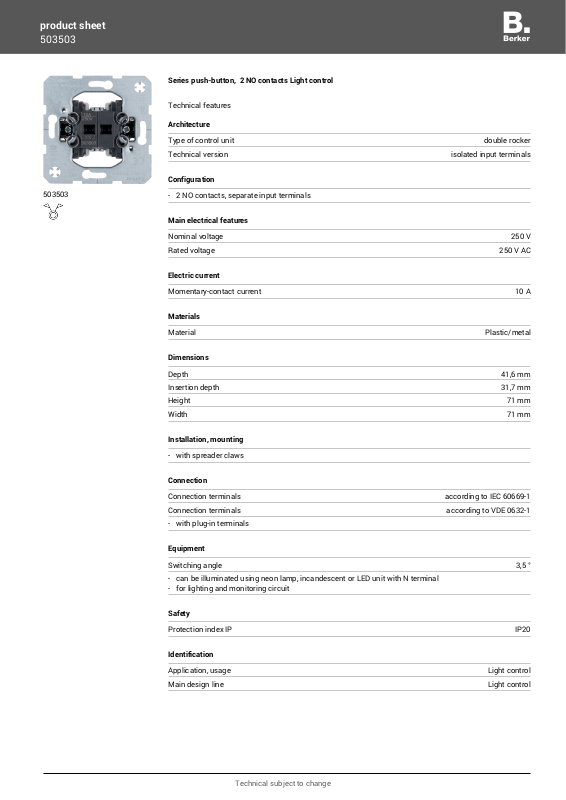

product sheet
503503
503503
Series push-button, 2 NO contacts Light control
Technical features
Architecture
Type of control unit double rocker
Technical version isolated input terminals
Configuration
- 2 NO contacts, separate input terminals
Main electrical features
Nominal voltage 250 V
Rated voltage 250 V AC
Electric current
Momentary-contact current 10 A
Materials
Material Plastic/metal
Dimensions
Depth 41,6 mm
Insertion depth 31,7 mm
Height 71 mm
Width 71 mm
Installation, mounting
- with spreader claws
Connection
Connection terminals according to IEC 60669-1
Connection terminals according to VDE 0632-1
- with plug-in terminals
Equipment
Switching angle 3,5 °
- can be illuminated using neon lamp, incandescent or LED unit with N terminal
- for lighting and monitoring circuit
Powered by TCPDF (www.tcpdf.org)
Safety
Protection index IP IP20
Identification
Application, usage Light control
Main design line Light control
Technical subject to change
