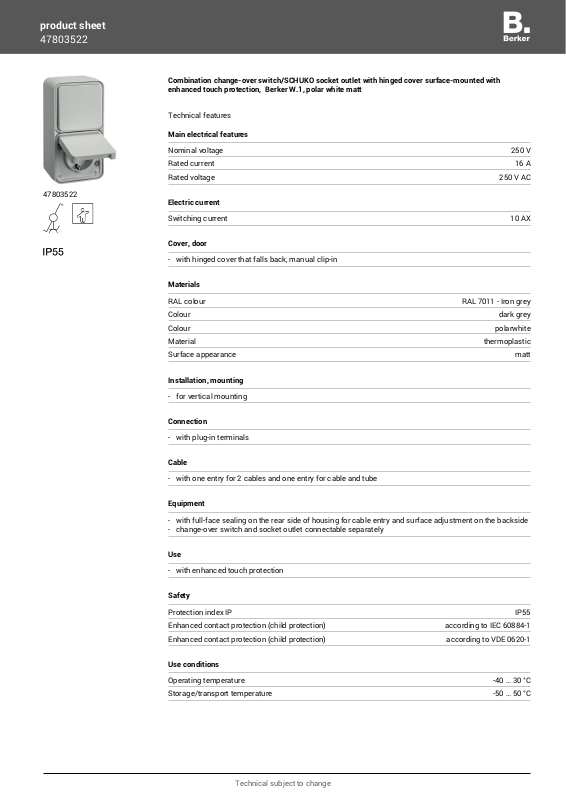

Page 1
product sheet
47803522
Combination change-over switch/SCHUKO socket outlet with hinged cover surface-mounted with
enhanced touch protection, Berker W.1, polar white matt
Technical features
Main electrical features
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
47803522
Electric current
Switching current 10 AX
Cover, door
- with hinged cover that falls back, manual clip-in
Materials
RAL colour RAL 7011 - Iron grey
Colour dark grey
Colour polarwhite
Material thermoplastic
Surface appearance matt
Installation, mounting
- for vertical mounting
Connection
- with plug-in terminals
Cable
- with one entry for 2 cables and one entry for cable and tube
Equipment
- with full-face sealing on the rear side of housing for cable entry and surface adjustment on the backside
- change-over switch and socket outlet connectable separately
Use
- with enhanced touch protection
Safety
Protection index IP IP55
Enhanced contact protection (child protection) according to IEC 60884-1
Enhanced contact protection (child protection) according to VDE 0620-1
Use conditions
Operating temperature -40 … 30 °C
Storage/transport temperature -50 … 50 °C
Technical subject to change
Page 2
product sheet
47803522
Identification
Application, usage Surface-mounted wet-room installation
Main design line Berker W.1
Instructions
- Hinged cover springs made of stainless steel, pins of quick-release lock made of ZAMAK
