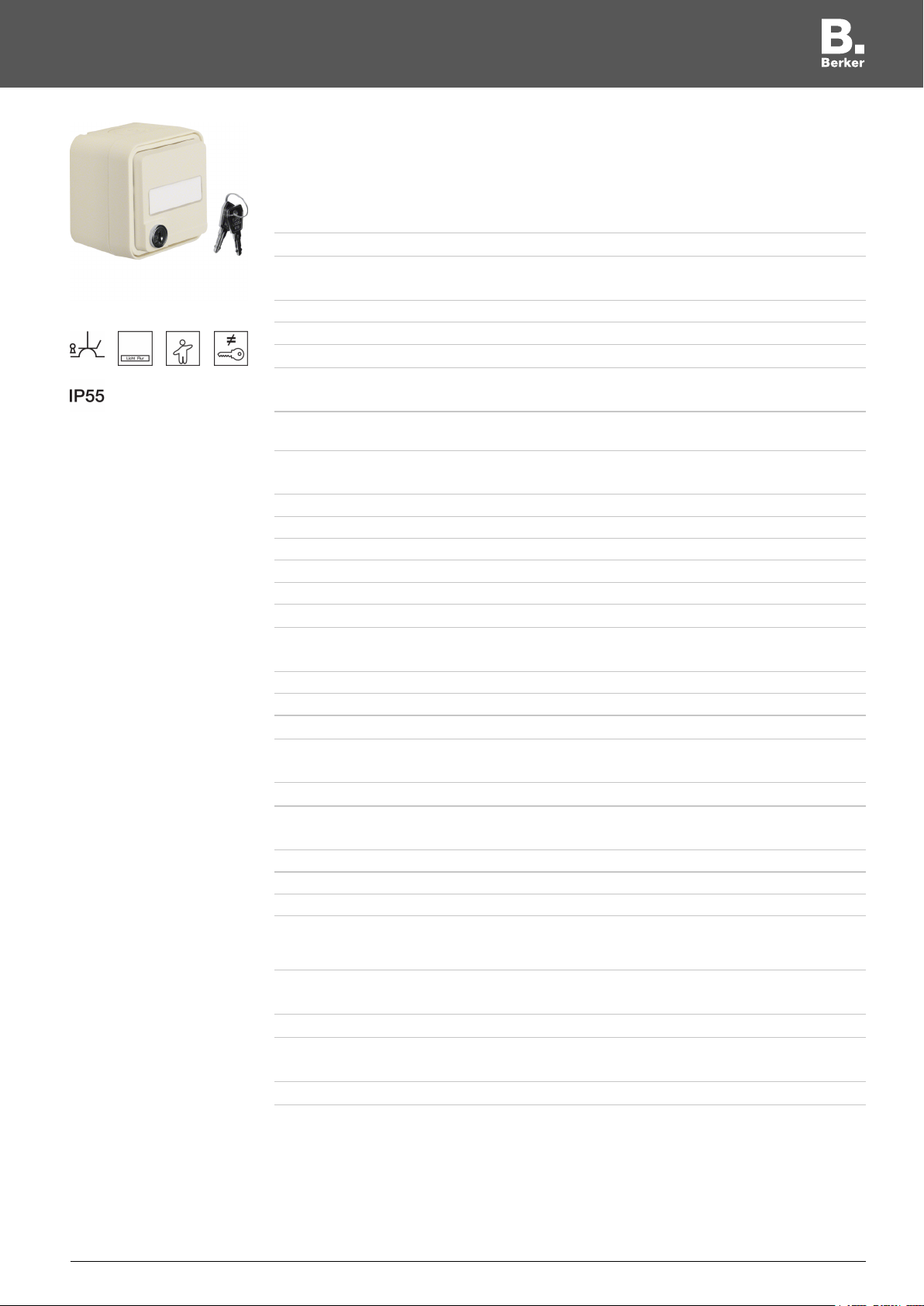

product sheet
47693502
SCHUKO socket outlet with hinged cover surface-mounted with labelling field, with enhanced touch
protection, enhanced contact protection, Berker W.1, polar white matt
Technical features
Architecture
Design according to DIN 49440
Main electrical features
47693502
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- with hinged cover that falls back, manual clip-in
- Complete housing
Materials
RAL colour RAL 9010 - Pure white
Colour of design line polar white
Colour white
Colour polarwhite
Material thermoplastic
Surface appearance matt
Dimensions
Height 76 mm
Width 76 mm
Labelling field (W x H) 50 x 16 mm
Installation, mounting
- for screw fastening
Connection
Conductor cross-section 1 … 2,5 mm²
Connection terminals according to IEC 60884-1
Connection terminals according to VDE 0620-1
- with two clip-in places for Wago 2-wire connection terminals in the housing floor
- with Wago clip-in 2-wire connection terminal for wiring
- with plug-in terminals
Cable
- with one entry for 2 cables and one entry for cable and tube
Equipment
- with full-face sealing on the rear side of housing for cable entry and surface adjustment on the backside
Technical subject to change
product sheet
47693502
Use
- with labelling field
- with enhanced touch protection
- enhanced contact protection
Safety
Protection index IP IP55
- Enhanced contact protection
- with 2 keys
Use conditions
Operating temperature -40 … 30 °C
Storage/transport temperature -50 … 50 °C
Identification
Application, usage Surface-mounted wet-room installation
Main design line Berker W.1
Instructions
- Labelling field height arranged for P-touch strips 12 mm.
- Spare keys and other closures (max. 24) on request.
- Hinged cover springs made of stainless steel, pins of quick-release lock made of ZAMAK
