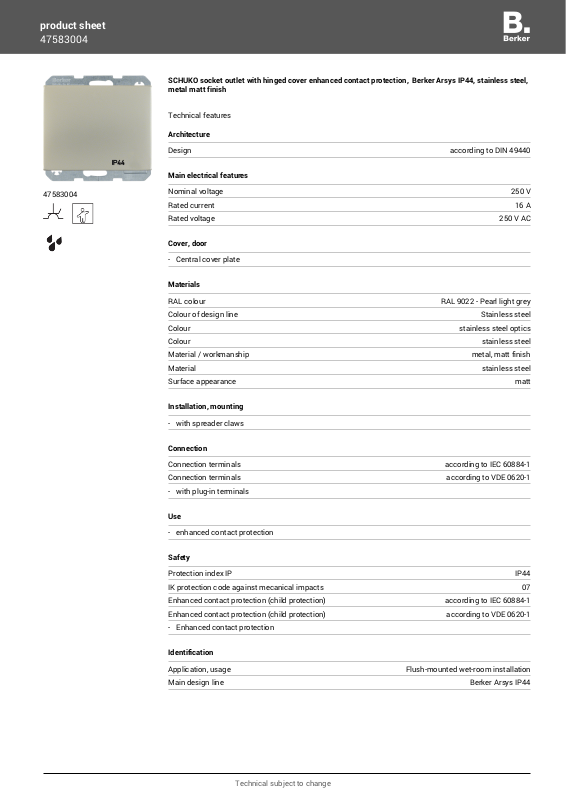

product sheet
47583004
SCHUKO socket outlet with hinged cover enhanced contact protection, Berker Arsys IP44, stainless steel,
metal matt finish
Technical features
Architecture
Design according to DIN 49440
Main electrical features
47583004
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- Central cover plate
Materials
RAL colour RAL 9022 - Pearl light grey
Colour of design line Stainless steel
Colour stainless steel optics
Colour stainless steel
Material / workmanship metal, matt finish
Material stainless steel
Surface appearance matt
Installation, mounting
- with spreader claws
Connection
Connection terminals according to IEC 60884-1
Connection terminals according to VDE 0620-1
- with plug-in terminals
Powered by TCPDF (www.tcpdf.org)
Use
- enhanced contact protection
Safety
Protection index IP IP44
IK protection code against mecanical impacts 07
Enhanced contact protection (child protection) according to IEC 60884-1
Enhanced contact protection (child protection) according to VDE 0620-1
- Enhanced contact protection
Identification
Application, usage Flush-mounted wet-room installation
Main design line Berker Arsys IP44
Technical subject to change
