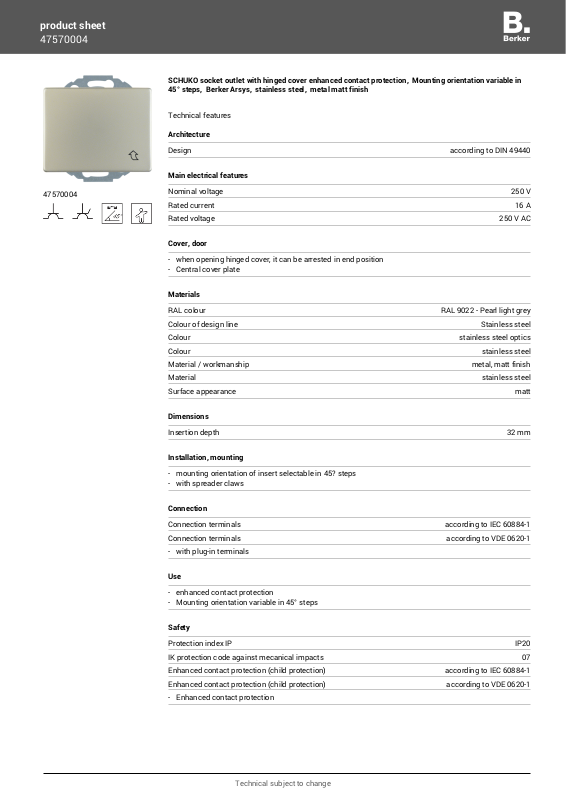

Page 1
product sheet
47570004
SCHUKO socket outlet with hinged cover enhanced contact protection, Mounting orientation variable in
45° steps, Berker Arsys, stainless steel, metal matt finish
Technical features
Architecture
Design according to DIN 49440
Main electrical features
47570004
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- when opening hinged cover, it can be arrested in end position
- Central cover plate
Materials
RAL colour RAL 9022 - Pearl light grey
Colour of design line Stainless steel
Colour stainless steel optics
Colour stainless steel
Material / workmanship metal, matt finish
Material stainless steel
Surface appearance matt
Dimensions
Insertion depth 32 mm
Installation, mounting
- mounting orientation of insert selectable in 45? steps
- with spreader claws
Connection
Connection terminals according to IEC 60884-1
Connection terminals according to VDE 0620-1
- with plug-in terminals
Use
- enhanced contact protection
- Mounting orientation variable in 45° steps
Safety
Protection index IP IP20
IK protection code against mecanical impacts 07
Enhanced contact protection (child protection) according to IEC 60884-1
Enhanced contact protection (child protection) according to VDE 0620-1
- Enhanced contact protection
Technical subject to change
Page 2
product sheet
47570004
Identification
Main design line Berker Arsys
Instructions
- Specially suited for combining several socket outlets if right angle plugs are used.
Powered by TCPDF (www.tcpdf.org)
Technical subject to change
