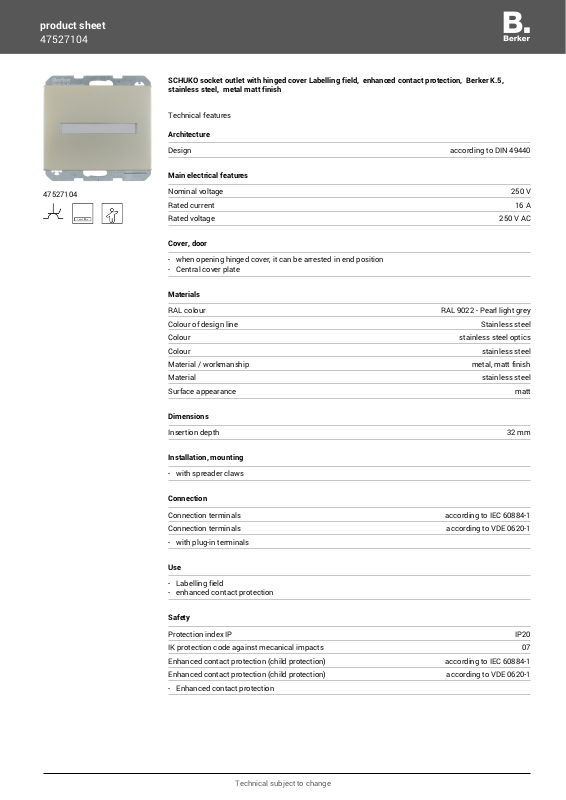

Page 1
product sheet
47527104
SCHUKO socket outlet with hinged cover Labelling field, enhanced contact protection, Berker K.5,
stainless steel, metal matt finish
Technical features
Architecture
Design according to DIN 49440
Main electrical features
47527104
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- when opening hinged cover, it can be arrested in end position
- Central cover plate
Materials
RAL colour RAL 9022 - Pearl light grey
Colour of design line Stainless steel
Colour stainless steel optics
Colour stainless steel
Material / workmanship metal, matt finish
Material stainless steel
Surface appearance matt
Dimensions
Insertion depth 32 mm
Installation, mounting
- with spreader claws
Connection
Connection terminals according to IEC 60884-1
Connection terminals according to VDE 0620-1
- with plug-in terminals
Use
- Labelling field
- enhanced contact protection
Safety
Protection index IP IP20
IK protection code against mecanical impacts 07
Enhanced contact protection (child protection) according to IEC 60884-1
Enhanced contact protection (child protection) according to VDE 0620-1
- Enhanced contact protection
Technical subject to change
Page 2
product sheet
47527104
Identification
Main design line Berker K.5
Secondary design line(s) Berker K.5
Instructions
- Labelling field height arranged for 6 mm P-touch strips.
Specially suited to combinations of several socket outlets if right angle plugs are used.
Powered by TCPDF (www.tcpdf.org)
Technical subject to change
