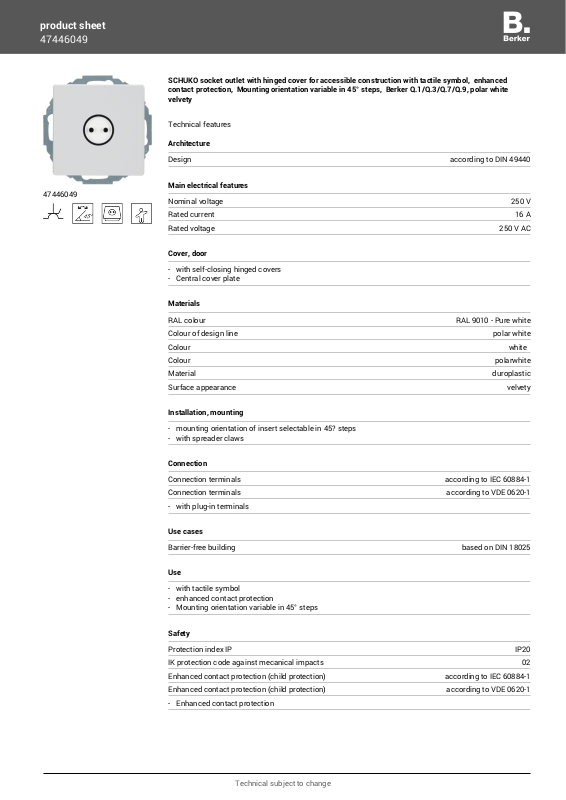

product sheet
47446049
SCHUKO socket outlet with hinged cover for accessible construction with tactile symbol, enhanced
contact protection, Mounting orientation variable in 45° steps, Berker Q.1/Q.3/Q.7/Q.9, polar white
velvety
Technical features
Architecture
Design according to DIN 49440
47446049
Main electrical features
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- with self-closing hinged covers
- Central cover plate
Materials
RAL colour RAL 9010 - Pure white
Colour of design line polar white
Colour white
Colour polarwhite
Material duroplastic
Surface appearance velvety
Installation, mounting
- mounting orientation of insert selectable in 45? steps
- with spreader claws
Connection
Connection terminals according to IEC 60884-1
Connection terminals according to VDE 0620-1
- with plug-in terminals
Use cases
Barrier-free building based on DIN 18025
Use
- with tactile symbol
- enhanced contact protection
- Mounting orientation variable in 45° steps
Safety
Protection index IP IP20
IK protection code against mecanical impacts 02
Enhanced contact protection (child protection) according to IEC 60884-1
Enhanced contact protection (child protection) according to VDE 0620-1
- Enhanced contact protection
Technical subject to change
product sheet
47446049
Identification
Main design line Berker Q.1/Q.3/Q.7/Q.9
Instructions
- Specially suited for combining several socket outlets if right angle plugs are used.
