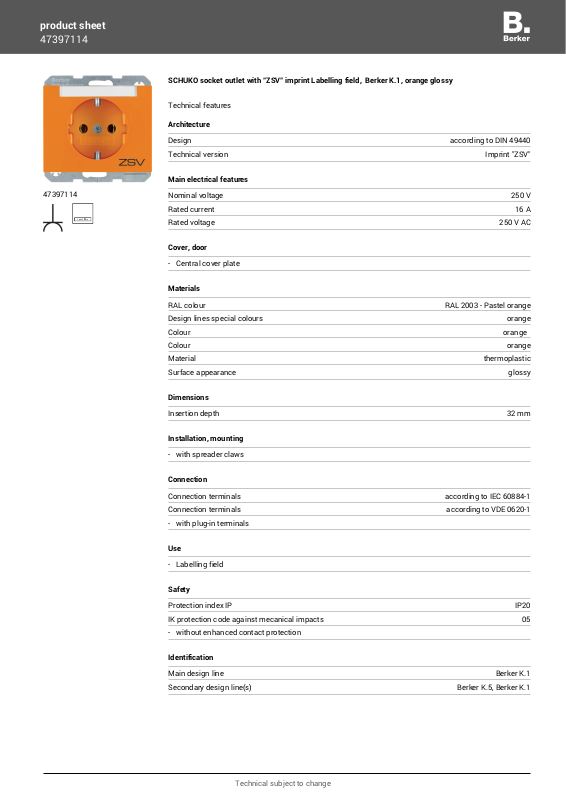

product sheet
47397114
47397114
SCHUKO socket outlet with "ZSV" imprint Labelling field, Berker K.1, orange glossy
Technical features
Architecture
Design according to DIN 49440
Technical version Imprint "ZSV"
Main electrical features
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- Central cover plate
Materials
RAL colour RAL 2003 - Pastel orange
Design lines special colours orange
Colour orange
Colour orange
Material thermoplastic
Surface appearance glossy
Dimensions
Insertion depth 32 mm
Installation, mounting
- with spreader claws
Connection
Connection terminals according to IEC 60884-1
Connection terminals according to VDE 0620-1
- with plug-in terminals
Use
- Labelling field
Safety
Protection index IP IP20
IK protection code against mecanical impacts 05
- without enhanced contact protection
Identification
Main design line Berker K.1
Secondary design line(s) Berker K.5, Berker K.1
Technical subject to change
product sheet
47397114
Instructions
- Insert colour-coded.
- Labelling field height arranged for P-touch strips 6 mm.
