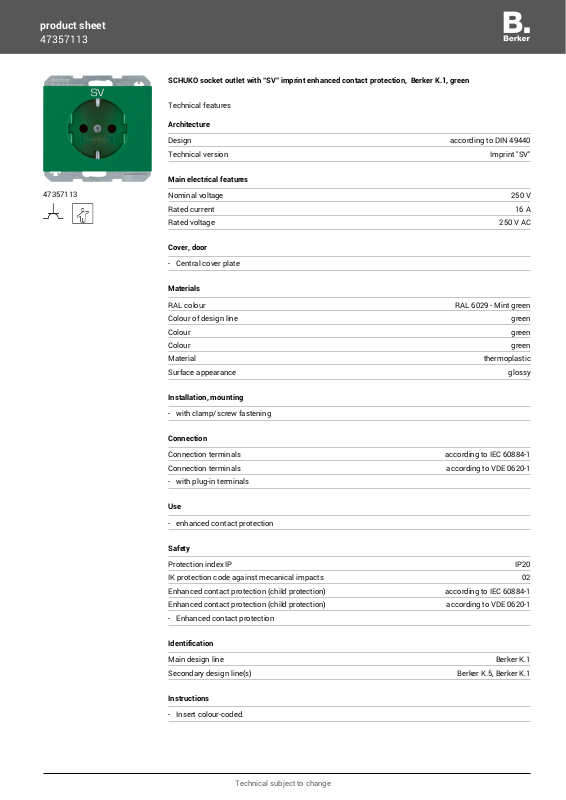

product sheet
47357113
47357113
SCHUKO socket outlet with "SV" imprint enhanced contact protection, Berker K.1, green
Technical features
Architecture
Design according to DIN 49440
Technical version Imprint "SV"
Main electrical features
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- Central cover plate
Materials
RAL colour RAL 6029 - Mint green
Colour of design line green
Colour green
Colour green
Material thermoplastic
Surface appearance glossy
Installation, mounting
- with clamp/screw fastening
Connection
Connection terminals according to IEC 60884-1
Connection terminals according to VDE 0620-1
- with plug-in terminals
Use
- enhanced contact protection
Safety
Protection index IP IP20
IK protection code against mecanical impacts 02
Enhanced contact protection (child protection) according to IEC 60884-1
Enhanced contact protection (child protection) according to VDE 0620-1
- Enhanced contact protection
Powered by TCPDF (www.tcpdf.org)
Identification
Main design line Berker K.1
Secondary design line(s) Berker K.5, Berker K.1
Instructions
- Insert colour-coded.
Technical subject to change
