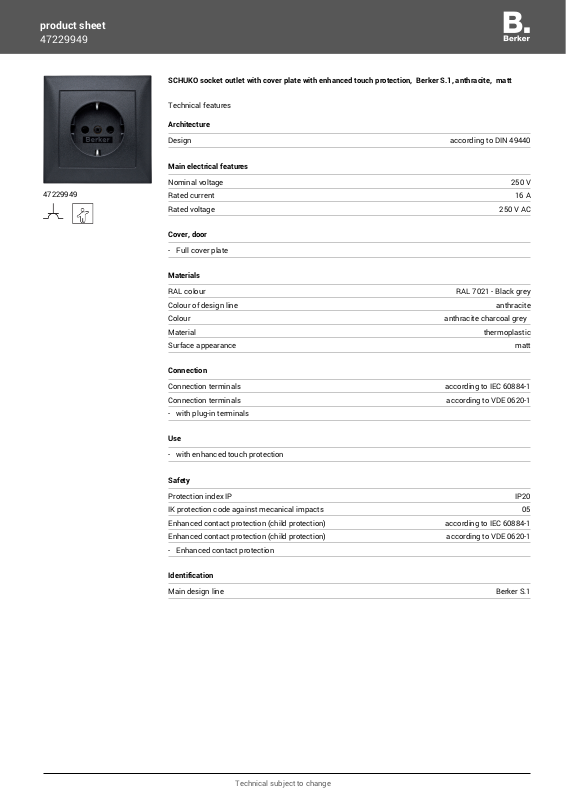

product sheet
47229949
47229949
SCHUKO socket outlet with cover plate with enhanced touch protection, Berker S.1, anthracite, matt
Technical features
Architecture
Design according to DIN 49440
Main electrical features
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- Full cover plate
Materials
RAL colour RAL 7021 - Black grey
Colour of design line anthracite
Colour anthracite charcoal grey
Material thermoplastic
Surface appearance matt
Connection
Connection terminals according to IEC 60884-1
Connection terminals according to VDE 0620-1
- with plug-in terminals
Use
- with enhanced touch protection
Safety
Protection index IP IP20
IK protection code against mecanical impacts 05
Enhanced contact protection (child protection) according to IEC 60884-1
Enhanced contact protection (child protection) according to VDE 0620-1
- Enhanced contact protection
Identification
Main design line Berker S.1
Powered by TCPDF (www.tcpdf.org)
Technical subject to change
