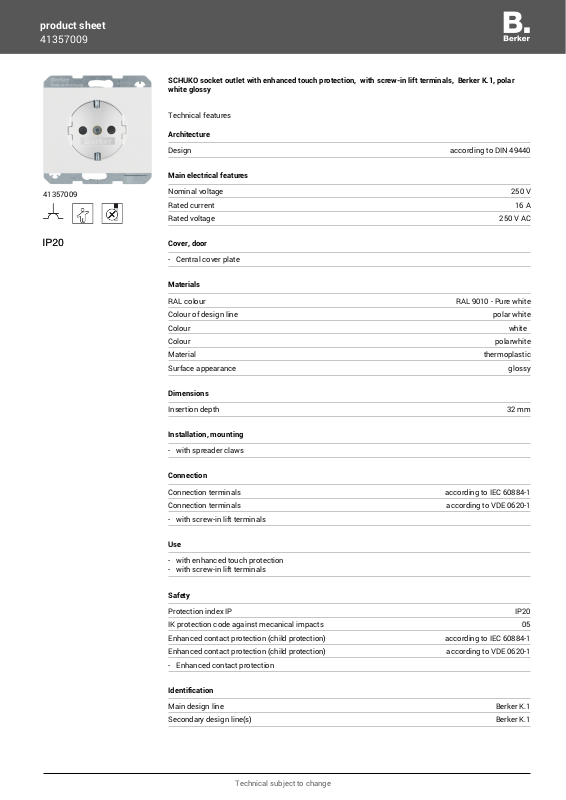

product sheet
41357009
SCHUKO socket outlet with enhanced touch protection, with screw-in lift terminals, Berker K.1, polar
white glossy
Technical features
Architecture
Design according to DIN 49440
Main electrical features
41357009
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- Central cover plate
Materials
RAL colour RAL 9010 - Pure white
Colour of design line polar white
Colour white
Colour polarwhite
Material thermoplastic
Surface appearance glossy
Dimensions
Insertion depth 32 mm
Installation, mounting
- with spreader claws
Connection
Connection terminals according to IEC 60884-1
Connection terminals according to VDE 0620-1
- with screw-in lift terminals
Use
- with enhanced touch protection
- with screw-in lift terminals
Safety
Protection index IP IP20
IK protection code against mecanical impacts 05
Enhanced contact protection (child protection) according to IEC 60884-1
Enhanced contact protection (child protection) according to VDE 0620-1
- Enhanced contact protection
Identification
Main design line Berker K.1
Secondary design line(s) Berker K.1
Powered by TCPDF (www.tcpdf.org)
Technical subject to change
