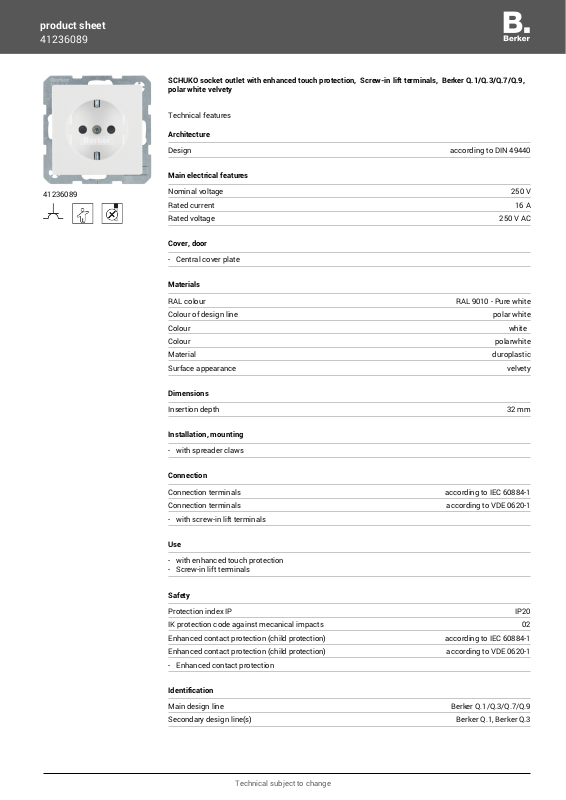

product sheet
41236089
SCHUKO socket outlet with enhanced touch protection, Screw-in lift terminals, Berker Q.1/Q.3/Q.7/Q.9,
polar white velvety
Technical features
Architecture
Design according to DIN 49440
Main electrical features
41236089
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- Central cover plate
Materials
RAL colour RAL 9010 - Pure white
Colour of design line polar white
Colour white
Colour polarwhite
Material duroplastic
Surface appearance velvety
Dimensions
Insertion depth 32 mm
Installation, mounting
- with spreader claws
Connection
Connection terminals according to IEC 60884-1
Connection terminals according to VDE 0620-1
- with screw-in lift terminals
Use
- with enhanced touch protection
- Screw-in lift terminals
Safety
Protection index IP IP20
IK protection code against mecanical impacts 02
Enhanced contact protection (child protection) according to IEC 60884-1
Enhanced contact protection (child protection) according to VDE 0620-1
- Enhanced contact protection
Identification
Main design line Berker Q.1/Q.3/Q.7/Q.9
Secondary design line(s) Berker Q.1, Berker Q.3
