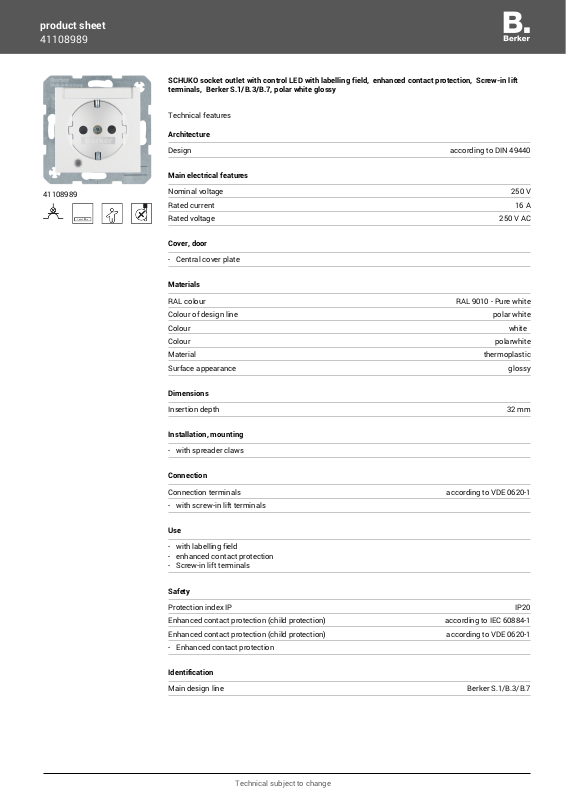

Page 1
product sheet
41108989
SCHUKO socket outlet with control LED with labelling field, enhanced contact protection, Screw-in lift
terminals, Berker S.1/B.3/B.7, polar white glossy
Technical features
Architecture
Design according to DIN 49440
Main electrical features
41108989
Nominal voltage 250 V
Rated current 16 A
Rated voltage 250 V AC
Cover, door
- Central cover plate
Materials
RAL colour RAL 9010 - Pure white
Colour of design line polar white
Colour white
Colour polarwhite
Material thermoplastic
Surface appearance glossy
Dimensions
Insertion depth 32 mm
Installation, mounting
- with spreader claws
Connection
Connection terminals according to VDE 0620-1
- with screw-in lift terminals
Use
- with labelling field
- enhanced contact protection
- Screw-in lift terminals
Safety
Protection index IP IP20
Enhanced contact protection (child protection) according to IEC 60884-1
Enhanced contact protection (child protection) according to VDE 0620-1
- Enhanced contact protection
Identification
Main design line Berker S.1/B.3/B.7
Technical subject to change
Page 2
product sheet
41108989
Instructions
- Labelling field height arranged for P-touch strips 6 mm.
