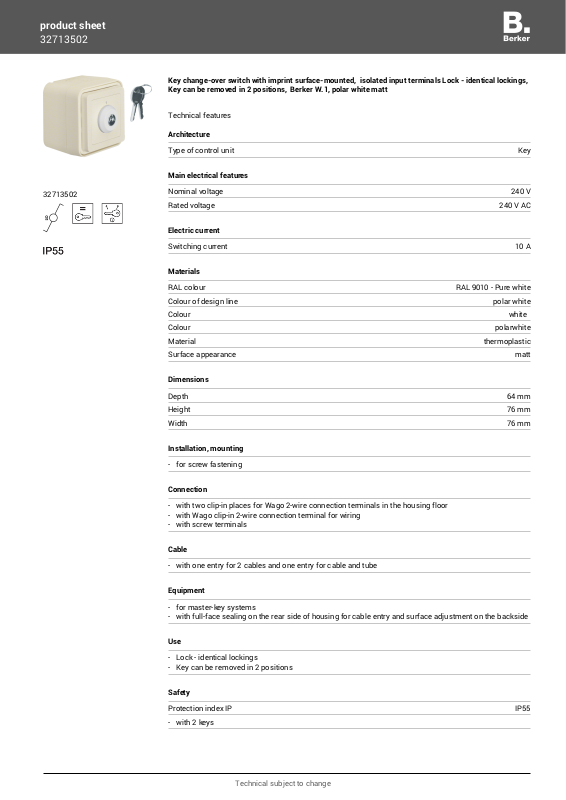

Page 1
product sheet
32713502
Key change-over switch with imprint surface-mounted, isolated input terminals Lock - identical lockings,
Key can be removed in 2 positions, Berker W.1, polar white matt
Technical features
Architecture
Type of control unit Key
Main electrical features
32713502
Nominal voltage 240 V
Rated voltage 240 V AC
Electric current
Switching current 10 A
Materials
RAL colour RAL 9010 - Pure white
Colour of design line polar white
Colour white
Colour polarwhite
Material thermoplastic
Surface appearance matt
Dimensions
Depth 64 mm
Height 76 mm
Width 76 mm
Installation, mounting
- for screw fastening
Connection
- with two clip-in places for Wago 2-wire connection terminals in the housing floor
- with Wago clip-in 2-wire connection terminal for wiring
- with screw terminals
Cable
- with one entry for 2 cables and one entry for cable and tube
Equipment
- for master-key systems
- with full-face sealing on the rear side of housing for cable entry and surface adjustment on the backside
Use
- Lock - identical lockings
- Key can be removed in 2 positions
Safety
Protection index IP IP55
- with 2 keys
Technical subject to change
Page 2
product sheet
32713502
Use conditions
Operating temperature -40 … 30 °C
Storage/transport temperature -50 … 50 °C
Identification
Main design line Berker W.1
Instructions
- Pins of quick-release lock made of ZAMAK
Powered by TCPDF (www.tcpdf.org)
Technical subject to change
