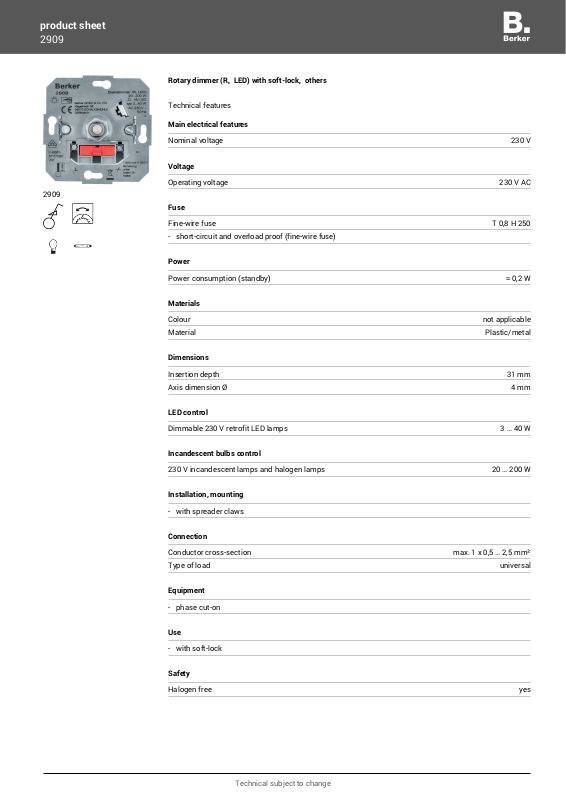

Berker 2909 User Manual

product sheet

2909

2909

Rotary dimmer (R, LED) with soft-lock, others

Technical features

Main electrical features

Nominal voltage 230 V

Voltage

Operating voltage 230 V AC

Fuse

Fine-wire fuse T 0,8 H 250

- short-circuit and overload proof (fine-wire fuse)

Power

Power consumption (standby) ≈ 0,2 W

Materials

Colour not applicable
Material Plastic/metal

Dimensions

Insertion depth 31 mm
Axis dimension Ø 4 mm

LED control

Dimmable 230 V retrofit LED lamps 3 … 40 W

Incandescent bulbs control

230 V incandescent lamps and halogen lamps 20 … 200 W

Installation, mounting

- with spreader claws

Connection

Conductor cross-section max. 1 x 0,5 … 2,5 mm²
Type of load universal

Equipment

- phase cut-on

Use

- with soft-lock

Safety

Halogen free yes

Technical subject to change
