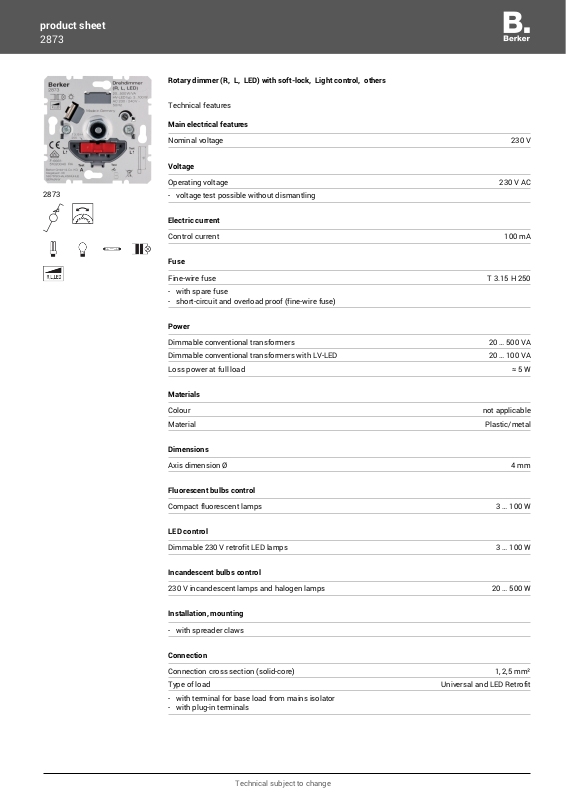

Page 1
product sheet
2873
2873
Rotary dimmer (R, L, LED) with soft-lock, Light control, others
Technical features
Main electrical features
Nominal voltage 230 V
Voltage
Operating voltage 230 V AC
- voltage test possible without dismantling
Electric current
Control current 100 mA
Fuse
Fine-wire fuse T 3.15 H 250
- with spare fuse
- short-circuit and overload proof (fine-wire fuse)
Power
Dimmable conventional transformers 20 … 500 VA
Dimmable conventional transformers with LV-LED 20 … 100 VA
Loss power at full load ≈ 5 W
Materials
Colour not applicable
Material Plastic/metal
Dimensions
Axis dimension Ø 4 mm
Fluorescent bulbs control
Compact fluorescent lamps 3 … 100 W
LED control
Dimmable 230 V retrofit LED lamps 3 … 100 W
Incandescent bulbs control
230 V incandescent lamps and halogen lamps 20 … 500 W
Installation, mounting
- with spreader claws
Connection
Connection cross section (solid-core) 1, 2,5 mm²
Type of load Universal and LED Retrofit
- with terminal for base load from mains isolator
- with plug-in terminals
Technical subject to change
Page 2
product sheet
2873
Settings
- basic brightness programmable
Equipment
- phase cut-on
- with change-over pressure switch
Use
- with soft-lock
Safety
Halogen free yes
temperatur
Ambient temperature 5 … 45 °C
Identification
Application, usage Light control
Main design line Light control
Secondary design line(s) House electronics
Instructions
- Possible to change fuse without removing cover.
Powered by TCPDF (www.tcpdf.org)
Technical subject to change
