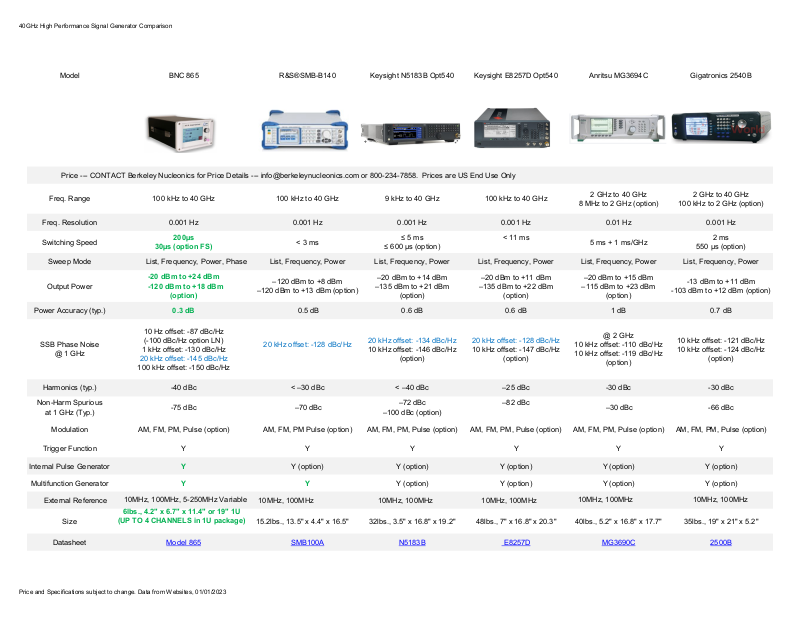

40GHz High Performance Signal Generator Comparison
Model BNC 865 R&S®SMB-B140 Keysight N5183B Opt540 Keysight E8257D Opt540 Anritsu MG3694C Gigatronics 2540B
Price --- CONTACT Berkeley Nucleonics for Price Details --- [email protected] or 800-234-7858. Prices are US End Use Only
Freq. Range 100 kHz to 40 GHz 100 kHz to 40 GHz 9 kHz to 40 GHz 100 kHz to 40 GHz
2 GHz to 40 GHz
8 MHz to 2 GHz (option)
2 GHz to 40 GHz
100 kHz to 2 GHz (option)
Freq. Resolution 0.001 Hz 0.001 Hz 0.001 Hz 0.001 Hz 0.01 Hz 0.001 Hz
Switching Speed
Sweep Mode
Output Power
200µs
30µs (option FS)
< 3 ms
List, Frequency, Power, Phase List, Frequency, Power List, Frequency, Power List, Frequency, Power List, Frequency, Power List, Frequency, Power
-20 dBm to +24 dBm
-120 dBm to +18 dBm
(option)
–120 dBm to +8 dBm
–120 dBm to +13 dBm (option)
≤ 5 ms
≤ 600 µs (option)
–20 dBm to +14 dBm
–135 dBm to +21 dBm
(option)
< 11 ms
–20 dBm to +11 dBm
–135 dBm to +22 dBm
(option)
5 ms + 1 ms/GHz
–20 dBm to +15 dBm
–115 dBm to +23 dBm
(option)
2 ms
550 μs (option)
-13 dBm to +11 dBm
-103 dBm to +12 dBm (option)
Power Accuracy (typ.) 0.3 dB 0.5 dB 0.6 dB 0.6 dB 1 dB 0.7 dB
SSB Phase Noise
@ 1 GHz
10 Hz offset: -87 dBc/Hz
(-100 dBc/Hz option LN)
1 kHz offset: -130 dBc/Hz
20 kHz offset: -145 dBc/Hz
100 kHz offset: -150 dBc/Hz
20 kHz offset: -128 dBc/Hz
20 kHz offset: -134 dBc/Hz
10 kHz offset: -146 dBc/Hz
(option)
20 kHz offset: -128 dBc/Hz
10 kHz offset: -147 dBc/Hz
(option)
@ 2 GHz
10 kHz offset: -110 dBc/Hz
10 kHz offset: -119 dBc/Hz
(option)
10 kHz offset: -121 dBc/Hz
10 kHz offset: -124 dBc/Hz
(option)
Harmonics (typ.) -40 dBc < –30 dBc < –40 dBc –25 dBc -30 dBc -30 dBc
Non-Harm Spurious
at 1 GHz (Typ.)
-75 dBc –70 dBc
–72 dBc
–100 dBc (option)
–82 dBc
–30 dBc -66 dBc
Modulation AM, FM, PM, Pulse (option) AM, FM, PM Pulse (option) AM, FM, PM, Pulse (option) AM, FM, PM, Pulse (option) AM, FM, PM, Pulse (option) AM, FM, PM, Pulse (option)
Trigger Function Y Y Y Y Y Y
Internal Pulse Generator Y Y (option) Y (option) Y (option) Y (option) Y (option)
Multifunction Generator YYY (option) Y (option) Y (option) Y (option)
External Reference
10MHz, 100MHz, 5-250MHz Variable
10MHz, 100MHz 10MHz, 100MHz 10MHz, 100MHz
10MHz, 100MHz 10MHz, 100MHz
6lbs., 4.2" x 6.7" x 11.4" or 19" 1U
Size
(UP TO 4 CHANNELS in 1U package)
15.2lbs., 13.5" x 4.4" x 16.5" 32lbs., 3.5" x 16.8" x 19.2" 48lbs., 7" x 16.8" x 20.3" 40lbs., 5.2" x 16.8" x 17.7" 35lbs., 19" x 21" x 5.2"
Datasheet Model 865
Price and Specifications subject to change. Data from Websites, 01/01/2023
SMB100A N5183B E8257D MG3690C 2500B
