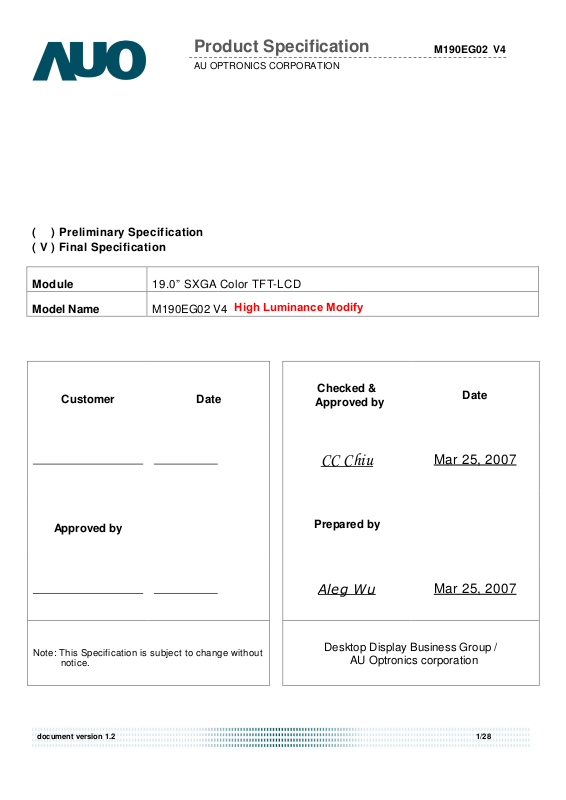

Product Specification
AU OPTRONICS CORPORATION
M190EG02 V4
( V ) Preliminary Specification
( V ) Final Specification
Module
Model Name
19.0” SXGA Color TFT-LCD
M190EG02 V4
Customer Date
High Luminance Modify
Checked &
Approved by
CC Chiu
Date
Mar 25, 2007
Approved by
Note: This Specification is subject to change without
notice.
document version 1.2 1/28
Prepared by
Aleg Wu
Mar 25, 2007
Desktop Display Business Group /
AU Optronics corporation
Page 2
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V4
Contents
1. Handling Precautions.............................................................................................................. 4
2. General Description ................................................................................................................ 5
2.1 Display Characteristics .......................................................................................................................6
3. Functional Block Diagram .................................................................................................... 11
4. Absolute Maximum Ratings.................................................................................................. 12
4.1 Absolute Ratings of TFT LCD Module............................................................................................. 12
4.2 Absolute Ratings of Backlight Unit .................................................................................................. 12
4.3 Absolute Ratings of Environment..................................................................................................... 12
5. Electrical characteristics ...................................................................................................... 14
5.1 TFT LCD Module ............................................................................................................................. 14
5.2 Backlight Unit................................................................................................................................... 15
6. Signal Characteristic............................................................................................................. 16
6.1 Pixel Format Image........................................................................................................................... 16
6.2 The Input Data Format ...................................................................................................................... 17
6.4 Interface Timing................................................................................................................................ 19
6.5 Power ON/OFF Sequence................................................................................................................. 21
7. Connector & Pin Assignment ............................................................................................... 22
7.1 TFT LCD Module ............................................................................................................................. 22
7.2 Backlight Unit................................................................................................................................... 23
8. Reliability Test ....................................................................................................................... 24
9. Shipping Label....................................................................................................................... 25
10. Mechanical Characteristic .................................................................................................. 26
document version 1.2 2/28
Page 3
Product Specification
Color / Chromaticity
Chromaticity Coordinate
AU OPTRONICS CORPORATION
M190EG02 V4
Record of Revision
Version & Date Page
0.1 2006/6/23
0.2 2006/9/7 7
21
0.3 2006/12/27
14
23
All First Edition for Customer
6 Weight 2400 (Typ) 2500(Max) 2000(Typ) Modified
Coordinate
Power Sequence Timing
T2, T3 = 200ms (min)
CCFL VCFL
Min:--,
Typ:653(@7.5mA),
Max:796(@3mA)
Lamp connector:
JST/BHSR-02VS-1/SM02B-1-TB
Old Description New Description Remark
Color/
update
Power Sequence Timing
T2,T3 = 300ms (min)
CCFL VCFL
Min:544(@7.5mA)
Typ:653(@7.5mA),
Max:783(@7.5mA)
Lamp connector:
CVILUX/CP0502SL090/
CP05T021PE0
Updated
Modified
Modified
Revised
26-28 10 Mechanical Characteristic Update new 2D drawing. Updated
1.0 2007/01/16 All Final Edition for Customer
Rsvised
1.1 2007/03/9 23
1.2 2007/04/25
7
23
Lamp connector:
Mating Type Part Number
CP05T021PE0
Contrast Ration:
Min: 500
Lamp connector:
Manufacturer : CVILUX
Type Part Number: CP0502SL090
Mating Type Part Number
CP0502P1ML0
Lamp connector:
Mating Type Part Number
CP0502P1ML0
Contrast Ration:
Min: 480
Lam p connector:
Manufacturer : CVILUX or YEONHO
Type Part Number: CP0502SL090/
35001 HS-02L
Mating Type Part Number
CP0502P1ML0/ 35001 WR-02L
Corrected
Revised
Revised
document version 1.2 3/28
Page 4
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V4
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the light emitting diode Lamp (LED)
reflector edge. Instead, press at the far ends of the LED reflector edge softly. Otherwise the TFT
Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) light emitting diode Lamp (LED) in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
14) The LCD module is designed so that the LED in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the LED in Hazardous Voltage Circuit.
document version 1.2 4/28
Page 5
Product Specification
M190EG02 V4
AU OPTRONICS CORPORATION
2. General Description
M190EG02 V4 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver
circuit, and a backlight system. The screen format is intended to support the SXGA (1280(H) x 1024(V))
screen and 16.7M colors (RGB 6-bits + HiFRC data). All input signals are LVDS interface compatible.
Inverter card of backlight is included. M190EG02 V4 is designed for a display unit of personal
computer.
document version 1.2 5/28
Page 6
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V4
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 ℃ condition:
Items Unit Specifications
Screen Diagonal [mm]
Active Area [mm]
Pixels H x V
Pixel Pitch [mm]
Pixel Arrangement
Display Mode
White Luminance [cd/m
2
Contrast Ratio
Optical ResponseTime [msec]
Nominal Input Voltage VDD [Volt]
Power Consumption [Watt]
Weight [Grams]
Physical Size (H x V x D) [mm]
Electrical Interface
482.6 (19.0" )
376.32 (H) x 301.06 (V)
1280(x3) x 1024
0.294 (per one triad) x 0.294
R.G.B. Vertical Stripe
Normally White
] 1000 (center, Typ)
800 : 1 (Typ)
5 ms(Typ, on/off)
+5.0 V
21.6W (Typ)
(PDD=5.11W, PLED=16.5 W @Lamp=250mA)
2000 (Typ)
396 (H) x 324 (V) x 16.3 (D) (Typ)
Dual channel LVDS
Surface Treatment Hard-coating (3H), Non-Glare treatment
Support Color
Temperature Range
Operating
Storage (Non-Operating)
RoHS Compliance
[oC]
[oC]
16.7M colors (RGB 6-bit data + HiFRC data)
0 to +50
-20 to +60
RoHS Compliance
document version 1.2 6/28
Page 7
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V4
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃ (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Viewing Angle [degree]
Vertical (Up)
CR = 5 (Down)
Vertical (Up)
CR = 5 (Down)
70
70
70
70
75
75
75
75
80
80
80
80
85
85
85
85
-
-
1
-
-
Luminance Uniformity [%] 9 Points 75 80 - 2, 3
Rising - 3.6 5.7
Optical Response Time [msec]
Falling - 1.4 2.3
4, 6
Rising + Falling - 5 8
Red x 0.617 0.647 0.677
Red y 0.310 0.340 0.370
Green x 0.258 0.288 0.318
Color / Chromaticity
Coordinates
(CIE 1931)
Green y 0.575 0.605 0.635
4
Blue x 0.115 0.145 0.175
Blue y 0.041 0.071 0.101
White x 0.283 0.313 0.343
White Luminance
(At LED= 250mA)
[cd/m
White y 0.299
2
60 1000 - 4
]
0.329 0.359
Contrast Ratio 480 800 - 4
Cross Talk (At 75Hz) [%] - - 1.5 5
Flicker [dB] - - -20
7
Optical Equipment: BM-5A, BM-7, PR880, or equivalent
document version 1.2 7/28
Page 8
Product Specification
Minimum
Luminance
of 9 points
=
Max
imum
Luminance
of 9 points
50 %
90 %
90 %
50 %
10 %
10 %
AU OPTRONICS CORPORATION
M190EG02 V4

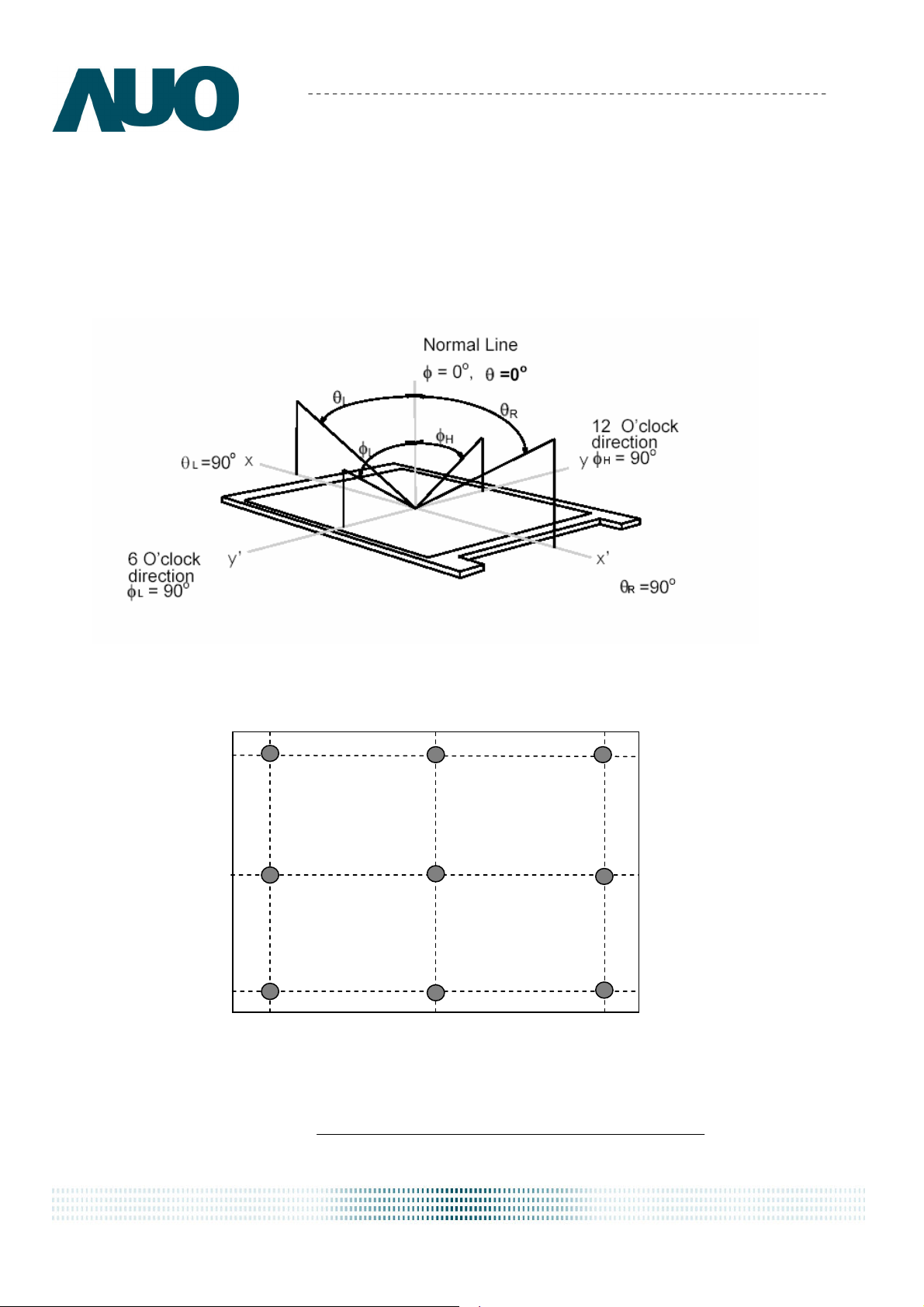

Note 1: Definition of viewing angle
Viewing angle is the measurement of contrast ratio≧10, or ≧5, at the screen center, over a 180°
horizontal and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken
down as follows; 90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The
measurement direction is typically perpendicular to the display surface with the screen rotated about its
center to develop the desired measurement viewing angle.

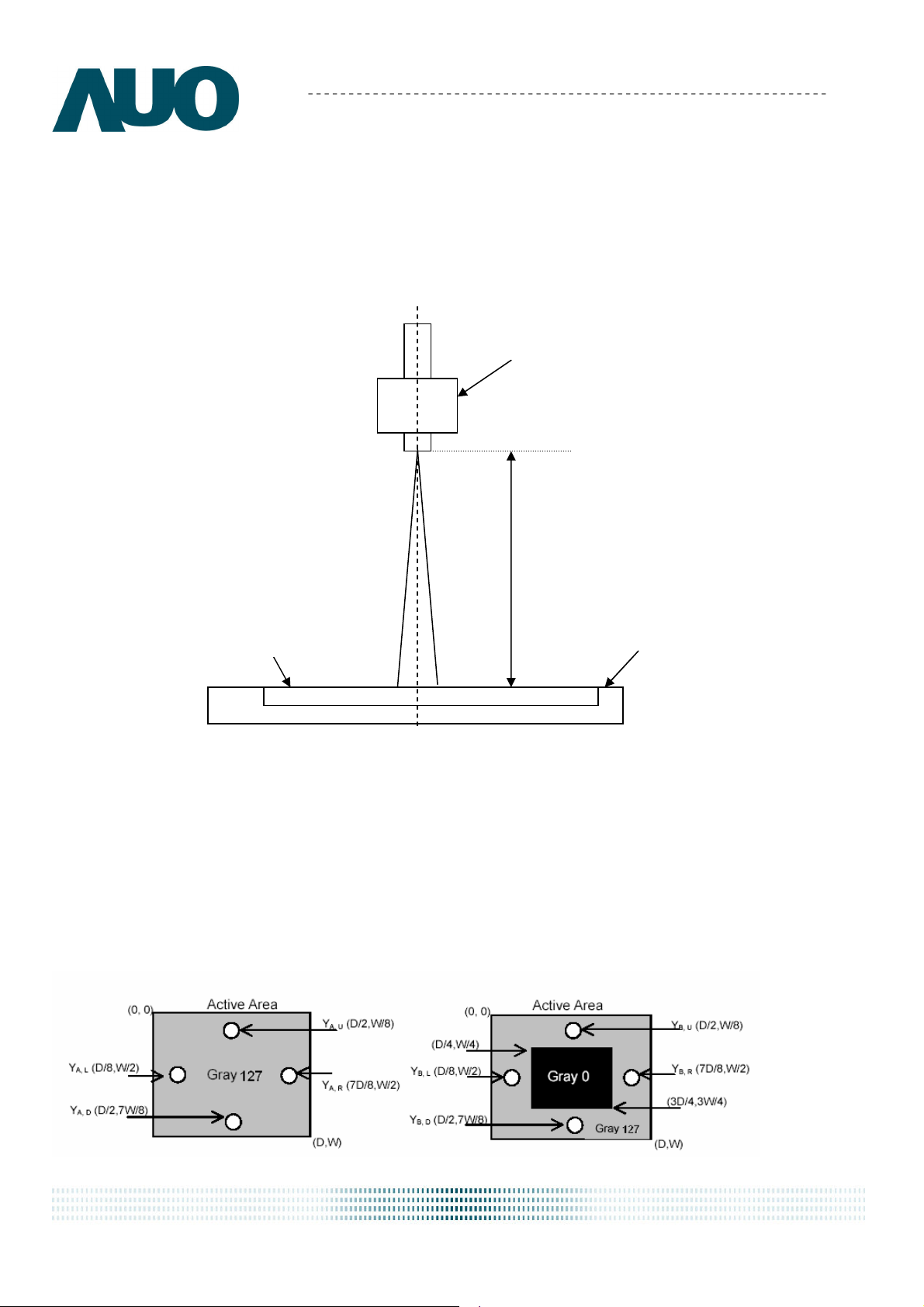

Note 2: 9 points position
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the
minimum test point luminance
document version 1.2 8/28
δ
W9
Page 9
Product Specification
TFT-LCD Module
LCD Panel
AU OPTRONICS CORPORATION
M190EG02 V4
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room.
Photo detector
Field=2°
50 cm
Note 5: Definition of Cross Talk (CT)
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
Center of the screen
document version 1.2 9/28
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
Page 10
Product Specification
Level
DC
F
R
F
R
AU OPTRONICS CORPORATION
M190EG02 V4

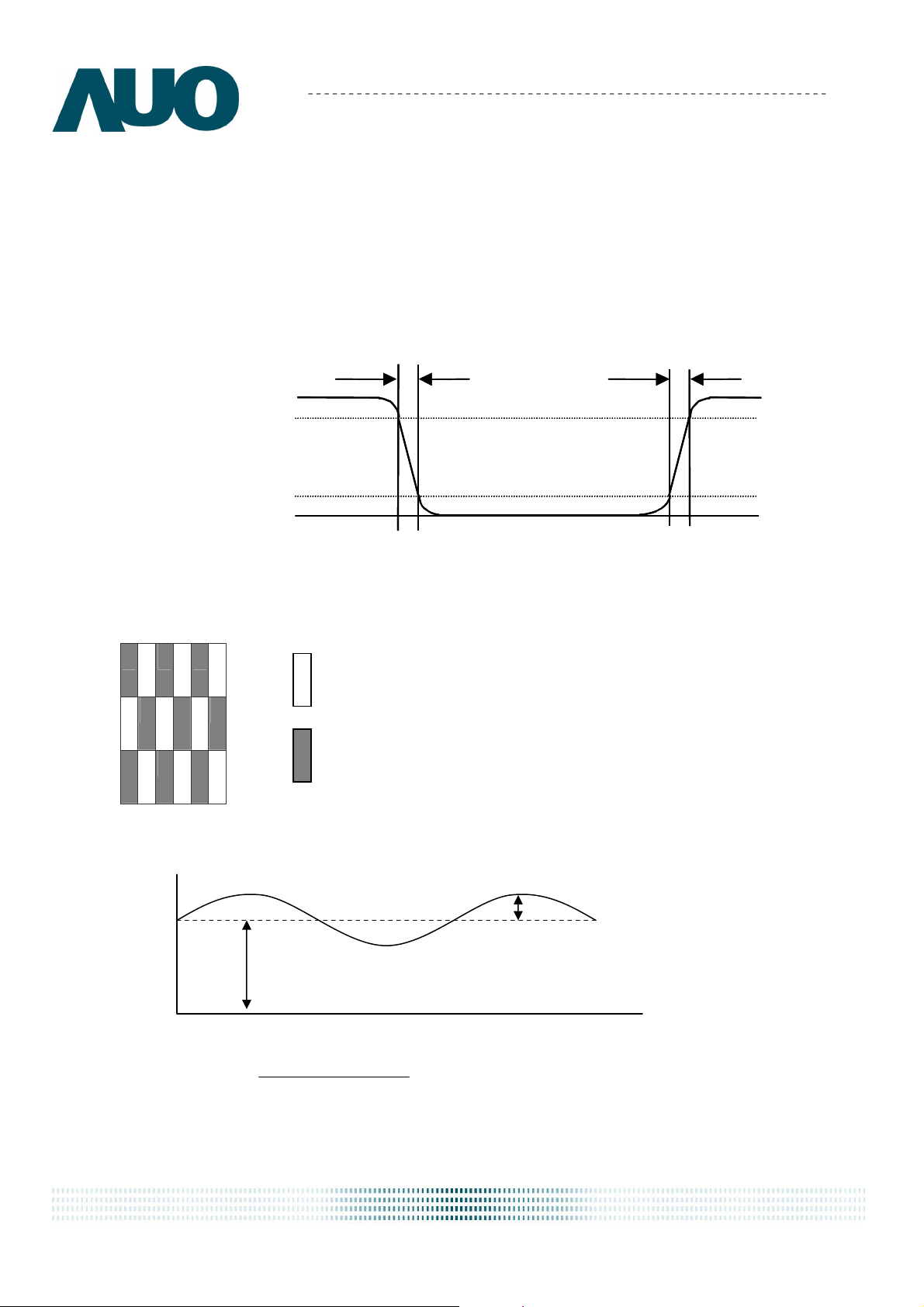

Note 6: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time), and from “Full White” to “Full Black” (falling time), respectively. The response time
is interval between the 10% and 90% of amplitudes. Please refer to the figure as below.
Optical
Optical
response
response
Note 7: Subchecker Pattern
R G B R G B
R G B R G B
R G B R G B
100
100
90
90
10
10
%
%
White
White
0
0
Tr
Tr
Gray Level = L127
Gray Level = L0
Black
Black
Tr
Tr
White
White
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
Hz) 30Level(at AC
log20(dB)Flicker =
document version 1.2 10/28
AC
Time
Page 11
Product Specification
M190EG02 V4
AU OPTRONICS CORPORATION

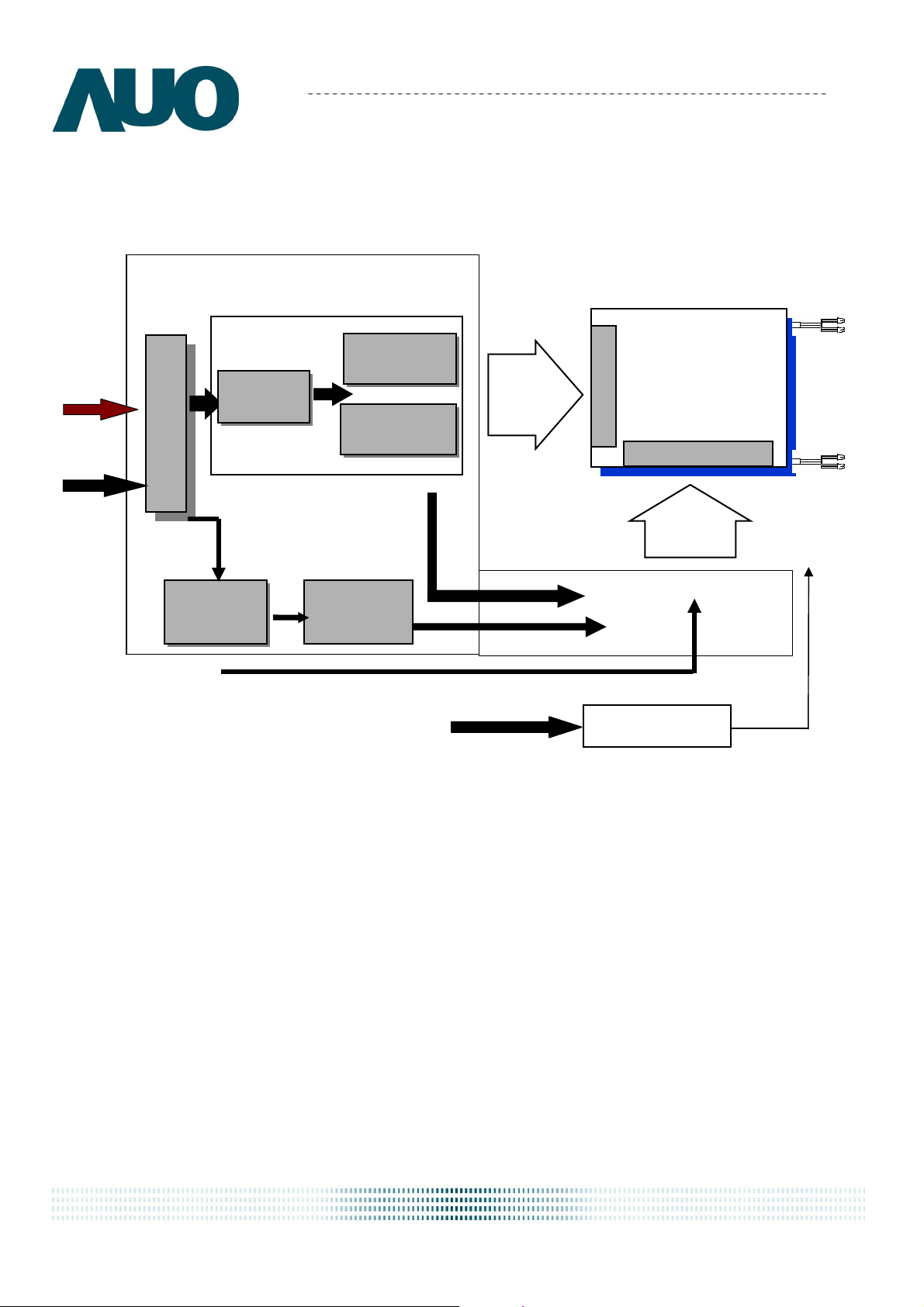

3. Functional Block Diagram
The following diagram shows the functional block of the 19.0 inches Color TFT-LCD Module:
LVDS
+ 5V
Connector
DC/DC
Converter
AU ASIC
LVDS
Timing
Controller
RSDS
Gamma
Correction
DC POWER
G1
TFT-LCD
1280*(3)*1024
Pixels
G1024
D1 D3840
2 LED
Inverter
document version 1.2 11/28
Page 12
Product Specification
AU OPTRONICS CORPORATION
4. Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min. Max. Unit Conditions
M190EG02 V4
Logic/LCD Drive
Voltage
VDD -0.3 +6 [Volt] Note 1, 2
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min. Max. Unit Conditions
LED Current ILED - 250 [mA] rms Note 1, 2

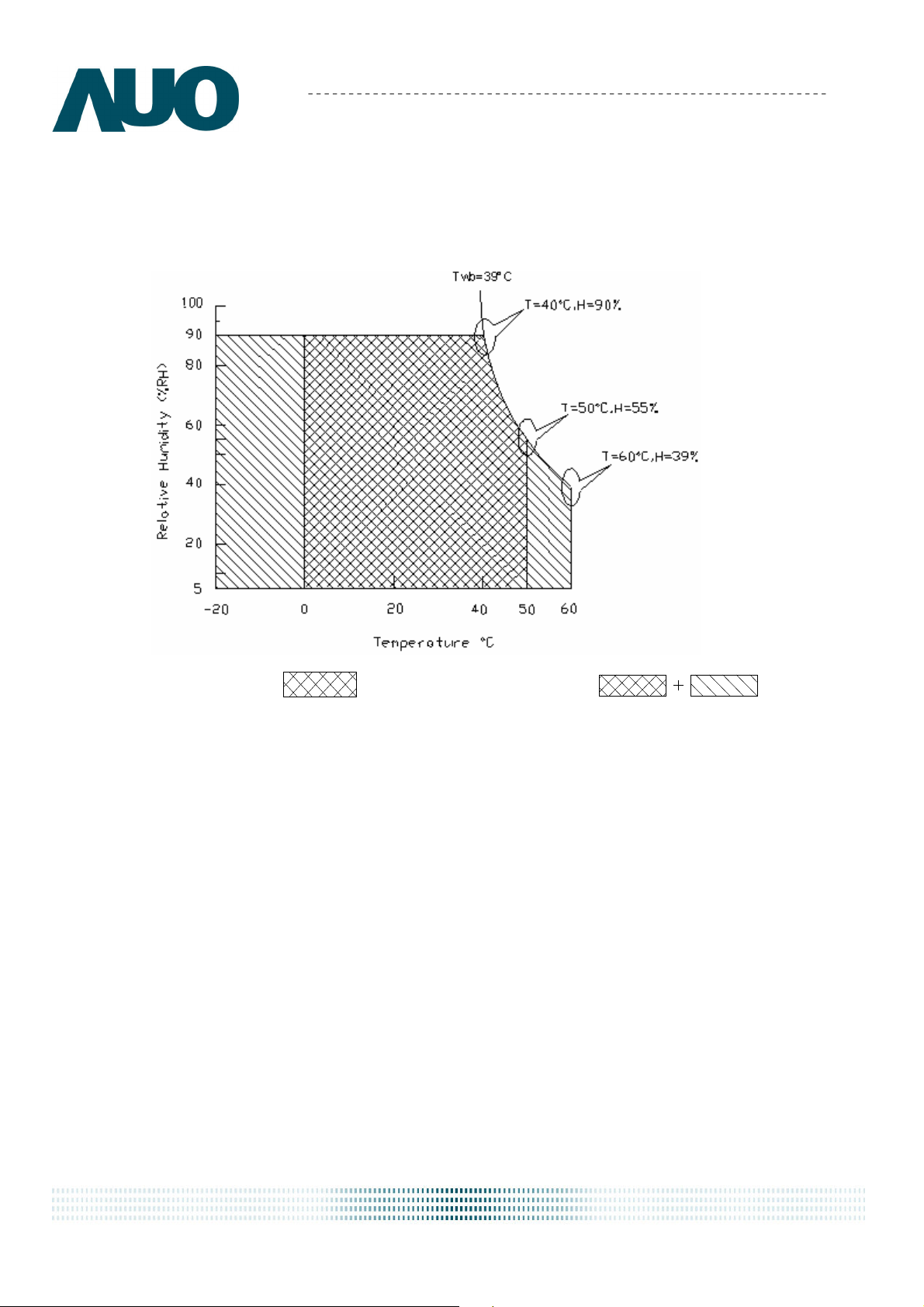

4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
5 90
[%RH]
Note 3
document version 1.2 12/28
Page 13
Product Specification
M190EG02 V4
AU OPTRONICS CORPORATION
Note 1: With in Ta= 25℃
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
Operating Range Storage Range
document version 1.2 13/28
Page 14
Product Specification
Vin rising time
0V
5.0V
470 us
M190EG02 V4
AU OPTRONICS CORPORATION

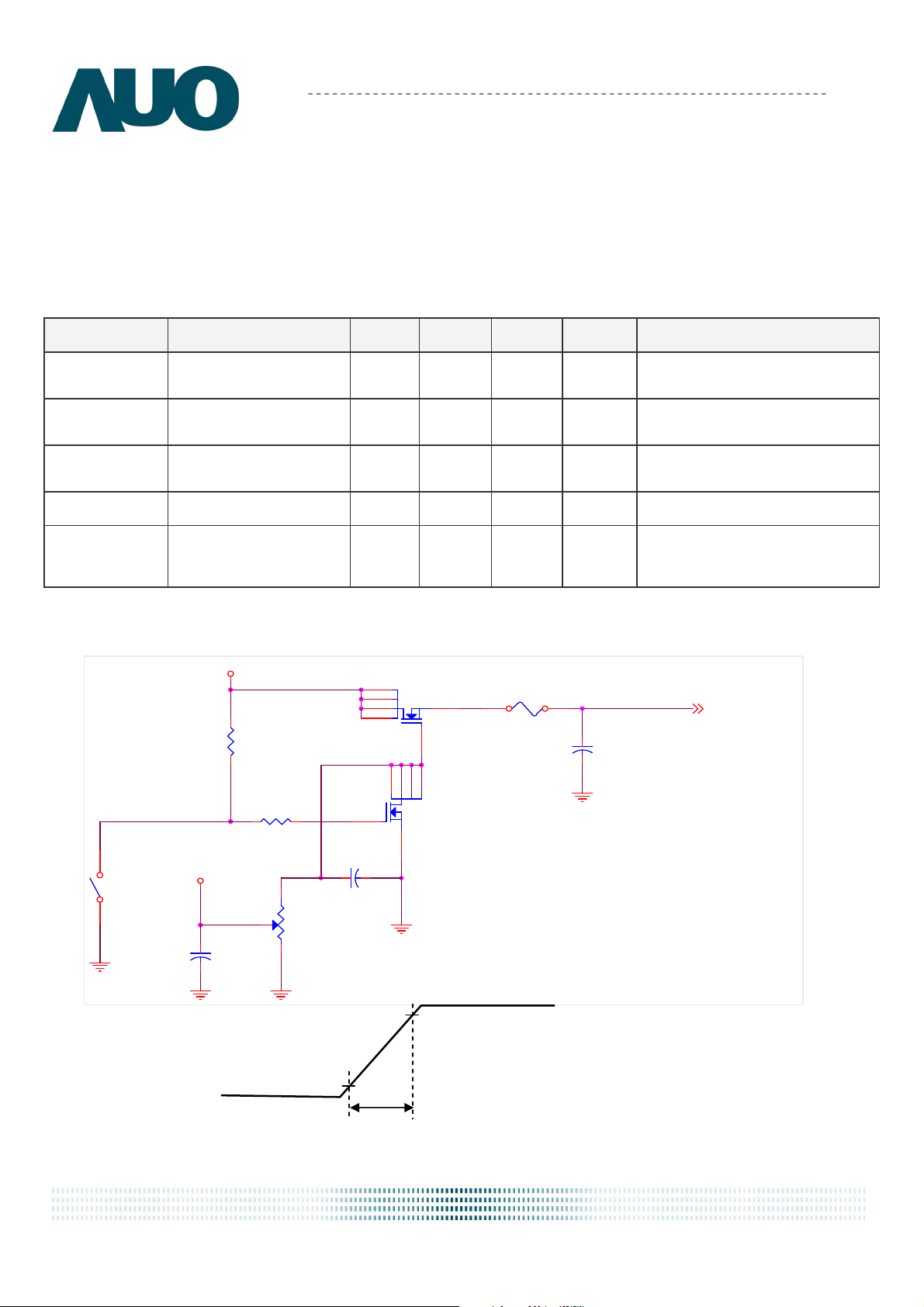

5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symble Parameter Min. Typ. Max. Unit Condition
VDD
Logic/LCD Drive
Voltage
4.5 5.0 5.5 [Volt]
IDD Input Current - 1.02 1.34 [A]
PDD VDD Power - 5.11 6.71 [Watt]
IRush Inrush Current - - 2.5 [A] Note 2
VDDrp
Allowable
Logic/LCD Drive
Ripple Voltage
- - 100
[mV]
p-p
Note 1: The variance of VDD power consumption is ±30%.
Note 2: Measurement conditions:
(High to Low)
Control
Signal
+5.0V
R1
47K
R2
Q3
AO6402
D6
D5
D2 S
D1
G
D2SD1D5
D6
G
Q3
AO6402
F1
C1
1uF/16V
±10%
VDD= 5.0V, All Black Pattern
At 75Hz, +30%
VDD= 5.0V, All Black Pattern
At 75Hz , Note 1
VDD= 5.0V, All Black Pattern
At 75Hz
VCC
(LCD Module Input)
1K
C3
0.01uF/25V
SW1
SW MAG-SPST
1 2
+12.0V
C2
1uF/25V
VR1
47K
document version 1.2 14/28
Page 15
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V4
5.2 Backlight Unit
Parameter guideline for LED Inverter is under stable conditions at 25 (Room Temperature):
Parameter Min. Typ. Max. Unit Condition
LED Standard Current(ISLED) 60 250 - [mA] rms Note 2
LED Operation Current(IRLED) 60 250 - [mA] rms Note 2
LED Frequency(FLED) - - - [KHz] Note 3,4
LED Ignition Voltage(ViLED, Ta= 0 ) - - - [Volt] rms
Note 5
LED Ignition Voltage(ViLED, Ta= 25 ) - - - [Volt] rms
LED Operation Voltage (VLED)
-
32.5
-
[Volt] rms Note 6
LED Power Consumption(PLED) - 16.5 - [Watt] Note 6
LED Life Time(LTLED) 40,000 50,000 - [Hour] Note 7
Note 1: Typ. are AUO recommended design points.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker
at low power may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of LED
, for instance, becomes more than 1 [M ohm] when LED is damaged.
*4 Generally, LED has some amount of delay time after applying kick-off voltage. It is
recommended to keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing LED current increases LED discharge voltage and generally increases LED
discharge frequency. So all the parameters of an inverter should be carefully designed so as not
to produce too much leakage current from high-voltage output of the inverter.
Note 2: LED standard current is measured at 25±2℃.
Note 3: LED discharge frequency should be carefully determined to avoid interference between inverter
and TFT LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: LED inverter should be able to give Constant current.
Note 6: The variance of LED power consumption is ±10%. Calculator value for reference (ISLED × VLED × 2
= PLED)
Note 7: Definition of life: brightness becomes 50%. The typical life time of LED is on the condition at 250
mA lamp current.
document version 1.2 15/28
Page 16
Product Specification
1
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
0
M190EG02 V4
1279 1280
1st Line
1024th Line
R G B R G B
R G B R G B
R G B R G B
R G B R G B
document version 1.2 16/28
Page 17

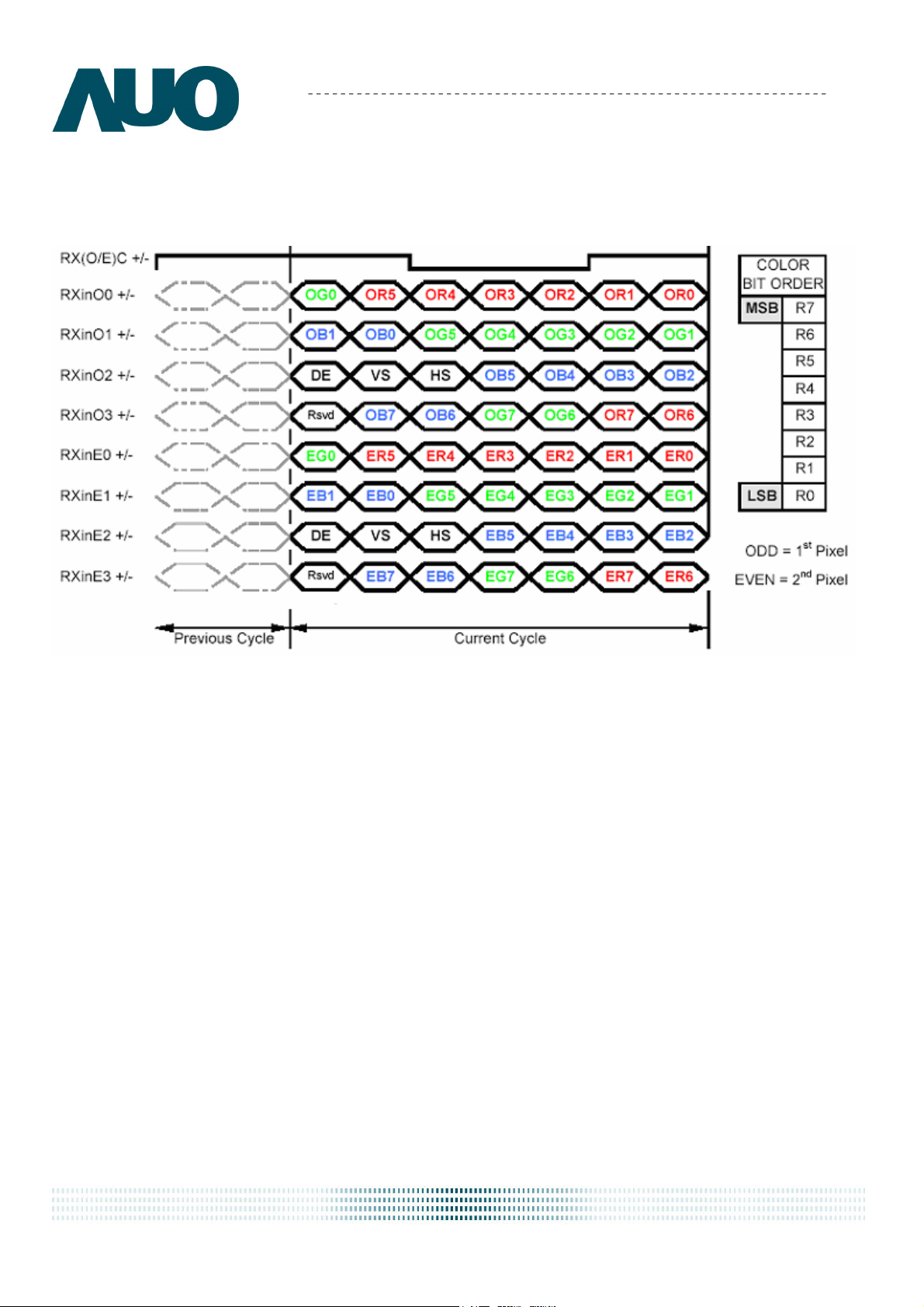

6.2 The Input Data Format
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V4
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: Please follow PSWG.
Note3: 8-bit in
document version 1.2 17/28
Page 18
Product Specification
M190EG02 V4
AU OPTRONICS CORPORATION
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN #
SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
7 VSS Power Ground
8 RxOCLKIN- Negative LVDS differential clock input (Odd clock)
9 RxOCLKIN+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 VSS Power Ground
15 RxEIN1- Negative LVDS differential data input (Even data)
16 RxEIN1+ Positive LVDS differential data input (Even data)
17 VSS Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLKIN- Negative LVDS differential clock input (Even clock)
21 RxECLKIN+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 VSS Power Ground
25 VSS Power Ground
26 NC No Connection ( for AUO test)
27 VSS Power Ground
28 VCC +5.0V Power Supply
29 VCC +5.0V Power Supply
30 VCC +5.0V Power Supply
document version 1.2 18/28
Page 19
Connector
RxO
IN
0
-
VCC
Note1: Start from left side
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V4
30
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
6.4 Interface Timing
6.4.1 Timing Characteristics
Item Symbol Min Typ Max Unit
Data CLK Tclk 40 54 67.5 MHz
H-section
V-section
Frame Rate F 50 60 75 Hz
Note : DE mode only
Period Th 680 844 1024 Tclk
Display Area Tdisp(h) 640 640 640 Tclk
Period Tv 1028 1066 2048 Th
Display Area Tdisp(v) 1024 1024 1024 Th
document version 1.2 19/28
Page 20

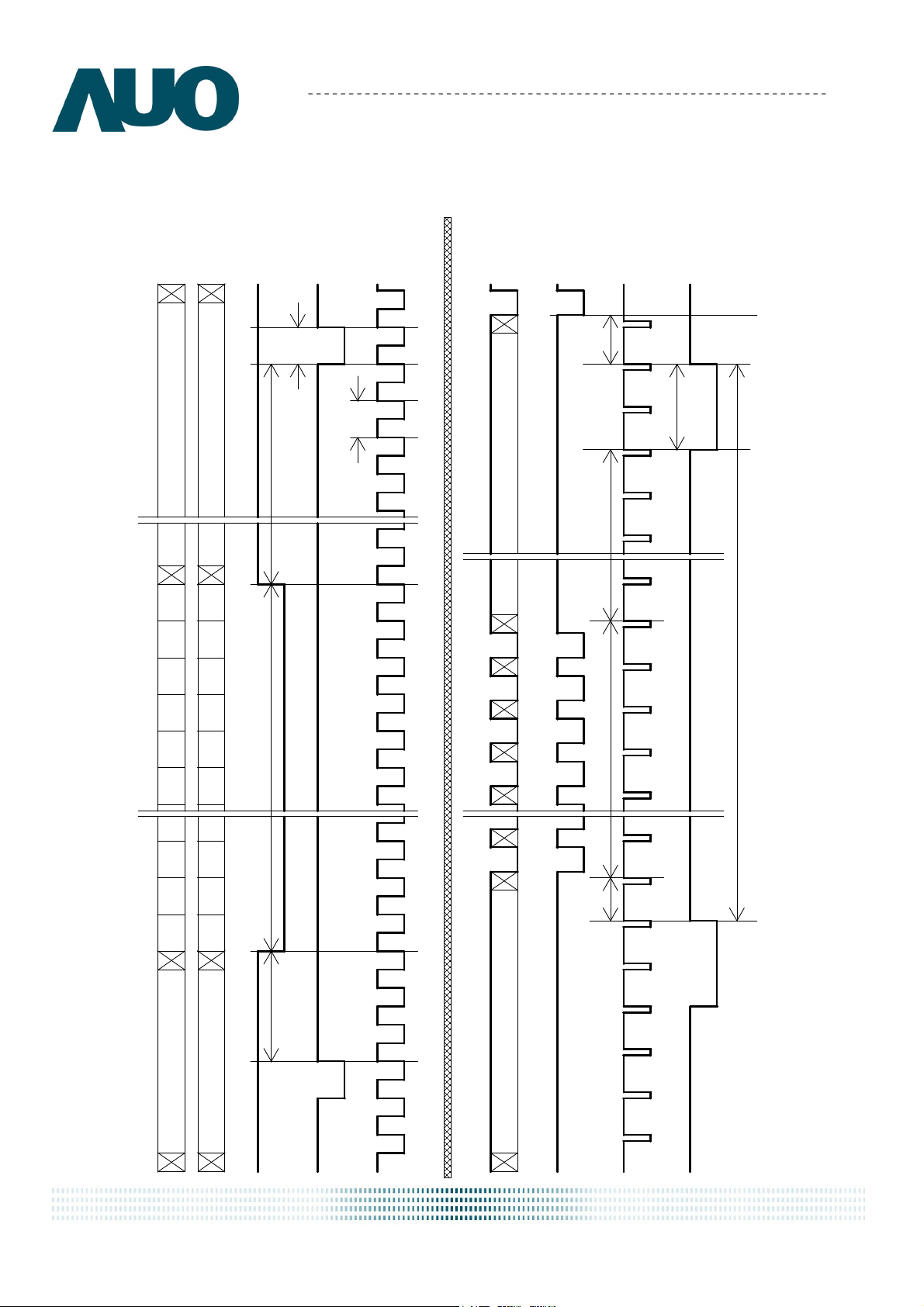

6.4.2 Timing Diagram
RGB Data
(Even)
RGB Data
(Odd)
Product Specification
M190EG02 V4
AU OPTRONICS CORPORATION
Hsync
DE
CLK
RGB Data
DE
Line Line Line Line Line Line
N
Hsync
Vsync
PWhs
Invalid Data
Invalid Data
Tbp(h)
Pixel
Pixel
2
1
Pixel Pixel
Pixel
3 9 M-1
4
Pixel
6
5 M-3
Pixel Pixel Pixel Pixel Pixel Pixel
7
8
10
11
12
Tdisp(h)
Tclk
Invalid Data
2
43
Tfp(v)
PWvs
Tbp(v)
Tv
Tdisp(v)
PixelPixelPixelPixel
M-5
M-4
M-2
M
Invalid Data
document version 1.2 20/28
PixelPixel
Tfp(h)
Invalid Data
N1
Th
Invalid Data
Page 21
Product Specification
T5
T2
T1
T6
AU OPTRONICS CORPORATION
M190EG02 V4

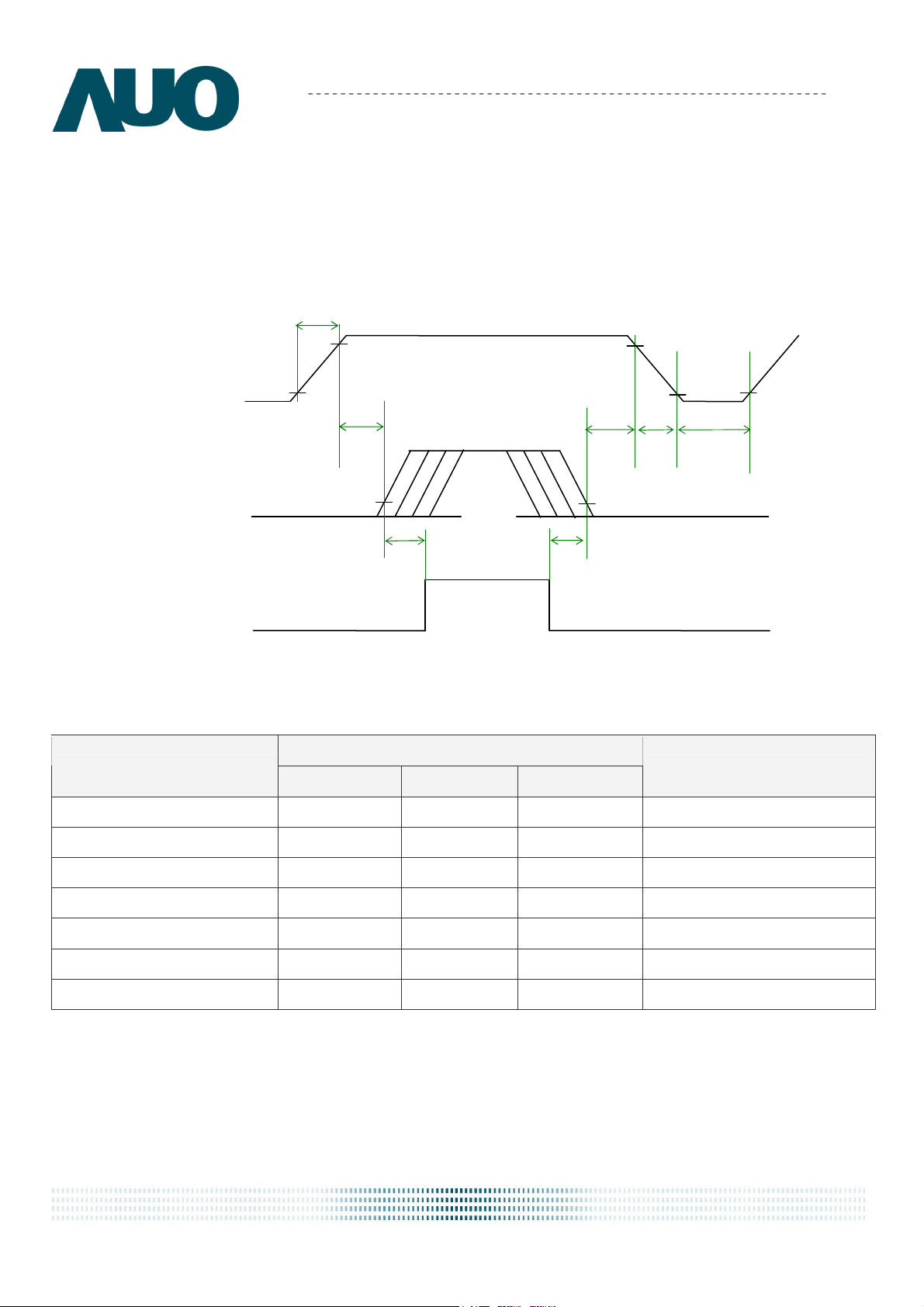

6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VDD is off.
VALID
DATA
90%
10%
T7
T4
Power Supply VDD
LVDS Signal
Backlight On
90%
10%
T3
Power Sequence Timing
Parameter
Unit
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 0 - 50 [ms]
T3 300 - - [ms]
T4 300 - - [ms]
T5 0 16 50 [ms]
T6 - - 10 [ms]
T7 500 - - [ms]
document version 1.2 21/28
Value
Page 22
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V4
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components.

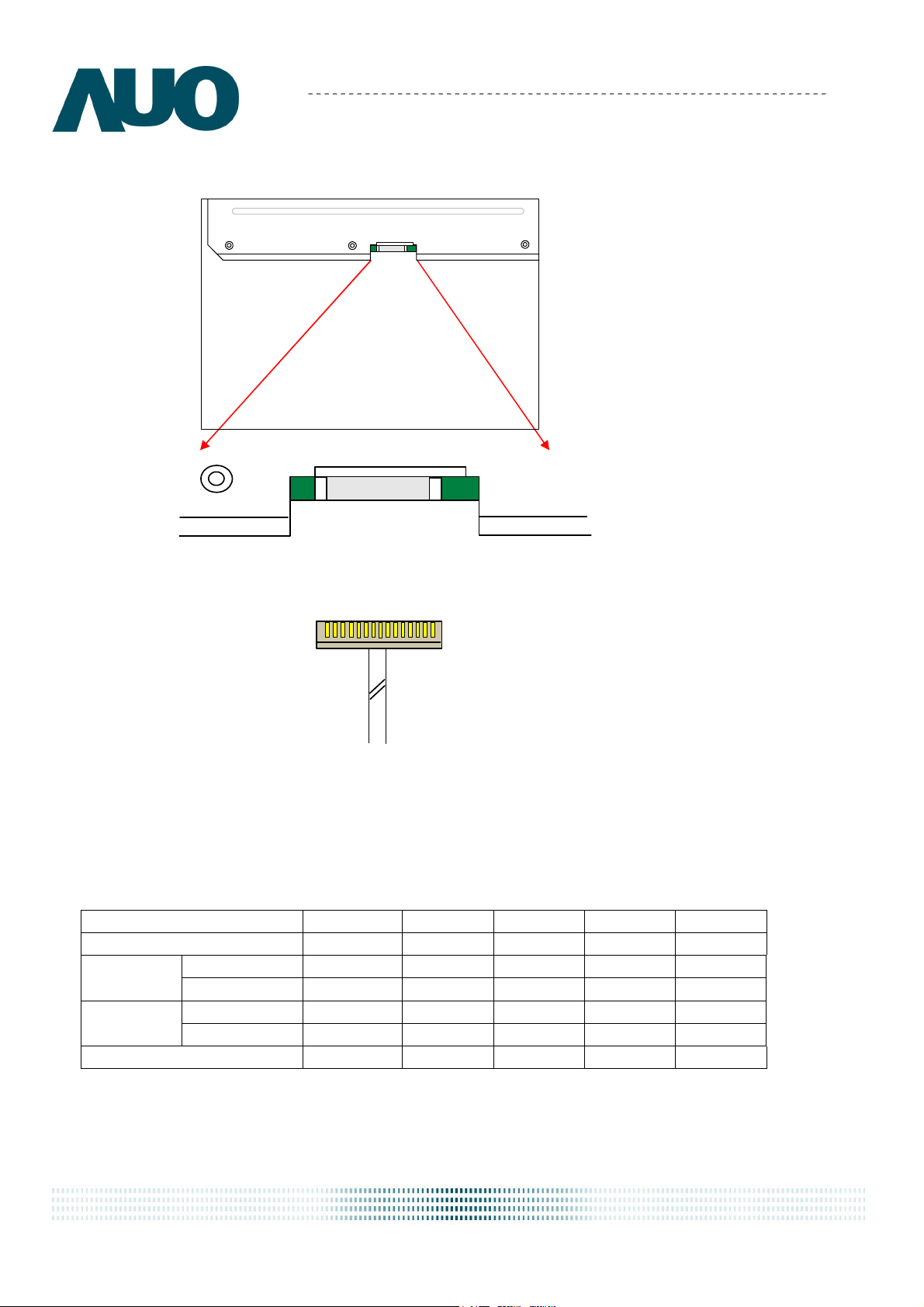

7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector / Interface card
Manufacturer JAE or compatible
Type Part Number FI-XB30SSL-HF15
Mating Housing Part Number FI-X30HL
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 VSS 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 VSS
15 RxEIN1- 16 RxEIN1+
17 VSS 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 VSS
25 VSS 26 NC
27 VSS 28 VCC
29 VCC 30 VCC
document version 1.2 22/28
Page 23
Product Specification
AU OPTRONICS CORPORATION
M190EG02 V4
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer CVILUX or OSRAM
Type Part Number
CP0502SL090/ OSLON MX
Mating Type Part Number CP0502P1ML0/ OSLON MX
7.2.1 Signal for Lamp connector
Upper
Lower
Connector No.
CN1
CN2
Pin No.
1 Hot1 Red High Voltage
2 Cold1 Black Low Voltage
1 Hot2 Red High Voltage
2 Cold2 Black Low Voltage
Input Color
Function
document version 1.2 23/28
Page 24
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 50, 80%RH, 300hours
M190EG02 V4
Note
High Temperature Operation (HTO) Ta= 50, 50%RH, 300hours
Low Temperature Operation (LTO) Ta= 0, 300hours
High Temperature Storage (HTS) Ta= 60, 300hours
Low Temperature Storage (LTS) Ta= -20, 300hours
Acceleration: 1.5 G
Vibration Test
(Non-operation)
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Shock Test
(Non-operation)
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20/30min, 60/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
8 points, 25 times/ point.
ESD (ElectroStatic Discharge)
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
8 points, 25 times/ point.
1
2
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-20℃ to 60℃, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
document version 1.2 24/28
Page 25
Product Specification
AU OPTRONICS CORPORATION
9. Shipping Label

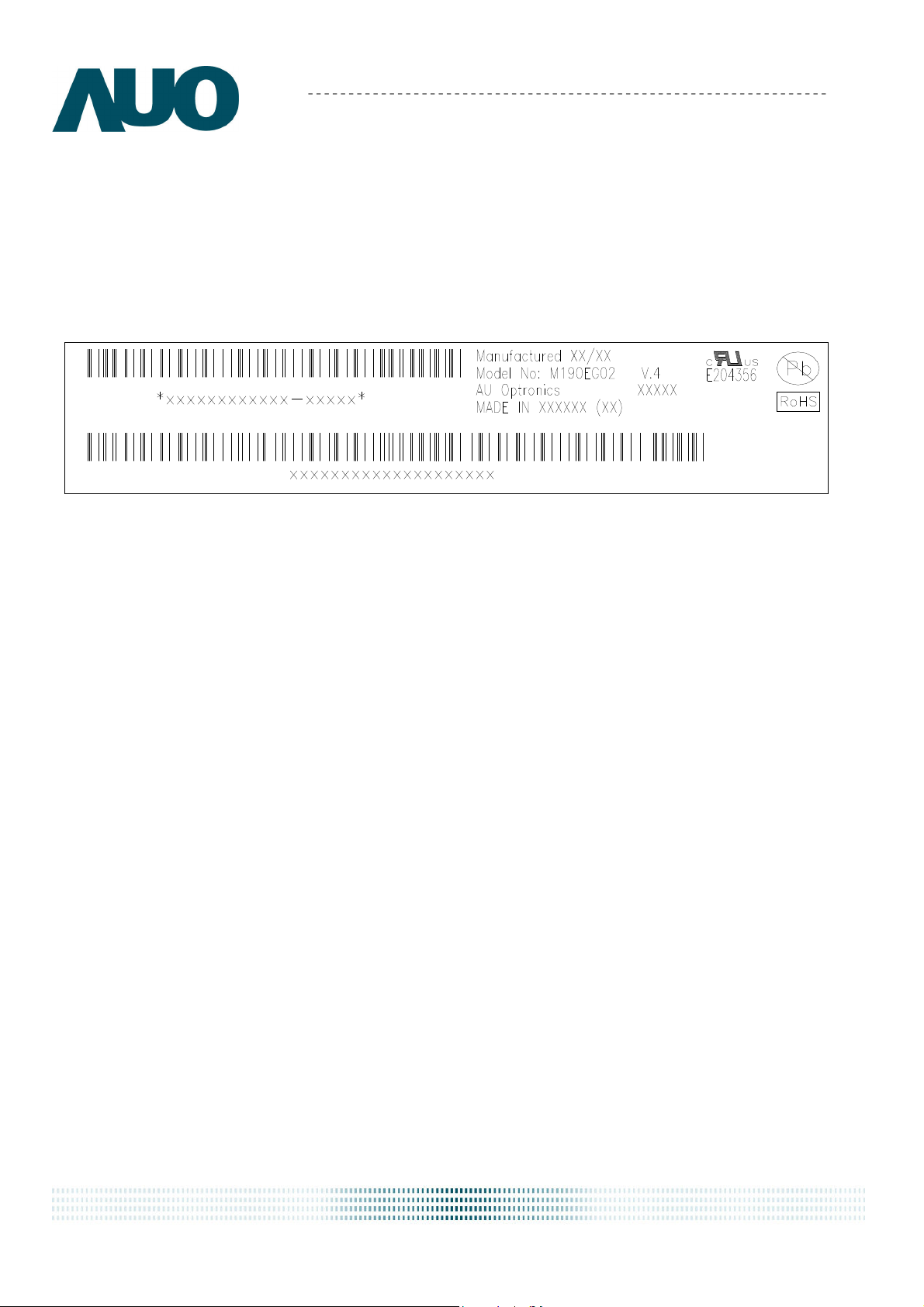

The shipping label format is shown as below.
M190EG02 V4
document version 1.2 25/28
Page 26
M190EG02 V4
Product Specification
AU OPTRONICS CORPORATION
10. Mechanical Characteristic
document version 1.2 26/28
Page 27
M190EG02 V4
Product Specification
AU OPTRONICS CORPORATION
document version 1.2 27/28
Page 28
M190EG02 V4
Product Specification
AU OPTRONICS CORPORATION
document version 1.2 28/28
Loading...
