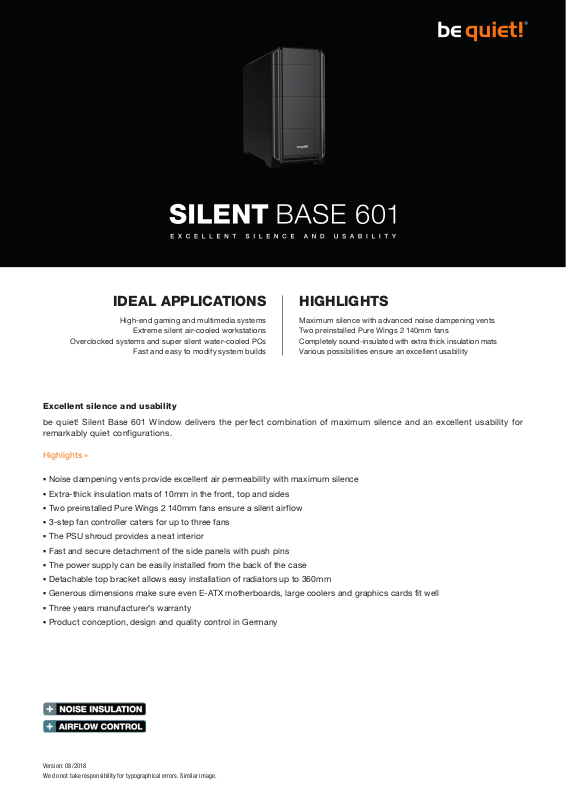

Page 1
HIGHLIGHTSIDEAL APPLICATIONS
High-end gaming and multimedia systems
Extreme silent air-cooled workstations
Overclocked systems and super silent water-cooled PCs
Fast and easy to modify system builds
Maximum silence with advanced noise dampening vents
Two preinstalled Pure Wings 2 140mm fans
Completely sound-insulated with extra thick insulation mats
Various possibilities ensure an excellent usability
Excellent silence and usability
be quiet! Silent Base 601 Window delivers the perfect combination of maximum silence and an excellent usability for
remarkably quiet configurations.
Highlights »
▪ Noise dampening vents provide excellent air permeability with maximum silence
▪ Extra-thick insulation mats of 10mm in the front, top and sides
▪ Two preinstalled Pure Wings 2 140mm fans ensure a silent airflow
▪ 3-step fan controller caters for up to three fans
▪ The PSU shroud provides a neat interior
▪ Fast and secure detachment of the side panels with push pins
▪ The power supply can be easily installed from the back of the case
▪ Detachable top bracket allows easy installation of radiators up to 360mm
▪ Generous dimensions make sure even E-ATX motherboards, large coolers and graphics cards fit well
▪ Three years manufacturer’s warranty
▪ Product conception, design and quality control in Germany
Version: 08/2018
We do not take responsibility for typographical errors. Similar image.
Page 2
Airfl ow »
regular airflow
Pure Wing s 2 | 140mm / 1,000 fa n
PSU exhaust circulation
Pre-Installed
Optional insta llatio n of up to thre e 120mm or 140mm fa ns
Optional installation of one 120mm
or 140mm fan
Pre-Installed
Pure Wing s 2 | 140mm / 1,000 fa n
Optional installation of one 120mm
or 140mm fan
optional airflow
Technical Data »
PSU Optional insta llatio n of one 120mm or 140 mm fan on th e PSU shro ud
Motherboard compatibility E-ATX (30.5 x 27.5cm), ATX, M-ATX, Mini-ITX
Case type Midi-Tower
PSU PS2 ATX (not included)
Dimensions (L x W x H in mm) 532 x 240 x 514
Material Steel (SECC), ABS plastic
Weight (kg) 10.49 (net) / 12.5 (gross)
I/O panel 2x USB 3.0, 1x USB 2.0, HD audio (microphone +
audio), Fan controller, HDD status LED
PCI slots 7 + 2
Drive bays up to 7x 3.5“ (3 included)
up to 14x 2.5“ (6 included)
Preinstalled fans (mm) / (rpm) Front: 1x Pure Wings 2 140 / 1,000
Rear: 1x Pure Wings 2 140 / 1,000
Optional fans (mm) Front: 2x 140/120
Top: 3x 140/120
PSU shroud: 1x 140/120
Optional radiators (mm) Front: 120, 140, 240, 280, 360
Top: 120, 240, 360
Rear: 120, 140
Maximum dimensions (mm) CPU cooler: up to 185
PSU: 288
GPU: 449/287 (without HDD cage)
Noise cancellation Sound insulation mats (front / side / top )
Cooling solutions Air channels (top and front)
3-step fan controller (3x 3-pin)
Logistics Data »
Silent Base 601 Art. no EAN code
Orange BG025 4260052186992
Black BG026 4260052187111
Silver BG027 4260052187012
Certifications »
Contact »
be quiet! Headquarters
Listan GmbH & Co. KG
Biedenkamp 3A
21509 Glinde
Germany
Service hotline: +49 40 7367 686 44
(mon. - fri., 9am to 5.30pm CET)
e-mail: [email protected]
Visit the contact section on bequiet.com
for the right regional service information.
Version: 08/2018
We do not take responsibility for typographical errors. Similar image.
