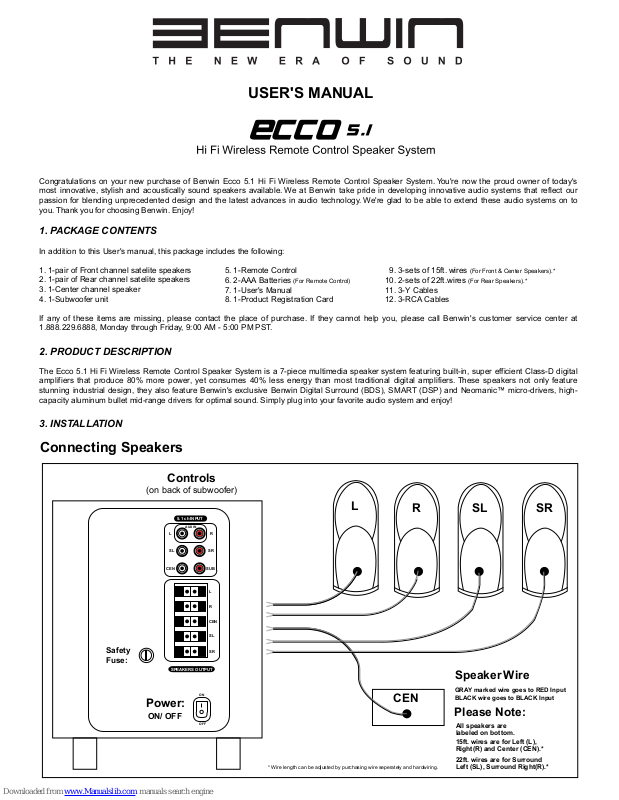

USER'S MANUAL
Congratulations on your new purchase of Benwin Ecco 5.1 Hi Fi Wireless Remote Control Speaker System. You're now the proud owner of today's
most innovative, stylish and acoustically sound speakers available. We at Benwin take pride in developing innovative audio systems that reflect our
passion for blending unprecedented design and the latest advances in audio technology. We're glad to be able to extend these audio systems on to
you. Thank you for choosing Benwin. Enjoy!
1. PACKAGE CONTENTS
In addition to this User's manual, this package includes the following:
1. 1-pair of Front channel satelite speakers
2. 1-pair of Rear channel satelite speakers
3. 1-Center channel speaker
4. 1-Subwoofer unit
5. 1-Remote Control
6. 2-AAA Batteries (For Remote Control)
7. 1-User's Manual
8. 1-Product Registration Card
9. 3-sets of 15ft. wires (For Front & Center Speakers).*
10. 2-sets of 22ft.wires (For Rear Speakers).*
11. 3-Y Cables
12. 3-RCA Cables
If any of these items are missing, please contact the place of purchase. If they cannot help you, please call Benwin's customer service center at
1.888.229.6888, Monday through Friday, 9:00 AM - 5:00 PM PST.
2. PRODUCT DESCRIPTION
The Ecco 5.1 Hi Fi Wireless Remote Control Speaker System is a 7-piece multimedia speaker system featuring built-in, super efficient Class-D digital
amplifiers that produce 80% more power, yet consumes 40% less energy than most traditional digital amplifiers. These speakers not only feature
stunning industrial design, they also feature Benwin's exclusive Benwin Digital Surround (BDS), SMART (DSP) and Neomanicâ„¢ micro-drivers, highÂcapacity aluminum bullet mid-range drivers for optimal sound. Simply plug into your favorite audio system and enjoy!
3. INSTALLATION
Connecting Speakers
Controls
(on back of subwoofer)
5.1 ch INPUT
AUX IN
L R
SL SR
L
R SL SR
CEN SUB
Safety
Fuse:
SPEAKERS OUTPUT
ON
Power:
ON/ OFF
OFF
L
R
CEN
SL
SR
CEN
* Wire length can be adjusted by purchasing wire seperately and hardwiring.
Speaker Wire
GRAY marked wire goes to RED Input
BLACK wire goes to BLACK Input
Please Note:
All speakers are
labeled on bottom.
15ft. wires are for Left (L),
Right(R) and Center (CEN).*
22ft. wires are for Surround
Left (SL), Surround Right(R).*
