Page 1

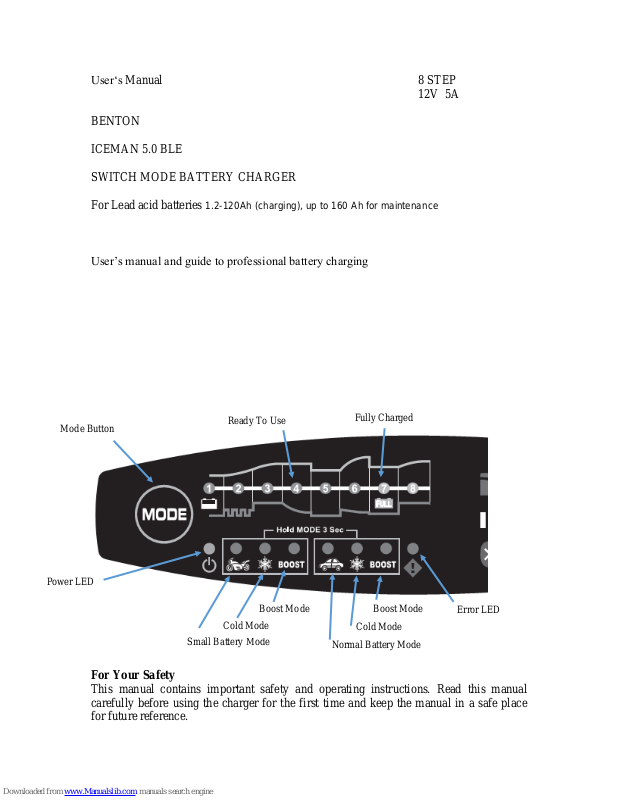

User‘s Manual 8 STEP

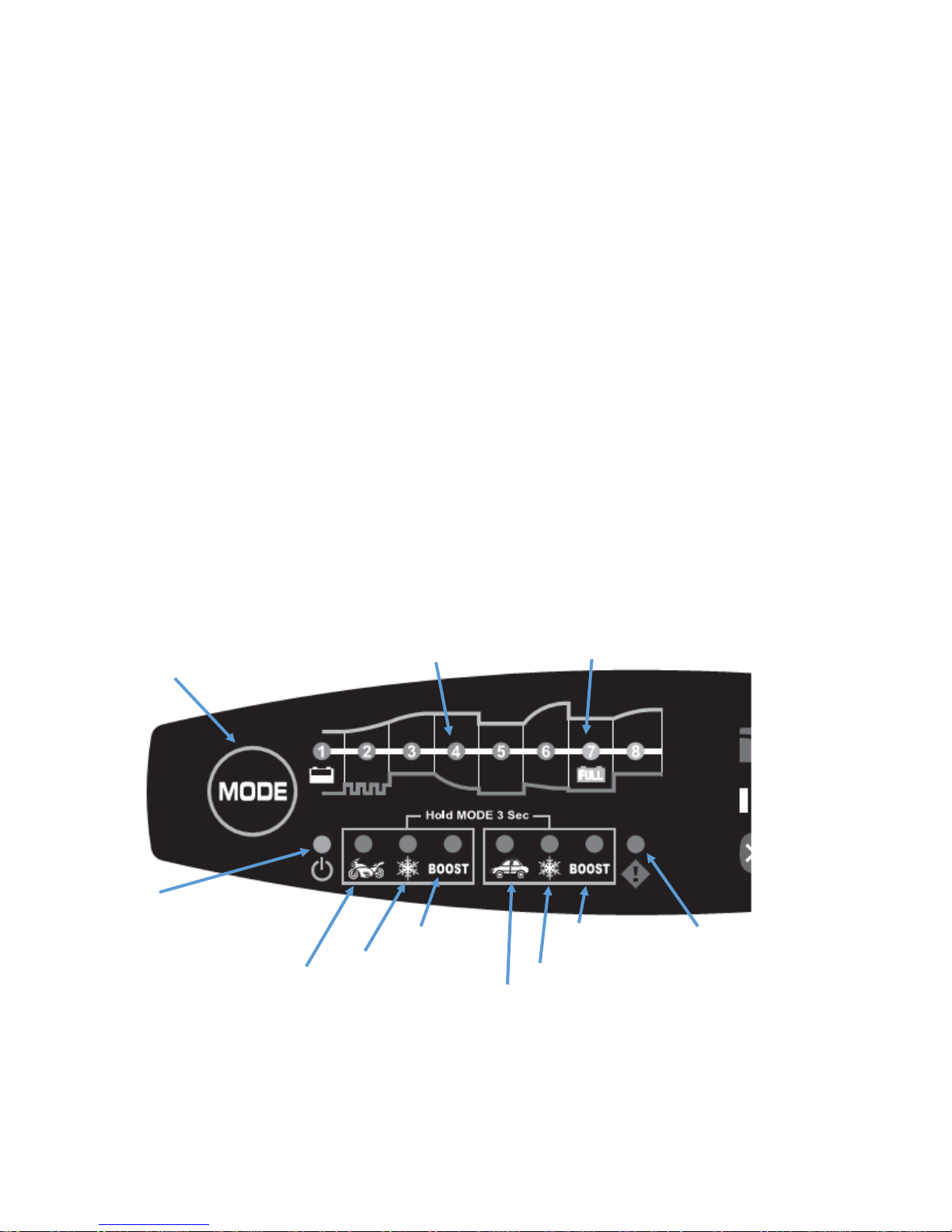

Mode Button
Power LED
Error LED
Ready To Use
Fully Charged
Normal Battery Mode
Small Battery Mode
Cold Mode
Boost Mode
Cold Mode
Boost Mode
12V 5A
BENTON
ICEMAN 5.0 BLE
SWITCH MODE BATTERY CHARGER
For Lead acid batteries 1.2-120Ah (charging), up to 160 Ah for maintenance
User’s manual and guide to professional battery charging
For Your Safety
This manual contains important safety and operating instructions. Read this manual
carefully before using the charger for the first time and keep the manual in a safe place
for future reference.
Page 2

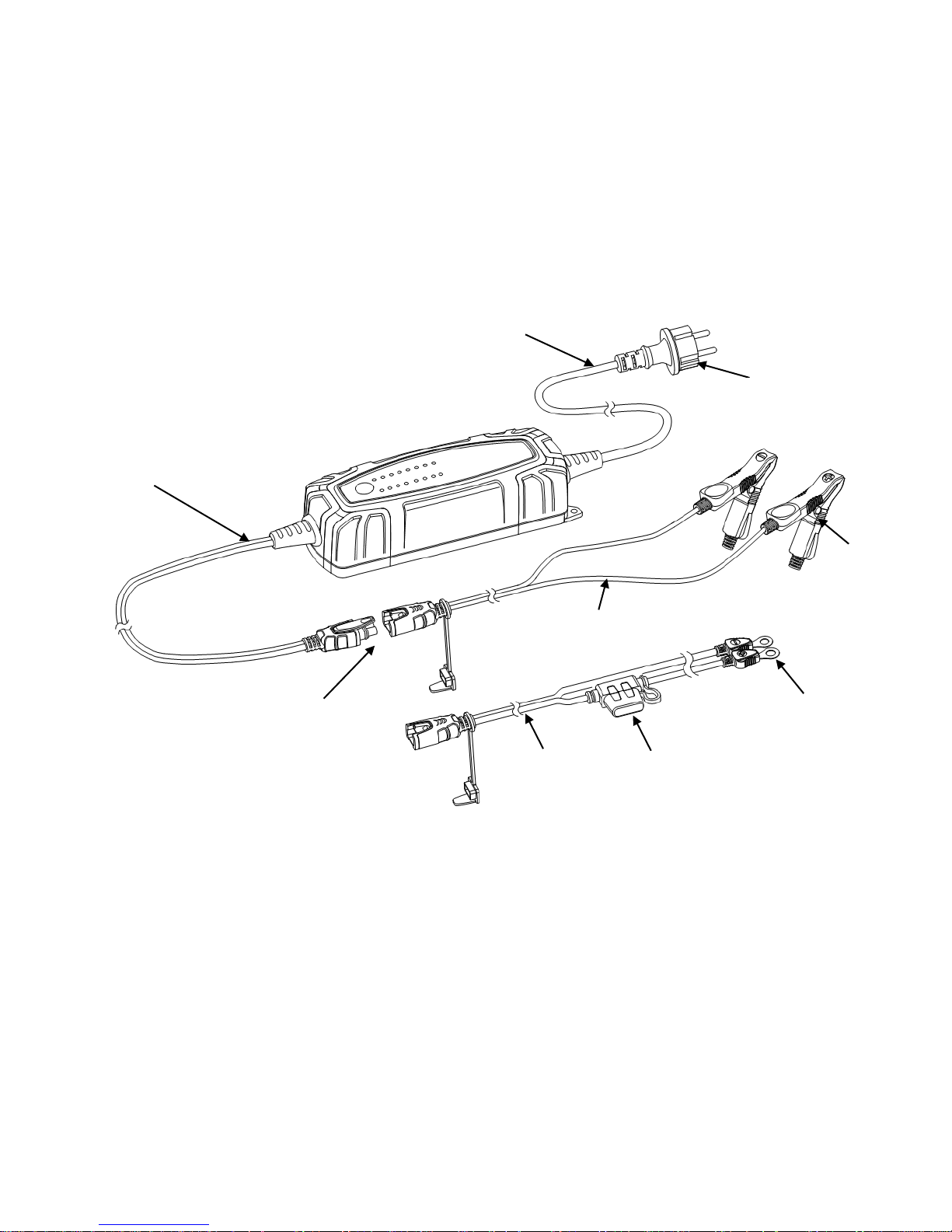

AC Plug
Mains Cable
H05RN-F Rubber
Charge Cable
HPN
Rubber Cable
HPN
Rubber Cable
Eyelet M6
Terminals
Clamp
HPN
Rubber Cable
DC Connector
10A
Fuse Holder
Contents
1) BENTON® ICEMAN 5.0 BLECharger
2) Quick contact battery leads with clamps
3) Quick contact battery leads with eyelet terminals (Ø 6.3mm) with in-line battery
protection fuse (10A) for permanent attachment to the battery posts to allow quick
connection/disconnection through snap-connector.
4) User Manual
Page 3
Safety Information
BENTON® ICEMAN 5.0 BLE charger is designed for charging 12V 1.2-160Ah
Lead-Acid rechargeable batteries. Do not intend to supply power to low voltage
electrical system. Do not use it for any other purpose.
WARNING! DO NOT ATTEMPT TO CHARGE A NON-RECHARGEABLE
BATTERY (PRIMARY CELLS).
Do not use the charger with a damaged cable. It must be replaced by the
manufacturer, its service agent or similarly qualified technician in order to ensure
safety.
Normally, a battery is grounded either, on negative or positive terminal to the
vehicle’s chassis. The charger’s DC Clips are to be connected to the battery
terminal not connected to the chassis first. The other connection is to be made to
the terminal connected to the chassis, far from the battery and fuel line. The
battery charger is then to be connected to the power supply.
After charging, disconnect the battery charger from supply mains. Remove the
chassis connection and the battery connection, respectively. This will reduce
back drain current.
During charging the battery must be placed in a well ventilated area.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with appliance. Cleaning and user maintenance shall not be made by children
without supervision.
Page 4
Charging Modes
Mode 14.4V/0.8A
This mode is normally suitable for batteries
less than 14 Ah
Mode 14.7V/0.8A
This mode is recommended for AGM
batteries less than 14 Ah. This mode is also
suitable for charging batteries in sub-zero
temperatures.
BOOST
Mode 14.4V/0.8A + 16.0V/0.3A,
This mode is suitable to recover severely
discharged batteries smaller than 14 Ah.
Recommended to boost at least once a year.
BOOST
Mode 14.7V/0.8A + 16.0V/0.3A
This mode is suitable to recover severely
discharged AGM batteries smaller than 14 Ah
or charging in sub-zero temperatures.
Mode 14.4V/5.0A
This mode is normally used for WET, MF,
VRLA, AGM, GEL and Calcium batteries
Mode 14.7V/5.0A
This mode is recommended for AGM
batteries. This mode is also suitable for
charging batteries in sub-zero temperatures.
BOOST
Mode 14.4V/5.0A + 16.0V/1.5A
This mode is suitable to recover severely
discharged batteries. Recommended to boost
atleast once a year.
BOOST
Mode 14.7V/5.0A + 16.0V/1.5A
This mode is suitable to recover severely
discharged AGM batteries or charging in subzero temperatures.
Page 5
OPERATION
Charging

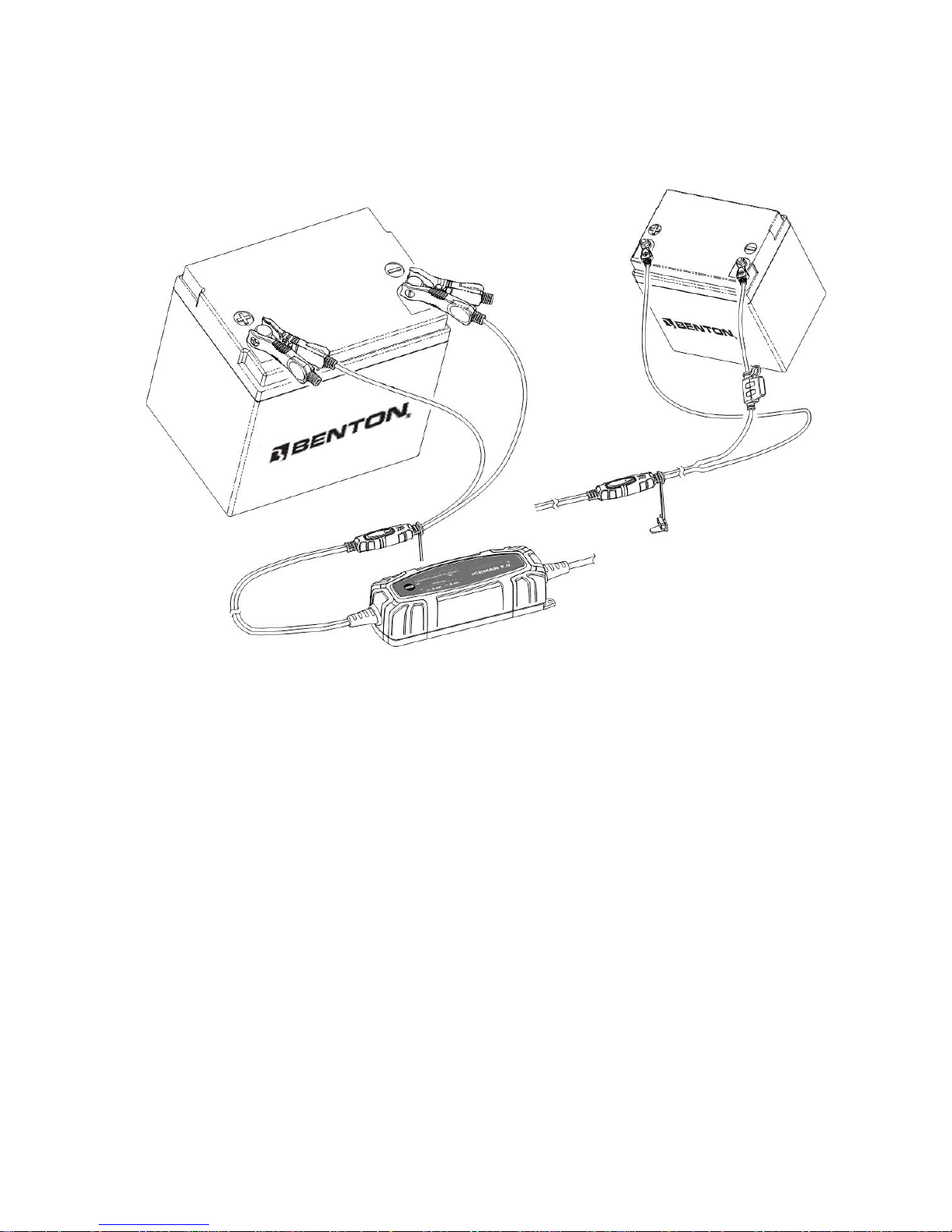

1) Charging of a permanently installed battery in a vehicle
a) Before connecting or disconnecting the battery leads, the power cord should be
removed from the mains.
b) Check polarity of battery post. A positive (“+”) battery post usually has a larger
diameter than a negative (“-”) post.
c) Identify the pole of battery which is connected to the chassis (earth). Normally
the negative terminal is connected to the chassis.
d) Charging of negative earthed battery:
• Make sure the black clamp or eyelet terminal (“-” pole connection) has not
contact with the fuel line or the battery.
• Connect the red clamp or eyelet terminal (“+”) to the positive (“+”) pole of the
battery and the black clamp or eyelet terminal (“-“) to the vehicle chassis.
Page 6
e) Charging of positive earthed battery:
• Make sure the red clamp or terminal (“+” pole connection) has no contact with
the fuel line or the battery.
• Connect the black clamp or eyelet terminal (“-”) to the negative (“-”) pole of
the battery and the red clamp or eyelet terminal (“+“) to the vehicle chassis.
2) Charging of a battery not connected to a vehicle
a) Before connecting or disconnecting the battery leads, the power cord should be
removed from the mains.
b) Connect the red clamp or eyelet terminal (“+”) to the positive (“+”) pole of the
battery and the black clamp or eyelet terminal (“-“) to the negative (“-“) pole.
3) Connect charger to the mains.
4) Select charging mode
For Small batteries less than 12Ah
Press MODE button for 3 second to change charge from small batteries to normal
batteries
For normal batteries larger than 12Ah
By pressing MODE button several times combination of Cold charge and
BOOST charge options could be selected.
5) At step 4 battery is ready to use and step 7 it is fully charged.
Page 7
Bulk Charging Time
Battery
size
Mode
For About 80%
Charge
(Ah) (hours)
6
7
8 9 12
14
20 4
60
12
80
16
120
24
MODEL
ICEMAN 5.0 BLE
Input Voltage AC
220-240VAC, 50/60Hz
Output Voltage
Nominal: 12V
Input Current
0.65A RMS max
Minimum Battery
Voltage
2.0V
Output Power
60W
Efficiency
80%
Charging Voltage
14.4V, 14.7V, BOOST 16V
Charging Current
5A max
Back Current Drain*
5 mA
Ripple Voltage
< 2%
Ambient Temperature
-30°C to 50°C, Reduced output power at higher
temperature
Type of Charger
Eight step, fully automatic, switch mode with maintenance
charging
Type of Batteries
12V Lead-acid rechargeable batteries (WET, MF, VRLA,
AGM, GEL and Calcium)
Battery Capacity
1.2-120Ah (charging), up to 160 Ah for maintenance
Dimensions (LxWxH)
187x63x48mm
Housing Protection
IP65 (Dust and Splash proof) Outdoor
Weight
0.75kg
Noise Level
<50 dB (Tested from a distance of 50cm)
Batteries below 12 Ah should not be charged with 5A current
Technical Data
* = Back current drain is the amount of current drawn by the charger from battery, when the charger is connected
to the battery, without power cord connected. BENTON® ICEMAN 5.0 BLE has extremely low back current
drain.
Page 8

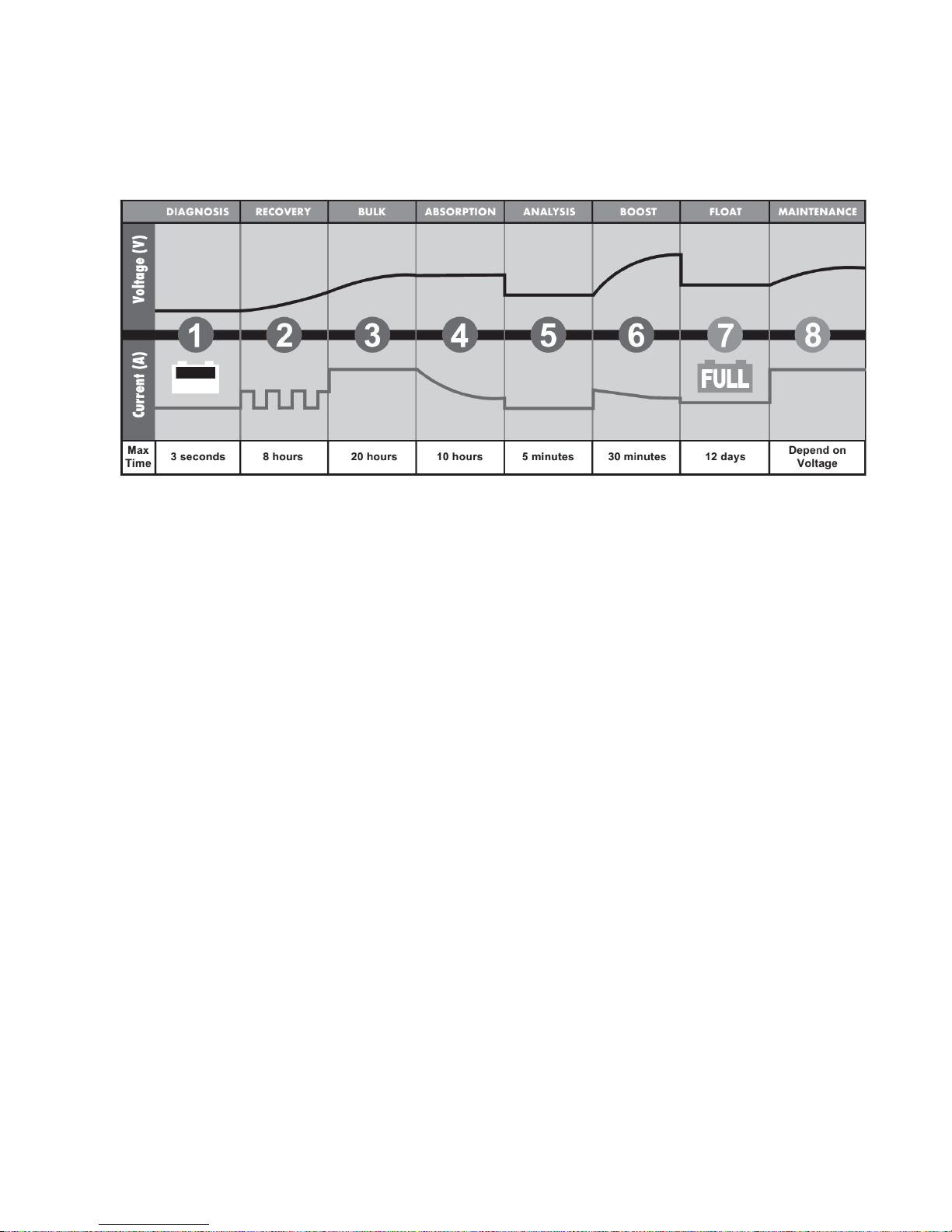

Charging Phases
BENTON® ICEMAN 5.0 BLE charger performs 8-step fully automatic charging cycle.
1) Diagnosis
The unique diagnostic function checks status of battery and ascertains if battery can
accept charging.
2) Recovery: A deeply discharged battery of over 2.0V can be recovered and charged
with pulse charging of small current.
3) Bulk : 80% of energy is returned in this phase with maximum charging current.
4) Absorption: With use of declining current charging up to almost 100% is achieved.
5) Analysis: Checks status of charge. If battery does not retain energy, it must be
replaced.
6) Boost: Recovers severely discharged batteries under high voltage charge.
Recommended to apply it at least once a year.
7) Float: Battery is fully charged and ready to use. The battery is maintained at maximum
level by applying low current charge.
8) Maintenance Charge: As charger continuously monitors the terminal voltage in
order to determine if a maintenance charging should be initiated to keep battery fully
charged.
Page 9
Trouble Shooting
Problem
Indication
Possible Cause
Solution
Charger
does not
work
Indicator
lights are not
on
a) Charger is not plugged in
b) Poor electrical
connection
c) AC outlet is dead
a) plug in
b) Check AC connections and make
sure mains is switched on
c) Check receptacle
Charger
has no
DC output
Flashing
a) Battery is connected with
reverse polarity poles
b) Poor contact from charger to battery
c) MODE button is not
pressed
d) Charging is interrupted in
Phase1
e) Charging is interrupted in
Phase 2
f) Charging is interrupted in
Phase 5
a) Check DC connection between
charger and battery and make sure
they are not short
circuited
b) Check if connectors are not greasy
or corroded and making a clean
connection and there are no loose
or damaged connection
c) Select MODE
d) Battery is extremely sulphated, it
must be replaced
e) Battery cannot accept charge, it must be
replaced
f) Battery cannot retain charge, it
must be replaced
No
charging
current
a) Battery may be
defective / excessive
current draw
b) Battery may be severely
sulfated
a) Dead battery, it should be
replaced
b) If battery cannot be de-sulfated, it
must be replaced
No
charging
Phases
Flashing
Charger is not connected to battery over
2 mins
Charger is in energy save mode
For ICEMAN 5.0 BLE (Bluetooth Description)
Battery Charging Manager Manual
1. Connect charger to MAINS. Make sure unit is powered on. Control
panel “Power LED” lights should be on at this stage.
2. Turn on Bluetooth on desired hand held device or laptop.
3. Open Benton “Battery Charging Manager” Apps and press “select”
language and set desired language option. There are 15 different
languages to choose from.
4. Select Benton Battery Charger Model connected to battery to be
charged. There are several model options.
5. Once Apps detects model being used to charge battery, it will show
process status
6. If there exists any problem with the connection of the charger to
the battery, (reverse polarity), or if the battery is beyond
recovery, (dead battery), an ERROR message will appear to indicate
situation.
7. After ERROR message has been dealt with and there is no issue
preventing the charging process, the monitor will show the active
process.
8. Choose “Motorcycle” or “Car Mode”.
9. You may also choose “Cold” mode for cold environment or “Boost” mode
for depleted battery.
10. You may opt to input ON/OFF command to stop charging or to
proceed with charging process.
Page 10
Declaration of Compliance
Tested and approved by TÜ V/GS and conforms to
EN 60335-1
EN 60335-2-29
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
EN 60950
EN 55022
EN 55011
EN 62233
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
BENTON PRODUCTS ARE PROTECTED BY: Patents, Designs, Trade Marks
Premier Merchandises Limited
Unit 2305-15, 23/F Metro Loft, 38 Kwai Hei Street,
Kwai Chung, N.T. Hong Kong
REV. A4
Loading...
