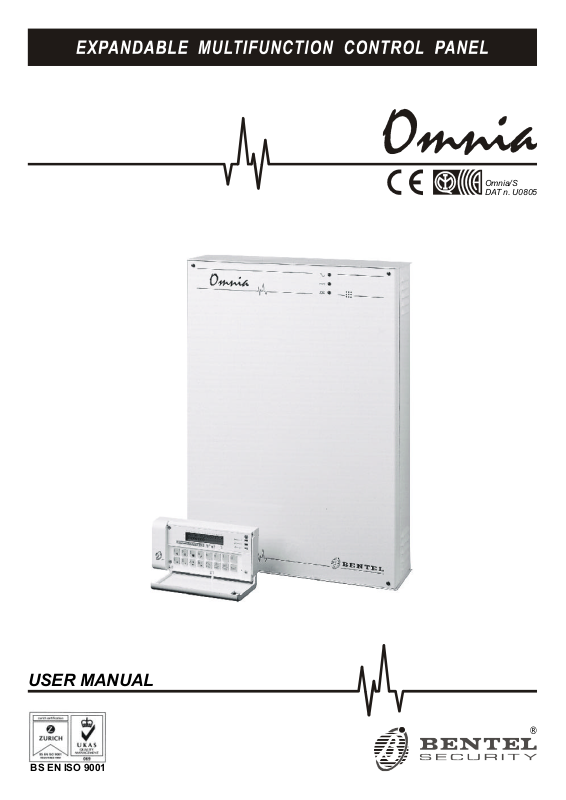

Bentel Security Omnia User Manual

Omnia/S

BS EN ISO 9001

DAT n. U0805

USER MANUAL

This Control panel has been developed and manufactured according to the highest standards of quality, reliability and performance.

Installation of this Control panel must be duly carried out in accordance with the local laws in force.

Proper functioning of the security system must be checked regularly (monthly). The test procedure depends on the system configuration, therefore, ask your installer for the test procedure instructions.

BENTEL SECURITY srl shall not be responsible for damage arising from improper installation or maintenance by unauthorized personnel.

This Control panel can be programmed through the OMNIA 3.0 software or higher. Where features and programming procedures apply to Omnia and Omnia/S the product will be referred

to as the Panel. Where features and programming procedures apply to one of the appliances in particular the product

name will be specified. Omnia and Omnia/S comply with: Low voltage: EN 60950:2000

Emission: EN 50081-1:1992 Immunity: EN 50130-4/1995 + A1:1998 Burglar control: CEI 79/2a Ed. 1993 Terminal Equipment (TE): TBR 21 -- 1:1998

Omnia and Omnia/S are tested and approved by the Italian "Ministero delle Comunicazioni" with certificates of approval:

Omnia-IT/97/TS/007 Omnia/S-IT/97/TS/006

thereby, are suitable for connection to the PSTN line. Omnia/S is IMQ listed and carries the IMQ Security Systems mark (DAT no. U0805). BENTEL SECURITY srl reserves the right to change the technical specifications of this product with-

out prior notice.

CONTENTS

KEYPAD OPTIONS 5

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Basic options . . . . . . . . . . . . . . . . . . . . . . . . . 6

Global arming request . . . . . . . . . . . . . . . . . . . . . 7

Global disarming request . . . . . . . . . . . . . . . . . . . 7

Type A or B arming request . . . . . . . . . . . . . . . . . . 7

Arming requests . . . . . . . . . . . . . . . . . . . . . . . . 7

View Trouble . . . . . . . . . . . . . . . . . . . . . . . . . . 8

User menu options . . . . . . . . . . . . . . . . . . . . . . 9

Alarm reset . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Stop Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

View buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Zone status . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Arm / Disarm partitions . . . . . . . . . . . . . . . . . . . . 11

Print buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Overtime request . . . . . . . . . . . . . . . . . . . . . . . 11

Enable / Disable Auto-arming [Auto-arm En/Dis.] . . . . . . . 11

Teleservice request . . . . . . . . . . . . . . . . . . . . . . 11

Enable / Disable Teleservice [En./Dis.Teleser.] . . . . . . . . 12

Enable / Disable Answering machine [En./Dis.Answer.] . . . 12

Output management . . . . . . . . . . . . . . . . . . . . . . 12

Code programming . . . . . . . . . . . . . . . . . . . . . . 13

Clear call queue . . . . . . . . . . . . . . . . . . . . . . . . 13

KEY OPTIONS 15

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Arming Mode Options . . . . . . . . . . . . . . . . . . . . . 15

Global arming . . . . . . . . . . . . . . . . . . . . . . . . . 16

Global disarming . . . . . . . . . . . . . . . . . . . . . . . . 16

Type A arming (Amber) . . . . . . . . . . . . . . . . . . . . 16

Type B arming (green) . . . . . . . . . . . . . . . . . . . . 16

Stop alarm . . . . . . . . . . . . . . . . . . . . . . . . . . 16

TELEPHONE OPTIONS 17

Dialler mode access . . . . . . . . . . . . . . . . . . . . . 17

Answer mode access . . . . . . . . . . . . . . . . . . . . . 17

User code PIN (Personal Identification Number) . . . . . 17

Function keys . . . . . . . . . . . . . . . . . . . . . . . . 18

Exit Request . . . . . . . . . . . . . . . . . . . . . . . . . 18

Stop Alarm / On hook . . . . . . . . . . . . . . . . . . . . . 18

Remote listen-in . . . . . . . . . . . . . . . . . . . . . . . . 18

Remote telephone access . . . . . . . . . . . . . . . . . . 18

Check input zone status (All) . . . . . . . . . . . . . . . . . 18

Check input zone status . . . . . . . . . . . . . . . . . . . 18

Disable Output . . . . . . . . . . . . . . . . . . . . . . . . 18

Enable Output . . . . . . . . . . . . . . . . . . . . . . . . . 18

Arm Partition (Area) . . . . . . . . . . . . . . . . . . . . . . 19

Global arming . . . . . . . . . . . . . . . . . . . . . . . . . 19

Disarm Partition (Area) . . . . . . . . . . . . . . . . . . . . 19

Global disarming . . . . . . . . . . . . . . . . . . . . . . . 19

Alarm reset . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Deselect Active status . . . . . . . . . . . . . . . . . . . . 19

MEMO Chart . . . . . . . . . . . . . . . . . . . . . . . . . 20

USER NOTES 21

Quick Guide . . . . . . . . . . . . . . . . . . . . . . . . . 23

1 3 5 72 4 6 8

1 2

1 3 5 72 4 6 8

3 4 5 6 7 8

ESC

0 A B

EXC

PRGONRES

OFF

abc3def

ghi

jkl

tuv

OFFON

A E S

B C

Figure 1 OmniaTAST-R (a) and MIA-S (b)

4 Expandable multifunction control panel Omnia

CONTROLLING THE SYSTEM VIA KEYPAD

All basic security system options, and the Advanced options provided by this Panel can be programmed and controlled from the keypads.

This Control panel supports up to 8 OmniaTAST-R keypads (figure 1a) or MIA-S keypads (figura 1b). The instructions in this manual refer to OmniaTAST-R and MIA-S keypads (if not otherwise stated).

When the instructions are common to both keypads, only the OmniaTAST-R keypad will be shown in the figures. The following table shows the differences between the OmniaTAST-R keypad, and the MIA-S keypad.

OmniaTAST-R

MIA-S

MIA-S (Superkeys)

1 2

abc

o o o

3 4 5 6

def

MIA-S (scroll keys)

Ø OmniaTAST-Rkeys , and will assume Superkey status (provide special functions), when they are

1 2

pressed for 3 seconds (refer to Superkeys). The the same functions are provided respectively by keys ,

and on the MIA-S keypad.

wx yz

Ø MIA-S keys and scroll up; keys and scroll down; keys and scroll across.

Brightness, Contrast and Volume (MIA-S only)

It is possible to control the brightness, contrast and volume of the MIA-S keypad. The Contrast, Brightness and Volume can be adjusted during standby status only.

Brightness

Ø press to increase brightness; Ø press to decrease brightness.

Contrast

Ø press to increase the contrast; Ø press to decrease the contrast;

A B

Keys and control the brightness level of the display:

Keys and control the contrast level of the display:

7 8

ghi

jkl

ghi

jkl

rs 8

9 0 A#B

tuv

wx yz

or or

A B

ESC EXC

E S C

OFF

PRGONRES

ON#OFF

A B

Volume The buzzer can operate at either high or low volume, or can be silenced (mute).

E S C

The key controls the volume level of the buzzer:

E S

Ø press the until the required volume is obtained.

The three volume levels are identified by three different types of beep:

-- short beep of low intensity = Mute

-- medium beep of medium intensity\ = Low Volume

-- long beep of high intensity = Low Volume

CONTROLLING THE SYSTEM VIA KEYPAD 5

LEDs

The Control panel status will be shown on the display, and will be indicated by the three LEDs (ICONS) on the keypad.

LEDs The LEDs will function as follows:

ICON MEANING

OFF: all keypad partitions disarmed ON: at least one keypad partition armed

OFF: Standby status (no alarm)

ON: alarm on one or more zones Slow flashing: tamper on one or more zones or on the Panel Fast flashing: alarm or tamper on one or more zones or on the Panel

OFF: No trouble ON: Trouble Slow flashing: at least one zone in Test status Fast flashing: at least one zone in Test status, and one in Trouble status

Not available with this Control panel

Each Keypad can signal Zone alarm or Tamper on the zones of its partitions.

Open Panel, Unbalanced Tamper line, Tamper on BPI devices and False Key/Card at Reader will generate Tam-

per warnings on the LEDs.

Display During standby status the upper row will show the date and time as per programmed format, and the lower row will

show the system status, for example: 18:22 2001/12/23

AADDDD-- x

Automatic

viewing of zones

in Alarm

Characters and

meanings

Icons and

meanings

If a Zone alarm or Tamper event has been logged ( LED ON or flashing), the upper row of the display will show the zone descriptions in sequential order.

The lower row will provide information on system status.

CHARACTER MEANING

The lower row will provide Trouble warnings. The icons below the display will indicate the type of trouble:

----X directly above an icon means the corresponding status is active.

ICON MEANING

The corresponding partition is disarmed. If the D is flashing, a partition alarm has been logged.

The corresponding partition is armed. If the A is flashing, a partition alarm has been logged. The corresponding partition is not a keypad partition.

Open Panel Tamper line violation BPI device tamper False Key/Card at Reader BPI bus device Trouble

The status of the Teleservice and Answer machine options will be shown to the right of the trouble warning:

----Q directly above an icon means the corresponding option is enabled.

6 Expandable multifunction control panel Omnia

Icons and meanings

Basic options

ICON MEANING

Teleservice enabled Answering machine option enabled

The last icon indicates the telephone line status.

above the icon means the Panel has engaged the telephone line.

ICON MEANING

Telephone line engaged

Five basic options are available from standby status. Enter a User code PIN (4 to 6 digits) then press the relevant key.

KEY SEQUENCE OPTION

PRG

OFF

RES

Global arming Global disarming Type A arming Type B arming User menu access View Trouble

All options----except View Trouble----require a User code PIN. The selected option will affect the partitions of the User code PIN and keypad in use.

Request Denied (Empty request) will be signalled by an error beep, and the following message:

ATTENTION! NOT ENAB.FUNCT.

Empty requests may be due to either the User code or keypad. For example: the User code is enabled for Global arming on a specific group of partitions that are not keypad partitions.

n Global arming request <PIN> +

This request will arm all the partitions of the User code and keypad in use.

n Global disarming request <PIN> +

This request will disarm all the partitions of the User code and keypad in use.

n Type A or B arming request <PIN> + or

This request will arm or disarm specific partitions----as per programming. Each User code can be programmed with Type A and Type B arming configurations. These configurations will de-

termine the User code partitions that will arm or disarm. For example: a Type A configuration may be:

Partitions (Areas) 1, 4, 5 to arm Partitions (Areas) 2, 3, 6, 7, 8 to disarm

When a Type A and Type B arming request is made, the Panel will elaborate the programmed configuration and arm or disarm the partitions of the User code and keypad in use.

Each keypad can operate its assigned only (keypad partitions).

PRG

OFF

RES

n Arming requests

Before confirming an arming request, the Panel will check for:

Ø Open zones Ø Bypassed zones Ø Trouble

If one of these conditions is found the Panel will not arm, and will await further instructions.

CONTROLLING THE SYSTEM VIA KEYPAD 7

Open zone check If zones are currently open (alarm status) the following message will be shown:

Open zones ↓↵ Arm ?

The user will have three options:

ESC EXC

Exit: the Panel will not arm Continue: the Panel will arm

View: a list of the zones in alarm status will be shown.

The upper row will show the zone label and the lower row the alarm or bypassed status. Use the lower row to bypass / unbypass the zones.

Refer Zone status for details on the View and Bypass options.

Auto-bypassable

zones

Bypassed zone

If an Auto-bypassable zone is currently open (alarm status) it will be bypassed automatically when the system arms, and unbypassed when the system disarms.

If a zone is currently bypassed the following message will be shown:

check

Bypassed zone ↓↵ Arm ?

The user will have three options:

ESC EXC

Exit: the Panel will not arm Continue: the Panel will arm

If the arming request is confirmed some partitions will have bypassed zones.

View: a list of the zones bypassed status will be shown.

Trouble check If trouble is detected the following message will be shown:

Warn.-Trouble ↵ Arm ?

The user will have two options:

ESC EXC

Exit: the Panel will not arm Continue: the Panel will arm

Refer to View Trouble for viewing instructions.

Memory reset The memory will reset when the partitions arm.

n View Trouble

The amber LED will go ON to signal Panel trouble. From standby status:

Press to view the Trouble (Warning) list.

9 0

Use or to scroll the list.

ESC EXC

Press to exit. The Trouble Warnings are as follows.

Ø Warning fuse +F : sensor power fuse has blown Ø Warning fuse +B : board auxiliary power fuse has blown Ø Warn. fuse BPI1 : BPI1 fuse has blown Ø Warn. fuse BPI2 : BPI2 fuse has blown Ø No mains : Mains failure---- the Panel will be powered by the battery Ø Low battery : battery needs recharging Ø Warn.pow.troub. : battery trouble or the battery protection fuse has blown Ø Warn.pow.station: remote power station trouble (mains failure, fuses, battery down or not working properly)

8 Expandable multifunction control panel Omnia

User menu options <PIN> +

Enter a valid User code PIN then press to access the USER MENU. A Welcome message will be shown, and it will be possible to select the various User menu options.

The Welcome message can be disabled by the installer.

9 0

Use or to scroll the Options. Press to select.

USER MENU options:

r Alarm reset r Stop Alarm r View buffer r Zones status r Arm / Disarm partitions r Print buffer r Overtime request r Auto-arm En/Dis. (Enable / Disable Auto-arming) r Teleserv.request r En./Dis.Teleser. (Enable / Disable Teleservice) r En./Dis.Answer. (Enable / Disable Answering machine) r Outs management r Codes programm. r Clear call queue

The default User code is 0001: only this Code is Available / Active

The Installer can program the 31 User codes to operate specific partitions, and options. The User menu will show

the User code options only. The selected options will affect the partitions of the User code and keypad in use.

Request Denied will be signalled by an error beep, and an error message (refer to Basic Options).

n Alarm reset

Select this option to delete the zone and partition alarm memories, and force alarm signallers (connected to the alarm outputs) into standby status. Before stepping back to the USER MENU the following message will be shown:

Alarm reset D O N E!

Use the Stop Alarm option to stop the signallers ----in the event of persistent Alarm signalling after reset.

The causes of persistent alarms (e.g. faulty sensors) must be traced and dealt with immediately.

n Stop Alarm

Select this option to force the alarm signallers (connected to the alarm outputs) into standby status. The following message will be shown:

ATTENTION! Stop Alarm

No new alarms can be generated during this phase.

Press any key to exit.

CONTROLLING THE SYSTEM VIA KEYPAD 9

n View buffer

Select this option to view the event buffer.

Use and to scroll the buffer.

The events will be shown on the second row of the display, as follows:

Ø Event type (e.g. Zone arming request) Ø Event ID (e.g. zone list) Ø Agent (e.g. keypad requesting the action) Ø Agent ID (e.g. User requesting the action) Ø Hour, minute, year, month, day

Some events do not have all five parameters.

9 0

Use and . to scroll the event list. The upper row will show the event number and category, and the lower row will show the event description, as per

the following table.

CATEGORY DESCRIPTION

Type Event type Zone Zone label

Dev. Device label

Code User code entered D.Key Key used Agent Agent

Key Key used

Time Instant

Partition (Area) Partition (Area) label

Id.T. Type ID

n Zone status

Select this option to bypass / unbypass the zones of the keypad partitions, or to view their status. The status of the zones of the keypad partitions will be shown.

0 9

Use or to scroll the zone list. Use or to unbypass / bypass the selected zone.

PRGONRES

OFF

If the zone is double-balanced----the status may be:

Ø Stdby (Standby) Ø Alarm Ø Short Ø Tamper

ESC EXC

Press to step back to the USER MENU.

Press to view open or bypassed status zones of armed keypad partitions.

10 Expandable multifunction control panel Omnia

n Arm / Disarm partitions

Select this option to arm / disarm partitions.

The current status of the zone will be shown for example:

North Perimeter Disarmed ↑↓

9 0

Use or to scroll the enabled partitions. Press or to arm /disarm the selected partition. Press to confirm the current status.

PRGONRES ESC

EXC

OFF

Press to arm the Panel as per programming.

n Print buffer

This option is provided by the OmniaTIMER (optional Scheduler and Printer interface board). Select this option to print the events in the buffer. A beep and the following message will confirm request Done:

Print buffer D O N E!

Printout requires several minutes. Empty requests (OmniaTIMER not installed or printer disconnected) will be ignored.

n Overtime request

This option is provided by the OmniaTIMER (optional Scheduler and Printer interface board). The Scheduler can be programmed to auto-arm the Panel at specific times.

Select this option to delay the scheduled time of Auto-arming. A beep and the following message will confirm request Done:

Overtime request D O N E!

Each Overtime request will delay the scheduled arming time. The maximum number of requests, and the arming schedule must be programmed by the Installer.

If the OmniaTIMER is not installed the request will be ignored.

n Enable / Disable Auto-arming [Auto-arm En/Dis.]

This option is provided by the OmniaTIMER (optional Scheduler and Printer interface board). Select this option to Enable / Disable Auto-arming / disarming of the system. A beep and the following message will confirm request Done:

Auto-arming Disabled

OFF

PRGONRES

Use or to enable or disable the Auto-arming option. If the OmniaTIMER is not installed the request will be ignored.

n Teleservice request

Select this option to request Teleservice (Installer intervention via telephone). A beep and the following message will confirm request Done:

Teleserv.request D O N E!

Teleservice requests will stop ongoing telephone calls (Teleservice requests from the user have absolute priority), and generate a Teleservice call to the installer.

The installer must be equipped and ready for Teleservice, otherwise, the request will be ignored (refer to the fol-

lowing chapter for further information on Teleservice).

CONTROLLING THE SYSTEM VIA KEYPAD 11

n Enable / Disable Teleservice [En./Dis.Teleser.]

Select this option to enable / disable the Panel for incoming Teleservice calls. A beep and the following message will confirm request Done:

Teleservice Disabled

OFF

PRGONRES

Use or to Enable / Disable Teleservice.

ESC EXC

Press to exit. When the Panel is connected to the Installer PC (via telephone line), and is enabled for Teleservice, the installer

can:

Ø View the Panel status: ----Partition (Area) status; Alarm memory; Zone bypass; Zone status; Event buffer; Periph-

eral device status.

Ø Change the Panel status: ----Partition (Area) status; Delete the alarm memory; Bypass zones (User code PIN re-

quired).

Ø Change the Panel parameters: ----all partitions must be disarmed.

The Teleservice option allows fast Installer intervention for trouble that does not require new wiring or pieces. The installer can check out any anomalies detected by the Panel (blown fuses, low battery, etc.) and work on the system via PC.

----Q directly above the icon means Teleservice is enabled.

n Enable / Disable Answering machine [En./Dis.Answer.]

This option is provided by the OmniaVox board (optional). Select this option from the USER MENU to enable / disable the Answering machine----incoming calls will be an-

swered by a Voice message. A beep and the following message will confirm request Done:

Answering mach. Disabled

OFF

PRGONRES

Press or to Enable / Disable the answering machine.

ESC EXC

Press to exit.

----Q above the icon means the Answer machine option is enabled, therefore, all the telephone options are available (refer to TELEPHONE OPTIONS).

n Output management

Select this option to allow manual status control of one or more outputs. Manual control via keypad will allow the User to turn duly wired household appliances ON and OFF (e.g. garden sprinklers, outdoor lighting, etc.).

The output list will be shown fist, followed by the list of devices.

Garden lights ON-Act.OFF-Stdby

0 9

Use or to scroll the list.

OFF

PRGONRES

Press or to Activate / Deactivate the selected output. Only outputs programmed as Reserved for manual control can be used for this purpose.

A similar option is available via telephone (refer to TELEPHONE OPTIONS).

12 Expandable multifunction control panel Omnia

n Code programming

This option is available to Master codes only. The Code hierarchy (Masters and Slaves) must be programmed by the Installer. Master codes can select / deselect the Active status of their Slave codes, and change their PINs.

Active User codes An Active User code can operate its enabled partitions and options only.

If the Active status is deselected the User code will be unable to operate the system. The Active status of a Master User code cannot be deselected, therefore, this type of request will be signalled by

an error beep.

PIN A 4 to 6 digit Personal Identification Number (programmed by a Master code User) will identify each User code,

and its enabled options.

How to program User codes:

Step 1 Enter the Master code then select Code programm. option.

A list of the relevant Slave codes will be shown, as below: John Doe

Active ↑↓

0 9

Use or to scroll the list.

Step 2

Press or to select / deselect Active status.

PRGONRES

OFF

How to change the User code PIN:

Step 1

Press to view the User PIN list.

Step 2 Enter the new PIN----Q will replace X as the new digits are entered.

John Doe PIN **XXXX

Step 3

Press to save, or to abandon changes and step back to the Code programming phase.

n Clear call queue

Select this option to stop all outgoing event calls, and delete the call queue. A beep and the following message will confirm request Done:

Clear call queue D O N E!

The ongoing call will be stopped, and the call queue will be cleared. Press to exit.

ESC EXC

CONTROLLING THE SYSTEM VIA KEYPAD 13

21ON3 4

Figure 2 Key Readers: a) PROXI Proximity Reader; b) PROXI-CARD; c) ECLIPSE Flush mounting,Contactless Reader; d)

SAT Contactless Key; e) BP13 Flush mounting Reader with Contacts; f) BP13W Wall mounting Reader with Con- tacts; DKC key with contacts.

14 Expandable multifunction control panel Omnia

CONTROLLING THE SYSTEM VIA KEYS OR CARDS

The ECLIPSE Key and PROXI Proximity Card systems simplify user control, replacing user PIN code operation with a high security proximity Key or Card whilst maintaining user flexibility for system operation.

Only the Installer can program the Keys/Cards and Readers to control the operations described in this

section.

Readers ECLIPSE Key Readers and PROXI Card Readers are equipped with 3 LEDs (Red, Green and Amber) for status

signalling.

The Readers can be programmed to control:

----specific partitions (Reader partitions)

----type A arming mode (Amber LED)

----type B arming mode the (Green LED)

Keys/Cards The Omnia system supports 250 Keys/Cards (see Figure 2), and an unlimited number of clones keys/cards

(clones of key/card 250). Each key/card can be programmed with specific attributes, and can be enabled on selected partitions, as per Customer requirements. During the programming phase, the Keys/Cards will be programmed with the system access code (a random code selected from 4 billion codes), and will be assigned a progressive Identifier number (1 through 250). Once the Identifier number has been established, it will be possible to assign a 16 character label (name) to the Key/Card.

How to use DKC

Keys with BP13

and BP13W

Ø Press the Key button for a couple of seconds. Ø Extract the key when the LEDs indicate the required arming mode:

How to use the

Eclipse/Sat

system

Ø Push the SAT Key lightly into the Eclipse Reader. Ø Extract the key when the LEDs indicate the required arming mode:

How to use the

PROXI CARD

system

Ø Hold the PROXI Card in the vicinity of the sensitive field of the PROXI Reader (see dashed circle a) in Figure 2). Ø Move the PROXI Card away from the sensitive field when the LEDs indicate the required arming mode:

Multiple

Systems

When a DKC Key is inserted into a BP13 or BP13W Reader, all the Reader LEDs will switch OFF.

RED = Global Arming; AMBER = Type A Arming; GREEN = Type B Arming.

Do not press the button for more than 4 seconds, as the system will read this an ’Abandoned Request’ (the LEDs will blink, and the system status will remain unchanged).

When a SAT Key is inserted into an ECLIPSE Reader, all the Reader LEDs will switch OFF.

RED = Global Arming; AMBER = Type A Arming; GREEN = Type B Arming. When a SAT Key is inserted into an ECLIPSE Reader, all the Reader LEDs will switch OFF.

RED = Global Arming; AMBER = Type A Arming; GREEN = Type B Arming. The Keys/Cards can be programmed to control several Omnia systems, with different access levels (enabled

Readers, Partitions, etc.) on each system. This in no way complicates use, as the operating procedures will be exactly the same.

n Operating on the system

The operations described in this section will effect only the enabled Partitions (Areas) of the Key/Card and Reader in use.

Only the Installer can enable the Keys/Cards and Readers on the Partitions (Areas).

The Keys/Cards can control the following operations:

Ø Global arming: (Red LED ON) ALL the Key/Card and Reader partitions will arm. Ø Global disarming: (all LEDs OFF) ALL the Key/Card and Reader partitions will disarm. Ø Type A and B arming: (Amber or Green LED ON) ALL the Key/Card and Reader partitions will arm or disarm (as

configured during programming).

Ø Stop alarm: All the signalling devices (connected to the alarm outputs) of the Key/Card and Reader partitions will

reset to standby status.

CONTROLLING THE SYSTEM VIA KEYS OR CARDS 15

No Key/Card at

Reader

When No Key/Card is present at a Reader, the LEDs will indicate the system status, as follows:

Red LED ON----at least one of the Reader partitions is armed Red LED OFF----all the Reader partitions are disarmed Amber LED ON----the system is armed in Type A mode

Green LED ON----the system is armed in Type B mode

The LEDs will indicate the status of the Reader partitions only. The Reader LEDs can be programmed to show Panel status at all times, or only in response to a valid Key (LEDs OFF when the Reader is empty).

If the configuration of the armed partitions does not match either Type A or B arming mode (for example a Reader partition has been armed from a keypad) the Amber and Green LED will not switch ON.

Key/Card at

Reader

When a Key/Card is present at a Reader, the LEDs will indicate the system status, as follows:

The Control panel will perform a ’Zones Check’ (at 2 second intervals) on the Unbypassed and Instant zones----of the partitions to be armed. If violated zones are found (door or window open), the LED (assigned to the selected Arming mode) will flash to signal that arming the partitions will generate an alarm.

If violated zones, found during a ’Zones Check’, are programmed as Auto-bypassable, they will be bypassed, and the an alarm will not be generated. Zones bypassed in this way will be unbypassed when their partitions are next disarmed.

False Keys/Cards at Readers will be signalled by fast blinking on all three LEDs, and will generate False Key/Card events that in turn will activate the programmed actions.

n Global arming

This operation will arm all the Partitions (Areas) controlled by the Key/Card and Reader in use. All 3 LEDs must be OFF.

n Global disarming

This operation will disarm all the Partitions (Areas) controlled by the Key/Card and Reader in use. The Red LED must be ON.

n Type A arming (Amber)

This operation will arm specific Partitions (Areas) and disarm others, as per the programmed configuration. The Amber LED must be ON.

n Type B arming (Green)

This operation will arm specific Partitions (Areas) and disarm others, as per the programmed configuration. The Green LED must be ON.

n Stop Alarm

This operation will interrupt all the alarms generated by the Partitions (Areas) controlled by the Key/Card and Reader in use.

To Stop Alarms: insert a valid Key into a Reader, or hold a valid Key/Card in the vicinity of the sensitive field of the PROXI Reader. If the Enable Panel-Alarm Stop with valid Electronic Key option is active, the Control panel alarms will also be interrupted.

If the Key is programmed to stop calls----the ongoing call will be interrupted and the call queue will be

cleared.

16 Expandable multifunction control panel Omnia

TELEPHONE OPTIONS

The optional OmniaVOX board will allow the Panel to manage incoming and outgoing telephone calls (DTMF only).

7 User codes are available for Panel Control via telephone. The installer can enable / disable User code options and partitions----as per customer requirements.

There are two ways of accessing Panel Control via telephone:

---- Dialler Mode Access (after receiving a Dialler call);

---- Answer mode access (after calling the Panel).

n Dialler mode access

The User can operate the Panel during a Dialler call, as follows.

#Step 1 Enter the User code PIN then press # before the message ends, otherwise, the Panel will end the call.

Step 2 Press the number key of the required option (refer to Function keys).

If no key is pressed within the programmed timeout (factory default 30 seconds) the Panel will end the call.

Use the # key to cancel mistakes.

n Answer mode access

The Answering machine Voice message must be recorded by the installer. The Answering machine option must be enabled.

The Answering machine option can be enabled / disabled from the keypad (refer to Enable / Disable Answering

machine). Incoming calls will be answered as follows.

Teleservice

enabled

If the Teleservice option is enabled (refer to the Enable / Disable Teleservice), the Panel will:

----answer with an audible signal (high tone)

----wait 4 seconds then play the Voice message

#Step 1 Enter the User code PIN then press # before the message ends, otherwise, the Panel will end the communica-

tion.

Step 2 Press the number key of the required option (refer to Function keys).

If no key is pressed within the programmed timeout (factory default 30 seconds) the Panel will end the call.

Use the # key to Undo.

Teleservice

disabled

If the Teleservice option is disabled (refer to Enable / Disable Teleservice), the Panel will:

----answer with an audible signal (low tone)

----wait 4 seconds then play the Voice message Do not enter the User code PIN during the 4 second pause.

#Step 1 Enter the User code PIN then press # before the message ends, otherwise, the Panel will end the communica-

tion.

Step 2 Press the number key of the required option (refer to Function keys).

If no key is pressed within the programmed timeout (factory default 30 seconds) the Panel will end the call.

Use the # key to Undo.

User code PIN (Personal Identification Number)

Master codes can select / deselect the Active status of their Slave codes, and change their PINs. The User code PIN allows access to Panel Control via telephone.

If an invalid User code PIN is entered, or the requested option is not enabled for the User code in question the

Panel will emit an error beep.

TELEPHONE OPTIONS 17

Function keys

During Dialler or Answer mode access the keys on the telephone number pad will operate as function keys, as follows.

n Exit Request #

Press #to exit the ongoing request.

The Panel will step back to Enter data status and emit a ready beep.

n Stop Alarm / On hook *

Dialler mode access----press * to stop the alarm, end the Dialler call, and clear the Dialler call queue. Answer mode access----press * to stop the alarm and end the call to the Panel.

n Remote listen-in 1

Press 1 to start the remote listen-in phase.

The User will be able to listen to sounds in the protected environment.

Press # to exit this phase.

n Remote telephone access 2

Press 2 to start Remote telephone access (2-Way communication with persons in the protected environment). Press # to exit this phase.

This option can be used for Teleassistance. The elderly will find this option particularly useful, as they can use a

remote-control device (pendant) to send emergency messages----via the Panel----to the Central station. The Central station will be able to identify the caller, and communicate with the person via the Panel when the emergency message ends.

n Check input zone status (All) 300

Press 300 to check the status of all the input zones with Voice messages.

The Panel will play the active messages then step back to Enter data status and emit a ready beep. A Standby status message and an Alarm status message can be assigned to each Input.

n Check input zone status 3??

Press 3 then press the two keys that form the identifier number of the required Input zone (refer to the MEMO

Chart).

The following situations may occur:

Ø Voice messages assigned to the input:

----the Panel will play the active message then step back to the Enter data status and emit a ready beep.

Ø No Voice messages assigned to the input:

In Standby status----the Panel will emit a beep (high tone), then step back to the Enter data status and emit a ready beep. In Alarm status----the Panel will emit 2 beeps (high tone), then step back to the Enter data status and emit a ready beep.

n Disable Output 4??

Press 4 then press the two keys that form the identifier number of the Output to be disabled (refer to the MEMO

Chart).

The panel will disable the Output then step back to Enter data status and emit a ready beep. This option applies to outputs that are Reserved for manual control. If the User code is not enabled for this option,

or a non-reserved output is requested the Panel will emit an error beep.

n Enable Output 5??

Press 5 then press the two keys that form the identifier number of the Output to be disabled (refer to the MEMO

Chart).

The panel will enable the Output then step back to Enter data status and emit a ready beep. This option applies to outputs that are Reserved for manual control. If the User code is not enabled for this option,

or a non-reserved output is requested the Panel will emit an error beep.

18 Expandable multifunction control panel Omnia

n Arm Partition (Area) 6?

Press 6 then press the Partition (Area) identifier number key (refer to the MEMO Chart).

The panel will arm the Partition (Area) then step back to Enter data status and emit a ready beep.

n Global arming 60

Press 60 to arm all the partitions of the User code in question.

The panel will arm the enabled partitions only then step back to Enter data status and emit a ready beep.

n Disarm Partition (Area) 7?

Press 7 then press the partition identifier number key (refer to the MEMO Chart).

The panel will disarm the Partition (Area) then step back to Enter data status and emit a ready beep.

n Global disarming 70

Press 70 to disarm all the partitions of the User code in question.

The Panel will disarm the enabled partitions only then step back to Enter data status and emit a ready beep.

n Alarm reset 8

Press 8 to reset the alarm memory of the partitions controlled by the entered User code. For the outcome of this

request refer to User menu options. The Panel will reset the Partition (Area) then step back to Enter data status and emit a ready beep.

n Deselect Active status 9

Press 9 to deselect the Active status of the entered User code.

The User code will be unable to operate the system until it is reinstated as Active (refer to Code programming). This security feature allows the User to disable the User code PIN that accessed the system via telephone. In this

way, the system will be protected against illegal use of the User code PIN, in the event interception of the touch tones.

If 9 is pressed by mistake ----press 9 again to Undo before the call ends.

TELEPHONE OPTIONS 19

MEMO Chart

The Installer must fill in the Telephone Options MEMO Chart (see below) with the descriptions of the inputs, outputs and partitions, etc. and provide each User with a copy.

Cut along the dotted line and fold the chart in two (parts A and B back to back) then seal it in a plastic cover.

20 Expandable multifunction control panel Omnia

USER NOTES

USER NOTES 21

22 Expandable multifunction control panel Omnia

Quick Guide

Use the keys shown in the following table to operate the basic options.

Global arming:

Type A arming:

Type B arming:

Global disarming:

Alarm reset:

Stop Alarm:

Clear call queue:

User code Ý User code Ý User code Ý User code Ý

PRG

OFF

RES

User code Ý Ý User code Ý Ý Ý User code Ý Ý Ý

FOR SERVICE CONTACT:

Installer:

Telephone:

Address:

Contact person:

USER NOTES 23

BENTEL SECURITY s.r.l. Via Florida, 3 63013 GROTTAMMARE (AP) - ITALY Tel.: +39 0735 735200 Fax: +39 0735 634355 e-mail: bentel@bentelsecurity.com http://www.bentelsecurity.com ISTOMNIAUSO-UK 4.0 090702 V4.2

Bentel Security Omnia User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
