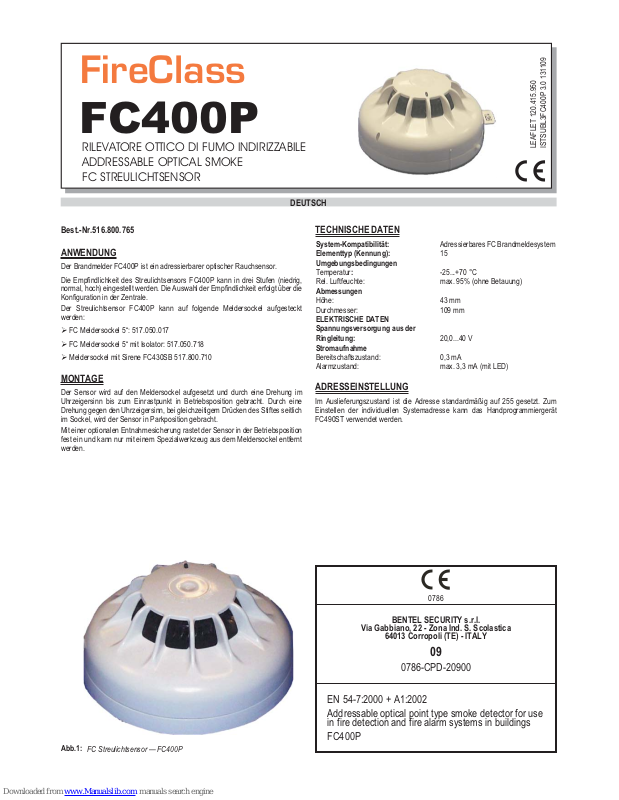

FC400P
RILEVATORE OTTICO DI FUMO INDIRIZZABILE
ADDRESSABLE OPTICAL SMOKE
FC STREULICHTSENSOR
ISTSUBL3FC400P 3.0 131109
FireClass
LEAFLET 120.415.950
DEUTSCH
Best.-Nr.516.800.765
ANWENDUNG
Der Bran dmel der FC400P ist ein adres sier ba rer op ti scher Ra uc hsen sor.
Die Empfin dlic hke it des Stre u lichtsen sors FC400P kann in drei Stu fen (nie drig,
nor mal, hoch) ein ge stellt wer den. Die Au swahl der Empfin dlic hke it er folgt über die
Kon fi gu ra tion in der Zentrale.
Der Streulichtsensor FC400P kann auf folgende Meldersockel aufgesteckt
werden:
Ø FC Meldersockel 5“: 517.050.017
Ø FC Meldersockel 5“ mit Iso la tor: 517.050.718
Ø Meldersockel mit Sirene FC430SB 517.800.710
MONTAGE
Der Sen sor wird auf den Meldersockel aufgesetzt und durch eine Drehung im
Uhrzeigersinn bis zum Einrastpunkt in Betriebsposition gebracht. Durch eine
Drehung gegen den Uhrzeigersinn, bei gleichzeitigem Drücken des Stiftes seitlich
im Sockel, wird der Sen sor in Parkposition gebracht.
Mit einer optionalen Entnahmesicherung rastet der Sen sor in der Betriebsposition
fest ein und kann nur mit einem Spezialwerkzeug aus dem Meldersockel entfernt
werden.
TECHNISCHE DATEN
Sys tem-Kompatibilität: Adressierbares FC Brandmeldesystem
Elementtyp (Kennung): 15
Umgebungsbedingungen
Temperatur: -25...+70 °C
Rel. Luftfeuchte: max. 95% (ohne Betauung)
Abmessungen
Höhe: 43 mm
Durchmesser: 109 mm
ELEKTRISCHE DATEN
Spannungsversorgung aus der
Ringleitung: 20,0...40 V
Stromaufnahme
Bereitschaftszustand: 0,3 mA
Alarmzustand: max. 3,3 mA (mit LED)
ADRESSEINSTELLUNG
Im Auslieferungszustand ist die Adresse standardmäßig auf 255 gesetzt. Zum
Einstellen der individuellen Systemadresse kann das Handprogrammiergerät
FC490ST verwendet werden.
0786
BENTEL SECURITY s.r.l.
Via Gab bia no, 22 - Zona Ind. S. Sco la sti ca
64013 Cor ro po li (TE) - ITALY
09
0786-CPD-20900
EN 54-7:2000 + A1:2002
Addressable optical point type smoke detector for use
in fire detection and fire alarm systems in buildings
FC400P
FC Stre u lichtsen sor — FC400P
Abb.1:
the re ceiver. For a given type of smoke, the light reach ing the photodetector is pro por tional to the smoke den sity.
2.2 FEATURES OF MEASURING CHAMBER
The FC400P uses ver ti cal chev rons to ex clude am bi ent light. Smoke in ci dent on
the de tec tor is chan nelled into the de tec tor by the outer cover fins (see Fig. 2) and
passes through the ver ti cal chev rons.The smoke is de flected into the op ti cal
cham ber and through the sam pling vol ume be fore pass ing out the other side of the
de tec tor.The emit ter (see Fig. 1) is a GaAlAs solid state type op er at ing in the near
in fra-red (880nm peak), while the de tec tor is a matched sil i con photodiode.These
de vices to gether with their as so ci ated lenses are held in place by the cham ber
mould ings.The de sign of the op ti cal sys tem is such that the pres ence of small in sects such as thrips should not cause false alarms.
2.3 CIRCUIT DESCRIPTIONS
2.3.1 OPTICAL
The emit ter is only pulsed ev ery time the de tec tor is polled from the con trol ler, this
is to re duce qui es cent cur rent.The op ti cal pulse sig nal as re ceived by the
photodetector (a sig nal pro por tional to the scat ter within the op ti cal cham ber) is fed
to the ‘Op ti cal ASIC’.The op ti cal ASIC am pli fies the an a logue sig nal which is fed to
an an a logue in put on the com mon cir cuit.
2.3.2 COMMON CIRCUIT
Re fer to Fig. 3
Com mu ni ca tions be tween the con trol ler and de tec tor uses the Fre quency Shift
Key ing (FSK) method.The ‘Dis crim i na tion Cir cuit’ fil ters the FSK sig nal from the
+ve line volt age and con verts it to a dig i tal square wave in put for the ‘Com mu ni ca tions ASIC’. The ‘Com mu ni ca tions ASIC’ de codes the sig nal and when its own ad dress is de coded, the an a logue in puts re ceived from the op ti cal and heat sens ing
el e ments are con verted to cor re spond ing dig i tal val ues.These dig i tal val ues are
then passed to the ‘Tx Driver Cir cuit/Cur rent Sink’ which ap plies them to the +ve
line for trans mis sion to the con trol ler. The Com mon Cir cuit is also used to:
Ø Con trol Sounder and Re lay bases via the ‘Func tional Base In ter face Cir cuit’
from con trol ler com mands.
Ø Con trol the op er a tion of the Re mote LED via the ‘Re mote LED Cir cuit’ from con -
trol ler com mands.
2.4 WIRING
Loop ca bling is con nected to base ter mi nals L (-ve) and L1 (+ve). A drive is pro vided for a re mote in di ca tor con nected be tween loop pos i tive and ter mi nal R.Ter mi nal L2 (an a logue out put) is for use with func tional sounder and re lay bases.
1 INTRODUCTION
The FC400P op ti cal smoke de tec tor forms part of the FC400 Se ries Ad dress able
Fire de tec tors.
Ø FC450IB Iso la tor Base
Ø 5B 5” Uni ver sal Base
Soft ware within the con trol ler is used to in ter pret the re turned op ti cal and heat val ues to raise alarm or other ap pro pri ate re sponse ac cord ing to the type of de tec tor
con fig ured in Fire Class 500 Console.
☞ Note: Nor mal and High sen si tiv ity set tings meet the re quire ments of EN54-7
(see para 1.1.1).
1.1 DETECTION LOGIC
The op ti cal smoke de tec tor can be se lected in one logic mode as fol lows:
1.1.1 MODO NORMALE
In the nor mal de tec tion mode, an alarm is gen er ated when an alarm thresh old is
reached.
1.2 SENSITIVITY SWITCHING
This can be done ei ther by user ac tion or be event or time driven (eg, day/night
switch ing).Chang ing the sen si tiv ity is done by shift ing the sen si tiv ity by one level
up or down.
2 OPERATING PRINCIPLE
The FC400P op er ates by sens ing the op ti cal scat ter from smoke par ti cles gen er ated in a fire.While the op ti cal scat ter de tec tor can give good de tec tion per for mance for the ma jor ity of fires, some fast burn ing fires pro duce lit tle vis i ble smoke
and some pro duce very black smoke, nei ther of which are eas ily de tected by the
op ti cal scat ter de tec tor. (Such fires are rep re sented in EN54-7 by Poly ure thane
and Heptane type fires re spec tively).These fires do how ever pro duce high heat
out puts with an as so ci ated rise in air tem per a ture. The de tec tor has been de signed to of fer im proved de tec tion of such fires by de tect ing the rapid rate-of-rise
of air tem per a ture and un der these con di tions in creas ing the smoke de tec tion sen si tiv ity.This gives an ear lier de tec tion of such fires and a broader de tec tion ca pa bil ity than a stan dard de tec tor.
2.1 OPTICAL SYSTEM
The FC400P de tects vis i ble par ti cles pro duced in fires by us ing the light scat ter ing
prop er ties of the par ti cles.The de tec tor uses the op ti cal ar range ment shown di a gram mat i cally in Fig.1. The op ti cal sys tem con sists of an in fra-red emit ter and re ceiver, with a lens in front of each, so ar ranged that their op ti cal axes cross in the
sam pling vol ume.The emit ter,with its lens, pro duces a nar row beam of light which
is pre vented from reach ing the re ceiver by the baf fles.When smoke is pres ent in
the sam pling vol ume a pro por tion of the light is scat tered, some of which reaches
ENGLISH
EMETTITORE
EMITTER
LENTE
LENS
VOLUME DI CAMPIONAMENTO
SAMPLING VOLUME
LENTE
LENS
ELEMENTO FOTOSENSIBILE
PHOTO DETECTOR
SCHERMI
BAFFLES
FIG.1 Op ti cal Cham ber Sche matic
PERCORSO DEL FUMO
SMOKE PATH
VOLUME DI CAMPIONAMENTO
SAMPLING VOLUME
ALETTE
FINS
FIG.2 Mea sur ing Cham ber Show ing Smoke Flow Path
3 MECHANICAL CONSTRUCTION
The ma jor com po nents of the de tec tor are:
Ø Body Assembly
Ø Prin ted Cir cu it
Ø Opti cal Cham ber
Ø Opti cal Cham ber Co ver
Ø Light Pipe
Ø Ou ter Co ver
3.1 ASSEMBLY
The body as sem bly con sists of a plas tic mould ing which has four em bed ded de tec tor con tacts which align with con tacts in the base.The mould ing in cor po rates
se cur ing fea tures to re tain the de tec tor in the base. The PCB is clipped to the body
by four spring con tacts.These con tacts act as a me chan i cal fix ture dur ing as sem bly and pro vide elec tri cal con tact be tween the con tacts and the PCB. The cham ber
cover is clipped to the body over the op ti cal cham ber.The light pipe is slot ted into
the cham ber cover. Fi nally, the outer cover is clipped to the body.
4 TECHNICAL SPECIFICATION
4.1 MECHANICAL
Di men sions:
The over all di men sions are shown in
Fig.5 ( less base ) .
Ma te ri als
Body,cover, and clo sure: FR110 ‘BAYBLEND’ flame re tar dant.
Weight
De tec tor: 0.076kg
De tec tor + Base: 0.14kg
4.2 ENVIRONMENTAL
Tem per a ture
Op er at ing: -25
o
C to +70oC
Stor age: -40
o
C to +80oC
Rel a tive Hu mid ity: 95% ( non-con dens ing )
Shock:
Vi bra tion: EN54-5 and EN54-7
Im pact:
Cor ro sion: EN54-5 and EN54-7
4.3 ELECTROMAGNETIC COMPATIBILITY
The detector com plies with the fol low ing:
Ø prod uct fam ily stan dard EN50130-4 in re spect of Con ducted Dis tur bances, Ra di -
ated Im mu nity, Elec tro static Dis charge, Fast Tran sients and Slow High En ergy;
Ø EN61000-6-3 for emis sions.
4.4 ELECTRICAL CHARACTERISTICS
The fol low ing char ac ter is tics (Ta ble 1) ap ply at 25oC and nom i nal sup ply volt age of
37.5V un less oth er wise spec i fied.
Ta ble 1: Elec tri cal Char ac ter is tics
Characteristic Min. Typ. Max. Unit
Loop Voltage 20.0 - 40 V
Quiescent Current - 275 305 μA
Alarm Current* 3 3.3 mA
* No re mote in di ca tor fit ted
ELEMENTO FOTOSENSIBILE
OPTICAL ELEMENT
CIRCUITO SENSORE OTTICO
OPTICAL SENSING CIRCUIT
ASIC OTTICO
OPTICAL ASIC
INTERFACCIA
COMUNICAZIONE ASIC
COMMUNICATIONS
ASIC INTERFACE
LOGICA SET/LATCH
DI ELABORAZIONE
DELL’INDIRIZZO
ADDRESS SET/LATCH
SIGNAL PROCESSING
LOGIC
STABILIZZATORE DI TENSIONE
VOLTAGE REGULATOR
CIRCUITO COMUNE
COMMON CIRCUIT
CIRCUITO DISCRIMINATORE
DISCRIMINATION CIRCUIT
CIRCUITO Tx DRIVER/
ASSORBIMENTO CORRENTE
Tx DRIVER CIRCUIT/
CURRENT SINK
CIRCUITO LED REMOTO
REMOTE LED CIRCUIT
CIRCUITO D’INTERFACCIA
DELLA BASE FUNZIONALE
FUNCTIONAL BASE
INTERFACE CIRCUIT
+VE LINEA IN/OUT
+VE LINE IN/OUT
-VE LINEA IN/OUT
-VE LINE IN/OUT
LED ALLARME
ALARM LED
BASE
BASE
FSKOUT
FSKIN
FIG.3 Sim pli fied Block Sche matic of De tec tor
FIG.4 Sec tioned and Top View of the De tec tor
