Your BenQ projector is designed and tested to meet the latest standards for safety of
information technology equipment. However, to ensure safe use of this product, it is
important that you follow the instructions mentioned in this manual and marked on the
product.
Safety Instructions
1.Please read this manual before you
operate your projector. Save it for
future reference.
2.Do not look straight at the projector
lens during operation. The intense
light beam may damage your eyes.
4.Always open the lens shutter or
remove the lens cap when the
projector lamp is on.
5.In some countries, the line voltage is
NOT stable. This projector is designed
to operate safely within a mains
voltage between 100 to 240 volts AC,
but could fail if power cuts or surges
of ±10 volts occur. In areas where the
mains voltage may fluctuate or cut
out, it is recommended that you
connect your projector through a
power stabilizer, surge protector or
uninterruptible power supply (UPS).
3.Refer servicing to qualified service
personnel.
6.Do not block the projection lens with
any objects when the projector is
under operation as this could cause
the objects to become heated and
deformed or even cause a fire. To
temporarily turn off the lamp, press
BLANK on the projector or remote
control.
Important safety instructions5
Safety Instructions (Continued)
7.The lamp becomes extremely hot
during operation. Allow the projector
to cool for approximately 45 minutes
prior to removing the lamp assembly
for replacement.
8.Do not operate lamps beyond the
rated lamp life. Excessive operation of
lamps beyond the rated life could
cause them to break on rare occasions.
10. Do not place this product on an
unstable cart, stand, or table. The
product may fall, sustaining serious
damage.
11. Do not attempt to disassemble this
projector. There are dangerous high
voltages inside which may cause death
if you should come into contact with
live parts. The only user serviceable
part is the lamp which has its own
removable cover.
Under no circumstances should you
ever undo or remove any other covers.
Refer servicing only to suitably
qualified professional service
personnel.
9.Never replace the lamp assembly or
any electronic components unless the
projector is unplugged.
6Important safety instructions
12. When the projector is under
operation, you may sense some heated
air and odor from its ventilation grill.
It is a normal phenomenon and not a
product defect.
Safety Instructions (Continued)
13. Do not place this projector in any of
the following environments.
- Space that is poorly ventilated or
confined. Allow at least 50 cm clearance
from walls and free flow of air around the
projector.
- Locations where temperatures may
become excessively high, such as the
inside of a car with all windows rolled up.
- Locations where excessive humidity, dust,
or cigarette smoke may contaminate
optical components, shortening the
projector's life span and darkening the
picture.
14. Do not block the ventilation holes.
- Do not place this projector on a blanket,
bedding or any other soft surface.
- Do not cover this projector with a cloth
or any other item.
- Do not place inflammables near the
projector.
If the ventilation holes are seriously
obstructed, overheating inside the
projector may result in a fire.
15. Always place the projector on a level,
horizontal surface during operation.
- Do not use if tilted at an angle of more
than 40 degrees left to right, nor at angle
of more than 35 degrees front to back.
Using the projector when it is not fully
horizontal may cause a malfunction of,
or damage to, the lamp.
- Locations near fire alarms
- Locations with an ambient temperature
above 35°C / 95°F
- Locations where the altitudes are higher
than 1500 m / 4920 feet.
1500
meter
/ 4920
feet
Important safety instructions7
Safety Instructions (Continued)
16. Do not stand the projector on end
vertically. Doing so may cause the
projector to fall over, causing injury or
resulting in damage to the projector.
17. Do not step on the projector or place
any objects upon it. Besides probable
physical damage to the projector,
doing so may result in accidents and
possible injury.
18. Do not place liquids near or on the
projector. Liquids spilled into the
projector may cause it to fail. If the
projector does become wet, disconnect
it from the power supply's wall socket
and call BenQ to have the projector
serviced.
19. This product is capable of displaying
inverted pictures for ceiling mount
installation.
Use only BenQ's Ceiling Mount Kit for
mounting the projector and ensure it
is securely installed.
Ceiling mounting the projector
We want you to have a pleasant experience
using your BenQ projector, so we need to
bring this safety matter to your attention to
prevent damage to person and property.
If you intend to mount your projector on the
ceiling, we strongly recommend that you use
a proper fitting BenQ projector ceiling
mount kit and that you ensure it is securely
and safely installed.
If you use a non-BenQ brand projector
ceiling mount kit, there is a safety risk that
the projector may fall from the ceiling due to
an improper attachment through the use of
the wrong gauge or length screws.
You can purchase a BenQ projector ceiling
mount kit from the place you purchased
your BenQ projector. BenQ recommends
that you also purchase a separate Kensington
lock compatible security cable and attach it
securely to both the Kensington lock slot on
the projector and the base of the ceiling
mount bracket. This will perform the
secondary role of restraining the projector
should its attachment to the mounting
bracket become loose.
8Important safety instructions
2.Introduction
Projector features
The projector integrates high-performance optical engine projection and a user-friendly
design to deliver high reliability and ease of use.
The projector offers the following features.
•Split Screen and PIP allowing two input sources to be displayed at the same time
•Selectable password protected function
•Off and Go function allowing presenters to unplug the projector right after the projector
is turned off
•Up to 9 sets of picture modes providing multiple choices for different projection
purposes
•Optional Signal Shuttle module allowing two PC sources to display at the same time
•Optional attachable lens providing more projection size options
•High quality manual zoom lens
•One-key auto-adjustment to display the best picture quality
•Two-way digital keystone correction to correct distorted pictures
•Pincushion and barrel corrections to correct distorted pictures
•A wide variety of inputs for connection to PC and AV equipment
•Panel key lock preventing accidental changes made to the projector settings
•Adjustable color balance control for data/video display
•Ultra-high brightness projection lamp
•Ability to display 1.07 billion colors
•Multi-language On-Screen Display (OSD) menus
•Switchable normal and Economic modes to reduce the power consumption
•Built-in speakers provide stereo sound when an audio input is connected
•Powerful AV function to provide high quality video picture
•Component HDTV compatibility
•The apparent brightness of the projected picture will vary depending on the ambient
lighting conditions, selected input source contrast/brightness settings, and is directly
proportional to projection distance.
•The lamp brightness will decline over time and may vary within the lamp manufacturers
specifications. This is normal and expected behavior.
Introduction9
Shipping contents
The projector is shipped with the cables required for connection to a PC or video
equipment. Carefully unpack and verify that you have all of the items shown below. If any of
these items are missing, please contact your place of purchase or check the most updated
accessory list on line at www.BenQ.com.
Standard accessories
The supplied accessories will be suitable for your region, and may differ from those
illustrated.
ProjectorRemote control and two
Safety manualQuick start guideUser manual
VGA cablePower cordD-Sub-DVI cable
Optional accessories
1.Macintosh adapter
2.Spare lamp kit
3.Ceiling mount kit
4.Attachable lens
5.Presentation Plus
6.RS232 connector
batteries (AAA type)
(AU)(EU)(UK)(US)
7.Signal shuttle
8.S-Video cable
9.DVI cable
10. USB cable
11. PC audio cable
Multi-language user
manual CD
or
DVI to VGA adapter
10Introduction
Projector exterior view
Front/upper side
1
2
3
Rear/lower side
14 15 16 17 18 19 20 21 22 23 24
9
10
11
12
13
1.Quick-release foot
2.Projection lens
3.Lens cap
4.External control panel
4
5
6
7
(See pages 12-13 for details.)
5.Focus ring and Zoom ring
6.Vent (cool air intake)
7.Front IR remote sensor
8.Quick-release button
9.AC power cord inlet
10. Main power switch
11. Speaker grill
8
12. Ceiling mounting holes
1
13. Lamp cover
14. RS232 control port
15. Rear IR remote sensor
16. Wired remote control port
17. Video/Audio (L/R) input
sockets
18. Component video (YPbPr/
YCbCr) signal/Audio (L/R)
input sockets
19. S-Video/Audio (L/R) input
sockets
20. USB socket
25
21. RJ-45/Audio input sockets
26
11
12
(only for using with the
optional Signal Shuttle
module)
)
Manually corrects distorted pictures
resulting from an angled projection.
Turns the split screen function on or
off.
When the On-Screen Display (OSD)
menu is activated, the keys are used as
directional arrows to select the desired
menu items and to make adjustments.
See "Correcting picture distortion" on
page 37, "Displaying more than one
picture source simultaneously" on page
51, and "Using the menus" on page 31
for details.
13. BLANK
Used to hide the screen picture. See
"Hiding the picture" on page 50 for
details.
14. ENTER
Enacts the selected On-Screen Display
(OSD) menu item. See "Using the
menus" on page 31 for details.
Remote control
1
2
3
4
5
4
6
7
8
9
10
11
12
13
I
I
1.Power
Toggles the projector between standby
mode and on.
See "Starting up the projector" on page
30 and "Shutting down the projector"
on page 57 for details.
2.ASPECT
Selects the display aspect ratio. See
"Selecting the aspect ratio" on page 39
for details.
14
15
16
17
18
4
19
4
20
21
22
23
Introduction13
3.SOURCE
Displays the source selection bar. See
"Switching input source" on page 35 for
details.
4.Keystone/Arrow keys (/ , /,
/, /)
Manually correct distorted pictures
resulting from an angled projection.
When the On-Screen Display (OSD)
menu is activated, the keys are used as
directional arrows to select the desired
menu items and to make adjustments.
See "Correcting picture distortion" on
page 37 and "Using the menu s" on page
31 for details.
5.MENU
Turns on the On-Screen Display (OSD)
menu. When the OSD menu is
activated, exits and saves the menu
settings. See "Using the menus" on page
31 for details.
6.AUTO
Automatically determines the best
picture timings for the displayed
picture. See "Auto-adjusting the
picture" on page 36 for details.
7.ENTER
Enacts the selected On-Screen Display
(OSD) menu item. See "Using the
menus" on page 31 for details.
8.SPLIT SCREEN (ON/OFF)
Turns the split screen function on or
off. See "Splitting the screen" on page
51 for details.

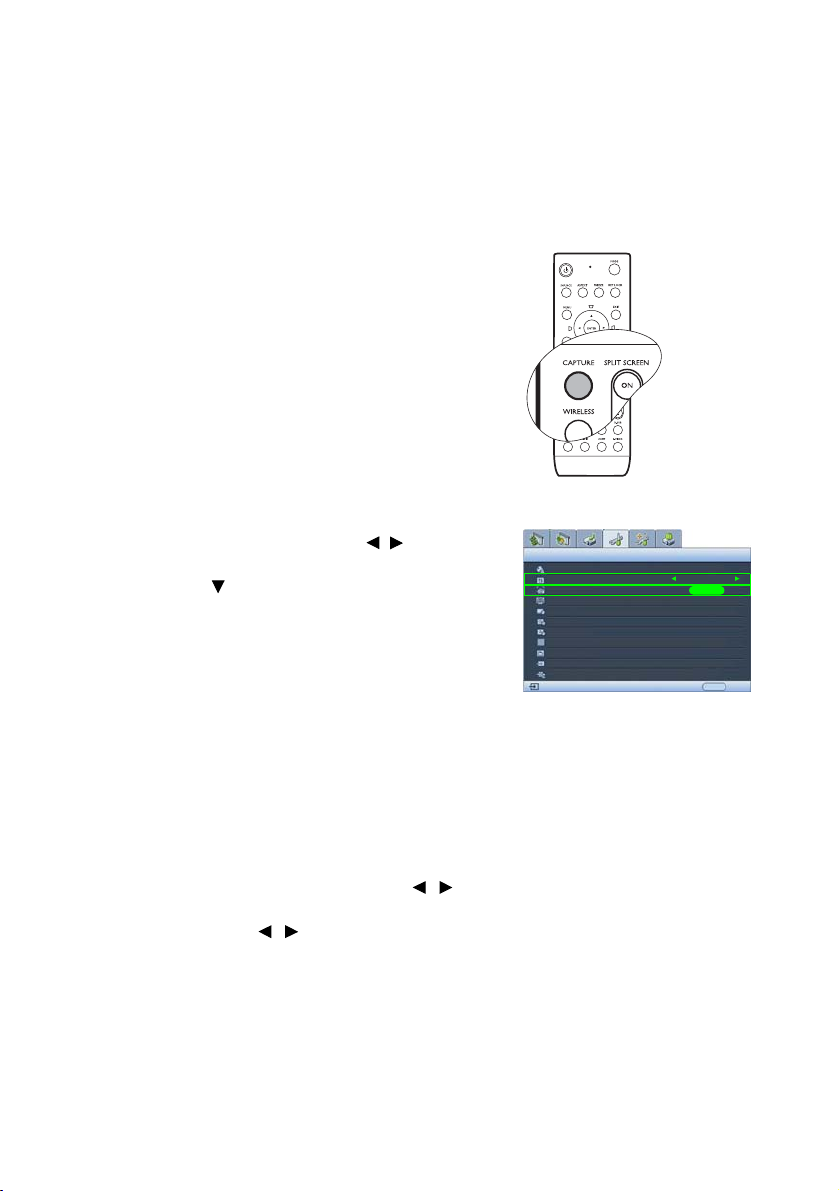

9.CAPTURE
Captures the projected picture and save
it as your startup screen. See "Creating
your own startup screen" on page 54
for details.
10. WIRELESS
(This function is not available with the
SP830/S831.)
11. MUTE
Toggles projector audio between on
and off.
12. PIP
Turns the Picture In Picture (PIP)
window on or off. See "PIP (Picture In
Picture) operation" on page 52 for
details.
13. AUDIO
Displays the Audio menu. See
"Adjusting the sound" on page 55 for
details.
14. Indicator light
Flashes or lights red when any key on
the remote control is pressed.
15. MODE
Depending upon which input source is
selected, selects an available picture
setup mode. See "Selecting a picture
mode" on page 42 for details.
16. FREEZE
The picture is frozen when FREEZE is
pressed. See "Freezing the picture" on
page 56 for details.
17. KEY LOCK
Locks the keys on the projector and
remote control except LASER and
EXIT. See "Locking control keys" on
page 56 for details.
18. EXIT
Goes back to previous OSD menus,
exits and saves menu settings. See
"Using the menus" on page 31 for
details.
19. BLANK
Used to hide the screen picture. See
"Hiding the picture" on page 50 for
details.
14Introduction
20. LASER
Emits visible laser pointer light for
presentation purposes. See "Operating the
LASER pointer" on the right for details.
21. PAGE
(UP) and PAGE (DOWN)
Operate your display software program
(on a connected PC) which responds to
page up/down commands (like Microsoft
PowerPoint). See "Remote paging
operations" on page 56 for details.
22. DIGITAL ZOOM keys (+, -)
Magnifies or reduces the projected picture
size. See "Magnifying and Searching for
details on the projected picture" on page
41 for details.
23. Source selection keys (DVI, D-SUB,
VIDEO, COMP., S-VIDEO)
Select the corresponding input source for
display. See "Switching input source" on
page 35 for details.
DVI selects DVI-D signal only.
Operating the LASER pointer
The LASER Pointer is a
presentation aid for
professionals. It emits red
colored light when you press it
and the indicator lights up red.
The laser beam is visible. It is
necessary to press and hold
LASER for continuous output.
Do not look into the laser light window or
shine the laser light beam on yourself or
others. See the warning messages on the
back of the remote control and the
enclosed ''User Information'' prior to using
it.
The laser pointer is not a toy. Parents should be
mindful of the dangers of laser energy and keep
this remote control out of the reach of children.
Making the remote control a wired
control
The remote control is equipped with a jack on
the top allowing connection to the projector
with a 2.5mm mini jack cable available in the
market. This helps you easily locate the remote
control when needed as it is connected to the
projector and within the distance no greater
than the cable’s length.
Introduction15
Remote control effective range
Infra-Red (IR) remote control sensors are
located on the front and the back of the
projector. The remote control must be held at
an angle within 30 degrees perpendicular to
the projector's IR remote control sensors to
function correctly. The distance between the
remote control and the sensors should not
exceed 6 meters (~ 20 feet).
Make sure that there are no obstacles between
the remote control and the IR sensors on the
projector that might obstruct the infra-red
beam.
•Operating the projector from the front
°
5
1
.
x
o
r
p
p
A
•Operating the projector from the rear
°
5
1
.
x
o
r
p
p
A
Installing remote control batteries
1.To open the battery cover, turn the remote
control over to view its back, push on the
finger grip on the cover and slide it up in the
direction of the arrow as illustrated. The
cover will slide off.
2.Remove any existing batteries (if necessary)
and install two AAA batteries observing the
battery polarities as indicated in the base of
the battery compartment. Positive (+) goes to
positive and negative (-) goes to negative.
3.Refit the cover by aligning it with the base
and sliding it back down into position. Stop
when it clicks into place.
Avoid leaving the remote control and batteries
in an excessive heat or humid environment like
the kitchen, bathroom, sauna, sunroom or in a
closed car.
Replace only with the same or equivalent type
recommended by the battery manufacturer.
Dispose of the used batteries according to the
manufacturer's instructions and local
environment regulations for your region.
Never throw the batteries into a fire. There may
be danger of an explosion.
If the batteries are dead or if you will not be
using the remote control for an extended
period of time, remove the batteries to avoid
damage to the remote control from possible
battery leakage.
16Introduction
3.Positioning your projector
Choosing a location
Your room layout or personal preference will dictate which installation location you select.
Take into consideration the size and position of your screen, the location of a suitable power
outlet, as well as the location and distance between the projector and the rest of your
equipment.
The projector is designed to be installed in one of four possible installation locations.
1.Floor Front
Select this location with the projector placed
near the floor in front of the screen. This is
the most common way to position the
projector for quick setup and portability.
2.Ceiling Front
Select this location with the projector
suspended upside-down from the ceiling in
front of the screen.
Purchase the BenQ Projector Ceiling
Mounting Kit from your dealer to mount
your projector on the ceiling.
*Set Ceiling Front after you turn the
projector on.
3.Ceiling Rear
Select this location with the projector
suspended upside-down from the ceiling
behind the screen.
Note that a special rear projection screen
and the BenQ Projector Ceiling Mounting
Kit are required for this installation
location.
*Set Ceiling Rear after you turn the
projector on.
4.Floor Rear
Select this location with the projector placed
near the floor behind the screen.
Note that a special rear projection screen is
required.
*Set Floor Rear after you turn the projector
on.
*To set the projector position:
1. Press MENU on the projector or remote control and
then press / until the System Setup menu is
highlighted.
2. Press / to highlight Projector Position and press
/ until the correct position is selected.
System Setup
Language
Splash Screen
My Screen
Projector Position
Blank Timer
Auto Off
Sleep Timer
Background Color
Menu Settings
Input Source
Auto Source Search
Analog RGB
English
BenQ
Floor Front
Disable
Disable
Disable
Blue
On
EXIT Back
Positioning your projector17
Obtaining a preferred projected picture size
The distance from the projector lens to the screen, the zoom setting, and the video format,
each factors in the projected picture size.
The projector should always be placed horizontally level (like flat on a table), and positioned
directly perpendicular (90° right-angle square) to the horizontal center of the screen. This
prevents picture distortion caused by angled projections (or projecting onto angled
surfaces).
The modern digital projector does not project directly forward (like older style reel-to-reel
film projectors did). Instead, digital projectors are designed to project at a slightly upward
angle above the horizontal plane of the projector. This is so that they can be readily placed
on a table and will project forward and upwards onto a screen positioned so that the bottom
edge of the screen is above the level of the table (and everyone in the room can see the
screen).
If the projector is mounted on a ceiling, it must be mounted upside-down so that it projects
at a slightly downward angle.
You can see from the diagram on page 20, that this type of projection causes the bottom edge
of the projected picture to be vertically offset from the horizontal plane of the projector.
When ceiling mounted, this refers to the top edge of the projected picture.
If the projector is positioned further away from the screen, the projected picture size
increases, and the vertical offset also increases proportionately.
When determining the position of the screen and projector, you will need to account for
both the projected picture size and the vertical offset dimension, which are directly
proportional to the projection distance.
BenQ has provided tables of 16:9-aspect-ratio and 4:3-aspect-ratio screen sizes to assist you
in determining the ideal location for your projector. There are two dimensions to consider,
the perpendicular horizontal distance from the center of the screen (projection distance),
and the vertical offset height of the projector from the horizontal edge of the screen (offset).
How to determine the position of the projector for a given
screen size
1.Determine the aspect ratio of your screen, 16:9 or 4:3? If you have a 16:9 screen, refer
to Table A
projected picture aspect ratio you’ve got.
2.Select a screen size you desire.
3.Refer to the table and find the closest match to your screen size in the left columns
labelled "Screen Dimensions". Using this value, look across this row to the right to find
the corresponding average distance from screen value in the column labelled
"Average". This is the projection distance.
4.On that same row, look across to the right column and make note of the "Vertical
Offset" value. This will determine the final vertical offset placement of the projector in
relation to the edge of the screen.
18Positioning your projector
. If you have a 4:3 screen, refer to Table B1 or Table B2depending on the
5.The recommended position for the projector is aligned perpendicular to the
horizontal center of the screen, at the distance from the screen determined in step 3
above, and offset by the value determined in step 4 above.
For example, if you are using an 120-inch, 4:3-aspect-ratio screen and the projected picture
is 15:9, please refer to Table B2
vertical offset of 146 mm.
. The average projection distance is 4133.7 mm and with a
How to determine the recommended screen size for a
given distance
This method can be used for situations where you have purchased this projector and would
like to know what screen size will fit in your room.
The maximum screen size is limited by the physical space available in your room.
1.Determine the aspect ratio of the screen you need, 16:9 or 4:3? If you need a 16:9
screen, refer to Table A
depending on the projected picture aspect ratio you’ve got.
2.Measure the distance between the projector and where you want to position the
screen. This is the projection distance.
3.Refer to that table and find the closest match to your measurement in the average
distance from screen column labelled "Average". Check that your measured distance is
between the min and max distances listed on either side of the average distance value.
4.Using this value, look across that row to the left to find the corresponding "Screen
Dimensions" listed in that row. That is the recommended screen size you can purchase
at that projection distance.
5.On that same row, look across to the right column and make note of the "Vertical
Offset" value. This will determine the final placement of the screen in relation to the
horizontal plane of the projector.
For example, if you need a 16:9 screen to project a 16:9 picture and your measured
projection distance was 4.8 m (4800 mm), please refer to Table A
"Average" column is
required.
. If you need a 4:3 screen, refer to Table B1 or Table B2
. The closest match in the
4508 mm. Looking across this row shows that a 120'' (3.0 m) screen is
Positioning your projector19
Projection dimensions
Refer to "Dimensions" on page 78 for the center of lens dimensions of this projector before
calculating the appropriate position.
When the screen aspect ratio is 16:9 and the projected picture is 16:9
Floor Installation
Maximum zoomMinimum zoom
Offset
Ceiling Installation
Screen
Center of lens
Projection distance
Maximum zoomMinimum zoom
Offset
Table A: The screen aspect ratio is 16:9 and the projected picture is 16:9
Screen DimensionsDistance from Screen in mmVe r t i c a l
DiagonalHeight Width Min length
FeetInchesmmmmmm
2.53076245761010431127121046
4.2501270762101617391878201776
6.780203212191626278330053228122
8.3100254015242032347837574035152
10.0120304818292438417445084842183
12.5150381022863048521756356052229
15.0180457227433658626167627263274
16.7200508030484064695775138070305
18.3220558833534470765282648877335
20.0240609636584877834890169683366
Projection distance
(max. zoom)
Center of lens
Screen
Ave ra geMax length
(min. zoom)
Offset
mm
20Positioning your projector
When the screen aspect ratio is 4:3 and the projected picture is 16:9 or 15:9
Floor Installation
Maximum zoomMinimum zoom
D
A
C
Screen
Center of lens
D
B
Offset
Projection distance
Ceiling Installation
Maximum zoom
D
A
C
D
B
Minimum zoom
Offset
Projection distance
Center of lens
Screen
Table B1: The screen aspect ratio is 4:3 and the projected picture is 16:9
Screen DimensionsProjected
picture size
DiagonalHeight CWidth BHeight AWidth
Feet Inches mmcmcmcmcmcmmm
B
Black
bar (D)
Distance from Screen in mmVe r t i ca l
Offset
Min
Ave ra geMax
(Max
zoom)
(Min
zoom)
2.530762466134615.7956.91033.41110.048
4.250127076102571029.51594.81722.41850.080
6.78020321221639116315.22551.7 2755.82959.9128
8.3100254015220311420319.13189.6 3444.73699.9160
10.0120304818324413724422.93827.54133.74439.9192
12.5150381022930517130528.64784.45167.15549.9240
15.0180457227436620636634.35741.26200.56659.8288
16.7200508030540622940638.16379.26889.57399.8320
18.3220558833544725144741.97017.17578.48139.8352
20.0240609636648827448845.77655.08267.48879.8384
Positioning your projector21
Table B2: The screen aspect ratio is 4:3 and the projected picture is 15:9
Screen DimensionsProjected
picture size
DiagonalHeight CWidth BHeight AWidth
Feet Inches mmcmcmcmcmcmmm
2.530762466137614.6956.91033.41110.037
4.250127076102611027.61594.8 1722.41850.061
6.78020321221639816312.22551.7 2755.82959.998
8.3100254015220312220315.23189.6 3444.73699.9122
10.0120304818324414624418.33827.54133.74439.9146
12.5150381022930518330522.94784.45167.15549.9183
15.0180457227436621936627.45741.26200.56659.8219
16.7200508030540624440630.56379.26889.57399.8244
18.3220558833544726844733.57017.17578.48139.8268
20.0240609636648829348836.67655.08267.48879.8293
There is 3% tolerance among these numbers in Table A, Table B1, and Table B2 due to optical
component variations.
BenQ recommends that if you intend to permanently install the projector, you should
physically test the projection size and distance using the actual projector in situ before you
permanently install it, so as to make allowance for this projector's optical characteristics. This
will help you determine the exact mounting position so that it best suits your installation
location.
B
Black
bar (D)
Distance from Screen in mmVe r t i ca l
Offset
Min
Ave ra geMax
(Max
zoom)
(Min
zoom)
If you place the projector in a different position (to that recommended), you will have to tilt
it down or up, or even turn it slightly left or right to center the picture on the screen. In these
situations, some picture distortion will occur. To correct the distortion, see "Correcting
picture distortion" on page 37 for details.
22Positioning your projector
4.Connection
When connecting a signal source to the projector, be sure to:
1.Turn all equipment off before making any connections.
2.Use the correct signal cables for each source.
3.Ensure the cables are firmly inserted.
In the connections shown below, some cables may not be included with the projector (see
"Shipping contents" on page 10). They are commercially available from electronics stores.
Connecting a computer
The projector provides VGA and DVI input sockets that allow you to connect it to both
IBM® compatibles and Macintosh® computers. A Mac adapter (an optional accessory) is
needed if you are connecting legacy version Macintosh computers.
To connect the projector to a notebook or desktop computer (either through a VGA
cable or VGA to DVI-A cable):
•With a VGA cable:•With a VGA to DVI-A cable:
1.Take the supplied VGA cable and
connect one end to the D-Sub output
socket of the computer.
2.Connect the other end of the VGA
cable to the D-SUB IN signal input
socket on the projector.
3.If you wish to use the remote paging function (see"Remote paging operations" on
page 56), take a USB cable and connect the larger end to the USB port of the
computer, and the smaller end to the USB socket on the projector.
The final connection path should be like that shown in the following diagram:
1.Take a VGA to DVI-A cable and
connect the VGA end to the D-Sub
output socket of the computer.
2.Connect the DVI end of the VGA to
DVI-A cable to the DVI-I signal input
socket on the projector.
Notebook or desktop computer
i. USB cable
ii. VGA to DVI-A cable
iii. VGA cable
Many notebooks do not turn on their external video ports when connected to a projector.
Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a
function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press
FN and the labeled function key simultaneously. Refer to your notebook's documentation to
find your notebook's key combination.
iiiiii
Connection23
Connecting a monitor
If you want to view your presentation close-up on a monitor as well as on the screen, you
can connect the projector to an external monitor by following the instructions below.
To connect the projector to a monitor (either through a VGA cable or VGA to
DVI-A cable):
•With a VGA cable:•With a VGA to DVI-A cable:
Note: Your monitor must be equipped with a
DVI input socket.
1.Connect the projector to a computer as described in "Connecting a computer" on
page 23.
The D-SUB OUT output only works when an appropriate D-Sub input is made to the
projector. Be sure the projector is connecting with the computer using the D-SUB IN
socket, not the DVI-I socket.
2.Take a suitable VGA cable (only one
supplied) and connect one end of the
cable to the D-Sub input socket of the
video monitor.
3.Connect the other end of the cable to
the D-SUB OUT socket on the
projector.
The final connection path should be like that shown in the following diagram:
Notebook or
desktop
computer
2.Take a VGA to DVI-A cable and
connect the DVI end of the cable to the
DVI input socket of the video monitor.
3.Connect the VGA end of the cable to
the D-SUB OUT socket on the
projector.
24Connection
i. VGA cable
ii. VGA to DVI-A cable
iii. VGA cable
(DVI)
iiiiii
(VGA)
Loading...
+ 56 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
