BenQ PH5501 User Manual

BenQ Super Narrow Bezel Series
The Ultra-Narrow Bezel Design for Immersive Experience
2019 BenQ Corp. Specification may vary by reigon, please visit your local stores for details. Actual product’s features and specifications are subject to change without notice.
This material may include corporate names and trademarks of third parties which are the properties of the third partiesrespectively Doc: DSP_PL490/PL552/PL553/PH5501/PH5502_DS_EN_20190524
PL490/ PL552/ PL553/ PH5501/ PH5502
450/500/700
nits
Super N arrow
Bezel
DP & DVI
Support
Color
Calibration
Orientation
Excellent, Durable Display Performance
Ultra-Narrow Bezel Design for Immersive Experience
Boasting an ultra-narrow bezel design, P series video walls are free of visual distractions and primed to offer a seamless viewing experience that will delight and captivate your customers.
*Actual bezel-to-bezel dimensions may exceed the listed minimum value due to different tilting methods.
24/7 Non-stop Operation
An amazing life of 50,000 hours translates to years of non-stop display service and reliable industrial-class performance far more economical than consumer models. Built with better cooling techniques reaching longer runtimes for at least 24 hours a day that is safer and more reliable.
Flawless Display in Portrait and Landscape View
Unlike anything else available on the market, BenQ P series are built to
ensure awless portrait and landscape view. This choice between vertical and horizontal installation greatly increases exibility when operators are
designing and arranging their stores.
DP Daisy Chain for Stunning 2x2 4K Clarity
With industry-leading DisplayPort 1.1a daisy chain technology, BenQ super narrow bezel displays are designed to display stunning 4K UHD images across a 2x2 video wall installation. Further enhancing easy content management, BenQ super narrow displays support X-Sign software, allowing you to conveniently create and enrich 4K video messages with over 100 built-in templates.
*By combining DP daisy chain with HDCP signal source, you can connect the 7th piece of display.
OPS Slot for All-in-One Video Wall Solution
To increase versatility, P series display complies with the Open Pluggable Specication (OPS) standard, allowing you to insert optional modules into
the display to expand connectivity and functionality without need for an
external media player. By using OPS modules in conjunction with DVI daisy
chain, you can instantly connect with others and create a spectacular video wall that is sure to catch customer’s eye.
Color Calibration
This time-saver lets you unify video wall color proles with a controller PC. Instead of manually adjusting
individual units, you can effectively eliminate color irregularities and complete the color calibration process for your whole video wall in less than no time.
Flexible Color Temperature Adjustment for Captivating Images
With BenQ’s evolutionary Perfect View, it allows the smart signage to adjust the color temperature in a exible way. This ensures to ne-tune the color temperature with the
remote and thus registers subtly the colors displayed to showcase your products in
desired effects. Images on the smart panels will become the eye-catcher to captivate your
customers in no time.

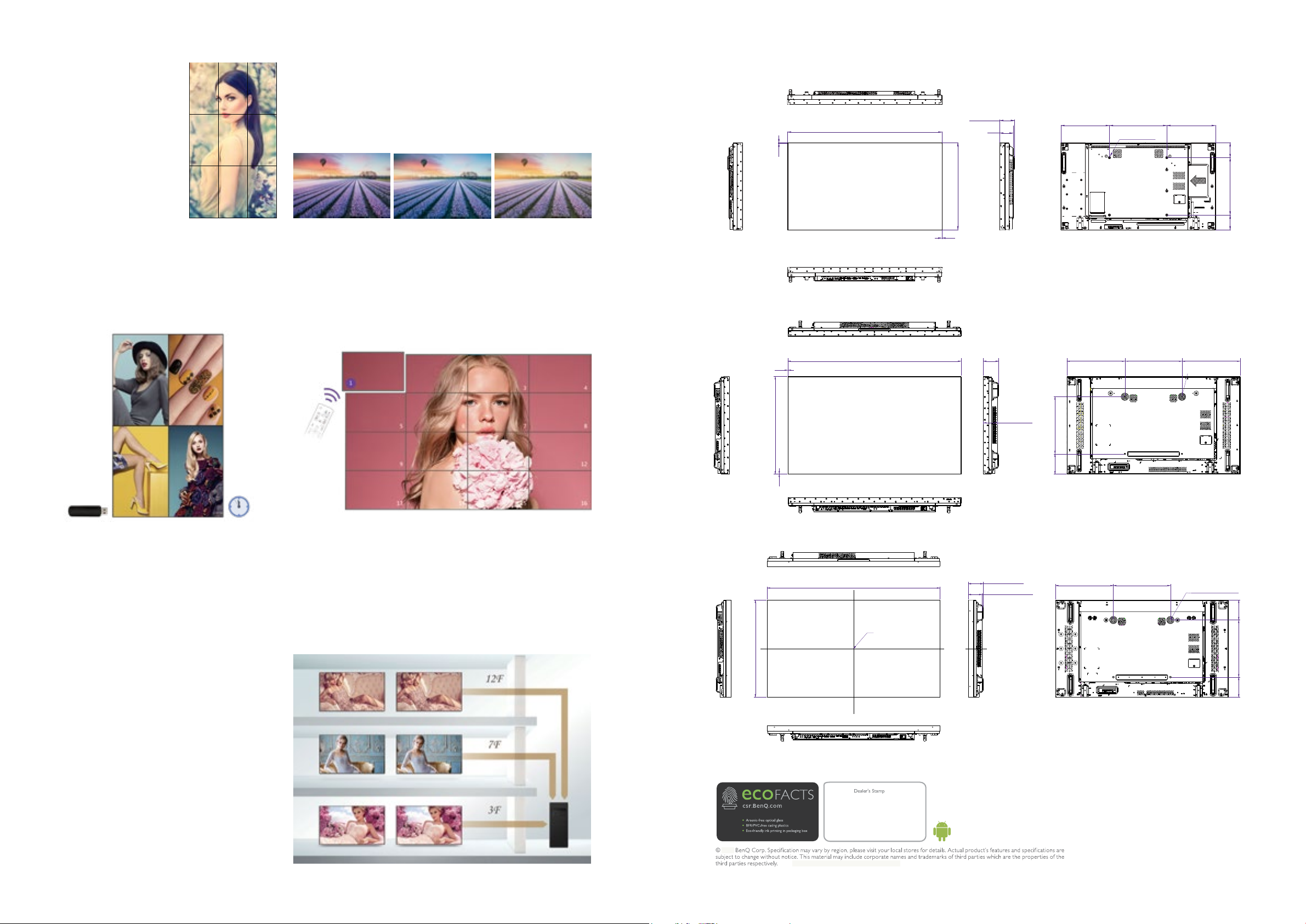

Dimension
PL490
2.3
1077.6
103.8
(@Handle)
93.5
338.8 338.8400
4xM6x(10+X) (X=thickness of wall mount kit)
103.9
Hassle-Free Display Management
PL552 PH5501
2.2
684.2
1.1
1213.4
1.2
607.8
107.6
(@Handle)
99.2
(@Wall Mount)
400142
406.7 400
406.7
4xM6x(10+X) (X=thickness of wall mount kit)
400
103.9
Display and Distribute Content with Ease
Plug a USB ash drive into P series display to instantly play multimedia content. After inser ting the USB ash drive, you can
precisely arrange a playlist and schedule content playback times
so they t your business’s needs.
*each display requires an individual USB drive
DMS Local
DMS Local is a Device Info and Management software based on windows OS. For users who would like to control your displays
remotely via LAN, you can download DMS Local software for your operation.
MDA (Multiple Display Administrator)
For users who would like to control your displays remotely via RS232, you can download MDA software for your operation.
Auto ID Setting Prompts Quick Display ID Conguration
BenQ P series is equipped with Auto ID Setting to facilitate simple and quick ID conguration. It detects and congures a display ID as No. 1 by the remote control and the rest of the displays will be automatically congured in numeric order. There’s no need to have the other displays setup one by one but allow individual panel adjustment per your purposes. This will greatly save your time and man cost with efciency and convenience.
PL553 PH5502
7
2019
1211.4 (WITHOUT SIDE SEAL)
684.2 (WITHOUT SIDE SEAL)
Doc: DSP_IL430/IL490/IL550_DS_EN_201712
DSP__PL490_PL552_PL553_PH5501_PH5502_DS_EN_20190524
CENTER OF ACTIVE AREA
106.9
(@HANDLE)
400400.2
98.5(@WALL MOUNT)
Android is a trademark of Google Inc. The Andr oid robot is reproduced or modified from work created and shared by Goog le and used according to terms described in the Creative Commons 3.0 Attribution Licens e.
4xM6-10L (Maximum screw thread depth)
140.5
141.6 400
Specications
Model Name PL490 PL552 PL553 PH5501 PH5502
Screen Diagonal 49” 55” 55” 55” 55”
Backlight Direct LED Direct LED Direct LED Direct LED Direct LED
Active Area (Horizontal x Vertical) (mm) 1073.8 X 604.0 1209.6 x 680.4 mm 1209.6 x 680.4 mm 1209.6 x 680.4 mm 1209.6 x 680.4 mm
Resolution FHD 1920 x 1080 (pixels) FHD 1920 x 1080 (pixels) FHD 1920 x 1080 (pixels) FHD 1920 x 1080 (pixels) FHD 1920 x 1080 (pixels)
Aspect Ratio 16 : 9 16 : 9 16 : 9 16 : 9 16 : 9
Brightness (Typical) 450 nits 500 nits 500 nits 700 nits 700 nits
Panel
Interface
Speaker
Mechanical
Powe r
OSD
Software
Accessories
Contrast Ratio (Typical) 1300:1 1400:1 1200:1 1400:1 1200:1
Viewing Angle (Horizontal x Vertical) 178 degree (H) / 178 degree (V) 178 degree (H) / 178 degree (V) 178 degree (H) / 178 degree (V) 178 degree (H) / 178 degree (V) 178 degree (H) / 178 degree (V)
Color gamut (x% NTSC) 72% 72% 72% 72% 72%
Frame Rate 60Hz 60Hz 60Hz 60Hz 60Hz
Response Time (Typical) 8ms 12ms 8ms 8ms 8ms
Panel bit 8 bits 8 bits 8 bits 10 bits 10 bits
Light life 50,000 hrs (typ.) 50,000 hrs (typ.) 50,000 hrs (typ.) 50,000 hrs (typ.) 50,000 hrs (typ.)
Orientation Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait
Power (AC) In/ Out X 1/ No X 1/ No X 1/ No X 1/ No X 1/ No
Audio line-in/ Out (3.5mm) X 1/ X1 X 1/ X1 X 1/ X1 X 1/ X1 X 1/ X1
Composite video In/ Out (BNC) X 1/ No X 1/ No X 1/ No X 1/ No X 1/ No
Component In/ Out (YPbPr, RCA) X 1/ No X 1/ No X 1/ No X 1/ No X 1/ No
D-sub In/ Out X 1/ No X 1/ No X 1/ No X 1/ No X 1/ No
HDMI (Type A ) In/ Out X 2/ No X 2/ No X 2/ No X 2/ No X 2/ No
DVI In/ Out X 1/ X 1 X 1/ X 1 X 1/ X 1 X 1/ X 1 X 1/ X 1
DisplayPort In/ Out X 1/ X 1 X 1/ X 1 X 1/ X 1 X 1/ X 1 X 1/ X 1
RJ45 In/ Out X 1/ No X 1/ No X 1/ No X 1/ No X 1/ No
RS232 In/ Out X 1/ X 1 X 1/ X 1 X 1/ X 1 X 1/ X 1 X 1/ X 1
USB (Type A) X 1 X 1 X 1 X 1 X 1
AC power switch X 1 X 1 X 1 X 1 X 1
IR In/ Out X 1/ X 1 X 1/ X 1 X 1/ X 1 X 1/ X 1 X 1/ X 1
OPS Slot X 1 X 1 X 1 X 1 X 1
Internal Speaker 10W x 2 10W x 2 10W x 2 10W x 2 10W x 2
Dimensions(W x H x D) 1077.6 x 607.8 x 103.8 mm 1213.4 x 684.2 x 107.7 mm 1211.4 x 682.2 x106.9 mm 1213.4 x 684.2 x 107.7 mm 1211.5 x 682.3 x 106.9 mm
Bezel Width (T/B/L/R) 2.3/1.2/2.3/1.2 mm 2.3/1.2/2.3/1.2 mm 0.9/0.9/0.9/0.9 mm 2.3/1.2/2.3/1.2 mm 0.9/0.9/0.9/0.9 mm
Weight (without packing/with packing) 21.6/34.3 kg 29.2/43.5 kg 24.4/36.8 kg 29.2/43.5 kg 24.4/36.8 kg
Power supply 100 V ~ 240 V, 50 Hz / 60 Hz 100 V ~ 240 V, 50 Hz / 60 Hz 100 V ~ 240 V, 50 Hz / 60 Hz 100 V ~ 240 V, 50 Hz / 60 Hz 100 V ~ 240 V, 50 Hz / 60 Hz
Power consumption (Typical) 110W 185W 133W 185W 195W
On-Screen Display Languages
Color Calibration support Ye s Ye s Ye s Ye s Ye s
Multiple Display Control (MDA) support Ye s Ye s Ye s Ye s Ye s
X-Sign (please check website for detailed information)
Remote Control (w/o Battery) Ye s Ye s Ye s Ye s Ye s
Power Cord (by region) Yes Yes Yes Yes Yes
Quick Start Guide Yes Ye s Yes Ye s Yes
D-sub/HDMI/DP/DVI Cable Yes/Yes/Yes/No Yes/Yes/Yes/No Yes/Yes/Yes/No No/No/Yes/Yes No/No/Yes/Yes
IR Extender Cable Ye s Ye s Ye s Ye s Ye s
RS232 Cable & Loop Cable Ye s Yes Ye s Ye s Ye s
Audio Cable Ye s Yes Yes Yes Yes
GAP Inspection Pads Ye s Ye s Ye s Ye s Ye s
Edge Finishing Kits (optional) Yes Yes Yes Yes Yes
x-rite color meter for Color Calibration SW (optional)
English / German / Dutch / French / Italian / Spanish / Russian / Polish / Simplied Chinese / Arabic / Japanese / Traditional Chinese / Czech /Danish
/ Swedish / Romanian / Finnish / Norwegian / Greek / Korea/ Thailand (21L)
Ye s Ye s Ye s Ye s Ye s
Ye s Ye s Ye s Ye s Ye s
English / French / German / Dutch / Polish / Russian / Czech / Danish / Swedish / Italian / Romanian
/ Finnish / Norwegian / Greek / Hungarian / Spanish / Portuguese / Traditional Chinese / Simplied
Chinese / Arabic / Japanese / Thai / Persian / Vietnamese / Korean (25L)
Input / Output Terminals
