Benq PD1 User Manual

Table of contents
English .................................................................................................................... 4
English
PointDrawTM pen features
Wris t strap hold er
4
Color selection button
Left mouse button
Sensor
USB connector
Battery light
Blink: batery power<10% Solid: battery power<20%
Link light
Blink: attempt to link to projector Solid: working status
Projector’s power button
Tip
Battery charging
PUSH
The charging time will take approximate 2.5 hours and will allow 30-35 hours of pen use..
English
or
PUSH
TM
Do not use the PointDraw Do not disassemble the PointDrawTM pen yourself. Refer all servicing to qualified service personnel. The lithium battery is only rechargeable, and not user replaceable. Not user serviceable.
pen while the pen’s battery is charging.
5
English

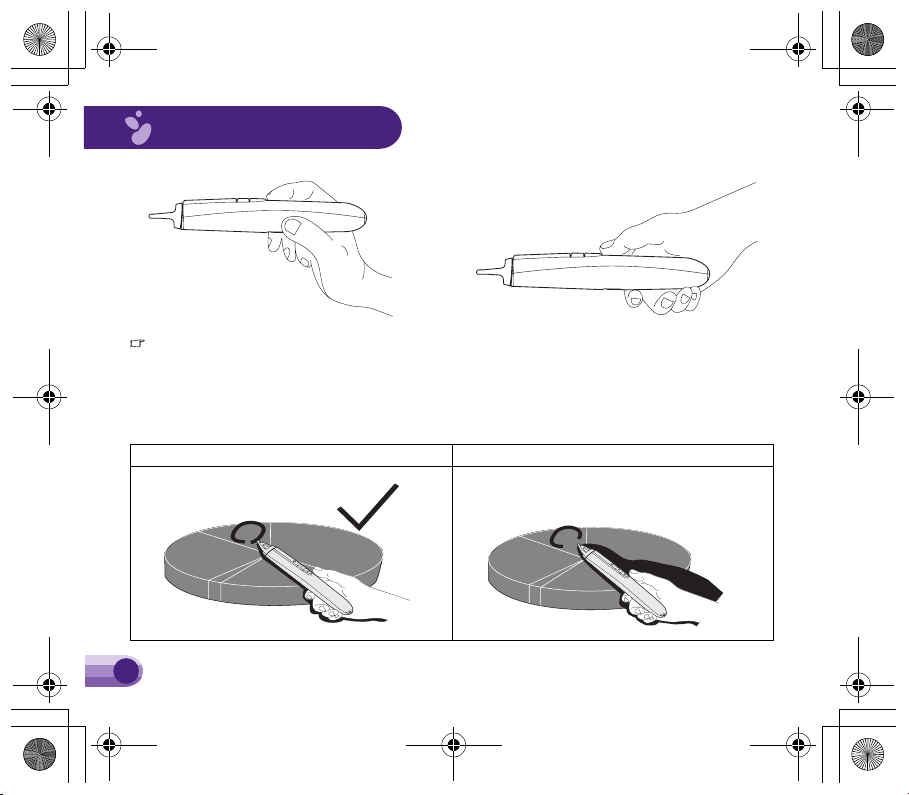

How to hold the PointDraw
TM
pen
or
If the PointDrawTM pen is far away from the screen, be sure to press the left mouse button to click and drag.
Avoid shadows!
The PointDraw
TM
pen won't work if its tip is in a shadow or if it is pointing at a shadow:
Correct (no shadow) Incorrect (shadow)
X
28%
28%
12%
28%
28%
28%
12%
28%
6

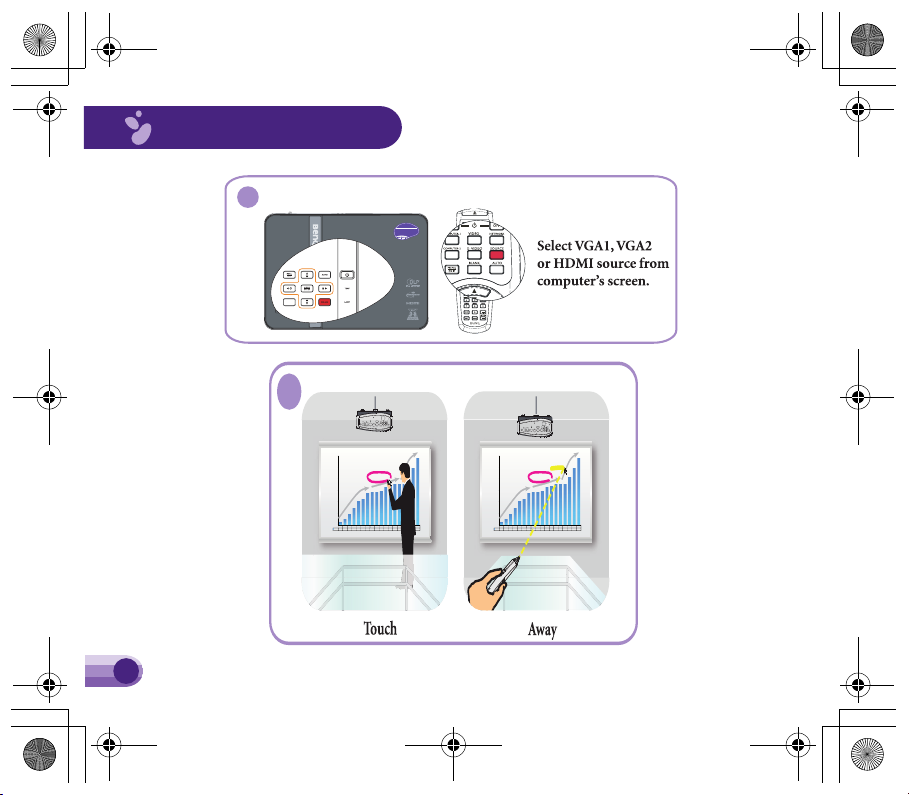

Operation
BLANK
English
2
1
3
BLANK
7
•••••
“FirstWave”
“SecondWave”
Troughofcommoditization
andrecession
IndustryRevenues(000’s)
QSG-(PointDraw pen).book Page 8 Thursday, May 27, 2010 8:46 AM
English
4
••
5
$12,000
$10,000
“SecondWave
Troughofcommoditization
$8,000
andrecession
$6,000
“FirstWave”
ryRevenues(000’s) t
$4,000
us d In
$2,000
$0
1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
Revenue
$330 $912 $1,763 $2,763 $4,079 $4,418 $5,508 $5,630 $5,675 $5,702 $6,523 $6,584 $6,915 $7,051 $7,013 $8,130 $9,830 $11,605
8
$12,000
$10,000
$8,000
$6,000
$4,000
$2,000
$0
1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
Revenue
$330 $912 $1,763 $2,763 $4,079 $4,418 $5,508 $5,630 $5,675 $5,702 $6,523 $6,584 $6,915 $7,051 $7,013 $8,130 $9,830 $11,605
English
Troubleshooting
If the pen doesn't work at all, or it works intermittently, try one of these solutions:
- If the pen's battery light is blinking or lit, then the pen's battery is fully discharged; connect the pen to the USB power adapter or your computer.
- Make sure the pen is not pointing at a shadow and make sure its tip is not in a shadow.
- If the room is brightly lit, reduce the room illumination.
- If you're trying to use the computer's mouse at the same time as the pen, point the pen away from the screen while using the mouse.
If accurate clicking is difficult, hold the pen steadier when clicking.
If the mouse pointer is in the wrong place on the screen, or the mouse pointer's movement is restricted to only part of the screen, make sure your projector is displaying the computer's screen and not some other source (such as DVD, VCR, etc.). To change the source, press the SOURCE button on the projector or remote control.
PointDrawTM pen specifications
Operation frequency 2.4 GHz ISM Band
Rechargeable battery
Model name Normal voltage Normal capacity
Storage temperature -10ºC -60ºC
Operation temperature 0ºC -40ºC
Operation humidity 20%-85% (ambient temperature<40ºC)
Power consum ption DC3.3V, 35 mA (operation)
Dimensions Length*Diameter=204*30 (mm)
Wei g h t 72g
1 pcs CR17360A
3.6V 780 mAh
9
Regulation statements
FCC statement
CLASS B: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna. — Increase the distance between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
FCC/IC statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution:
for compliance could void the user's authority to operate this equipment.
Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
EEC statement (for European users)
This device complies with the requirements set out in the Council Directives on the Approximation of the Laws of the Member States relating Electromagnetic Compatibility (2004/108/EC) , Low Voltage Directive (2006/95/EC), the Restriction of The Use of Certain Hazardous Substances in Electrical And Electronic Equipment Directive (2002/95/EC), Turkish EEE Directive, Commission Regulation (EC) No 1275/2008 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to ecodesign requirements for standby and off mode electric power consumption of electrical and electronic household and office equipment, and the Directive 2009/125/EC of the European parliament and of the council establishing a framework for the setting of ecodesign requirements for energy-related products.
Any changes or modifications not expressly approved by the party responsible
WEEE directive
Disposal of Waste Electrical and Electronic Equipment by users in private households in the European Union.
This symbol on the product or on the packaging indicates that this can not be disposed of as household waste. You must dispose of your waste equipment by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment. For more information about recycling of this equipment, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.
