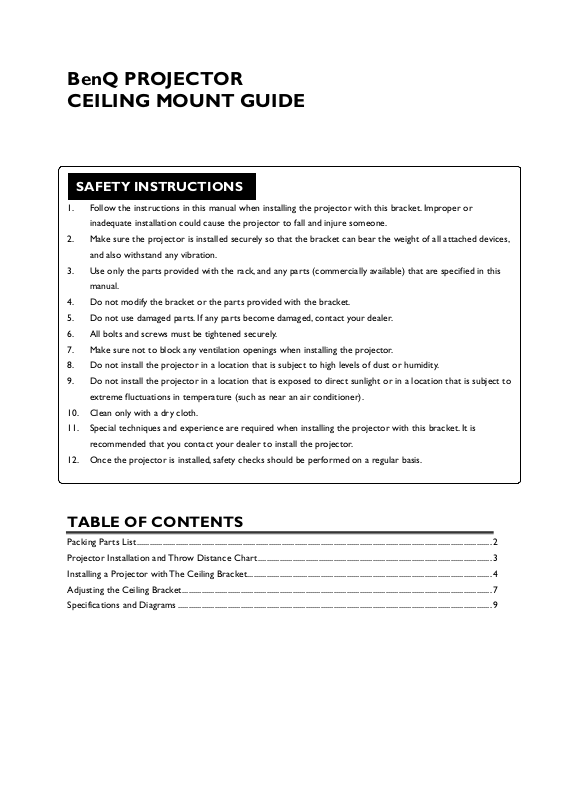

Page 1
BenQ PROJECTOR
CEILING MOUNT GUIDE
SAFETY INSTRUCTIONS
1. Follow the instructions in this manual when installing the projector with this bracket. Improper or
inadequate installation could cause the projector to fall and injure someone.
2. Make sure the projector is installed securely so that the bracket can bear the weight of all attached devices,
and also withstand any vibration.
3. Use only the parts provided with the rack, and any parts (commercially available) that are specified in this
manual.
4. Do not modify the bracket or the parts provided with the bracket.
5. Do not use damaged parts. If any parts become damaged, contact your dealer.
6. All bolts and screws must be tightened securely.
7. Make sure not to block any ventilation openings when installing the projector.
8. Do not install the projector in a location that is subject to high levels of dust or humidity.
9. Do not install the projector in a location that is exposed to direct sunlight or in a location that is subject to
extreme fluctuations in temperature (such as near an air conditioner).
10. Clean only with a dry cloth.
11. Special techniques and experience are required when installing the projector with this bracket. It is
recommended that you contact your dealer to install the projector.
12. Once the projector is installed, safety checks should be performed on a regular basis.
TABLE OF CONTENTS
Packing Parts List.................................................................................................................................................................... 2
Projector Installation and Throw Distance Chart............................................................................................................3
Installing a Projector with The Ceiling Bracket.................................................................................................................4
Adjusting the Ceiling Bracket............................................................................................................................................... 7
Specifications and Diagrams ................................................................................................................................................. 9
Page 2
BenQ Projector Ceiling Mount Guide
PACKING PARTS LIST
✓
CEILING ADAPTER
✓
PIPE
✓
PROJECTOR ADAPTER
✓
WASHER x 1
Names of Parts
✓
U-PLATE
✓
PIPE-BASE
✓
V – ADJUST BOLT
✓
M4 SCREW x 10
✓
TUBE
✓
H – ADJUST ADAPTER
✓
NUT x 7
✓
BOLT x 6 (TUBE BOLT x 2, L – ADJUST
BOLT x 2, PIPE BOLT x 2)
U - PLATE
CEILING ADAPTER
TUBE
TUBE BOLT x 2
L-A DJ UST BOLT x 2
PIPE
PIPE BOLT x 2
H - ADJUST ADAPTER
V – ADJUST BOLT
PIPE BASE
PROJECTOR ADAPTER
2 Packing Parts List
Page 3
BenQ Projector Ceiling Mount Guide
PROJECTOR INSTALLATION AND THROW DISTANCE
CHART
Throw Distance Chart
4: 3 Aspect Ratio Screen
Diagonal (in) Screen Width
(cm)
30 61 46 99 120
40 81 61 131 160
50 102 76 164 200
60 122 91 197 241
70 142 106 230 281
80 162 122 263 321
90 183 137 296 361
100 203 152 328 401
125 254 190 411 501
150 305 228 493 601
175 355 266 575 702
200 406 304 657 802
225 457 342 739 902
250 508 380 821 1002
275 558 418 903 1103
300 609 456 1000 1203
Diagonal (in) Screen Width Screen Height
(SW x 1.618) (SW x 1.975)
Screen Height
(cm)
(cm)
Min Throw
Distance (cm)
MinThrow
Distance (cm)
Max Throw
Distance (cm)
Max Throw
Distance (cm)
Ceiling
Throw Distance
Throw Distance
Projector Installation and Throw Distance Chart 3
Page 4
BenQ Projector Ceiling Mount Guide
t
INSTALLING A PROJECTOR WITH THE CEILING
BRACKET
Overview
■ Diagram of completed
installation
■ Ceiling Mount Device
Installation Procedure
Insert the U-PLATE into the CEILING ADAPTER, and tighten two M4 screws (from the
STEP A
bottom) into the screw holes. Then attach the top part to the ceiling.
U-PLATE
CEILING ADAPTER
M4 screws
4 Installing a Projector with the Ceiling Bracke
Ceiling mount screws
(not included)
Page 5
STEP B
STEP C
BenQ Projector Ceiling Mount Guide
Join the TUBE and the U-PLATE with two TUBE BOLT sets (bolt and nut).
NUT x 2
TUBE BOLT x 2
TUBE
Install the PIPE and the TUBE with two L-ADJUST BOLT sets (bolt & nut).
STEP D
Install the base-assembly.
STEP D1
Attach the PIPE-BASE to the
H-ADJUST ADAPTER with two M4 screws.
M4 screw
H-ADJUST ADAPTER
NUT x 2
M4 screw
L-A DJ UST BOLT x2
PIPE
STEP D2
Put together the V-ADJUST ADAPTER
and the PROJECTOR ADAPTER with one V-ADJUST
BOLT set (bolt, washer and nut). Then tighten the M4
screws on both sides.
NUT
WASHER
V-ADJUST ADAPTER
PIPE-BASE
Installing a Projector with the Ceiling Bracket 5
V-ADJUST BOLT
Page 6
BenQ Projector Ceiling Mount Guide
t
STEP E
Join the BASS-ASSEMBLY and the PROJECTOR set with four M4 screws.
M4 screw
STEP F
Join the BASE-ASSEMBLY and the ceiling mount device with two PIPE BOLT sets (bolt and
nut).
Two people are required for the completion of this step.
Ceiling mount bracket
NUT
BASE-ASSEMBLY
PIPE BOLT
Installation finished.
6 Installing a Projector with the Ceiling Bracke
Page 7
ADJUSTING THE CEILING BRACKET
Height Adjustment
1. Make sure to remove the projector first.
2. Loosen the nuts securing to the two L-ADJUST BOLTS.
3. Remove the L-ADJUST BOLTS from the PIPE.
4. Adjust to the correct position for the height of the screen. The
height can be adjusted to 225mm or any value in a range
between 555mm and 765mm in increments of 30 mm.
5. Insert the L-ADJUST BOLT back into the PIPE, and then
re-attach the nuts previously removed.
BenQ Projector Ceiling Mount Guide
Maximum Height (non-adjustable)
Minimum Height
(non-adjustable)
Adjusting the Ceiling Bracket 7
Page 8
BenQ Projector Ceiling Mount Guide
t
Horizontal Angle Adjustment
Loosen the two sets of screws connecting the PIPE-BASE
1.
and the H-ADJUST ADAPTER.
Adjust the horizontal angle so that it is correct for the
2.
orientation of the screen.
Re-tighten the two sets of screws connecting the PIPE-BASE
3.
and the H-ADJUST ADAPTER.
The swivel angle can be set within a range of negative to
4.
positive 30 degrees.
Vertical Angle Adjustment
Loosen the two sets of screws connecting the H-ADJUST
1.
ADAPTER and the PROJECTOR ADAPTER.
Adjust the vertical angle to the correct one for the orientation
2.
of the screen.
Re-tighten the 2 sets of screws connecting the H-ADJUST
3.
ADAPTER and the PROJECTOR ADAPTER.
The tilt angle can be adjusted in a range between –5 and +15
4.
degrees.
8 Adjusting the Ceiling Bracke
Page 9
SPECIFICATIONS AND DIAGRAMS
Specifications
Adjustment Range
BenQ Projector Ceiling Mount Guide
Height
Horizontal angle
Vertical angle
Weight 3.2 kg
Loading 3.5 kg
225mm, 555mm, 585mm, 615mm, 645mm, 675mm, 705mm, 735mm and 765mm.
–30 to +30 degrees
-5 to +15 degrees
Diagrams
■ Left View ■ Front view ■ Right view
Specifications and Diagrams 9
