Digital Projector

User Manual

LX710 / LX710D / LU710 / LU710D / LH710 / LH710D LX730 / LX730D / LU930 / LU930D / LH930 / LH930D

V 1.00

Warranty and Copyright information

Limited warranty

BenQ warrants this product against any defects in material and workmanship, under normal usage and storage.

Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in accordance with BenQ's written instructions, especially the ambient humidity must be in-between 10% and 90%, temperature in-between 0°C and 35°C, altitude lower than 4920 feet, and avoiding to operate the projector in a dusty environment. This warranty gives you specific legal rights, and you may have other rights which vary from country to country.

For other information, please visit www.BenQ.com.

Copyright © 2019 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are copyrights of their respective companies or organizations.

Patents

Please go to http://patmarking.benq.com/ for the details on BenQ projector patent coverage.

2 Warranty and Copyright information

Table of Contents

Warranty and Copyright information ................................................................................ 2

Important safety instructions .............................................................................................. 4

Introduction .......................................................................................................................... 6

Shipping contents ....................................................................................................................................... 6

Projector exterior view ............................................................................................................................ 8

Controls and functions.............................................................................................................................. 9

Positioning your projector ................................................................................................. 11

Choosing a location ................................................................................................................................. 11

Obtaining a preferred projected image size....................................................................................... 12

Mounting the projector .......................................................................................................................... 16

Adjusting the projector position (LU930/LU930D/LH930/LH930D) .......................................... 18

Adjusting the projected image ..............................................................................................................19

Connection .......................................................................................................................... 21

Operation ............................................................................................................................ 23

Starting up the projector ........................................................................................................................23

Using the menus ....................................................................................................................................... 24

Securing the projector ............................................................................................................................ 25

Switching input signal ...............................................................................................................................27

Controlling the projector through a Wired LAN environment ...................................................27

Shutting down the projector .................................................................................................................30

Direct power off ...................................................................................................................................... 30

Menu operation ................................................................................................................... 31

Basic menu ............................................................................................................................................... 36

Advanced menu ..................................................................................................................................... 38

Maintenance ........................................................................................................................ 48

Care of the projector .............................................................................................................................. 48

Light source information ........................................................................................................................ 49

Troubleshooting ................................................................................................................. 51

Specifications ...................................................................................................................... 52

Projector specifications ..........................................................................................................................52

Dimensions ................................................................................................................................................53

Timing chart............................................................................................................................................... 54

3 Table of Contents

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in the user manual / installation guide and marked on the product.

1. Please read the user manual / installation guide before you operate your projector. Save it for future reference.

2. Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.

3. Refer servicing to qualified service personnel.

4. Always open the lens shutter (if any) or remove the lens cap (if any) when the projector light source is on.

5. The light source becomes extremely hot during operation.

6. In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where the mains voltage may fluctuate or cut out, it is

recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS).

7. Do not block the projection lens with any objects when the projector is under operation as this could cause the objects to become heated and deformed or even cause a fire. To temporarily turn off the light source, use the blank function.

8. Do not operate light sources beyond the rated light source life.

9. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining serious damage.

10. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts.

Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

11. Do not block the ventilation holes.

- Do not place this projector on a blanket, bedding or any other soft surface.

- Do not cover this projector with a cloth or any other item.

- Do not place inflammables near the projector.

If the ventilation holes are seriously obstructed, overheating inside the projector may result in a fire.

12. Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing injury or resulting in damage to the projector.

13. Do not step on the projector or place any objects upon it. Besides probable physical damage to the projector, doing so may result in accidents and possible injury.

14. When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal phenomenon and not a product defect.

15. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's power outlet and call BenQ to have the projector serviced.

16. This apparatus must be earthed.

17. Do not place this projector in any of the following environments.

4 Important safety instructions

- Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector.

- Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up.

- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shorten the projector's life span and darken the image.

- Locations near fire alarms

- Locations with an ambient temperature above 40°C / 104°F

- Locations where the altitudes are higher than 3000 m (10000 feet).

18. To avoid damaging the DLP chips, do not direct a high-power laser beam onto the projection lens.

Risk Group 2

1. According to the classification of photobiological safety of light sources and light source systems, this product is Risk Group 2, IEC 62471-5:2015.

2. Possibly hazardous optical radiation emitted from this product.

3. Do not stare at operating light source. May be harmful to the eyes.

4. As with any bright source, do not stare into the direct beam.

The projector’s light source unit uses a laser.

Laser Caution

This product belongs to CLASS 1 laser product and complies with IEC 60825-1:2014.

LASER RADIATION, DO NOT STARE INTO BEAM, CLASS 1 LASER PRODUCT.

Above laser caution are located on the bottom of this apparatus.

Caution – Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Notice is given to supervise children and to

never allow them to stare into the projector beam at any distance from the projector.

• Notice is given to use caution when using the

remote control for starting the projector while in front of the projection lens.

• Notice is given to the user to avoid the use of

optical aids such as binoculars or telescopes inside the beam.

5 Important safety instructions

Introduction

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase.

Standard accessories

LX710/LX710D/LU710/ LU710D/LH710/LH710D

Quick start guide Warranty card* Power cord

LX730/LX730D LU930/LU930D/LH930/

LH930D

Projector Remote control with batteries

HDMI cable

• The supplied accessories will be suitable for your region, and may differ from those illustrated.

• *The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Optional accessories

1. 3D glasses

2. InstaShow™ (WDC10/WDC20)

3. Wireless dongles (QCast Mirror)

Replacing the remote control batteries

1. Press and slide off the battery cover, as illustrated.

2. Remove the old batteries (if applicable) and install two AAA batteries. Make sure that the positive and negative ends are positioned correctly, as illustrated.

3. Slide the battery cover in until it clicks into place.

6 Introduction

• Avoid leaving the remote control and batteries in an excessive heat or humid environment like the kitchen, bathroom, sauna, sunroom or in a closed car.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• Dispose of the used batteries according to the manufacturer's instructions and local environment regulations for your region.

• Never throw the batteries into a fire. There may be danger of an explosion.

• If the batteries are dead or if you will not be using the remote control for an extended period of time, remove the batteries to avoid damage to the remote control from possible battery leakage.

7 Introduction

Projector exterior view

LX710/LX710D/LU710/ LU710D/LH710/LH710D

LX730/LX730D LU930/LU930D/LH930/

LH930D

23 24

25 25

10 12 16

11 13 15 17 19

8 8 8

1. Vent (air exhaust)

2. Focus and zoom ring

3. Projection lens

4. IR remote sensor

5. Lens shift adjustment knobs (LEFT/RIGHT, UP/DOWN)

6. Ambient Light Sensor (ALS)

7. Vent (air inlet)

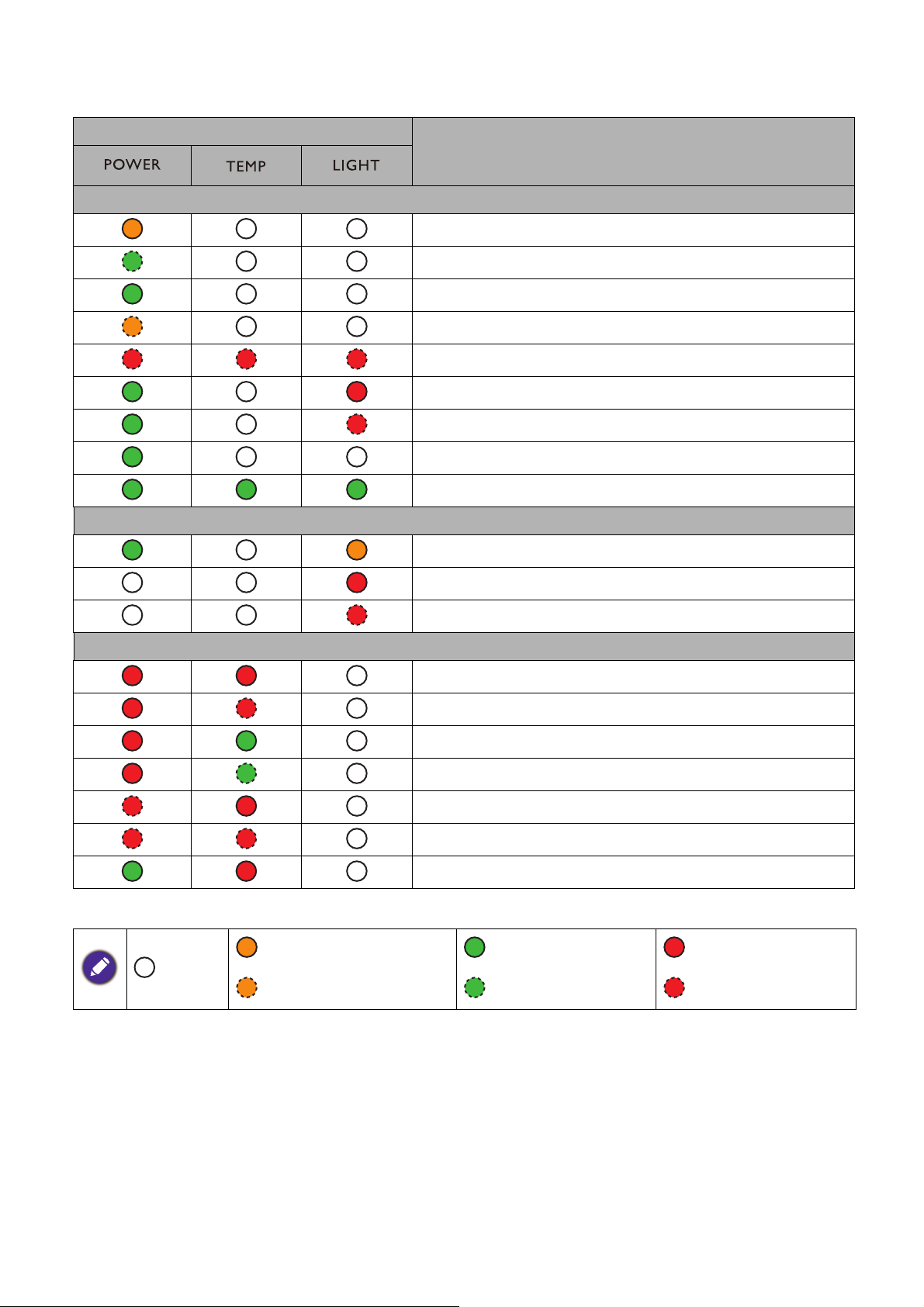

8. POWER indicator light/TEMPerature warning light/LIGHT indicator light (See Indicators on page 50.)

9. External control panel (See Controls and functions on page 9.)

10. HDMI 1 input port

11. HDMI 2 input port

12. USB Type A port (5V/1.5A power for WDC10/QCast Mirror)

*Power for WDC20 should come from external power supply.

13. Component RCA RGB input jacks

14. Video input jack

15. Audio (L/R) input jacks

16. RGB (PC) signal input jack

17. RGB (PC) signal output jack

18. RS-232 control port

19. RJ-45 LAN input jack

20. Audio input jack

21. Audio output jack

22. 12V trigger

23. Anti-theft lock slot

24. AC power jack

25. Adjuster feet

26. Wall mount holes

27. Security bar

28. InstaShow holes

8 Introduction

Controls and functions

All the key presses described in this document are available on the remote control or projector.

16 17

19 20

11 12 13 14 15

3 1

Projector & Remote control

1. MENU

Turns on the On-Screen Display (OSD) menu.

2. Arrow keys ( , , , )

When the On-Screen Display (OSD) menu is activated, these keys are used as directional arrows to select the desired menu items and to make adjustments.

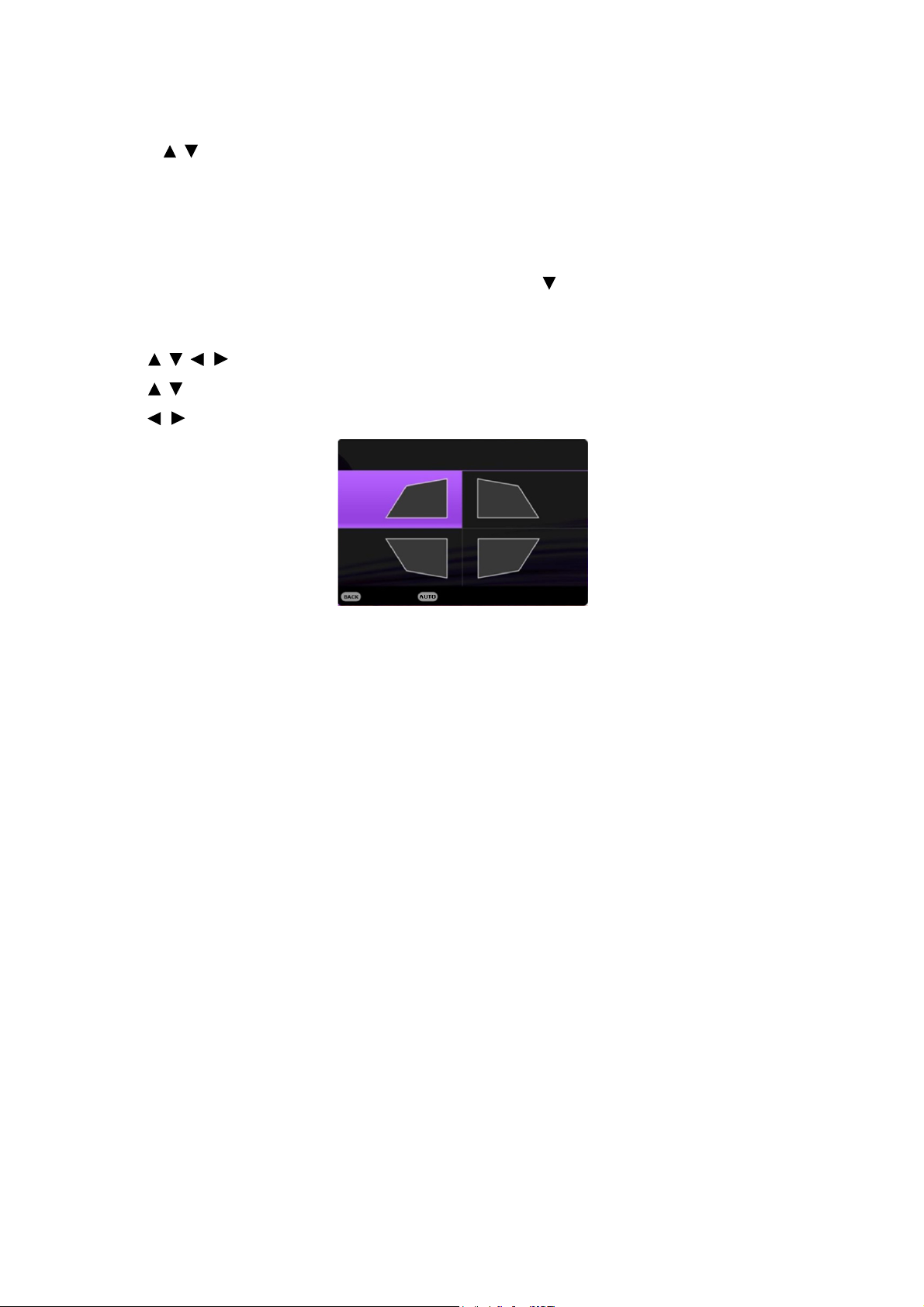

Keystone keys ( , )

Displays the keystone correction page.

Vol um e ke ys /

Decreases or increases the projector volume.

3. BACK

Goes back to previous OSD menu, exits and saves menu settings.

4. POWER

Toggles the projector between standby mode and on.

ON/ Off

Toggles the projector between standby mode and on.

5. AUTO

Automatically determines the best picture timings for the displayed image when PC signal (analog RGB) is selected.

9 Introduction

6. OK

13. NETWORK

Confirms the selected On-Screen Display (OSD) menu item.

7. SOURCE

Displays the source selection bar.

8. KEYSTONE

Displays the keystone correction page.

9. PIC MODE

Selects an available picture setup mode.

10.

Toggles projector audio between on and off.

11. LIGHT MODE

Selects an available light mode.

12. ECO BLANK

Used to hide the screen picture.

Do not block the projection lens from projecting as this could cause the blocking object to become heated and deformed or even cause a fire.

Displays the network settings menu.

14. INFO

Displays the projector information.

15. FREEZE

Freezes the projected image.

16.

Decreases the projector volume.

17.

Increases the projector volume.

18. ZOOM+/ZOOM-

Magnifies or reduces the projected picture size.

19. QUICK INSTALL

Quickly selects several functions to adjust the projected image and displays the test pattern.

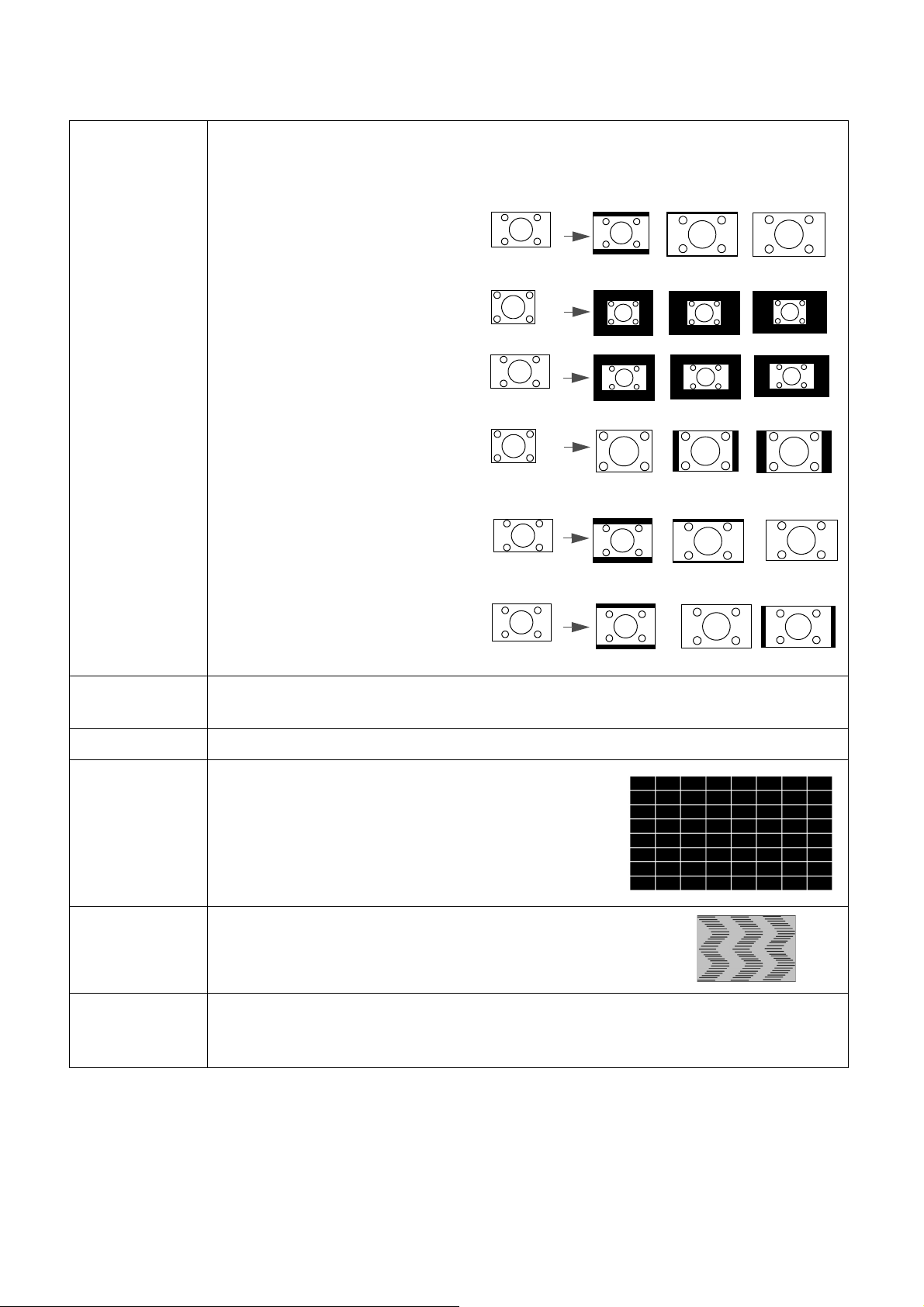

20. ASPECT

Selects the display aspect ratio.

Remote control effective range

The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor(s) to function correctly. The distance between the remote control and the sensor(s) should not exceed 8 meters (~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensor(s) on the projector that might obstruct the infra-red beam.

• Operating the projector from the front • Operating the projector from the top

10 Introduction

Positioning your projector

Choosing a location

Before choosing an installation location for your projector, take the following factors into consideration:

• Size and position of your screen

• Electrical outlet location

• Location and distance between the projector and the rest of your equipment

You can install your projector in the following ways.

1. Front Table

Select this location with the projector placed on the table in front of the screen. This is the most common way to position the projector for quick setup and portability.

3. Front Ceiling

Select this location with the projector suspended upside-down from the ceiling in front of the screen. Purchase the BenQ Projector Ceiling Mount Kit from your dealer to mount your projector on the ceiling.

2. Rear Table

Select this location with the projector placed on the table behind the screen. Note that a special rear projection screen is required.

4. Rear Ceiling

Select this location with the projector suspended upside-down from the ceiling behind the screen. Note that a special rear projection screen and the BenQ Projector Ceiling Mount Kit are required for this installation location.

After turning on the projector, go to Advanced Menu - Settings > Projector Installation > Projector Installation and press / to select a setting.

You can also use QUICK INSTALL on the remote control to access this menu.

11 Positioning your projector

Obtaining a preferred projected image size

Projection distance

Center of lens

Screen

4:3 Screen diagonal

The distance from the projector lens to the screen, the zoom setting (if available), and the video format each factors in the projected image size.

Projection dimensions

LX710/LX710D/LX730/LX730D

• The screen aspect ratio is 4:3 and the projected picture is in a 4:3 aspect ratio

LX710/LX710D

Screen size Projection distance (mm)

Inch mm (max. zoom) (min. zoom)

30 762 457 610 920 1061 1201 34

50 1270 762 1016 1534 1768 2002 57

60 1524 914 1219 1841 2121 2402 69

70 1778 1067 1422 2148 2475 2802 80

80 2032 1219 1626 2455 2829 3202 91

90 2286 1372 1829 2761 3182 3603 103

100 2540 1524 2032 3068 3536 4003 114

110 2794 1676 2235 3375 3889 4403 126

120 3048 1829 2438 3682 4243 4804 137

130 3302 1981 2642 3989 4596 5204 149

140 3556 2134 2845 4296 4950 5604 160

150 3810 2286 3048 4602 5304 6005 171

160 4064 2438 3251 4909 5657 6405 183

170 4318 2591 3454 5216 6011 6805 194

180 4572 2743 3658 5523 6364 7205 206

200 5080 3048 4064 6137 7071 8006 229

250 6350 3810 5080 7671 8839 10008 286

300 7620 4572 6096 9205 10607 12009 343

H (mm) W (mm)

Min distance

Average

Max distance

Offset (mm)Diagonal

For example, if you are using a 120-inch screen, the recommended projection distance is 4243 mm.

If your measured projection distance is 6000 mm, the closest match in the "Projection distance (mm)" column is 6005 mm. Looking across this row shows that a 150'' (about 3.8 m) screen is required.

12 Positioning your projector

LX730/LX730D

Projection distance

Center of lens

Screen

16:10 Screen diagonal

Screen size Projection distance (mm)

Inch mm (max. zoom) (min. zoom)

30 762 457 610 860 1116 1372 46

50 1270 762 1016 1433 1859 2286 76

60 1524 914 1219 1719 2231 2743 91

70 1778 1067 1422 2006 2603 3200 107

80 2032 1219 1626 2292 2975 3658 122

90 2286 1372 1829 2579 3347 4115 137

100 2540 1524 2032 2865 3719 4572 152

110 2794 1676 2235 3152 4090 5029 168

120 3048 1829 2438 3438 4462 5486 183

130 3302 1981 2642 3725 4834 5944 198

140 3556 2134 2845 4011 5206 6401 213

150 3810 2286 3048 4298 5578 6858 229

200 5080 3048 4064 5730 7437 9144 305

250 6350 3810 5080 7163 9296 11430 381

300 7620 4572 6096 8595 11156 13716 457

H (mm) W (mm)

Min distance

Average

Max distance

Offset (mm)Diagonal

For example, if you are using a 120-inch screen, the recommended projection distance is 4462 mm.

If your measured projection distance is 5000 mm, the closest match in the "Projection distance (mm)" column is 4834 mm. Looking across this row shows that a 130'' (about 3.3 m) screen is required.

• To optimize your projection quality, we suggest you do the projection within non-gray area.

• All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

LU710/LU710D/LU930/LU930D

13 Positioning your projector

• The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio

LU710/LU710D

Screen size Projection distance (mm)

Inch mm (max. zoom) (min. zoom)

30 762 404 646 730 837 943 0

50 1270 673 1077 1217 1395 1572 0

60 1524 808 1292 1460 1674 1887 0

70 1778 942 1508 1704 1953 2201 0

80 2032 1077 1723 1947 2231 2516 0

90 2286 1212 1939 2191 2510 2830 0

100 2540 1346 2154 2434 2789 3145 0

110 2794 1481 2369 2677 3068 3459 0

120 3048 1615 2585 2921 3347 3774 0

130 3302 1750 2800 3164 3626 4088 0

140 3556 1885 3015 3407 3905 4403 0

150 3810 2019 3231 3651 4184 4717 0

200 5080 2692 4308 4868 5579 6289 0

250 6350 3365 5385 6085 6973 7862 0

300 7620 4039 6462 7302 8368 9434 0

H (mm) W (mm)

Min distance

Average

Max distance

Offset (mm)Diagonal

For example, if you are using a 120-inch screen, the recommended projection distance is 3347 mm.

If your measured projection distance is 4000 mm, the closest match in the "Projection distance (mm)" column is 3905 mm. Looking across this row shows that a 140'' (about 3.6 m) screen is required.

LU930/LU930D

Screen size Projection distance (mm)

Inch mm (max. zoom) (min. zoom)

30 762 404 646 879 114 4 1409 0

50 1270 673 1077 1465 1906 2348 0

60 1524 808 1292 1758 2287 2817 0

70 1778 942 1508 2051 2669 3287 0

80 2032 1077 1723 2343 3050 3756 0

90 2286 1212 1939 2636 3431 4226 0

100 2540 1346 2154 2929 3812 4696 0

110 2794 1481 2369 3222 4194 5165 0

120 3048 1615 2585 3515 4575 5635 0

130 3302 1750 2800 3808 4956 6104 0

140 3556 1885 3015 4101 5337 6574 0

150 3810 2019 3231 4394 5719 7043 0

200 5080 2692 4308 5859 7625 9391 0

250 6350 3365 5385 7323 9531 11739 0

300 7620 4039 6462 8788 11437 14087 0

H (mm) W (mm)

Min distance

Average

Max distance

Offset (mm)Diagonal

For example, if you are using a 120-inch screen, the recommended projection distance is 4575 mm.

If your measured projection distance is 4000 mm, the closest match in the "Projection distance (mm)" column is 3812 mm. Looking across this row shows that a 100'' (about 2.8 m) screen is required.

14 Positioning your projector

• To optimize your projection quality, we suggest you do the projection within non-gray area.

Projection distance

Center of lens

Screen

16:9 Screen diagonal

Offset

LH710/LH710D/LH930/LH930D

• The screen aspect ratio is 16:9 and the projected picture is in a 16:9 aspect ratio

LH710/LH710D

Screen size Projection distance (mm)

Inch mm (max. zoom) (min. zoom)

30 762 374 664 750 860 970 19

50 1270 623 1107 1251 1433 1616 31

60 1524 747 1328 1501 1720 1939 37

70 1778 872 1550 1751 2007 2263 44

80 2032 996 1771 2001 2293 2586 50

90 2286 1121 1992 2251 2580 2909 56

100 2540 1245 2214 2502 2867 3232 62

110 2794 1370 2435 2752 3154 3555 68

120 3048 1494 2657 3002 3440 3879 75

130 3302 1619 2878 3252 3727 4202 81

140 3556 1743 3099 3502 4014 4525 87

150 3810 1868 3321 3752 4300 4848 93

200 5080 2491 4428 5003 5734 6464 125

250 6350 3113 5535 6254 7167 8080 156

300 7620 3736 6641 7505 8601 9696 187

H (mm) W (mm)

Min distance

Average

Max distance

Offset (mm)Diagonal

For example, if you are using a 120-inch screen, the recommended projection distance is 3440 mm.

If your measured projection distance is 4000 mm, the closest match in the "Projection distance (mm)" column is 4014 mm. Looking across this row shows that a 140'' (about 3.6 m) screen is required.

15 Positioning your projector

LH930/LH930D

Screen size Projection distance (mm)

Inch mm (max. zoom) (min. zoom)

30 762 374 664 903 117 6 1448 0

50 1270 623 1107 1505 1959 2413 0

60 1524 747 1328 1806 2351 2896 0

70 1778 872 1550 2108 2743 3378 0

80 2032 996 1771 2409 3135 3861 0

90 2286 1121 1992 2710 3527 4343 0

100 2540 1245 2214 3011 3918 4826 0

110 2794 1370 2435 3312 4310 5309 0

120 3048 1494 2657 3613 4702 5791 0

130 3302 1619 2878 3914 5094 6274 0

140 3556 1743 3099 4215 5486 6757 0

150 3810 1868 3321 4516 5878 7239 0

200 5080 2491 4428 6022 7837 9652 0

250 6350 3113 5535 7527 9796 12065 0

300 7620 3736 6641 9032 11755 14478 0

H (mm) W (mm)

Min distance

Average

Max distance

Offset (mm)Diagonal

For example, if you are using a 120-inch screen, the recommended projection distance is 4702 mm.

If your measured projection distance is 4000 mm, the closest match in the "Projection distance (mm)" column is 3918 mm. Looking across this row shows that a 100'' (about 2.5 m) screen is required.

• To optimize your projection quality, we suggest you do the projection within non-gray area.

Mounting the projector

If you intend to mount your projector, we strongly recommend that you use a proper fitting BenQ projector mounting kit and that you ensure it is securely and safely installed.

If you use a non-BenQ brand projector mounting kit, there is a safety risk that the projector may fall down due to an improper attachment through the use of the wrong gauge or length screws.

Before mounting the projector

• Purchase a BenQ projector mounting kit from the place you purchased your BenQ projector.

• BenQ recommends that you also purchase a separate Kensington lock compatible security cable and attach it securely to both the anti-theft lock slot on the projector and the base of the mounting bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

• Ask your dealer to install the projector for you. Installing the projector on your own may cause it to fall and result in injury.

• Take necessary procedures to prevent the projector from falling off such as during an earthquake.

• The warranty doesn’t cover any product damage caused by mounting the projector with a non-BenQ brand projector mounting kit.

16 Positioning your projector

• Consider the surrounding temperature where the projector is ceiling/wall mounted. If a heater is used,

Ceiling/Wall mount screw: M4 x 8 mm (Max L = 25 mm; Min L = 20 mm)

Unit: mm

BenQ ceiling mount CMG3 (5J.JAM10.001) Ceiling mount screw: M4 (Max. L = 25 mm; Min. L = 20 mm)

Unit: mm

the temperature around the ceiling may be higher than expected.

• Read the user manual for the mounting kit about the range of torque. Tightening with torque exceeding the recommended range may cause damage to the projector and subsequently falling off.

• Make sure the power outlet is at an accessible height so that you can easily shut down the projector.

Ceiling/Wall mount installation diagram

304

151

576.50

412.3

17 Positioning your projector

Adjusting the projector position

Desk-front projection

Ceiling mount-front projection

Vertical shift

Ver t ic a l s h i ft

Vertical shift

Height of

projected


Max. 0.6V

Effective projection position

Max.

0.23H

Max.

0.23H

Height of

projected


Width of projected image

Shift to left

Shift to right

V: Height of projected image

H: Width of projected image

(LU930/LU930D/LH930/LH930D)

Shifting the projection lens

The lens shift control provides flexibility for installing your projector. It allows the projector to be positioned off the center of the screen.

The lens shift is expressed as a percentage of the projected image height or width. You can turn the knobs on the projector to shift the projection lens in any direction within the allowable range depending on your desired image position.

To reach the highest or lowest projection position:

1. Turn (Up/Down).

2. When you feel it is reaching the limit, turn

(Left/Right) to the left or right and turn

again.

3. Repeat the step above until finding the suitable position you need.

• If you hear a “clicking sound” during the adjustment, it means that the knob is past its adjustment limit. Please stop adjusting it, in order to avoid any unexpected damage, and turn the knob in the opposite direction, at least to one step before the click.

• If you can’t turn it back, please press and turn the knob back at same time.

18 Positioning your projector

Adjusting the projected image

LX710/LX710D/LX730/LX730D/ LU710/LU710D/LH710/LH710D

LU930/LU930D/LH930/LH930D

Press .

Adjusting the projection angle

If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. You can screw the adjuster feet to fine-tune the horizontal angle.

To retract the feet, screw the adjuster feet in a reverse direction.

Do not look into the lens while the light source is on. The strong light from the light source may cause damage to your eyes.

Fine-tuning the image size and clarity

Adjust the projected image to the size that you

Sharpen the image by rotating the focus ring.

need using the zoom ring.

LU930/LU930D/LH930/LH930D

LX710/LX710D/LX730/LX730D/ LU710/LU710D/LH710/LH710D

Correcting keystone

Keystoning refers to the situation where the projected image becomes a trapezoid due to angled projection.

To correct trapezoidal distortion, you can activate the Auto Vertical Keystone function in the Advanced Menu - Display menu. Or you can manually correct it following these steps.

1. Do one of the following steps to display the keystone correction page.

• Press / or / on the projector or remote control.

• Press QUICK INSTALL on the remote control. Press to highlight 2D Keystone and press OK.

• Go to Advanced Menu - Display > 2D Keystone and press OK.

2. After the 2D Keystone correction page displays. Press to correct keystoning at the top of the image. Press to correct keystoning at the bottom of the image. Press to correct keystoning at the right side of the image. Press to correct keystoning at the left side of the image.

19 Positioning your projector

3. When 2D Keystone correction page displays, you can also do the following settings:

Corner Fit

Press to reset corner value

Exit

• Press AUTO to reset the keystone values.

• Press / to disable the auto vertical keystone function.

Adjusting Corner Fit

You can manually adjust four corners of the image by setting the horizontal and vertical values.

1. Do one of the following steps to display the corner fit correction page.

• Press QUICK INSTALL on the remote control. Press to highlight Corner Fit and press OK.

• Go to Advanced Menu - Display > Corner Fit and press OK.

2. Press / / / to select one corner and press OK.

3. Press / to adjust vertical values.

4. Press / to adjust horizontal values.

20 Positioning your projector

Connection

Notebook or desktop computer

HDMI cable

Component Video cable

Video cable

Audio L/R cable

VGA cable

RS-232 cable

RJ-45 cable

Audio cable

12V trigger cable

234

Speakers

Monitor

A/V device

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.

2. Use the correct signal cables for each source.

3. Ensure the cables are firmly inserted.

1 1 2 3 4

5 5 7

6 8

• In the connections above, some cables may not be included with the projector (see Shipping contents on page 6). They are commercially available from electronics stores.

• The connection illustrations are for reference only. The rear connecting jacks available on the projector vary with each projector model.

• Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + function key with a monitor symbol turns the external display on/off. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.

• If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

21 Connection

You need only connect the projector to a video source device using just one of the connecting methods, however each provides a different level of video quality.

Te r m i n a l Picture quality

HDMI 1

Component Video

Video

Best

Better

Normal

Connecting audio

The projector has built-in mono speaker(s) which are designed to provide basic audio functionality accompanying data presentations for business purposes only. They are not designed for, nor intended for stereo audio reproduction use as might be expected in home theater or home cinema applications. Any stereo audio input (if provided), is mixed into a common mono audio output through the projector speaker(s).

The built-in speaker(s) will be muted when the AUDIO OUT jack is connected.

• The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected.

22 Connection

Operation

Starting up the projector

1. Plug the power cord. Turn on the power outlet switch (where fitted). The power indicator on the projector lights orange after power has been applied.

2. Press on the projector or on the remote control to start the projector. The power indicator

flashes green and stays green when the projector is on.

The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is projected.

(If necessary) Rotate the focus ring to adjust the image clearness.

3. If the projector is activated for the first time, select your OSD language following the on-screen instructions.

4. If you are prompted for a password, press the arrow keys to enter a 6-digit password. See Utilizing the password

function on page 25.

5. Switch all of the connected equipment on.

6. The projector will search for input signals. The current input signal being scanned appears. If the projector does not detect a valid signal, the message “No Signal” will continue displaying until an input signal is found.

You can also press SOURCE to select your desired input signal. See Switching input signal on page

27.

• Please use the original accessories (e.g. power cord) to avoid possible dangers such as electric shock and fire.

• If the projector is still hot from previous activity, it will run the cooling fan for approximately 90 seconds before energizing the light source.

• The Setup Wizard screenshots are for reference only and may differ from the actual design.

• If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message “Out of Range” displayed on the background screen. Please change to an input signal which is compatible with the projector's resolution or set the input signal to a lower setting. See Timing chart on page 54.

• If no signal is detected for 3 minutes, the projector automatically enters saving mode.

23 Operation

Using the menus


Picture Mode

Brightness

Contrast

Color

Tint

Sharpness

Off

Reference Mode

Brilliant Color

Advanced Color Settings

Display

Network

Settings

Information

Enter Exit

Return

Presentation

Reset Picture

System

LumiExpert

152

The projector is equipped with 2 types of On-Screen Display (OSD) menus for making various adjustments and settings.

• Basic OSD menu: provides primary menu functions. (See Basic menu on page 36)

• Advanced OSD menu: provides full menu functions. (See Advanced menu on page 38)

To access the OSD menu, press MENU on the projector or remote control.

• Use the arrow keys ( / / / ) on the projector or remote control to move through the menu items.

• Use OK on the projector or remote control to confirm the selected menu item.

The first time you use the projector (after finishing the initial setup), Advanced OSD menu displays.

The OSD screenshots below are for reference only, and may differ from the actual design.

Below is the overview of the Advanced OSD menu.

Main menu & Main menu icon

Sub-menu

Current input signal

Press BACK to go to the previous page.

Press MENU to exit.

Status

Press OK to enter the menu.

If you intend to switch from the Advanced OSD menu to the Basic OSD menu, follow the instructions below:

1. Go to Advanced Menu - System > Menu Settings and press OK.

2. Select Menu Type and OK.

3. Press / to select Basic. Next time when you turn on the projector, you may access the Basic OSD menu by pressing MENU.

24 Operation

Below is the overview of the Basic OSD menu.

Basic Menu

Wireless LAN

Brightness

Aspect Ratio

Light Mode

Picture Mode

Volume

Information

Menu Type

Auto

Presentation

Dimming

Enter

Exit

253

Input New Password

Return

Menu Type

Press OK to enter the menu.

Main menu Status

Current input signal

Press MENU to exit.

Likewise, when you wish to switch from the Basic OSD menu to the Advanced OSD menu, follow the instructions below:

1. Go to Basic Menu > Menu Type.

2. Press OK and press / to select Advanced. Next time when you turn on the projector, you may access the Advanced OSD menu by pressing MENU.

Securing the projector

Using a security cable lock

The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as the Kensington lock, to secure the projector. You can locate an anti-theft lock slot on the rear side of the projector. See item 23 on page 8.

A Kensington security cable lock is usually a combination of key(s) and the lock. Refer to the lock’s documentation for finding out how to use it.

Utilizing the password function

Setting a password

1. Go to Advanced Menu - Settings > Security Settings. Press OK. The Security Settings page appears.

2. Highlight Change Password and press OK.

3. The four arrow keys ( , , , ) respectively represent 4 digits (1, 2, 3, 4). According to the password you desire to set, press the arrow keys to enter six digits for the password.

4. Confirm the new password by re-entering the new password.

5. To activate the Power On Lock function, press / to highlight Power On Lock and press OK. Press / to select On. Input the password again.

25 Operation

• The digits being input will display as asterisks on-screen. Make a note of your selected password and keep it in a

Password Error

Please try again.

Please write down the recall code, and contact BenQ Customer Center.

Recall Code:

Recall Password

Return

safe place in advance or right after the password is entered so that it is available to you should you ever forget it.

• Once a password has been set and the power on lock is activated, the projector cannot be used unless the correct password is entered every time the projector is started.

If you forget the password

If you enter the wrong password, the password error message will appear, and the Input Current Password message follows. If you absolutely do not remember the password, you can use the password recall procedure. See

Entering the password recall procedure on page 26.

If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

Entering the password recall procedure

1. Press and hold AUTO for 3 seconds. The projector will display a coded number on the screen.

2. Write down the number and turn off your projector.

3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Changing the password

1. Go to Advanced Menu - Settings > Security Settings > Change Password.

2. Press OK. The message “Input Current Password” appears.

3. Enter the old password.

• If the password is correct, another message “Input New Password” appears.

• If the password is incorrect, the password error message will appear, and the message “Input Current Password” appears for your retry. You can press BACK to cancel the change or try another password.

4. Enter a new password.

5. Confirm the new password by re-entering the new password.

Disabling the password function

To disable password protection, go to Advanced Menu - Settings > Security Settings > Power On Lock and press OK. Press / to select Off. The message “Input Current Password” appears. Enter the current password.

• If the password is correct, the OSD menu returns to the Security Settings page. You will not have to enter the password next time turning on the projector.

Though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password.

26 Operation

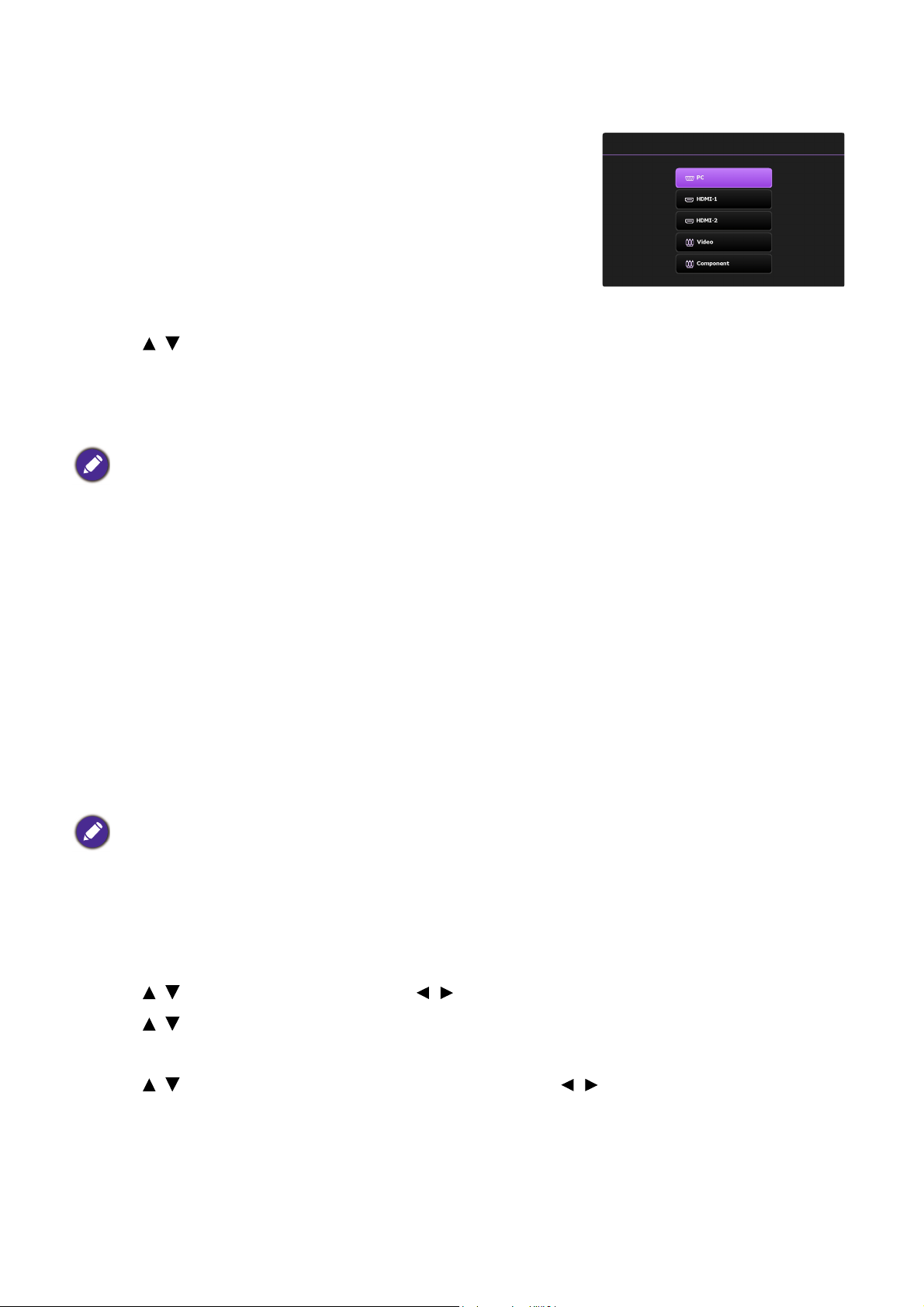

Switching input signal

Source

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time. When starting up, the projector automatically searches for the available signals.

Be sure the Advanced Menu - Settings > Auto Source Search menu is On if you want the projector to automatically search for the signals.

To select the source:

1. Press SOURCE. A source selection bar appears.

2. Press / until your desired signal is selected and press OK.

Once detected, the selected source information will appear at the corner of the screen for seconds. If there is multiple equipment connected to the projector, repeat steps 1-2 to search for another signal.

• The brightness level of the projected image will change accordingly when you switch between different input signals.

• For best display picture results, you should select and use an input signal which outputs at the projector’s native resolution. Any other resolutions will be scaled by the projector depending upon the “aspect ratio” setting, which may cause some image distortion or loss of picture clarity. See Aspect Ratio on page 36.

Controlling the projector through a Wired LAN environment

Wired LAN allows you to manage the projector from a computer using a web browser when the computer and the projector are properly connected to the same local area network.

Configuring the Wired LAN

If you are in a DHCP environment:

1. Take a RJ45 cable and connect one end to the RJ45 LAN input jack of the projector and the other end to the RJ45 port.

When connecting the RJ45 cable, avoid coiling and intertwining the cable as it may cause signal noise or interruption.

2. Make sure the menu type is Advanced. See Using the menus on page 24 for how to switch to the Advanced OSD menu.

3. Go to Advanced - Network.

4. Highlight Wired LAN and then press OK. The Wired LAN page is displayed.

5. Press / to highlight DHCP and press / to select On.

6. Press / to highlight Apply and press OK.

7. Go back to the Network page.

8. Press / to highlight AMX Device Discovery and press / to select On or Off. When AMX Device Discovery is On, the projector can be detected by AMX controller.

9. Please wait for around 15 - 20 seconds, and then re-enter the Wired LAN page.

27 Operation

10. The IP Address, Subnet Mask, Default Gateway, and DNS Server settings will be displayed.

Note down the IP address displayed in the IP Address row.

If the IP Address still does not display, contact your ITS administrator.

If you are in a non-DHCP environment:

1. Repeat steps 1-4 above.

2. Press / to highlight DHCP and press / to select Off.

3. Contact your ITS administrator for information on the IP Address, Subnet Mask, Default Gateway, and DNS Server settings.

4. Press / to select the item you want to modify and press OK.

5. Press / to move the cursor and then press / to enter the value.

6. To save the setting, press OK. If you do not want to save the setting, press BACK.

7. Press BACK to return to Wired LAN page, press / to highlight AMX Device Discovery and press / to select On or Off.

8. Press BACK to exit the menu.

Controlling the projector remotely through a web browser

Once you have the correct IP address for the projector and the projector is on or in standby mode, you can use any computer that is on the same local area network to control the projector.

1. Enter the address of the projector in the address bar of your browser and click Go.

2. The remote network operation page opens. This page allows you to operate the projector as if you were using the remote control or control panel on the projector.

• Menu (MENU) • Input (SOURCE) See Projector & Remote control on page 9 for

• OK

• ( )

•

details.

•

• Blank (ECO BLANK)

28 Operation

To switch input source, click on your desired signal.

iii

The source list varies according to the connectors available on the projector. ''Video'' stands for the Video signal.

The tools page allows you to manage the projector, configure the Network settings and secure access of remote network operation on this projector.

i. You can name the projector, keep track of its location and the person in charge of it.

ii. You can adjust the Network settings. iii. Once set, access to the remote network operation on this projector has been

password-protected.

iv. Once set, access to the tools page has been password-protected.

After making the adjustments, press the Send button and the data will be saved in the projector.

v. Press Exit to go back to the remote network operation page.

Please pay attention to the limitation of input length (including space and other punctuation keys) in the list blow:

Category Item Input Length Maximum Number of Characters

IP Address 15

Crestron Control

IP ID 4

Port 5

Projector Name 22

Projector

Comment 22

Assigned To 22

DHCP (Enabled) (N/A)

IP Address 15

Network Configuration

Subnet Mask 15

Default Gateway 15

DNS Server 15

Enabled (N/A)

User Password

New Password 15

Confirm 15

Enabled (N/A)

Admin Password

New Password 15

Confirm 15

29 Operation

The info page displays the information and status of this projector.

Press Exit to go back to the remote

network operation page.

For more information, visit http://www.crestron.com & www.crestron.com/getroomview.

Shutting down the projector

1. Press on the projector or on the remote control and a confirmation message will appear prompting you. If you don't respond in a few seconds, the message will

disappear.

2. Press or a second time. The power indicator flashes orange, the projection light source shuts down, and the fans will continue to run for approximately 90 seconds to cool down the projector.

3. Once the cooling process finishes, the power indicator becomes a steady orange and fans stop. Disconnect the power cord from the power outlet.

• To protect the light source, the projector will not respond to any commands during the cooling process.

• Avoid turning on the projector immediately after turning it off as excessive heat may shorten light source life.

• Light source life results will vary depending on environmental conditions and usage.

Direct power off

The AC power cord can be pulled out right after the projector is turned off. To protect the light source, wait about 10 minutes before re-starting the projector. If you attempt to re-start the projector, the fans

may run for a few minutes to cool down. In such cases, press or again to start the projector after the fans stop and the power indicator turns orange.

30 Operation

Menu operation

Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using.

The menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.

Basic menu

Main menu Options Brightness Aspect Ratio Auto/Real/4:3/16:9/16:10

0~50~100

Picture Mode

Volume Light Mode Normal/Economic/Dimming/Custom LumiExpert Level

Information

Menu Type Basic/Advanced

Bright/Presentation/Infographic/Video/sRGB /(3D)/User 1/User 2

0~5~10

-2~0~2 Native Resolution Detected Resolution Source Picture Mode Light Mode 3D Format Color System Light Usage Time Firmware Version Service Code

31 Menu operation

Advanced menu

Main menu Submenu Options

Picture Mode

Reference Mode

Brightness Tint Contrast Color Sharpness Brilliant Color On/Off

Color Temperature

Color Temperature Tuning

Bright/Presentation/Infographic/ Video/sRGB/(3D)/User 1/User 2

Bright/Presentation/Infographic/ Video/sRGB/(3D) 0~50~100

-50~0~50

-50~0~50 0~15~31

Cool/Normal/Warm

R Gain (0~50~100) G Gain (0~50~100) B Gain (0~50~100) R Offset (-50~0~50) G Offset (-50~0~50) B Offset (-50~0~50)


Advanced Color Settings

LumiExpert (LX730/LX730D /LU930/LU930D/ LH930/LH930D)

R (Primary Color/Hue/ Saturation/Gain)

G (Primary Color/Hue/ Saturation/Gain)

B (Primary Color/Hue/

Color Management

Wall Color

LumiExpert On/Off LumiExpert

Level

Manual Calibration

Saturation/Gain) C (Primary Color/Hue/

Saturation/Gain) M (Primary Color/Hue/

Saturation/Gain) Y (Primary Color/Hue/

Saturation/Gain) Off/Light Yellow/Pink/Light

Green/Blue/Blackboard

-2~0~2

Manual Calibration Status Calibrate Reset Manual Calibration

32 Menu operation

Reset Picture Reset/Cancel

Main menu Submenu Options

Aspect Ratio Auto/Real/4:3/16:9/16:10

H: -30~0~30

2D Keystone

V: -30~0~30 Auto Vertical Keystone Corner Fit Test Pattern Off/Grid W/Grid G/RGB Ramps

Display

PC & Component YPbPr Tuning

Position

3D Mode

3D Sync Invert Disable/Invert

Apply 3D Settings

Save 3D Settings

HDMI Format

Digital Zoom

Digital Shrink & Shift

Image Resizing

Phase

H. Size

H：-5~0~5

V：-5~0~5

Auto/Top Bottom/Frame

Sequential/Frame Packing/Side by

Side/Off

3D Settings 1/3D Settings 2/3D

Settings 3/Off

3D Settings 1/3D Settings 2/3D

Settings 3

Auto/RGB Limited/RGB Full/

YUV Limited/YUV Full

PC: 1.0X/2.0X

Video: 1.0X/1.8X

0.75X~1.0X

Modes of Adjustment

Top

Network

Blanking

Bottom

Left

Right Digital Lens Shift

(LU710/LU710D/LU930/LU930D/LH710/LH710D/LH930/LH930D) Reset Display Reset/Cancel

Status DHCP On/Off IP Address

Wired LAN

Subnet Mask Default Gateway DNS Server

Apply AMX Device Discovery On/Off MAC Address (Wired)

33 Menu operation

Main menu Submenu Options

Settings

Projector Installation

Front Table/Rear Table/Rear

Ceiling/Front Ceiling Remote Receiver Front/Top/Front+Top Auto Source Search On/Off Auto Sync On/Off Dynamic Dimming On/Off

Normal/Economic/Dimming/

Light Settings

Light Mode

Custom

Custom Brightness

Light Usage Time

Disable/5 min/10 min/15 min/

20 min/25 min/30 min

On/Off

Direct Power On

Signal Power On

Auto Power Off

Operation Settings

Blank Timer

Reminder Message

High Altitude Mode

Power On/Off Settings

Power Off Timer

12V Trigger On/Off Panel Key Lock On/Off

Security Settings

Change Password Power On Lock On/Off

Baud Rate

HDMI 1

9600/14400/19200/38400/57600/

115200

Auto/Lower/Low/Middle/High/

Higher HDMI Equalizer

HDMI 2

Auto/Lower/Low/Middle/High/

Higher USB Power Switch On/Off Reset Settings Reset/Cancel

34 Menu operation

Main menu Submenu Options

Language

Standby Mode Eco/Network/Normal Auto Disable

Standby Settings

Network Standby Mode

Off/20 min/1 hr/3 hr/6 hr

System

Background Settings

Audio Pass Through

Background BenQ/Gray/Black/Blue/Purple Splash Screen BenQ/Black/Blue

Off/Audio in/Audio L/R/HDMI 1/HDMI 2

Menu Type Basic/Advanced

Menu Settings

Menu Display Time

5 sec/10 sec/20 sec/30 sec/Always

Mute On/Off

Audio Settings

Closed Caption

Volume Power On/Off

Ring Tone Closed Caption

Enable

0~5~10

On/Off

Caption Version CC1/CC2/CC3/CC4

Display Resolution Switch (LU710/LU710D/LU930/LU930D)

WUXGA/1080P

Factory Default Reset/Cancel Reset System Reset/Cancel Native Resolution

Information

Detected Resolution Source Picture Mode Light Mode 3D Format Color System Light Usage Time Firmware Version

35 Menu operation

Basic menu

15:9 picture

(LX710/LX710D/ LX730/LX730D)

(LU710/LU710D/ LU930/LU930D)

(LH710/LH710D/ LH930/LH930D)

4:3 picture

16:9 picture

4:3 picture

16:9 picture

16:10 picture

Brightness

Aspect Ratio

The higher the value, the brighter the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.

There are several options to set the image's aspect ratio depending on your input signal source.

• Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal or vertical width.

• Real: Projects an image as its original resolution and resizes it to fit within the display area. For input signals with lower resolutions, the projected image will be displayed in its original size.

• 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio.

• 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio.

Picture Mode

• 16:10: Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio.

The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type.

• Bright: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.

• Presentation: Is designed for presentations. The brightness is emphasized in this mode to match PC and notebook coloring.

• Infographic: Is perfect for presentations with the mixture of text and graphics due to its high color brightness and better color gradation to see the details clearly.

• Video: Is suitable for playing videos in an environment where there is ambient light. Dynamic color details are preserved by BenQ enhancement technology.

• sRGB: Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.

• 3D: Is appropriate for playing 3D images and 3D video clips.

• User 1/User 2: Recalls the settings customized based on the current available

36 Menu operation

picture modes. See Reference Mode on page 38.

Volume Adjusts the sound level.

Light Mode See Setting the Light Mode on page 49.

• Native Resolution: Shows the native resolution of the projector.

• Detected Resolution: Shows the native resolution of the input signal.

• Source: Shows the current signal source.

• Picture Mode: Shows the selected mode in the Picture menu.

Information

• Light Mode: Shows the selected mode in the Light Settingsmenu.

• 3D Format: Shows the current 3D mode.

• Color System: Shows input system format.

• Light Usage Time: Shows the number of hours the light source has been used.

• Firmware Version: Shows the firmware version of your projector.

• Service Code: Shows the projector serial number.

Menu Type Switches to the Advanced OSD menu. See Using the menus on page 24.

37 Menu operation

Advanced menu


The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type.

• Bright: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.

• Presentation: Is designed for presentations. The brightness is emphasized in this mode to match PC and notebook coloring.

• Infographic: Is perfect for presentations with the mixture of text and graphics due to its high color brightness and better color gradation to see the details

Picture Mode

clearly.

• Video: Is suitable for playing videos in an environment where there is ambient light. Dynamic color details are preserved by BenQ enhancement technology.

Reference Mode

Brightness

Contrast

Color

• 3D: Is appropriate for playing 3D images and 3D video clips.

• User 1/User 2: Recalls the settings customized based on the current available picture modes. See Reference Mode on page 38.

There are 2 user-definable modes if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the User 1/User 2) as a starting point and customize the settings.

1. Go to Picture > Picture Mode.

2. Press / to select User 1 or User 2.

3. Press to highlight Reference Mode, and press / to select a picture

mode that is closest to your need.

4. Press to select a menu item to be changed and adjust the value. The

adjustments define the selected user mode.

The higher the value, the brighter the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.

The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

Tint

Sharpness The higher the value, the sharper the picture becomes.

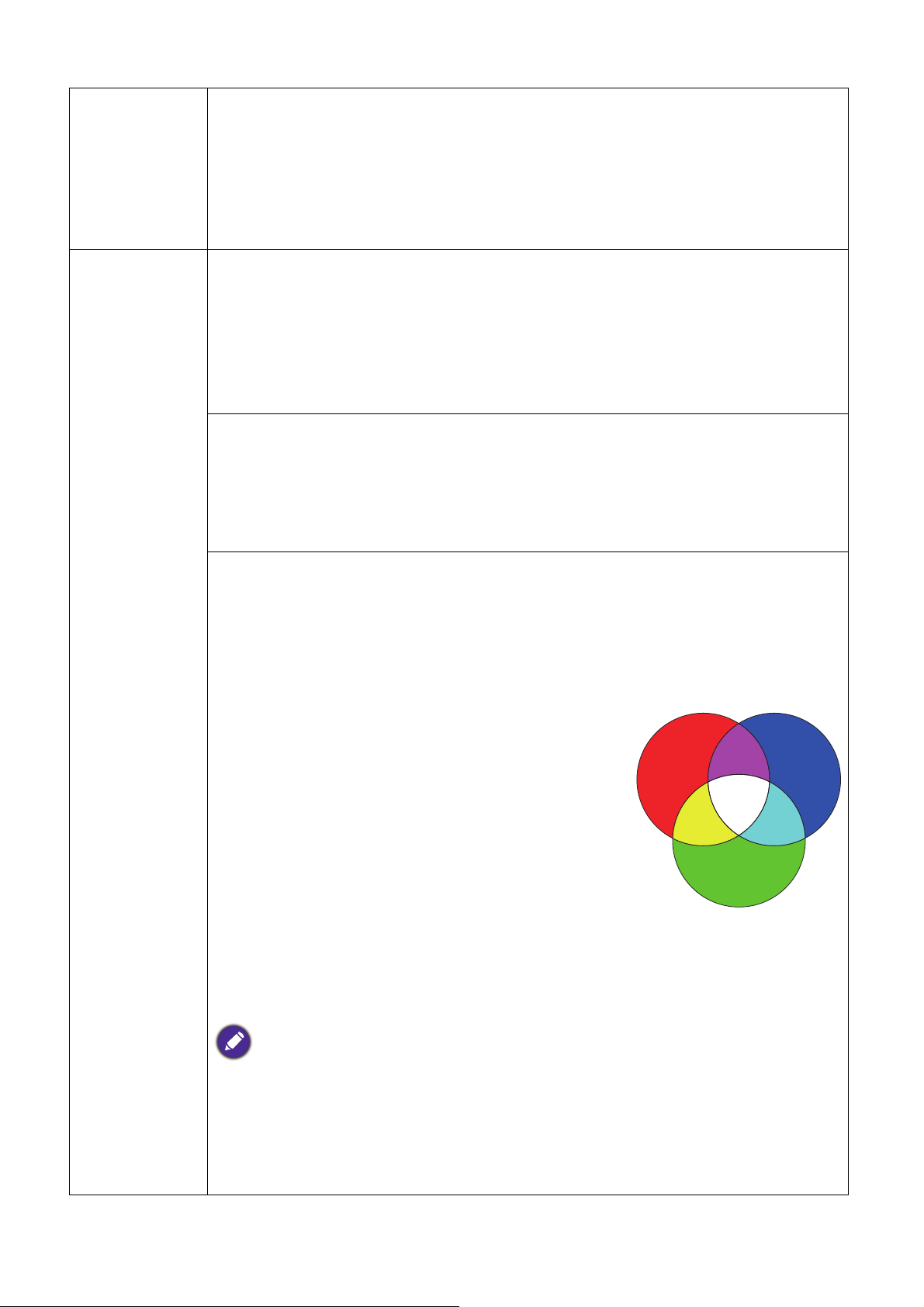

38 Menu operation

The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.

Brilliant Color

RED

BLUE

GREEN

Yellow

Cyan

Magenta

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select On. When Off is selected, the Color Temperature function is not available.

Color Temperature

There are several preset color temperature settings available. The available settings may vary according to the signal type selected.

• Normal: Maintains normal colorings for white.

• Cool: Makes images appear bluish white.

• Warm: Makes images appear reddish white.

Color Temperature Tuning

You can also set a preferred color temperature by adjusting the following options.

• R Gain/G Gain/B Gain: Adjusts the contrast levels of Red, Green, and Blue.

• R Offset/G Offset/B Offset: Adjusts the brightness levels of Red, Green, and Blue.

Advanced Color Settings

Color Management

This function provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its range and saturation according to your preference.

• Primary Color: Selects a color from among R (Red), G (Green), B (Blue), C (Cyan), M (Magenta), or Y (Yellow).

• Hue: Hue is used for adjusting the color balance. Increase in the value will include colors consisted of more proportions of its adjacent colors in counterclockwise order. Decrease in the value will have effect in clockwise order. Please refer to the illustration for how the colors relate to each other For example, if you select Red and set its value at 0, only pure red in the projected picture will be selected. Increasing its value will include red close to yellow while decreasing its value will include red close to magenta.

• Saturation: Adjusts the values to your preference. Every adjustment made will reflect to the image immediately. For example, if you select Red and set its value at 0, only the saturation of pure red will be affected.

Saturation is the amount of that color in a video picture. Lower settings produce less saturated colors; a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.

• Gain: Adjusts the values to your preference. The contrast level of the primary color you select will be affected. Every adjustment made will reflect to the image immediately.

39 Menu operation

Advanced Color Settings

Wall Color

Corrects the projected picture’s color when the projection surface such as a painted wall which may not be white, the Wall Color feature can help correct the projected picture’s colors to prevent possible color difference between the source and projected pictures. There are several precalibrated colors to choose from: Light Yellow, Pink, Light Green, Blue, and Blackboard.

• LumiExpert: When this function is enabled, the projector actively detects the ambient light conditions and automatically adjusts balanced visual brightness to create an optimum viewing experience.

This function is not available when the Picture Mode is Bright or 3D.

LumiExpert

Reset Picture

• LumiExpert Level: Adjusts the gamma offset.

• Manual Calibration: According to the ambient brightness, you can do the calibration manually.

• Manual Calibration Status: Shows the status of manual calibration.

• Calibrate: Enact this item to start the calibration process.

• Reset Manual Calibration: Resets the gamma offset to factory preset values.

Returns all of the adjustments you’ve made for the Picture menu to the factory preset values.

40 Menu operation

Display

15:9 picture

(LX710/LX710D/ LX730/LX730D)

(LU710/LU710D/ LU930/LU930D)

(LH710/LH710D/ LH930/LH930D)

4:3 picture

16:9 picture

4:3 picture

16:9 picture

16:10 picture

Aspect Ratio

There are several options to set the image's aspect ratio depending on your input signal source.

• Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal or vertical width.

• 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio.

• 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio.

• 16:10: Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio.

Keystone

This function provides manual 2D keystone adjustment and auto vertical keystone adjustment. See Correcting keystone on page 19.

Corner Fit See Adjusting Corner Fit on page 20.

Built-in images for checking if the projected image is free from distortion.

Test Pattern

PC & Component YPbPr Tuning

• Phase: Adjusts the clock phase to reduce image distortion.

• H. Size: Adjusts the horizontal width of the image.

Displays the position adjustment page. To move the projected image, use the

Position

directional arrow keys. This function is only available when a PC signal (analog RGB) is selected.

41 Menu operation

This projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view the 3D images.

• 3D Mode: The default setting is Off. If you want the projector to automatically choose an appropriate 3D format when detecting 3D contents, select Auto. If the projector cannot recognize the 3D format, press / to choose a 3D mode from among Top Bottom, Frame Sequential, Frame Packing and Side by Side.

When 3D function is activated:

• The brightness level of the projected image will decrease.

• The following settings cannot be adjusted: Picture Mode, Reference Mode.

• The Keystone can only be adjusted within limited degrees.

• 3D Sync Invert: When you discover the inversion of the image depth, enable this function to correct the problem.

• Apply 3D Settings: After the 3D settings are saved, you can decide if you would like to apply them by choosing a set of 3D settings that you have saved. Once applied, the projector will automatically play the incoming 3D contents if it matches the 3D settings saved.

HDMI Format

Only the set(s) of 3D settings with memorized data is available.

• Save 3D Settings: When you have successfully displayed the 3D contents after making the appropriate adjustments, you can enable this function and choose a set of 3D settings to memorize current 3D settings.

Selects a suitable color format to optimize display quality.

• Auto: Automatically selects a suitable color space and gray level for the incoming HDMI signal.

• RGB Limited: Utilizes the Limited range RGB 16-235.

• RGB Full: Utilizes the Full range RGB 0-255.

• YUV Limited: Utilizes the Limited range YUV 16-235.

• YUV Full: Utilizes the Full range YUV 0-255.

42 Menu operation

Image Resizing

Digital Zoom

Magnifies or reduces the projected image size.

1. After the adjustment bar displays, press / repeatedly to reduce or magnify the image to a desired size.

2. Press OK to enter panning mode.

3. Press the directional arrows ( , , , ) on the projector or remote control to navigate the picture.

The picture can only be navigated after it is magnified. You can further magnify the picture while searching for details.

Digital Shrink & Shift

Shrinks and/or shifts the projected image.

1. After the adjustment bar displays, press / repeatedly to shrink or magnify the picture to a desired size.

2. Press OK to activate digital shift function.

3. After digital shift function is activated, press the directional arrows ( , , ,

) to shift the image.

Digital Lens Shift

4. Press AUTO to restore the picture to its original size.

The picture can only be shifted after it shrank.

Blanking

Blanks some parts of the projected image.

1. Select the Modes of Adjustment first by pressing / .

2. Press / to highlight the area you want to adjust and press / to adjust its range.

Enacting the Reset All Blanking Settings function will return all items in the Blanking menu to the factory preset values. Pressing AUTO clears the values of selected item (excluding Modes of Adjustment).

After the Digital Lens Shift page displays, press / to shift the projected image.

This function is not available in the following situations: Picture Mode is 3D; Display Resolution

Switch is WUXGA.

Reset Display

Returns all of the adjustments you’ve made for the Display menu to the factory preset values.

Network

Wired LAN See Controlling the projector through a Wired LAN environment on page 27.

43 Menu operation

AMX Device Discovery

When this function is On, the projector can be detected by AMX controller.

MAC Address (Wired)

Settings

Projector Installation

Remote Receiver

Auto Source Search

Auto Sync

Dynamic Dimming

Light Settings

Displays the mac address for this projector.

The projector can be installed on a ceiling or behind a screen, or with one or more mirrors. See Choosing a location on page 11.

Allows you to enable all the remote receivers or one specific remote receiver on the projector.

Allows the projector to automatically search for a signal.

• On: Allows the projector to automatically determines the best picture timings for the displayed image when PC signal (analog RGB) is selected and AUTO is pressed.

• Off: The projector will not respond when AUTO is pressed.

Allows the projector to automatically detect the video content and enhance contrast during dark scenes.

• Light Mode: See Setting the Light Mode on page 49.

• Custom Brightness: Only available when Light Mode is Custom.

• Light Usage Time: Displays the number of hours the light source has been used.

44 Menu operation

Blank Timer

Sets the image blank time when there is no action taken on the blank screen, once elapsed the image will return to the screen. If the preset time spans are not suitable for your need, select Disable. No matter Blank Timer is activated or not, you can press most of the keys on the projector or remote control to restore the picture.

Reminder Message

Sets the reminder messages on or off.

High Altitude Mode

We recommend you use the High Altitude Mode when your environment is between 1500 m –3000 m above sea level, and ambient temperature is between 0°C–30°C.

Operation under "High Altitude Mode" may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.

If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.

Operation Settings

Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and ambient temperature is between 0°C and 35°C. The projector will be over cooled, if you turn the mode on under such a condition.

Power On/Off Settings

• Direct Power On: Allows the projector to turn on automatically once the power is fed through the power cord.

• Signal Power On: Sets whether to turn the projector directly on without

pressing POWER or ON when the projector is in standby mode and detects a VGA signal or a HDMI signal with 5V power.

• Auto Power Off: Allows the projector to turn off automatically if no input signal is detected after a set period of time to prevent unnecessary waste of light source life.

• Power Off Timer: Sets the auto-shutdown timer.

12V Trigger

There is one 12V trigger that works independently according to your needs for installation scenarios.

Security Settings

• Off: If this is selected, the projector will not send electronic signal out when it is turned on.

• On: The projector will send a low to high electronic signal out when it is turned on, a high to low signal out when it is turned off.

See Utilizing the password function on page 25.

45 Menu operation

Baud Rate

Selects a baud rate that is identical with your computer’s so that you can connect the projector using a suitable RS-232 cable and update or download the projector’s firmware. This function is intended for qualified service personnel.

HDMI Equalizer

USB Power Switch

Reset Settings

Adjusts the equalizer gain settings for an HDMI signal. The higher the setting, the stronger the gain value. If there are more than one HDMI port on the projector, select the HDMI port first before adjusting the value.

Disables or enables "Type A connector" 5V power output. To enable this function, select On.

Returns all of the adjustments you’ve made for the Settings menu to the factory preset values.

System

Language Sets the language for the On-Screen Display (OSD) menus.

• Standby Mode

• Eco: The projector maintains at normal standby mode with less than 0.5W power consumption.

• Network: The projector maintains at network standby mode with less than 2W power consumption.

• Normal: Allows the projector to provide network, monitor out and audio pass through functions in standby mode.

Standby Settings

• Auto Disable Network Standby Mode: Allows the projector to disable the network function after a set period of time after it enters standby mode. For instance, if 20 min is selected, the projector is able to provide the network function for 20 minutes after it enters standby mode. When 20 minutes is up, the projector enters normal standby mode.

Background Settings

Menu Settings

Audio Settings

• Audio Pass Through: The projector can play sound when it is in standby mode and the corresponding jacks are correctly connected to devices. Press / to choose the source that you wish to use. See Connection on page 21 for how to make the connection.

• Background: Sets the background color for the projector.

• Splash Screen: Allows you to select which logo screen will be displayed during projector start-up.

• Menu Type: Switches to the Basic OSD menu.

• Menu Display Time: Sets the length of time the OSD will remain active after your last key press.

• Mute: Temporarily turns off the sound.

• Volume: Adjusts the sound level.

• Power On/Off Ring Tone: Turns on or off the ring tone when the projector is in startup and shutdown process.

The only way to change Power On/Off Ring Tone is setting On or Off here. Setting the sound mute or changing the sound level will not affect the Power On/Off Ring Tone.

46 Menu operation

• Closed Caption Enable: Activates the function by selecting On when the selected input signal carries closed captions.

Closed Caption

Display Resolution Switch (LU710/LU710D /LU930/LU930D)

Factory Default

Reset System

Captions: An on-screen display of the dialogue, narration, and sound effects of TV programs and videos that are closed captioned (usually marked as "CC" in TV listings).

• Caption Version: Selects a preferred closed captioning mode. To view captions, select CC1, CC2, CC3, or CC4 (CC1 displays captions in the primary language in your area).

Select the native resolution of this projector between WUXGA and 1080P.

Returns all settings to the factory preset values.

The following settings will still remain: 2D Keystone, Auto Vertical Keystone, Corner Fit,

Projector Installation, Light Usage Time High Altitude Mode, Security Settings, Baud Rate, LumiExpert, Corner Fit, Digital Shrink & Shift, Digital Lens Shift, Network, HDMI Equalizer, Display Resolution Switch, Dynamic Dimming,Custom Brightness.

Returns all of the adjustments you’ve made for the System menu to the factory preset values.

Information

• Native Resolution: Shows the native resolution of the projector.

• Detected Resolution: Shows the native resolution of the input signal.

• Source: Shows the current signal source.

• Picture Mode: Shows the selected mode in the Picture menu.

• Light Mode: Shows the selected mode in the Light Settings menu.

• 3D Format: Shows the current 3D mode.

• Color System: Shows input system format.

• Light Usage Time: Shows the number of hours the light source has been used.

• Firmware Version: Shows the firmware version of your projector.

47 Menu operation

Maintenance

Care of the projector

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface. Please be sure to turn off the projector and let it cool down completely before cleaning the lens.

• Use a canister of compressed air to remove dust.

• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the projector surface and cabinet material.

Cleaning the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in

Shutting down the projector on page 30 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.

• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please follow the instructions below:

• Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to Specifications on page 52 or consult your dealer about the range.

• Retract the adjuster feet.

• Remove the battery from the remote control.

• Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent.

48 Maintenance

Light source information

Getting to know the light source hour

When the projector is in operation, the duration (in hours) of light source usage is automatically calculated by the built-in timer. The method of calculating the equivalent light source hour is as follows:

Light source Usage Time = (hours used in Normal mode) + (hours used in Economic mode) + (hours used in Dimming mode) + (hours used in Custom mode)

Total (equivalent) light source hour = 1.0 x (hours used in Normal mode) + 1.0 x (hours used in Economic mode) + 1.0 x (hours used in Dimming mode) + 1.0 x (hours used in Custom mode)

To obtain the light source hour information:

1. Go to Advanced Menu - Settings > Light Settings and press OK. The Light Settings page appears.

2. Press to select Light Usage Time and press OK. The Light Usage Time information is displayed.

You can also get the light source hour information on the Information menu.

Extending light source life

• Setting the Light Mode

Go to Advanced Menu - Settings > Light Settings > Light Mode and select a suitable light source power from among the provided modes.

Setting the projector in Economic, Dimming or Custom mode extends light source life.

Light Source mode Description

Normal Provides full light source brightness Economic Lowers brightness to extend the light source life and decreases the fan noise Dimming Lowers brightness to offer a longer light source life

Custom

Enables the light source brightness adjustment bar so that you can adjust the setting to your liking

• Setting Auto Power Off

This function allows the projector to turn off automatically if no input signal is detected after a set period of time to prevent unnecessary waste of light source life.

To s e t Auto Power Off, go to Advanced Menu - Settings > Operation Settings > Power On/Off Settings > Auto Power Off and press / .

• The apparent brightness of the projected image will vary depending on the ambient lighting conditions, selected input signal contrast/brightness settings, and is directly proportional to projection distance.

• The light source brightness will decline over time and may vary within the light source manufacturers specifications. This is normal and expected behavior.

49 Maintenance

Indicators

Light

Status & Description

Power events

Stand-by mode

Powering up

Normal operation

Normal power-down cooling

Download

CW start fail

Phosphor wheel start fail

Burn-in ON

Burn-in OFF

Light source events

Light source life exhausted

: Off

Light source error in normal operation

Light source is not lit up

Thermal events

Fan 1 error (the actual fan speed is outside the desired speed)

Fan 2 error (the actual fan speed is outside the desired speed)

Fan 3 error (the actual fan speed is outside the desired speed)

Fan 4 error (the actual fan speed is outside the desired speed)

Fan 5 error (the actual fan speed is outside the desired speed)

Fan 6 error (the actual fan speed is outside the desired speed)

Temperature 1 error (over limited temperature)

: Orange On : Green On : Red On

: Orange Flashing : Green Flashing : Red Flashing

50 Maintenance

Troubleshooting

The projector does not turn on.

Cause Remedy

There is no power from the power cord.

Attempting to turn the projector on again during the cooling process.

No picture

Cause Remedy

Plug the power cord into the AC power jack on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.

Wait until the cooling down process has completed.

The video source is not turned on or connected correctly.

The projector is not correctly connected to the input signal device.

The input signal has not been correctly selected. Select the correct input signal with the SOURCE key. The lens cover is still closed. Open the lens cover.

Blurred image

Cause Remedy

The projection lens is not correctly focused. Adjust the focus of the lens using the focus ring. The projector and the screen are not aligned

properly. The lens cover is still closed. Open the lens cover.

Remote control does not work.

Cause Remedy

The batteries are out of power. Replace both of the batteries with new ones. There is an obstacle between the remote control

and the projector. You are too far away from the projector. Stand within 8 meters (26 feet) of the projector.

Turn the video source on and check that the signal cable is connected correctly.

Check the connection.

Adjust the projection angle and direction as well as the height of the projector if necessary.

Remove the obstacle.

The password is incorrect.

Cause Remedy

You do not remember the password. See Entering the password recall procedure on page 26.

51 Troubleshooting

Specifications

Projector specifications

All specifications are subject to change without notice.

Optical

Resolution

LX710/LX710D/LX730/LX730D: 1024 x 768 XGA LU710/LU710D/LU930/LU930D: 1920 x 1200 WUXGA LH710/LH710D/LH930/LH930D: 1920 x 1080 1080p

Display system

1-CHIP DMD

Lens

LX710/LX710D: F = 2.59~2.87, f = 16.88~21.88 mm LX730/LX730D: F = 2.45~3.07, f = 15.75~25.1 mm LU710/LU710D: F = 1.94~2.07, f = 11.9~15.5 mm LH710/LH710D: F = 1.94~2.12, f = 11.9~15.5 mm LU930/LU930D/LH930/LH930D:

F = 1.81~2.1, f = 14.3~22.9 mm

Clear focus range

LX710/LX710D:

1.84–5.52m@Wide, 2.40–7.2m@Tele LX730/LX730D:

1.72–4.30m@Wide, 2.74–6.86m@Tele LU710/LU710D:

1.46–4.87m@Wide, 1.89–6.29@Tele LU930/LU930D:

1.76–5.86m@Wide, 2.82–9.39m@Tele LH710/LH710D:

1.50–5.00m@Wide, 1.94–6.46@Tele LH930/LH930D:

1.81–6.02 m@Wide, 2.90–9.65m@Tele

Light source

Laser

Electrical

Power supply / Power consumption

LX710/LX710D/LU710/LU710D/LH710/LH710D: AC100–240V, 3.8A, 50–60 Hz (Automatic) / 392 W (Max); < 0.5 W (Standby) LX730/LX730D/LU930/LU930D/LH930/LH930D: AC100–240V, 5.2A, 50–60 Hz (Automatic) / 475 W (Max); < 0.5 W (Standby)

Mechanical

Weight

6.3 Kg (13.0 lbs)

Output terminals

RGB output

D-Sub 15-pin (female) x 1

Speaker

10 watt x 1

Audio signal output

PC audio jack x 1

Control

USB

Type-A x 1 (5V/1.5A)

RS-232 serial control

9 pin x 1

LAN control

RJ45 x 1

12V trigger x 1

IR receiver x 2

Input terminals

Computer input

RGB input

D-Sub 15-pin (female) x 1

Video signal input

VIDEO

RCA jack x 1

SD/HDTV signal input

Analog - Component RCA RGB x 1 Digital - HDMI x 2

Audio signal input

PC audio jack x 1 RCA audio jack (L/R) x 1

Environmental Requirements

Operating temperature

0°C–40°C at sea level

Operating relative humidity

10%–90% (without condensation)

Operating altitude

0–1499 m at 0°C–35°C 1500–3000 m at 0°C–30°C (with High Altitude Mode on)

Storage temperature

-20°C–60°C at sea level

Storage humidity

10%–90% RH (without condensation)

Storage altitude

30°C@ 0~12,200m above sea level

Transporting

Original packing or equivalent is recommended

Repairing

Please visit below website and choose your country to find your service contact window. http://www.benq.com/welcome

52 Specifications

Dimensions

351

275

151

416

110

166

304

279

Unit: mm

416 mm (W) x 166 mm (H) x 351 mm (D)

53 Specifications

Timing chart

Supported timing for PC input

Ver ti cal

Resolution Mode

Frequency

(Hz)

720 x 400 720 x 400_70 70.087 31.469 28.3221

VGA_60 59.940 31.469 25.175 Supported Supported Supported

640 x 480

800 x 600

1024 x 768

1152 x 864 1152 x 864_75 75 67.5 108

1024 x 576

1024 x 600

1280 x 720 1280 x 720_60 60 45.000 74.250 Supported Supported Supported 1280 x 768 1280 x 768_60 59.87 47.776 79.5 Supported Supported Supported

1280 x 800

1280 x 1024

1280 x 960

1360 x 768 1360 x 768_60 60.015 47.712 85.5 Supported Supported

1440 x 900 WXGA+_60 59.887 55.935 106.500 Supported Supported 1400 x 1050 SXGA+_60 59.978 65.317 121.750 Supported 1600 x 1200 UXGA 60.000 75.000 162.000 Supported Supported 1680 x 1050 1680 x 1050_60 59.954 65.290 146.250 Supported Supported

640 x 480@67Hz MAC13 66.667 35.000 30.240

832 x 624@75Hz MAC16 74.546 49.722 57.280 1024 x 768@75Hz MAC19 74.93 60.241 80.000 1152 x 870@75Hz MAC21 75.060 68.680 100.000

VGA_72 72.809 37.861 31.500 VGA_75 75.000 37.500 31.500

VGA_85 85.008 43.269 36.000 SVGA_60 60.317 37.879 40.000 Supported Supported Supported SVGA_72 72.188 48.077 50.000 SVGA_75 75.000 46.875 49.500 SVGA_85 85.061 53.674 56.250

SVGA_120

(Reduce Blanking)

XGA_60 60.004 48.363 65.000 Supported Supported Supported

XGA_70 70.069 56.476 75.000

XGA_75 75.029 60.023 78.750

XGA_85 84.997 68.667 94.500

XGA_120 (Reduce

Blanking)

BenQ

Notebook_timing

BenQ

Notebook_timing

WXGA_60 59.810 49.702 83.500 Supported Supported Supported WXGA_75 74.934 62.795 106.500 WXGA_85 84.880 71.554 122.500

WXGA_120

(Reduce Blanking)

SXGA_60 60.020 63.981 108.000 Supported Supported SXGA_75 75.025 79.976 135.000 SXGA_85 85.024 91.146 157.500

1280 x 960_60 60.000 60.000 108.000 Supported Supported 1280 x 960_85 85.002 85.938 148.500

119.854 77.425 83.000 Supported

119.989 97.551 115.5 Supported

60.0 35.820 46.966

64.995 41.467 51.419

119.909 101.563 146.25 Supported

Horizontal

Frequency

(kHz)

Pixel

Frequency

(MHz)

Supported 3D format

Frame

Sequential

Top

Bottom

Side by

Side

The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible that some timings cannot be chosen.

54 Specifications

Supported timing for HDMI (HDCP) input

• PC timings

Ver ti cal

Resolution Mode

Frequency

(Hz)

VGA_60 59.940 31.469 25.175 Supported Supported Supported

640 x 480

720 x 400 720 x 400_70 70.087 31.469 28.3221

800 x 600

1024 x 768

1152 x 864 1152 x 864_75 75 67.5 108

1280 x 768 1280 x 768_60 59.87 47.776 79.5

1024 x 576

1024 x 600

1280 x 720 1280 x 720_60 60 45.000 74.250 Supported Supported Supported 1280 x 768 1280 x 768_60 59.870 47.776 79.5 Supported Supported Supported

1280 x 800

1280 x 1024

1280 x 960

1360 x 768 1360 x 768_60 60.015 47.712 85.500 Supported Supported

1440 x 900 WXGA+_60 59.887 55.935 106.500 Supported Supported 1400 x 1050 SXGA+_60 59.978 65.317 121.750 Supported Supported 1600 x 1200 UXGA 60.000 75.000 162.000 Supported Supported 1680 x 1050 1680 x 1050_60 59.954 65.290 146.250 Supported Supported

640 x 480@67Hz MAC13 66.667 35.000 30.240 832 x 624@75Hz MAC16 74.546 49.722 57.280

1024 x 768@75Hz MAC19 75.020 60.241 80.000

1152 x 870@75Hz MAC21 75.06 68.68 100.00

1920 x 1080@60Hz 1920 x 1080_60 60 67.5 148.5 Supported Supported

1920 x 1200@60Hz

VGA_72 72.809 37.861 31.500 VGA_75 75.000 37.500 31.500 VGA_85 85.008 43.269 36.000

SVGA_60 60.317 37.879 40.000 Supported Supported Supported SVGA_72 72.188 48.077 50.000 SVGA_75 75.000 46.875 49.500 SVGA_85 85.061 53.674 56.250

SVGA_120 (Reduce

Blanking)

XGA_60 60.004 48.363 65.000 Supported Supported Supported XGA_70 70.069 56.476 75.000 XGA_75 75.029 60.023 78.750 XGA_85 84.997 68.667 94.500

XGA_120 (Reduce

Blanking)

BenQ Notebook

Timing

BenQ Notebook

Timing

WXGA_60 59.810 49.702 83.500 Supported Supported Supported WXGA_75 74.934 62.795 106.500 WXGA_85 84.880 71.554 122.500

WXGA_120

(Reduce Blanking)

SXGA_60 60.020 63.981 108.000 Supported Supported SXGA_75 75.025 79.976 135.000

SXGA_85 85.024 91.146 157.500 1280 x 960_60 60.000 60.000 108 Supported Supported 1280 x 960_85 85.002 85.938 148.500

1920 x 1200_60

(Reduce Blanking)

119.854 77.425 83.000 Supported

119.989 97.551 115.5 Supported

60.00 35.820 46.996

64.995 41.467 51.419

119.909 101.563 146.25 Supported

59.950 74.038 154.0000 Supported Supported

Horizontal

Frequency

(kHz)

Pixel

Frequency

(MHz)

Supported 3D format

Frame

Sequential

Bottom

Top

Side by

Side

The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible that some timings cannot be chosen.

55 Specifications

• Video timings

Ver ti cal

Timing Resolution

Frequency

(Hz)

480i 720 x 480 59.94 15.73 27 Supported

480p 720 x 480 59.94 31.47 27 Supported

576i 720 x 576 50 15.63 27

576p 720 x 576 50 31.25 27 720/50p 1280 x 720 50 37.5 74.25 Supported Supported Supported 720/60p 1280 x 720 60 45.00 74.25 Supported Supported Supported Supported

1080/24P 1920 x 1080 24 27 74.25 Supported Supported Supported 1080/25P 1920 x 1080 25 28.13 74.25 1080/30P 1920 x 1080 30 33.75 74.25

1080/50i 1920 x 1080 50 28.13 74.25 Supported

1080/60i 1920 x 1080 60 33.75 74.25 Supported 1080/50P 1920 x 1080 50 56.25 148.5 Supported Supported 1080/60P 1920 x 1080 60 67.5 148.5 Supported Supported

Horizontal

Frequency

(kHz)

Pixel

Frequency

(MHz)

Frame

Sequential

Supported 3D format

Frame

Packing

Top

Bottom

Side by

Side

Supported timing for Component-YPbPr input

Supported 3D

Timing Resolution

480i 720 x 480 59.94 15.73 13.5 Supported

480p 720 x 480 59.94 31.47 27 Supported

576i 720 x 576 50 15.63 13.5

576p 720 x 576 50 31.25 27 720/50p 1280 x 720 50 37.5 74.25 720/60p 1280 x 720 60 45.00 74.25 Supported

1080/50i 1920 x 1080 50 28.13 74.25

1080/60i 1920 x 1080 60 33.75 74.25 1080/24P 1920 x 1080 24 27 74.25 1080/25P 1920 x 1080 25 28.13 74.25 1080/30P 1920 x 1080 30 33.75 74.25 1080/50P 1920 x 1080 50 56.25 148.5 1080/60P 1920 x 1080 60 67.5 148.5

Vertical Frequency

(Hz)

Horizontal Frequency

(kHz)

Pixel Frequency

(MHz)

format

Frame

Sequential

Displaying a 1080i(1125i)@60Hz or 1080i(1125i)@50Hz signal may result in slight image vibration.

Supported timing for Video input

Video mode

NTSC 15.73 60 3.58 Supported

PAL 15.63 50 4.43

SECAM 15.63 50 4.25 or 4.41

PAL-M 15.73 60 3.58

PAL-N 15.63 50 3.58

PAL-60 15.73 60 4.43

NTSC4.43 15.73 60 4.43

Horizontal Frequency

(kHz)

56 Specifications

Vertical Frequency

(Hz)

Color sub-carrier Frequency (MHz)

Supported 3D

format

Frame Sequential

Benq LX730D, LX730, LX710D, LU710D, LU930 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Warranty and Copyright information

Important safety instructions

Introduction

Shipping contents

Projector exterior view

Controls and functions

Positioning your projector

Choosing a location

Obtaining a preferred projected image size

Mounting the projector

Adjusting the projected image

Connection

Operation

Starting up the projector

Using the menus

Securing the projector

Switching input signal

Controlling the projector through a Wired LAN environment

Shutting down the projector

Direct power off

Menu operation

Basic menu

Advanced menu

Maintenance

Care of the projector

Light source information

Troubleshooting

Specifications

Projector specifications

Dimensions

Timing chart
