Benq LU9800 Operating instructions

Digital Projector

User Manual

LU9750/LU9800

V1.00

English

Copyright and disclaimer

Copyright

Copyright 2021 BenQ Corporation. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language
or computer language, in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise, without the prior written permission of BenQ Corporation.
All other logos, products, or company names mentioned in this manual may be the registered
trademarks or copyrights of their respective companies, and are used for informational purposes
only.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with

respect to the contents hereof and specically disclaims any warranties, merchantability or tness

for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication
and to make changes from time to time in the contents hereof without obligation of BenQ
Corporation to notify any person of such revision or changes.
This user manual aims to provide the most updated and accurate information to customers, and
thus all contents may be modied from time to time without prior notice. Please visit http://www.
benq.com for the latest version of this manual.

Statement regarding hyperlinks and third-party websites

BenQ is not responsible for the content of the websites or of similar resources, which are

maintained and controlled by third parties, that may be linked from this product. Providing links

to those websites or to similar resources does not mean that BenQ makes any warranty or
representation to their content by expression or by implication.
Any third party content or service preinstalled in this product is provided "as is". BenQ does not,
by expression or by implication, make any warrant to the content or to the services provided by
third parties. BenQ does not warrant or guarantee that the content or services provided by third
parties are accurate, effective, most up-to-date, legal, or complete. Under no circumstances shall
BenQ be liable for the content or services provided by third parties including their negligence.
Services provided by third parties may be terminated temporarily or permanently. BenQ does
not warrant or guarantee that the any content or services provided by third parties are in good
condition at any time, and is not liable for the termination of the said content and services. In
addition, BenQ is not involved in any transactions you conduct in the websites or similar resources
maintained by third parties.
You should contact the content or service providers for any questions, concerns, or disputes.

2021/10/29

2

Table of Contents

Copyright and disclaimer .............................................................. 2

Copyright ................................................................................................................................................. 2

Disclaimer ................................................................................................................................................ 2

Statement regarding hyperlinks and third-party websites ........................................................... 2

Important safety instructions ....................................................... 6

General safety instruction ............................................................................................ 6

Notice on laser ............................................................................................................... 7

Laser class ................................................................................................................................................ 7

Laser parameters ................................................................................................................................... 7

Risk Group 3 Information ............................................................................................. 8

Light hazard warning ............................................................................................................................. 8

Label instruction .................................................................................................................................... 8

Laser light instruction ........................................................................................................................... 10

Prepare for installation ................................................................................................. 11

Caution for installation ......................................................................................................................... 11

Cooling notice ........................................................................................................................................ 12

Package contents ........................................................................... 14

Standard packing items ................................................................................................ 14

Lens information ............................................................................................................ 14

Introduction .................................................................................... 15

Projector exterior view ................................................................................................. 15

Front and upper side view ................................................................................................................... 15

Rear and upper side view ..................................................................................................................... 15

Controls and functions .................................................................................................. 16

Control panel .......................................................................................................................................... 16

Control terminal .................................................................................................................................... 17

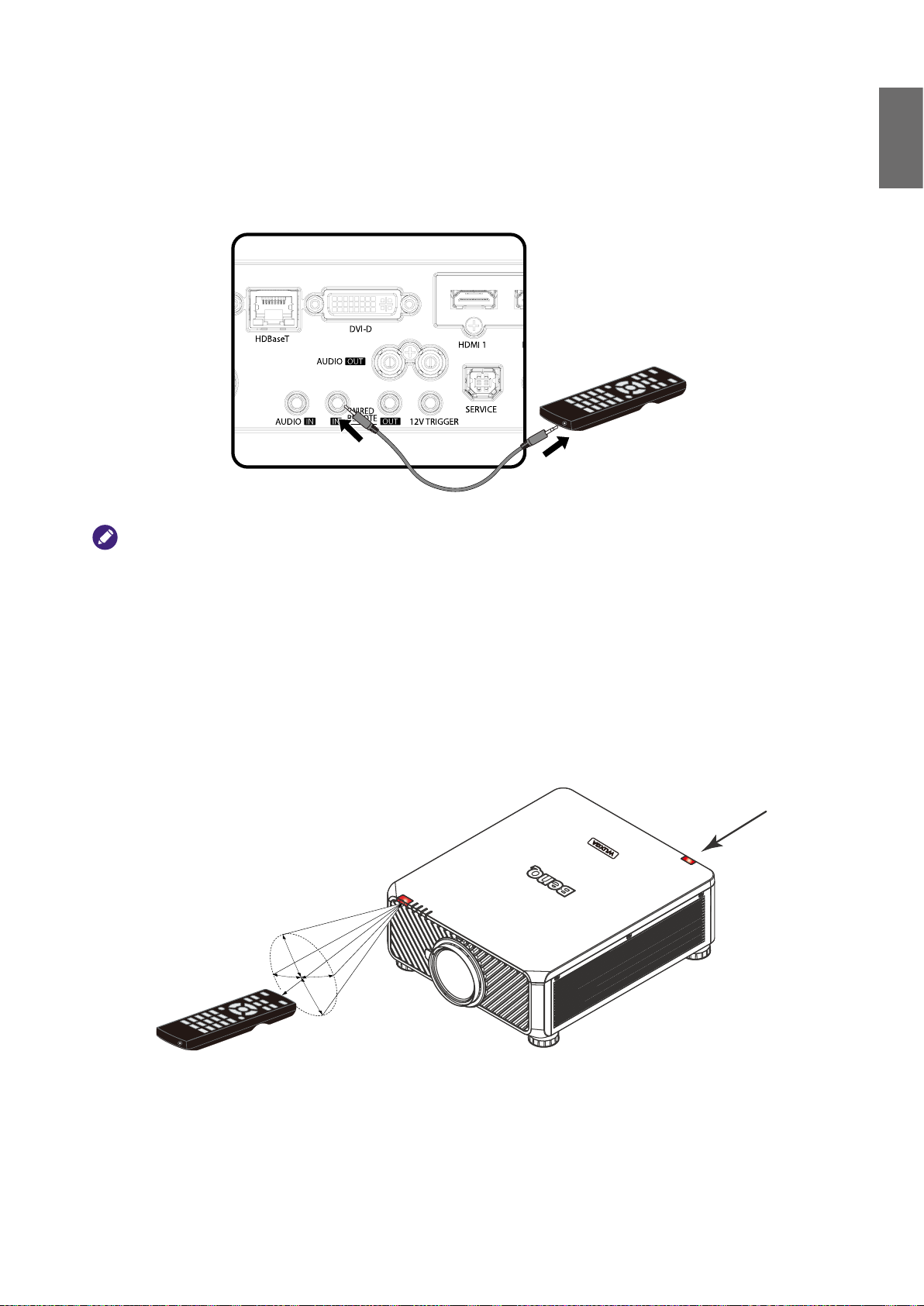

Remote control ...................................................................................................................................... 18

Installation ...................................................................................... 21

Installing removing the optional lens .......................................................................... 21

Installing the new lens ........................................................................................................................... 21

Removing the existing lens from the projector .............................................................................. 22

Evaluate for distance by image size ............................................................................. 23

Obtaining a preferred projected image size .................................................................................... 23

Projection dimensions........................................................................................................................... 23

Lens dimension ....................................................................................................................................... 26

Adjusting by Lens shift .................................................................................................. 28

Adjusting the vertical image position ................................................................................................ 28

Adjusting the horizontal image position ........................................................................................... 28

Lens shift range diagram .............................................................................................. 28

Connection ..................................................................................................................... 29

Before connecting .................................................................................................................................. 29

Connecting with AV equipment ......................................................................................................... 31

Connecting with computer ................................................................................................................. 31

Connecting with HDBaseT transmitter ........................................................................................... 32

Connecting with LAN........................................................................................................................... 32

Operations ...................................................................................... 33

Switch on/off the projector ........................................................................................... 33

Connecting the power cord ................................................................................................................ 33

Power indicator ...................................................................................................................................... 33

Switch on the projector ....................................................................................................................... 34

Switch off the projector ....................................................................................................................... 40

Using the menu .............................................................................. 41

Main menu ...................................................................................................................... 41

Display menu .................................................................................................................. 42

Corner Fit menu .................................................................................................................................... 44

Digital Image Resizing ............................................................................................................................ 44

Blanking menu .................................................................................................. ....................................... 45

Native Resolution .................................................................................................................................. 45

3D menu .................................................................................................................................................. 46

Fast Mode ................................................................................................................................................ 46

Picture menu .................................................................................................................. 47

Color Temperature Fine Tuning menu ............................................................................................. 49

3D Color Management menu ............................................................................................................. 50

Source menu .................................................................................................................. 51

System Setup : Basic menu .......................................................................................... 53

Menu Settings menu .............................................................................................................................. 54

Operation Settings menu ..................................................................................................................... 54

Lens Settings menu ................................................................................................................................ 55

System Setup : Advanced menu .................................................................................. 57

Audio Settings menu ............................................................................................................................. 59

Light Settings menu ............................................................................................................................... 60

Security Settings menu ......................................................................................................................... 60

Standby Settings menu .......................................................................................................................... 61

Network Settings menu ....................................................................................................................... 61

Information menu .......................................................................................................... 62

Menu structure .............................................................................................................. 63

Maintenance ................................................................................... 68

Before maintaining the projector ................................................................................ 68

Care of the projector ........................................................................................................................... 68

Clean the lens front surface ......................................................................................... 68

Clean the projector case ............................................................................................... 68

LED indicator ................................................................................................................. 69

System message ...................................................................................................................................... 69

Troubleshooting ............................................................................. 71

Troubleshooting ............................................................................................................. 71

The projector does not turn on. ........................................................................................................ 71

No picture. .............................................................................................................................................. 71

Blurred image. ......................................................................................................................................... 71

Remote control does not work. ........................................................................................................ 71

The password is incorrect. .................................................................................................................. 71

Specications .................................................................................. 72

Specications ................................................................................................................. 72

Specications ................................................................................................................. 73

Dimensions ..................................................................................................................... 74

Appendix ......................................................................................... 75

Timing table ................................................................................................................... 75

HDMI Input (Support Video Timings) ............................................................................................... 75

HDMI Input (Support PC Timings) .................................................................................................... 75

PC Input(Support PC Timings) ........................................................................................................... 76

True 3D Video Compatibility table ................................................................................................... 78

RS232 command control .............................................................................................. 79

PJLink .............................................................................................................................. 87

PJLink protocal ....................................................................................................................................... 87

Control commands ................................................................................................................................ 87

English

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that you follow

the instructions mentioned in this manual and marked on the product.

General safety instruction

1. Do not look straight at the projector lens during operation. The intense light beam may

damage your eyes.

2. Always open the lens shutter or remove the lens cap when the projector light source is on.

3. In some countries, the line voltage is NOT stable. This projector is designed to operate safely

within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of

±10 volts occur. In areas where the mains voltage may uctuate or cut out, it is recommended

that you connect your projector through a power stabilizer, surge protector or uninterruptible

power supply (UPS).

4. Do not block the projection lens with any objects when the projector is under operation

as this could cause the objects to become heated and deformed or even cause a re. To

temporarily turn off the light source, press BLANK on the remote control.

5. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining

serious damage.

6. Do not attempt to disassemble this projector. There are dangerous high voltages inside which

may cause death if you should come into contact with live parts.

Under no circumstances should you ever undo or remove any other covers. Refer servicing

only to suitably qualied professional service personnel.

7. Do not place this projector in any of the following environments.

• Space that is poorly ventilated or conned. Allow at least 50 cm clearance from walls and

free ow of air around the projector.

• Locations where temperatures may become excessively high, such as the inside of a car

with all windows rolled up.

• Locations where excessive humidity, dust, or cigarette smoke may contaminate optical

components, shortening the projector's life span and darkening the image.

• Locations near re alarms

• Locations with an ambient temperature above 40°C / 104°F

• Locations where the altitudes are higher than 3000 m (10000 feet).

8. Do not block the ventilation holes.

• Do not place this projector on a blanket, bedding or any other soft surface.

• Do not cover this projector with a cloth or any other item.

• Do not place inammables near the projector.

If the ventilation holes are seriously obstructed, overheating inside the projector may result in

a re.

6

9. Do not step on the projector or place any objects upon it. Besides probable physical damage

to the projector, doing so may result in accidents and possible injury.

10. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to

fail. If the projector does become wet, disconnect it from the power supply's wall socket and

call BenQ to have the projector serviced.

This equipment has a three-pin grounding-type power plug. Do not

remove the grounding pin. As a safety feature, this plug will only t a
grounding-type power outlet. If you are unable to t the plug into the

Do not remove

outlet, contact an electrician.

Notice on laser

This symbol indicates that there is a potential hazard of eye exposure to
laser radiation unless the instructions are closely followed.

English

Laser class

(for USA) This Laser Product is designated as Class 3R during all procedures of

operation and complies with IEC/EN 60825-1:2007.

(for WW) This Laser Product is designated as Class 1 during all procedures of

operation and complies with IEC/EN 60825-1:2014.

LASER LIGHT - AVOID DIRECT EYE EXPOSURE.
Do not point laser or allow laser light to be directed or reected toward other
people or reective objects.

Direct or scattered light can be hazardous to eyes and skin.
There is a potential hazard of eye exposure to laser radiation if the included
instructions are not followed.
Caution – use of controls or adjustments or performance of procedures other than

those specied herein may result in hazardous radiation exposure.

Laser parameters

Wavelength 449nm - 461nm (Blue)

Mode of operation Pulsed, due to frame rate

Pulse width 1.34ms

Pulse repetition rate 120Hz

Maximum laser energy 0.698mJ

Total internal power >10 0w

Apparent source size >10mm, at lens stop

Divergence >100 mili Radian

7

English

Risk Group 3 Information

Light hazard warning

Failure to comply with the following may result in serious injury:

• No direct exposure to the beam is permitted, RG3 IEC 62471-5:2015.

• Operators control access to the beam within the hazard distance or install the projector at

sufcient height to prevent exposures of spectators’ eyes within the hazard distance.

The hazard distance is the distance measured from the projection lens at which the intensity or
energy per unit of surface is lower than the applicable exposure limit on the cornea or skin. If the
person is within the hazard distance, the beam is considered unsafe for exposure.

The hazard distance for this projector is 0-150 cm.

Note

This projector is an RG3 product, which must be installed in a safe place and must be handled by qualified and
professionally skill trained personnel

For the installation and removal of the lens, please consult your dealer with qualied profession-als to install it. Do not

try to install the projector yourself, otherwise your eyesight may be dam-aged

In case to install the projector over head, keep over 3m distance at least between the oor surface and the RG3 area.

Operators shall control access to the beam within the hazard distance or install the product at the height that will

prevent exposures of spectators’ eyes within the hazard distance.

Caution:

Use of controls, adjustments or performance of procedures other than those specied herein may result in hazardous

laser light exposure.

8

Label instruction

Below drawing show the label’s location.

1. Laser warning label

English

2. Spec label

9

English

Laser light instruction

Below drawing is the laser aperture location. Be careful not to let the eye see the light directly.

Laser aperture

Interlock switches

This machine has 2 (Top cover x 1, Lens x 1) Interlock switches to protect the laser light Leakage.

1. Will power-off the system individually when the top cover is removed.

2. Will power-off the system individually when the lens is removed or not install correctly.

Interlock
switches

Interlock
switches

10

Prepare for installation

Caution for installation

1. If the projector and lens were purchased separately, remove the anti-dust cap before use and
store it for future use. When transporting the projector, move the lens to the home position,
remove the lens, and attach the anti-dust cap.

Anti-dust cap

2. When the projector is not in use, attach the lens cover supplied with the projector or the
projection lens.

English

Lens cover

Focus adjustment

The high clarity projection lens is thermally affected by the light from the bulb; thus, the focus

is unstable for a short period immediately after the power is turned on. Please wait at least 15

minutes of continuous projection before adjusting the focus.

11

English

Cooling notice

Allow at least 50 cm (19.7 inch) for clearance around the exhaust vent. Make sure no objects block
air input within 30 cm (11.8 inch).
Keep the outlet at least 1 m away from the inlets of other projectors.

Air inlet

Air inlet

Air outlet

• The projector can be installed at any angle.

12

• Allow at least 50 cm of clearance around the exhaust vent.

Minimum 50 cm
(19.69 inch)

Minimum 50 cm
(19.69 inch)

Minimum 50 cm
(19.69 inch)

Minimum 50 cm
(19.69 inch)

English

Minimum 50 cm
(19.69 inch)

Minimum 100 cm
(3.94 inch)

Minimum 30 cm
(11.81 inch)

Minimum 50 cm
(19.69 inch)

• Ensure that the air intake vents do not recycle hot air from the exhaust vent.

• When operating in an enclosed space, make sure that the surrounding air temperature does
not exceed the projector's operating temperature and that the air intake and exhaust vents are
unobstructed.

• All enclosures should pass a certied thermal evaluation to ensure that the projector does
not recycle exhaust air. Recycling exhaust air may cause the projector to shutdown even if the
ambient temperature is within the acceptable operating temperature range.

13

English

MENU

EXIT

ENTER

1

4

7089

635

2

Package contents

Standard packing items

Projector

without lens

Power cable VGA cable

Remote

Without AA batteries

Warranty card Installation guide

Wired remote cable

Anti-Theft screw

Lens information

Model Lens Type Part Number Throw Ratio Lens Shift

LS1ST3A Short throw 5J.J P N37. 0 01 WUXGA: 0.77-1.1

LS1ST2A Wide zoom 2 5J. J PN37. 002 WUXGA: 1.1-1.3

LS1ST1A Wide zoom 1 5J. J PN37. 003 WUXGA: 1.25 -1.6

LS1S DA Standard 5J.J P N37. 0 04 WUXGA: 1.54 -1.93

LS1LT0 Semi long 5J.J P N37. 0 05 WUXGA: 1.93-2.9

LS1LT1 Semi Long 2 5J.JAM37.051 WUXGA: 2.22-3.67

LS1LT2 Long Zoom 1 5J .JA M 37. 0 31 WUXGA: 3.58-5.38

LS1LT3 Long Zoom 2 5J .JA M 37. 0 41 WUXGA: 5.31~8.26

LS1S T4

Ultra Short
throw

5J.J C Y 37. 0 01 WUXGA: 0.377

Vertical: -15%-55%
Horizontal: -5%-5%

Vertical: -15%-55%
Horizontal: -5%-5%

Vertical: -15%-55%
Horizontal: -5%-5%

Vertical: -15%-55%
Horizontal: -5%-5%

Vertical: -15%-55%
Horizontal: -5%-5%

Vertical: -15%-55%
Horizontal: -5%-5%

Vertical: -15%-55%
Horizontal: -5%-5%

Vertical: -15%-55%
Horizontal: -5%-5%

Vertical: -0%-0%
Horizontal: -0%-0%

Lens hole cap

14

Introduction

Projector exterior view

Front and upper side view

1

2

3

4

5

8

6

English

1. Foot for adjusting projector level

2. IO panel

3. Control panel

4. Slide switch (voltage selection)

5. AC power switch

6. Front IR sensor

7. Lens release button

8. Air intake

7

Rear and upper side view

9

9. Air intake

10. Air exhaust

11. Rear IR sensor

10

11

15

English

Controls and functions

Control panel

• POWER

Press to power on/off your projector.

• INPUT

Press to select video sources including HDMI, DVI-D, Computer 1, Computer 2, DisplayPort

and H DBa seT.

• AUTO SYNC

Press to execute auto signal sync.

• ASPECT

Press to switch aspect ratio of current image.

• MENU

Press to display OSD menu or return to the upper menu level.

• ENTER

Press to select, accept or change settings.

• EXIT

Press to exit OSD menu

• CENTER LENS

Press to center the lens and reset its shift, focus and zoom parameters.

.

Note

The lens memory requires precise lens parameter adjustments. Please re-run the Center Lens function once you install

the lens.

• BLANK

Press the button to temporarily interrupt the projection.

• LENS SHIFT

Press to move lens up, down, left and right.

• FOCUS

Press to adjust focus of projection image.

• ZOOM

Press to zoom in and out on projection image. Remote control and functions.

16

Control terminal

• 3D SYNC IN
Connect 3D-sync in cable from a computer or an enabled device.

• MONITOR OUT
Connection to other display equipment for concurrent playback display.

• COMPUTER IN

15-pin VGA port for connection to RGB, component HD source, or PC.

• H DB as eT

Connect an Ethernet cable (Cat5/Cat6) from HDBaseT transmitter with high-denition video (HD),

RS232 control and LAN control.

• DVI-D
Connection to DVI source.

• HDMI 1
Connection to HDMI source.

• HDMI 2
Connection to HDMI source.

• USB POWER 2A
Support 5V/2A output.

• RJ45

For connection to RJ45 Cat5/Cat6 Ethernet cable to control the projector through a network.

• 3D SYNC OUT
Connection to 3D IR sync signal transmitter.

• RS-232 IN

Standard 9-pin D-sub interface for connection to PC control system and projector maintenance.

• RS-232 OUT
Connects to another projector (same model) for RS-232 control.

• SERVICE
Maintenance exclusive port for authorized maintenance personnel only.

• AUDIO OUT (L/R)
Connection to a speaker or headset.

• 12V TRIGGER

3.5mm mini earphone jack, employs 200mA display relay to provide 12(+/-1.5)V output and short
circuit protection.

• WIRED REMOTE IN
Connection to remote control for wire remote control.

• WIRED REMOTE OUT
Connection to another projector.

• AUDIO IN
Connection to an audio input source via an audio cable.

• R/Pr, G/Y, B/Pb, H, V

Connection to RGB or YPbPr/YCbCr output signal with BNC type input terminal.

English

Caution:

Make sure the port is valid before inserting a wired remote controller. The remote controller may be damaged in case
of an invalid port, e.g. a wired remote controller is connected to trigger output. For more information about upgrading

rmware via Lan, please contact BenQ service.

17

English

89

Remote control

ENTER

MENU

1

4

7

2

5

0

3

6

EXIT

• ON

Press to power on projector.

• OFF

Press to power off projector.

• FOCUS +/-

Press to adjust focus of projection image.

• ZOOM +/-

Press to zoom in and out on projection image.

• TEST PATTERN

Press to display embedded test pattern. Press continuously
to scroll through available ones. Press MENU key to exit to

projection image.

• LENS SHIFT

Press to move lens up, down, left and right.

• ENTER

Press to select or accept settings.

• MENU

Press to display OSD menu or return to the upper menu

level.

• EXIT

Press to exit OSD menu.

• AUTO PC

Press to execute auto signal sync.

• BLANK

Press the button to temporarily interrupt the projection.

• STATUS

Show OSD MENU – Information.

• COMPUTER 1

Select COMPUTER 1 input source.

• COMPUTER 2

Select COMPUTER 2 input source.

• ASPECT

Press continuously to scroll through individual aspect ratio.

• HDMI 1

Select HDMI 1 input source.

• HDMI 2

Function same as HDMI 1.

• DVI

Select DVI input source.

• 3G-SDI

Select 3G-SDI input source.

• DisplayPort

Select DisplayPort input source.

• HDBaseT

Select HDBaseT input source.

• CLEAR

Not available with this model.

• FREEZE

Press to toggle switch between freeze and unfreeze.

• ID SET:

Not available for this model.

18

Connect with projector

When you use a system with multiple projectors, use commercially available M3 stereo mini jack
cables to connect the other projectors via the WIRED REMOTE IN/WIRED REMOTE OUT
terminals.
The remote control is effective even in places where obstacles stand in the light path or where
devices are susceptible to outside light.

Note:

English

Use two core shielded cables no longer than 15 m (49.2 ft). The remote control may not operate when the length of
the cable exceeds 15 m (49.2 ft) or when it is not properly shielded.

Remote control effective range

Infra-Red (IR) remote control sensor is located on the front and rear of the projector. The remote
control must be held at an angle within 30 degrees perpendicular to the projector's IR remote
control sensor to function correctly. The distance between the remote control and the sensor
should not exceed 8 meters (~ 26 feet).
Make sure that there are no obstacles between the remote control and the IR sensor on the
projector that might obstruct the infra-red beam.

Approx. ±30°

19

English

Replacing the remote control battery

1. To open the battery cover, turn the remote control over to view its back, push on the nger
grip on the cover and slide it up in the direction of the arrow as illustrated. The cover will slide
off.

2. Remove any existing batteries (if necessary) and install two AA batteries observing the battery

polarities as indicated in the base of the battery compartment. Positive (+) goes to positive and

negative (-) goes to negative.

3. Ret the cover by aligning it with the base and sliding it back down into position. Stop when it
clicks into place.

2 31

Caution:

• Avoid excessive heat and humidity.

• There may be battery damage if the battery is incorrectly replaced.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• Dispose of the used battery according to the battery manufacturer’s instructions.

• Never throw a battery into a re. There may be danger of an explosion.

• If the battery is dead or if you will not be using the remote control for a long time, remove the battery to prevent

damage to the remote control from possible battery leakage.

20

Installation

This side up

Caution:

To avoid damaging the DLP chips, never aim a high-power laser beam into the projection lens.

Installing removing the optional lens

Caution:

• Do not shake or place excessive pressure on the projector or the lens components as the projector and lens

components contain precision parts.

• Before removing or installing the lens, be sure to turn off the projector, wait until the cooling fans stop, and turn off

the main power switch.

• Do not touch the lens surface when removing or installing the lens.

• Keep ngerprints, dust or oil off the lens surface. Do not scratch the lens surface.

• Work on a level surface with a soft cloth under it to avoid scratching.

• If you remove and store the lens, attach the lens cap to the projector to keep off dust and dirt.

Installing the new lens

Remove both end caps from the lens.

English

Note:

Removal of the plastic body cap before inserting a lens for the rst time.

1. Orient the lens so that the arrow on the label pasted on its side is facing upward and push the
lens into the lens mount of the unit as far as it will go.

2. Rotate the lens clockwise until you feel it click into place.

21

English

Removing the existing lens from the projector

1. Push the LENSE RELEASE button to the unlock position.

2. Grasp the lens.

3. Rotate the lens counterclockwise. The existing lens will be disengaged.

4. Pull out the existing lens slowly.

22

Evaluate for distance by image size

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting (if available), and the
video format each factors in the projected image size.

Projection dimensions

Refer to "Dimensions" on page 74 for the center of lens dimensions of this projector before
calculating the appropriate position.

*** "A" is based on maximum lens shift offset position 55%

English

LU9750/LU9800

The screen aspect ratio is 16:10 and the projected picture is 16:10.

Note:

To optimize the projection quality, we suggest to project images in an area without grayscale.

Lens

Throw ratio 1.1~1.3 1. 54 ~1.93

Diagonal Image Width Image Height

(Inch) (m) (Inch) (m) (Inch) (m) (I nch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m)

50 1.27 42 1.08 26 0.67 1. 3 0.034 14.6 0.370 47 1.18 55 1.40 65 1.66 82 2.08

60 1.52 51 1. 29 32 0.81 1.6 0.040 17.5 0.444 56 1.42 66 1.68 78 1.99 98 2.49

80 2 .03 68 1.72 42 1.0 8 2.1 0.054 23.3 0.592 75 1.9 0 88 2.24 10 4 2.65 131 3.33

100 2.54 85 2 .15 53 1. 35 2.6 0.0 67 29.1 0 .74 0 93 2.37 110 2.8 0 131 3.32 16 4 4.16

120 3.05 102 2.58 64 1.62 3.2 0.081 35.0 0.888 11 2 2.84 132 3.36 157 3.98 19 6 4.99

150 3.81 127 3.23 79 2.02 4.0 0.101 43.7 1.111 14 0 3.55 165 4.20 196 4.98 245 6.24

180 4.57 153 3.88 95 2.42 4.8 0.121 52.5 1.333 168 4.26 19 8 5.04 235 5.97 295 7.48

200 5.08 170 4.31 106 2.69 5.3 0 .135 58.3 1.481 187 4.74 220 5.60 261 6.63 327 8.31

250 6.35 212 5.38 132 3.37 6.6 0.168 72.9 1.8 51 233 5.92 276 7. 0 0 326 8.29 409 10. 39

300 7.62 254 6.46 159 4.04 7.9 0.202 87. 4 2.221 280 7. 11 331 8.40 392 9.95 491 12 .47

350 8.89 297 7.54 185 4.71 9. 3 0.236 102 .0 2. 591 326 8.29 386 9. 80 457 11 . 61 573 14. 55

400 10 .16 339 8.62 212 5.38 10 .6 0.269 116 . 6 2.962 373 9.48 441 11. 20 522 13. 27 655 16.6 3

500 12 .70 424 10.77 265 6.73 13.2 0.337 145 .7 3.702 466 11 . 8 5 551 14.0 0 653 16. 59 818 20.79

Offset (A) O Distance Distance

Wide/Tele Wide/Tele Wide Tele Wide Tel e

Wide Zoom 2

(LS2ST2A)

Standard

(LS1SDA)

23

English

24

Lens

Throw ratio 0.7 7~1.1 1.25~1.60

Diagonal Image Width Image Height

(Inch) (m) (Inch) (m) (Inch) (m) (I nch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m)

50 1.27 42 1.08 26 0.67 1. 3 0.034 14 .6 0. 370 33 0.83 47 1.18 53 1.35 68 1.7 2

60 1.52 51 1. 29 32 0.81 1.6 0.040 17. 5 0.444 39 1.00 56 1.42 64 1.62 81 2.07

80 2 .03 68 1.72 42 1.0 8 2.1 0.054 23.3 0.592 52 1.33 75 1.90 85 2.15 109 2 .76

100 2.54 85 2 .15 53 1. 35 2.6 0.0 67 29.1 0 .74 0 65 1.66 93 2.37 106 2.69 136 3.45

120 3.05 102 2.58 64 1.62 3.2 0.081 35.0 0.888 78 1.99 112 2.84 127 3.23 163 4.14

150 3.81 127 3.23 79 2.02 4.0 0.101 43.7 1.111 98 2.49 14 0 3.55 159 4.04 20 4 5.17

180 4.57 153 3.88 95 2.42 4.8 0.121 52.5 1.333 118 2.99 168 4.26 191 4.85 244 6.20

200 5.08 170 4.31 106 2.69 5.3 0 .135 58.3 1.481 131 3.32 187 4.74 212 5.38 271 6.89

250 6.35 212 5.38 132 3.37 6.6 0.168 72.9 1.8 51 163 4.15 233 5.92 265 6.73 339 8.62

300 7.62 254 6.46 159 4.04 7.9 0.202 87. 4 2.221 196 4.98 280 7. 11 318 8.08 407 10.3 4

350 8.89 297 7.54 185 4.71 9. 3 0.236 102 .0 2. 591 229 5.80 326 8.29 371 9.42 475 12. 06

400 10 .16 339 8.62 212 5.38 10 .6 0.269 116 . 6 2.962 261 6.63 373 9.48 424 10.77 543 13. 79

500 12 .70 424 10.77 265 6.73 13.2 0.337 145 .7 3.702 326 8.29 466 11. 85 530 13.46 678 17. 2 3

Lens

Throw ratio 1.93~2.9

Diagonal Image Width Image Height

(Inch) (m) (Inch) (m) (Inch) (m) (I nch) (m) (Inch) (m) (Inch) (m) (Inch) (m)

50 1.27 42 1.08 26 0.67 1. 3 0.034 14 .6 0. 370 82 2.08 12 3 3.12

60 1.52 51 1. 29 32 0.81 1.6 0.040 17. 5 0.444 98 2.49 14 8 3.75

80 2 .03 68 1.72 42 1.0 8 2.1 0.054 23.3 0.592 131 3.33 19 7 5.00

100 2.54 85 2 .15 53 1. 35 2.6 0.0 67 29.1 0 .74 0 16 4 4.16 246 6.25

120 3.05 102 2.58 64 1.62 3.2 0.081 35.0 0.888 196 4.99 295 7. 5 0

150 3.81 127 3.23 79 2.02 4.0 0.101 43.7 1.111 245 6.24 369 9.37

180 4.57 153 3.88 95 2.42 4.8 0.121 52.5 1.333 295 7.4 8 443 11. 24

200 5.08 170 4.31 106 2.69 5.3 0 .135 58.3 1.481 327 8. 31 492 12 .4 9

250 6.35 212 5.38 132 3.37 6.6 0.168 72.9 1.8 51 409 10. 39 615 15. 62

300 7.62 254 6.46 159 4.04 7.9 0.202 87. 4 2.221 491 12.47 738 18 .74

350 8.89 297 7.54 185 4.71 9. 3 0.236 102 .0 2. 591 573 14. 55 861 21. 8 6

400 10 .16 339 8.62 212 5.38 10 .6 0.269 116 . 6 2.962 655 16.6 3 984 24.99

500 12 .70 424 10.77 265 6.73 13.2 0.337 145 .7 3.702 818 20.79 123 0 31.2 3

Lens

Throw ratio 2. 22~3.67 3.58 -5.38

Diagonal Image Width Image Height

(Inch) (m) (Inch) (m) (Inch) (m) (I nch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m)

50 1.27 42 1.08 26 0.67 0.0 0.000 13.2 0.337 94 2.39 156 3.95 152 3.86 228 5.79

60 1.52 51 1. 29 32 0.81 0.0 0.000 15.9 0.404 113 2.87 187 4. 74 182 4.63 274 6.95

80 2 .03 68 1.72 42 1.0 8 0.0 0.000 21. 2 0.538 151 3.83 249 6.32 243 6.17 365 9.27

100 2.54 85 2 .15 53 1. 35 0.0 0.000 26.5 0.673 188 4.78 311 7.9 0 30 4 7.71 456 11 . 5 9

120 3.05 102 2.58 64 1.62 0.0 0.000 31.8 0.808 226 5 .74 373 9.49 364 9.25 547 13 .91

150 3.81 127 3.23 79 2.02 0.0 0.000 39.7 1. 010 282 7.17 467 11. 86 455 11. 5 7 684 17. 38

180 4.57 153 3.88 95 2.42 0.0 0.000 47.7 1.212 339 8 .61 560 14. 23 546 13.88 821 20.86

200 5.08 170 4.31 106 2.69 0.0 0.000 53.0 1.346 377 9.56 622 15. 81 607 15.42 912 23.18

250 6.35 212 5.38 132 3.37 0.0 0.000 66.2 1.683 471 11. 9 5 778 19.76 759 19. 28 114 1 28.97

300 7.62 254 6.46 159 4.04 0.0 0.000 79. 5 2.019 565 14. 35 934 23.71 911 23.13 1369 34 .76

350 8.89 297 7.54 185 4.71 0.0 0.000 92.7 2 .356 659 16. 74 10 89 27. 67 1063 26.99 1597 40.56

400 10 .16 339 8.62 212 5.38 0.0 0.000 10 6. 0 2.692 753 19.13 124 5 31.62 1214 30.84 1825 46.35

500 12 .70 424 10.77 265 6.73 0.0 0.000 132 . 5 3.365 941 23.91 1556 39.52 1518 38.56 2281 57.94

Offset (A) O Distance Distance

Wide/Tele Wide/Tele Wide Tele Wide Tel e

Offset (A) O Distance

Wide/Tele Wide/Tele Wide Tele

Offset (A)

Wide/Tele Wide/Tele Wide Tele Wide Tel e

O Distance Distance

Short Throw

(LS1ST3A)

Semi Long

(LS1LT0)

Semi Long 2

(L S1LT1)

Semi Throw

(LS2ST4)

Long Zoom 1

(L S1LT 2)

Lens

Throw ratio 5. 31~ 8 .26

Diagonal Image Width Image Height

(Inch) (m) (Inch) (m) (Inch) (m) (I nch) (m) (Inch) (m) (Inch) (m) (Inch) (m)

50 1.27 42 1.08 26 0.67 0.0 0.000 13.2 0.337 225 5.72 350 8.90

60 1.52 51 1. 29 32 0.81 0.0 0.000 15.9 0.404 270 6.86 420 10.67

80 2 .03 68 1.72 42 1.0 8 0.0 0.000 21. 2 0.538 360 9.15 560 14 .23

100 2.54 85 2 .15 53 1. 35 0.0 0.000 26.5 0.673 450 11 . 4 4 700 17.7 9

120 3.05 102 2.58 64 1.62 0.0 0.000 31.8 0.808 540 13.72 8 41 21.3 5

150 3.81 127 3.23 79 2.02 0.0 0.000 39.7 1. 010 675 17.16 1051 26.69

180 4.57 153 3.88 95 2.42 0.0 0.000 47.7 1.212 8 11 20.59 12 61 32 .02

200 5.08 170 4.31 106 2.69 0.0 0.000 53.0 1.346 901 22.87 1401 35.58

250 6.35 212 5.38 132 3.37 0.0 0.000 66.2 1.683 1126 28.59 17 51 44.48

300 7.62 254 6.46 159 4.04 0.0 0.000 79. 5 2.019 1351 34. 31 2101 53.37

350 8.89 297 7.54 185 4.71 0.0 0.000 92.7 2 .356 1576 40.03 2452 62.27

400 10 .16 339 8.62 212 5.38 0.0 0.000 10 6. 0 2.692 1801 45.75 2802 71.17

500 12 .70 424 10.77 265 6.73 0.0 0.000 132 . 5 3.365 22 51 57.19 3502 88.96

Lens

Throw ratio 0.377

Diagonal Image Width Image Height

(Inch) (m) (Inch) (m) (Inch) (m) (I nch) (m) (Inch) (m) (Inch) (m)

50 1.27 42 1.08 26 0.67 12 .1 0.306 25.3 0.643 16 0.41

60 1.52 51 1. 29 32 0.81 14.5 0.368 30.4 0.7 71 19 0.49

80 2 .03 68 1.72 42 1.0 8 19.3 0.490 40.5 1.028 26 0.65

100 2.54 85 2 .15 53 1. 35 24.1 0.613 50.6 1.286 32 0.81

120 3.05 102 2.58 64 1.62 28 .9 0.735 60.7 1. 543 38 0.97

150 3.81 127 3.23 79 2.02 36.2 0.919 75.9 1.928 48 1.22

180 4.57 153 3.88 95 2.42 43.4 1.103 91.1 2.314 58 1.46

200 5.08 170 4.31 106 2.69 48.2 1.225 101.2 2 . 571 64 1.62

250 6.35 212 5.38 132 3.37 60.3 1.531 126.5 3 .214 80 2.03

300 7.62 254 6.46 159 4.04 72.3 1.838 151.8 3. 857 96 2.44

350 8.89 297 7.54 185 4.71 84.4 2.144 177. 2 4.500 112 2.8 4

400 10 .16 339 8.62 212 5.38 96.5 2.450 202 .5 5.142 128 3.25

500 12 .70 424 10.77 265 6.73 120.6 3.063 253.1 6.428 160 4.06

Offset (A) O Distance

Wide/Tele Wide/Tele Wide Tele

Offset (A) O Distance

Wide/Tele Wide/Tele Wide

Long Zoom 2

(L S1LT3)

Ultra Short Throw

(L S1S T4)

English

Note:

There is 5% tolerance among these numbers due to optical component variations. BenQ recommends that if you
intend to permanently install the projector, you should physically test the projection size and distance using the actual
projector before you permanently install it, so as to make allowance for this projector's optical characteristics. This will
help you determine the exact mounting position so that it best suits your installation location.

25

English

d Lens

ow Lens

Wide Zoom1 Lens

Long2 Lens

Lens dimension

Optional Lens (Standard: LS1SDA) Optional Lens (Semi Long 2: LS1LT1)

587.3

630.5

Standar

587.3

609.9

Semi Long Lens

Optional Lens (Short Throw: LS1ST3A) Optional Lens (Long 1: LS1LT2)

587.3

654.9

Short Thr

587.3

626.7

Long1 Lens

Optional Lens (Wide Zoom 1: LS1ST1A) Optional Lens (Long 2: LS1LT3)

587.3

643.2

26

587.3

667.4

Optional Lens (Semi Long: LS1LT0)

ow Lens

Wide Zoom2 Lens

Optional Lens (Ultra Short Throw: LS1ST4)

English

587.3

588.8

Semi Long Lens

Optional Lens (Wide Zoom 2: LS1ST2A)

587.3

640.9

587.3

872.5

Ultra Short Thr

27

English

Adjusting by Lens shift

The Lens Shift function can be used to adjust the position of the projected image either
horizontally or vertically within the range detailed below.

Adjusting the vertical image position

The vertical image height can be adjusted between 55% and -15% for WUXGA of offset position.

Please consult the Lens Shift Range diagram below for further clarication.

Adjusting the horizontal image position

With the lens in the center position the horizontal image position can be adjusted to the left or

right by up to a maximum of 5% of the image width. Please consult the Lens Shift Range diagram
below for further clarication.

Lens shift range diagram

The adjustable range for lens shift is tabulated below and subject to the conditions listed.

Note:

The drawings below apply to the standard lens only.

Desk-Front Projection

Ver tic al Shift

Height of projected image

Ceiling Mount-Front Projection

Height of projected image

Ver tic al Shift

Max

0.5V

Max

0.5V

Normal projection position

1V

0.1H

Width of projected image

1V

Shift to Left

1H

0.1H

Shift to Right

Notice (when edge blending)

• To avoid the image shaking or some pixels in the display may be misaligned, do not use the
projector in the following location:

• In a building close to a construction site.

• In a room where an air conditioner unit is working and it vibrates.

• In a place where the temperature changes dramatically that may cause thermal contraction.

• Before making any adjustment, leave the projector lit for at least 45 minutes after its light
source is turned on. This allows he internal temperature of the projector to stabilize.

28

Connection

Before connecting

• Before connecting, carefully read the operating instructions for connecting the external device

• Turn off the power to all devices before connecting cables.

• Take note of the following before connecting cables. Failure to do so may result in
malfunctions.

• Before connecting a cable to the projector or to a device that is connected to the

projector, touch any nearby metallic objects to remove any static electricity from your
body.

• Do not use unnecessarily long cables to connect the projector or a device to the projector.

Using a longer cable that is wound makes it act like an antenna, making it more susceptible
to noise.

• When connecting cables, connect GND rst and then insert the connecting terminal of the

connecting device.

• Acquire any connection cables necessary to connect external devices to the system that are
not supplied.

• The images on the screen may wobble if the video signal contains too much jitter. In this case,
a time base corrector (TBC) must be connected.

English

• If synchronization signal outputs from computers or video equipment are disrupted due to
changes in the video output settings or any other reasons, the colors of projected images may
be temporarily disrupted.

• The projector accepts video signals, Y/C signals, YCBCR/YPBPR signals, analog RGB signals
(synchronization signals are TTL level), and digital signals.

• Some computer models are not compatible with the projector.

• Use a cable compensator when you connect devices to the projector with long cables. If a
cable compensator is not used, the image may not display properly.

PC

No. Serial No. Serial

1 R/PR 9 -

2 G/Y 10 GND

3 B/PB 11 GND

4 - 12 DDC data

5 GND 13 SYNC/HD

6 GND 14 VD

7 GND 15 DDC clock

8 GND

29

English

16

1724

9

HDMI 1

No. Serial No. Serial

1 TMDS Data2+ 11 TMDS Clock Shield

2 TMDS Data2 Shield 12 TMDS Clock-

3 TMDS Data2- 13 CEC

4 TM DS Data1+ 14 Reserved (N.C. on device)

5 TMDS Data1 Shield 15 SCL

6 TMDS Data1- 16 SDA

7 TMDS Data0+ 17 DDC/CEC Ground

Even-numbered pins of 2 to 18

8 TMDS Data0 Shield 18 +5 V Power (max 50 mA)

9 TMDS Data0- 19 Hot Plug Detect

10 TMDS Clock+

DVI-D

No. Serial No. Serial

1 T.M.D.S data 2- 13 -

2 T.M.D.S data 2+ 14 -+5 V

3 T.M.D.S data 2/4 shield 15 GND

4 - 16 Hot plug detection

5 - 17 T.M.D.S data 0-

6 DDC clock 18 T.M.D.S data 0+

7 DDC data 19 T.M.D.S data 0/5 shield

8 - 20 -

9 T.M.D.S data 1- 21 -

10 T.M.D.S clock1+ 22 T.M.D.S clock shield

Odd-numbered pins of 1 to 19

8

11 T.M.D.S data 1/3 shield 23 T.M.D.S clock+

12 - 24 T.M.D.S clock-

30

Connecting with AV equipment

English

VCR (with built-in TBC)

DVD player with HDMI

terminal (HDCP)

Blu-ray disc player

Connecting with computer

Monitor Control Computer

Computer

31

English

Connecting with HDBaseT transmitter

DVD Player DVD Player

VGA Cable

HDBaseT transmitter

Control PC

Control PC

Connecting with LAN

YPbPrVGA IN HDMI

Hub

RS-232

RJ45 Cat5e or above

LAN

RS-232

Projector

RJ45RJ45

32

Operations

Switch on/off the projector

Connecting the power cord

Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch
(where tted). Check that the POWER indicator light on the projector lights orange after power

has been applied.

English

Caution:

Please use the original accessories (e.g. power cable) only with the device to avoid possible dangers such as electric
shock and re.

Power indicator

Power Te mp Light Filter Status & Description

Orange - - - Stand-by

Green

Flashing

Green - - - Normal operation

Orange

Flashing

- - - Powering up

- - - Normal power down cooling

33

English

89

Switch on the projector

Press POWER on the projector or ON on the remote control to start the projector and
a start up tone sounds. The POWER indicator light ashes green and stays green when the
projector is on.
The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is
projected.
(If necessary) Rotate the focus ring to adjust the image clearness.

ENTER

MENU

EXIT

1

4

7

3

2

6

5

0

34

Select language

To use the OSD menus, please set them to your familiar language rst.

*After this process is done, this menu will not show up again after 1st time adjustment unless user
presses Reset All Settings.

1. Press ENTER on the projector or remote control to turn the OSD menu on.

English

35

English

2. Use ◄/► to highlight the System Setup: Basic menu.

3. Press ▼ to highlight Language and press ENTER to select a preferred language.

4. Press ENTER twice* on the projector or remote control to leave and save the settings.

*The rst press leads you back to the main menu and the second press closes the OSD menu.

36

Using the OSD

Choosing a location

Your projector is designed to be installed in one of four possible installation locations:

English

1. Front Table
Select this location with the projector
placed on a table in front of the screen. This
is the most common way to position the
projector for quick setup and portability.

3. Front Ceiling
Select this location with the projector
suspended upside-down from the ceiling in
front of the screen.

Purchase the BenQ Projector Ceiling

Mounting Kit from your dealer to mount
your projector on the ceiling.
*Set Front Ceiling in the SYSTEM
SETUP: Basic > Projector Installation
menu after you turn the projector on.

2. Rear Table
Select this location with the projector
placed on a table behind the screen.
Note that a special rear projection screen is
required.
*Set Re ar Table in the SYSTEM
SETUP: Basic > Projector Installation
menu after you turn the projector on.

4. Rear Ceiling
Select this location with the projector
suspended upside-down from the ceiling
behind the screen.
Note that a special rear projection screen

and the BenQ Projector Ceiling Mounting

Kit are required for this installation
location.
*Set Rear Ceiling in the SYSTEM
SETUP: Basic > Projector Installation
menu after you turn the projector on.

Your room layout or personal preference will dictate which installation location you select. Take
into consideration the size and position of your screen, the location of a suitable power outlet, as
well as the location and distance between the projector and the rest of your equipment.

37

English

Using test pattern

The projector is capable of displaying the grid test pattern. It can be used to assist you with the
adjustment of image size and focus, ensuring that the projected image is free from distortion.
To display the test pattern, open the OSD menu and go to the System Setup: Advanced >
Test Pattern and press ◄/► to select On.

Adjusting by corner t

Manually adjust four corners of the image by setting the horizontal and vertical values.
Using the OSD menu

1. Press MENU and then press ◄/► until the Display menu is highlighted.

2. Press ▼ to highlight Corner Fit and press ENTER. The Corner Fit page displays.

38

3. Press ▲/▼/◄/► to select one of the four corners and press ENTER.

4. Press ▲/▼ to adjust vertical values from 0 to 60.

5. Press ◄/► to adjust horizontal values from 0 to 60.

English

Auto adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press AUTO on the
projector or remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function
will re-adjust the values of Frequency and Clock to provide the best picture quality.
The current source information will be displayed in the upper left corner of the screen for 3
seconds.

Note:

• The screen will be blank while AUTO is functioning.

• This function is only available when PC signal (analog RGB) is selected.

39

English

Switch off the projector

1. Press POWER or OFF and a conrmation message will appear prompting you.
If you don't respond in a few seconds, the message will disappear.

2. Press POWER or OFF a second time. The POWER indicator light ashes orange, the
projection light source shuts down.

ENTER

MENU

1

4

7089

EXIT

3

2

6

5

3. Once the cooling process nishes, a "Power Off Ring Tone" will be heard. The POWER
indicator light is a steady orange and fans stop. Disconnect the power cord from the power
outlet.

Caution:

• To protect the light source, the projector will not respond to any commands during the cooling process.

• Press POWER or ON again to start the projector after the POWER indicator light turns orange.

40

Using the menu

Main menu

The projector is equipped with On-Screen Display (OSD) menus for making various adjustments
and settings.
Below is the overview of the OSD menu.

Main menu icon

Main menu

English

Sub-menu

Current input
signal

Status

Press MENU to
the previous page
or to exit.

1. Display menu (see "Display menu" on page 42)

2. Picture menu (see "Picture menu" on page 47)

3. Source menu (see "Source menu" on page 51)

4. System Setup : Basic menu (see "System Setup : Basic menu" on page 53)

5. System Setup : Advanced menu (see "System Setup : Advanced menu" on page 57)

6. Information menu (see "Information menu" on page 62)

Available menu items may vary depending on the connected video sources or specied settings.

Menu items that are not available will become grayed out.

• Use the arrow keys (▲/▼/◄/►) on the projector or remote control to move through the
menu items.

• Use ENTER to conrm the selected menu item.

41

English

Display menu

• Wall Color

Press ◄/► to correct the image color bias reected by the wall. The options are Off, Light
Yellow, Pink, Light Green, Blue and Blackboard.

• Aspect Ratio

Press ◄/► to adjust the aspect of the projected image. The options are Auto, Real, 4:3, 16:9,

16:10 and 2 .35:1.

• Using the remote control

1. Press ASPECT to show the current setting.

2. Press ASPECT repeatedly to select an aspect ratio to suit the format of the video signal

and your display requirements.

1. Auto: Scales an image proportionally to

t the projector's native resolution in its

horizontal width. This is suitable for the
incoming image which is neither in 4:3 nor
16:9 and you want to make most use of the
screen without altering the image's aspect
ratio.

2. Real: The image is projected as its original

resolution, and resized to t within the

display area. For input signals with lower
resolutions, the projected image will display
smaller than if resized to full screen. You
could adjust the zoom setting or move the
projector away from the screen to increase
the image size if necessary. You may also
need to refocus the projector after making
these adjustments.

15:9 picture

4:3 picture

16:9 picture

42

3. 4:3: Scales an image so that it is displayed in
the center of the screen with a 4:3 aspect
ratio. This is most suitable for 4:3 images

like computer monitors, standard denition

TV and 4:3 images aspect DVD movies, as it
displays them without aspect alteration.

4. 16:9: Scales an image so that it is displayed
in the center of the screen with a 16:9
aspect ratio. This is most suitable for images
which are already in a 16:9 aspect, like high

denition TV, as it displays them without

aspect alteration.

English

4:3 picture

5. 16:10: Scales an image so that it is displayed
in the center of the screen with a 16:10
aspect ratio. This is most suitable for images
which are already in a 16:10 aspect, as it
displays them without aspect alteration.

6. 2.35:1: Scales an image so that it is

16:9 picture

displayed in the center of the screen with a

2.35:1 aspect ratio. This is most suitable for
widescreen cinemascope formats for movie
theaters or images which already vary from
a 2.35 to 2.40 aspect, as it displays them
without aspect alteration.

16:10 picture

2.35:1 picture

• 2D Keystone
Press ENTER and press ▲/▼/◄/► to adjust horizontal or vertical distortion brought by the
projection angle.

• Corner Fit
Press ENTER to enter the Corner Fit menu. See "Corner Fit menu" on page 44 for more
details.

• Position
Press ENTER and press ▲/▼/◄/► to adjust the position of the projectored picture.

• Phase

Press ◄/► to adjust Phase for the projectored picture.

• H. Size

Press ◄/► to adjust H. Size for the projectored picture.

• Digital Image Resizing
Press ENTER to enter the Digital Image Resizing menu. See "Digital Image Resizing" on

page 44 for more details.

• Native Resolution
Press ENTER to enter the Native Resolution menu. See "Native Resolution" on page 45.

• Overscan

Press ◄/► to hide edge of the projected image to damage the noise.

• 3D
Press ENTER to enter the 3D menu. See "3D menu" on page 46 for more details.

• Fast Mode

Press ◄/► to enable or disable Fast Mode.

43

English

Corner Fit menu

• Top L ef t
Press ENTER and press ▲/▼/◄/► to correct the top left corner.

• Top R ig ht
Press ENTER and press ▲/▼/◄/► to correct the top right corner.

• Bottom Left
Press ENTER and press ▲/▼/◄/► to correct the bottom left corner.

• Bottom Right
Press ENTER and press ▲/▼/◄/► to correct the bottom right corner.

Digital Image Resizing

• Digital Zoom
Press ENTER and press ◄/► to reduce the image to a desired size. Press AUTO SYNC to
restore the picture to its original size.

• Digital Shrink
Press ENTER and press ◄/► to reduce the image to a desired size. Press AUTO SYNC to
restore the picture to its original size.

• Digital Image Shift
Press ENTER and press ▲/▼/◄/► to shift the image. Press AUTO SYNC to restore the
picture to its original position.

• Blanking
Press ENTER to enter the Blanking menu. See "Blanking menu" on page 45 for more
details.

44

Blanking menu

• Top

Press ◄/► to adjust the top blanking area on the projected picture.

• Bottom

Press ◄/► to adjust the bottom blanking area on the projected picture.

• Left

Press ◄/► to adjust the left blanking area on the projected picture.

• Right

Press ◄/► to adjust the right blanking area on the projected picture.

• Reset
Press ENTER to set up all Blanking settings to default.

English

Native Resolution

• Display Resolution
Select the native resolution of this projector between WUXGA and 1080P.

• Digital Lens Shift
After the Digintal Lens Shift page displays, press ▲/

Note:

This function is not available in the following situations:

Resolution

WUXGA

is

▼ to shift the projected image.

Picture Moder

is 3D;

Native

45

English

3D menu

• 3D Sync Mode

Press ◄/► to select the 3D sync mode. The options are DLP Link and VESA 3D.

• 3D Mode

Press ENTER to enter the 3D Mode menu. Press ▲/▼ to select the 3D format. The options
are Auto, Top-Bottom, Frame Sequential, Frame Packing, Side-By-Side and Off.

• 3D Sync Invert

Press ◄/► to enable or disable 3D Sync Invert.

• 3D Sync Out Delay

Press ◄/► to adjust 3D sync out signal delay.

• 3D Sync Out Reference

Press ◄/► to select the 3D sync out behavior. The options are 3D VESA and Bypass to

another projector.

• Save 3D Settings
Press ENTER to enter the Save 3D Settings menu. Press ▲/▼ and ENTER to save the
current 3D settings.

• Apply 3D Settings
Press ENTER to enter the Apply 3D Settings menu. Press ▲/▼ and ENTER to apply the
saved 3D settings.

Fast Mode

Minimizing the response time (one frame) between the source input and the image output, this
mode will enhance the controlling experience.

When using Fast Mode:

• In order to have minimized response time, Keystone, Overscan, and Digital Lens Shift should
be set at 0.

• Recommend timings are 1080P 60Hz/1080P 120Hz. See "Timing table" on page 75 for more
details.

46

Picture menu

• Picture Mode

Press ◄/► to select a picture mode. The options are Bright, Presentation, sRGB, Vivid,

Cinema, DICOM SIM, 3D, HDR10, HLG, User 1 and User 2.

• Bright mode: Maximizes the brightness of the projected image. This mode is suitable for

environments where extra-high brightness is required, such as using the projector in well lit
rooms.

• Presentation mode: Is designed for presentation. The brightness is emphasized in this

mode to match PC and notebook coloring.

• sRGB mode: Maximizes the purity of RGB colors to provide true-to-life images regardless

of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible

and properly calibrated camera, and for viewing PC graphic and drawing applications such

as AutoCAD.

• Infographic mode: Is appropriate for playing colorful movies, video clips from

digital cameras or DVs through the PC input for best viewing in a blackened (dimly lit)

environment.

• Video mode: Is appropriate for playing colorful movies, video clips from digital cameras

or DVs through the PC input for best viewing in a blackened (dimly lit) environment.

• DICOM SIM: This display mode simulates the grayscale/gamma performance of equipment

used for “Digital Imaging and Communications in Medicine” (DICOM).
Important: This mode should NEVER be used for medical diagnosis, it is for education/
training purposes only.

• 3D mode: Is appropriate for playing 3D images and 3D video clips.

• HDR10 mode: Only available when detecting HDR10 content, other picture mode can’t

be selected

• HLG mode: Only available when detecting HLG content, other picture mode can’t be

selected

• User 1/User 2 mode: Recalls the settings customized based on the current available

picture modes.

English

• Reference Mode

Press ◄/► to select a reference mode. The options are Bright, Presentation, sRGB,

Infographic, Video and DICOM SIM.

47

English

• Brightness

Press ◄/► to adjust the brightness of the projected

image.
The higher the value, the brighter the image. And lower
the setting, darker the image. Adjust this control so the
black areas of the image appear just as black and that
detail in the dark areas is visible.

• Contrast

Press ◄/► to adjust the contrast of the projected image.

The higher the value, the greater the contrast. Use this to set the peak white level after
you have previously adjusted the Brightness setting to suit your selected input and viewing
environment.

• Color

Press ◄/► to adjust the color saturation.

Lower setting produces less saturated colors. If the setting is too high, colors on the image will
be overpowering, which makes the image unrealistic.

• Tint

Press ◄/► to adjust the tint of the projected image.

The higher the value, the more reddish the picture becomes. The lower the value, the more
greenish the picture becomes.

• Sharpness

Press ◄/► to adjust the display sharpness of the projected image.

The higher the value, the sharper the picture becomes. The lower the value, the softer the
picture becomes.

• Brilliant Color

Press ◄/► to adjust the brilliant color of the projected image.

This feature utilizes a new color-processing algorithm and system level enhancements to enable
higher brightness while providing truer, more vibrant colors in picture. It enables a greater than
50% brightness increase in mid-tone images, which are common in video and natural scenes,
so the projector reproduces images in realistic and true colors. If you prefer images with that
quality, select a desired level.
When 0 is selected, the Color Temperature function is not available.

• Gamma Selection

Press ◄/► to select the relationship between input source and picture brightness.

• HDR Brightness

Press ◄/► to adjust the HDR brightness.

• Color Temperature

Press ◄/► to adjust the color temperature. The options are Cool, Normal and Warm.

• Warm: Makes images appear reddish white.

• Normal: Maintains normal colorings for white.

• Cool: Makes the image appear bluish white.

• Color Temperature Fine Tuning
Press ENTER to enter the Color Temperature Fine Tuning menu. See "Color

Temperature Fine Tuning menu" on page 49 for more details.

48

• 3D Color Management
Press ENTER to enter the 3D Color Management menu. See "3D Color Management

menu" on page 50 for more details.

• Reset Picture Settings
Press ENTER to enter the Reset Picture Settings menu. Press ▲/▼ and press ENTER to
set to the default value.

• Current: Returns current picture mode to the factory preset settings.

• All: Returns all settings, except User 1/User 2 in the Picture menu to the factory preset

settings.

Color Temperature Fine Tuning menu

English

• R Gain

Press ◄/► to adjust the Red Gain.

• G Gain

Press ◄/► to adjust the Green Gain.

• B Gain

Press ◄/► to adjust the Blue Gain.

• R Offset

Press ◄/► to adjust the Red Offset.

• G Offset

Press ◄/► to adjust the Green Offset.

• B Offset

Press ◄/► to adjust the Blue Offset.

To set a preferred color temperature:

1. Highlight Color Temperature and select Warm, Normal or Cool by pressing ◄/► on
the projector or remote control.

2. Press ▼ to highlight Color Temperature Fine Tuning and press ENTER. The Color
Temperature Fine Tuning page appears.

3. Press ▲/▼ to highlight the item you want to change and adjust the values by pressing ◄/►.

• R Gain/G Gain/B Gain: Adjusts the contrast levels of Red, Green, and Blue.

• R Offset/G Offset/B Offset: Adjusts the brightness levels of Red, Green, and Blue.

4. Press MENU to exit and save the settings.

49

English

3D Color Management menu

• Primary Color
Press ENTER to enter the Primary Color menu. Press ▲/▼ to select the primary color.
The options are R, G, B, C, M, Y, and W.
When Primary Color select R, G, B, C, Y and M, Adjusting Hue, Saturation and Gain.

• Hue
Press ENTER to enter the Hue menu. Press ▲/▼/◄/► to adjust settings.

• Saturation
Press ENTER to enter the Saturation menu. Press ▲/▼/◄/► to adjust settings.

• Gain

Press ENTER to enter the Gain menu. Press ▲/▼/◄/► to adjust settings.
When Primary color Select White, Adjusting Red Gain/Green Gain/Blue Gain.

3D Color Management

In most installation situations, color management will not be necessary, such as in classroom,
meeting room, or lounge room situations where lights remain on, or where building external
windows allow daylight into the room.
Only in permanent installations with controlled lighting levels such as boardrooms, lecture
theaters, or home theaters, should color management be considered. Color management

provides ne color control adjustment to allow for more accurate color reproduction, should

you require it.

Proper color management can only be achieved under controlled and reproducible viewing

conditions. You will need to use a colorimeter (color light meter), and provide a set of
suitable source images to measure color reproduction. These tools are not provided with
the projector, however, your projector supplier should be able to provide you with suitable
guidance, or even an experienced professional installer.
The Color Management provides seven sets (RGBCMYW) of colors to be adjusted. When
you select each color, you can independently adjust its range and saturation according to your
preference.
If you have purchased a test disc which contains various color test patterns and can be used to

50

test the color presentation on monitors, TVs, projectors,
etc. You can project any image from the disc on the
screen and enter the 3D Color Management menu to
make adjustments.

RED

Yellow

GREEN

To adjust the settings:

1. Go to the Picture menu and highlight 3D Color

Management.

White

CyanMagenta

2. Press ENTER and the 3D Color Management page

displays.

3. Highlight Primary color and press ◄/► to select a

color from among Red, Green, Blue, Cyan, Magenta,

BLUE

Yell ow.

4. Press ▼ to highlight Hue and press ◄/► to select

its range. Increase in the range will include colors consisted of more proportions of its two
adjacent colors.

Please refer to the illustration to the right for how the colors relate to each other.

For example, if you select Red and set its range at 0, only pure red in the projected picture
will be selected. Increasing its range will include red close to yellow and red close to
magenta.

5. Press ▼ to highlight Saturation and adjust its values to your preference by press ◄/►.

Every adjustment made will reect to the image immediately.

For example, if you select Red and set its value at 0, only the saturation of pure red will be
affected.

6. Adjusting the RGB Gain to get an accurate white point. For example, if you want to

correct a reddish white, you can decrease the R gain value. .

English

Source menu

• Quick Auto Search

Press ◄/► to enable or disable search the input source automatically.

• HDR

Press ◄/► to select a suitable HDR setting. The options are Auto, SDR, HDR 10 and HLG.

51

English

• HDMI Format

Press ◄/► to selects a suitable color format to to optimize display quality. The options are

Auto, RGB Limited, RGB Full, YUV Limited and YUV Full.

• Auto: Automatically selects a suitable color space and gray level for the incoming HDMI

signal.

• RGB Limited: Utilizes the Limited range RGB 16-235.

• RGB Full: Utilizes the Full range RGB 0-255.

• YUV Limited: Utilizes the Limited range YUV 16-235.

• YUV Full: Utilizes the Full range YUV 0-255.

• HDMI EDID

Press ENTER to enter the HDMI EDID menu. Press ▲/▼ and press ENTER to select the
HDMI. Press ◄/► to set to the default value.

• Enhance: Enhanced mode can switch to HDMI 2.0 EDID.

• Standard: Standard mode can switch to HDMI 1.4 EDID.

• HDBaseT EDID

Press ◄/► to switch HDBaseT EDID between HDMI 1.4 or HDMI 2.0 in order to solve

compatibility issue with uncertain old players.

• Enhance: Enhanced mode can switch to HDMI 2.0 EDID.

• Standard: Standard mode can switch to HDMI 1.4 EDID.

• HDMI Equalizer

Press ENTER to enter the HDMI Equalizer menu. Press ▲/▼ and press ENTER to select
the HDMI. Press ◄/► to set to the default value.

• Auto Sync

Press ◄/► to enable or disable auto sync function.

52

System Setup : Basic menu

• Language

Press ENTER to enter the Language menu. Press ▲/▼/◄/► to select the language of OSD
menu.

English

• Projector Installation

Press ◄/► to select the projector installation. The options are Front Table, Rear Table, Rear

Celling and Front Ceiling.

• Menu Settings
Press ENTER to enter the Menu Settings menu. See "Menu Settings menu" on page 54
for more details.

• Operation Settings
Press ENTER to enter the Operation Settings menu. See "Operation Settings menu" on

page 54 for more details.

• Lens Settings
Press ENTER to enter the Lens Settings menu. See "Lens Settings menu" on page 55 for
more details.

• Remote Receiver

Press ◄/► to select the remote receiver. The options are Front, Rear and Front+Rear.

• Panel Key Lock

Press ◄/► to enable or disable all panel key functions except POWER on the projector.

• Background Color

Press ◄/► to select the background color when no input signal. The options are BenQ, Black,
Blue, Purple and Gray.

• Splash Screen

Press ◄/► to select the start up patern when the projector turns on. The options are BenQ,

Black and Blue.

• Projector ID Setting

Press ◄/► to enable or disable the projector ID.

53

English

Menu Settings menu

• Menu Display Time

Press ◄/► to select the menu display time period. The options are 5 sec, 10 sec, 20 sec, 30

sec and Always.

• Menu Position

Press ◄/► to select the menu display position. The options are Center, Top-Left, Top-Right,

Bottom-Right and Bottom-Left.

• Reminder Message

Press ◄/► to enable or disable reminder message displays.

Operation Settings menu

• Direct Power On

Press ◄/► to enable or disable automatically turning on the projector when the AC power is

connected.

• Signal Power On

Press ◄/► to enable or disable automatically turning on the projector when an input signal is

detected.

• Auto Power Off

Press ◄/► to enable or disable automatically turning off the projector when there is no input

signal.

• Blank Timer

Press ◄/► to set the length of time the image is blanked. The options are Disable, 5 mins, 10

mins, 15 mins, 20 mins, 25 mins and 30 mins.

• Sleep Timer

Press ◄/► to set the length of time before the projector is turned off. The options are

Disable, 30 mins, 1 hr, 2 hrs, 3 hrs, 4 hrs, 8 hrs and 12 hrs.

• Filter Settings
Press ENTER to enter the Filter Settings menu. See "Filter Settings menu" on page 55
for more details.

54

Filter Settings menu

• Filter Timer

Press ◄/► to enable or disable lter timer.

• Reset Filter Timer

Press ENTER to reset the lter timer when the lter is replaced.

• Filter Usage Time

Displays the cureent number of hours the lter has been used.

Lens Settings menu

English

• Lens Type
This projector can be used with 9 different projection lenses; the initial projection position
of Ultra Short Throw (UST) Lens is different to other seven projection lenses. The projector
preset two initial projection positions for these two types accordingly, Center Lens function

can moves the lens to the initial position (center) automatically per the setting. Please set this

option to UST Lens if Ultra Short Throw Lens is installed in the projector, otherwise please
set it to non-UST Lens.

Note:

• There are two default positions, one is for regular zoom or xed focus lens (Non-UST), the reference position is 0%

of image width in horizontal shift and 0% of the image height in vertical shift; anther one is for Ultra Short Throw
Lens (UST), the default position is around 0% of image width in horizontal shift and 56% of image height in vertical
shift. When performing Center Lens functions, projector will move the lens to the default position according to
Lens type setting.

• If Ultra Short Throw Lens is installed and UST Lens is selected, you can perform Center Lens to move Lens to

initial projection position automatically

• If using Ultra Short Throw Lens and setting to Non-UST Lens, the lens will be moved to the position which is lower

than the default position of Ultra Short Throw Lens after performing Center Lens function, it causes the projected
image is blocked by the top cover of the projector. In this case, please perform the Lens shift function to move up
the Lens till the image can be projected normally.

• When using a zoom lens or a xed-focus lens, if the lens shift range is limited and cannot be projected normally,

make sure that the lens type is correctly setting as a non-UST lens, then perform the lens position centering
function and then re-adjust the lens. Control and other functions to get the correct projection picture.

55

English

• Lens Control
Select this function to open Lens Control menu for adjustment of Zoom, Focus, or Shift. You
can use the ENTER button to switch the Zoom / Focus or Shift menu. Use ▲or▼ to adjust
zoom and vertical shift of the lens, or use ◄ ► to adjust focus and horizontal shift of the lens.

• Lens Memory
This projector supports Lens Memory function, Lens shift, Zoom and Focus memory can be
stored in the projector up to 10 sets. You can load the stored memory setting to set up the
lens automatically.
Select Lens memory 1~10 :

ENTER key to Save/Load. Press ► to switch Load/Reset state. CLEAR key to Reset.

• Center Lens
This is the lens calibration function, the projector calibrates the lens shift, focus and zoom
parameters for the precise lens memory function. After performing this function, the lens will
be moved to the center position as factory default setting.

Note:

• There are two default center positions for UST (Ultra Short Throw) Lens and non-UST Lens, make sure Lens Type

setting is correct before performing this function.

• If an UST lens is installed, remove the support kit of the UST lens before performing Center Lens. After all the

settings of the lens control are completed, then replace the support kit to x the UST lens.

56

System Setup : Advanced menu

• High Altitude Mode

Press ◄/► to enable or disable High Altitude Mode. Enable this function when the operating

altitude is higher than 1500m or the ambient temperature is over 40°C.

English

• Dynamic Dimming

Press ◄/► to enable or disable dynamic dimming function. Enable the function to automatically

reduces the screen's brightness level when the displayed image contains a high proportion of
bright areas.
When 3D Sync Mode is

• Audio Settings
Press ENTER to enter the Audio Settings menu. See "Audio Settings menu" on page 59
for more details.

• Light Settings
Press ENTER to enter the Light Settings menu. See "Light Settings menu" on page 60 for
more details.

• Security Settings
Press ENTER to enter the Security Settings menu. See "Security Settings menu" on

page 60 for more details.

• HD Ba seT

Press ◄/► to enable or disable the HDBaseT.

Note:

• Turn on HDBaseT mode will disable internal LAN and RS232 control and switch to Normal
power standby mode automatically.

DLP Link

, the Dynamic Dimming function is not available.

• When high altitude mode on, power force to 85%.

57

English

HDbaseT control function table

Control

Side

Projector

HDBaseT TX Box

Function

Front-IR

(Wireless)

Rear-IR

(Wireless)

RS-232 O O X

RJ45/LAN X O X

Wired Remote O O O

HDBT-IR

(Wireless)

RS-232 X X O

RJ45/LAN X X O

Wired Remote X X O

O: Enable X: Disable

Standby Mode

Eco

(< 0. 5W )

O O

O O

X X O

Network

(<2W)

Normal

(>2W)

O (Can disable by

OSD)

O (Can disable by

OSD)

Remark

User can connect wired remote
at HDBaseT TX side to get the
wired function.

• Baud Rate

Press ◄/► to select RS-232 baud rate. The options are 2400, 4800, 9600, 14400, 19200,

38400, 57600 and 1152000.

• Test Pattern

Press ◄/► to select the test pattern. The options are Off, Grid, White, Red, Green, Blue,

Black, RGB Ramps, Color Bar, Step Bars, CheckBoard, Horizental Lines, Vertical Lines,
Diagonal Lines, Horizontal Ramp and Vertical Ramps.

• 12V Trig ge r

Press ◄/► to enable or disable 12V trigger function.

• Standby Settings
Press ENTER to enter the Standby Settings menu. See "Standby Settings menu" on

page 61 for more details.

• Network Settings
Press ENTER to enter the Network Settings menu. See "Network Settings menu" on

page 61 for more details.

• Reset All Settings
Press ENTER to reset all settings to default value.

58

Audio Settings menu

• Mute

Press ◄/► to enable or disable the mute function.

• Using the remote control

Press MUTE to temporarily turn off the sound. While the sound is off, the screen will
display in the upper right corner of the screen.
To restore the sound, press MUTE again.

• Using the OSD menu

1. Press MENU and then press ◄/► until the System Setup: Advanced menu is

highlighted.

2. Press ▼ to highlight Audio Settings and press ENTER. The Audio Settings page displays.

3. Highlight Mute and press ◄/► to select On.

4. To restore the sound, repeat steps 1-3 and press ◄/► to select Off.

English

• Volume

Press ◄/► to adjust the volume of the projector.

• Using the remote control

Press VOLUME+/VOLUME- to select a desired sound level.

• Using the OSD menu

1. Press MENU and then press ◄/► until the System Setup: Advanced menu is

highlighted.

2. Press ▼ to highlight Audio Settings and press ENTER. The Audio Settings page displays.

3. Press ▼ to highlight Volume and press ◄/► to select a desired sound level.

59

English

Light Settings menu

• Light Mode

Press ◄/► to select the light mode. The options are Normal, Economic, Dimming and

Custom.

• Custom Brightness

Press ◄/► to adjust the brightness of the projector.

• Constant Brightness

Press ◄/► to enable or disable the function to maintain the brightness at the same level.

• Light Usage Time
Press ENTER to enter the Light Source Information menu.

Security Settings menu

• Change Password
Press ENTER to change the password.

• Change Security Settings
Press ENTER to change the security settings.

• Power On Lock

Press ◄/► to enable or disable the power on lock function. If the function is enabled, you

must enter the password every time the projector is turned on.

60

Standby Settings menu

• Standby Mode

Press ◄/► to select the standby mode. The options are Eco, Network and Normal.

• Auto Disable Network Standby Mode

Press ◄/► to enable or disable the auto switch from network standby mode to non-network

standby mode after a period of time.

• Audio Pass Through

Press ◄/► to enable the audio line-out function when the projector is in standby mode. The

options are Audio In, HDMI 1, HDMI 2, HDBaseT and Off.

English

Network Settings menu

• Wired LAN

Press ENTER to enter the Wired LAN menu to setup the IP address, subnet mask, default
gatway, DNS server and DHCP.

• AMX Device Discovery

Press ◄/► to enable or disable the AMX device discovery function. When the function is

enabled, the projector can be detected by an AMX controller.

• Mac Address
Displays the cureent MAC address of the projector.

61

English

Information menu

• Native Resolution
Displays the native resolution of the model.

• Detected Resolution
Displays the detected timing.

• Source
Displays the current signal source.

• Picture Mode
Displays the current picture mode.

• Light Mode
Displays the current light mode.

• HD Ba seT
Displays the current HDBaseT status.

• 3D Format
Displays the current 3D mode. Only available when 3D Mode is enabled.

• Color System
Displays the input system format.

• Light Usage Time
Displays the number of hours the light has been used.

• Filter Usage Time

Displays the number of hours the lter has been used.

• Projector ID
Displays the current projector ID.

• Firmware Version

Displays the rmware version of your projector.

• Service Code
Displays the serial number of your projector.

62

Menu structure

Main menu Sub-menu Options

Display Wall Color Off / Light Yellow / Pink / Light

Green / Blue / Blackboard

Aspect Ratio Auto/ Real/ 4:3/ 16:9/ 16:10/ 2.35:1

2D Keystone

Corner Fit Top Left/ Top Right/ Bottom Left/

Bottom Right

Position

Phase

H.size

Digital Image Resizing Digital Zoom PC: 1.0X~2.0X

Video: 1.0X~1.8X

Digital Shrink 0.8X~1.0X

Digital Image Shift

Blanking Top/ Bottom/ Left/ Right/ Reset

Native Resolution Display Resolution WUXGA / 1080P

Digital Lens Shift

Overscan Composite/S-Video: 0- 3

others: 0-3

3D 3D Sync Mode DLP Link/VESA 3D

3D Mode Auto/ Frame Sequential/

Frame Packing/ Top-Bottom/ Side-

By-Side/ Off

English

3D Sync Invert Disable/ Invert

3D Sync Out Delay

3D Sync Out Reference 3D VESA/ Bypass

Save 3D Settings 3D Settings 1/ 3D Settings 2/

3D Settings 3

Apply 3D Settings 3D Settings 1/ 3D Settings 2/

3D Settings 3/ Off

Fast Mode On / Off

63

English

Main menu Sub-menu Options

Picture Picture Mode Bright/ Presentation/ sRGB/

Infographic/ Video/ DICOM SIM/
(3D)/ (HDR10)/ (HLG)/ User 1/
User 2

Reference Mode Bright/ Presentation/ sRGB/

Infographic/ Video/ DICOM SIM/
3D/ HDR10/ HLG

Brightness

Contrast

Color

Tint

Sharpness

Brilliant Color

Gamma Selection 1.8/ 2.0/ 2.1/ 2.2/ 2.3/ 2.4/ 2.6/

DICOM/ BenQ

HDR Brightness -2/ -1/ 0/ 1/ 2

Color Temperature Warm/ Normal/ Cool

Color Temperature Fine
Tuning

3D Color Management Primary Color R/ G/ B/ C/ M/ Y/ W

Hue

Saturation

Gain

R Gain/ G Gain/ B Gain/
R Offset/ G Offset/ B Offset

Reset Picture Settings Current/ All/ Cancel

Source Quick Auto Search On/ Off

HDR Auto / SDR / HDR 10 / HLG

HDMI Format Auto/ RGB Limited/ RGB Full/ YUV

Limited/ YUV Full

HDMI EDID HDMI Enhanced/ Standard

HDMI-1 Enhanced/ Standard

HDMI-2 Enhanced/ Standard

HDBaseT EDID Enhanced/ Standard

HDMI Equalizer HDMI Auto/ Lower/ Low/ Middle/ High/

Higher

HDMI-1 Auto/ Lower/ Low/ Middle/ High/

Higher

HDMI-2 Auto/ Lower/ Low/ Middle/ High/

Higher

Auto Sync On/ Off

64

Main menu Sub-menu Options

System Setup: Basic Language

Projector Installation Front Table/ Rear Table/ Rear

Celling/ Front Ceiling

Menu Settings Menu Display Time 5 sec/ 10 sec/ 20 sec/ 30 sec/

Always

Menu Position Center/ Top-Left/ Top-Right/

Bottom-Right/ Bottom-Left

Reminder Message On/ Off

Operation Settings Direct Power On On/ Off

Signal Power On Computer: On/ Off

HDMI-1: On/ Off

Auto Power Off Disable/ 3 mins/ 10 mins/

15 mins/ 20 mins/ 25 mins/
30 mins

Blank Timer Disable/ 5 mins/ 10 mins/

15 mins/ 20 mins/ 25 mins/
30 mins

Sleep Timer Disable/ 30 mins/ 1 hr/ 2 hrs/

3 hrs/ 4 hrs/ 8 hrs/ 12 hrs

Filter Settings Filter Timer: On/ Off

Reset Filter Timer: Reset/ Cancel
Filter Usage Time

Lens Settings Lens Type Non-UST Lens / UST Lens

Lens Control Zoom & Focus

Lens Shift

Lens Memory Save Memory:

Memory1 / Memory2 / Memory3 /
Memory4 / Memory5 / Memory6 /
Memory7 / Memory8 / Memory9 /
Memory10

Load Memory:

Memory1 / Memory2 / Memory3 /
Memory4 / Memory5 / Memory6 /
Memory7 / Memory8 / Memory9 /
Memory10

Center Lens

Remote Receiver Front+Rear/ Front/ Rear

Panel Key Lock On/ Off

Background Color BenQ/ Black/ Blue/ Purple/ Gray

Splash Screen BenQ/ Black/ Blue

Projector ID Setting Off/ 01~99

English

65

English

Main menu Sub-menu Options

System Setup:
Advanced

High Altitude Mode On/ Off

Dynamic Dimming On/ Off

Audio Settings Mute On/ Off

Volume

Light Settings Light Mode Normal / ECO/ Dimming/ Custom

Custom Brightness

Constant Brightness On / Off

Light Usage Time Light Usage Time/ Normal Mode/

ECO Mode/ Dimming Mode/
Custom Mode

Security Settings Change Password

Change Security Settings

Power On Lock On/ Off

HDBaseT On/ Off

Baud Rate 2400/ 4800/ 9600/ 14400/ 19200/

38400/ 57600/ 115200

Test Pattern Off/ Grid/ White/ Red/ Green/

Blue/ Black/ RGB Ramps/
Color Bar/ Step Bars/ CheckBoard/
Horizental Lines/ Vertical Lines/
Diagonal Lines/ Horizontal Ramp/
Vertical Ramps

12V Trigger On/ Off

Standby Settings Standby Mode Eco/ Network/ Normal

Auto Disable Network
Standby Mode

Audio Pass Through Audio In/ HDMI 1/ HDMI 2/

Network Settings Wired LAN Status

AMX Device Discovery On/ Off

Mac Address

Reset All Settings Reset/ Cancel

Never/ 20 min/ 1 hr/ 3 hr/ 6 hr

HDBaseT/ O f f

DHCP

IP Address

Subnet Mask

Default Gateway

DNS Server

Apply

66

Main menu Sub-menu Options

Information Current System Status Native Resolution WUXGA 1920x1200

1080p 1920x1080

Detected Resolution

Source

Picture Mode

Light Mode

HDBaseT Connect / Disconnect

3D Format

Color System

Light Usage Time

Filter Usage Time Appears when Filter Timer On

Projector ID

Firmware Version

Service Code SN

English

67

English

Maintenance

Before maintaining the projector

• Make sure to turn off the power before maintaining the projector.

• When switching off the projector, make sure to follow the procedures in "Switch off the

projector" on page 40.

Care of the projector

Your projector needs little maintenance. The only thing you need to do on a regular basis is to
keep the lens clean.
Never remove any parts of the projector. Contact your dealer if other parts need replacing.

Clean the lens front surface

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.

• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and
gently wipe the lens surface.

Caution:

Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene,
thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result
in damage to the projector surface and cabinet material.

Clean the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as
described in "Switch off the projector" on page 40 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.

• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent.
Then wipe the case.

Caution:

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

68

LED indicator

System message

English

SYSTEM STATUS

Lamp Ready ON OFF OFF OFF

Start Flashing OFF OFF OFF

Cooling Flashing OFF OFF OFF

Over Temperature T1 OFF OFF 1 blinks ON

Over Temperature T2 OFF OFF 2 blinks ON

Over Temperature T3 OFF OFF 3 blinks ON

Over Temperature T4 OFF OFF 4 blinks ON

Over Temperature T5 OFF OFF 5 blinks ON

Thermal Break Sensor error OFF 4 blinks OFF OFF

Air Filter Warning ON ON OFF OFF

FAN1 error OFF 6 blinks 1 blinks OFF

FAN2 error OFF 6 blinks 2 blinks OFF

FAN3 error OFF 6 blinks 3 blinks OFF

FAN4 error OFF 6 blinks 4 blinks OFF

POWER

LED

STATU S

LED

LIGHT

SOURCE

LED

TEMP

LED

FAN5 error OFF 6 blinks 5 blinks OFF

FAN6 error OFF 6 blinks 6 blinks OFF

FAN7 error OFF 6 blinks 7 blinks OFF

FAN8 error OFF 6 blinks 8 blinks OFF

FAN9 error OFF 6 blinks 9 blinks OFF

FAN10 error OFF 6 blinks 10 blinks OFF

FAN11 e r r or OFF 6 blinks 11 blinks OFF

FAN12 error OFF 6 blinks 12 blinks OFF

FAN13 error OFF 6 blinks 13 blinks OFF

1W MCU detects scaler stops working OFF 2 blinks OFF OFF

Case Open OFF 7 blinks OFF OFF

Lens Open OFF 7 blinks 1 blinks OFF

DMD error OFF 8 blinks OFF OFF

Color wheel error OFF 9 blinks OFF OFF

69

English

SYSTEM STATUS

Phosphor wheel error OFF 9 blinks 1 blinks OFF

Laser Driver board Color wheel speed too low OFF 4 blinks 2 blinks OFF

Laser Driver board Phosphor wheel speed too low OFF 4 blinks 3 blinks OFF

Laser Driver board 54V error OFF 4 blinks 4 blinks OFF

Laser Driver board over temp OFF 4 blinks 5 blinks OFF

Laser Driver board SCI error OFF 4 blinks 6 blinks OFF

Laser Driver board initial fail OFF 4 blinks 7 blinks OFF

Laser Driver board lit fail OFF 4 blinks 8 blinks OFF

POWER

LED

STATU S

LED

LIGHT

SOURCE

LED

TEMP

LED

70

Troubleshooting

Troubleshooting

The projector does not turn on.

Cause Remedy

There is no power from the power cable. Plug the power cord into the AC inlet on the projector, and plug the

power cord into the power outlet. If the power outlet has a switch,
make sure that it is switched on.

English

Attempting to turn the projector on again
during the cooling process.

Wait until the cooling down process has completed.

No picture.

Cause Remedy

The video source is not turned on or
connected correctly.

The projector is not correctly connected
to the input signal device.

The input signal has not been correctly
selected.

Turn the video source on and check that the signal cable is connected
correct ly.

Check the connection.

Select the correct input signal with the SOURCE key on the projector
or remote control.

Blurred image.

Cause Remedy

The projection lens is not correctly focused. Adjust the focus of the lens using the focus ring.

The projector and the screen are not
aligned properly.

The lens cover is still closed. Open the lens cover.

Adjust the projection angle and direction as well as the height of the
unit if necessary.

Remote control does not work.

Cause Remedy

The battery is out of power. Replace the battery with new one.

There is an obstacle between the remote
control and the projector.

You are too far away from the projector. Stand within 7 meters (23 feet) of the projector.

Remove the obstacle.

The password is incorrect.

Cause Remedy

You do not remember the password.

1. Press and hold AUTO on the projector or remote control for 3
seconds. The projector will display a coded number on the screen.

2. Write down the number and turn off your projector.

3. Seek help from the local BenQ service center to decode the number.
You may be required to provide proof of purchase documentation to
verify that you are an authorized user of the projector.

71

English

Specications

Specications

Optical

Resolution

LU9750/LU9800

1920 x 1200

Display system

Single-chip DLP™ system

Lens F/Number

STANDARD LS1SDA

F=2.02 to 2.40, f=22.84 to 28.61mm

SHORT THROW LS1ST3A

F=2.1 to 2.6, f=11.45 to 16.32mm

WIDE ZOOM 1 LS1ST1A

F=2.05 to 2.27, f=16.64 to 19.54mm

SEMI LONG LS1LT0

F=2.5 to 3.1, f=28.5 to 42.75mm

WIDE ZOOM 2 LS1ST2A

F=2 to 2.44, f=18.65 to 23.85mm

SEMI LONG 2 LS1LT1

F=1.86 to 2.48, f=32.9 to 54.2mm

LONG 1 LS1LT2

F=1.85 to 2.41, f=52.8 to 79.1mm

LONG 2 LS1LT3

F=1.85 to 2.48, f=78.5.64 to 121.9mm

ULTRA SHORT THROW LS1ST4

F=2, f=5.64mm

Light source

Laser Package

Electrical

Power supply

AC100 -240V
50/60 Hz (Automatic)
LU9750: 9.0A
LU9800: 11.0A

Power consumption

LU9750: 792W(typ);0.5W(standby)
LU9800: 893W(typ);0.5W(standby)

Control

USB

Type-B x 1

RS-232 serial control

9 pin x 2 (In / Out)
IR receiver x 2
12V TRIGGER

12VDC (Max. 0.2 A) x 1
LAN control

RJ45 x 1 (10/100Mbps)

Wired Remote

PC audio jack x 2 (In / Out)

Input terminals

Computer input

RGB input

3D Sync in x 1
D-Sub 15-pin (female) x 1
BNC x 5

Digital input

DVI-D x 1

Video signal input

COMPONENT

D-Sub 15-pin (female) x 1
BNC x 5

SD/HDTV signal input

Digital - HDMI x 1

HDMI 2 x 1

RJ45 x1 (HDBaseT)

Audio signal input

Audio in

PC audio jack x 1

72

Specications

English

Mechanical

Weight

LU9750: 26.4kg
LU9800: 26.8kg

Dimension

587.3 x 216 x 500 mm (23.12"x8.50"x19.69")

Output terminals

Audio signal output

RCA R/L jack x 1

Monitor Out

D-Sub 15-pin (female) x1

USB

TYPE-A (5V/2A)

3D SYNC OUT x 1

Note:

All specications are subject to change without notice.

Environmental Requirements

Operating temperature

0°C–40°C at sea level (>35°C, power force to

80%)
Operating relative humidity

10%–90% (without condensation)
Operating altitude

0–1499 m at 0°C–35°C

1500–3000 m at 0°C–30°C (with High Altitude

Mode on and power force to 85%)
Storage temperature

-20°C–60°C

Storage humidity

10%–90% RH (without condensation)

73

English

500

583

211

Dimensions

PRESS

Release

Lens

74

Appendix

Timing table

HDMI Input (Support Video Timings)

English

Timing Resolution

480i

720(1440) x

480

Horizontal

frequency

(KHz)

15.73 59.94 27 Ye s

Ver tica l

frequency

(Hz)

Dot Clock

Frequency

(MHz)

User

Manual

Supported

480p 720 x 480 31.47 59.94 27 Yes

576i

720(1440) x

576

15.63 50 27 Yes

576p 720 x 576 31.25 50 27 Yes
720/50p 1280 x 720 37.5 50 74.25 Yes
720/60p 1280 x 720 45 60 74.25 Yes

108 0/24P 1920 x 1080 27 24 74.25 Yes
108 0/25P 1920 x 1080 28.13 25 74.25 Ye s
1080/30P 1920 x 1080 33.75 30 74.25 Ye s

108 0/50i 1920 x 1080 28.13 50 74.25 Yes
108 0/60i 1920 x 1080 33.75 60 74.25 Yes

1080/50P 1920 x 1080 56.25 50 148.5 Yes
1080/60P 1920 x 1080 67. 5 60 148 . 5 Ye s

2160/24P 3840 x 2160 54 24 297 Ye s

2160/25P 3840 x 2160 56.25 25 297 Yes

2160 /30P 3840 x 2160 67. 5 30 297 Yes

2160 /50P 3840 x 2160 112 . 5 50 594 Yes

2160/60P 3840 x 2160 135 60 594 Yes

3D

Field

3D

frame

packing

3D

over-

under

side-by-

◎

◎

◎ ◎ ◎

◎ ◎ ◎ ◎

◎ ◎ ◎

◎ ◎
◎ ◎

3D

side

◎
◎

HDMI Input (Support PC Timings)

Resolution Mode

VGA_60 59.94 31.469 2 5 .175 Ye s
VGA_72 72.809 37.861 31.5 Ye s

640 x 480

720 x 400 720x400_70 70.087 31.469 2 8.32 21 Yes

800 x 600

1024 x 768

1152 x 864 1152 x 864_75 75 67.5 108 Yes

1024x576

VGA_75 75 37. 5 31.5 Yes
VGA_85 85.008 43.269 36 Yes

VGA _120 * * 119 . 51 8 61.91 52. 5 Yes

SVGA _60 6 0 . 317 37.879 40 Ye s
SVGA _72 72.18 8 48.077 50 Yes
SVGA _75 75 46.875 49.5 Ye s
SVGA _85 85.061 53.674 56.25 Yes

SVGA_12 0

(Reduce Blanking)

XGA _ 60 60.004 48.363 65 Ye s
XGA _70 70.069 56.476 75 Yes
XGA _75 75.029 60.023 78.75 Yes
XGA _ 85 84.997 68.667 94.5 Ye s

XGA_120 (Reduce

Blanking)

BenQ Notebook

Timing

Refresh rate

(Hz)

119. 85 4 7 7.425 83 Yes

119.9 8 9 97. 551 115 . 5 Yes

60 35.82 46.996 Ye s

Horizontal

frequency

(KHz)

Clock (MHz)

User Manual

Supported

3D Field

Sequential

◎ ◎ ◎

◎ ◎ ◎

◎

◎ ◎ ◎

◎

3D over-

under

3D side-

by-side

75

English

Resolution Mode

1024x60 0

1280x720

BenQ Notebook

Timing
1280 x 720_60 60 45 74.25 Yes
1280x720_120 120 90 148.5 No
1280 x 768_60

1280 x 768

(Reduce Blanking)

Refresh rate

(Hz)

64.995 41.467 51.419 Yes

60 47.396 68.25 No

Horizontal

frequency

(KHz)

Clock (MHz)

User Manual

Supported

1280 x 768_60 59. 87 47. 7 76 79.5 Ye s

WXGA _60 59. 81 49.702 83.5 Yes
WXGA _75 74.934 62.795 106.5 Yes

1280 x 800

WXGA _85 84.88 71.55 4 122.5 Ye s

WXGA _120

(Reduce Blanking)

119.9 09 101.563 14 6.25 Yes

SXGA_60 60.02 63.981 108 Ye s

1280 x 1024

SXGA_75 75.025 79.976 135 Yes
SXGA_85 85.024 91.146 157. 5 Ye s

1280 x 960

1280 x 960_60 60 60 10 8 Ye s
1280 x 960_85 85.002 85.938 14 8 . 5 Yes

1360 x 768 1360 x 768_60 60.015 47.712 85.5 Ye s

1440 x 900

WXGA+_ 60

(Reduce Blanking)

60 55.469 88.75 No

WXGA+_ 60 59.887 55.935 106.5 Yes
1400X10 50 SXG A+_ 60 59.978 6 5 . 317 121.75 Ye s
1600x1200 UXGA 60 75 162 Ye s

168 0 x105 0

1680x1050_60

(Reduce Blanking)

59.883 64. 674 119 No

1680x1050_60 59.954 65.29 146.25 Ye s

640x480

@67Hz

832x624

@75Hz

1024x768

@75Hz

115 2 x 8 7 0

@75Hz

1920x10 8 0

@60HZ

1920x1200

@60HZ

1920X1080

(VESA)

1920x10 8 0

@120 H z

1920x1200

@120 H z

3840x2160

3840x2160

MAC13 66.667 35 30.24 Ye s

MAC16 74.546 49.722 57.28 Ye s

MAC19 75.02 60.241 80 Yes

MAC21 75.06 68.68 100 Yes

1920X1080_60

(Reduce Blanking)

1920X1200_60

(Reduce Blanking)

1920X1080_60 (for

Auditorium model)

60 67. 5 14 8 . 5 Yes

59.95 74.038 154 Yes

59.963 67.158 173 no

1920X1080_120 120 135 297 Yes

1920X1200_120

(Reduce Blanking)

3840X2160_30

(Reduce Blanking)

3840X2160_60

(Reduce Blanking)

119.9 09 152.4 04 317 Ye s

29.97 65.66 257. 4 0 4 Yes

59.94 133.187 522.092 Yes

3840x2160 3840X2160_30 30 67.5 297 Yes
3840x2160 3840X2160_60 60 135 594 Ye s

3D Field

Sequential

3D over-

under

◎ ◎ ◎
◎

◎ ◎ ◎

◎ ◎ ◎
◎ ◎ ◎

◎

◎ ◎

◎ ◎

◎ ◎

◎ ◎

◎ ◎
◎ ◎
◎

◎ ◎

◎ ◎

◎ ◎ ◎

◎ ◎ ◎

3D side-

by-side

PC Input(Support PC Timings)

Resolution Mode

720 x 400 720x400_70 70.087 31.469 2 8.32 21 Yes
640 x 480 VGA _ 60 59.94 31.469 2 5 .175 Ye s

VGA_72 72.809 37.861 31.5 Ye s
VGA_75 75 37. 5 31. 5 Yes
VGA_85 85.008 43.269 36 Yes

76

Refresh rate

(Hz)

Horizontal

frequency

(KHz)

Clock (MHz)

User Manual

Supported

3D Field

Sequential

3D over-

under

◎ ◎ ◎

3D side-

by-side

Resolution Mode

Refresh rate

(Hz)

Horizontal

frequency

(KHz)

Clock (MHz)

User Manual

Supported

800 x 600 SVGA _60 60 . 317 37.879 40 Yes

SVGA _72 72.18 8 48.077 50 Yes
SVGA _75 75 46.875 49.5 Ye s
SVGA _85 85.061 53.674 56.25 Yes

SVGA_12 0

(Reduce Blanking)

119. 85 4 7 7.425 83 Yes

1024 x 768 XGA _60 60.004 48.363 65 Ye s

XGA _70 70.069 56.476 75 Yes
XGA _75 75.029 60.023 78.75 Yes
XGA _ 85 84.997 68.667 94.5 Ye s

XGA_120 (Reduce

Blanking)

119.9 8 9 97. 551 115 . 5 Yes

1152 x 864 1152 x 864_75 75 67.5 108 Yes
1024 x 576 BenQ NB Timing 60 35.82 46.966 Yes

1024 x 600 BenQ NB Timing 64.995 41.467 51.419 Yes

1280x720 1280 x 720_60 60 45 74.25 Yes

1280x720_120 120 90 148.5 No

1280 x 768

1280 x 768_60

(Reduce Blanking)

60 47.396 68.25 No

1280 x 768_60 59. 87 47. 7 76 79.5 Ye s

1280 x 800 WXGA _ 60 59.81 49.702 83.5 Yes

WXGA _75 74.934 62.795 106.5 Yes
WXGA _85 84.88 71.55 4 122.5 Ye s

WXGA _120

(Reduce Blanking)

119.9 09 101.563 14 6.25 Yes

1280 x 1024 SXGA _60 60.02 63.981 108 Ye s

SXGA_75 75.025 79.976 135 Yes
SXGA_85 85.024 91.146 157. 5 Ye s

1280 x 960 1280 x 960_60 60 60 108 Yes

1280 x 960_85 85.002 85.938 14 8 . 5 Yes

1360 x 768 1360 x 768_60 60.015 47.712 85.5 Ye s

1440 x 900

WXGA+_ 60

(Reduce Blanking)

60 55.469 88.75 No

WXGA+_ 60 59.887 55.935 106.5 Yes
1400X10 50 SXG A+_ 60 59.978 6 5 . 317 121.75 Ye s
1600x1200 UXGA 60 75 162 Ye s

1680 x 1050

1680x1050_60

(Reduce Blanking)

59.883 64. 674 119 No

1680x1050_60 59.954 65.29 146.25 Ye s

640x480

@67Hz

832x624

@75Hz

1024x768

@75Hz

115 2 x 8 7 0

@75Hz

1920x10 8 0

@60HZ

1920x1200

@60HZ

1920X1080

(VESA)

1920X1080

(VESA)

MAC13 66.667 35 30.24 Ye s

MAC16 74.546 49.722 57.28 Ye s

MAC19 74.93 60.241 80 Yes

MAC21 75.06 68.68 100 Yes

1920X1080_60

(Reduce Blanking)

1920X1200_60

(Reduce Blanking)

1920X1080_60 (for

Auditorium model)

1920X1080_60 (for

Auditorium model)

60 67. 5 14 8 . 5 Yes

59.95 74.038 154 Yes

59.963 67.158 173 no

59.963 67.158 173 no

3D Field

Sequential

3D over-

under

◎ ◎ ◎

◎

◎ ◎ ◎

◎

◎ ◎ ◎
◎

◎ ◎ ◎

◎ ◎ ◎
◎ ◎ ◎

◎

◎ ◎

◎ ◎

◎ ◎

◎ ◎

◎ ◎
◎ ◎
◎ ◎

◎ ◎

◎ ◎

◎ ◎ ◎

◎ ◎ ◎

3D side-

by-side

English

77

English

True 3D Video Compatibility table

Input Timing

1280 X 720P @ 50Hz Top - and - Bottom

1280 X 720P @ 60Hz Top - and - Bottom

1280 X 720P @ 50Hz Frame packing

HDMI 1.4a
3D Input

1280 X 720P @ 60Hz Frame packing

1920 X 1080i @50 Hz Side- by-Side (Half)

1920 X 1080i @60 Hz Side- by-Side (Half)

1920 X 1080P @24 Hz Top - and – Bottom

Input Resolutions

HDMI 1.3

1920 X 1080P @24 Hz Frame packing

1920 x 1080i @ 50Hz

1920 x1080i @ 60Hz

1280 x 720P @50Hz

1280 x 720P @60Hz

1920 x 1080i @ 50Hz

1920 x1080i @ 60Hz

1280 x 720P @50Hz

1280 x 720P @60Hz

480i HQFS 3D format is Frame sequential

Note:

3D glasses must be supported to 144Hz.

Side-by-Side
(Half)

Top-and-Bottom TAB mode is on

SBS mode is on

78

RS232 command control

Function Ty pe Operation ASCII

Write Power On <CR>*pow=on#<CR>

English

Power

Source
Selection

Audio Control

Write Power Off <CR>*pow=off#<CR>

Read Power Status <CR>*pow=?#<CR>

Write COMPUTER/YPbPr <CR>*sour=RGB#<CR>

Write COMPUTER 2/YPbPr2 <CR>*sour=RGB2#<CR>

Write DVI-D <CR>*sour=dvid#<CR>

Write HDMI(MHL) <CR>*sour=hdmi#<CR>

Write HDMI 2(MHL2) <CR>*sour=hdmi2#<CR>

Write H D B aseT <CR>*sour=hdbaset#<CR>

Read Current source <CR>*sour=?#<CR>

Write Mute On <CR>*mute=on#<CR>

Write Mute Off <CR>*mute=off#<CR>

Read Mute Status <CR>*mute=?#<CR>

Write Volume + <CR>*vol=+#<CR>

Write Volume - <CR>*vol=-#<CR>

Write Volume level for customer <CR>*vol=value#<CR>

Read Volume Status <CR>*vol=?#<CR>

Audio source
select

Picture Mode

Write Audio pass Through off <CR>*audiosour=off#<CR>

Write Audio-Computer1 <CR>*audiosour=RGB#<CR>

Write Audio-HDMI <CR>*audiosour=hdmi#<CR>

Write Audio-HDMI2 <CR>*audiosour=hdmi2#<CR>

Write H D B aseT <CR>*audiosour=hdbaset#<CR>

Read Audio pass Status <CR>*audiosour=?#<CR>

Write Presentation <CR>*appmod=preset#<CR>

Write sRGB <CR>*appmod=srgb#<CR>

Write Bright <CR>*appmod=bright#<CR>

Write DICOM <CR>*appmod=dicom#<CR>

Write Video <CR>*appmod=video#<CR>

Write Infographic <CR>*appmod=infographic#<CR>

Write User1 <CR>*appmod=user1#<CR>

Write User2 <CR>*appmod=user2#<CR>

Write 3D <CR>*appmod=threed#<CR>

Write HDR10 <CR>*appmod=hdr#<CR>

Write HLG <CR>*appmod=hlg#<CR>

Read Picture Mode <CR>*appmod=?#<CR>

Write Contrast + <CR>*con=+#<CR>

Write Contrast - <CR>*con=-#<CR>

79

English

Function Ty pe Operation ASCII

Write Set Contrast value <CR>*con=value#<CR>

Read Contrast value <CR>*con=?#<CR>

Write Brightness + <CR>*bri=+#<CR>

Write Brightness - <CR>*bri=-#<CR>

Write Set Brightness value <CR>*bri=value#<CR>

Read Brightness value <CR>*bri=?#<CR>

Write Color + <CR>*color=+#<CR>

Write Color - <CR>*color=-#<CR>

Write Set Color value <CR>*color=value#<CR>

Read Color value <CR>*color=?#<CR>

Write Sharpness + <CR>*sharp=+#<CR>

Write Sharpness - <CR>*sharp=-#<CR>

Write Set Sharpness value <CR>*sharp=value#<CR>

Read Sharpness value <CR>*sharp=?#<CR>

Write Color Temperature-Warm <CR>*ct=warm#<CR>

Picture Setting

Write Color Temperature-Normal <CR>*ct=normal#<CR>

Write Color Temperature-Cool <CR>*ct=cool#<CR>

Read Color Temperature Status <CR>*ct=?#<CR>

Write Aspect 4:3 <CR>*asp=4:3#<CR>

Write Aspect 16:9 <CR>*asp=16:9#<CR>

Write Aspec t 16:10 <CR>*asp=16:10#<CR>

Write Aspect 2.35:1 <CR>*asp=2.35#<CR>

Write Aspect Auto <CR>*asp=AUTO#<CR>

Write Aspect Real <CR>*asp=REAL#<CR>

Read Aspect Status <CR>*asp=?#<CR>

Write Vertical Keystone + <CR>*vkeystone=+#<CR>

Write Vertical Keystone - <CR>*vkeystone=-#<CR>

Write Set Vertical Keystone value <CR>*vkeystone=value#<CR>

Read Vertical Keystone value <CR>*vkeystone=?#<CR>

Write Horizontal Keystone + <CR>*hkeystone=+#<CR>

Write Horizontal Keystone - <CR>*hkeystone=-#<CR>

Write Set Horizontal Keystone value <CR>*hkeystone=value#<CR>

Read Horizontal Keystone value <CR>*hkeystone=?#<CR>

Write Overscan Adjustment + <CR>*overscan=+#<CR>

Write Overscan Adjustment - <CR>*overscan=-#<CR>

Read Overscan Adjustment value <CR>*overscan=?#<CR>

Write 4 Corners Top-Left-X Decrease <CR>*cornerttlx=-#<CR>

Write 4 Corners Top-Left-X Increase <CR>*cornerttlx=+#<CR>

Read 4 Corners Top-Left-X Status <CR>*cornerttlx=?#<CR>

80

Function Ty pe Operation ASCII

Write 4 Corners Top-Left-Y Decrease <CR>*cornerttly=-#<CR>

Write 4 Corners Top-Left-Y Increase <CR>*cornerttly=+#<CR>

Read 4 Corners Top-Left-Y Status <CR>*cornerttly=?#<CR>

Write 4 Corners Top-Right-X Decrease <CR>*cornerttrx=-#<CR>

Write 4 Corners Top-Right-X Increase <CR>*cornerttrx=+#<CR>

Read 4 Corners Top-Right-X Status <CR>*cornerttrx=?#<CR>

Write 4 Corners Top-Right-Y Decrease <CR>*cornerttry=-#<CR>

Write 4 Corners Top-Right-Y Increase <CR>*cornerttry=+#<CR>

Read 4 Corners Top-Right-Y Status <CR>*cornerttry=?#<CR>

Write 4 Corners Bottom-Left-X Decrease <CR>*cornertblx=-#<CR>

Write 4 Corners Bottom-Left-X Increase <CR>*cornertblx=+#<CR>

Read 4 Corners Bottom-Left-X Status <CR>*cornertblx=?#<CR>

Write 4 Corners Bottom-Left-Y Decrease <CR>*cornertbly=-#<CR>

Write 4 Corners Bottom-Left-Y Increase <CR>*cornertbly=+#<CR>

Read 4 Corners Bottom-Left-Y Status <CR>*cornertbly=?#<CR>

English

Picture Setting

Write 4 Corners Bottom-Right-X Decrease <CR>*cornertbrx=-#<CR>

Write 4 Corners Bottom-Right-X Increase <CR>*cornertbrx=+#<CR>

Read 4 Corners Bottom-Right-X Status <CR>*cornertbrx=?#<CR>

Write 4 Corners Bottom-Right-Y Decrease <CR>*cornertbry=-#<CR>

Write 4 Corners Bottom-Right-Y Increase <CR>*cornertbry=+#<CR>

Read 4 Corners Bottom-Right-Y Status <CR>*cornertbry=?#<CR>

Write Digital Zoom In <CR>*zoomI#<CR>

Write Digital Zoom out <CR>*zoomO#<CR>

Write Auto <CR>*auto#<CR>

Write Brilliant color + <CR>*BC=+#<CR>

Write Brilliant color - <CR>*BC=-#<CR>

Write Brilliant color set value <CR>*BC=value#<CR>

Read Brilliant color status <CR>*BC=?#<CR>

Write Auto(HDR) <CR>*hdr=auto#<CR>

Write SDR <CR>*hdr=sdr#<CR>

Write HDR10 <CR>*hdr=hdr#<CR>

Operation
Settings

Write HLG <CR>*hdr=hlg#<CR>

Read HDR status <CR>*hdr=?#<CR>

Write Reset current picture settings <CR>*rstcurpicsetting#<CR>

Write Reset all picture settings <CR>*rstallpicsetting#<CR>

Write Projector Position-Front Table <CR>*pp=FT#<CR>

Write Projector Position-Rear Table <CR>*pp=RE#<CR>

Write Projector Position-Rear Ceiling <CR>*pp=RC#<CR>

81

English

Function Ty pe Operation ASCII

Write Projector Position-Front Ceiling <CR>*pp=FC#<CR>

Read Projector Position Status <CR>*pp=?#<CR>

Write Quick auto search <CR>*QAS=on#<CR>

Write Quick auto search <CR>*QAS=off#<CR>

Read Quick auto search status <CR>*QAS=?#<CR>

Write Menu Position - Center <CR>*menuposition=center#<CR>

Write Menu Position - Top-Left <CR>*menuposition=tl#<CR>

Write Menu Position - Top-Right <CR>*menuposition=tr#<CR>
Operation
Settings

Write Menu Position - Bottom-Right <CR>*menuposition=br#<CR>

Write Menu Position - Bottom-Left <CR>*menuposition=bl#<CR>

Read Menu Position Status <CR>*menuposition=?#<CR>

Write Direct Power On-on <CR>*directpower=on#<CR>

Write Direct Power On-off <CR>*directpower=off#<CR>

Read Direct Power On-Status <CR>*directpower=?#<CR>

Write Signal Power On-on <CR>*autopower=on#<CR>

Baud Rate

Lamp Control

Write Signal Power On-off <CR>*autopower=off#<CR>

Read Signal Power On-Status <CR>*autopower=?#<CR>

Write 2400 <CR>*baud=2400#<CR>

Write 4800 <CR>*baud=4800#<CR>

Write 9600 <CR>*baud=9600#<CR>

Write 14 4 0 0 <CR>*baud=14400#<CR>

Write 19200 <CR>*baud=19200#<CR>

Write 38400 <CR>*baud=38400#<CR>

Write 57600 <CR>*baud=57600#<CR>

Write 1152 0 0 <CR>*baud=115200#<CR>

Read Current Baud Rate <CR>*baud=?#<CR>

Read Lamp Hour <CR>*ltim=?#<CR>

Write Normal mode <CR>*lampm=lnor#<CR>

Write Eco mode <CR>*lampm=eco#<CR>

Write Dimming mode <CR>*lampm=dimming#<CR>

Write Custom mode <CR>*lampm=custom#<CR>

82

Miscellaneous

Write Light level for custom mode <CR>*lampcustom=value#<CR>

Read Light level status for custom mode <CR>*lampcustom=?#<CR>

Read Lamp Mode Status <CR>*lampm=?#<CR>

Read Model Name <CR>*modelname=?#<CR>

Read System F/W Version <CR>*sysfwversion=?#<CR>

Read Scaler F/W Version <CR>*scalerfwversion=?#<CR>

Read Lan F/W Version <CR>*lanfwversion=?#<CR>

Read MCU F/W Version <CR>*mcufwversion=?#<CR>

Function Ty pe Operation ASCII

Write Blank On <CR>*blank=on#<CR>

Write Blank Off <CR>*blank=off#<CR>

Read Blank Status <CR>*blank=?#<CR>

Write Freeze On <CR>*freeze=on#<CR>

Write Freeze Off <CR>*freeze=off#<CR>

Read Freeze Status <CR>*freeze=?#<CR>

Write Menu On <CR>*menu=on#<CR>

Write Menu Off <CR>*menu=off#<CR>

Read Menu Status <CR>*menu=?#<CR>

Write Up <CR>*up#<CR>

Write Down <CR>*down#<CR>

Write Right <CR>*right#<CR>

Write Left <CR>*left#<CR>

Write Enter <CR>*enter#<CR>

Write Back <CR>*back#<CR>

English

Miscellaneous

Write Source Menu On <CR>*sourmenu=on#<CR>

Write Source Menu Off <CR>*sourmenu=off#<CR>

Read Source Menu Status <CR>*sourmenu=?#<CR>

Write 3D Sync Off <CR>*3d=off#<CR>

Write 3D Auto <CR>*3d=auto#<CR>

Write 3D Sync Top Bottom <CR>*3d=tb#<CR>

Write 3D Sync Frame Sequential <CR>*3d=fs#<CR>

Write 3D Frame packing <CR>*3d=fp#<CR>

Write 3D Side by side <CR>*3d=sbs#<CR>

Write 3D inverter disable <CR>*3d=da#<CR>

Write 3D inverter <CR>*3d=iv#<CR>

Write 3D nV IDIA <CR>*3d=nvidia#<CR>

Read 3D Sync Status <CR>*3d=?#<CR>

Write Remote Receiver-front+rear <CR>*rr=fr#<CR>

Write Remote Receiver-front <CR>*rr=f#<CR>

Write Remote Receiver-rear <CR>*rr=r#<CR>

Read Remote Receiver Status <CR>*rr=?#<CR>

Write AMX Device Discovery-on <CR>*amxdd=on#<CR>

Write AMX Device Discovery-off <CR>*amxdd=off#<CR>

Read AMX Device Discovery Status <CR>*amxdd=?#<CR>

Read Mac Address <CR>*macaddr=?#<CR>

Read Serial Number <CR>*serialnumber=?#<CR>

Write High Altitude mode on <CR>*Highaltitude=on#<CR>

Write High Altitude mode off <CR>*Highaltitude=off#<CR>

83

English

Function Ty pe Operation ASCII

Miscellaneous Read High Altitude mode status <CR>*Highaltitude=?#<CR>

Write Load Lens memory 1 <CR>*lensload=m1#<CR>

Write Load Lens memory 2 <CR>*lensload=m2#<CR>

Write Load Lens memory 3 <CR>*lensload=m3#<CR>

Write Load Lens memory 4 <CR>*lensload=m4#<CR>

Write Load Lens memory 5 <CR>*lensload=m5#<CR>

Write Load Lens memory 6 <CR>*lensload=m6#<CR>

Write Load Lens memory 7 <CR>*lensload=m7#<CR>

Write Load Lens memory 8 <CR>*lensload=m8#<CR>

Write Load Lens memory 9 <CR>*lensload=m9#<CR>

Write Load Lens memory 10 <CR>*lensload=m10#<CR>

Installation

Read Read Lens memory status <CR>*lensload=?#<CR>

Write save Lens memory 1 <CR>*lenssave=m1#<CR>

Write save Lens memory 2 <CR>*lenssave=m2#<CR>

Write save Lens memory 3 <CR>*lenssave=m3#<CR>

Write save Lens memory 4 <CR>*lenssave=m4#<CR>

Write save Lens memory 5 <CR>*lenssave=m5#<CR>

Write save Lens memory 6 <CR>*lenssave=m6#<CR>

Write save Lens memory 7 <CR>*lenssave=m7#<CR>

Write save Lens memory 8 <CR>*lenssave=m8#<CR>

Write save Lens memory 9 <CR>*lenssave=m9#<CR>

Write save Lens memory 10 <CR>*lenssave=m10#<CR>

Write Reset Lens to center <CR>*lensreset=center#<CR>

Write Tint + <CR>*tint=+#<CR>

Write Tint - <CR>*tint=-#<CR>

Write Set Tint value <CR>*tint=value#<CR>

Read Get Tint value <CR>*tint=?#<CR>

84

Color
Calibration

Write Set gamma value <CR>*gamma=value#<CR>

Read Gamma value status <CR>*gamma=?#<CR>

Write Set HDR Brightness value <CR>*hdrbri=value#<CR>

Read Get HDR Brightness value <CR>*hdrbri=?#<CR>

Write Red Gain + <CR>*RGain=+#<CR>

Write Red Gain - <CR>*RGain=-#<CR>

Write Set Red Gain value <CR>*RGain=value#<CR>

Read Get Red Gain value <CR>*RGain=?#<CR>

Write Green Gain + <CR>*GGain=+#<CR>

Write Green Gain - <CR>*GGain=-#<CR>

Write Set Green Gain value <CR>*GGain=value#<CR>

Function Ty pe Operation ASCII

Read Get Green Gain value <CR>*GGain=?#<CR>

Write Blue Gain + <CR>*BGain=+#<CR>

Write Blue Gain - <CR>*BGain=-#<CR>

Write Set Blue Gain value <CR>*BGain=value#<CR>

Read Get Blue Gain value <CR>*BGain=?#<CR>

Write Red Offset + <CR>*ROffset=+#<CR>

Write Red Offset - <CR>*ROffset=-#<CR>

Write Set Red Offset value <CR>*ROffset=value#<CR>

Read Get Red Offset value <CR>*ROffset=?#<CR>

Write Green Offset + <CR>*GOffset=+#<CR>

Write Green Offset - <CR>*GOffset=-#<CR>

Write Set Green Offset value <CR>*GOffset=value#<CR>

Read Get Green Offset value <CR>*GOffset=?#<CR>

Write Blue Offset + <CR>*BOffset=+#<CR>

Write Blue Offset - <CR>*BOffset=-#<CR>
Color
Calibration

Write Set Blue Offset value <CR>*BOffset=value#<CR>

Read Get Blue Offset value <CR>*BOffset=?#<CR>

English

Write Primary Color <CR>*primcr=value#<CR>

Read Primary Color Status <CR>*primcr=?#<CR>

Write Hue + <CR>*hue=+#<CR>

Write Hue - <CR>*hue=-#<CR>

Write Set Hue value <CR>*hue=value#<CR>

Read Get Hue value <CR>*hue=?#<CR>

Write Saturation + <CR>*saturation=+#<CR>

Write Saturation - <CR>*saturation=-#<CR>

Write Set Saturation value <CR>*saturation=value#<CR>

Read Get Saturation value <CR>*saturation=?#<CR>

Write Gain + <CR>*gain=+#<CR>

Write Gain - <CR>*gain=-#<CR>

Write Set Gain value <CR>*gain=value#<CR>

Read Get Gain value <CR>*gain=?#<CR>

Read Error Code report <CR>*error=report#<CR>

Read FAN 1 speed <CR>*fan1=?#<CR>

Service

Read FAN 2 speed <CR>*fan2=?#<CR>

Read FAN 3 speed <CR>*fan3=?#<CR>

Read FAN 4 speed <CR>*fan4=?#<CR>

Read FAN 5 speed <CR>*fan5=?#<CR>

Read FAN 6 speed <CR>*fan6=?#<CR>

Read FAN 7 speed <CR>*fan7=?#<CR>

85

English

Function Ty pe Operation ASCII

Read FAN 8 speed <CR>*fan8=?#<CR>

Read FAN 9 speed <CR>*fan9=?#<CR>

Read FAN 10 speed <CR>*fan10=?#<CR>

Read FAN 11 speed <CR>*fan11=?#<CR>

Read FAN 12 speed <CR>*fan12=?#<CR>

Service

Read FAN 13 speed <CR>*fan13=?#<CR>

Read Temperature 1 <CR>*tmp1=?#<CR>

Read Temperature 2 <CR>*tmp2=?#<CR>

Read Temperature 3 <CR>*tmp3=?#<CR>

Read Temperature 4 <CR>*tmp4=?#<CR>

Read Temperature 5 <CR>*tmp5=?#<CR>

Read LED indicator <CR>*led=?#<CR>

86

PJLink

PJLink protocal

The network function of this projector support the PJLink class 1, and the PJLink protocal can be

used to perform projector setting and projector status query operations from a computer.

Control commands

The following table lists the PJLink protocal commands that can be used to control the projector.

• x characters in table are non-specic characters.

English

Command

POWR

POWR?

INPT Input selection 11 PC1 / YPbPr1

INPT?

AVMT Mute 11 Video mute On

Control

Details

Power supply

control

Power supply

status query

Input status
query

Parameter/

Return String

0 Standby

1 Power on

0 Standby

1 Power on

12 PC2 / YPbPr2

21 VIDEO

31 HDMI1

32 HDMI2

33 DVI-D

34 H DBaseT

10 Video mute Off

21 Audio mute On

Remark

AVMT? Mute query

ERST?

LAMP?

INST?

Error status
query

Light source
status query

Input selection
list query

20 Audio mute Off

31 Video & Audio mute On

30 Video & Audio mute Off

1st byte

2nd byte

xxxxxx

xxxxxxxxxxxx 1st number (1-5 digitals): Light source 1 runtime

11 12 21 31 32
33 34

3rd byte

4th byte Return 0

5th byte Return 0

6th byte

LU9750/LU9800

Indicates fan errors, and
returns 0 - 2

Indicates light source
errors, and returns 0 - 2

Indicates temperature
errors, and returns 0 - 2

Indicates other errors, and
returns 0 - 2

0 = No error is
detected
1 = Warning
2 = Error

87

English

Command

Control

Details

Parameter/

Return String

Remark

NAME?

INF1?

INF2?

INF0?

CLASS?

Projector name

query

Manufacturer
name query

Model name
query

Other
information
queries

Class information
query

xxxxx

BenQ Returns manufacturer name

LU9750/LU9800 Returns moder name

xxxxx Returns information such as version number

1 Returns class for PJLink

Returns the name set in [PROJECTOR NAME] of
[NETWORK SETUP]

88
