User’s manual
Table of Contents
FCC STATEMENT..................................................................................................................1
FCC Notice ...................................................................................................................................................1
LCD TV H200: A CLASS B digital device........................................................................................ 1
IMPORTANT SAFETY INSTRUCTIONS............................................................................2
SAFETY TIPS.................................................................................................................................................. 6
WARNING .................................................................................................................................................... 6
CAUTION .....................................................................................................................................................7
INTRODUCTION ..................................................................................................................8
Features and Benefits...................................................................................................................................8
SUPPLIED ACCESSORIES....................................................................................................9
PREPARATION.....................................................................................................................10
Using the Remote Control.......................................................................................................................10
Power Connection .....................................................................................................................................11
Antenna Connection (USA NTSC system) ..........................................................................................11

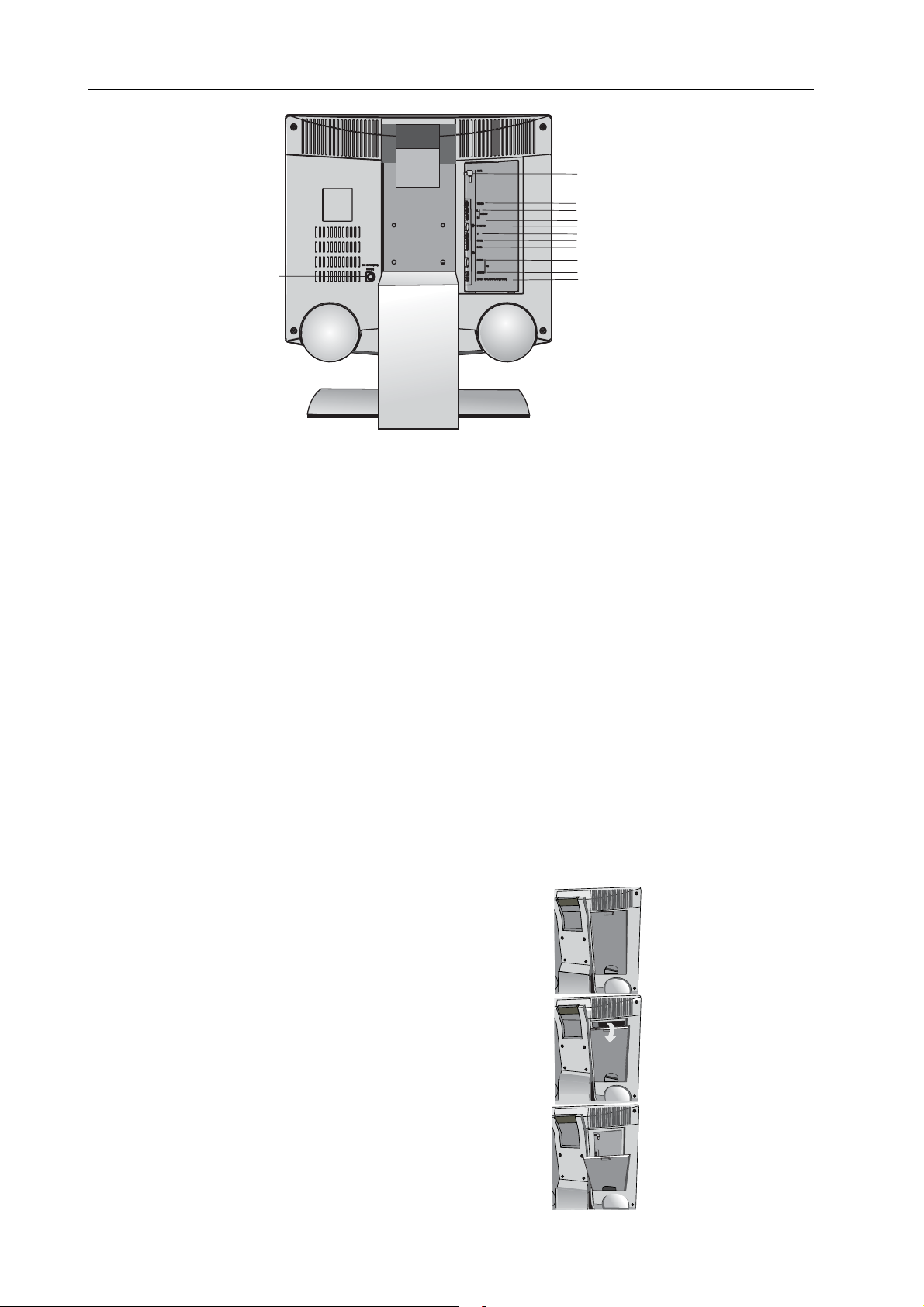

FRONT AND REAR CONTROL OPTIONS .....................................................................13

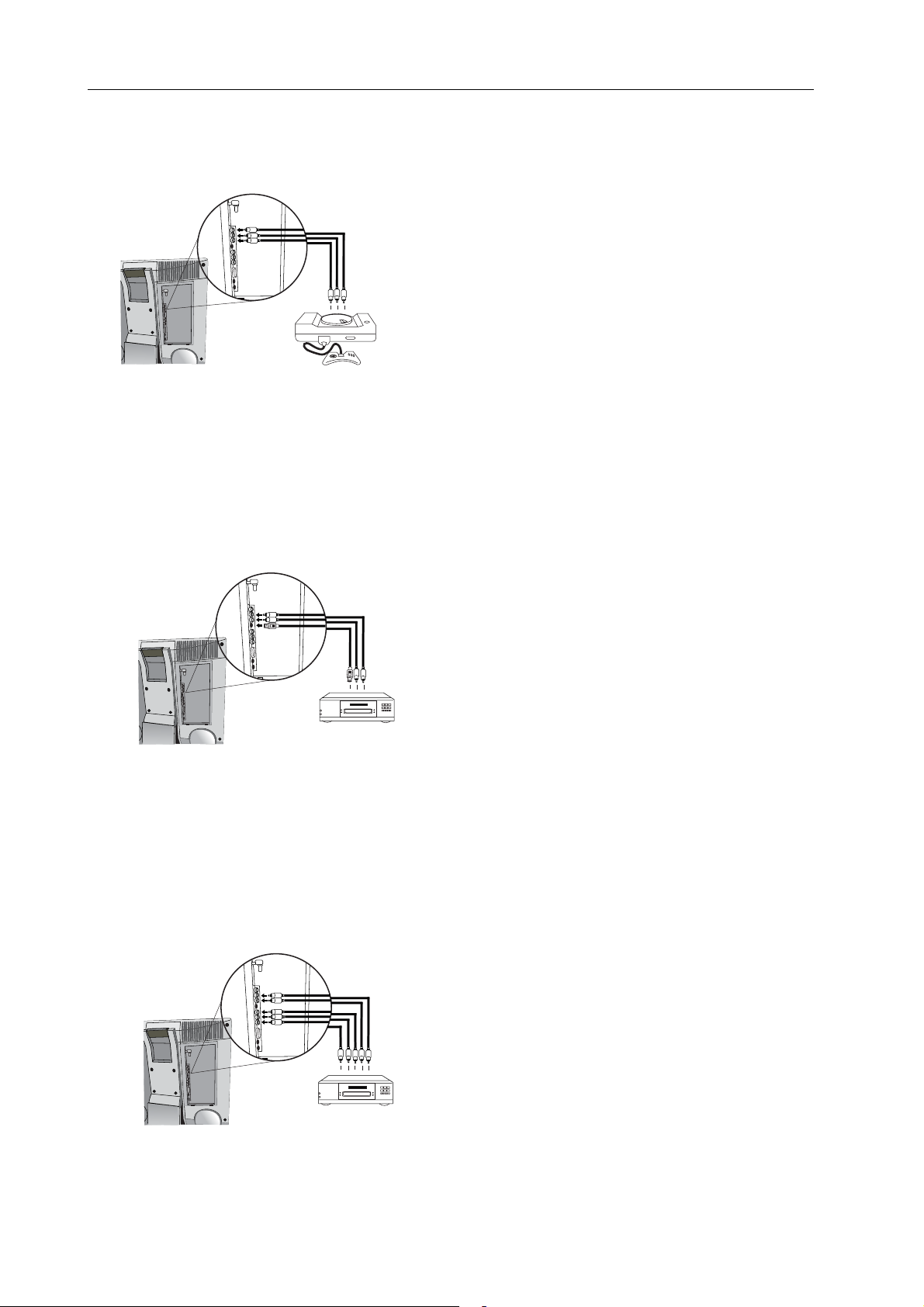

How to connect the AV Input Terminals ...............................................................................................16
How to connect the PC Input Terminals...............................................................................................17

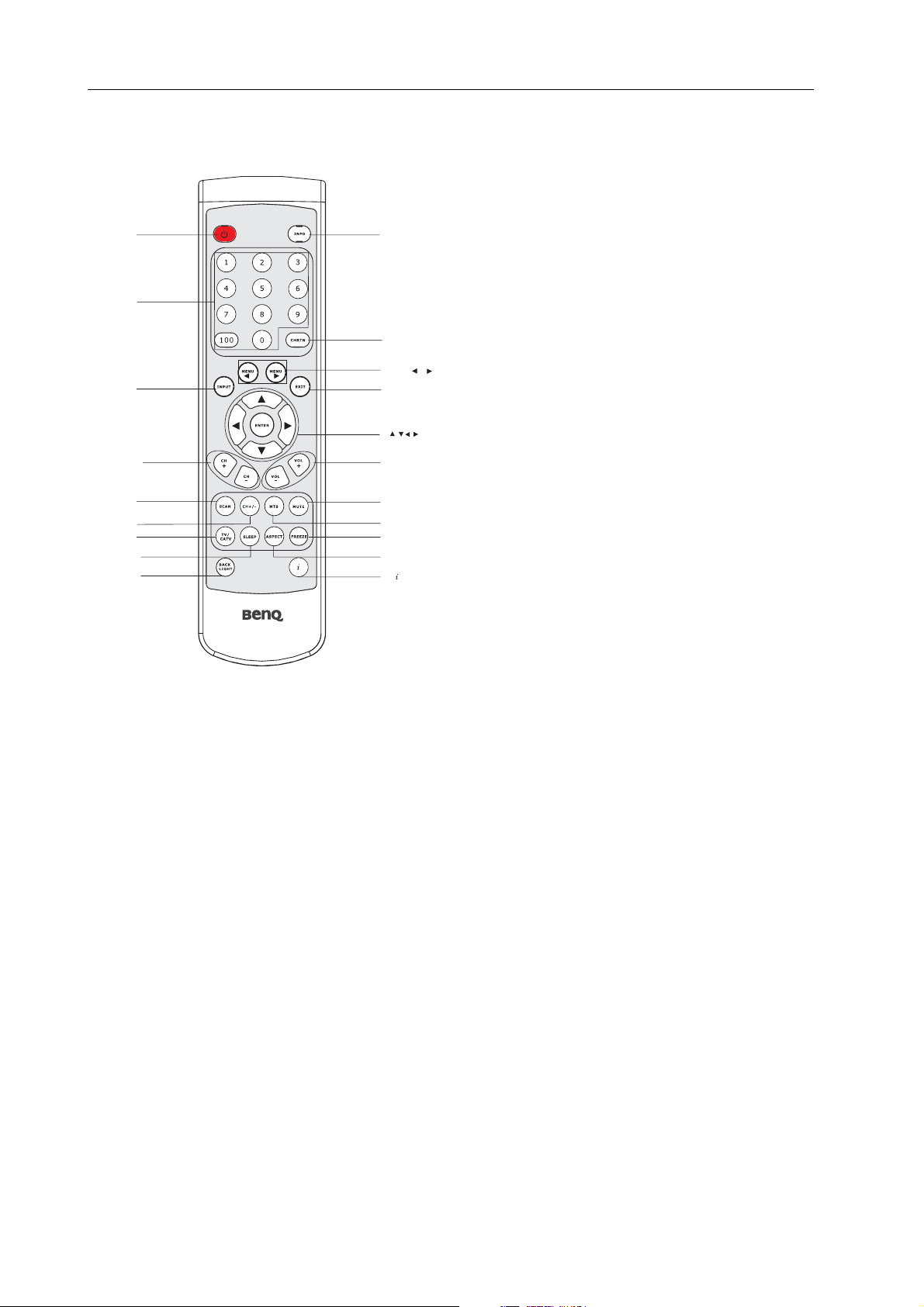

REMOTE CONTROL ...........................................................................................................18
OPERATION.........................................................................................................................19
Basic Operation ..........................................................................................................................................19
Turning On/Off and Standby...........................................................................................................19

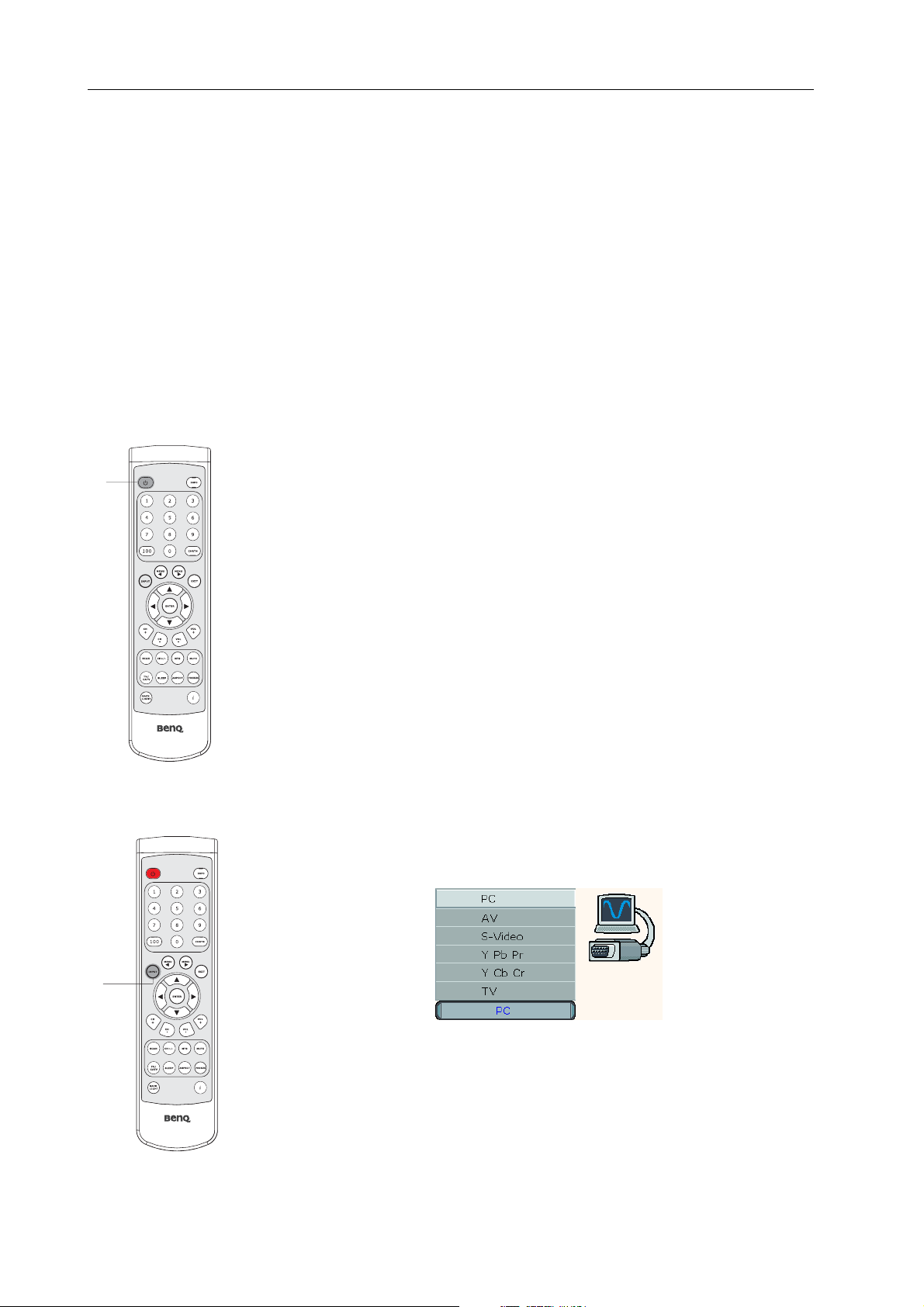

Switching TV/VIDEO/PC [PC/AV/Y Pb Pr/Y Cb Cr/TV] Modes.............................................19
Sound Volume Adjustment...............................................................................................................20
Changing the Channels.....................................................................................................................20
Auto Function ....................................................................................................................................21
Function Operation....................................................................................................................................22
How to use the OSD menu............................................................................................................22
Selecting the On-Screen Menu Language.....................................................................................22

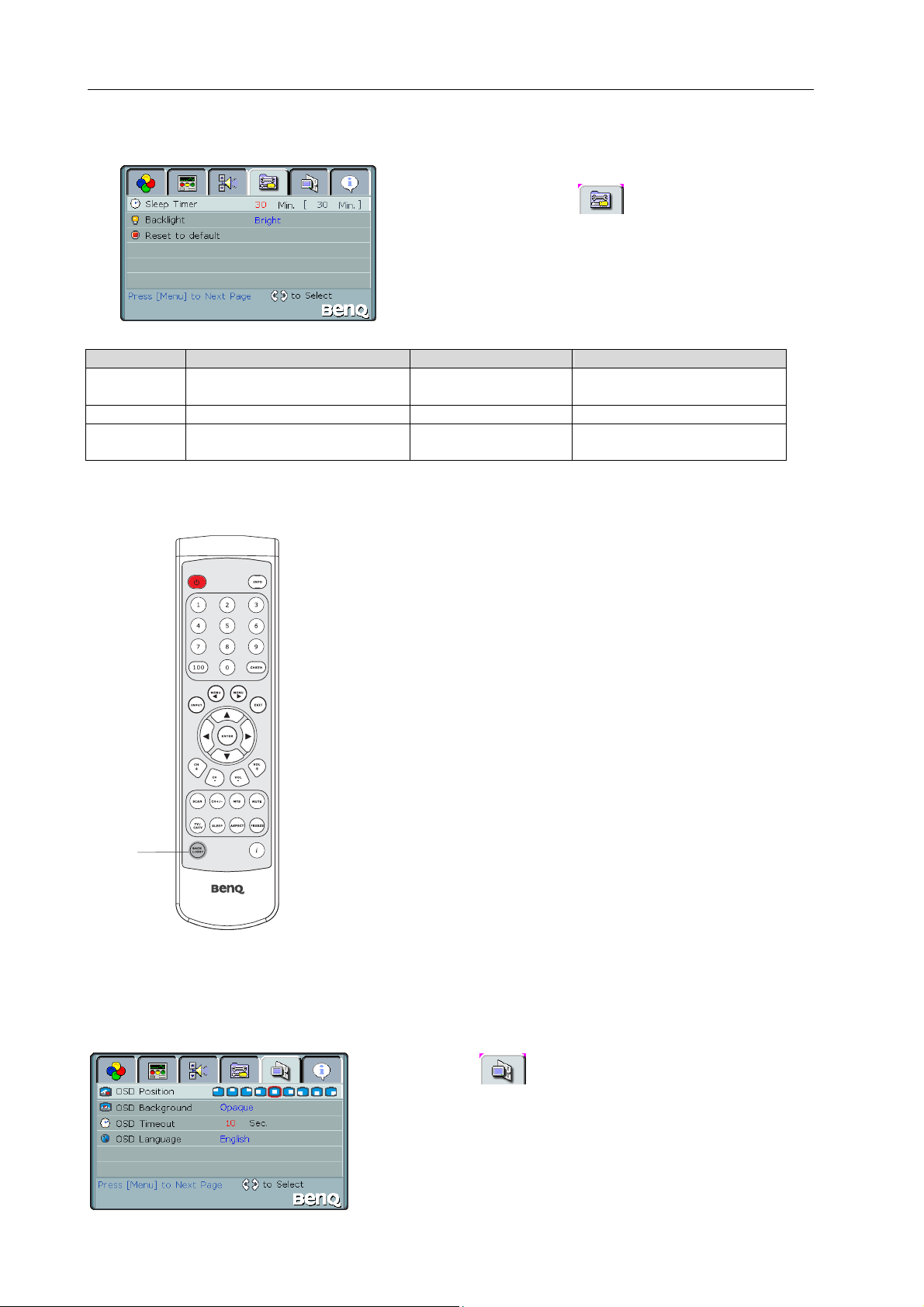

Adjusting the Sleep Timer Settings................................................................................................23
Aspect Controls ................................................................................................................................24
Freeze...................................................................................................................................................25
OSD Menu Adjustment .............................................................................................................................25
Picture Adjustments..........................................................................................................................25
Advance Adjustments .......................................................................................................................27
Sound Adjustment in OSD (PC, Video and TV mode)...............................................................29
Utility Setting (PC and Video Mode) .............................................................................................30
OSD Function Setting (PC, Video and TV mode) .......................................................................30
PC, Video and TV Signal Information.............................................................................................31
Table of Contents iii
BENQ Corporation
How to Use Hot Key Function for Adjustment...................................................................................32
Utility Setting (TV mode only).................................................................................................................33
TV system with Closed Caption and V-chip (USA only)....................................................................35
Set Up Utility function......................................................................................................................35
Set Up CLOSED CAPTION ...........................................................................................................36

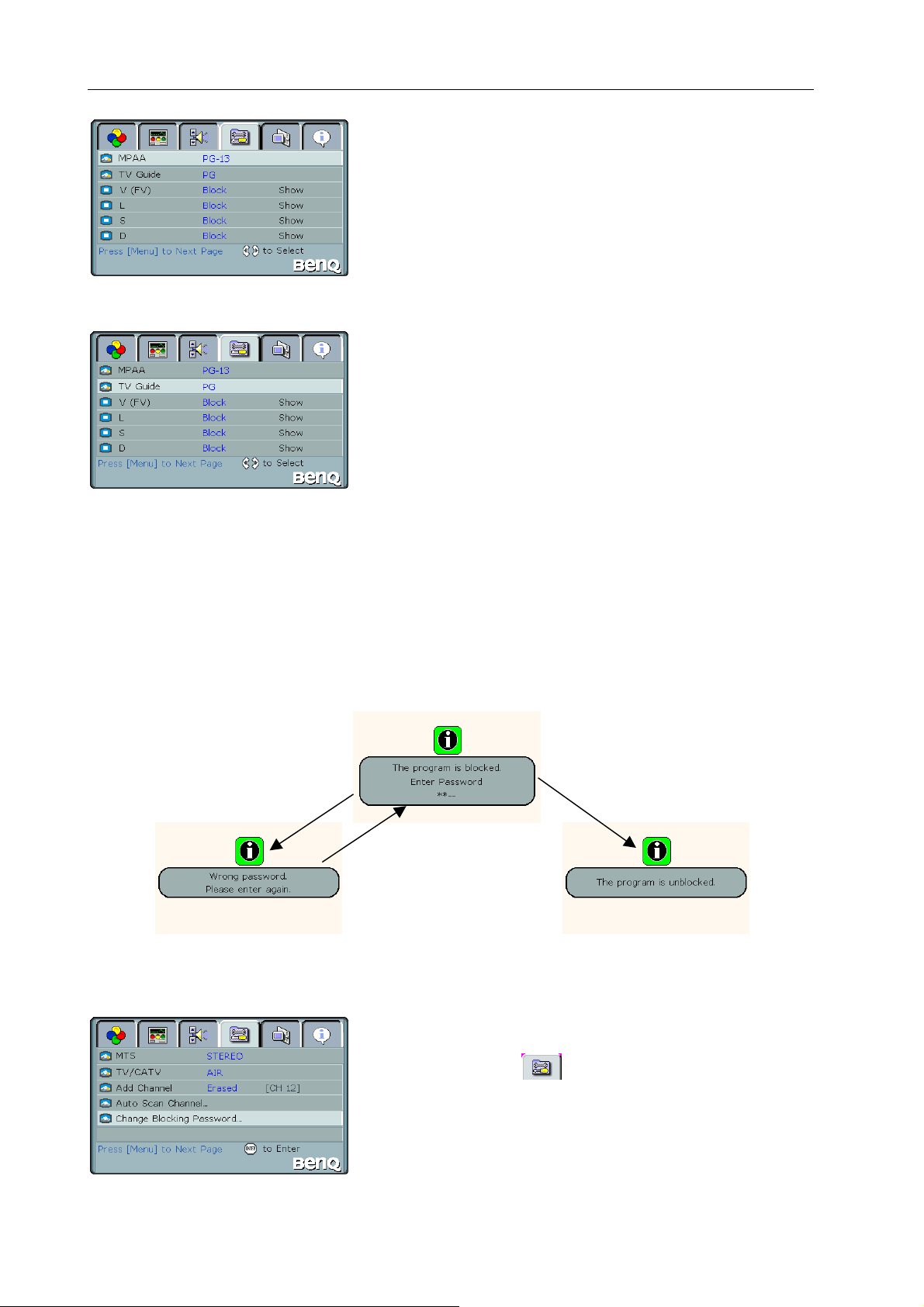

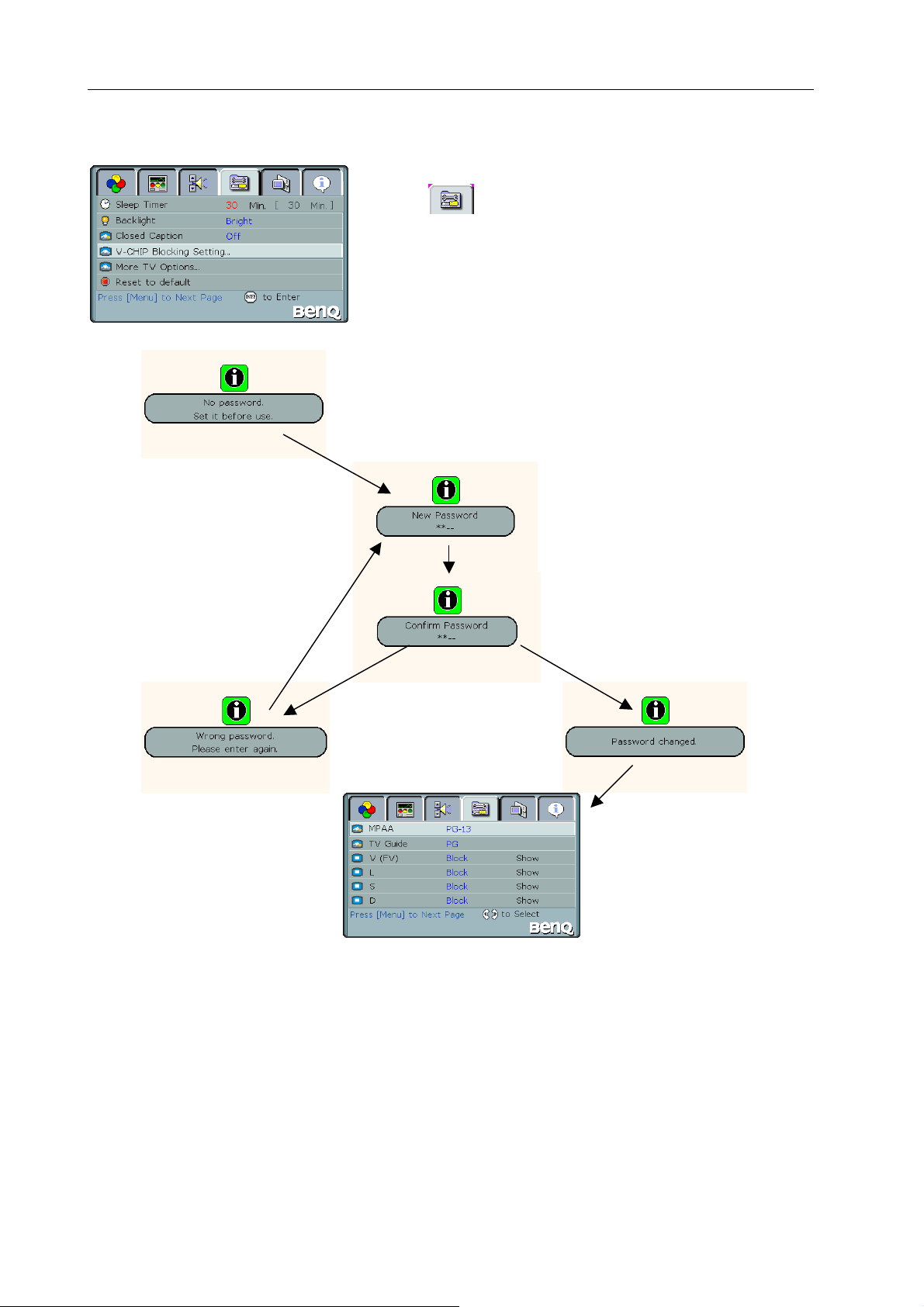

Set Up V-CHIP....................................................................................................................................36
TROUBLESHOOTING........................................................................................................41
SPECIFICATIONS................................................................................................................43
FRONT ACRYLIC SHEET CLEANING .............................................................................44
SUPPORTED OPERATING MODES .................................................................................45

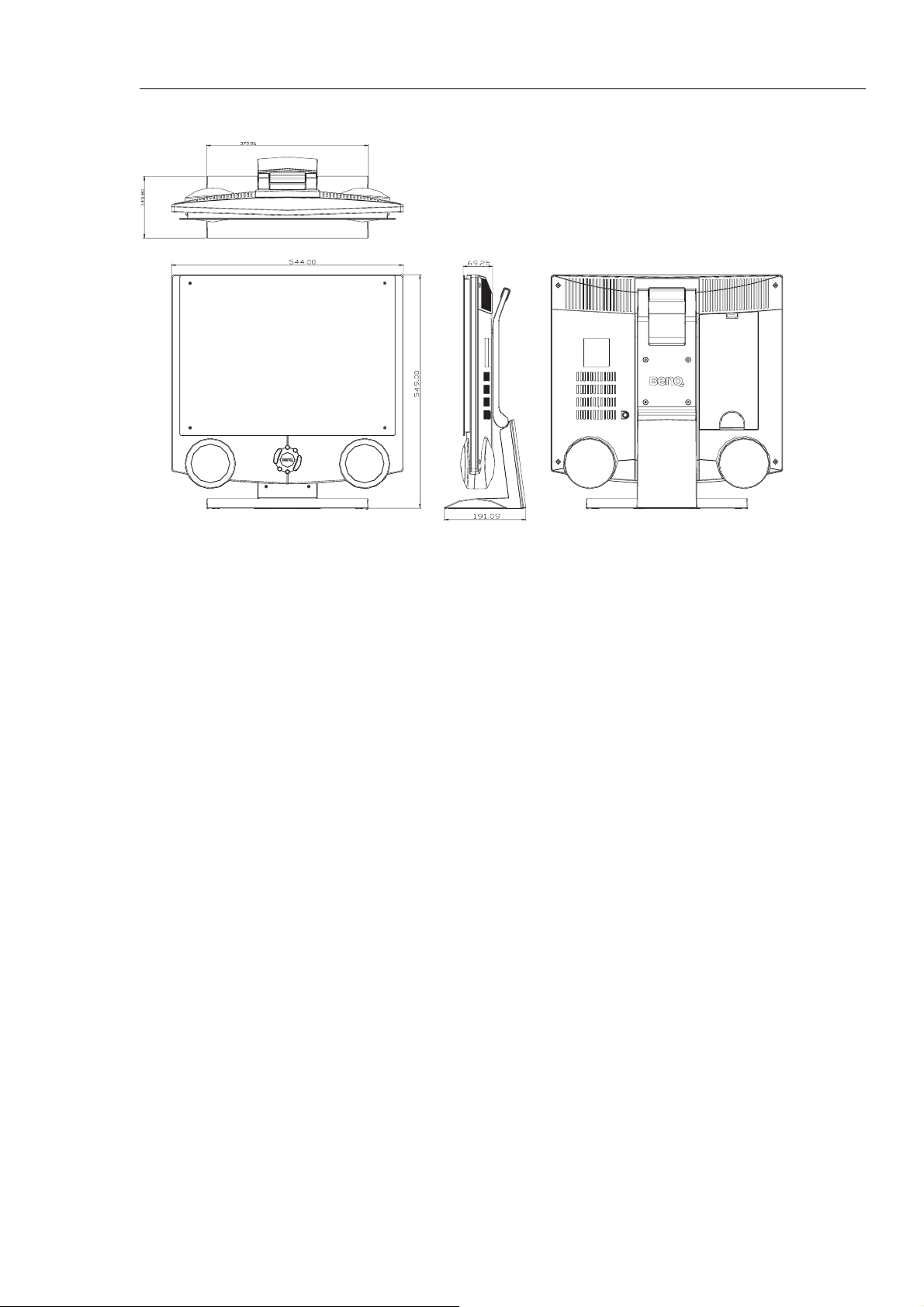

DIMENSIONAL DRAWINGS .............................................................................................46
iv Table of Contents
User’s manual
FCC STATEMENT
FCC Notice
LCD TV H200: A CLASS B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC CAUTION:
Pursuant to 47CFR, Part 15.21 of the FCC rules, any changes or modifications to this monitor not
expressly approved by BENQ Corporation could cause harmful interference and would void the user's
authority to operate this device.
WARNING: This is a CLASS B product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures to counter
interference.
WARNING: To reduce the risk of fire and electric shock, do not expose this product to rain or
moisture.
FCC 1
BENQ Corporation
IMPORTANT SAFETY INSTRUCTIONS
Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if
improperly handled. This product has been engineered and manufactured with the highest priority on safety. But
IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent
potential danger, please observe the following instructions when installing, operating and cleaning the product. To
ensure your safety and prolong the service life of your LCD TV product, please read the following precautions
carefully before using the product.
1.Read instructions—All operating instructions must be read and understood before the product is operated.
2.Retain instructions—These safety and operating instructions must be kept in a safe place for future reference.
3.Observe warnings—All warnings on the product and in the instructions must be observed closely.
4.Follow instructions—All operating instructions must be followed.
5.Water and moisture
water - for example, near a bathtub, washbowl, kitchen
sink, or laundry tub, in a wet basement, or near a
swimming pool, and the like.
Do not use immediately after moving from a low
temperature to high temperature environment, as this
causes condensation, which may result in fire, electric
shock, or other hazards.
6.Cleaning
before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
7.Ventilation—The vents and other openings in the
cabinet are designed for ventilation. Do not cover or block
these vents and openings since insufficient ventilation can
cause overheating and/or shorten the life of the product.
Do not place the product on a bed, sofa, rug or other
similar surface, since they can block ventilation openings.
This product is not designed for built-in installation; do not
place the product in an enclosed place such as a bookcase
or rack, unless proper ventilation is provided or the
manufacturer’s instructions are followed.
8.Heat sources—Keep the product away from heat
sources such as radiators, heaters, stoves and other heatgenerating products (including amplifiers).
— Unplug this product from the wall outlet
—Do not use this product near
9.Grounding or Polarization—This product may be equipped with either a polarized 2-wire AC line plug (a plug
having one blade wider than the other) or a 3-wire grounding-type plug, a plug having a third (grounding) pin. The 2wire polarized plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your
Safety precautions 2
User’s manual
w
t
W
incompatible outlet. Do not attempt to bypass the safety purpose of the polarized and grounded plug. The 3grounding-type plug will fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the
plug into the outlet, contact your electrician to replace your incompatible outlet. Do not attempt to bypass
safety purpose of the grounding type plug.
10.Power cord protection—The power cords must be routed properly to prevent people from stepping on them
or objects from resting on them. Check the cords at the plugs and product.
Power-supply cords should be routed so that they are not likely to be walked on or snagged by items placed upon
or against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from
the product.
11.Attachments—Do not use attachments not recommended by the manufacturer. Use of improper attachments
can result in accidents.
12.Accessories—When the product is used on a trolley, care should be taken to avoid quick stops, excessive
force, and uneven surfaces that may cause the product and trolley to overturn, damaging equipment or causing
possible injury to the operator. Do not place this product on an unstable trolley, stand, pedestal, bracket, or table.
The product may fall, causing serious injury to a child or adult and serious damage to the product. The product
should be mounted according to the manufacturer’s instructions, and use only with a trolley, stand, pedestal,
bracket, or table recommended by the manufacturer.
13.Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage
and other dangerous conditions. Request a qualified service person to perform servicing.
14.Replacement parts—In case the product needs replacement parts, make sure that the service person uses
replacement parts specified by the manufacturer, or those with the same characteristics and performance as the
original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
15.Power source—This product is intended to be supplied by a listed power supply, output rated 19 V DC, 4.5A
minimum, indicated on the marking label. If you are not sure of the type of power supply to your home, consult your
product dealer or local power company. For added protection for this product during a lightning storm, or when it
is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable
system. This will prevent damage to the product due to lightning and power line surges. When the unit has to be
used with another power supply voltage, the power cable must be changed. Consult your product dealer. The
socket outlet should be installed near the equipment and easily accessible. The power supply voltage rating of this
product AC adaptor is AC100-240V. The power cord attached conforms to the following power supply voltage. Use
only the power cord designated by our dealer to ensure safety and EMC.
VCRs and personal computers, you should turn off the power of the unit for protection against electric shock. If the
AC adapter is misplaced or needs to be replaced, obtain the same type of adapter from a BenQ service center or
your dealer.
16.Overloading—Do not overload wall outlets, extension cords, or convenience receptacles on other equipment
as this can result in a risk of fire or electric shock.
17.Entering of objects and liquids—Never insert an object into the product through vents or openings. High
voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the
same reason, do not spill water or liquid on the product.
18.Damage requiring service—If any of the following conditions occurs, unplug the power cord from the AC
outlet, and request a qualified service person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid is spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper adjustment of
controls not described in the instructions can cause damage, which often requires extensive adjustment work by a
qualified technician.
e. If the product has been dropped or the cabinet has been damaged in any way.
f. When the product displays an abnormal condition or exhibits a distinct change in performance. Any noticeable
abnormality in the product indicates that the product needs servicing.
hen connecting other products such as
ire
he
Safety precautions 3
BENQ Corporation
19.Safety checks—Upon completion of service or repair work, request the service technician to perform safety
checks to ensure that the product is in proper operating condition.
20.Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product
according to the method recommended by the manufacturer.
This is a safety feature.
21.Stand—Do not place the product on an unstable
trolley, stand, tripod or table. Placing the product on an
unstable base can cause the product to fall, resulting in
serious personal injuries as well as damage to the product.
Use only a trolley, stand, tripod, and bracket or table
recommended by the manufacturer or sold with the
product. When mounting the product on a wall, be sure to
follow the manufacturer’s instructions.
Use only the mounting hardware recommended by the
manufacturer.
22.Careful move— When relocating the product placed
on a trolley, it must be moved with the utmost care.
Sudden stops, excessive force and uneven floor surfaces
can cause the product to fall from the trolley.
23.Panel protection—The LCD panel used in this
product is made of glass.
Therefore, it can break when the product is dropped or
impacted upon by other objects. Be careful not to be
injured by broken glass pieces in case the LCD panel
breaks.
24.Pixel defect—The LCD panel is a very high technology product, giving you finely detailed pictures.
Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red.
Please note that this does not affect the performance of your product.
If an outside antenna is connected to the television
equipment, be sure the antenna system is grounded so
as to provide some protection against voltage surges
and built-up static charges.
Section 810 of the National Electrical Code provides
information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements
for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL
CODE
NEC—NATIONAL ELECTRICAL CODE
Safety precautions 4
User’s manual
For added protection for this television equipment
during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna. This will
prevent damage to the equipment due to lightning and
power-line surges.
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light
or power circuits, or where it can collide with such
power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits, as contact
with them might be fatal.
Important Information
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
RISK OF ELECTRIC SHOCK
RISK OF ELECTRIC SHOCK
NOT OPEN
DO NOT OPEN
DO
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved
by the manufacturer could void the user’s authority to operate this equipment. (U.S.A. ONLY)
PERSONNEL.
The exclamation point within a triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
“Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article
820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as
practical.”
Safety precautions 5
BENQ Corporation
SAFETY TIPS
Please read and follow the safety tips listed below to ensure the equipment is free
from damage, and to ensure that no injury will occur as a result of improper use.
Do not insert any object, especially metal or liquids, into the TV.
Do not place any objects containing water or any other liquid on top of the TV.
Do not place the unit in direct sunlight, near heaters or in extremely dusty or humid locations.
Do not install this system outdoors or otherwise expose it to the elements.
Do not place heavy objects on top of the TV.
If the power cord is damaged or frayed in any way, electrical shock and/or fire may result.
Please do not place objects on the power cord, and keep the cord away from heat-emitting devices. Should the
power cord become damaged in any way, please contact your dealer for a replacement cord.
Do not remove the cover of the TV for any reason. If any problems arise with the unit, please contact your
dealer for service. Removing the covers will void the warranty.
WARNING
Before Setting Up
Do not place the TV on sloped or unstable surfaces.
The TV may fall or tip over.
Do not place any objects on top of the TV.
If water spills onto the H200 or foreign objects get inside it, a short-circuit may occur which could result in fire
or electric shock. If any foreign objects get inside the H200, please consult an Authorized Dealer.
Do not cover the ventilation holes.
Doing so may cause the H200 to overheat, which can cause fire or damage to the set.
AC Power Supply Cord
The H200 is designed to operate on 100~240 V AC, 50/60 Hz.
Securely insert the power cord plug as far as it will go.
If the plug is not fully inserted; heat may be generated which could cause fire. If the plug is damaged or the wall
socket plate is loose, they should not be used.
Do not handle the power cord plug with wet hands.
Doing so may cause electric shocks.
Do not do anything that might damage the power cable. When disconnecting the power cable, hold
the plug, not the cable.
Do not make any modifications, place heavy objects on, place near hot objects, heat, bend, twist or forcefully
pull the power cable. Doing so may cause damage to the power cable, which can cause fire or electric shock. If
damage to the cable is suspected, have it repaired at an Authorized Service Center
If the H200 is not in use for a long period of time, unplug the power cord from the wall outlet.
Safety precautions 6
User’s manual
If problems occur during use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from
the H200, unplug the power cord immediately.
Continuous use of the Display under these conditions might cause fire or permanent damage to the unit. Have
the Display evaluated at an Authorized Service Center. Services to the Display by any unauthorized personnel
are strongly discouraged due to its dangerous high voltage nature.
If water or foreign objects get inside the TV, if the TV is dropped, or if the cabinet becomes damaged,
disconnect the power cord plug immediately.
A short-circuit may occur, which could cause fire. Contact an Authorized Service Center for any repairs that
need to be made.
CAUTION
When using the LCD TV H200
To turn off the main power, be sure to remove the plug from power outlet. The power outlet socket should be
installed as near to the equipment as possible, and should be easily accessible.
Be sure to disconnect all cables before moving the LCD TV.
Moving the Display with its cables attached might damage the cables, which, in turn, can cause fire or electric
shock.
Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.
Electric shocks can result if this is not done.
Clean the power cable regularly to prevent it from becoming dusty.
Built-up dust on the power cord plug can increase humidity, which might damage the insulation and cause fire.
Unplug the cord from the wall outlet and clean it with a dry cloth.
Do not insert any objects or liquids into the unit.
Do not expose the unit to water or moisture, or otherwise to the elements
Do not open the unit for any reason. Doing so will void the warranty!
Unplug the unit if it will not be used for an extended period of time
Avoid placing the unit near sources of heat
Avoid placing the unit in direct sunlight
In any event, if any problems arise, contact your dealer immediately!
Safety precautions 7
BENQ Corporation
INTRODUCTION
Congratulations on your purchase of the BenQ LCD TV H200. Your H200 will provide you with many years of
enjoyment no other LCD TV can match. It is compatible with today’s current NTSC, PAL and SECAM systems, as
well as tomorrow’s DTV standards. This TV is extremely easy to use and features high performance picture quality.
The H200 is extremely versatile; it can be mounted on a wall or table stand, and it can be used in any ambient light
environment.
This manual will explain how to use your LCD TV H200, as well as its features, benefits and other important
information. Please be sure to read this manual before installing or operating your LCD TV, especially the safety
precautions!
Features and Benefits
Your H200 LCD TV has many useful features, including:
800 x 600 native resolution
500 nit brightness
500:1 contrast ratio
Accepts all DTV formats (via outboard tuner), including 1080i, 720p, 480p
Easy-to-use on-screen menus
Dynamic Cinema Scanning
3D Y/C Comb Filter
Audio SRS WOW Application
Hot keys as follows:
1. Freeze
2. MTS
3. Sleep Timer
4. Back Light Adjustment
5. Auto Calibration
Basic information and preparations 8
User’s manual
SUPPLIED ACCESSORIES
Make sure the following accessories are provided with the product.
Operation Manual (x1)
Remote Control (x1)
Power Adapter (x1)
Size AAA Dry Battery (x2)
Composite Video Cable (X1)
Note: The AC Power core type is different in different territories.
Power Cord (x1)
D-Sub Cable (x1)
S-Video cable (x1)
Basic information and preparations 9
BENQ Corporation
PREPARATION
Using the Remote Control
Use the remote control by pointing it towards the remote
sensor window of the set. Objects between the remote
control and sensor window may prevent proper operation
Cautions regarding use of remote control
Do not expose the remote control to shock. In
addition, do not expose the remote control to
liquids, and do not place in an area with high
humidity.
Do not install or place the remote control under
direct sunlight. The heat may cause deformation of
the unit.
The remote control may not work properly if the
remote sensor window of the main unit is under
direct sunlight or strong lighting. In such a case,
change the angle of the lighting or LCD TV set, or
operate the remote control closer to the remote
sensor window.
Batteries for the Remote Control
If the remote control fails to operate the LCD TV functions, replace the batteries in the remote control.
Open the battery cover. Insert batteries (two size-AAA
batteries, supplied with product).
(Slide the cover while pressing
down.)
(Place the batteries with their
terminals corresponding to the (+)
Replace the cover and slide in reverse
until the lock snaps.
and (–) indications in the battery
compartment.
Precaution on battery use
Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.
Place batteries with their terminals corresponding to the (+) and (–) indications.
Different types of batteries have different characteristics. Do not mix batteries of different types.
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old
batteries to leak chemicals.
Remove batteries as soon as they are non-operable. Chemicals that leak from batteries can cause a rash. If chemical leakage
is found, wipe with a cloth.
The batteries supplied with the product may have a shorter life expectancy due to storage conditions.
If the remote control is not used for an extended period of time, remove the batteries from the remote control.
Basic information and preparations 10
User’s manual
Power Connection
Household poweroutlet
AC cord
AC adapter
ToDC input terminal
(DC 19V)
1. Connecting the female plug to the AC socket
on AC adaptor.
2. Connecting the AC adaptor to the DC power
input of the set.
3. Connecting the male plug to the wall outlet as
illustrated.
Notes:
Use a commercially available AC plug adapter, if necessary, depending on the design of the wall outlet.
This product should be operated only from the type of power source indicated on the marking label (AC
100~240 50/60 Hz)
Always unplug the AC adapter from the product and power outlet when not using for a long period of time.
Antenna Connection (USA NTSC system)
CABLE TV (CATV) CONNECTION
A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75- ohm coaxial
cable to the set, screw the 75-ohm cable to the ANT. terminal.
Some cable TV companies offer “premium pay channels”. Since the signals of these premium pay channels are
scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company.
This converter/descrambler is necessary for normal viewing of the scrambled channels. For more specific
instructions on installing cable TV, consult your cable TV company. One possible method of utilizing the
converter/descrambler provided by your cable TV company is explained below. Please note: An RF switch
provided with two inputs (A and B) is required (not supplied).
R
F switch (not supplied)
A
IN
OUT
B
OUT IN
“A” position on the RF switch (not supplied) : You can view all unscrambled channels by using the
TV’s channel keys.
“B” position on the RF switch (not supplied) : You can view the scrambled channels via the converter/
descrambler by using the converter’s channel keys.
Note:
Consult your BenQ Dealer or Service Center for the type of splitter, RF switch or combiner that might be
required.
Cable TV converter/
descrambler
(not supplied)
Two-set
signal
splitter
(not
supplied)
Cable TV Line
Basic information and preparations 11
BENQ Corporation
ANTENNAS
The antenna requirements for good color television reception are more important than those for black & white
television reception. For this reason, a good quality outdoor antenna is strongly recommended.
The following is a brief explanation of the type of connections that are provided with the various antenna systems.
1. A 75-ohm system is generally a round cable with F-type
connector that can easily be attached to a terminal without
tools (not supplied).
2. A 300-ohm system is a flat “twin-lead” cable that can be
attached to a 75-ohm terminal through a 300-75-ohm
adapter (not supplied).
OUTDOOR ANTENNA CONNECTION
Use one of the following two diagrams if you connect an outdoor antenna.
A: Using a VHF/UHF combination outdoor antenna.
B: Using separate VHF and/or UHF outdoor antennas.
Connect the outdoor antenna cable lead-in to the ANT. terminal on the rear of the TV set.
A. CombinationVHF/UHF Antenna
VHF/UHF
antenna
300/75-ohm
(not supplied)
or
adapter
300-ohm
twin-lead
VHF/UHF
antenna
75-ohm
coaxial cable
B. SeparateVHF and/or
UHF Antennas
UHF
VHF
antenna
antenna
or
300-OHM
twin-lead
300-OHM
twin-lead
75-ohm
coaxial cable
Combiner
(not supplied)
IN OUT
Antenna cable(not supplied)
Toantenna input
terminal
Basic information and preparations 12
User’s manual
FRONT AND REAR CONTROL OPTIONS
Main unit (Front view)
Channel ( ) / ( )
Speaker
Input
Remote Control Sensor Window
Power indicatior
POWER indicator
A BLUE indicator lights when the power is on. The
light is off when in the standby mode (the indicator
will flash when the set is in power saving mode.).
To change the vertical angle of the LCD TV set,
tilt the screen up to 12 degrees forward. The TV set
can also be rotated 60 degrees horizontally. Please
adjust the angle so that the TV set can be watched
most comfortably.
Power
Menu
Speaker
Volume (+) / (-)
Front Control Panel
1. Power:
The H200 must first be plugged into the wall outlet. Press this button to turn the H200 ON from STANDBY
mode. Press it again to turn the set OFF to STANDBY mode.
2. Menu:
Press this button to display the OSD main page. Each time you press Menu button, the OSD main page will
display in right sequence
Pressing the button for more then 1 sec. to select the OSD main page in left sequence.
3. Volume (+)/(-):
Press the Volume Up” +” or Down” –“ button to directly increase or decrease the sound volume level.
In OSD Menu, press these buttons to adjust the value or setting of each item and press Volu m e ( +) as an
“Execute”, “” or “ENTER” action.
4. Channel ()/():
Press these two buttons to directly adjust the TV channel.
In OSD Menu, press these buttons to choose the OSD items.
5. Input:
Press this button to open and select the TV/Video/PC input source.
If the OSD menu is displayed, press this button for 1 sec. to exit the OSD menu.
Note:
Power, Channel ()/(), Volume (+)/(–), Input and Menu on the main unit have the same functions as
the same buttons on the remote control. Fundamentally, this operation manual provides a description based
on operation with the remote control.
Front and rear control options 13
BENQ Corporation
Main unit (Rear view)
ANTENNA TERMINAL
VIDEO
AUDIO(L)
AUDIO(R)
S-VIDEO
Y
Pb/Cb
Pr/Cr
PC D-SUB
POWER INPUT(DC19V)
PCAUDIO
DC OUTPUT(19V;0.6A MAX.)
1.Power Input terminal (DC 19V):
Connect this terminal to the power Adapter and power cord supplied with the TV.
2.Antenna terminal:
Connect this terminal to the antenna cable (not supplied)
3.Composite video Input (RCA Connector):
Connect this terminal to the Composite Video output terminal of your DVD Player or other Video source.
4.Audio Input (L/R):
Connect this terminal to the sound output terminal of you DVD Player or other Video source.
This terminal is for composite, S-video and component signals.
5.S-Video Input:
Connect this terminal to the S-Video output terminal of your DVD Player or other Video source.
6.Component Input (Y Cb/Pb Cr/Pr):
Connect this terminal to the component video output (color different output) of a progressive, standard DVD
Player or HDTV unit.
* Y connector (Green color) can also be used for the second composite video Input.
7.PC signal input (D-Sub 15 pin):
Connect this terminal to the PC’s display (analog RGB) output terminal.
8.PC audio:
Connect this terminal to the sound output terminal of your PC or Notebook.
9.DC output (DC 19V):
Connect this terminal to the wireless kit (optional accessory).
Removing the Back Cover
Before linking a connection cord to the rear
terminal, remove the back cover. Push in the tab
and pull out the back cover carefully.
To mount the cover, insert the hooks on the
bottom of the cover into the cabinet and press on
the upper part of the back cover until the tab
locks in place with a click.
Front and rear control options 14
User’s manual

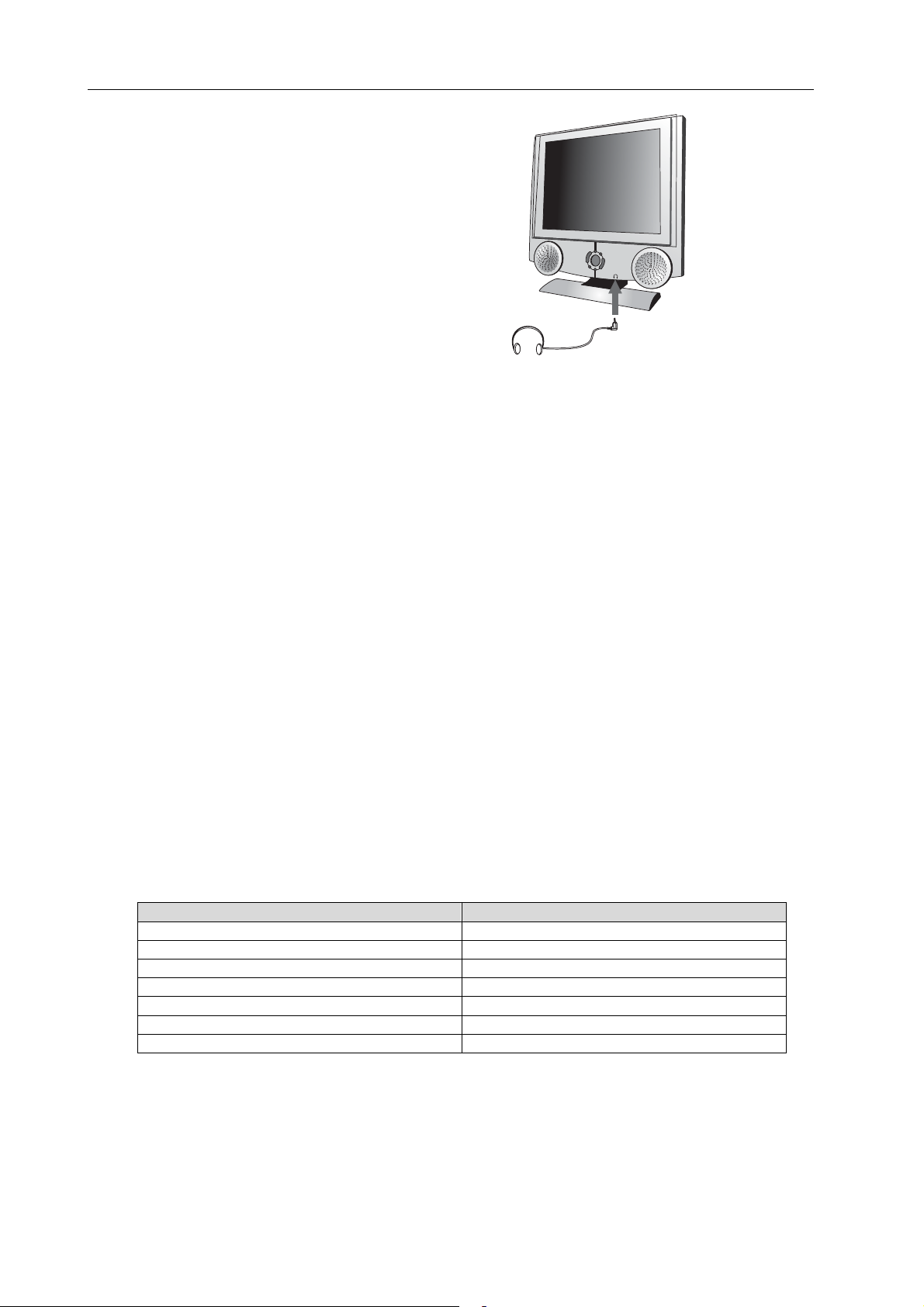

Listening with Headphones
Plug the headphone mini-plug into the
HEADPHONE jack located on the front bottom
of the TV set.
Headphones
Notes:
Headphones are not included in the supplied accessories.
No sound will be heard from the main unit speakers when a headphone mini-plug is connected into the
HEADPHONE jack.
CONNECTIONS
Carefully check the terminals for position and type before making any connections.
Loose connectors can result in image or color problems. Make sure that all connectors are securely inserted
into their terminals.
You can enjoy picture and sound by connecting a DVD Player, VCR or a home video game system to the
terminals located on the rear of the TV set.
When connecting an external device, turn off the power of the main unit first to prevent any possible damage.
H200 signal terminal introduction:
Terminal Connector
Antenna input Antenna Terminal x 1
Composite Video Input RCA x 1
S-Video Input S terminal x 1
Component Video Input RCA x 3 (Y Pb/Cb Pr/Cr)
RGB Input Min D-sub 15-pin x 1
PC Audio input Pin jack x 1
AV Audio Input RCA (L/R) x 2
Connections 15
BENQ Corporation
How to connect the AV Input Terminals
Composite VIDEO Signal Connection (RCA)
Example of input signal source
Videogame
Connect the composite signal terminal on the TV to the
output of AV equipment through composite cable (RCA
connector) as illustrated
Note:
Composite video is the most common type of signal used, but is also the lowest in picture quality. Many sources
have outputs that are limited to Composite video, such as some VCR’s and camcorders. Others, such as Laser
Disc players, actually produce slightly better results when using Composite video.
S-VIDEO Signal Connection
Example of input signal source
DVD Player
Note:
S-Video is the second-best type of signal that can be used, but is MUCH better than Composite video. Using
such sources as satellite receivers, high-quality VCRs and DVD players (with no Component output) will
produce a MUCH cleaner and sharper signal.
Connect S-video terminal on the TV to the signal output of
AV equipment through S-video cable as illustrated
Component (Y Cb/Pb Cr/Pr) Signal Connection
Example of input signal source
DVD Player
Connections 16
Connect the component signal terminal on the TV to the
component output of AV equipment through component
cable as illustrated.
User’s manual
t
Note:
1. Component video is the best type of signal that can be used. The most common sources that use
Component outputs are DVD players, and it is highly recommended that Component be used when
possible. Component video goes one step beyond S-Video in picture quality. All HDTV signals must be
input into this port. It may also be used for other high-resolution signals such as progressive DVD
players or computers.
2. Connect the output of a progressive DVD Player to Component Input (Y Pb Pr).
3. Connect the output of a standard DVD Player to the Component Input (Y Cb Cr).
4. We can support 480p, 720p and 1080i HDTV signal.
How to connect the PC Input Terminals
RGB signal (min D-SUB 15 pin) connection
Example of input signal source
Connect the D-sub signal terminal on the TV to
the output of PC equipment through min D-sub
15 pin cable as illustrated.
Connect a cable, which matches the audio output
terminal on the computer.
PC-D-Sub
PC orNotebook
Note:
1. The display native resolution is 800 x 600. If the signal resolution exceeds the native resolution,
it may not be possible to show fine detail with sufficient clarity.
2. An adapter is required to use the PC cable (D-sub 15P) to connect a Macintosh computer to
the set.
3. Some PC models cannot be connected to the set.
4. There is no need to use an adapter for computers with DOS/V compatible D-sub 15P terminals.
5. The computer shown in the illustration is for example purposes only.
6. Additional equipment and cables shown are not supplied with this set
7. Do not set the horizontal and vertical scanning frequencies for PC signals, which are above or
below the specified frequency range.
8. For more information about external device connec
ions, see the manuals of your external
devices.
Connections 17
BENQ Corporation
REMOTE CONTROL
There are 37 keys on the remote control:
1. POWER:
Press this button to turn on the TV set. Press again
1.POWER
3.Channel
Select
2.INFORMATION
to enter the standby mode.
2. INFO:
Press this button to turn on the TV channel message
and any signal message (Including Video and PC).
Press again to turn off.
4.Channel Return
3. Channel Select:
Press these buttons to select the TV channel you
6.INPUT
5.MENU /
7.EXIT
want to enter.
4. CHRTN:
Press this button to jump between two channels.
5. MENUand MENU :
Press these two buttons to display the OSD menu
9.CH (+)/(-)
8./// (CursorControl)
ENTER
10.VOL (+)/(-)
for adjusting the image, sound and functions and
11.S CAN
13.CH+/-
15.TV /
CATV
16.SLEEP
19.BACK
LIGHT
12.MUTE
14.MTS
17.FREEZE
18.ASPECT
20. Key (AutoKey)
choose the menu content from right or left page
sequence.
6. INPUT:
Press this button to open the input source selection
menu or directly choose the input source.
7. EXIT:
Press this button to exit the controls of OSD menu
directly.
8. ///(Cursor control) and ENTER:
: Use these Up/Down buttons to select items or settings and to adjust settings.
: Press these Right/Left buttons to adjust the OSD menu setting. And Press button as a “Select”; “Execute”
or “Enter” sub menu setting.
Press this “ENTER” button to “Execute” the selection or “Enter” the sub menu you desire.
9. CH+and CH -:
Press these two buttons to change the TV channel.
10. VOL+ and VOL-
Press the Volume Up “+” or Down “-” button to increase or decrease the sound volume level.
11. SCAN:
Press this button to auto scan all channels that TV/CATV can provide.
12. MUTE: Press this button to silence the sound system. Press again to activate it.
13. CH+/-:
Press this button to add the current TV channel. Press again to erase the current TV channel.
14. MTS:
Press this button to choose different audio system. (Different TV systems have different selections.)
15. TV/CATV:
Press this button to choose the mode for TV and Cable TV systems.
16. SLEEP:
Press this button to set up the LCD TV auto turn off time.
17. FREEZE:
Press this button to freeze the screen (the video source still runs). Press again to exit this function.
18. ASPECT:
Press the button to adjust the image display screen format.
19. BACK LIGHT:
Press this button to adjust the LCD backlight brightness.
20. “I key”
Press this button to automatically and properly adjust the frequency, phase and Image position in PC mode and
automatically search the video source and properly display the video format in Video mode.
Remote control 18
User’s manual
OPERATION
Before using the TV set, please check your TV system first and adjust TV set to comply with the TV broadcasting
system in your territory. (There will be slightly different selection items in different TV systems)
Note:
The 3 Dimensional Y/C separation circuit only works when the color system is set to NTSC 60Hz / 3.58 MHz in
TV mode and Video mode.
The 3 Dimensional Y/C separation circuit is used to remove flickering and color bleeding.
Basic Operation
Turning On/Off and Standby
POWER
POWER
1. Connecting the power plug of LCD TV to the Wall Outlet. (When you do so, the
main power turns ON and enters into standby mode. (Power Indicator: no light)
2. Press “POWER “button, located on the front control panel of the main unit or
on the Remote Control, to turn on the TV.
3. The BenQ logo appears on screen (Power Indicator: Blue)
4. The display will automatically search last selected signal input and display it if it
connects to any source.
To turn off the LCD TV
5. Press “POWER” button again to enter standby mode (Power Indicator: no light
(standby)).
Switching TV/VIDEO/PC [PC/AV/Y Pb Pr/Y Cb Cr/TV] Modes
INPUT
INPUT
1. Turn on the power of the connected video equipment or PC.
2. Press “INPUT” button on the front control panel of the main unit or on the
Remote Control to display the input selected menu.
3. Press “INPUT” button directly to select input source you want or you can also
press or to select the applicable input source.
Operation 19
BENQ Corporation
Sound Volume Adjustment
SOUND FUNCTION
1. Press “VOL+” to increase the sound volume. The length of the indicator
increases.
2. Press “VOL– “to decrease the sound volume. The length of the indicator
decreases.
To mute the sound
1. Press “MUTE” to temporarily turn off the sound. The MUTE mark is
displayed.
2. Press “MUTE” or “VOL+/–“ to restore the sound back to the previous level.
3. The mute function is automatically turned off when any of the following buttons
are pressed: ”POWER”, ”VOL+/-“, ”MUTE”, “MTS”.
VOL(+)/(-)
MUTE
MTS
To select different TV audio system
(There will be different selections in different TV systems)
Press “MTS” to display and select different TV audio systems.
Example 1: NTSC MTS system:
[STEREO]: stereo audio
[SAP]: second audio program
[MONO]: monophonic audio
Example 2: PAL Nicam
[STEREO], [MONO], [LANGUAGE A], [LANGUAGE B]
Changing the Channels
Changing channels by using Channel Select on the remote control.
Depending on different territories, this LCD TV set allows you to select a varied number of channels.
To select a 1- or 2-digit channel number (e.g., Channel 7):
Complete the following procedure within 3 seconds.
1. Press the “0” button.
2. Press the “7” button.
Operation 20
User’s manual
CHANNEL FUNCTION
To select a 3-digit channel number
(e.g., Channel 120):
Complete each digit within 3 seconds.
1. Press the “1” button.
2. Press the “2” button.
Channel Select
3. Press the “0” button.
Channel Return
Changing channels with CH +/- on the remote control or on
Front control panel.
Press ”CHRTN” on the remote control to quickly return to the previous
channel you selected
CH+/-
.
Auto Function
AUTO
Pressing the “i” button on the Remote Control as in the illustration will
automatically adjust Phase, Clock, Picture Position in PC mode and search
for correct Video formats (NTSC, PAL, SECAM) in Video mode.
And the screen display information is as follows: (Example: PC mode)
Operation 21
BENQ Corporation
Function Operation
How to use the OSD menu
This LCD TV set allows you to adjust the various settings using the menu screen. Select the desired menu item by
following the steps below and then refer to the indicated page for details.
MENU FUNCTION
MENU
EXIT
1. Press “MENU” or “MENU” buttons on the Remote Control as
in the illustration or “Menu” button on Control Panel to select “OSD”
main page, then the main menu screen will appear as follows:
ENTER / / /
2. Each time you press “MENU ” or “MENU ” buttons, one of the
available main menu pages and icons appear:
Picture Advance Audio Utility OSD Status
3. Press orbuttons to select the option items in each main menu.
4. Pressorbuttons to select your preferred function or change the
values
5. Press or “ENTER” to execute the function or enter the sub menu.
6. Press “EXIT” button to leave main menu or sub menu in each
situation.
Selecting the On-Screen Menu Language
OSD
1. Press “MENU ” or “MENU ” buttons on the Remote
Control or “Menu” button on Control Panel to select
“OSD
appear as illustrated.
2. Pressorbuttons to select “OSD Language” item.
3. Pressorbuttons to select your preferred language and the OSD
language will automatically change.
” main menu page, then the main menu screen will
Option Function Operation Range
OSD Language Selects language used for
OSD menus.
Directly pressorto
change the language.
English, French, German, Italian,
Spanish, Portuguese, Japanese,
Simplified Chinese, Traditional
Chinese.
Function operation 22
User’s manual
Adjusting the Sleep Timer Settings
You can set the SLEEP TIMER to automatically turn off the TV.
Directly setting the SLEEP TIMER
SLEEP
1. You can directly press “SLEEP” button on Remote Control as
illustrated to set the sleep timer (in minutes) and the screen display
information as follows:
2. Press “SLEEP” again to select different setting value.
3. The time can be set in increments of 30 minutes and in the range
between 0 and 150 minutes.
SLEEP
Utility
Setting the SLEEP TIMER on the MENU screen
1. Press “MENU ” or “MENU ” buttons on the Remote
Control or “Menu” button on Control Panel to select
“Utility
” main menu page, then the main menu screen will
appear as illustrated
2. Press or to select “Sleep Timer” setting and press
orto adjust it.
When the set is going into sleep mode, the screen display information
appears as follows:
Function operation 23
BENQ Corporation
Aspect Controls
ASPECT
1. You can directly press “ASPECT” button on Remote Control as
illustrated to select the Image Aspect Ratio you prefer and the
screen display information appears as follows:
ASPECT
Advance menu (In Video Mode)
Setting the ASPECT on the MENU screen
1. Press “MENU ” or “MENU ” buttons on the Remote
Control or “Menu” button on Control Panel to select
“Advance
will appear as illustrated.
2. Press orto select “Aspect Ratio” setting and press
orto adjust it.
” main menu page, then the main menu screen
Mode Explanation
Fill Screen Any input signal scale to fit the 4:3 full screen.
Anamorphic This mode is suitable for HDTV signal and DVD titles marked with "Squeeze" or
"Anamorphic". When playing this kind of DVD title, remember to set the TV type setting in
DVD player to 16:9 mode (wide screen). And use "Anamorphic" mode to present the movies
in correct aspect ratio and better image quality. It will lose a little information of both sides
and a little bit of the picture will be cropped from each side.
HDTV (4:3) This mode is suitable for HDTV signals that directly translate 4:3 material to 16:9 format. This
kind of HDTV signal will have black areas on both sides. Use this mode to remove the black
area and present the 4:3 materials in full screen. This mode will cause more of the picture on
each side to be cropped and will cause a little loss of the 16:9 HDTV signal.
Function operation 24
User’s manual
t
Freeze
FREEZE
Press the “FREEZE” button on the Remote Control to hold
on the image on the screen (the video sources still run). Press
again to reactivate the image.
The icon will show on the right bottom on the screen as in
following illustration.
he
FREEZE
OSD Menu Adjustment
Picture Adjustments
Picture menu (In PC Mode)
Note: In PC or Y/Pr/Pr mode, the freeze function has no
effect.
1. Press “MENU ” or “MENU ” buttons on the Remote
Control or “Menu” button on Control Panel to choose the
“Picture
2. Pressorbuttons to choose the option items you want to adjust.
3. When you finish selecting a desired option in the “Picture” menu
screen, use orto change the value for that option or select it.
” main menu page as illustrated.
Picture menu (In Video and TV Mode)
Note:
If you activate the Resolution Notifier, the Set will display the following information if it doesn’t receive the
optimal resolution (800 x 600)
Function operation 25
BENQ Corporation
Press “MENU” button to exit.
If the above information is displayed on the screen, set your signal input as optimal resolution (800x600) and
you will get the best picture in PC mode.
In PC Mode
Option Function Operation Range
Auto Adjustment Automatically adjusts Phase, Clock,
Picture Position in PC mode.
Brightness Adjusts screen brightness. Brighter screen.
Contrast Adjusts image contrast. Higher contrast.
DPMS Protects screen and power saving
when no signal received.
Resolution
Notifier
Reminds user of the Optimal
resolution.
Reset Restores all settings to default
values.
When set is ready to go into DPMS mode, the screen will display the information as follows:
Press or
“ENTER” to
execute it.
Darker screen.
Lower contrast.
Useorfor
switching.
Useorfor
switching.
Press or
“ENTER” to
execute it.
0 to 100
0 to 100
On and Off
On and Off
The power indicator lamp flashes blue while the DPMS is on.
The power turns ON automatically when the display receives a signal again.
“DPMS” which stand for “display power management signaling” allows the display to maintain an automatic
power saving function.
In Video Mode
Option Function Operation Range
Brightness Adjusts screen brightness for easier
viewing of dark pictures such as night
scenes and black hair.
Contrast Adjusts image contrast Higher contrast.
Saturation Adjusts color saturation. Higher color saturation.
Preset Mode Adjusts the preset user situation mode. Useorfor switching. Standard, Vivid,
Reset Restores all settings to default value. Pressor “ENTER” to
Brighter screen.
Darker screen.
Lower contrast.
Lower color saturation.
execute it.
0 to 100
0 to 100
0 to 100
Colorful, Bright
Room, Dark Room
Function operation 26
User’s manual
t
t
Advance Adjustments
Advance menu (In PC Mode)
1. Press “MENU ” or “MENU ” buttons on the Remote
Control or “Menu” button on Control Panel to choose the
“Advance
2. Pressorbuttons to choose the option items you want to
adjust.
3. When you finish selecting the desired option, use or
change the value or selection for that option.
” main menu page as illustrated.
o
Advance menu (In Video and TV Mode)
In PC Mode
Option Function Operation Range
H. Position Adjusts the horizontal position of
the image.
V. Position Adjusts the vertical position of the
image.
Phase Adj. Adjusts the Phase. Useorto select a value. 0 to 31
Sync. Adj. Adjusts the Sync. Useorto select a value. 0 to 100
Color Temp. Adjusts preset color temperature. Useorfor switching. Warm, Standard, Cool
User Color Temp. Adjusts and memorizes the Color
Temperature based on user
special preference. (If you don’
choose “User” in Color Temp.
option, this function is no use.)
You may find that images blur, depending on the clock phase of your PC’s Processor. If you experience blurring,
Moves screen to the
right
Moves screen to the left
Moves screen up
Moves screen down
Press or “ENTER” to
enter the sub menu.
0 to 100
0 to 100
and User
you can obtain a clearer image by adjusting the “Phase”.
Adjusts the clock frequency of the set’s internal clock signal. If shimmering or rainbow-like noise is apparent in
the image, try adjusting ”Sync.”.
Flickering and distortion can be eliminated by using the and buttons to carry out Phase and Sync.
Adjustment.
In Video Mode
Option Function Operation Range
Hue Adjusts for nice skin color. More green-tinged
colors.
More purple-tinged
colors.
Sharpness Adjusts image sharpness and
display a sharp image.
Aspect Ratio Adjusts the image aspect ratio. Useorfor
Sharper images.
Less sharp images.
switching.
0 to 100
0 to 100
Fill Screen, Anamorphic, HDTV
(4:3)
Function operation 27
BENQ Corporation
t
Color Temp. Adjusts Image color temperature. Useorto specify a
desired color
temperature.
User Color
Temp.
Advanced
Options
”Hue” and ”Sharpness” settings cannot be adjusted for “PC” input signal modes.
The ”Hue” setting can be adjusted for NTSC signal, Composite and S-Video signal only.
Adjusts and memorizes the color
Temp. based on user special
preferences. (If you do not choose
“User” in Color Temp. option, this
function is no use)
Adjusts Video advance items. Use or “ENTER” to
Use or “ENTER” to
enter the sub menu.
enter the sub menu.
Warm: More red-tinged
colors
Standard: Standard color
temperature
Cool: More blue-tinged
colors
User
Video advance options adjustment (Video and TV mode only)
Advance menu (In Video and TV Mode)
1. Press “MENU ” or “MENU ” buttons on the Remote
Control or “Menu” button on Control Panel to choose the
“Advance
2. Pressorbuttons to choose the “Advanced Options” item
and pressor “ENTER” to enter it. The sub menu appears as
illustrated.
3. Press or to choose the items and press orto select it.
” main menu page.
Option Function Operation Range
Gamma Adjusts the Gamma Level. Press orto select it. 5 steps
Black Level Adjusts the Black Level. Press orto select it. O IRE and 7.5 IRE.
Video Filter Adjusts preset video filter
function.
Video Format Adjusts Video format. Press orto select it. AUTO, PAL-M, PAL-N
Press orto select it. Sharpest, Clear, Standard, Smooth
User Color Define
User Color Temp. Sub menu
(In PC, Video and TV Mode)
Function operation 28
1. Press “MENU ” or “MENU ” buttons on the Remote
Control or “Menu” button on Control Panel to choose the
“Advance
2. Pressor
Pressorto choose “User” item first. (Then the User Color
Temp. item activated)
3. Pressorto select “User Color Temp.” item and press
or “ENTER” to enter it.
4. The sub menu appears as illustrated.
” main menu page.
o select the “Color Temp.” option and
User’s manual
A
5.
djust the Red, Green and Blue value to change the picture color
you preferred.
6. The color setting will automatically store in the memory in each
adjustment.
Option Function Operation Range
Red Adjusts the amount of
red in the image.
Green Adjusts the amount of
green in the image.
Blue Adjusts the amount of
blue in the image.
Useorto select a value. 0 to 100
Useorto select a value. 0 to 100
Useorto select a value. 0 to 100
Sound Adjustment in OSD (PC, Video and TV mode)
Audio Menu
1. Press “MENU ” or “MENU ” buttons on
the Remote Control or “Menu” button on
Control Panel to choose the “AUDIO
main menu page as illustrated.
2. Pressorbuttons to choose the option items you
want to adjust.
3. When you finish selecting a desired option in the
Option Function Operation Range
Volume Adjusts volume value. Stronger volume.
Treble Adjusts Treble (high sounds). Stronger treble.
Bass Adjusts Bass (low sounds). Stronger bass.
Balance Adjusts volume balance (left and
right volumes).
Mute Mutes the sound. Useorfor switching. On and Off
WOW Activates the WOW audio
function.
“AUDIO” menu screen, use orto change the
value or select it for that option.
0 to 63
Weaker volume.
-7 to +7
Weaker treble.
-7 to +7
Weaker bass.
Higher volume from right hand
speaker.
Higher volume from left hand speaker.
Useorfor switching. On and Off
-63 to +63
”
WOW, SRS and (o) symbol are trade marks of SRS Labs, Inc. WOW Technology is incorporated under license from
SRS Labs, Inc.
Function operation 29
BENQ Corporation
Utility Setting (PC and Video Mode)
Utility menu (In PC and Video Mode)
1. Press “MENU ” or “MENU ” buttons on the
Remote control or “Menu” button on control panel
to choose the “Utility
2. Pressorbuttons to choose the option items you
want to adjust.
3. When you finish selecting a desired option in the
“Utility” menu screen, use orto select it for that
option.
“main menu page.
Option Function Operation Range
Sleep Timer Set the Sleep Timer to
automatically turn off the Set.
Backlight Adjusts the panel backlight. Useorto select it. Bright, Normal, Soft Light
Reset to
default
Reset to default: This will allow you to reset ALL functions on all menus to default value.
Restores all functions to default
values.
Useorto select it. 0,30,60,90,120,150 Min.
Useor “ENTER”
confirm action.
BACKLIGHT
To adjust the panel backlight, you also can directly press the
“BACKLIGHT” button on the Remote Control.
BACK
LIGHT
OSD Function Setting (PC, Video and TV mode)
OSD setting menu
(In PC , Video and TV mode)
1. Press “MENU ” or “MENU ” buttons on the Remote
Control or “Menu” button on Control Panel to choose the
“OSD Setting”
2. Pressorbuttons to select OSD option items.
3. Use orto switch between available choices for the selected
option or change the option value.
main menu page as illustrated.
Function operation 30
User’s manual
Option Function Operation Range
OSD Position Adjusts the OSD showing
position on the screen.
OSD Background Adjusts the OSD background
setting.
OSD Timeout Adjusts the OSD disappearing
time if you do not take any
action.
OSD Language Selects the OSD language. Useorto select it. English, French, Spanish,
Useorto select it. There are 9 positions
Useorto select it. Opaque and Translucent
Useorto change
the value.
5~255 sec.
German, Italian, Traditional
Chinese, Simplified Chinese,
Portuguese, and Japanese.
PC, Video and TV Signal Information
Status menu (In PC Mode)
1. Press “MENU ” or “ MENU ” buttons on the
Remote control or “Menu” button on control panel to
Status menu (In Video Mode)
Status menu (In TV Mode)
choose the “Status”
2. The Status information shown as illustrated in different
Mode. (PC, Video and TV)
main menu page.
Function operation 31
BENQ Corporation
INFO
To display the signal information (TV, AV or PC) on the screen, you can also press
the “INFO” button on the Remote Control.
INFO
How to Use Hot Key Function for Adjustment
1. You can directly press””or”” buttons to
↓
↓
↓
↓
↓
start the hot key function
2. Pressorbuttons to adjust the option
value .
3. The hot key function sequence appears as
illustrated.
Function operation 32
User’s manual
Utility Setting (TV mode only)
Utility menu
1. Press “MENU ” or “MENU ” buttons
on the Remote control or “Menu” button
on control panel to choose the
“Utility
TV mode.
2. Pressorto select option items and
pressor “ENTER” to select or enter it.
Option Function Operation Range
Sleep Timer Adjusts sleep timer to automatically
turn off the TV set.
Backlight Adjusts the panel backlight. Useorto select it. Bright, Normal, Soft Light
More TV Options Adjusts the advanced TV function. Use “ENTER” orto enter the
Reset to default. Restores all functions to default
values.
More TV Options setting (TV mode only)
Useorto select it. 0,30,60,90,120,150 Min.
sub menu.
Press or “ENTER” to execute.
1. Press “MENU ” or “MENU ”buttons on the Remote
control or “Menu” button on control panel to choose the
“Utility
2. Pressor buttons to select “More TV Options” and
press or “ENTER” button to enter the sub menu as
illustrated.
3. Pressor buttons to select items and Press or
“ENTER” button to select or execute it.
” main menu page when in
” main menu page when in TV mode.
* The option items may be a little different in different TV systems.
Option Function Operation Range
MTS Selects TV audio system. Useto select it.
STEREO, SAP, MONO (NTSC)
STEREO, MONO, LANGUAGE
A, LANGUAGE B (PAL)
Function operation 33
BENQ Corporation
TV/CATV Selects the mode for TV and Cable TV
system.
Useto select it.
AIR, CATV STD, CATV HRC,
CATV IRC
Add Channel Adds weak or additional channels or
Useorto select it.
Added and Erased
erases unwanted channels from TV
memory.
Auto Scan
Channel
The tuner will search through all
available channels in your area and add
Use “ENTER” orto
search the channel
them to the TV’s memory.
* Only USA has CATV HRC and CATV IRC options (NTSC system)
SCAN TV/CATV CH+/-
SCAN
CH+/-
TV/CATV
1. For auto channel search, you can also directly press the “SCAN” button on the Remote Control.
2. To add or erase channel, you can also directly press the “CH+/-“ button on the Remote Control.
3. To choose the TV/CATV system, you can also directly press the “TV/CATV” button on the Remote
Control.
Note:
To interrupt the Channel search process, press “SCAN” again.
Function operation 34
User’s manual
TV system with Closed Caption and V-chip (USA only)
Set Up Utility function
1. Press “MENU ” or “MENU ” buttons on the
Remote control or “Menu” button on control panel to
choose the “Utility
NTSC system.
2. Pressorto select option items and pressor
“ENTER” to select or enter it.
Option Function Operation Range
Sleep Timer Adjusts sleep timer to
automatically turn off the TV
set.
Backlight Adjusts the panel backlight. Useorto select it. Bright, Normal, Soft Light
Close Caption Adjusts Close Caption setting. Useorto change the
V-C H I P B l oc ki ng
Setting
More TV
Options
Reset to default. Restores all functions to
More TV Options setting (USA NTSC system only)
Adjusts V-Chip setting. Use “ENTER” orto
Adjusts the advanced TV
function.
default values.
Useorto select it. 0,30,60,90,120,150 Min.
CC 1, C C2 , CC 3, C C4 , T 1 , T 2, T 3 , T4 , Of f
setting.
enter the sub menu.
Use “ENTER” orto
enter the sub menu.
Use or “ENTER” to
execute it. .
1. Press “MENU ” or “MENU ” buttons on the
Remote control or “Menu” button on control panel to
” main menu page when in USA
choose the “Utility
2. Pressor buttons to select “More TV Options” and
press or “ENTER” button to enter the sub menu as
illustrated.
3. Pressor buttons to select items and Press or
Option Function Operation Range
MTS Selects TV audio system. Useto select it. STEREO, SAP, MONO
TV/CATV Selects the mode for TV and Cable TV system. Useto select it. AIR, CATV STD, CATV
Add Channel Adds weak or additional channels or erases
unwanted channels from TV memory.
Auto Scan
Channel
Change
Blocking
Password
The tuner will search through all available channels
in your area and add them to the TV’s memory.
Changes the V-Chip password setting. Use “ENTER” orto
“ENTER” button to select or execute it.
Useorto select it. Added and Erased
Use “ENTER” orto
search the channel
change the password.
” main menu page.
HRC, CATV IRC
Function operation 35
BENQ Corporation
t
Set Up CLOSED CAPTION
SETTING CLOSED CAPTION
This TV set is equipped with an internal Closed Caption decoder. “Closed Caption” is a system which allows
conversations, narration, and sound effects in TV programs and home videos to be viewed as captions on the
TV screen (see the illustration).
Not all the programs and videos will offer closed captioning. Please look for the “ ” symbol to ensure
that captions will be shown.
Utility menu
1. Press “MENU ” or “MENU ” buttons on the Remote
Control or “Menu” button on Control Panel to choose the
“Utility
2. Press orbuttons to select “Closed Caption” item.
3. Use or
option or change the option value. (CC1~CC4, T1~T4, off)
” main menu page as illustrated.
o switch between available choices for the selected
Notes:
Closed Caption may malfunction (white blocks, strange characters, etc.) if signal conditions are poor or if there
are problems at the broadcast source. This does not necessarily indicate a problem with your set.
If no TEXT broadcast is being received while viewing in the [TEXT] mode, the screen may become dark and
blank for some programs. Should this occur, switch the Closed Caption mode to OFF.
Set Up V-CHIP
SETTING V-CHIP
This function allows TV programs to be restricted and TV usage to be controlled based on FCC data. It
prevents children from watching violent or sexual scenes that may be harmful.
Restriction of TV programs includes two ratings that contain information about the program: the MPAA rating
and the TV Parental Guidelines. The MPAA rating is restricted by age. TV Parental Guidelines are restricted by
age and content.
Since a TV program may use either the MPAA rating or the TV Guidelines, both should be adjusted for
complete control.
[1] MPAA RATING
RATING
Age base
Function operation 36
G GENERAL AUDIENCES. All ages admitted.
PG
PG-13 PARENTAL STRONGLY CAUTIONED. Some material may be
PARENTAL GUIDANCE SUGGESTED. Some material may not be
suitable for children.
inappropriate for children under 13.
User’s manual
MPAA RATING (examples)
Example 1:
PG-13 in the age-based rating is blocked, this will also automatically block the higher ratings R, NC-17 and X.
Example 2:
R in the age-based rating is blocked, this will also automatically block the higher ratings NC-17 and X.
Note: The MPAA rating is only age-based.
[2] TV PARENTAL GUIDELINES
RATING
Age
Base
V: The content rating is always blocked.
TV-Y (All children) V V V V V
TV-Y7 (Direct to
Older Children)
TV-G (General
Audience)
TV-PG (Parental
Guidance
Suggested)
TV-14 (Parents
Strongly
Cautioned)
TV-MA (Mature
Audience Only)
R RESTRICTED. Under 17 requires accompanying parent or adult
guardian.
NC-17 NO ONE 17 AND UNDER ADMITTED.
X X is an older rating that is unified with NC-17 but may be encoded in
the data of older movies.:
Content base
FV
(Fantasy
Violence)
X V V V V
V V V V
X X X X
X X X X
X X X
V (Violence) S (Sexual
Situation)
L (Adult
Language)
D (Sexually
Suggestive
Dialog)
X: you can set the content rating.
TV PARENTAL GUIDELINES (examples)
Example 1:
When TV-Y7 in the age-based rating is set to BLOCK, this will automatically block the higher ratings: TV-G, TV-PG,
TV-14 and TV-MA. In addition, D, L, S, Settings are blocked automatically and FV can be set manually.
Age-based ratings can be modified by the content-based ratings, but only in the combinations indicated by an X
in the table above.
Choosing a lower age-based rating blocks the higher age-based ratings regardless of content rating settings.
Function operation 37
BENQ Corporation
Adjust V-Chip setting
[1] FIRST TIME SET UP V-CHIP
Utility menu
1. Press “MENU ” or “MENU ”buttons on the Remote
Control or “Menu” button on Control Panel to choose the
The sequence is as follows:
Back to new password
“Utility
2. Pressorbuttons to select “V-CHIP Blocking Setting…”
item and Pressor “ENTER” to enter the sub menu.
3. You should set the password before using this function.
” main menu page as illustrated.
Input 4 digit.
Password match
Password mismatch.
4. Press orbuttons to select “MPAA” or “TV Guide” items.
5. Use orto switch between available choices for the selected option or change the option value.
Function operation 38
User’s manual
[2] MPAA RATING
1. Repeat the steps 1 and 2 of [1] FIRST TIME SET UP V-
CHIP
2. “Enter Password” will be displayed. Input the password you
have set before. Input the 4-digit secret number by using the
channel select keys.
3. Press orbuttons to select “MPAA” item.
4. Use orto switch between available choices for the
selected option.
[3] TV GUIDELINES
1. Repeat the steps 1 and 2 of [2] MPAA RATING.
2. Pressorbuttons to select “TV Guide” setting.
3. Each time you select different settings, it display different V(FV),
L, S, D settings.
4. Press orbuttons to select V (FV), L, S, D items and
pressorto select Block or Show.
[4] CANCELING THE V-CHIP BLOCK SCREEN WHILE V-CHIP BLOCK IS ACTIVATED
1. “The program is blocked” will be displayed if you watch the program with Program Rating data as same as you
configured.
2. Input the 4-digit secret number by using the channel select keys; V CHIP BLOCK is temporarily canceled. If you
input an incorrect secret number, it cannot be unblocked.
3. The sequence is as follows:
Incorrect password
[5] CHANGING OR CLEARING THE SECRET NUMBER
Correct password
1. Press “MENU ” or “MENU ” buttons on the
Remote control or “Menu” button on control panel to
choose the “Utility
2. Pressor buttons to select “More TV Options”
and press or “ENTER” button to enter the sub menu
as illustrated.
3. Press orbuttons to select the Change Blocking
Password item and pressor “ENTER” to execute it.
4. The sequence is as follows:
” main menu page.
Function operation 39
BENQ Corporation
Incorrect password
Press “EXIT” button
Correct password
Back to new password Password mismatch
Password match
If you forget the password you set before, you can press “2” “4” “6” “8” when the “old password” information is
displayed, then you can set a new password.
Function operation 40
User’s manual
TROUBLESHOOTING
Before you call for service, determine the symptoms and make a few
simple checks as shown below.
TV set:
SYMPTOMS POSSIBLE CAUSES
Power does not turn ON Ensure whether the power plug is securely inserted into the
receptacle.
There is no picture or sound Ensure the LCD TV power is ON (Indicated by the blue LED on the
front of the unit)
Reception other than those of broadcasting stations can be
considered.
Check for connection to wrong terminal or for wrong input mode.
Ensure the communication cable is properly connected between the
Video Source and the LCD TV.
There are spots on the screen Check whether your AV equipments is affected by interference from
automobiles, trains, high-voltage transmission lines, neon signs or
other potential sources of interference.
Degraded colors or tints Check whether all image adjustments have been properly adjusted.
Improper screen position or size Check whether screen position and size have been properly adjusted.
The image appears distorted Ensure the TV's aspect ratio is properly set.
The image is purple Check the "Component" or "RGB" setting in the LCD TV and set it
for the appropriate signal type.
The image appears too bright, and
there is a loss of definition in the
brightest areas of the image.
The image appears too 'washed out',
or the darkest areas of the image
appear too bright.
If “xxx searching” appears, the image
or signal cannot be produced by
display.
Power indicator lamp appears flashes
blue
“Out of range” appears Check whether the input signal is acceptable to the display.
Remote Control does not function
properly
There is no picture or sound, just
noise.
Picture is not clear. Make sure the antenna cable is properly connected.
No sound Check whether you have selected “Mute” for Audio setting.
Check whether the contrast setting is too high.
The DVD player is set for a high-level output.
The video signal has not been terminated properly somewhere in the
system.
Check whether Brightness is set too high.
The DVD player may be set at too high a brightness level.
Check the cable for disconnection.
Check for connection to proper terminal or for proper input mode.
Check the cable for disconnection.
Check whether the screen is on power saving status (DPMS)
Check for incorrect battery orientation.
Check for dead batteries
Check for distance and angle from the display.
Check whether remote control is properly being pointed at the
display’s receiver.
Check for any obstacle between the remote control and the display.
Check that the remote sensor window is not under strong
fluorescent lighting.
Make sure the antenna cable is properly connected.
Consider whether TV signals are being properly received.
Consider whether TV signals are being properly received.
Make sure the volume is not set to minimum.
Make sure that headphones are not connected.
Check cables for disconnection.
Troubleshooting 41
BENQ Corporation
Some lines occur at the bottom of
pictures when playing VHS tapes.
VHS tapes sometimes can't provide stable pictures when playing or
pausing. And the unstable pictures may cause the LCD TV to display
incorrectly. If this situation happens, please press "i" key on the
remote controller to let the LCD TV check the signal again and
display the pictures correctly.
The video picture is abnormal. Press "i" key on the remote control to force the LCD TV to check
the signal system again and auto select the correct video system.
Antenna:
The picture is not sharp or the picture
moves.
The picture is doubled or tripled. Make sure the antenna is facing the right direction.
The picture is spotted. There may be interference from automobiles, trains, high voltage
There are stripes on the screen or
colors fade.
The reception may be weak.
The state of the broadcast may also be bad.
Make sure the outside antenna is not disconnected.
Make sure the antenna is facing the right direction.
There may be reflected electric waves from mountains or buildings.
lines, neon lights, etc.
There may be interference between the antenna cable and power
cable. Try positioning them further apart.
Is the unit receiving interference from other devices? Transmission
antennas of radio broadcasting stations and transmission antennas of
amateur radios and cellular phones may also cause interference.
Use the unit as far apart as possible from devices that may cause
possible interference.
Troubleshooting 42
User’s manual
SPECIFICATIONS
Model Name H200
Size 20.1”
Aspect Ratio 4:3
Resolution 800 x 600
Pixel Pitch 0.51 x 0.51 (mm)
Brightness 500 nit
Contrast Ratio 500:1
Audio amplifier 3W x 2
Signal Input Terminal
Output Terminal Headphone (Mini-jack) x 1
Video Color System NTSC, PAL, PAL60, SECAM, Modified NTSC
Scanning format 525i (480i), 625i (575i), 525p (480p), 750p (720p), 1125i(1080i)
PC Horizontal Frequency 15.7 ~ 60 kHz
PC Vertical Frequency 50 ~ 75 Hz
Power supply DC 19 V, AC 100–240 V, 50/60 Hz
Accessories
Note:
TV:
TV Tuner x1
Video:
Composite video input (RCA pin) x 1
S-Video (Mini din 4 pin) x 1
Component video input (RCA pin) x1
Audio input (L/R RCA pin) x 2
PC:
PC D-sub (Mini D-sub 15 pin) x 1
PC Audio (M3.5 jack) x 1
19VDC 0.6A output
Manual, Remote control, Batteries x 2, AC Power adapter, AC cord,
Composite video cable, S-video cable, PC D-sub cable.
Design and specifications are subject to change without notice. Weight and dimensions shown are approximate.
Specifications and external appearance may be changed for the sake of improvement.
Specifications 43
BENQ Corporation
FRONT ACRYLIC SHEET CLEANING
A liquid detergent and water solution is the recommended cleaner for the ACRYLIC sheet. While
the use of abrasive cleaners is not recommended, the following brand name cleaners have been
tested and found to work well on coated surfaces.
CAUTION: some of these cleaners may attack the uncoated side or edges of the sheet.
Fantastik household cleaner
Formula 409 household cleaner
Glass Plus cleaner
Mr. Clean household cleaner
Top Job household cleaner
Windex window cleaner
Never use mechanical methods, such as razor blades, putty knives or scrapers on the surface of
the sheets. This may lead to gouging and removal of abrasion resistant coating.
Front acrylic sheet cleaning 44
User’s manual
SUPPORTED OPERATING MODES
Resolution Horizontal
Frequency(Khz)
720×400 31.47 70.08 25.17 DOS
640×480 31.50 60.00 25.18 DOS
640×480 35.00 67.00 30.24 Mac. (SOG)
640×480 37.50 75.00 31.50 VESA
640×480 37.86 72.81 31.50 VESA
800×600 35.16 56.25 36.00 VESA
800×600 37.90 60.32 40.00 VESA
800×600 46.90 75.00 49.50 VESA
800×600 48.08 72.19 50.00 VESA
832×624 49.00 74.00 57.27 Mac. (H+V)
1024×768 48.40 60.00 65.00 VESA
1024×768 56.50 70.00 75.00 VESA
1024×768 60.00 75.00 78.75 VESA
Vertical
Frequency(Hz)
Dot Clock
Frequency(Mhz)
Remark
* We suggest you set the signal resolution as native resolution (800x600). If not, it may not show
fine detail with sufficient clarity.
Supported operating modes 45
BENQ Corporation
DIMENSIONAL DRAWINGS
Dimensional drawings 46
