Benq GS1 User Manual

GS1

Digital Projector

User Manual

Copyright © 2016 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

All other logos, products, or company names mentioned in this manual may be the registered trademarks or copyrights of their respective companies, and are used for informational purposes only.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BenQ Corporation is under license.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BenQ Corporation to notify any person of such revision or changes. This user manual aims to provide the most updated and accurate information to customers, and thus all contents may be modified from time to time without prior notice. Please visit http://www.benq.com for the latest version of this manual.

Warranty

BenQ warrants this product against any defects in material and workmanship, under normal usage and storage.

Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ’s only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in accordance with BenQ’s written instructions, especially the ambient humidity must be in-between 10% and 90%, temperature in-between 0°C and 35°C, altitude lower than 3000 meters, and avoiding to operate the projector in a dusty environment. This warranty gives you specific legal rights, and you may have other rights which vary from country to country.

For other information, please visit www.BenQ.com.

Statement regarding hyperlinks and third-party websites

BenQ is not responsible for the content of the websites or of similar resources, which are maintained and controlled by third parties, that may be linked from this product. Providing links to those websites or to similar resources does not mean that BenQ makes any warranty or representation to their content by expression or by implication.

Any third party content or service preinstalled in this product is provided "as is". BenQ does not, by expression or by implication, make any warrant to the content or to the services provided by third parties. BenQ does not warrant or guarantee that the content or services provided by third parties are accurate, effective, most up-to-date, legal, or complete. Under no circumstances shall BenQ be liable for the content or services provided by third parties including their negligence.

Services provided by third parties may be terminated temporarily or permanently. BenQ does not warrant or guarantee that any content or services provided by third parties are in good condition at any time, and is not liable for the termination of the said content and services.

In addition, BenQ is not involved in any transactions you conduct in the websites or similar resources maintained by third parties.

You should contact the content or service providers for any questions, concerns, or disputes.

Table of contents

Copyright and disclaimer ...........................................................................................................................................................................2

Copyright................................................................................................................................................................................................................... 2

Disclaimer.................................................................................................................................................................................................................. 2

Warranty.................................................................................................................................................................................................................... 2

Statement regarding hyperlinks and third-party websites .............................................................................................................................. 3

Package contents .......................................................................................................................................................................................10

Standard accessories ............................................................................................................................................................................................. 10

Introduction ................................................................................................................................................................................................12

Projector features .................................................................................................................................................................................................. 12

Front and upper side view .................................................................................................................................................................................................................... 14

Controls and functions ......................................................................................................................................................................................... 18

Control panel...........................................................................................................................................................................................................................................18

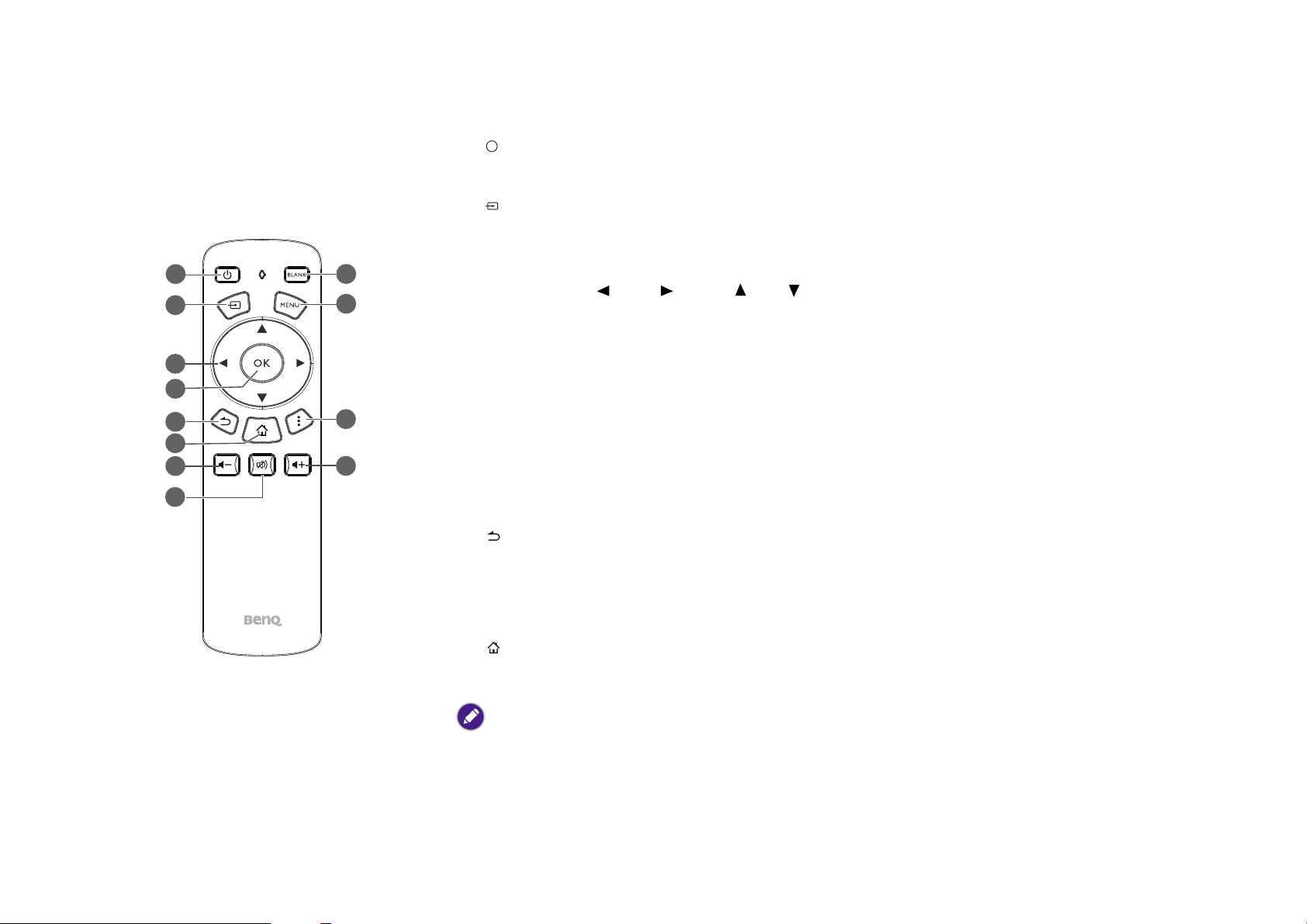

Remote control ....................................................................................................................................................................................................................................... 20

Installation ...................................................................................................................................................................................................24

Choosing a location...............................................................................................................................................................................................24

Projection dimensions............................................................................................................................................................................................................................ 26

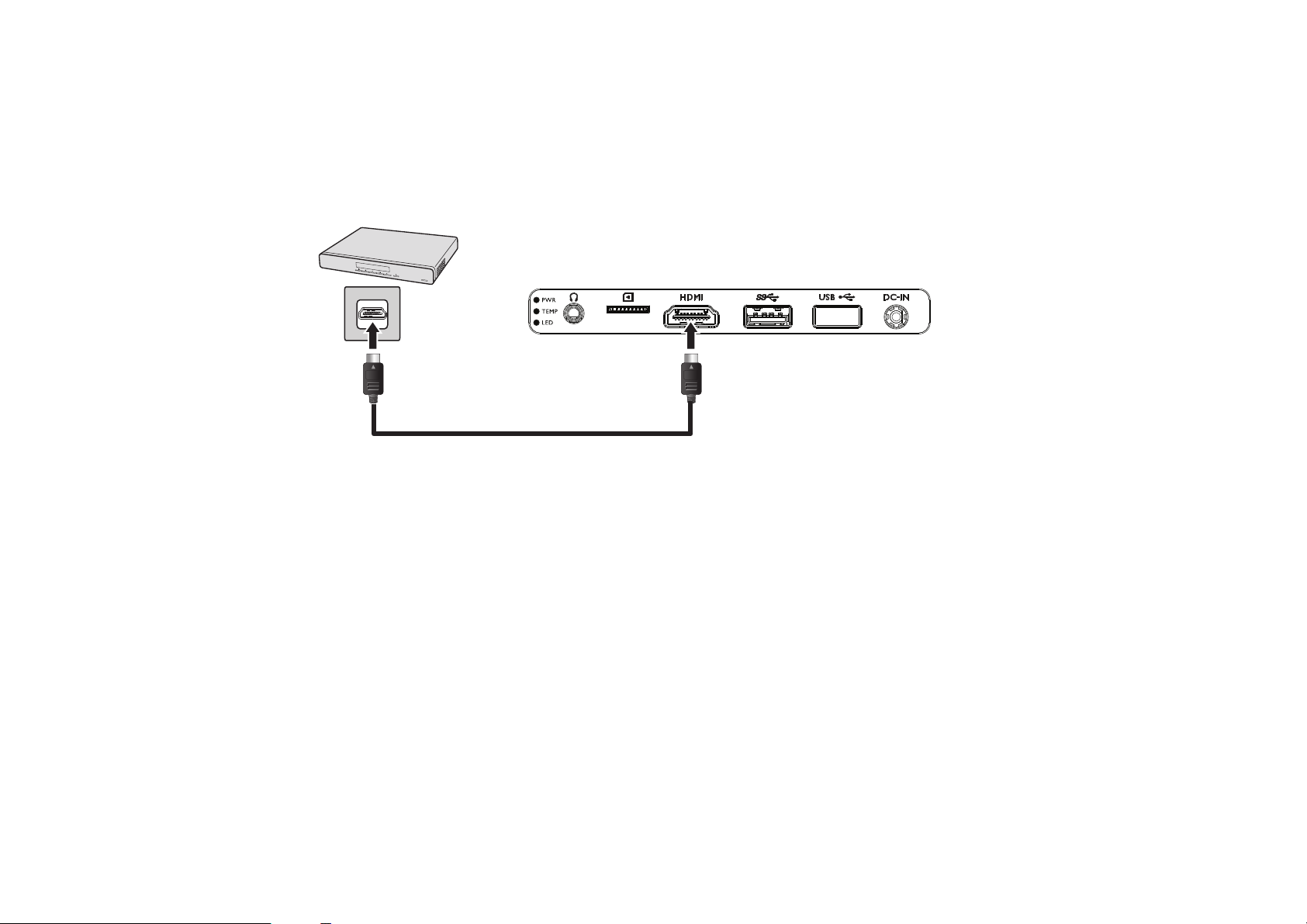

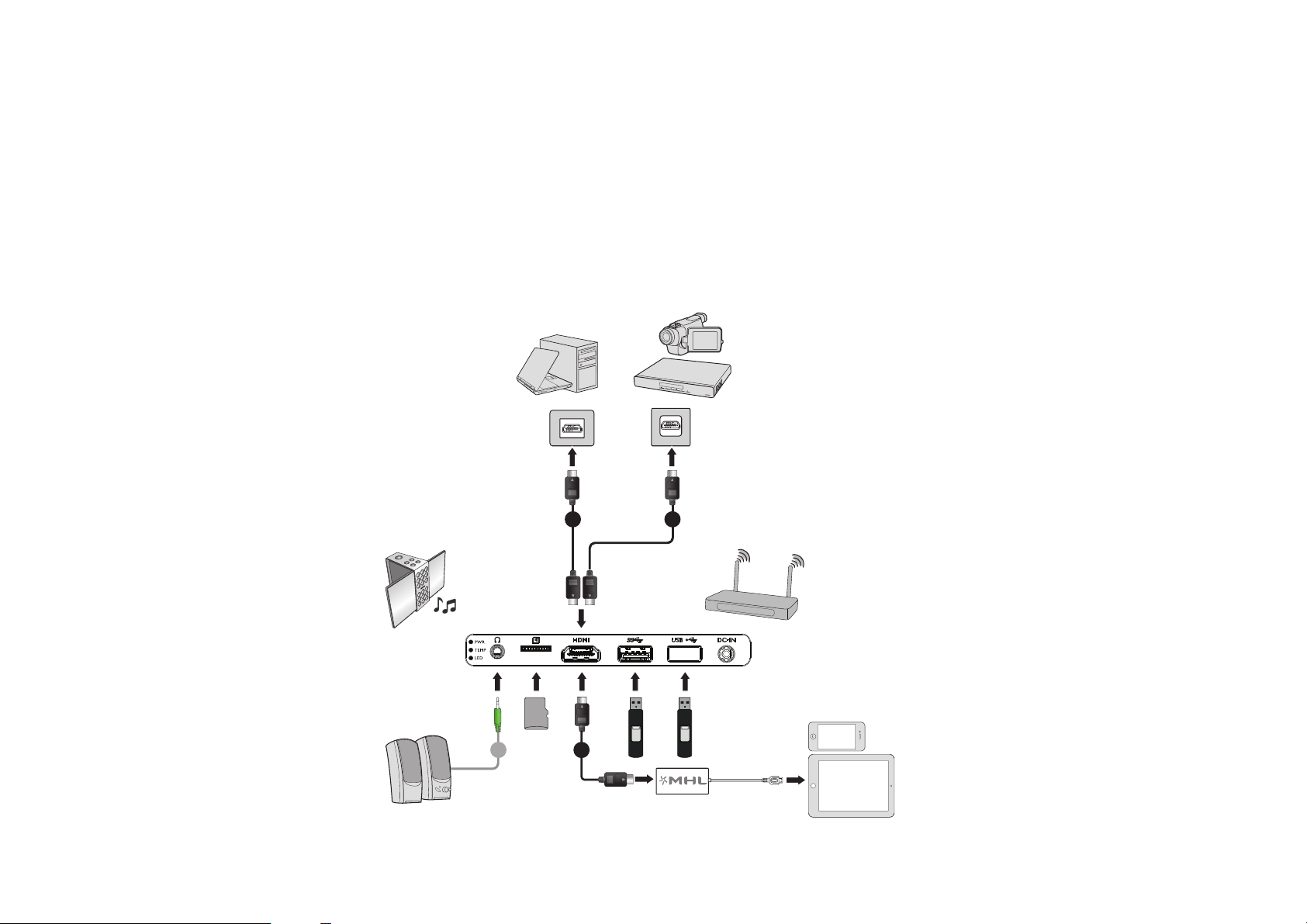

Connecting with video equipment ......................................................................................................................................................................................................29

Connecting a microSD memory card................................................................................................................................................................................................. 32

Operations ..................................................................................................................................................................................................33

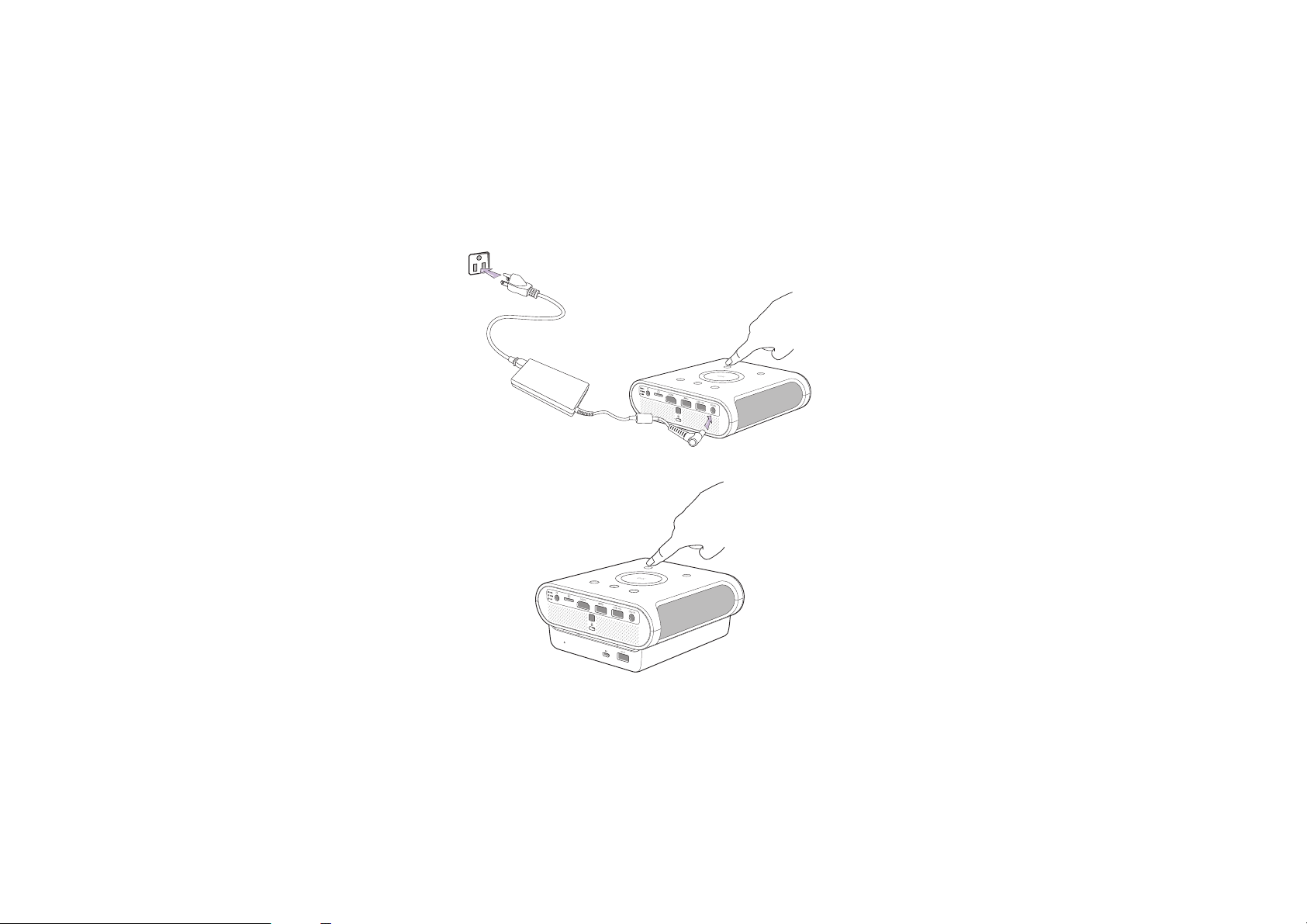

Starting up the projector..................................................................................................................................................................................... 33

Operating in a high altitude environment........................................................................................................................................................ 39

Using the Kensington lock.....................................................................................................................................................................................................................41

Selecting an input source..................................................................................................................................................................................... 41

Adjusting the projection angle..............................................................................................................................................................................................................43

Fine-tuning the image clarity .................................................................................................................................................................................................................44

Correcting keystone ...............................................................................................................................................................................................................................44

Bluetooth pairing ................................................................................................................................................................................................... 45

Pairing with a Bluetooth speaker or headphones ............................................................................................................................................................................45

Ending a Bluetooth connection ............................................................................................................................................................................................................46

Deactivating the Bluetooth speaker or headphones .......................................................................................................................................................................46

BenQ Launcher ..................................................................................................................................................................................... 47

Operating under the BenQ Launcher mode .............................................................................................................................................. 47

Accessing the BenQ Launcher main page .....................................................................................................................................................................................47

Using the BenQ Launcher applications ..........................................................................................................................................................................................48

Accessing the BenQ Launcher menus............................................................................................................................................................................................48

Using the BenQ Launcher Settings page........................................................................................................................................................................................51

Using the All Apps page .........................................................................................................................................................................................................................53

Changing network settings ....................................................................................................................................................................................................................54

Inputting text ............................................................................................................................................................................................................................................54

Navigating the OSD menus .................................................................................................................................................................... 56

About the OSD menus ........................................................................................................................................................................................ 56

Using the OSD menu............................................................................................................................................................................................ 58

Accessories ................................................................................................................................................................................................. 65

GS1 Battery ............................................................................................................................................................................................................ 65

Rear View ..................................................................................................................................................................................................................................................65

Removing the battery .............................................................................................................................................................................................................................68

Instructions and requirements for handling the battery ................................................................................................................................................................ 69

Installing the protective case ................................................................................................................................................................................................................ 73

Maintenance ................................................................................................................................................................................................74

Care of the projector............................................................................................................................................................................................74

Cleaning the lens ..................................................................................................................................................................................................................................... 74

Cleaning the projector case.................................................................................................................................................................................................................. 74

Transporting the projector................................................................................................................................................................................................................... 75

LED Lamp information..........................................................................................................................................................................................75

Getting to know the lamp hour........................................................................................................................................................................................................... 75

Extending lamp life .................................................................................................................................................................................................................................. 75

Troubleshooting .........................................................................................................................................................................................79

Specifications ...............................................................................................................................................................................................81

Projector specifications ........................................................................................................................................................................................................................ 81

6/14/16

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

1. Please read this user manual before you operate your projector. Keep this manual in a safe place for future reference.

2. Always place the projector on a level, horizontal surface during

operation.

- Do not place the projector on an unstable cart, stand, or table as

it may fall and be damaged.

- Do not place inflammables near the projector.

- Do not use if tilted at an angle of more than 10 degrees left to

right, nor at angle of more than 15 degrees front to back.

3. Do not store the projector on end vertically. Doing so may cause the projector to fall over, causing injury or resulting in damage.

4. Do not place the projector in any of the following environments:

- Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector.

- Locations where temperatures may become excessively high, such as the inside of a car with all windows closed.

- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shorten the projector’s lifespan and darken the screen.

- Locations near fire alarms.

- Locations with an ambient temperature above 35°C/95°F.

- Locations where the altitudes are higher than 3000 m (10000

feet).

5. Do not block the vents holes while the projector is on (even in standby mode).

- Do not cover the projector with any item.

- Do not place the projector on a blanket, bedding or any other soft surface.

6. In areas where the mains power supply voltage may fluctuate by ±10 volts, it is recommended that you connect the projector through a power stabilizer, surge protector or uninterruptible power supply (UPS) as appropriate to your situation.

8. Do not place liquids near or on the projector. Liquids spilled into the projector will void your warranty. If the projector does become wet, disconnect it from the power point and call BenQ to have the projector repaired.

9. Do not look straight into the projector lens during operation. It may harm your sight.

10. Do not operate the projector lamp beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause a lamp to break on rare occasions.

7. Do not step on the projector or place any objects upon it.

11. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

12. This projector is capable of displaying inverted images for ceiling installation.

13. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts.

Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

Please keep the original packing for possible future

shipment. If you need to pack your projector after use, adjust the projection lens to an appropriate position, put the lens cushion around the lens, and fit the lens cushion and projector cushion together to prevent damage during transportation.

Moisture condensation

Never operate the projector immediately after moving it from a cold location to a hot location. When the projector is exposed to such a change in temperature, moisture may condense on the crucial internal parts. To prevent the projector from possible damage, do not use the projector for at least 2 hours when there is a sudden change in temperature.

Avoid volatile liquids

Do not use volatile liquids, such as insecticide or certain types of cleaner, near the projector. Do not have rubber or plastic products touching the projector for a long time. They will leave marks on the finish. If cleaning with a chemically treated cloth, be sure to follow the cleaning product’s safety instructions.

Disposal

This product contains the following materials which are harmful to human bodies and environment.

• Lead, which is contained in solder.

• Mercury, which is used in the lamp.

To dispose of the product or used lamps, consult your local environment authorities for regulations.

14. When you think service or repair is required, take the projector only to a suitably qualified technician.

The illustrations and the images shown in this document

are for your reference. The actual content may vary by the product supplied for your region.

Package contents

GS1 Projector

GS1 Battery

Remote Control

Adapter

HDMI Cable

Protective Case

Carefully unpack and verify that you have the items below. Some of the items may not be available depending on your region of purchase. Please check with your place of purchase.

Standard accessories

Carry Bag

Batteries (AAA) x 2

GS1

Quick Start Guide

Warranty Ca rd

• Some of the accessories may vary from region to region.

• The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Introduction

Projector features

• Full HD compatible

The projector is compatible with Standard Definition TV (SDTV) 480i, Enhanced Definition television (EDTV) 480p, 576i, 576p and High Definition TV (HDTV) 720p, 1080i/p 60Hz formats, with the 1080p format providing clear image reproduction.

• Good picture quality

The projector provides excellent picture quality due to its resolution, 500 lm brightness, high contrast ratio, vivid color and rich gray-scale reproduction.

• Built-in Bluetooth speakers

The two built-in 5W chamber speakers feature the capability of wirelessly connecting to any Bluetooth-enabled device media player to broadcast any music played by the device.

• WLAN capabilities

The projector is able to connect to any WLAN access point to access the internet and utilize streaming apps.

• Wide variety of inputs and video formats

The projector supports a wide variety of inputs for connection to your video, computer, and smart equipment, including personal computer (both Mac and PC) and HDMI source.

• Convenient Android-based BenQ Launcher

The projector operates using the Android-based BenQ Launcher which complemented by a WLAN connection allows you to project/broadcast media via embedded or downloaded streaming apps.

• Advanced LED light source

The projector features a long lasting LED lightbulb that provides a longer lifespan than traditional bulbs.

• Short throw lens

The projector provides a roughly 80" display from a 1 meter distance, that makes it extremely suitable for areas with limited space such as a study, bedroom, or small apartment.

• High brightness

The projector features super high brightness to achieve excellent picture quality in ambient light conditions, outperforming ordinary projectors.
