FP72E S/FP92E S LCD Color Monitor User Manual

Welcome

Copyright

Copyright © 2006 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BenQ Corporation to notify any person of such revision or changes.

Please follow these safety instructions for best performance, and long life for your monitor

Power Safety

• The AC plug isolates this equipment from the AC supply.

• The power supply cord serves as a power disconnect device for pluggable equipment. The

socket outlet should be installed near the equipment and be easily accessible.

• This product should be operated from the type of power indicated on the marked label. If you are not sure of the type of power available, consult your dealer or local power company.

Care And Cleaning

• Cleaning. Always unplug your monitor from the wall outlet before cleaning. Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any liquid, aerosol or glass cleaners.

• Slots and openings on the back or top of the cabinet are for ventilation. They must not be blocked or covered. Your monitor should never be placed near or over a radiator or heat source, or in a built-in installation unless proper ventilation is provided.

• Never push objects or spill liquid of any kind into this product.

Servicing

• Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltages or other risks. If any of the above mentioned misuse or other accident such as dropping or mishandling occurs, contact qualified service personnel for servicing.

Tab le of Contents

Getting started ......................................................................................................................4

Getting to know your monitor ............................................................................................ 6

Front view ....................................................................................................................6

Back view .....................................................................................................................6

How to assemble your monitor hardware ........................................................................... 7

How to detach the stand base ...................................................................................10

How to use the monitor wall mounting kit .............................................................11

Getting the most from your BenQ monitor ...................................................................... 13

How to install the monitor on a new computer ......................................................14

How to upgrade the monitor on an existing computer ..........................................15

How to install on Windows XP system ....................................................................16

How to install on Windows 2000 system .................................................................18

How to complete the Windows Upgrade Device Driver Wizard ...........................19

How to adjust the screen resolution .................................................................................. 21

How to adjust the screen refresh rate ................................................................................ 22

Picture optimization ...........................................................................................................23

How to adjust your monitor ..............................................................................................24

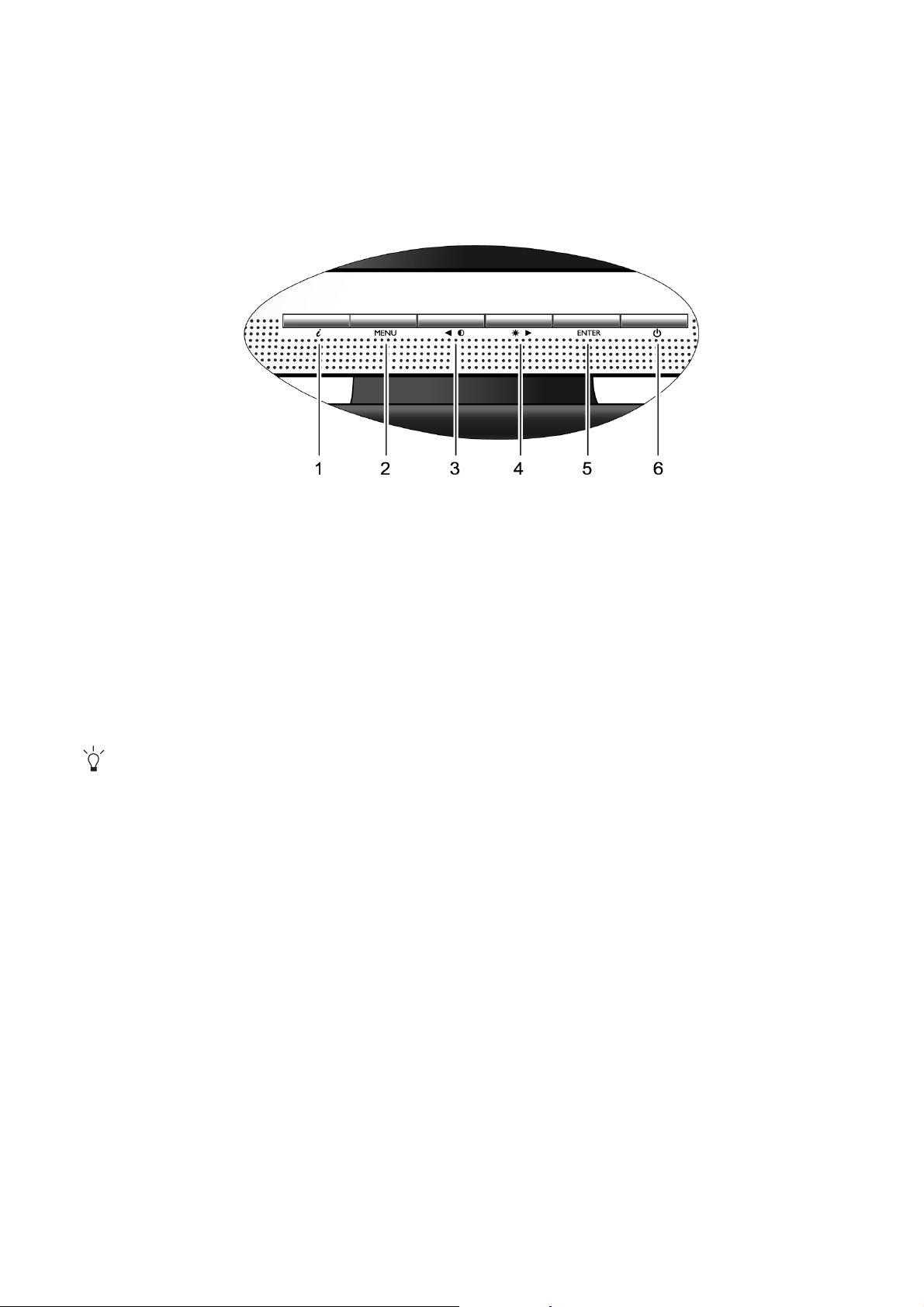

The control panel ......................................................................................................24

On Screen Display (OSD) menu structure ..............................................................25

Hot key mode ............................................................................................................26

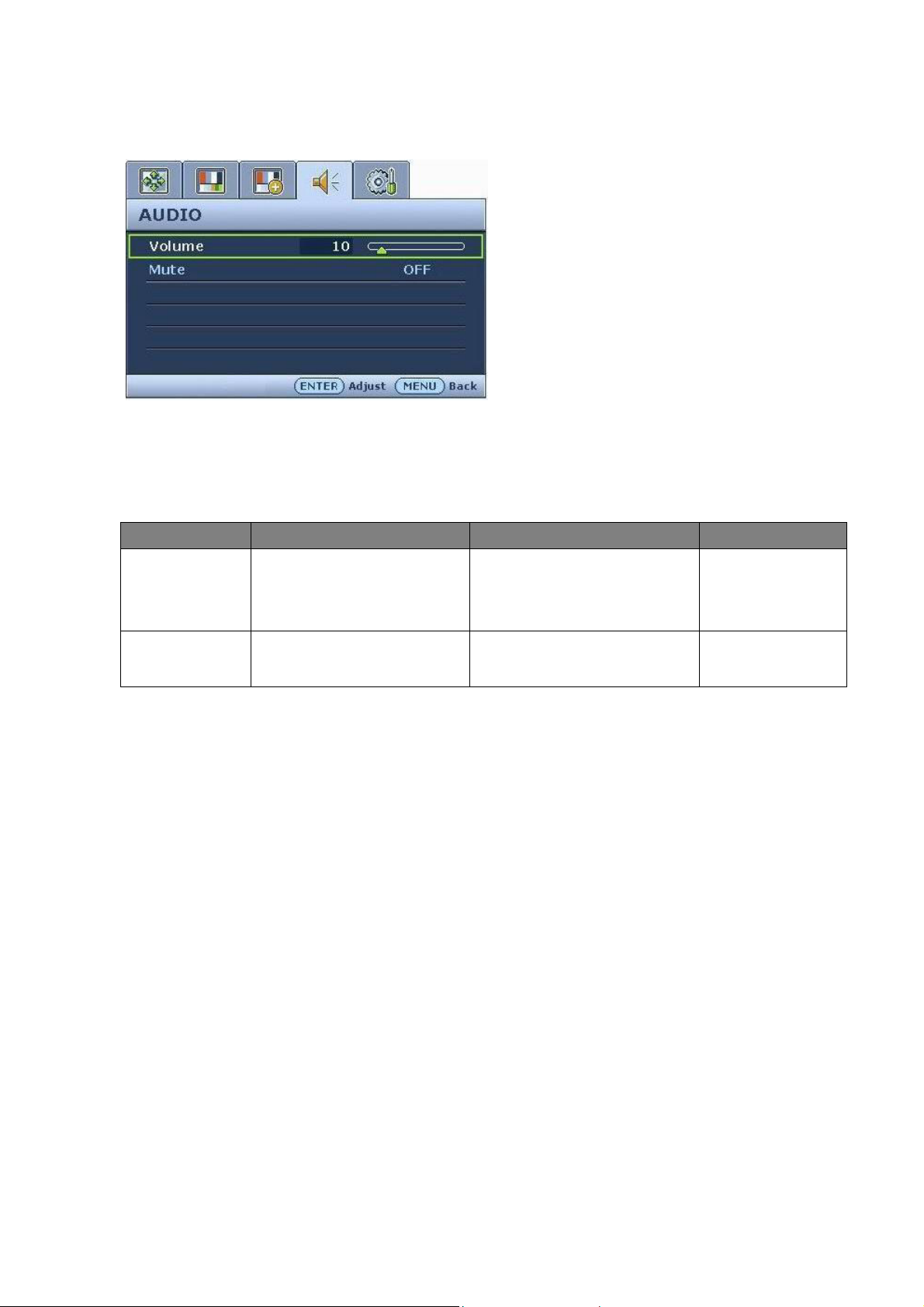

Main menu mode ......................................................................................................27

Troubleshooting ................................................................................................................. 37

Frequently asked questions (FAQ) ...........................................................................37

Need more help? ........................................................................................................38

Supported PC Timings ....................................................................................................... 39

Specifications ...................................................................................................................... 40

Table of Contents 3

1. Getting started

When unpacking please check you have the following items. If any are missing or damaged, please contact the place of purchase for a replacement.

BenQ LCD Monitor

Quick Start Guide

CD-ROM

Power Cord

(Picture may differ from product supplied for your region)

Signal Cable: D-Sub

Signal Cable: DVI-D (optional)

4 Getting started

Audio Cable

Consider keeping the box and packaging in storage for use in the future when you may need to transport

the monitor. The fitted foam packing is ideal for protecting the monitor during transport.

5 Getting started

2. Getting to know your monitor

Front view

Earphone socket

Back view

1. Audio cable socket

6 Getting to know your monitor

2. AC power input jack

3. DVI-D input socket

4. D-Sub input socket

3. How to assemble your monitor hardware

If the computer is turned on you must turn it off before continuing. Do not plug-in or turn-on the power to the monitor until instructed to do so.

1. Attach the monitor base.

Please be careful to prevent damage to the monitor. Placing the screen surface on an object like a stapler or a mouse will crack the glass or damage the LCD substrate voiding your warranty. Sliding or scraping the monitor around on your desk will scratch or damage the monitor surround and controls.

Protect the monitor and screen by clearing a flat open area on your desk and placing a soft item like the monitor packaging bag on the desk for padding.

Gently lay the screen face down on a flat clean padded surface.

While holding the monitor firmly against the desk, pull the monitor stand arm upwards clear of the monitor.

Orient and align the stand base socket with the end of the stand arm, then push them together until they click and lock into place.

Gently attempt to pull them back apart to check that they have properly engaged.

Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

You should position the monitor and angle the screen to

minimize unwanted reflections from other light sources.

7 How to assemble your monitor hardware

2. Connect the PC video cable.

Do not use both DVI-D cable and D-Sub cable on the same PC. The only case in which both cables can be used is if they are connected to two different PCs with appropriate video systems.

Connect one end of the DVI-D cable to the monitor DVI-D socket and the other end to the DVI-D port on your computer. (optional)

The DVI-D format is used for direct digital connection

between source video and digital LCD monitors or projectors. The digital video signals produce a superior quality picture than analog video signals.

Connect the plug of the D-Sub cable (at the end without the ferrite filter) to the monitor D-Sub socket. Connect the other plug of the D-Sub cable (at the end with the ferrite filter) to the computer video D-Sub socket.

Tighten all finger screws to prevent the plugs from accidently falling out during use.

Either

3. Connect the audio cable.

Connect the audio cable between the socket on the rear of

the monitor and your computer audio outlet.

If you wish, you may connect an earphone into the

earphone socket located on the side panel of the monitor.

8 How to assemble your monitor hardware

4. Connect the power cable to the monitor.

Plug one end of the power cord into the socket labelled ‘POWER IN’ on the rear of the monitor. Do not connect the other end to a power point just yet.

5. Route the cables via the cable clip.

Release the cable retaining clip by squeezing the clip inwards as illustrated. Position the cables together and reinsert the clip over them to retain the cables neatly in place behind the monitor stand.

6. Connect-to and turn-on the power.

Plug the other end of the power cord into a power outlet and turn it on.

Picture may differ from product supplied for your region.

Turn on the monitor by pressing the power button on the front of the monitor.

Turn on the computer too, and follow the instructions in Section 4:

on page 13

Getting the most from your BenQ monitor

to install the monitor software.

9 How to assemble your monitor hardware

How to detach the stand base

1. Prepare the monitor and area.

Turn off the monitor and the power before unplugging the power cable. Turn off the computer before unplugging the monitor signal cable.

Protect the monitor and screen by clearing a flat open area on your desk and placing a soft item like a towel on the desk for padding, before laying the screen face down on a flat clean padded surface.

2. Release the locking clip on one side of the stand base while pulling the edge of the base away from the stand arm.

3. Release the other locking clip to detach the stand base from the monitor stand arm.

10 How to assemble your monitor hardware

How to use the monitor wall mounting kit

The back of your LCD monitor has a VESA standard mount with 100mm pattern, allowing the installation of a wall mount bracket. Before starting to install a monitor wall mounting kit, please read the precautions carefully.

Precautions:

• Install your monitor and monitor mounting kit on a wall with flat surface.

• Ensure that the wall material is stable to support the weight of the monitor.

• Turn off the monitor and the power before disconnecting the cables from the LCD monitor.

1. Remove the monitor base.

Lay the screen face down on a clean and well-padded surface. Detach the monitor base as instructed in “

detach the stand base on page 10

.”

How to

2. Remove the monitor stand.

Use a a cross-pointed screwdriver to release the screws that fixing the monitor stand to the monitor.

The use of a magnetic-head screwdriver is recommended to avoid of losing the screws.

Then pull the monitor stand backward away from the monitor.

In case you intend to use your monitor on the stand in the

future, please keep the monitor base, monitor stand, and screws somewhere safe for future use.

11 How to assemble your monitor hardware

3. Remove the rear cover.

Slide the rear cover back toward you to remove it. The screw plate at the back of the monitor could be revealed.

4. Follow the instruction manuals of the wall mount bracket you purchased to complete the installation.

12 How to assemble your monitor hardware

4. Getting the most from your BenQ monitor

To gain the most benefit from your new BenQ color LCD flat screen monitor, you should install the custom BenQ LCD Monitor driver software as provided on the BenQ LCD Monitor CD-ROM.

The circumstances under which you connect and install your BenQ LCD Monitor will determine which process you need to follow to successfully install the BenQ LCD Monitor driver software. These circumstances relate to which version of Microsoft Windows you are using, and whether you are connecting the monitor and installing the software onto a new computer (without existing monitor driver software), or whether you are upgrading an existing installation (which already has existing monitor driver software) with a newer monitor.

In either case however, the very next time you turn on your computer (after connecting the monitor to your computer), Windows will automatically recognise the new (or different) hardware, and will launch its Found New Hardware wizard.

Follow the wizard instructions until it asks you to select a monitor model. At that point, click the Have Disk button, insert the BenQ LCD Monitor CD-ROM and select the appropriate monitor model. Further details and step-by-step instructions for both an automatic (new) or upgrade (existing) installation follow. See:

• How to install the monitor on a new computer on page 14.

• How to upgrade the monitor on an existing computer on page 15

If you require a User Name and Password to login to your Windows computer, you must be logged on as an Administrator or as a member of the Administrators group in order to install the monitor driver software. Furthermore, if your computer is connected to a network which has security access requirements, network policy settings may prevent you from installing software on your computer.

13 Getting the most from your BenQ monitor
