Benq FP547 User Manual [ru]
BenQ FP547
LCD Color Monitor
15.0" (38.1cm) LCD Panel Size
User's Manual
BenQ LCD Color Monitor User's Guide
Copyright
Disclaimer
Safety=
Instructions
Copyright © 2002 by BENQ Corporation (formerly Acer Communications & Multimedia Inc.). All
rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in
a retrieval system or translated into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior
written permission of BENQ Corporation.
BENQ Corporation makes no representations or warranties, either expressed or implied, with
respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness
for any particular purpose. Further, BENQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BENQ
Corporation to notify any person of such revision or changes.
1. The AC plug isolates this equipment from the AC supply.
2. Unplug this product from the wall outlet before cleaning. Clean the LCD monitor surface with
a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner.
3. Slots and openings on the back or top of the cabinet are provided for ventilation. They must
not be blocked or covered. This product should never be placed near or over a radiator or
heat register, or in a built-in installation unless proper ventilation is provided.
4. This product should be operated from the type of power indicated on the marking label. If you
are not sure of the type of power available, consult your dealer or local power company.
5. Never push objects of any kind, or spill liquid of any kind into this product.
6. Do not attempt to service this product yourself, as opening or removing covers may expose
you to dangerous voltages or other risks. If any above mentioned misuse or other accident
(dropping, mis-operations) occurs, contact qualified service personnel for servicing.
7. The power supply cord serves as a power disconnect device for pluggable equipment. The
socket outlet shall be installed near the equipment and shall be easily accessible.
English 1
====
======Ta b l e
==========of
===Contents
BenQ LCD Color Monitor User's Guide
Unpacking ............................................................................................................ 3
Views of the Monitor .......................................................................................... 4
Front View ....................................................................................................................................................... 4
Back View (1) ..................................................................................................................................................4
Back View (2): Locations of plugs & sockets ............................................................................................5
Installation ........................................................................................................... 6
Hardware Installation ....................................................................................................................................6
Software Installation ...................................................................................................................................... 7
Adjusting the Monitor ...................................................................................... 33
A Look at the Control Panel .....................................................................................................................33
Hot Key Mode ..............................................................................................................................................33
Main Menu Mode ..........................................................................................................................................34
Troubleshooting ................................................................................................ 39
Frequently Asked Questions (FAQ) ........................................................................................................39
Need More Help? .........................................................................................................................................40
Supported operating modes ............................................................................ 41
Specifications ..................................................................................................... 42
English 2
BenQ LCD Color Monitor User's Guide
Unpacking
Please check you have the following items. If they are missing or are damaged, please contact the
dealer at which you purchased the goods.
LCD monitor with undetachable signal cable
Exit Enter
Quick Start Guide
CD-ROM
Power Cord
Extension Base
English 3
Views of the Monitor
Front View
BenQ LCD Color Monitor User's Guide
Exit Enter
Back View (1)
English 4
Back View (2): Locations of plugs & sockets
BenQ LCD Color Monitor User's Guide
1
2
1. Power cord 2. Signal cable
English 5
BenQ LCD Color Monitor User's Guide
Installation
Hardware Installation
A. Make sure that the computer and monitor’s power are both turned off. Please follow
the steps to install your LCD monitor.
Place the arrow on the base and the front side
of the monitor in corresponding direction. The
arrow on the base indicates the front of the
base. Place the monitor into the base until it
locks into place. There will be a clicking sound.
Exit Enter
Place the monitor face down on a soft surface. Hold the back of the monitor with one hand.
Using the other hand, press the release button on the base and push outward in the direction of
the arrow to detach the base extension.
B. Connect the signal cable to the VGA output of the graphics card on the computer.
C.Connect the power cord at the back of the monitor to an AC power socket. Please
make sure that the socket is not blocked or covered, so you can disconnect the unit
from AC supply if you need to. Your monitor is equipped with an automatic power supply for a voltage range from 100 to 240 Volt at a frequency of 50 to 60 Hz. Be sure that
your local power is within the supported range. If you are unsure, ask your electricity
supplier.
Signal Cable
Power Cord
English 6
BenQ LCD Color Monitor User's Guide
Software Installation
A. Microsoft® Windows® 95 / 98 / 2000
If you are using Windows 95, Windows 98 or Windows 2000 as an operating system, you have to
set up the correct monitor driver.
Windows 95 The first time you start Windows with a new monitor, the system will detect it
and automatically install the driver for plug and play displays. To install the current driver from CD,
proceed as follows:
1. Insert “BenQ LCD Monitor” CD-ROM into your CD-ROM Driver.
2. Click “Start” then “Settings”.

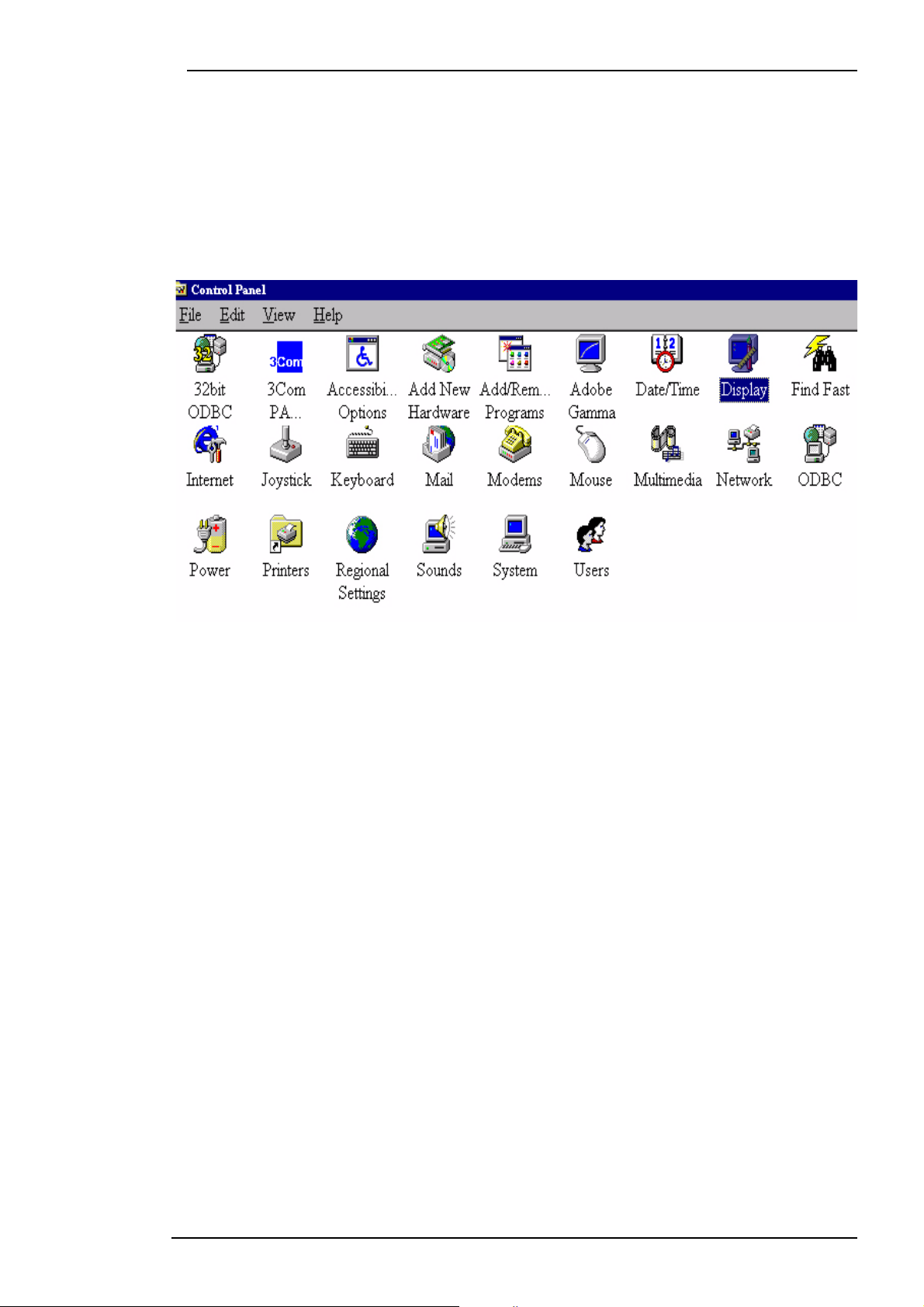

3. Double click the “Display” icon in the Control Panel.
English 7
BenQ LCD Color Monitor User's Guide
4. From the “Display Properties” window, select the “Settings” tab. Click the “Advanced
Properties” button in the bottom right corner.
5. Select the “Monitor” tab. Click the “Change” button in the top right corner.
English 8
BenQ LCD Color Monitor User's Guide

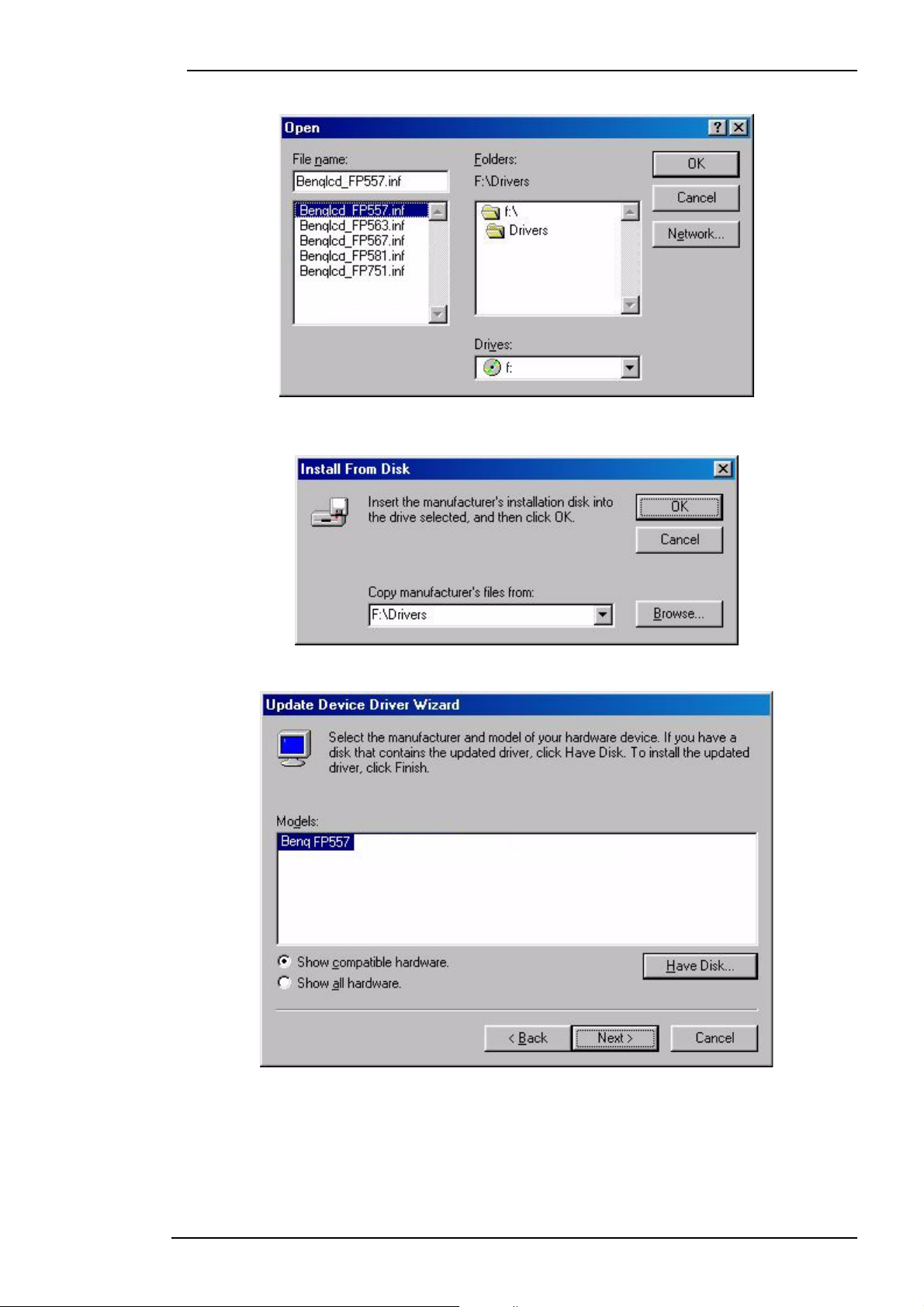

6. Now click the “Have Disk” button in the bottom right corner. Another window appears,
select the “Browse” button.

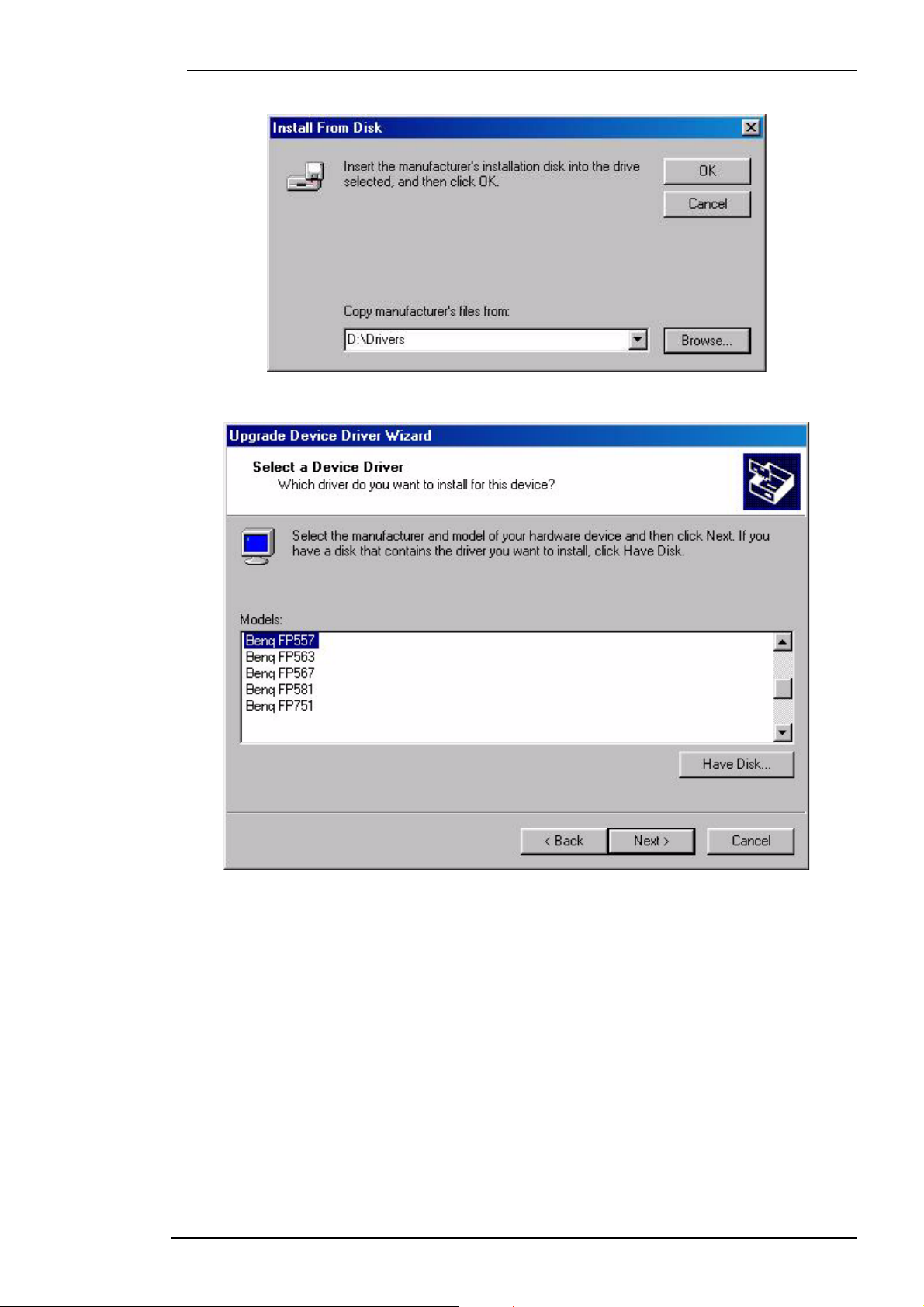

7. Insert the supplied CD into your computer. Select the CD-drive from the drop-down menu.
8. In the field above the drive selection, change to the “Drivers” folder. The current driver files
are located there. Press “OK” and the window closes.
English 9
BenQ LCD Color Monitor User's Guide
9. By pressing “OK” again in the next window you will be given a list of compatible devices.
Select “FP547” from the list and press “OK” again.

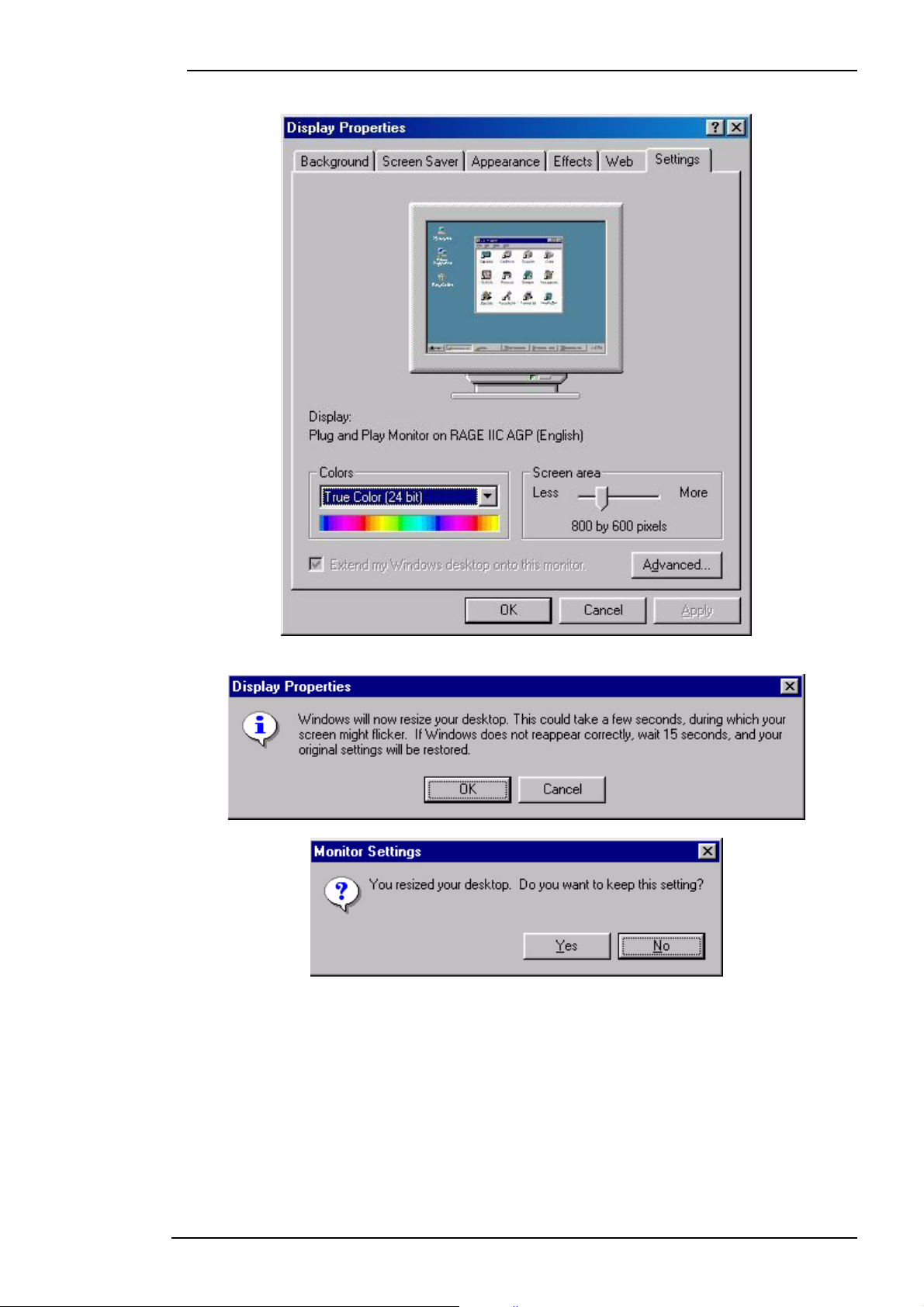

10. You are now back at “Advanced Display Properties”. Close this window by clicking “OK”
and confirm the following messages with “Ye s ”. Click “OK” and “Ye s” again. The installation
is now completed. You can close “Display Properties”.
English 10
BenQ LCD Color Monitor User's Guide
Windows98. To manually install or update the driver, perform the following steps:

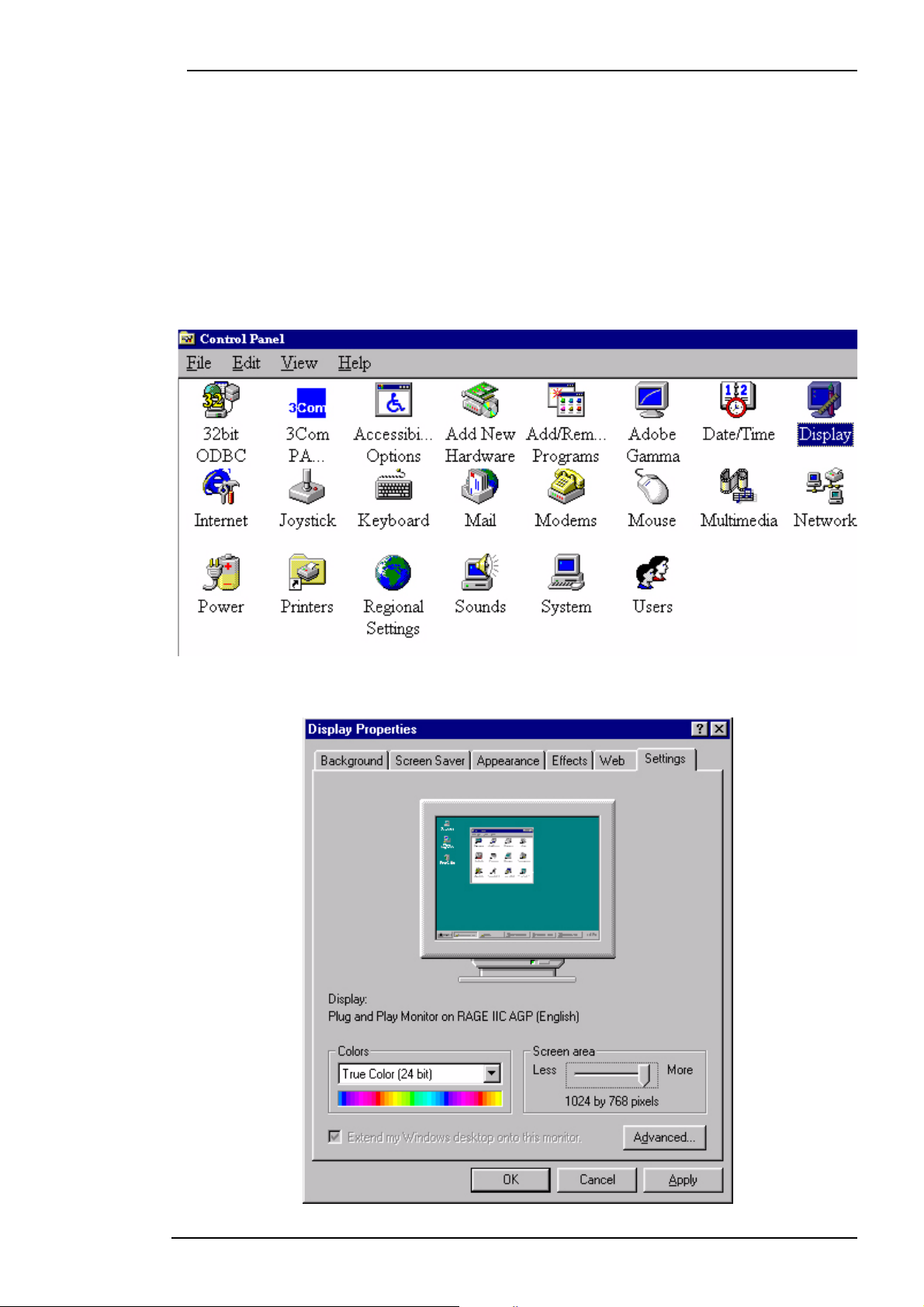

1. Open the control panel and double-click “Display” icon.
2. From the "Display Properties" window, select the "Settings" tab. Click the "Advanced..."
button in the bottom right corner. .
English 11
BenQ LCD Color Monitor User's Guide
3. Select the “Monitor” tab. Click the “Change” button in the top right corner. .

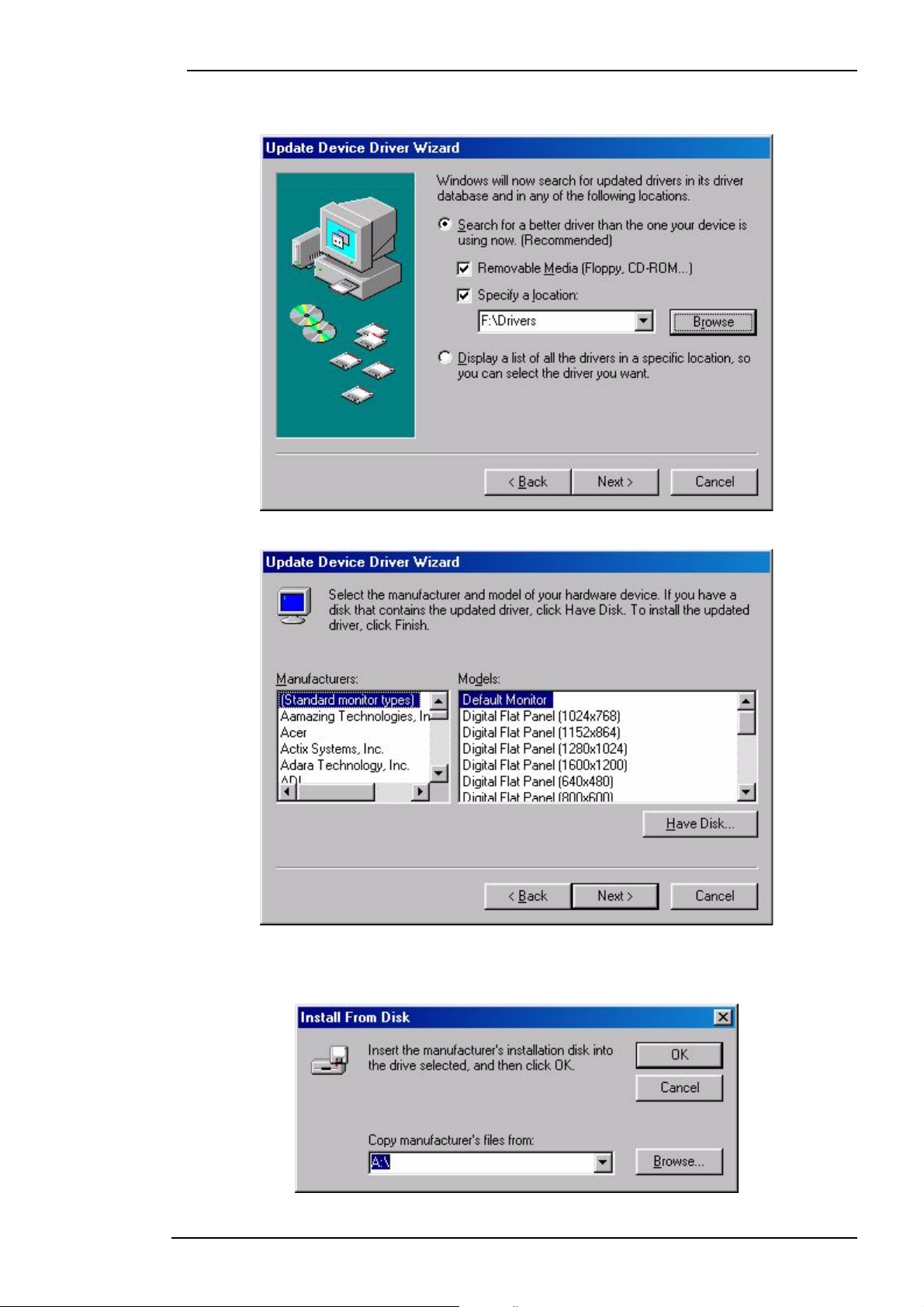

4. The "Update Device Driver Wizard" opens. Confirm by clicking "Next".
English 12
